User Manual for your Baumatic
BEDD600SS
60 cm Downdraft Cooker Hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 30/05/15
BEDD600SS
60 cm Downdraft
cooker hood

3
Contents Page
Environmental note 4
IMPORTANT SAFETY INFORMATION 5 –7
Specifications of your cooker hood 8
Using your Baumatic cooker hood 9 - 12
Before first use 9
To use your cooker hood 9 - 12
Cleaning your Baumatic cooker hood 13
The grease filter 13
Maintenance 13 - 15
Removing and cleaning the grease filters 13 - 14
Changing a light bulb 14 - 15
Installation 16 - 20
Electrical connection 16
Before beginning installation 17
Installing your cooker hood 17 –20
Completing the installation 20
Troubleshooting 21 - 22
Contact details 22

4

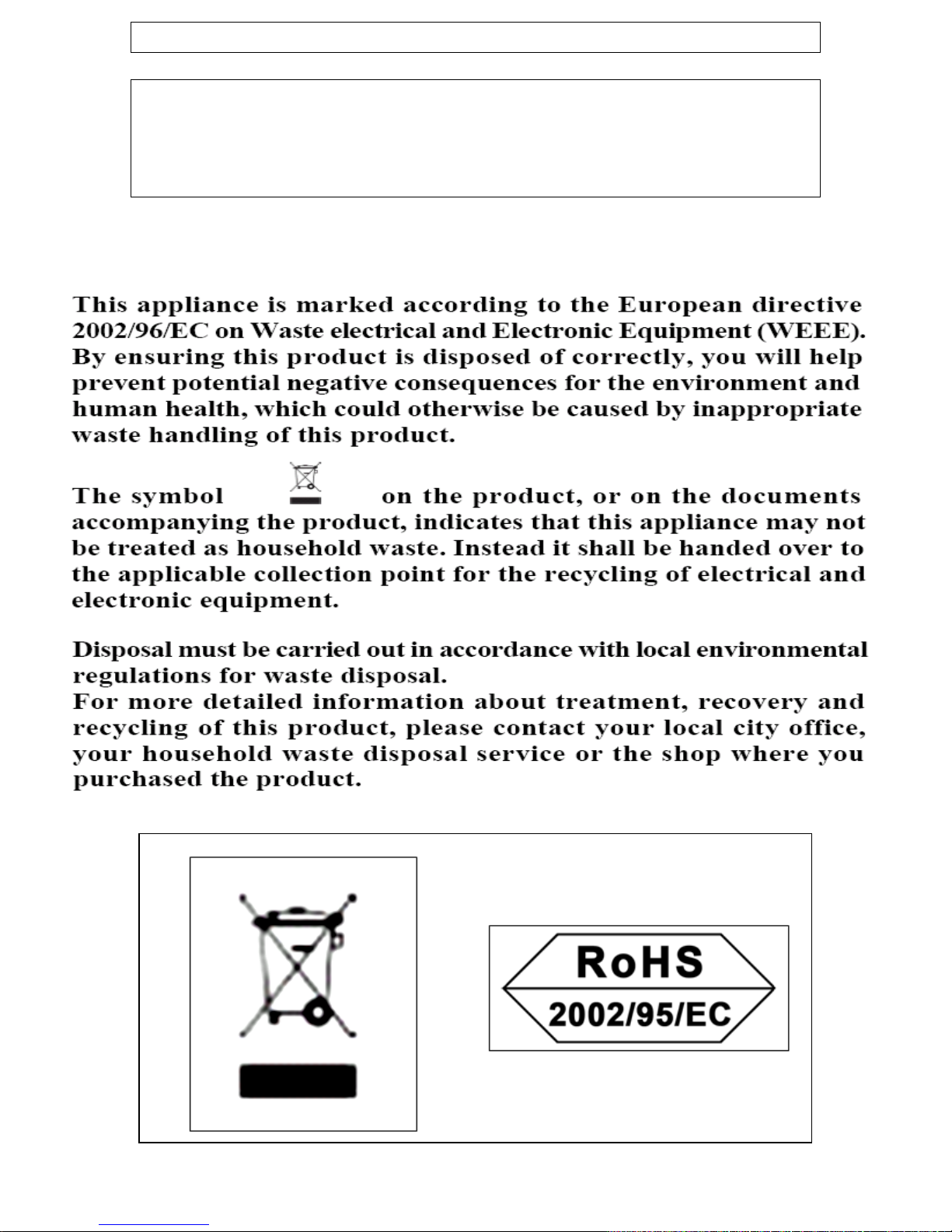

ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
CONFORMITY TO W.E.E.E. DIRECTIVE

5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Customer Care
Department.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIMPORTANT: This appliance cannot be installed next to a
gas hob.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed from the edge of the
cooker hood:-
Edge of worktop: 15 mm
Electric hob: 10 mm
oThe edges of the cooker hood are sharp –be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTER!
oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.

6
oWhen the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with or
tampering with the cooker hood. Older children
and infirm persons should be supervised if they
are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully –children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking.
oThe manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.
oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
oNote: Your cooker hood is designed to remove cooking
odours from the room and not steam.

7
oWarning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
oDo not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oNever leave frying pans unattended during use
as overheated fats and oils might catch fire.
oThe lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device next to it, i.e. electric hob zones without
a pan on them.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filter fitted or if
the filter is excessively greasy!
oNever flambé cook next to this cooker hood.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.

8

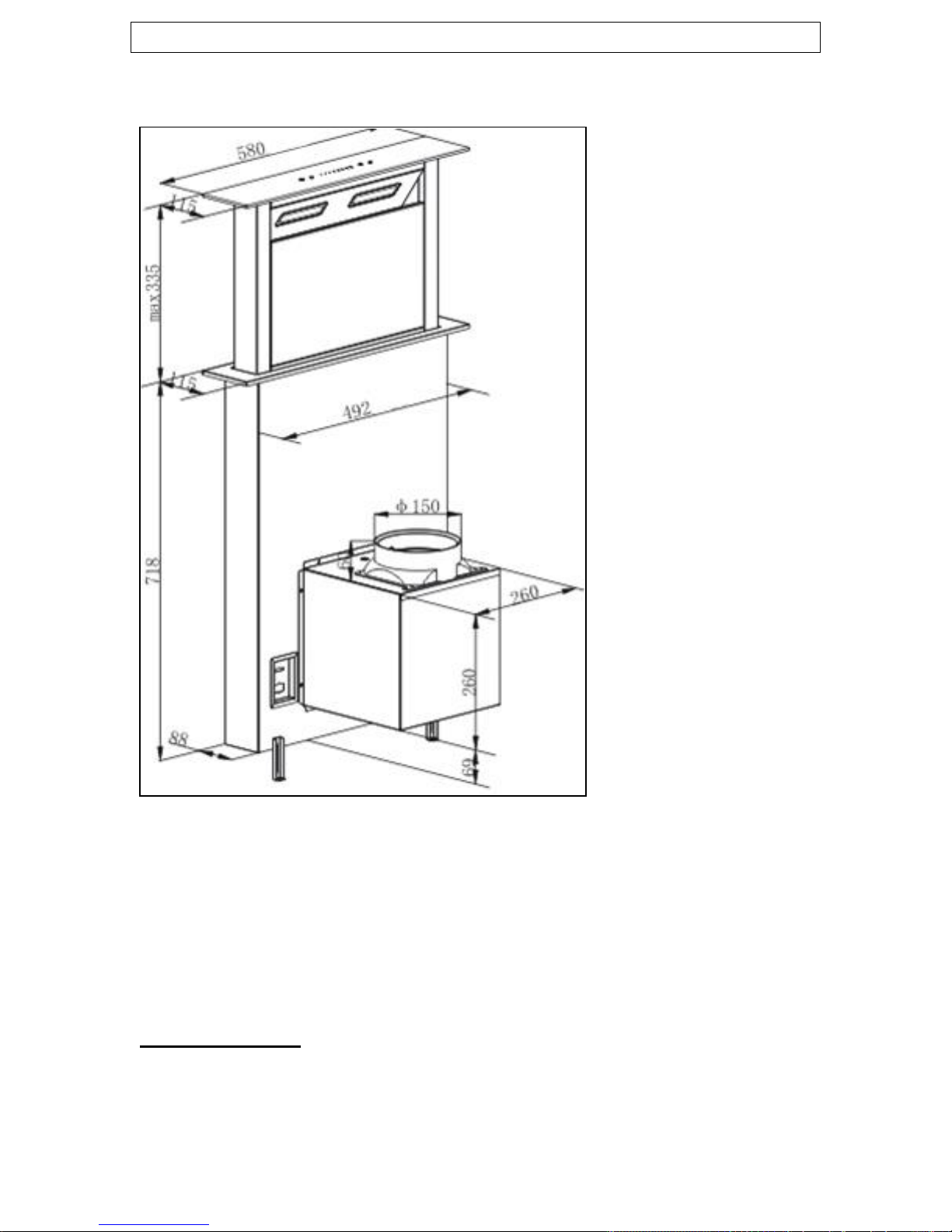

Specifications of your cooker hood
BEDD600SS
PRODUCT
DIMENSIONS
Height: 1053 mm
Width: 580 mm
Depth: 115 mm
Your cooker hood is fitted with:
oSlider control operation
o4 Speeds
oWashable metallic grease filter
o2 x LED lights
oExtraction only
Optional extras (Available from the Baumatic Spares Department):
DK5: 1 Metre length Ducting Kit 125 mm Ø.
DK10: 3 Metre length Ducting Kit 125 mm Ø with flat channelling
included.

9
Using your Baumatic cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE COOKER HOOD IS USED FOR THE FIRST
TIME.
oYou should use a good quality stainless steel cleaner and polish
on ALL of the stainless steel areas of your cooker hood, before it
is used for the first time.
oThis will help to leave a silicone water-resistant film to protect
the stainless steel surfaces.
To use your cooker hood
oMake sure that it has been installed by a suitably qualified
person, as per the information contained in Baumatic’s
installation instructions.

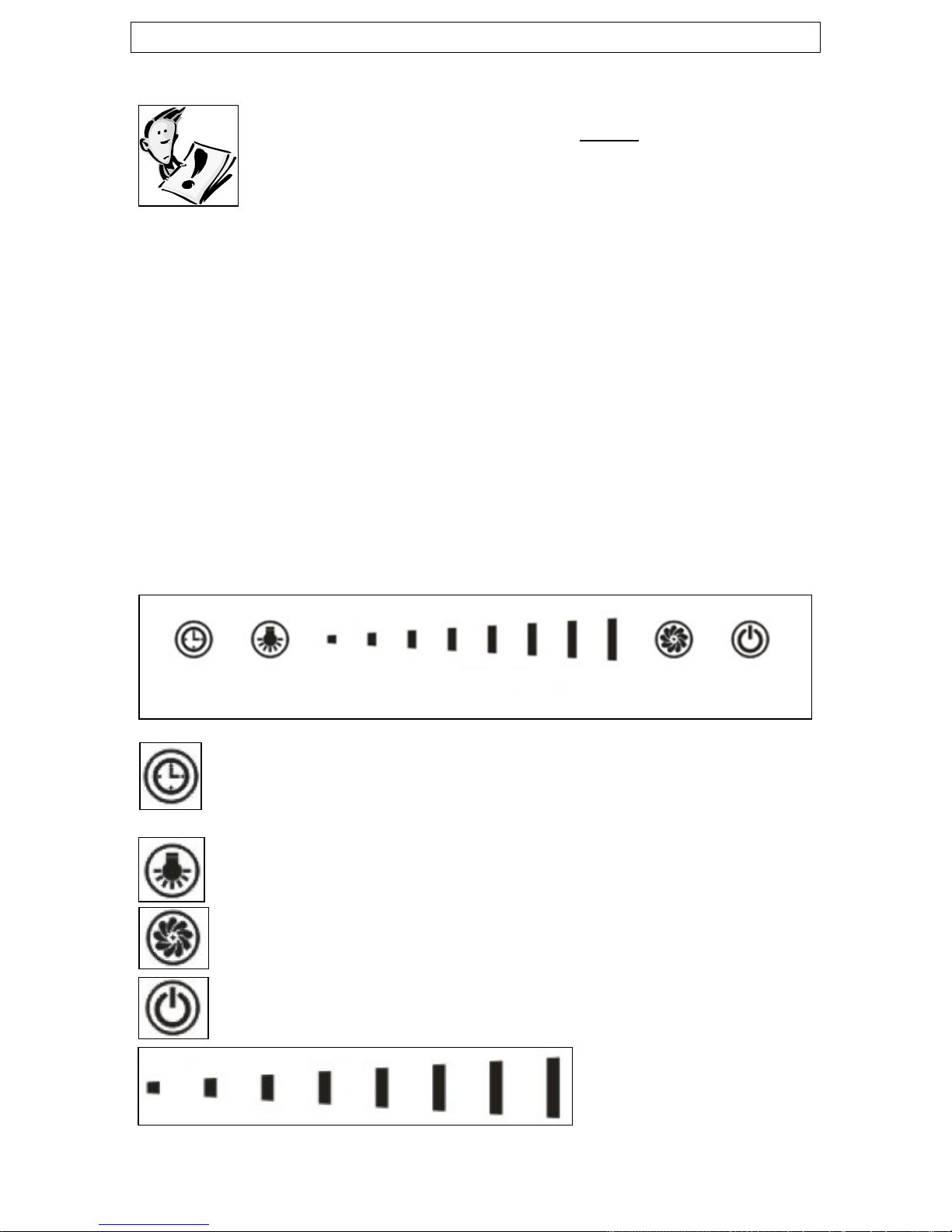

oThere are several buttons on the control panel, which perform
separate functions.
Timer button
Light control button
Speed selection button
Power button
Slider control

10
Switching on the cooker hood
oAfter you have connected the cooker hood to the mains supply
the backlight will switch on. The backlight will switch off after 5
seconds and the hood will enter stand-by mode.
oIMPORTANT: BEFORE SWITCHING THE COOKER HOOD ON,
YOU MUST ENSURE THERE ARE NO SAUCEPANS OR
OBJECTS PLACED ON TOP OF THE GLASS SURFACE.
oIF THE HOOD IS RAISED WITH AN OBJECT PLACED ON IT,
IT WILL PLACE EXCESSIVE STRAIN ON THE MOTOR AND
MAY CAUSE THE UNIT TO FAIL PREMATURELY. MISUSE OF
THIS NATURE WOULD NOT BE COVERED UNDER THE
MANUFACTURER’S GUARANTEE.

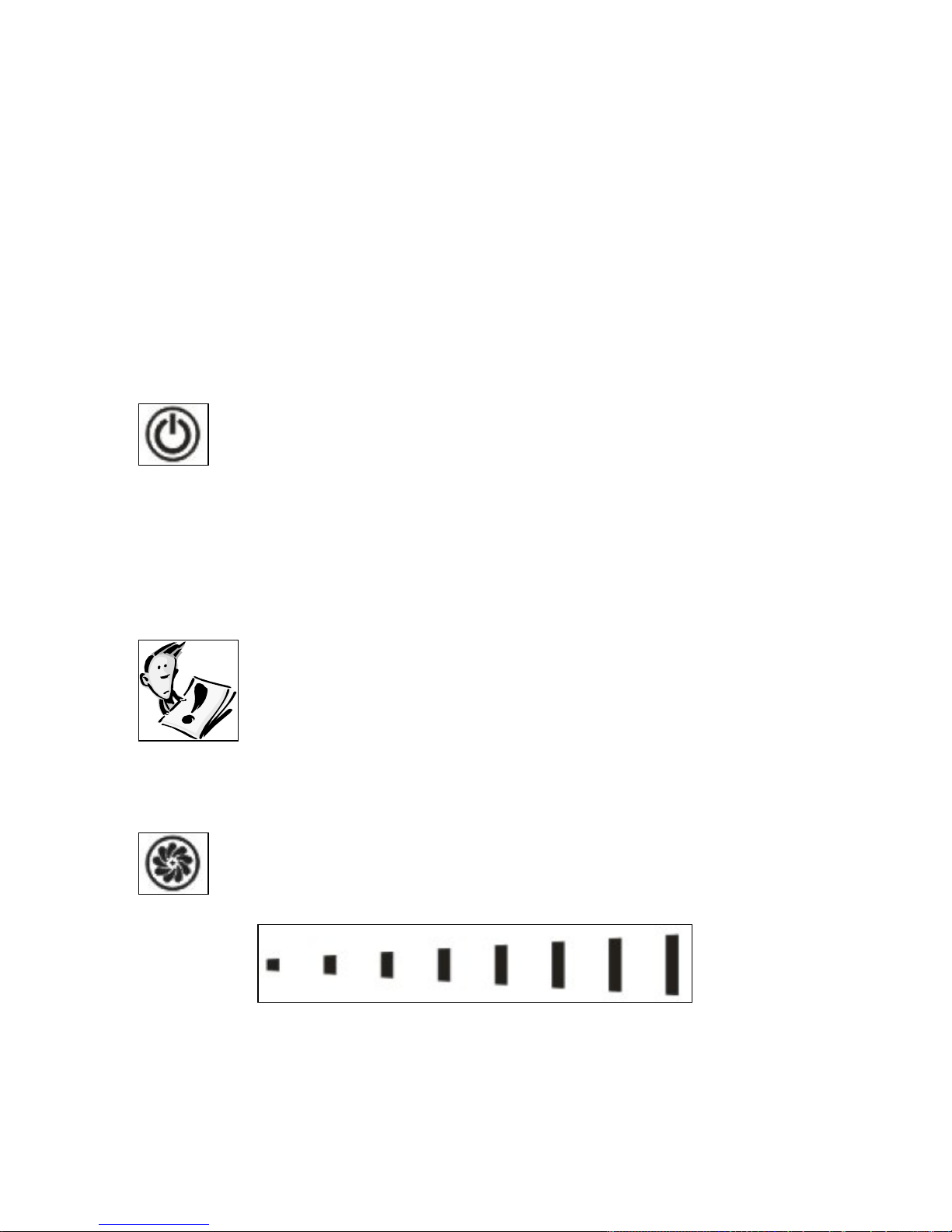

oPress and hold the power button for 2 seconds to switch
the cooker hood on. The hood will start to slide
upwards.
oWhen the cooker hood is fully raised, it will start to operate
automatically on speed 1.
oThe rest of the cooker hood functions can only be operated when
the hood is fully raised.
IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR
HOOD TEN MINUTES BEFORE YOU START TO COOK,
OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.
YOU SHOULD ALSO RUN YOUR HOOD FOR TEN
MINUTES AFTER YOU HAVE FINISHED COOKING.
Speed selection
oPress the speed selection button to turn the speed
selection function on and off. When you have turned the
speed selection function on, you can then use the slider
control to choose an operating speed for the motor.
oThe slider control has a total of 4 settings and 8 indicator lights
so each speed has 2 correlating indicator lights.

11
oWhen you use the slider control to choose a speed the cooker
hood will operate at the selected speed. If no adjustments are
made after 15 seconds the indicator lights will turn off and the
hood will operate at the chosen speed.
oThe next time you use your cooker hood, the motor will operate
at the speed which was last selected.
Light control

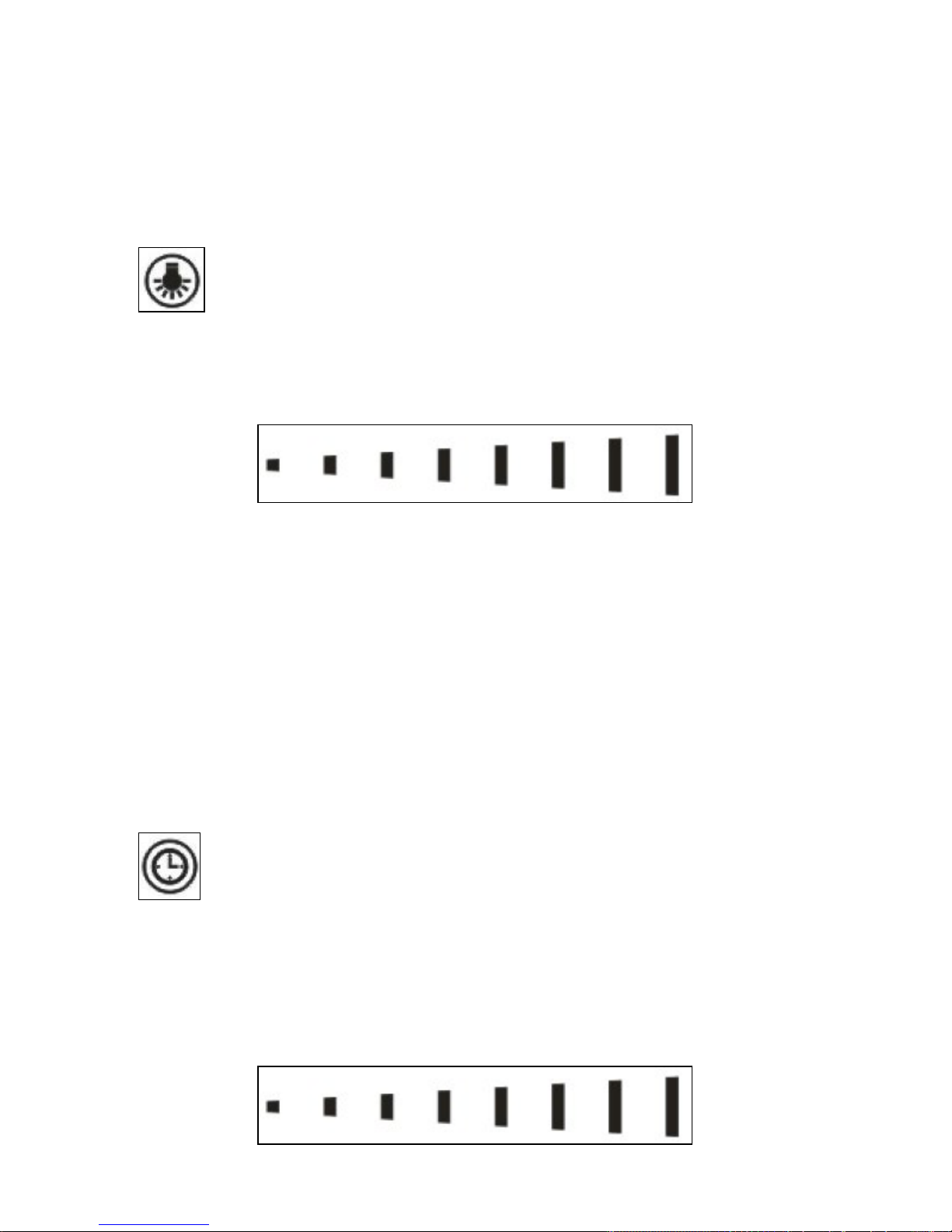

oPress the light control button to switch the LED lights on
and off.
oAfter you have pressed the light control button to turn the lights
on, you can then use the slider control to adjust the brightness
of the lights.
oThere are 8 light brightness settings on the slider control with an
indicator light for each setting. If no adjustments are made after
15 seconds the indicator lights will turn off and the LED lights
will operate at the chosen brightness.
oThe next time you use your cooker hood, the lights will operate
at the previously selected brightness.
The timer
oYou are able to program a countdown time for the cooker hood.
After the set time has elapsed the hood will automatically switch
off.
oAfter you have selected your desired speed and light
brightness, press the timer button to enter the timer
setting mode.
oYou can then use the slider control to choose from 8 timer
settings. There is an indicator light for each timer setting. You
can choose from:
5 –10 –15 –20 –25 –30 –35 –40 minutes

12
oWhen the indicator light for the required setting is lit press the
timer button again to confirm the countdown time. Or the time
will set after 5 seconds.
oIMPORTANT: After the countdown time has been set, if
the speed or light brightness is altered the timer setting
will be automatically cancelled.
oWhen the countdown time is reached the hood will stop
operating.
oThe next time you use your hood and press the timer button the
hood will enter into the previously set countdown time.
Switching off the cooker hood
oPress and hold the power button for 3 seconds to switch
the cooker hood off. The hood will return to the lowered
position into the worktop.
Cleaning your Baumatic cooker hood
IMPORTANT: BEFORE CLEANING, ALWAYS
ENSURE THAT YOU HAVE SWITCHED YOUR
COOKER HOOD OFF AT THE OMNI-POLAR
SWITCH, SET AT THE WALL FROM THE CABLE.
Cleaning
oClean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
oNever use abrasive powder, corrosive solvents or brushes.
oNever insert pointed objects into the motor’s protective grid.
oOnly clean the control panel and grease filter grill with mild liquid
detergents and a new damp cloth.
oNever attempt to clean the area below the grease filter.

13

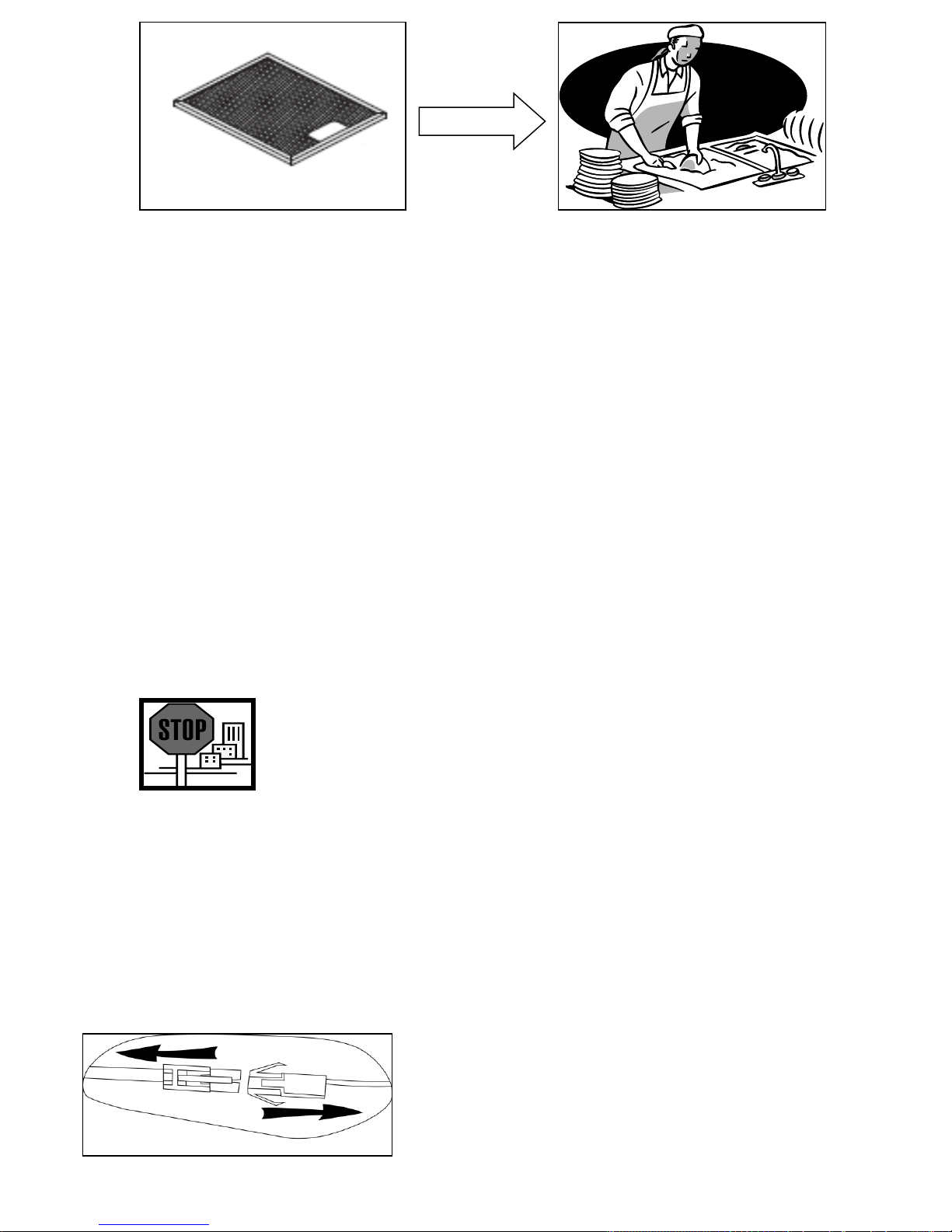

The grease filter
oYour cooker hood is fitted with a grease filter, which help to
absorb grease particles and protect your kitchen and furniture
from greasy residues.
oThe metallic filter may become inflammable if you allow them to
get saturated with this greasy residue.
oTo prevent this fire hazard, the filter should be cleaned regularly.
Depending on use, this should be done every 10-15 days or at
least once a month, using hot water and normal washing-up
detergent.
oDO NOT WASH THE GREASE FILTER IN A DISHWASHER.
Maintenance
Removing and cleaning the grease filter
oSwitch on the cooker hood using the power button, so that it
rises out of the worktop.
oIMPORTANT: Ensure that the cooker hood is running on its
lowest speed.
oOpen the metallic cover and then remove the grease filter by
pulling down on the handle and pulling it away from the cooker
hood.
oIMPORTANT: DO NOT PLACE YOUR HAND INSIDE OF THE
COOKER HOOD WHILST THE GREASE FILTER IS REMOVED.
oSwitch the hood off using the power button, so that the hood
retracts into the worktop.

14
oSoak the grease filter in hot water and washing up liquid for
about an hour.
oRinse it off thoroughly with hot water.
oRepeat the process if required.
oSwitch on the cooker hood using the power button, so that it
rises out of the worktop.
oIMPORTANT: Ensure that the cooker hood is running on its
lowest speed.
oRefit the grease filter once it has dried.
oIMPORTANT: Let the grease filter dry thoroughly before
refitting it in the cooker hood.
Changing a light bulb
IMPORTANT: BEFORE ATTEMPTING TO CHANGE A
LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE
DISCONNECTED THE COOKER HOOD FROM YOUR
MAINS SUPPLY.
oRemove the grease filter (as described on page 13).
oIMPORTANT: YOU MUST DISCONNECT THE COOKER HOOD
FROM THE MAINS ELECTRICITY SUPPLY AT THIS POINT,
BEFORE ATTEMPTING A BULB REPLACEMENT.
oPrior to touching the light bulb, ensure that they have cooled
down.
oDisconnect the light wiring point
which is located within the hood,
(behind the grease filer).

15
oUse a screw driver to prize away the bulb holder from the main
body of the hood. Then remove the bulb and attached wiring
from the hood.
oIMPORTANT: It is not possible to replace the bulbs
individually, it will be necessary to obtain the bulbs, bulb
holders and wiring as a complete part. This is available
from our Spares Department.
oBulb type: LED lamp unit, 3W
oFit the replacement bulb, bulb holders and wiring in the same
manner as the originals.
oReconnect the light wiring point.
oIMPORTANT: Defective bulbs should be replaced immediately.
oRestore power to the appliance and switch on the cooker hood
using the power button, so that it rises out of the worktop.
oIf the light or lights still do not work, make sure that the lamps
are fitted properly into their housings before you call for
technical assistance.
oRefit the grease filter and close the cover screen.

16
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
Electrical connection

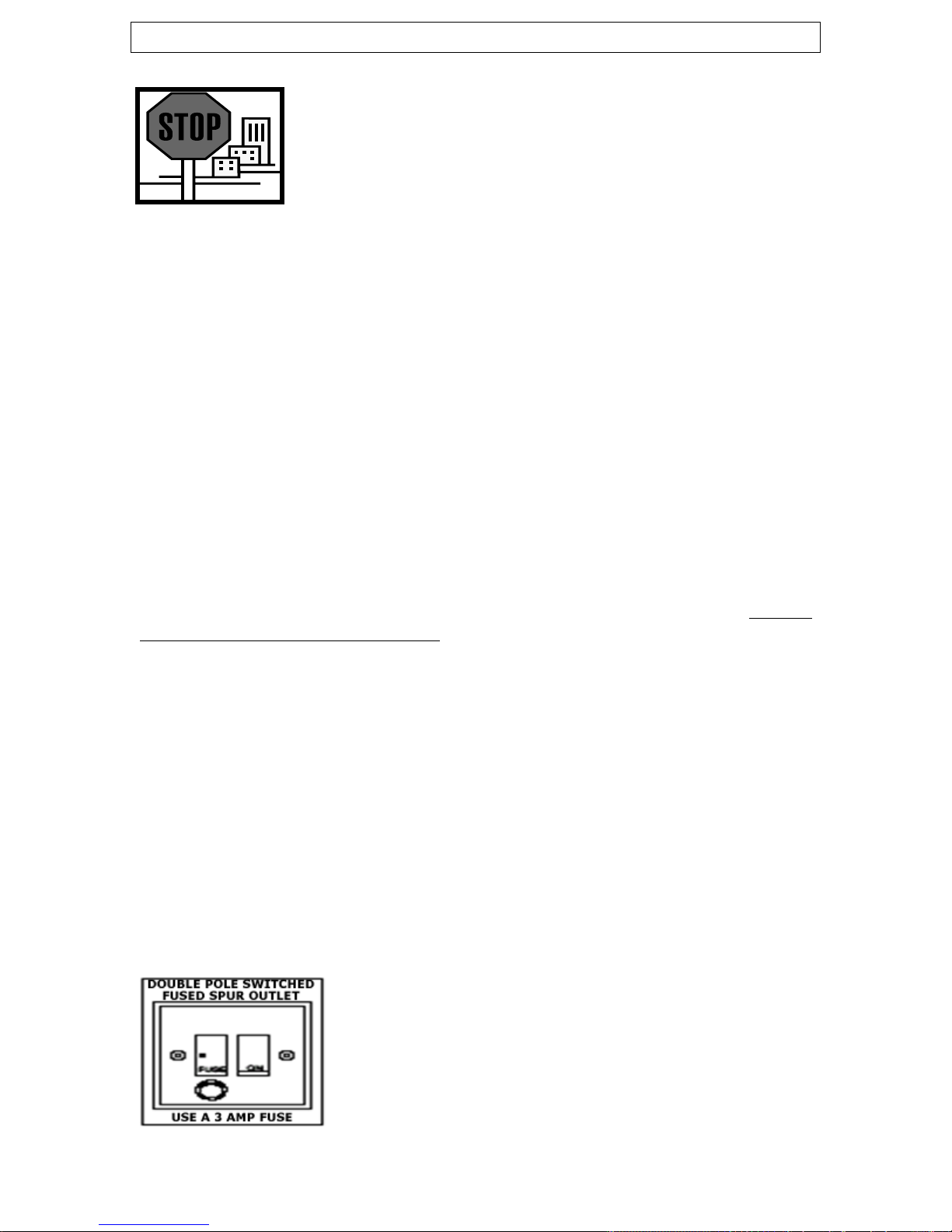

YOUR COOKER HOOD IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
oThe cooker hood’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm. THE FUSE MUST BE RATED AT 3
AMPS.
WARNING: THIS APPLIANCE MUST BE EARTHED. It should only
be connected by a competent person, using fixed wiring via a double
pole switched fused spur outlet. (UK ONLY).
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:
Blue = Neutral, Brown = Live, Green/Yellow = Ground
If you only find two wires in the main’s lead (blue and brown),
then neither must be connected to the earth terminal.
oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
oThe blue wire must be connected to the
terminal marked “N” (neutral), or coloured
black.
oThe brown wire must be connected to the
terminal marked “L” (live), or coloured red.

17
Before beginning installation
oCheck that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
oCarry out all necessary masonry work prior to the fitting of the
cooker hood.
oEnsure that all electrical connections are carried out by a suitably
qualified person.
oCheck inside the product and insure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future use.
oSelect a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood parts
and fittings on to it.
oDo not silicone this appliance to the worktop. This appliance is
designed to be surface mounted only.

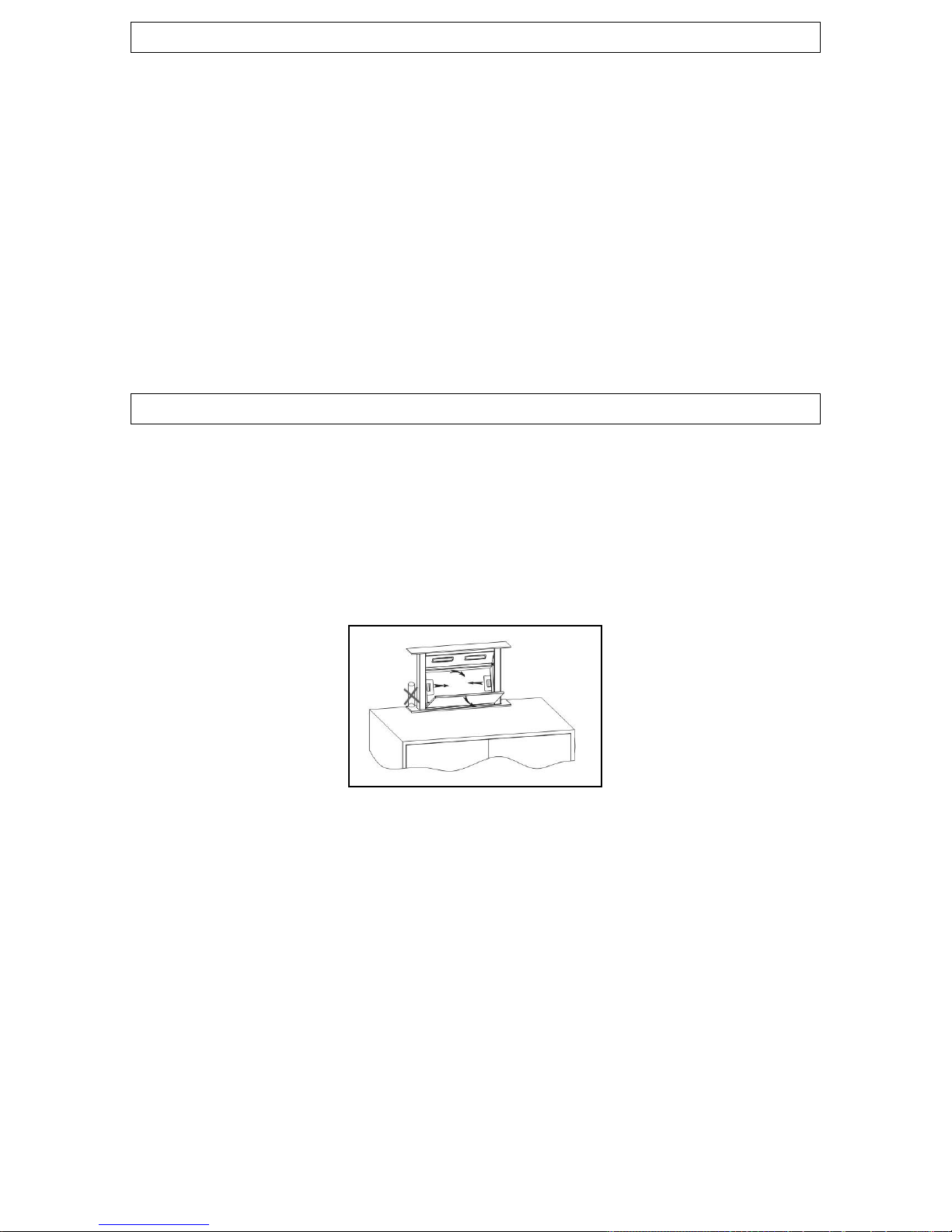

Installing your cooker hood
oWe recommend that at least two people install this hood.
oImages are for reference only. There may be some differences in
general appearance to your hood, however the methods of
installation will be the same.
oWhen installing the hood, ensure that the following
recommended distances are observed from the outer edge of the
cooker hood.
Edge of worktop: 15 mm
Electric hob: 10 mm
oIMPORTANT: The cooker hood should not be installed next
to a gas hob. The total power of any electric hob should
not exceed 9 kW.

18
oCut a hole in the worktop of the dimensions shown in the line
drawing above. IMPORTANT: The long edge of the cut-out
MUST be positioned a minimum of 25 mm away from the
edge of the worktop.
oDepending on the dimensions of the worktop, the cut-out can be
made behind or to the side of a hob. IMPORTANT: Before
finalising the position of the cut out, please check that
you will have sufficient room to fit the hob and leave the
clearance measurements stipulated above.
oInsert the main body of the cooker hood into the cut out in the
worktop.
oUse four ST4 x 8 and four ST4 x 14 screws to secure the main
body of the cooker hood to the housing unit.

19

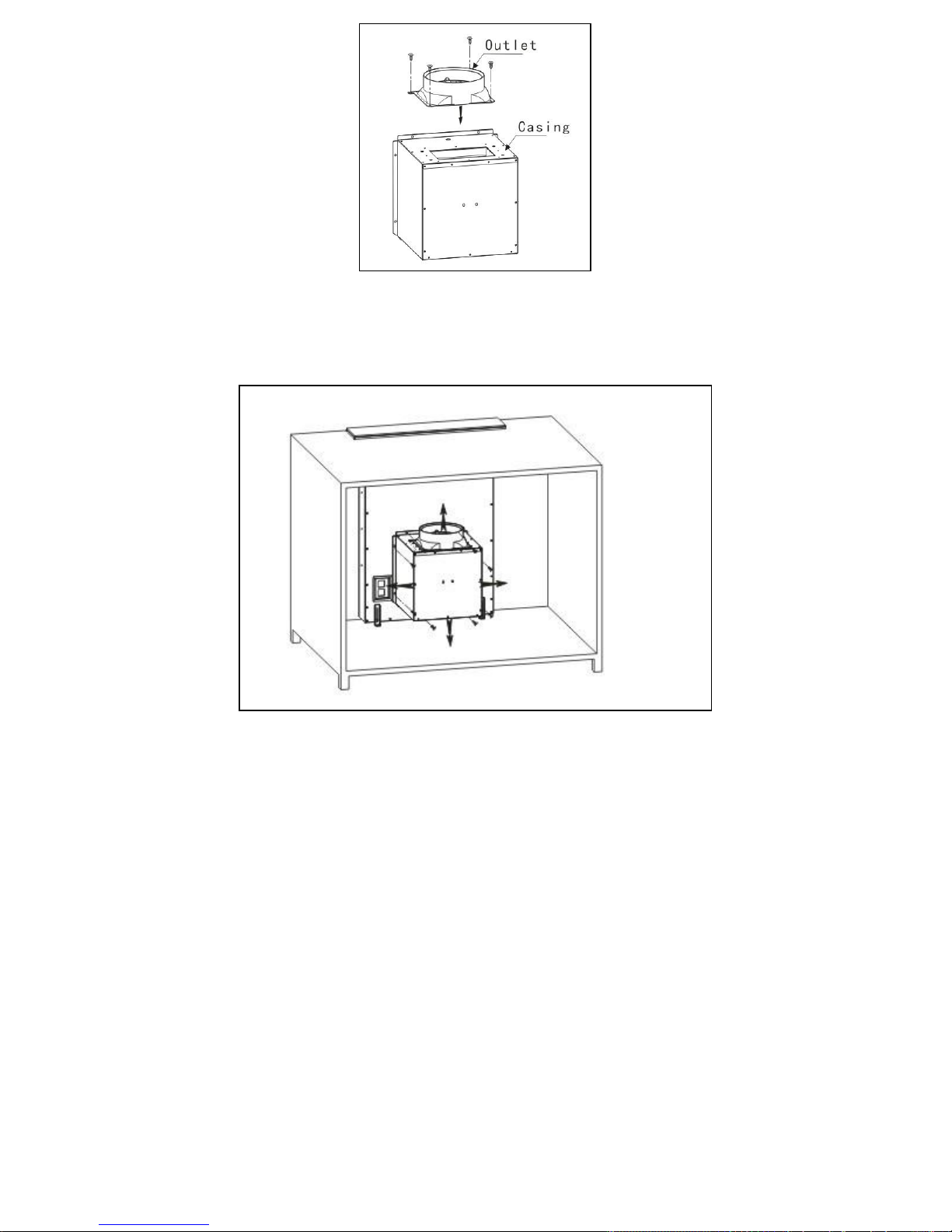

oFit the air outlet to the top of the motor casing and secure it
using four ST4 x 8 screws.
oConnect the casing to the main body of the hood using eight M10
x 10 screws.
oThe side of the casing with the air outlet can be positioned in any
direction, depending on the space of the cabinet. You should also
take into account the direction in which you are going to need to
run the duct hose.
oConnect an appropriately sized ducting hose to the outlet which
you have previously attached to the casing. (Please note that the
ducting hose is not supplied with the appliance).
oThe other end of the ducting hose should be connected to a
discharge outlet that is suitable for cooking vapours. It should
have a cross section of at least 150 cm².

20
oThe maximum distance between the coupling and your discharge
outlet should be 3 metres, with one 90 degree bend. For each
additional 90 degree bend, the maximum distance is reduced by
a further metre.
oUse four ST4 x 14 screws to secure the PCB box to the base of
the unit.
Completing the installation
oThe electrical connection must correspond to the electrical
requirement noted on the rating plate. The appliance should now
be connected to the electrical supply. See page 17 for detailed
information on the electrical connection.
oUse an appropriate cleaner on the accessible areas of the cooker
hood.
oCheck that the appliance is operating correctly by
selecting each speed and switching the light bulbs on
and off.
