Baumatic ISL94.1SS User manual

ISL94.1SS
Cooker Hood

User Manual for your Baumatic
ISL94.1SS Cooker
Hood
90 cm Island Chimney Hood in Stainless
Steel
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.
1

YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3
IMPORTANT SAFETY INFORMATION……………………………….…4-5
CARING FOR THE ENVIRONMENT…………………………………………6
USING YOUR COOKER HOOD………………………………..……………..7
MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-10
INSTALLATION INSTRUCTIONS ……………………….……...….11-18
CARBON FILTER …………..11
ELECTRICAL CONNECTION……………12
INSTALLING THE COOKER HOOD….….13-17
INSTALLATION NOTES – EXTRACTION / PURIFYING VERSION .….18
TROUBLESHOOTING ……………………………………………19
CONDITIONS OF GUARANTEE……………………………………………20
CONTACT DETAILS…………………………………………………………..21
HT24/08/06
2
CONTENTS

Congratulations on purchasing a Baumatic Cooker
Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
Cooker Hood has been installed properly.
DIMENSIONS
Width (canopy): 900 mm
Depth (canopy): 600 mm
Height (adjustable): 870 mm to 1175 mm
Dimensions of Pipe Section:
380mm X 335mm
Your stainless steel Cooker Hood is fitted with:
•High extraction tangential motor
•Pushbutton control operation
•3 Speeds
•4 Halogen lights
Extraction capacity – 1000 m³/hr
Optional Extras: 1 x pair of H1 carbon filters for air
recirculation.
3
Specifications of your ISL94.1SS Cooker Hood

Important Safety Information: Please Read this before installing & using.
o Any installation work must be
carried out by a qualified
electrician or competent person.
o The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
oIf the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Dptmt.
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood,
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
9Electric cookers:
700 mm
9Gas cookers:
700mm
9Coal/ oil cookers:
800 mm
* NOTE - DO NOT SET YOUR
COOKER HOOD LESS THAN
700mm ABOVE YOUR COOKER!
oWhen installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob & must
hang 50mm or more
away from the side of the
hob surfaces.
oThe edges of the cooker
hood are sharp – be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
oIf other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
4

oEnsure the ducting for
the extractor function
has the same diameter as
the outlet hole all the
way through.
o
Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o
Your cooker hood is for
domestic use only.
o Please dispose of the
packing material
carefully – children are
especially vulnerable to
it.
o
Dirty oil is an even
greater fire risk.
o
Always put lids on pots
and pans when cooking
on a gas cooker.
o The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or its catching on
fire from failure to
observe fire safety advice
in these instructions.
o Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
Important Safety Information: Please Read this before installing & using.
oWarning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
:Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
:Do not install above a
cooker with a high level
grill.
: Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
: Do not leave naked
flames under the cooker
hood.
:Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
: Never flambé cook under
this cooker hood.
5

Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.
CONFORMITY TO W.E.E.E. DIRECTIVE
6
Environmental Note

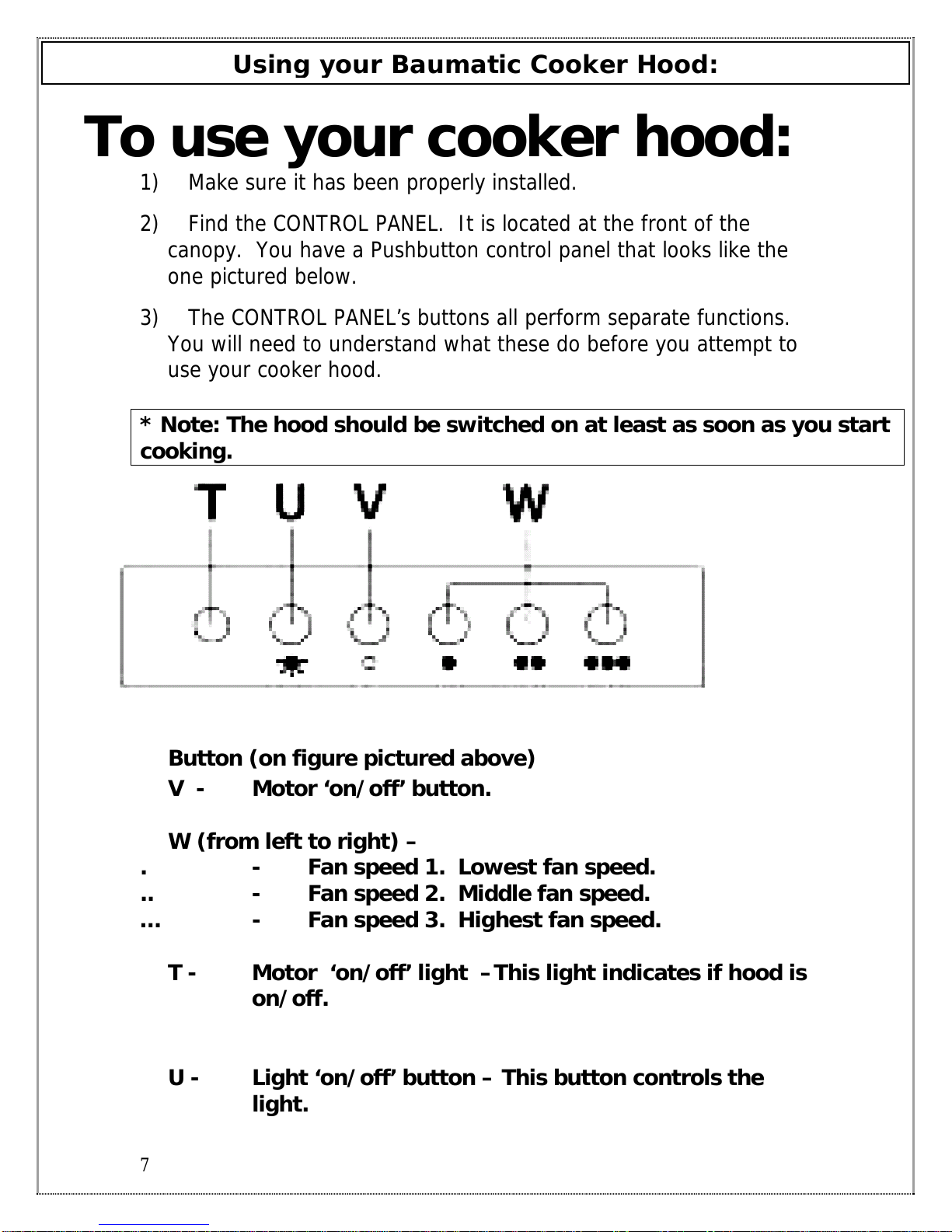

To use your cooker hood:
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located at the front of the
canopy. You have a Pushbutton control panel that looks like the
one pictured below.
3) The CONTROL PANEL’s buttons all perform separate functions.
You will need to understand what these do before you attempt to
use your cooker hood.
* Note: The hood should be switched on at least as soon as you start
cooking.
Button (on figure pictured above)
V - Motor ‘on/off’ button.
W (from left to right) –
. - Fan speed 1. Lowest fan speed.
.. - Fan speed 2. Middle fan speed.
… - Fan speed 3. Highest fan speed.
T - Motor ‘on/off’ light –This light indicates if hood is
on/off.
U - Light ‘on/off’ button – This button controls the
light.
7
Usin
g
y
our Baumatic Cooker Hood:

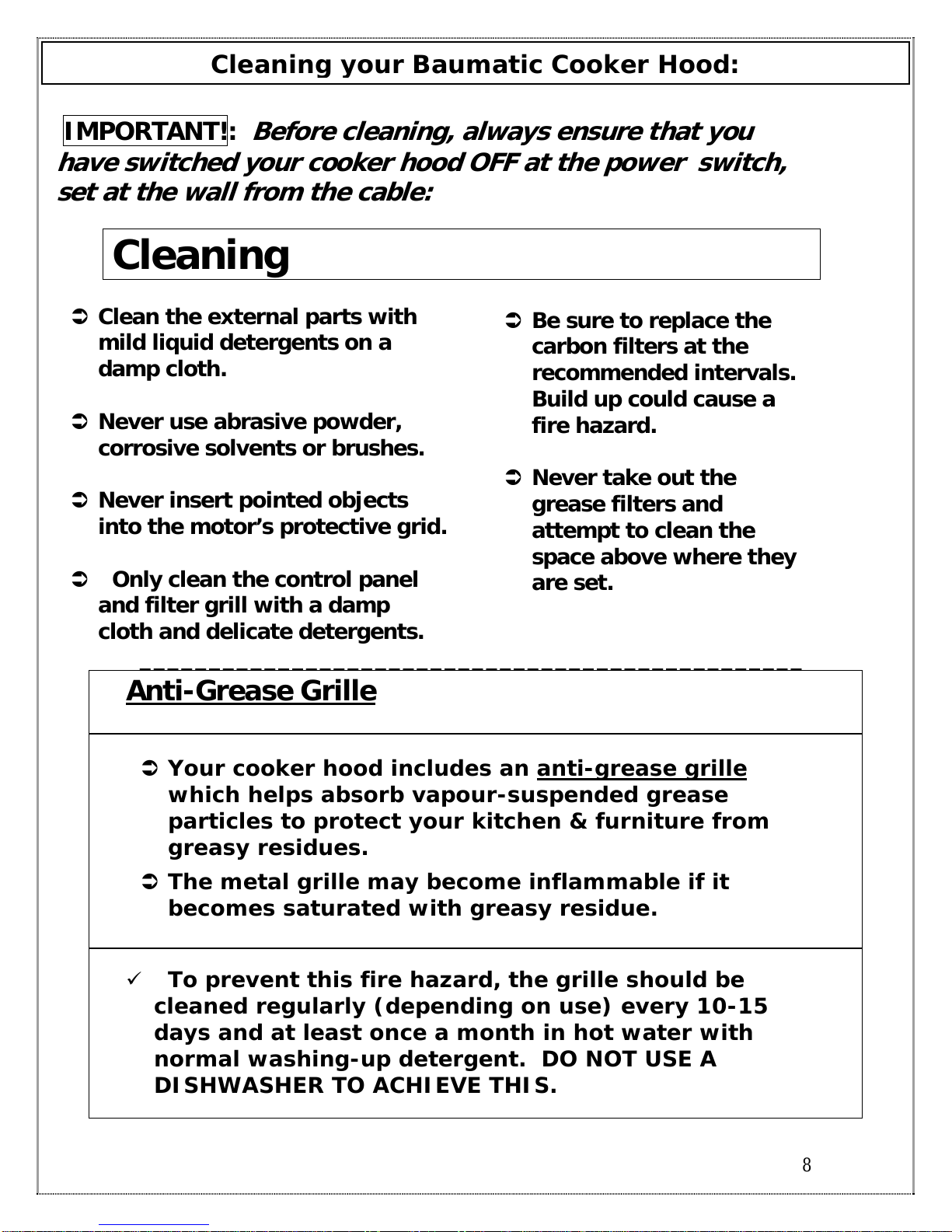

IMPORTANT!: Before cleaning, always ensure that you
have switched your cooker hood OFF at the power switch,
set at the wall from the cable:
Cleaning
ÂClean the external parts with
mild liquid detergents on a
damp cloth.
ÂNever use abrasive powder,
corrosive solvents or brushes.
ÂNever insert pointed objects
into the motor’s protective grid.
ÂOnly clean the control panel
and filter grill with a damp
cloth and delicate detergents.
ÂBe sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
ÂNever take out the
grease filters and
attempt to clean the
space above where they
are set.
________________________________________________
Anti-Grease Grille
ÂYour cooker hood includes an anti-grease grille
which helps absorb vapour-suspended grease
particles to protect your kitchen & furniture from
greasy residues.
ÂThe metal grille may become inflammable if it
becomes saturated with greasy residue.
9To prevent this fire hazard, the grille should be
cleaned regularly (depending on use) every 10-15
days and at least once a month in hot water with
normal washing-up detergent. DO NOT USE A
DISHWASHER TO ACHIEVE THIS.
8
Cleanin
g
y
our Baumatic Cooker Hood:Cleanin
g
y
our Baumatic Cooker Hood:

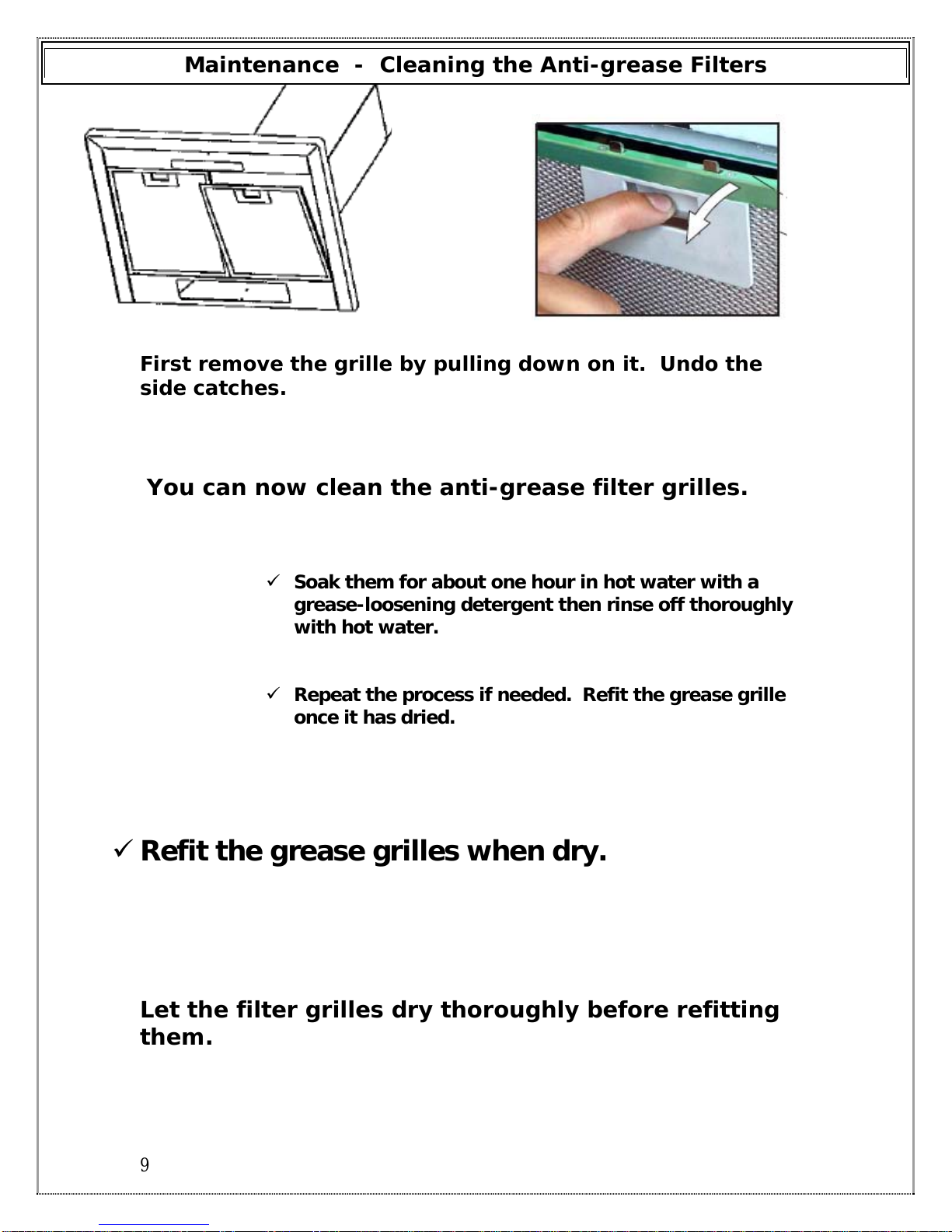

First remove the grille by pulling down on it. Undo the
side catches.
You can now clean the anti-grease filter grilles.
9Soak them for about one hour in hot water with a
grease-loosening detergent then rinse off thoroughly
with hot water.
9Repeat the process if needed. Refit the grease grille
once it has dried.
9Refit the grease grilles when dry.
Let the filter grilles dry thoroughly before refitting
them.
9
Maintenance - Cleaning the Anti-grease Filters

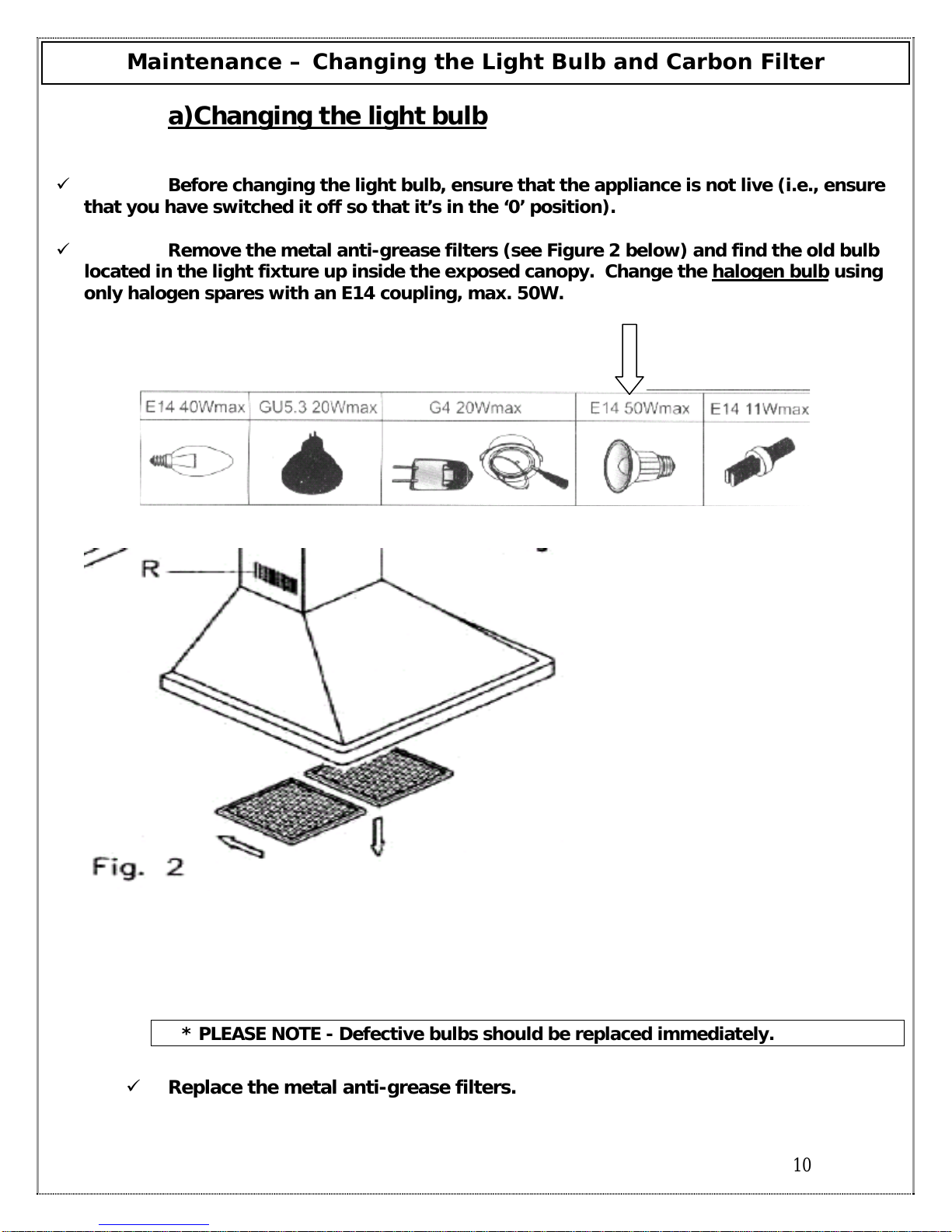

a)Changing the light bulb
9efore changing the light bulb, ensure that the appliance is not live (i.e., ensure
that you
9and find the old bulb
ocated in
B
have switched it off so that it’s in the ‘0’ position).
Remove the metal anti-grease filters (see Figure 2 below)
l the light fixture up inside the exposed canopy. Change the halogen bulb using
only halogen spares with an E14 coupling, max. 50W.
* PLEASE NOTE - Defective bulbs should be replaced immediately.
Maintenance – Chan
g
in
g
the Li
g
ht Bulb and Carbon Filter
9Replace the metal anti-grease filters.
10

______________________________________________________________________________________

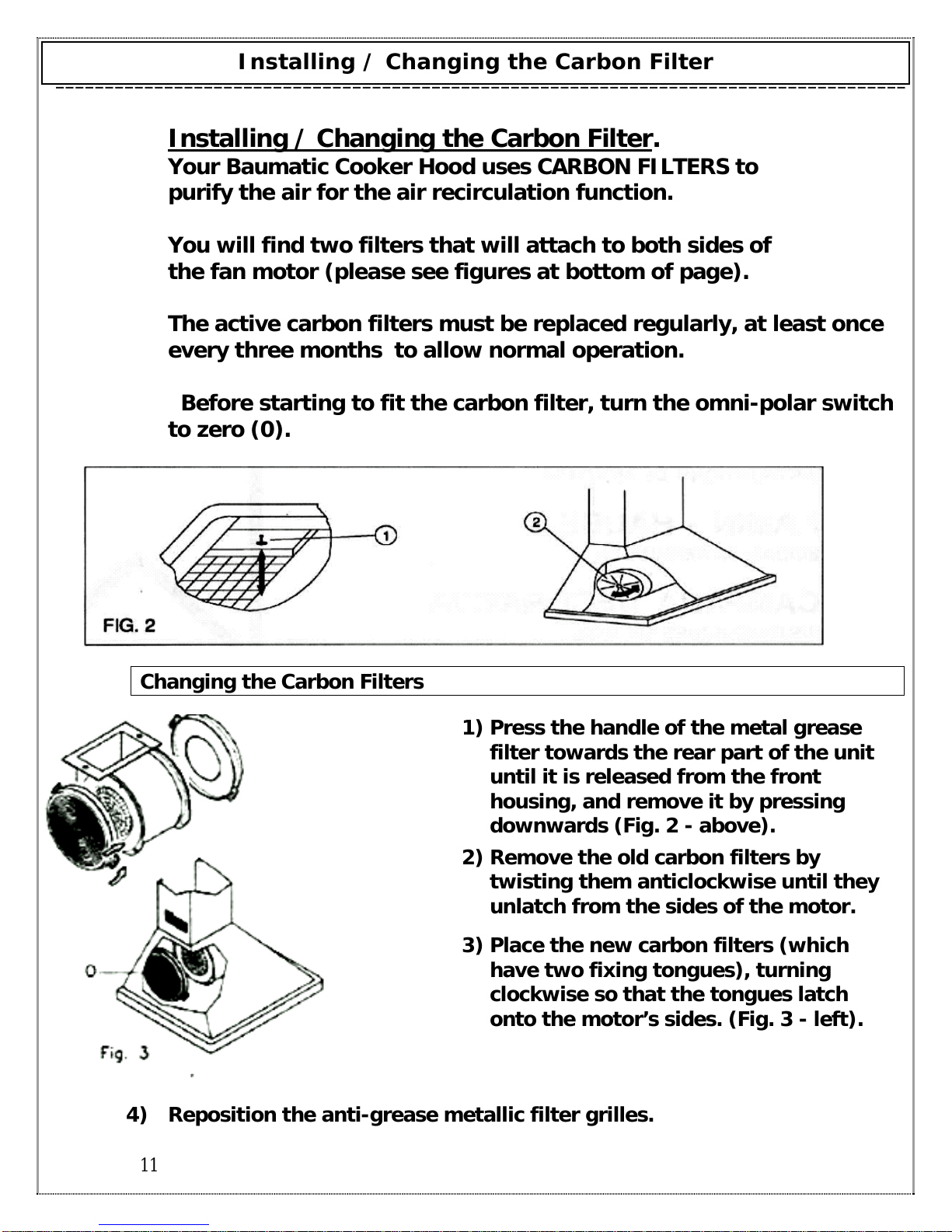

Installing / Changing the Carbon Filter.
Your Baumatic Cooker Hood uses CARBON FIL
purify the air for the air recirculation function.TERS to
ides of
e fan motor (please see figures at bottom of page).
least once
very three months to allow normal operation.
omni-polar switch
zero (0).
You will find two filters that will attach to both s
th
The active carbon filters must be replaced regularly, at
e
Before starting to fit the carbon filter, turn the
to
Changing the Carbon Filters
1) Press the handle of the metal grease
filter towards the rear part of the unit
2) ntil they
r.
3) have two fixing tongues), turning
).
4) Reposition the anti-grease metallic filter grilles.
until it is released from the front
housing, and remove it by pressing
downwards (Fig. 2 - above).
Remove the old carbon filters by
twisting them anticlockwise u
unlatch from the sides of the moto
Place the new carbon filters (which
clockwise so that the tongues latch
onto the motor’s sides. (Fig. 3 - left
Installin
g
/ Chan
g
in
g
the Carbon Filter
11

efore i e
oltage (
vent of failure to observe all the
ccident-prevention regulations in force which are necessary for normal use and regular
ECTION
Y
Yo ou ur r c co oo

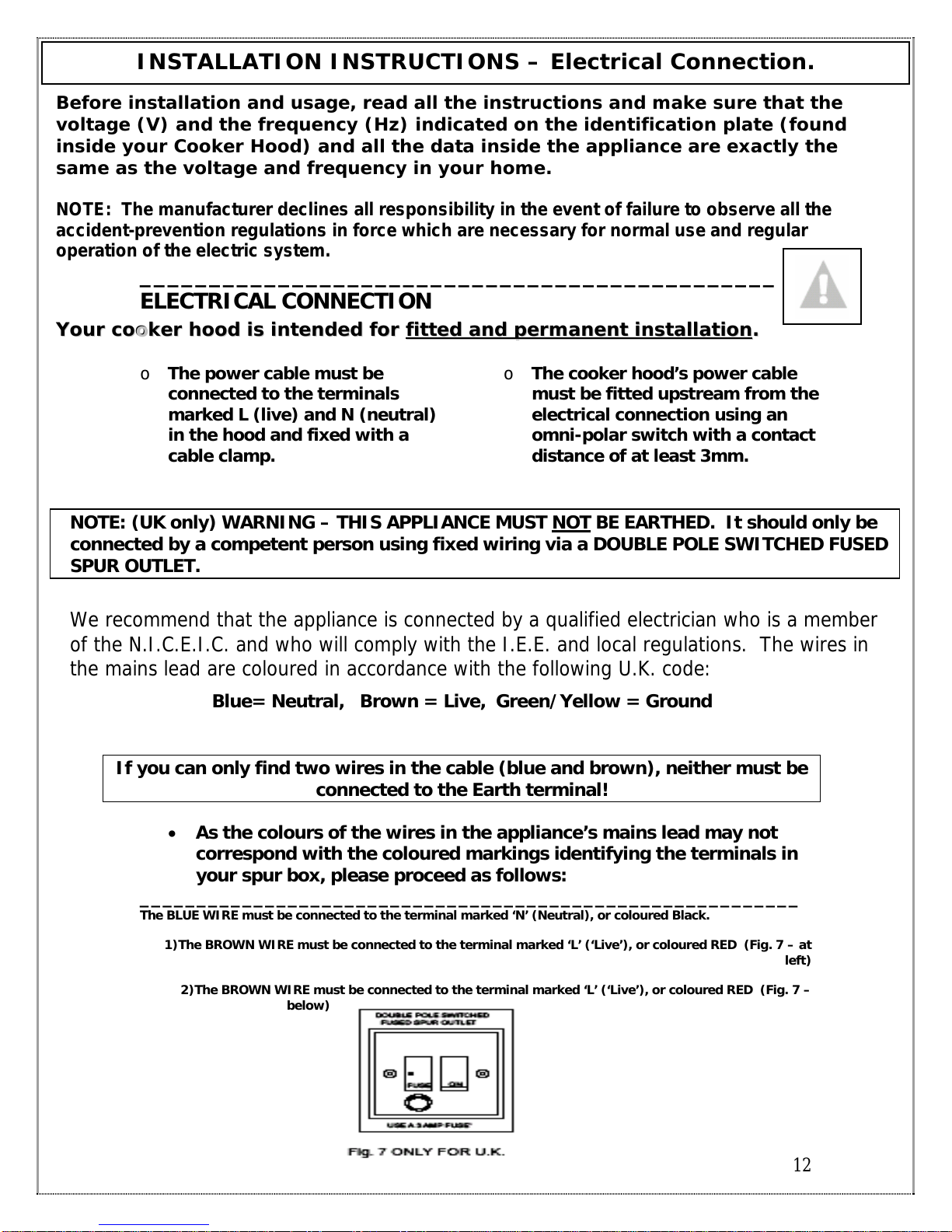

INSTALLATION INSTRUCTIONS – Electrical Connection.
B nstallation and usage, read all the instructions and make sure that th
V) and the frequency (Hz) indicated on the identification plate (found
v
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibility in the e
a
operation of the electric system.
______________________________________________
ELECTRICAL CONN
ok
ke er r h ho oo od d i is s i in nt te en nd de ed d f fo or r f fi it tt te ed d a an nd d p pe er rm ma an ne en nt t i in ns st ta al ll la at ti io on n. .
connected to the terminals
tral)
le
must be fitted upstream from the
NOTE: (UK only) WARNING – THIS APPLIANCE MUST NOT
oThe power cable must be oThe cooker hood’s power cab
marked L (live) and N (neu
in the hood and fixed with a
cable clamp.
electrical connection using an
omni-polar switch with a contact
distance of at least 3mm.
BE EARTHED. It should only be
connected by a competent person using fixed wiring via a DOUBLE POLE SWITCHED FUSED
SPUR OUTLET.
We recommend that the appliance is connected by a qualified electrician who is a member
f the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in
If you can only find two wires in the cable (blue and brown), neither must be
o
the mains lead are coloured in accordance with the following U.K. code:
Blue= Neutral, Brown = Live, Green/Yellow = Ground
connected to the Earth terminal!
s of the wires in the appliance’s m•As the colour ains lead may not
correspond with the coloured markings identifying the terminals in
_____
The BLU l), or coloured Black.
left)
below)
your spur box, please proceed as follows:
_____________________________________________________
E WIRE must be connected to the terminal marked ‘N’ (Neutra
1)The BROWN WIRE must be connected to the terminal marked ‘L’ (‘Live’), or coloured RED (Fig. 7 – at
2)The BROWN WIRE must be connected to the terminal marked ‘L’ (‘Live’), or coloured RED (Fig. 7 –
12

Installation Instructions
1) Attach the Fixing Plates to the top section of the inner
mounting frame (Fig.1)
Fig 1.
2) Take the top inner mounting frame, (Fig. 2) lean it against
the ceiling and mark the positions of the four holes ‘B’ with a
pencil.
Using an 8mm drill bit, make holes on the pencil marks you
have made.
Insert the fixings to the ceiling and attach plate ‘A’ with the 4
screws. (A) (B)
Fig 2.
13

Installation Instructions
Note: The position in which to mount the Island hood must be
weight bearing – in order to hold the hood weight.

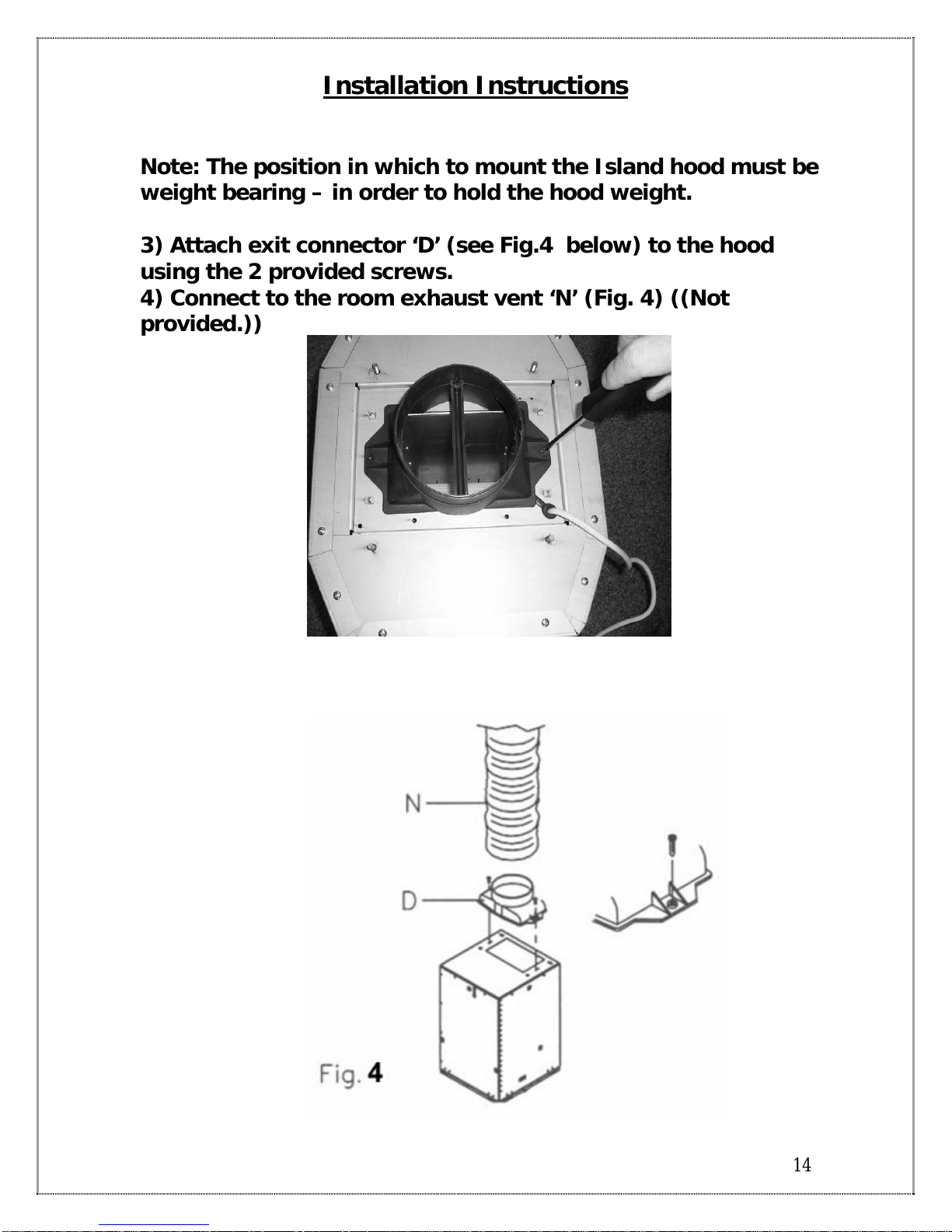

3) Attach exit connector ‘D’ (see Fig.4 below) to the hood
using the 2 provided screws.
4) Connect to the room exhaust vent ‘N’ (Fig. 4) ((Not
provided.))
14

Installation Instructions

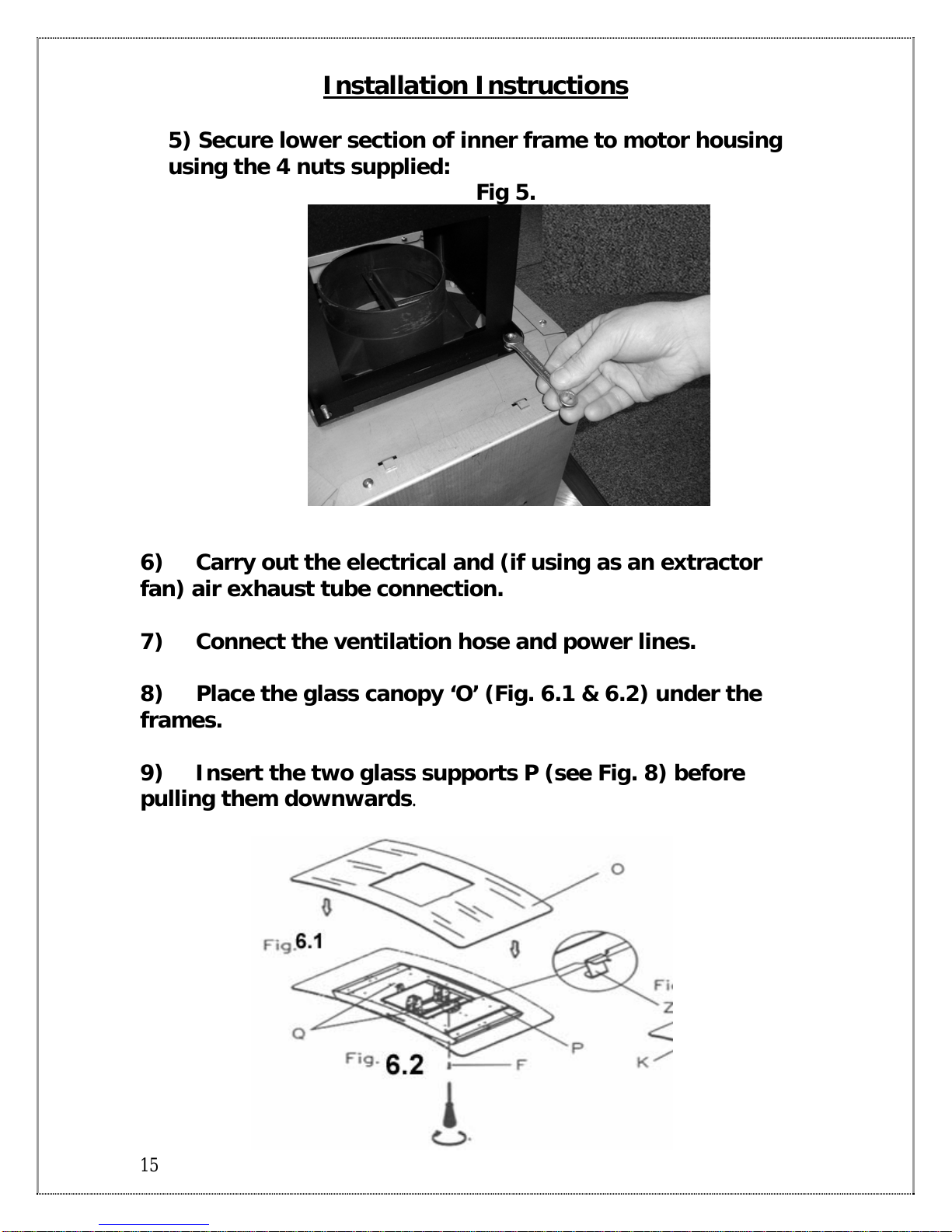

5) Secure lower section of inner frame to motor housing
using the 4 nuts supplied: Fig 5.
6) Carry out the electrical and (if using as an extractor
fan) air exhaust tube connection.
7) Connect the ventilation hose and power lines.
8) Place the glass canopy ‘O’ (Fig. 6.1 & 6.2) under the
frames.
9) Insert the two glass supports P (see Fig. 8) before
pulling them downwards.
15

Installation Instructions

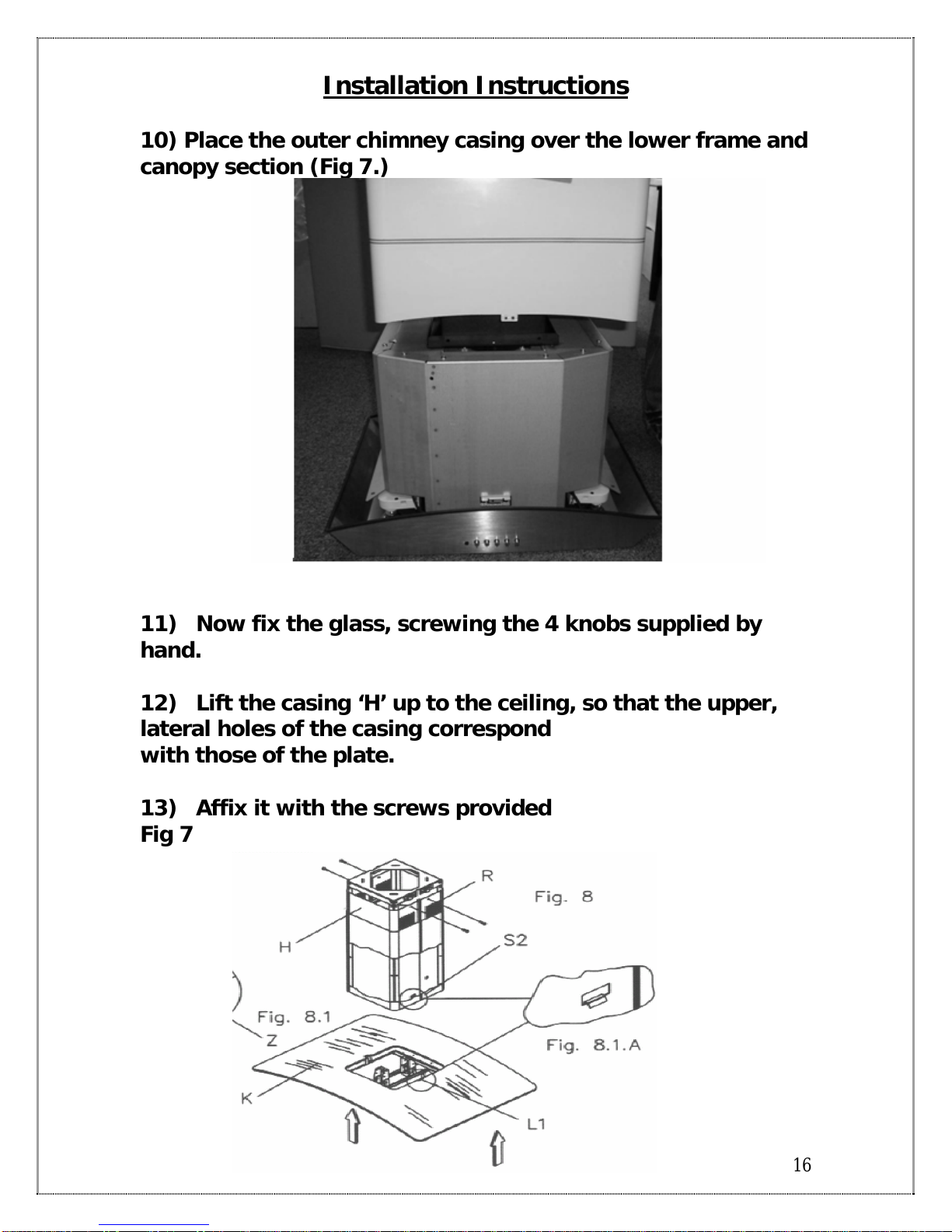

10) Place the outer chimney casing over the lower frame and
canopy section (Fig 7.)
11) Now fix the glass, screwing the 4 knobs supplied by
hand.
12) Lift the casing ‘H’ up to the ceiling, so that the upper,
lateral holes of the casing correspond
with those of the plate.
13) Affix it with the screws provided
Fig 7
16

Installation Instructions

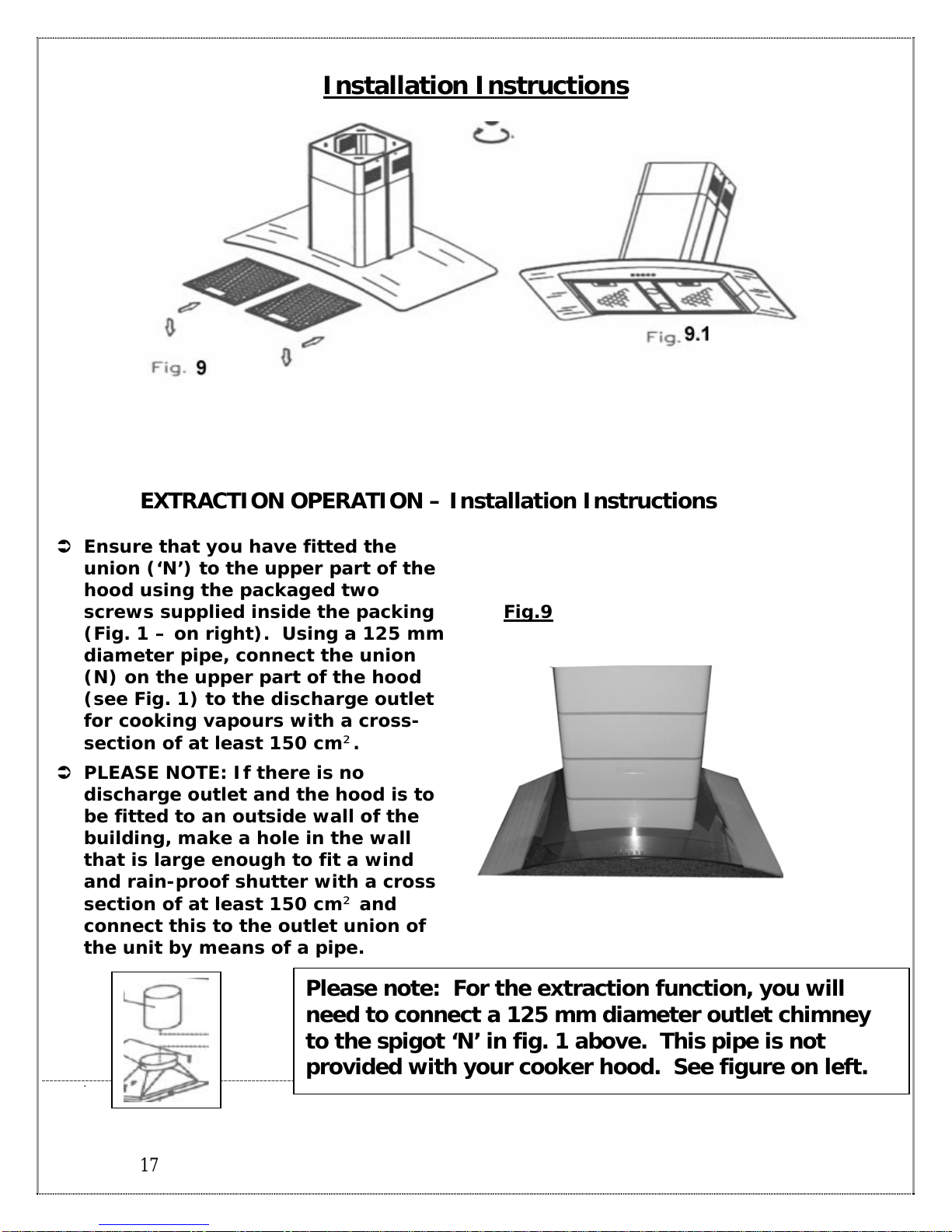

EXTRACTION OPERATION – Installation Instructions
ÂEnsure that you have fitted the
union (‘N’) to the upper part of the
hood using the packaged two
screws supplied inside the packing
(Fig. 1 – on right). Using a 125 mm
diameter pipe, connect the union
(N) on the upper part of the hood
(see Fig. 1) to the discharge outlet
for cooking vapours with a cross-
section of at least 150 cm².
ÂPLEASE NOTE: If there is no
discharge outlet and the hood is to
be fitted to an outside wall of the
building, make a hole in the wall
that is large enough to fit a wind
and rain-proof shutter with a cross
section of at least 150 cm² and
connect this to the outlet union of
the unit by means of a pipe.
Fig.9
17
____________________________________________________________________________________________________________________________________________________________________
.
Please note: For the extraction function, you will
need to connect a 125 mm diameter outlet chimney
to the spigot ‘N’ in fig. 1 above. This pipe is not
provided with your cooker hood. See figure on left.

Installation Instructions
AIR PURIFIER OPERATION - Installation Instructions
The cooker hood can be converted to work as an air purifier in the
event that there is no provision for an external air discharge duct.
In this case, air is recycled through the vent ‘R’ (Fig. 10 – below).
When using the unit as an air purifier, you need to install two active
carbon filters to absorb cooking vapours (please see page 11).
18
R

Troubleshootin
g
If something has gone wrong with your Cooker Hood, checking
against this chart might keep you from having to call for service.
Symptom Solution
The cooker hood will not start!
•Check that the hood is connected
to the electricity supply.
•Check that the fan speed control is
set properly.
The cooker hood is not working
effectively!
•The fan speed is not set high enough.
•The grease filter is dirty.
•The kitchen is not ventilated well
enough.
•If the hood is set for recirculation,
check that the carbon filters have not
expired.
•If the hood is set for extraction, check
that the ducting and outlets are not
blocked.
The cooker hood has switched off
during operation!
•The safety cut-out device has been
tripped.
•Turn off the hob and then wait for the
device to reset.
•Note that if you have installed your
cooker hood too low, this will happen.
If it happens frequently, it will be
damaged.
19
