Baumatic BEI350SS User manual

1
BEI350SS 35 cm
Island cooker hood

2
User Manual for your Baumatic
BEI350SS
Cooker Hood
35 cm Island cooker hood in stainless
steel
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 30/06/11

3
Contents Page
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8
Using your Baumatic cooker hood 9 - 12
Beforefirstuse 9
To use your cooker hood 9 – 10
Lightcontrol 10
Speedselection 10
Settingthetimeofday 11
Cutofftimer 11-12
Cleaning your Baumatic cooker hood 12 - 13
The grease filters 13
Maintenance 13 - 16
Removing and cleaning the grease filters 13 - 14
Changingalightbulb 14-15
Fitting the carbon filter 15 - 16
Installation 16 - 23
Electrical connection 16 - 17
Before beginning installation 17 - 18
Positioning 18-19
Installing your cooker hood 19 - 22
Supplied installation components 20
Competing the installation 23
Extraction mode or recirculation mode? 23
Externalducting 24
Troubleshooting 24 - 25
Contactdetails 26

4
ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
CONFORMITY TO W.E.E.E. DIRECTIVE

5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Advice Line.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
¾Electric cookers: 700 mm
¾Gas cookers: 700 mm
¾Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
oWhen installed between adjoining wall cabinets, the cabinets
must not overhang the hob.

6
oThe edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.

7
oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
oNote that it removes odours from your room, not steam.
oWarning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
oDo not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use
as overheated fats and oils might catch fire.
oThe lights on this appliance should only be used
during operation of the cooker hood. They should not be left on
permanently and used as a lighting source.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
oNever flambé cook under this cooker hood.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.

8
Specifications of your cooker hood
Congratulations on purchasing a Baumatic cooker hood!
PRODUCT DIMENSIONS
Height: 880 mm * – 1180 mm
Width: 350 mm
Depth: 390 mm
oIntegrated centrifugal motor
oElectronic pushbutton operation
oLCD display
o3 Speeds
oCut-off timer
o1 Washable aluminium grease filter
o2 LED lights
oExtraction capacity: 1000 m³/hr
oOptional extra: 1 x S1 Carbon filter required for
recirculation mode
* IMPORTANT: Please see the positioning
instructions on pages 18 - 19 to obtain precise
information on the height requirements for this
product.

9
Using your Baumatic cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE COOKER HOOD IS USED FOR THE FIRST
TIME.
oYou should use a good quality stainless steel cleaner and polish
on ALL of the stainless steel areas of your cooker hood, before it
is used for the first time.
oThis will help to leave a silicone water-resistant film to protect
the stainless steel surfaces.
To use your cooker hood

10
oMake sure that it has been installed by a suitably qualified
person, as per the information contained in Baumatic’s
installation instructions.
oFind the control panel, which is located at the front of the hood.
oThere are several buttons on the control panel, which perform
separate functions.
oWhen you initially connect your hood to the electrical supply, the
LCD display backlight will turn on. The backlight will turn off
after 30 seconds if no buttons are pressed.
IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR
HOOD TEN MINUTES BEFORE YOU START TO COOK,
OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.
YOU SHOULD ALSO RUN YOUR HOOD FOR TEN
MINUTES AFTER YOU HAVE FINISHED COOKING.
Light control
oPress the light on/off button once to turn the cooker hood lights
on. The lamp symbol will light on the LCD display.
oPress the light on/off button again to turn the cooker hood lights
off. The lamp symbol will disappear on the LCD display.
Speed selection
oIf you press the speed selection button once, the motor will run
at LOW speed. The speed symbol and the power symbol will light
on the LCD display.
oPress the speed selection button twice and the motor will run at
MEDIUM speed.
oPress the speed selection button three times and the motor will
run at HIGH speed. Another press of the button will return the
motor to LOW speed.
oTo turn the hood off, press the on/off button. The speed and
power symbols will disappear from the LCD display.
oWhen you next press the on/off button, the cooker hood will
continue working at the speed it was last set on. The speed and
power symbols will light on the LCD display.

11
Setting the time of day
oWhen the cooker hood lights have not been turned on and a
motor speed has not been selected, you are able to set the time
of day shown on the LCD display.
oPress and hold the timer button for about 3 seconds to enter the
time setting mode. “12:00” will appear on the display and the
“12” will flash.
oUse the speed selection button to increase the hours shown or
the light on/off button to decrease the hours shown.
oWhen the correct number of hours is shown on the display, press
the timer button again to confirm. The “00” will flash.
oAgain, use the speed selection button to increase the minutes
shown or the light on/off button to decrease the minutes shown.
oWhen the correct number of minutes is shown on the display,
press the timer button to confirm and set the time of day.
Cut off timer
oWhen a motor speed has not been selected you are able to
program a delay timer function which allows you to set a
countdown time for the hood to automatically switch off after.
oYou can program the delay timer from 1 to 60 minutes.
oPress the timer button to enter the delay timer setting mode.
The LCD display will show “05:00”.
oUse the speed selection button to increase the number of
minutes shown and the light on/off button to decrease the
number of minutes shown.
oWhen the display shows the desired countdown time, press the
timer button again to confirm. The countdown will begin
immediately on the display.
oYou can then proceed to select a motor speed.
oWhen the countdown time reaches “00:00” the cooker hood will
automatically switch off and the LCD display will return to
showing the time of day.
oThe next time you press the timer button to set a delay timer
function, if the countdown time is not changed, the hood will

12
automatically count down for the time previously set after 5
seconds.
oIMPORTANT: The cut off timer function does not control
the hood lights. If you have turned the hood lights on
during use, you will need to turn these off manually after
the countdown time has elapsed.
Cleaning your Baumatic cooker hood
IMPORTANT: BEFORE CLEANING, ALWAYS
ENSURE THAT YOU HAVE SWITCHED YOUR
COOKER HOOD OFF AT THE OMNI-POLAR
SWITCH, SET AT THE WALL FROM THE CABLE.
Cleaning
oClean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
oNever use abrasive powder, corrosive solvents or brushes.
oYou should use a good quality stainless steel cleaner and polish
on ALL of the stainless steel areas of your cooker hood.
oNever insert pointed objects into the motor’s protective grid.
oOnly clean the control panel and grease filter grill with mild liquid
detergents and a new damp cloth.
oIf you are using the appliance in recirculation mode, then be
sure to replace the carbon filter at the recommended interval
(see section on “Fitting the carbon filter”). A build up of grease
could cause a fire hazard.
oNever attempt to clean the area above the grease filter.

13
The grease filters
oYour cooker hood includes a grease filter which helps to absorb
grease particles to protect your kitchen and furniture from
greasy residues.
oThe aluminium filter may become flammable if it becomes
saturated with this greasy residue.
oTo prevent this fire hazard, the filter should be cleaned regularly.
Depending on use, this should be done every 10-15 days or at
least once a month, using hot water and normal washing-up
detergent.
oDO NOT WASH THE GREASE FILTER IN A DISHWASHER.
Maintenance
Removing and cleaning the grease filters
oFirst remove the grease filter by
pulling down on the handle and
pulling it away from the cooker
hood.
oSoak the grease filter in hot water and washing up liquid for
about an hour.
oRinse it off thoroughly with hot water.
oRepeat the process if required.

14
oRefit the grease filter once it has
dried.
oIMPORTANT: Let the grease filter dry thoroughly before
refitting it in the cooker hood.
Changing a light bulb
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FROM
YOUR MAINS SUPPLY.
oRemove the grease filter (as
described on the previous page).
oPrior to touching the light bulbs ensure that
they have cooled down.
oFind the bulb that requires replacement and
remove the glass lamp cover.
oRemove the light bulb that needs to be
replaced and insert a new bulb of the same
type. Then replace the glass cover.
oIMPORTANT: Defective bulbs should be
replaced immediately.
oIf the lights still do not work, make sure that
the bulbs are fitted properly into their
housings before you call for technical
assistance.

15
oRefit the grease filter.
Fitting the carbon filter
If the appliance is to be used in recirculation mode then it is necessary
to fit carbon filters. These will help to absorb unpleasant odours
caused by cooking.

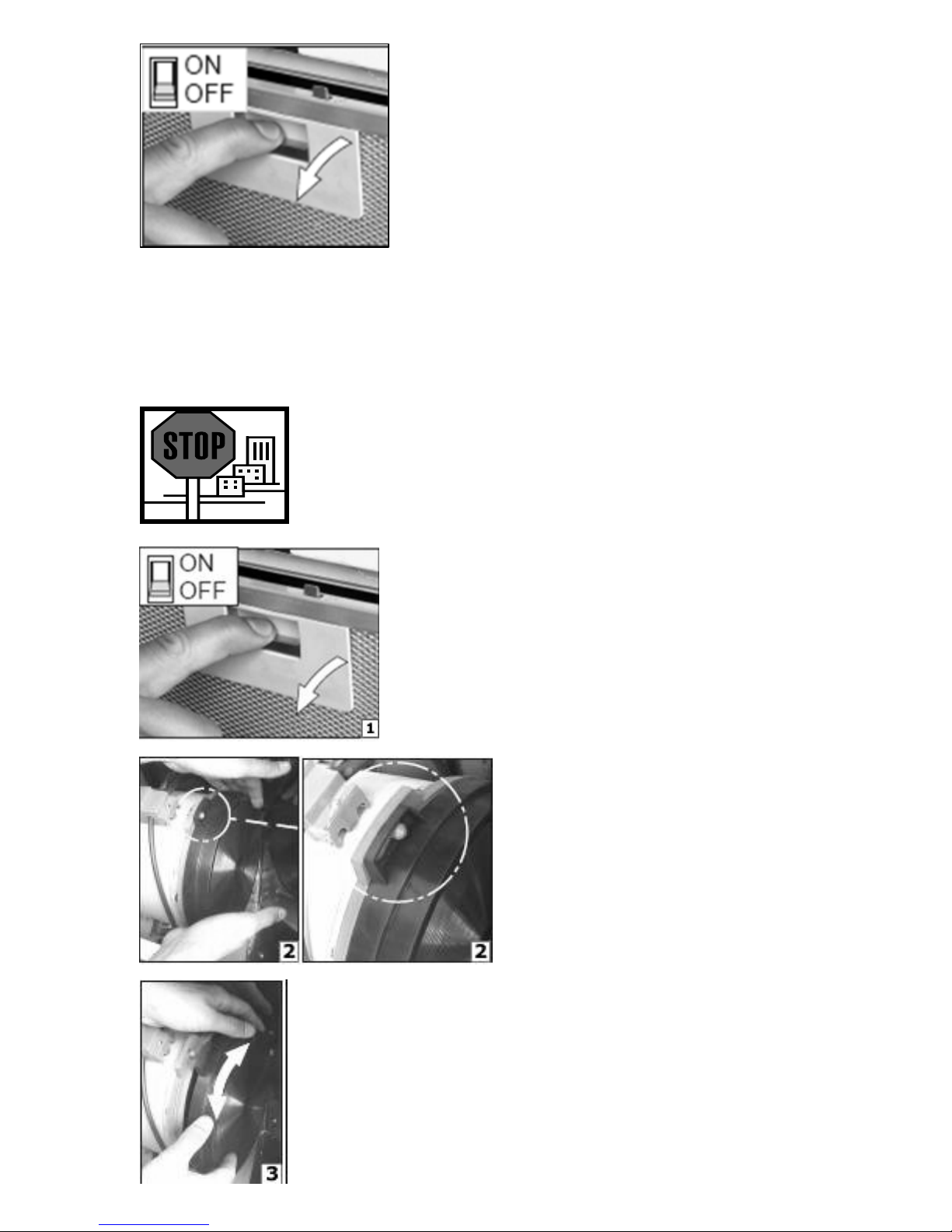

IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.
1) Remove the grease filters.
2) Hook the carbon filter over
the pins that are located at the
end of the motor.
3) Turn the carbon filter anticlockwise, until you feel
it click into place.

16
oRepeat this process for the second carbon filter. You need to
place a carbon filter at either end of the motor.
oRefit the grease filters.
oThe carbon filters should be replaced every 3 - 6 months or if
they show signs of damage.
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found behind the grease filter.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
Electrical connection
YOUR COOKER HOOD IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
oThe cooker hood’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm. THE FUSE MUST BE RATED AT 3
AMPS.

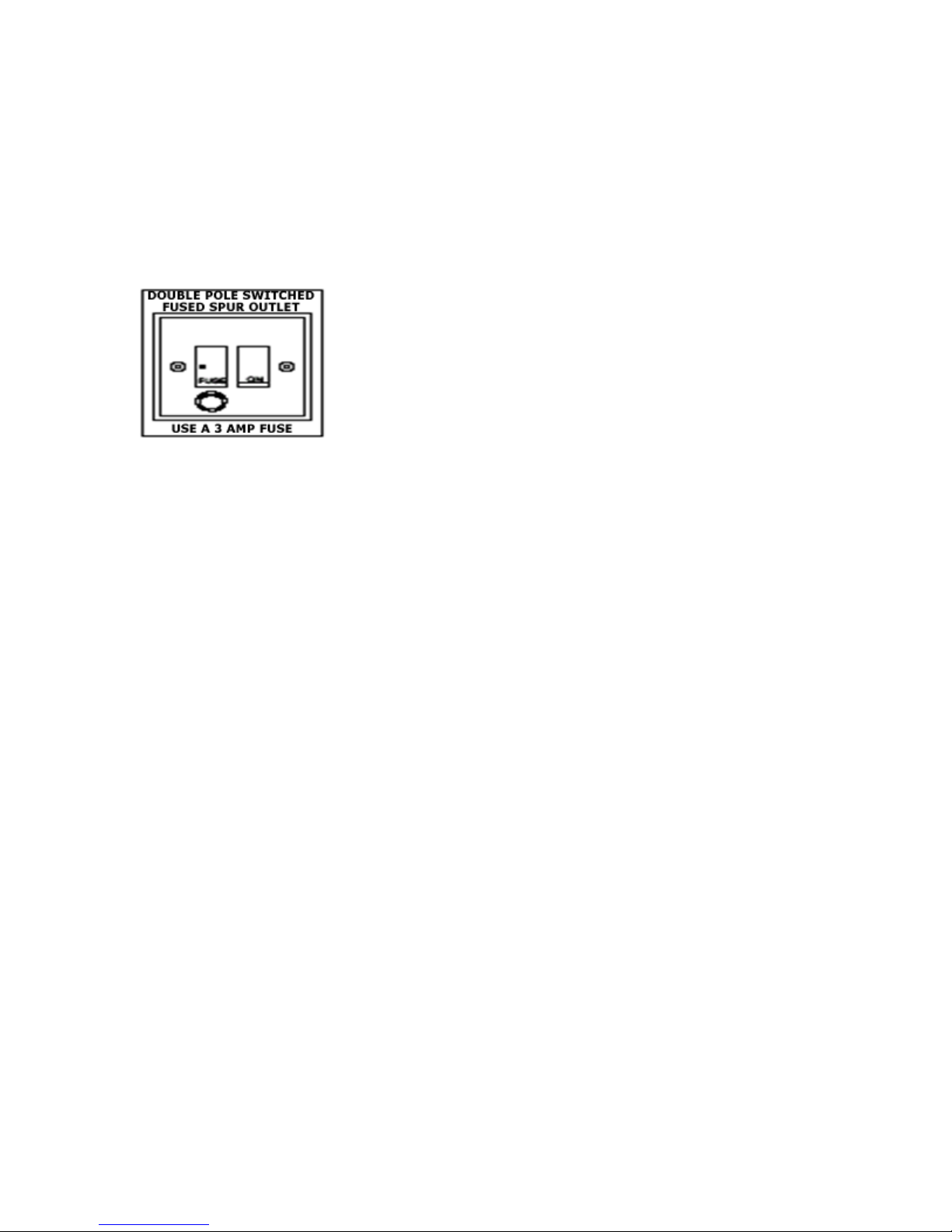

WARNING: THIS APPLIANCE MUST BE EARTHED. It
should only be connected by a competent person, using
fixed wiring via a double pole switched fused spur outlet.
(UK ONLY).
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply

17
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:
Blue = Neutral, Brown = Live, Green/Yellow = Ground
If you only find two wires in the main’s lead (blue and brown),
then neither must be connected to the earth terminal.
oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
oThe blue wire must be connected to the
terminal marked “N” (neutral), or coloured
black.
oThe brown wire must be connected to the
terminal marked “L” (live), or coloured red.
Before beginning installation
oCheck that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
oCarry out all necessary masonry work prior to the fitting of the
cooker hood.
oEnsure that all electrical connections are carried out by a suitably
qualified person.
oCheck inside the product and ensure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future
use.
oIf possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the ceiling. If this
is not possible, then a thick, protective covering should be
placed over the worktop, hob top or cooker. This will help to
protect these surfaces from damage and debris.
oSelect a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood
parts and fittings on it.

18
oWall plugs are provided to secure the hood to most types of
ceilings. However a qualified technician must verify the
suitability of the materials, in accordance with the type of ceiling.
The ceiling must be strong enough to take the weight of the
hood.
oDo not tile, grout or silicone this appliance to the ceiling. This
appliance is designed to be surface mounted only.
oRemove any protective wrapping that has been put on the
cooker hood or chimney sections, to protect them during transit.
Positioning
X = Height of the appliance
A = Total height of the kitchen
B = Height of the worktop
C = Distance between the hob and the hood
oTo work out the height of the appliance, you need to use the
following formula: X = A – (B + C).
oThe overall height of the appliance should be calculated
according to the height of the chimney sections. You must allow

19
yourself sufficient space to make the electrical connections and
connecting the ducting hose (if required).
IMPORTANT: Your ceiling should have a minimum height
of 2.7 metres; otherwise you may encounter difficulties
when installing the appliance.
IMPORTANT: Although the minimum height of the
appliance can be set at 880 mm. During the installation
process you will need to move the lower chimney section
upwards, to allow you to attach the main body of the hood
to the framework. To achieve this you will require a
vertical gap of no less than 1000 mm.
Installing your cooker hood
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE
IT IN EXTRACTION MODE OR RECIRCULATION
MODE. PLEASE TURN TO PAGE 23 NOW TO
UNDERSTAND THE DIFFERENCES BETWEEN THESE
TWO MODES.
oWe recommend that two people install this hood.
oYour cooker hood should only be suspended from ceiling joists or
joints between joists that are weight bearing. DO NOT hang this
hood from a suspended ceiling.
oIMPORTANT: The ceiling MUST be able to withstand a weight of
at least 40 kilograms.
oIMPORTANT: The ceiling MUST be at least 30 mm thick.
oIt must be positioned at least 700 mm above the hob
underneath it. You cannot fit this product by securing it between
two cupboards.
oIf you are using your cooker hood in extraction mode, then you
will need to make the necessary arrangements for the ducting,
before the rest of the installation.
IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED
TO YOUR MAINS SUPPLY AFTER THE REST OF THE
INSTALLATION PROCESS HAS BEEN COMPLETED.

20
Supplied installation components
1) Position the hanging plate on the
ceiling and then mark the position of the
screw holes.
oThe hanging plate should be
securely fixed to the ceiling, using
the 12 x ST6 (40 mm) screws.
oDepending on the surface of the ceiling that you are fixing the
hanging plate to, you may need to use 8 x expansion bolts (for
concrete).
