Contents Page
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8
Using your cooker hood 9 - 10
Beforefirstuse 9
To use your cooker hood 9 – 10
Cleaning your cooker hood 10
The grease filters 10
Maintenance 11 - 14
Removing and cleaning the grease filters 11 - 12
Changingalightbulb 12-13
Fitting the carbon filter 13 - 14
Installation 14 - 22
Electricalconnection 15
Before beginning installation 16
Positioning 17-18
Installing your cooker hood 18 - 22
Supplied installation components 19
Extraction mode or recirculation mode? 22
Externalducting 22
Troubleshooting 23 - 24
Contactdetails 25

ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
CONFORMITY TO W.E.E.E. DIRECTIVE
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to us. Please
make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained
this booklet, please contact the Advice L in ine.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
¾Electric cookers: 700 mm
¾Gas cookers: 700 mm
¾Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
oWhen installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
5

oThe edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.
6

oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
oNote that it removes odours from your room, not steam.
oWarning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
oDo not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use
as overheated fats and oils might catch fire.
oThe lights on this appliance should only be used
during operation of the cooker hood. They should not be left on
permanently and used as a lighting source.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
oNever flambé cook under this cooker hood.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
7

Specifications of your cooker hood
Congratulations on purchasing a cooker hood!
PRODUCT DIMENSIONS
Height: 690 mm * – 1190 mm
Width: 900 mm
Depth: 600 mm
DIMENSIONS OF CHIMNEY SECTION
270 mm x 285 mm
oSuperior extraction tangential motor
oElectronic pushbutton operation
o3 Speeds
o2 Metallic grease filters
o4 Halogen lights
oExtraction capacity: 750 m³/hr
oOptional extra: 1 x SQ1 Carbon filter required for
recirculation mode
* IMPORTANT: Please see the positioning
instructions on pages 17 - 18 to obtain precise
information on the height requirements for this
product.
8

Using your cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE COOKER HOOD IS USED FOR THE FIRST
TIME.
oYou should use a good quality stainless steel cleaner and polish
on ALL of the stainless steel areas of your cooker hood, before it
is used for the first time.
oThis will help to leave a silicone water-resistant film to protect
the stainless steel surfaces.
To use your cooker hood
oMake sure that it has been installed by a suitably qualified
person, as per the information contained in the installation
instructions.
oFind the control panel, which is located at the front right of the
canopy.
oThere are several buttons on the control panel, which perform
separate functions.

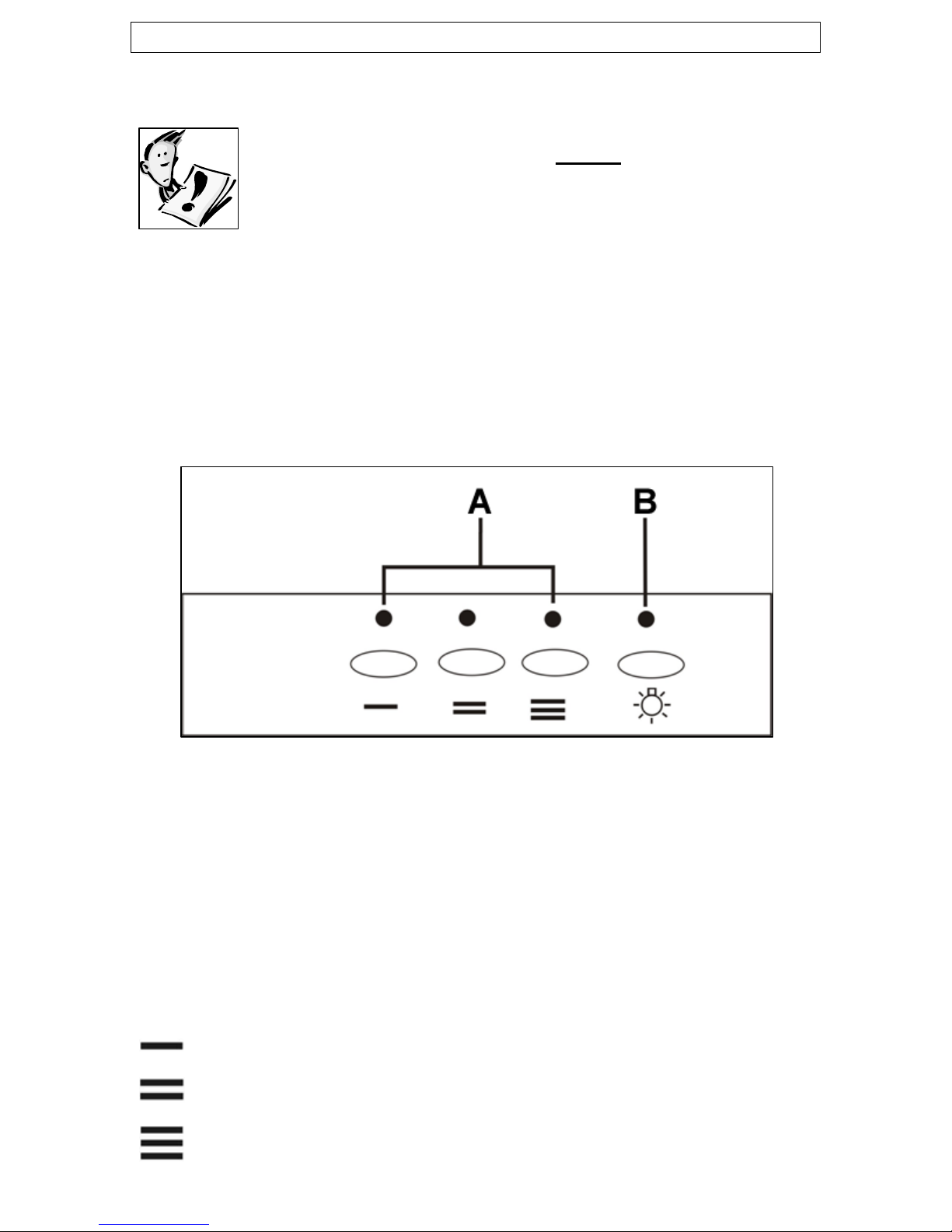

oA = Speed selection buttons
= Low speed
= Medium speed
= High speed
9

oB = Light on/off button
IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR
HOOD TEN MINUTES BEFORE YOU START TO COOK,
OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.
YOU SHOULD ALSO RUN YOUR HOOD FOR TEN
MINUTES AFTER YOU HAVE FINISHED COOKING.
Cleaning your cooker hood
IMPORTANT: BEFORE CLEANING, ALWAYS
ENSURE THAT YOU HAVE SWITCHED YOUR
COOKER HOOD OFF AT THE OMNI-POLAR
SWITCH, SET AT THE WALL FROM THE CABLE.
Cleaning
oClean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
oNever use abrasive powder, corrosive solvents or brushes.
oYou should use a good quality stainless steel cleaner and polish
on ALL of the stainless steel areas of your cooker hood
oNever insert pointed objects into the motor’s protective grid.
oOnly clean the control panel and grease filter grill with mild liquid
detergents and a new damp cloth.
oIf you are using the appliance in recirculation mode, then be
sure to replace the carbon filter at the recommended interval
(see section on “Fitting the carbon filter”). A build up of grease
could cause a fire hazard.
oNever attempt to clean the area above the grease filters.
10

The grease filters
oYour cooker hood includes two grease filters which help to
absorb grease particles to protect your kitchen & furniture from
greasy residues.
oThe metallic filters may become inflammable if they become
saturated with this greasy residue.
oTo prevent this fire hazard, the filters should be cleaned
regularly. Depending on use, this should be done every 10-15
days or at least once a month, using hot water and normal
washing-up detergent.
oDO NOT WASH THE GREASE FILTERS IN A DISHWASHER.
Maintenance
Removing and cleaning the grease filters

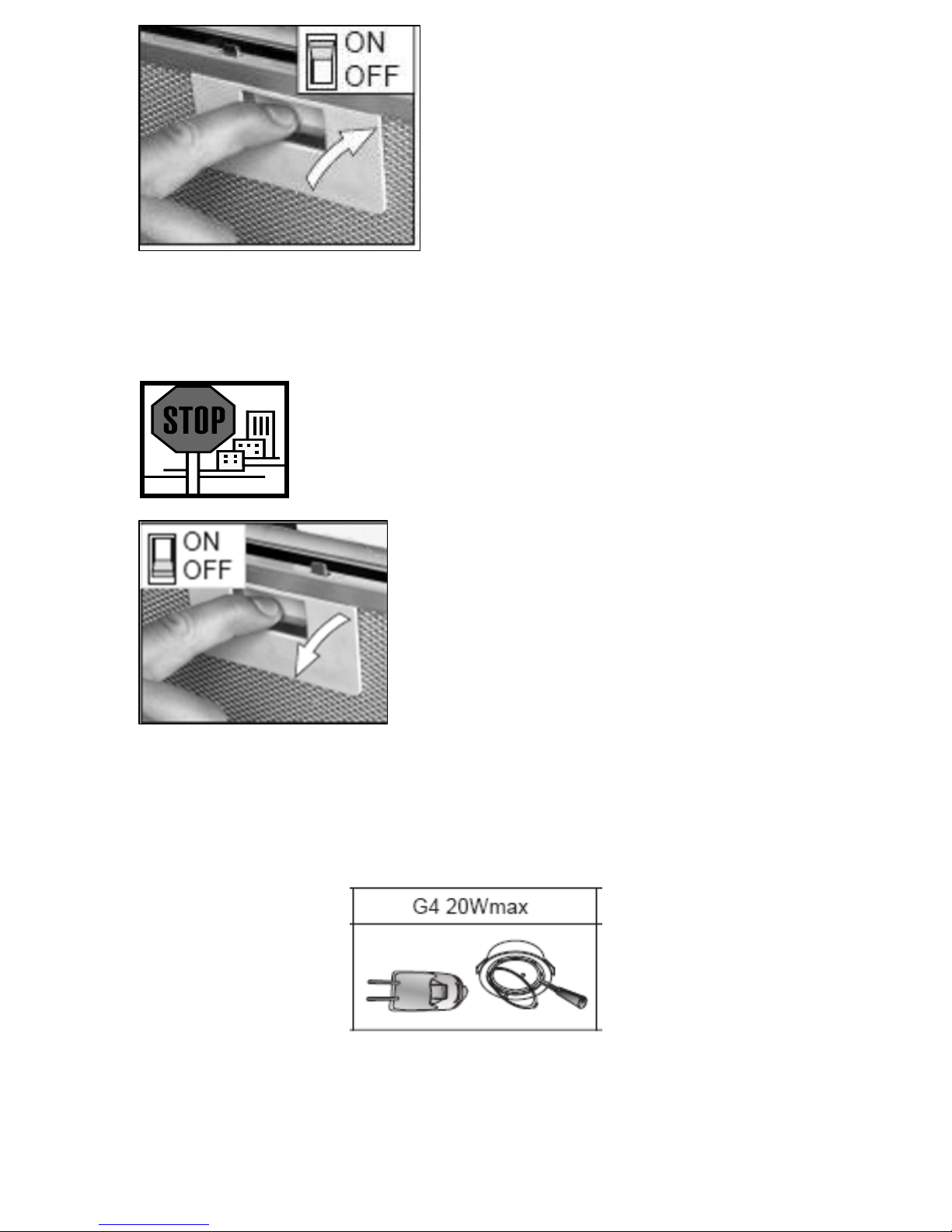

oFirst remove the grease filters by
pulling down on the handle and
pulling them away from the
cooker hood.
oSoak the grease filters in hot water and washing up liquid for
about an hour.
oRinse it off thoroughly with hot water.
oRepeat the process if required.
11

oRefit the grease filters once it has
dried.
oIMPORTANT: Let the grease filters dry thoroughly before
refitting them in the cooker hood.
Changing a light bulb
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FROM
YOUR MAINS SUPPLY.
oRemove the grease filters (as
described on the previous page).
oPrior to touching the light bulbs ensure that they have cooled
down.
oFind the bulb that requires replacement, you will find it located in
the light fixture which is inside the exposed section of the
canopy.
oUse a screwdriver to remove the glass cover that sits over the
bulb. Unplug the light bulb that needs to be replaced and insert a
new G4 20W (max) bulb. Then replace the glass cover.
12

oIMPORTANT: Defective bulbs should be replaced immediately.
oIf the lights still do not work, make sure that the bulbs are fitted
properly into their housings before you call for technical
assistance.
oRefit the grease filters.
Fitting the carbon filter
If the appliance is going to be used in recirculation mode then it is
necessary to fit a carbon filter. This will help to absorb unpleasant
odours caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.
1) Remove the grease filters.
2) Insert the carbon filter in the
rectangular hole, fitting it over the
motor.
IMPORTANT: The cutaway
(indicated by the arrow) must be
located at the front right of the
rectangular hole.
13

3) After inserting the front edge of
the carbon filter into the slot on the
cooker hood. Lower the back edge of
the carbon filter, until it clicks into
place at the rear of the rectangular
hole. Raise the two fixing bars, until
they are horizontal over the carbon
filter.
4) Refit the grease filters.
The carbon filters should be replaced every three months, or if they
show signs of damage.
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found behind the grease filter.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
14

Electrical connection
YOUR COOKER HOOD IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
oThe cooker hood’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm. THE FUSE MUST BE RATED AT 3
AMPS.
WARNING: THIS APPLIANCE MUST BE EARTHED. It
should only be connected by a competent person, using
fixed wiring via a double pole switched fused spur outlet.
(UK ONLY).
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:
Blue = Neutral, Brown = Live, Green/Yellow = Ground
If you only find two wires in the main’s lead (blue and brown),
then neither must be connected to the earth terminal.
oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
oThe blue wire must be connected to the
terminal marked “N” (neutral), or coloured
black.
oThe brown wire must be connected to the
terminal marked “L” (live), or coloured red.
15

16
Before beginning installation
oCheck that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
oCarry out all necessary masonry work prior to the fitting of the
cooker hood.
oEnsure that all electrical connections are carried out by a suitably
qualified person.
oCheck inside the product and ensure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future
use.
oIf possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the ceiling. If this
is not possible, then a thick, protective covering should be
placed over the worktop, hob top or cooker. This will help to
protect these surfaces from damage and debris.
oSelect a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood
parts and fittings on it.
oWall plugs are provided to secure the hood to most types of
ceilings. However a qualified technician must verify the
suitability of the materials, in accordance with the type of ceiling.
The ceiling must be strong enough to take the weight of the
hood.
oDo not tile, grout or silicone this appliance to the ceiling. This
appliance is designed to be surface mounted only.
oRemove any protective wrapping that has been put on the
cooker hood or chimney sections, to protect them during transit.

Positioning
X = Height of the appliance
A = Total height of the kitchen
B = Height of the worktop
C = Distance between the hob and the hood
9 cm = Height of the hood canopy
oTo work out the height of the appliance, you need to use the
following formula: X = A – (B + C + 9 cm).
oThe overall height of the appliance should be calculated
according to the height of the chimney sections. You must allow
yourself sufficient space to make the electrical connections and
connecting the ducting hose (if required).
IMPORTANT: Your ceiling should have a minimum
height of 2.7 metres; otherwise you may encounter
difficulties when installing the appliance.
17

IMPORTANT: Although the minimum height of the
appliance can be set at 690 mm. During the installation
process you will need to move the lower chimney section
upwards, to allow you to attach the main body of the hood
to the framework. To achieve this you will require a
vertical gap of no less than 1000 mm.
Installing your cooker hood
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE
IT IN EXTRACTION MODE OR RECIRCULATION
MODE. PLEASE TURN TO PAGE 22 NOW TO
UNDERSTAND THE DIFFERENCES BETWEEN THESE
TWO MODES.
oWe recommend that two people install this hood.
oYour cooker hood should only be suspended from ceiling joists or
joints between joists that are weight bearing. DO NOT hang this
hood from a suspended ceiling.
oIMPORTANT: The ceiling MUST be able to withstand a weight of
at least 40 kilograms.
oIMPORTANT: The ceiling MUST be at least 30 mm thick.
oIt must be positioned at least 700 mm above the hob
underneath it. You cannot fit this product by securing it between
two cupboards.
oIf you are using your cooker hood in extraction mode, then you
will need to make the necessary arrangements for the ducting,
before the rest of the installation.
IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED
TO YOUR MAINS SUPPLY AFTER THE REST OF THE
INSTALLATION PROCESS HAS BEEN COMPLETED.
18

Supplied installation components
1) Position the hanging plate on the
ceiling and then mark the position of the
screw holes.
oThe hanging plate should be
securely fixed to the ceiling, using
the 12 x ST6 (40 mm) screws.
oDepending on the surface of the ceiling that you are fixing the
hanging plate to, you may need to use 8 x expansion bolts (for
concrete).
19

2) Fix the angle bars to the hanging plate,
using the 8 x M4 nuts and bolts with metal
washers.
3) Extend the angle bars to the required height
and then fix them in position using the 16 x M4
nuts and bolts with metal washers.
oIMPORTANT: The angle bars must have an
overlap of AT LEAST 100 mm.
4) If your cooker hood is going to be used in
extraction mode, then you should connect the
ducting hose to the ceiling adaptor at this point.
oFix the upper chimney section to the
hanging plate, using the 4 x self tapping
screws.
oSlide the lower chimney section onto the
angle bars and raise it until it sits just below
the upper chimney section.
oUse the hanging hook to temporarily keep the lower chimney
section in this position, to make sure that it does not drop down
whilst fixing the main body of the hood to the angle bars.
20

5) If you are going to be using the hood in
extraction mode, you should fit the spigot for
the duct hose onto the main body of the
cooker hood, using the 4 x M4 bolts,
6) If the glass canopy has not been pre-
assembled by the factory, then it should be
fixed to the top of the main body of the
cooker hood at this stage.
7) Lift the main body of the cooker hood onto
the angle bar and then fix it into position using
the 16 x M4 bolts.
oIMPORTANT: This stage of the
installation process MUST be
completed by two people.
oIMPORTANT: The 16 x M4 bolts
MUST be securely tightened.
8) If you are going to be using the hood in
extraction mode, you should fix the ducting
hose to the spigot.
oThe electrical connection must
correspond to the electrical
requirement noted on the rating plate,
which is placed inside the cooker hood.
The appliance should now be connected
to the electrical supply. See page 15
for detailed information on the
electrical connection.
oCheck that the appliance is operating correctly by selecting each
speed and switching the light bulbs on and off.
21
