Baumatic LIH9026G User manual

User Manual for your
LIH9026G
Cooker Hood
90 cm Cooker hood with LCD display
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 11/02/11
2

Dear Customer,
Congratulations on purchasing your new product from Think Appliances.
To register your parts and labour warranty (some conditions apply please refer to your
warranty card for more details) please contact out Customer Care team on:
1800 444 357
Our Customer Care centre is there to ensure you get the most out of your appliance. For
example, should you want to learn more about recommended cooking temperatures, the
various cooking functions available, how to set and program your LED clock, and importantly
taking care of your appliance when cleaning, please call us because we are here to help you.
It is important that you read through the following use and care manual thoroughly to
familiarize yourself with the installation and operation requirements of your appliance to
ensure optimum performance.
We also carry a complete range of spare parts for all Think products. For all your spare parts
enquiries please contact our team at Pronto Parts on:
1300 306 973
Again, thank you for choosing an appliance brought to you by Think Appliances and we look
forward to being of service to you.
Kind regards
Management
Think Appliances

3
Contents Page
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your LIH9026G cooker hood 8
Using your cooker hood 9- 10
Beforefirstuse 9
To use your cooker hood 10
Settingthetimeofday
Thetimer
Cleaning your cooker hood 11
Cleaning
The grease filter 11
Maintenance 12- 14
Removing and cleaning the grease filter 12
Changingalightbulb 114
Fitting the carbon filters 14
Installation 15- 24
Electrical connection 15
Before beginning installation 16
Installing your cooker hood 17–19
Connecting to external ducting 20
Fitting the chimney 20–22
Attaching the glass canopy (LIH9026G only) 23
Completing the installation 24
Extraction mode or recirculation mode? 25
Troubleshooting 25
Contactdetails 26-27

ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
CONFORMITY TO W.E.E.E. DIRECTIVE
4

IMPORTANT SAFETY INFORMATION
Your safetyis of the utmost importance to us.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Technical
Department.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the
Australian Standard AS 5601.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
¾Electric cookers: 700 mm
¾Gas cookers: 700 mm
¾Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 600mm ABOVE YOUR ELECTRIC OR GAS COOKER.
oWhen installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
5

oThe edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.
6

oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
oNote that it removes odours from your room, not steam.
oWarning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
oDo not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use
as overheated fats and oils might catch fire.
oDo not leave naked flames under the cooker
hood.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
oNever flambé cook under this cooker hood.
oThe lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. a naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
7

Specifications of your LIH9026G cooker hood
PRODUCT DIMENSIONS
Height: 565 mm – 1045 mm
Width: 900 mm
Depth: 500 mm
DIMENSIONS OF CHIMNEY SECTION:
276 mm x 303 mm
Your stainless steel cooker hood is fitted with:
oHigh extraction tangential motor
oTouch control operation
oLCD display
o3 speeds
o1 metallic grease filter
o2 halogen lights
oCut off timer
Extraction capacity: 750 m³/hr
Noise level min/max: 58 – 64 dB
MODEL NUMBER CARBON FILTER REQUIRED
LIH9026G S1
8

Using your cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE COOKER HOOD IS USED FOR THE FIRST
TIME.
oYou should use a good quality stainless steel cleaner on ALL of
the stainless steel areas of your cooker hood, before it is used
for the first time.
oThis will help to leave a silicone water-resistant film to protect
the stainless steel surfaces.
To use your cooker hood
oMake sure that it has been installed by a suitably qualified
person, as per the information contained in insttallation
instructions.
oFind the control panel, which is located in the middle of the
canopy.
oThere are several buttons on the control panel, which perform
separate functions.
oPress the Add/ON button to switch the cooker hood on. The hood
will start to run at its lowest speed.
oThe cooker hood has three operating speeds; low, medium and
high. Use the Add/ON button to increase the speed and use the
Dec/OFF button to decrease the speed that it is operating at.
oThe operating speed that you have selected will appear on the
LCD display.
oIf you press the Dec/OFF button when the hood is operating at
its lowest speed, then the hood will switch off.
9

10
oPress the Light button to switch the bulbs on and off. You can
IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR
.
.
etting the time of day
oPress and hold the timer button, until the first two digits of the
oRelease the timer button, then use the Add/ON button and
oPress the timer button again and the second two digits of the
oUse the Add/ON button and Dec/OFF button to set the minute
oOnce the time of day is shown correctly on the display, press the
he timer
oYou can use the cooker hood’s timer, to set the cooker hood to
oYou can get the cooker hood to countdown for the following
No. of pushes of the timer Length of time (in minutes)
switch the lights on, even if the hood is not operating.
HOOD TEN MINUTES BEFORE YOU START TO COOK,
OR AT THE VERY LEAST WHEN YOU BEGIN COOKING
YOU SHOULD ALSO RUN YOUR HOOD FOR TEN
MINUTES AFTER YOU HAVE FINISHED COOKING
S
display start to flash.
Dec/OFF button to set the hour time.
display will start to flash.
time.
timer button for the third time to confirm it.
T
run for a particular period of time and then switch off.
periods of time:-
button the cooker hood will operate
for
1 5 minutes
2 15 minutes
3 30 minutes
4 Timer function cancelled
oOnce you have set a countdown period, the cooker hood will
oWhen the countdown time has been reached, 00:00 will appear
and the cooker hood will stop running.
start to countdown. The time remaining until the cooker hood
shuts off will show on the display.

11
Cleaning your Baumatic cooker hood
IMPORTANT: BEFORE CLEANING, ALWAYS
ENSURE THAT YOU HAVE SWITCHED YOUR
COOKER HOOD OFF AT THE OMNI-POLAR
SWITCH, SET AT THE WALL FROM THE CABL E.
oClean the external parts of your cooker hood with mild liquid
gent and a new damp cloth.
oive solvents or brushes.
.
uid
detergents and a new damp cloth.
oirculation mode, then be
sure to replace the carbon filter at the recommended interval
e
oarea above the grease filters.
e grease filter
Cleaning
deter
Never use abrasive powder, corros
oNever insert pointed objects into the motor’s protective grid
oOnly clean the control panel and grease filter grill with mild liq
If you are using the appliance in rec
(see section on “Fitting the carbon filter”). A build up of greas
could cause a fire hazard.
Never attempt to clean the
Th
oYour cooker hood includes a grease filter which helps to absorb
grease particles to protect your kitchen & furniture from greasy
olic filter may become inflammable if they become
saturated with this greasy residue.
oshould be cleaned regularly.
Depending on use, this should be done every 10-15 days or at
oASH THE GREASE FILTER IN A DISHWASHER.
residues.
This metal
To prevent this fire hazard, the filter
least once a month, using hot water and normal washing-up
detergent.
DO NOT W

12
intenanceMa

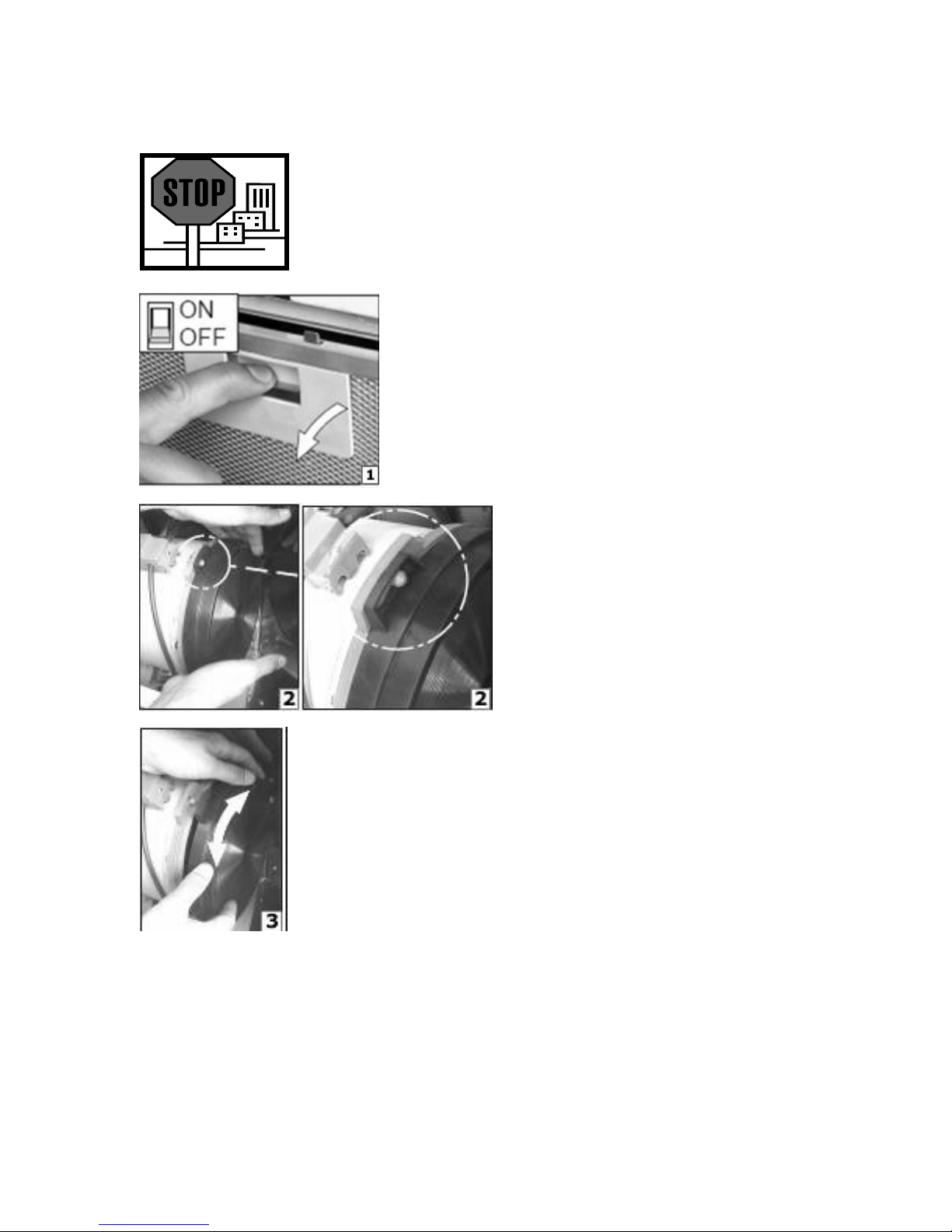

Removing and cleaning the grease filter
oFirst remove the grease filter by
oSoak the grease filter in hot water and washing up liquid for
oRinse it off thoroughly with hot water.
oRepeat the process if required.
oRefit the grease filter once it has
oIMPORTANT: Let the grease filter dry thoroughly before
pulling down on the handle and
pulling them away from the
cooker hood.
about an hour.
dried.
refitting it in the cooker hood.

13
hanging a light bulb
FORE ATTEMPTING TO CHANGE
M
oRemove the grease filter (as
oPrior to touching the light bulbs ensure that they have cooled
oFind the bulb that requires replacement, you will find it located in
oUse a screwdriver to remove the glass cover that sits over the
rt
IMPORTANT: Defective bulbs should be replaced immediately.
oIf the lights still do not work, make sure that the bulbs are fitted
oRefit the grease filter.
C
IMPORTANT: BE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FRO
YOUR MAINS SUPPLY.
described on page 13).
down.
the light fixture which is inside the exposed section of the
canopy.
bulb. Unscrew the light bulb that needs to be replaced and inse
a new G4 20W (max) bulb. Then replace the glass cover.
o
properly into their housings before you call for technical
assistance.

F
14
itting the carbon filters
the appliance is being used to be used in recirculation mode then it
FORE ATTEMPTING TO FIT OR
HE
) Remove the grease filters.
) Hook the carbon filter over
) Turn the carbon filter anticlockwise, until you feel
oRepeat this process for the second carbon filter. You need to
oRefit the grease filter.
oThe carbon filters should be replaced every three months or if
If
is necessary to fit carbon filters. This will help to absorb unpleasant
odours caused by cooking.
IMPORTANT: BE
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED T
COOKER HOOD FROM YOUR MAINS SUPPLY.
1
2
the pins that are located at the
end of the motor.
3
it click into place.
place a carbon filter at either end of the motor.
they show signs of damage.

15
Installation
IMPORTANT: Before installation and usage read
d on
ing
he manufacturer declines all responsibility in the event of the installer
e
lectrical connection
OUR COOKER HOOD IS INTENDED FOR FITTED AND
oThe cooker hood’s power cable must be fitted upstream from the
ARNING: THIS APPLIANCE MUST BE EARTHED. It
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicate
the rating plate are exactly the same as the
voltage and frequency in your home. The rat
plate can be found behind the grease filter.
T
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of th
electric system.
E
Y
PERMANENT INSTALLATION.
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm. THE FUSE MUST BE RATED AT 3
AMPS.
W
should only be connected by a competent person, using
fixed wiring via a double pole switched fused spur outlet.
e recommend that the appliance is connected by a qualified
mply
Blue = Neutral, Brown = Live, Green/Yellow = Ground
If you only find two wires in the main’s lead (blue and brown),
then neither must be connected to the earth terminal.
(UK ONLY).
W
electrician, who is a member of the N.I.C.E.I.C. and who will co
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:

16
erminals
connected to the
terminal marked “N” (neutral), or coloured
own wire must be connected to the
terminal marked “L” (live), or coloured red.
nsta la
hased is of a suitable size for the
chosen installation area. In addition check whether there is an
is
oall necessary masonry work prior to the fitting of the
cooker hood.
ol electrical connections are carried out by a suitably
qualified person.
og installation of the cooker hood the grease
filters should be removed.
od insure that there is no transit
packaging or any other materials, such as packets of screws,
e
oible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
oer that
surface with a protective covering and place all cooker hood
osecure the hood to most types of
walls and ceilings. However a qualified technician must verify the
l
oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the t
in your spur box, please proceed as follows:
oThe blue wire must be
black.
The bro
l tionBefore beginning i
oCheck that the product purc
electrical socket available that will be accessible once the hood
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
Carry out
Ensure that al
Before commencin
Check inside the product an
guarantees etc. These should be removed and kept for futur
use.
If poss
ceiling. If this is not possible, then a thick, protective covering
should be placed over the worktop, hob top or cooker. This will
help to protect these surfaces from damage and debris.
Select a flat surface for assembling the cooker hood. Cov
parts and fittings on to it.
Rawl plugs are provided to
suitability of the materials, in accordance with the type of wal
and ceiling. The wall and ceiling must be strong enough to take
the weight of the hood.

17
o
e surface mounted only.
Ins a
WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE
SE
oWe re t least two people install this hood.
MPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO
Do not tile, grout or silicone this appliance to the wall. This
appliance is designed to b
t lling your cooker hood
IMPORTANT: YOU
IT IN EXTRACTION MODE OR RECIRCULATION
MODE. PLEASE TURN TO PAGE 24 NOW TO
UNDERSTAND THE DIFFERENCES BETWEEN THE
TWO MODES.
commend that a
I
YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION
PROCESS HAS BEEN COMPLETED.
1) Remove the metal grease filters.
) Position the hood against the wall that you are intending to
stall it on and mark the position of the support holes that are
to be drilled (as shown in the figure below).
2
in

a) The support screw holes are indicated by figure Ain this drawing
nd the anchoring screw holes are indicated by figure B.
) Using a drill bit with a 8 mm
iameter, make holes in the wall on the
ositions that you have marked in step
4) Insert raw plugs into all of the holes that you have drilled.
5) Fasten the support screws halfw y in, leaving them 10 mm out of
2
a
3
d
p
2.
a
the wall.
18

19
) Hang the hood onto the support
crews.
7)
crews (B) through the relevant holes in the cooker hood. Tighten the
6
s
Fully tighten the support screws (A) and then screw the anchoring
s
anchoring screws fully into the wall

20
onnecting to external ducting
connect a 125 mm ducting hose to the coupling (please note that
ted to your
discharge outlet that is suitable for cooking vapours. It should
oing and your discharge
outlet should be 3 metres, with one 90 degree bend.
Fit n
9) Take the two chimney
ections (C and D).
f
chimney section Con the
e
the
o
measurement of both
y section C
il.
C
8) Connect the coupling to the top of the cooker hood, and then
the ducting hose is not supplied with the appliance).
oThe other end of the ducting hose should be connec
have a cross section of at least 150 cm².
The maximum distance between the coupl
ti g the chimney
s
oRest the bottom o
top of the hood. You
should take care to
position the tabs on th
chimney section into
rear of the hood.
Mark the side
sides of chimne
on the wall with a penc
