BEO910BGL
90 cm Glass Chimney
Hood

2
User Manual for your Baumatic
BEO910BGL
90 cm Glass Chimney hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 31/01/12

3
Contents Page
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8
Using your cooker hood 9 – 11
Turning on the cooker hood 9 – 10
Speedselection 10
Lightcontrol 10
Thetimer 11
Turning off the cooker hood 11
Cleaning your Baumatic cooker hood 12 – 13
Cleaning 12
The grease filters 12 - 13
Maintenance 13 - 17
Removing and cleaning the grease filters 13 - 14
Changingalightbulb 14-15
Fitting the carbon filters 16 - 17
Installation 17 - 24
Electrical connection 17 - 18
Before beginning installation 18 - 19
Extraction mode or recirculation mode? 19
Installing your cooker hood 20 - 21
Connecting to external ducting 21 - 22
Fitting the optional chimney sections (CQ4SS) 22 – 24
Completing the installation 24
Troubleshooting 25 - 26
Baumatic consumables 27
Contactdetails 28

4
ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
CONFORMITY TO W.E.E.E. DIRECTIVE

5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Customer
Care Department.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
¾Electric cookers: 700 mm
¾Gas cookers: 700 mm
¾Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
oWhen installed between adjoining wall cabinets, the cabinets
must not overhang the hob.

6
oThe edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.

7
oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
oNote: Your cooker hood is designed to remove cooking
odours from the room and not steam.
oWarning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
oDo not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use
as overheated fats and oils might catch fire.
oThe lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. a naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
oNever flambé cook under this cooker hood.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.

8
Specifications of your cooker hood
PRODUCT DIMENSIONS
Height: 735 mm
Width: 900 mm
Depth: 380 mm
Your cooker hood is fitted with:
oIntegrated centrifugal motor
oLCD display
oTouch control operation
o4 Speeds
oCut-off timer
o2 x Washable aluminium grease filters
o2 x LED lights
oNon-return air-flow flap
oExtraction capacity: 1000 m³/hr
oOptional extras: 1 x pair S1 Carbon filters required for
recirculation
CQ4SS Decorative Chimney Cover

9
Using your cooker hood
oMake sure that it has been installed by a suitably qualified
person, as per the information contained in Baumatic’s
installation instructions.
oThere are several buttons on the control panel, which perform
separate functions.
Timer button
Light control button
Speed selection button
Power button
Slider control
Turning on the cooker hood
oAfter you have connected the cooker hood to the mains supply
the backlight will turn on. The backlight will turn off after 5
seconds and the hood will enter stand-by mode.
oPress and hold the power button for 3 seconds to turn
the cooker hood on. The decorative cover will open and
the speed selection and power indicators will light. The
first two steps of the slider control will also light.
oAll the cooker hood functions can only be used when the
decorative cover is open.
IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR
HOOD TEN MINUTES BEFORE YOU START TO COOK,

10
OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU
SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU
HAVE FINISHED COOKING.

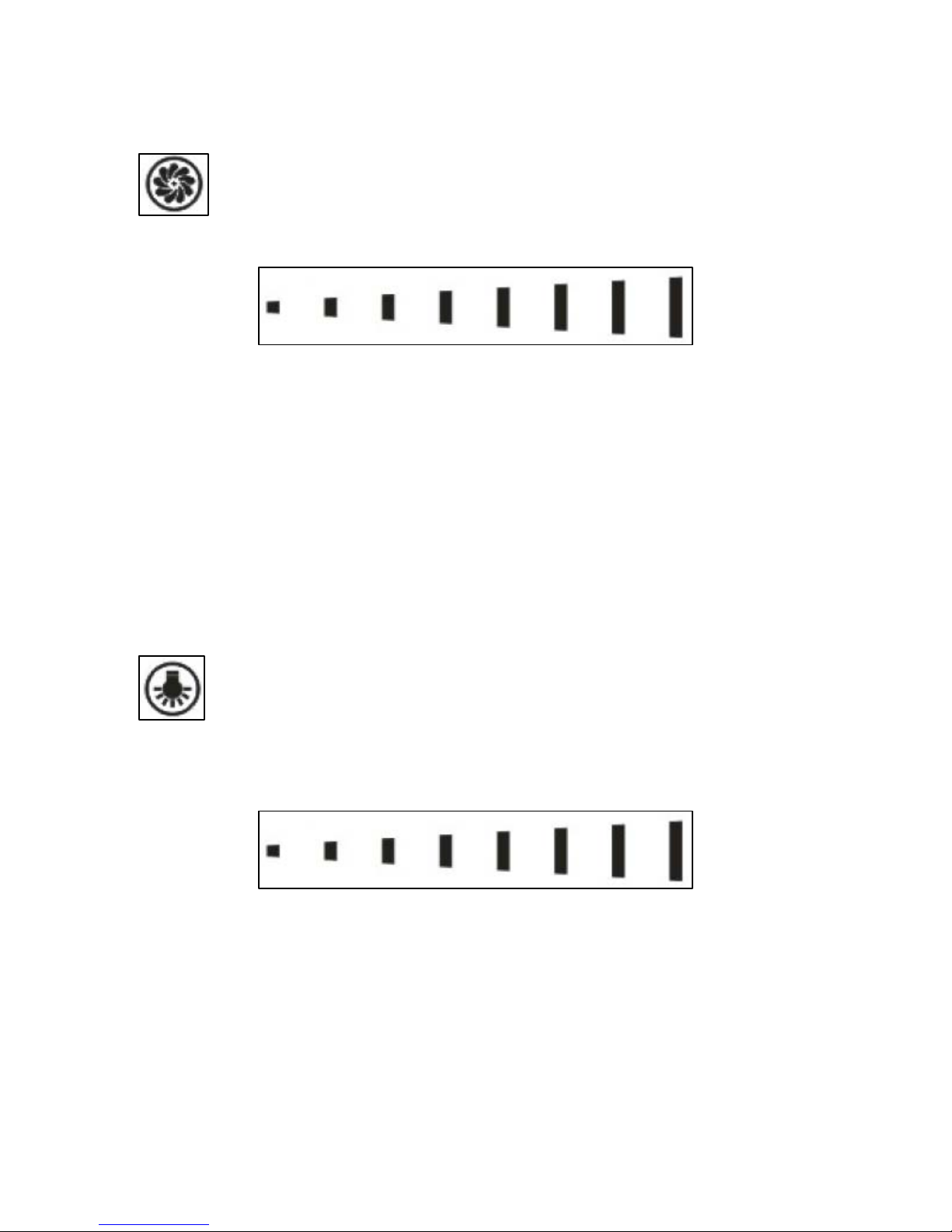

Speed selection
oPress the speed selection button to turn the speed
selection function on and off. When you have turned the
speed selection function on, you can then use the slider
control to choose an operating speed for the motor.
oThe slider control has a total of 4 settings and 8 indicator lights
so each speed has 2 correlating indicator lights.
oWhen you use the slider control to choose a speed the cooker
hood will operate at the selected speed. If no adjustments are
made after 15 seconds the indicator lights will turn off and the
hood will operate at the chosen speed.
oThe next time you use your cooker hood, the motor will operate
at the previously selected speed.
Light control
oPress the light control button to switch the LED lights on
and off.
oAfter you have pressed the light control button to turn the lights
on, you can then use the slider control to adjust the brightness
of the lights.
oThere are 8 light brightness settings on the slider control with an
indicator light for each setting. If no adjustments are made after
15 seconds the indicator lights will turn off and the LED lights
will operate at the chosen brightness.
oThe next time you use your cooker hood, the lights will operate
at the previously selected brightness.

11
The timer
oYou are able to program a countdown time for the cooker hood.
After the set time has elapsed the hood will automatically switch
off.
oAfter you have selected your desired speed and light
brightness, press the timer button to enter the timer
setting mode.
oYou can then use the slider control to choose from 8 timer
settings. There is an indicator light for each timer setting. You
can choose from:
5 – 10 – 15 – 20 – 25 – 30 – 35 – 40 minutes
oWhen the indicator light for the required setting is lit press the
timer button again to confirm the countdown time. Or the time
will set after 5 seconds.
oIMPORTANT: After the countdown time has been set, if
the speed or light brightness is altered the timer setting
will be automatically cancelled.
oWhen the countdown time is reached the hood will stop
operating.
oThe next time you use your hood and press the timer button the
hood will enter into the previously set countdown time.
Turning off the cooker hood
oPress and hold the power button for 3 seconds to turn
the cooker hood off. The decorative cover will close and
all the functions will turn off.

12
Cleaning your Baumatic cooker hood

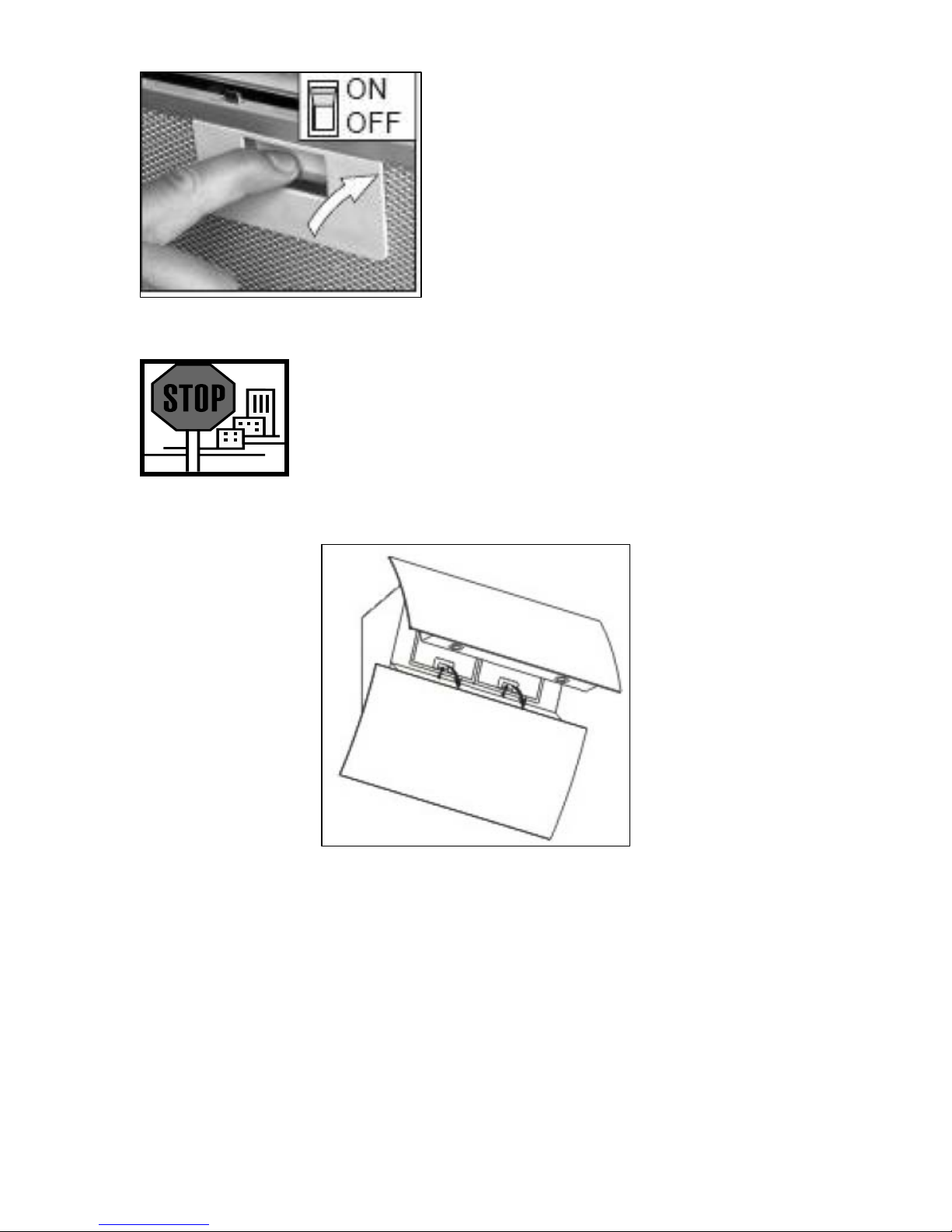

IMPORTANT: BEFORE CLEANING, ALWAYS
ENSURE THAT YOU HAVE SWITCHED YOUR
COOKER HOOD OFF AT THE OMNI-POLAR
SWITCH, SET AT THE WALL FROM THE CABLE.
Cleaning
oClean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
oNever use abrasive powder, corrosive solvents or brushes.
oNever insert pointed objects into the motor’s protective grid.
oOnly clean the control panel and grease filter grill with mild liquid
detergents and a new damp cloth.
oIf you are using the appliance in recirculation mode, then be
sure to replace the carbon filter at the recommended interval
(see section on “Fitting the carbon filter”). A build up of grease
could cause a fire hazard.
oNever attempt to clean the area above the grease filter(s).
oIMPORTANT: You should regularly use a good quality
stainless steel cleaner to maintain the shine and finish on
the stainless steel areas of your cooker hood.
oThis will help to leave a silicone water-resistant film to protect
the stainless steel surfaces and keep them in good condition for
the life of the product.
The grease filters
oYour cooker hood includes grease filters which help to absorb
grease particles to protect your kitchen and furniture from
greasy residues.
oThese aluminium filters may become inflammable if they become
saturated with this greasy residue.
oTo prevent this fire hazard, the filters should be cleaned
regularly. Depending on use, this should be done every 10-15
days or at least once a month, using hot water and normal
washing-up detergent.

13
oDO NOT WASH THE GREASE FILTERS IN A DISHWASHER.
Maintenance
Removing and cleaning the grease filters
oPress and hold the power button
for 3 seconds to open the
decorative cover and allow access
to the grease filters.
oRemove the grease filters by
pulling down on the handle and
pulling them away from the
cooker hood.
oSoak the grease filters in hot water and washing up liquid for at
least 3 minutes. Then use a soft brush to loosen any grease
deposits that have formed.
oRinse the grease filters off thoroughly with hot water.

14
oRepeat the process if required.
oRefit the grease filters once they
have dried and press and hold
the power button for 3 seconds to
close the decorative lid.
oIMPORTANT: Let the grease
filters dry thoroughly before
refitting them in the cooker
hood.
Changing a light bulb
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FROM
YOUR MAINS SUPPLY.
oPrior to touching the light bulbs ensure they are cooled down.
oFirst open the decorative cover and remove the grease filters (as
previously described). When the decorative cover is open,
disconnect the cooker hood from your mains supply. The cover
will stay open.
oUse a screwdriver to lift out the LED light and then disconnect
the light wiring point as shown in the diagram on the next page.

15
oFit the replacement bulb in the same manner as the original and
reconnect the light wiring point.
oIMPORTANT: Defective bulbs should be replaced immediately.
oIf the light or lights still do not work, make sure that the lamps
are fitted properly into their housings before you call for
technical assistance.
oRefit the grease filters and
reconnect the cooker hood to your
mains supply in order to close the
decorative cover.

16
Fitting the carbon filters
If the appliance is to be used in recirculation mode then it is necessary
to fit carbon filters. This will help to absorb unpleasant odours caused
by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.
1) First open the decorative cover and
remove the grease filters (as previously
described). When the decorative cover is
open, disconnect the cooker hood from your
mains supply. The cover will stay open.
2) Hook the carbon filter over
the pins that are located at the
end of the motor.
3) Turn the carbon filter anticlockwise,
until you feel it click into place.
oRepeat this process for the second carbon filter. You need to
place a carbon filter at either end of the motor.
oRefit the grease filters and reconnect the cooker hood to your
mains supply in order to close the decorative cover.

17
oThe carbon filters should be replaced every 3 - 6 months or if
they show signs of damage.
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found behind the grease filters.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
Electrical connection
YOUR COOKER HOOD IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
oThe cooker hood’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm. THE FUSE MUST BE RATED AT 3
AMPS.
WARNING: THIS APPLIANCE MUST BE EARTHED. It
should only be connected by a competent person, using
fixed wiring via a double pole switched fused spur outlet.
(UK ONLY).
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:
Blue = Neutral, Brown = Live, Green/Yellow = Ground

18
If you only find two wires in the main’s lead (blue and brown),
then neither must be connected to the earth terminal.
oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
oThe blue wire must be connected to the
terminal marked “N” (neutral), or coloured
black.
oThe brown wire must be connected to the
terminal marked “L” (live), or coloured red.
Before beginning installation
oCheck that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
oCarry out all necessary masonry work prior to the fitting of the
cooker hood.
oEnsure that all electrical connections are carried out by a suitably
qualified person.
oBefore commencing installation of the cooker hood the grease
filter should be removed.
oCheck inside the product and insure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future
use.
oIf possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
ceiling. If this is not possible, then a thick, protective covering
should be placed over the worktop, hob top or cooker. This will
help to protect these surfaces from damage and debris.
oSelect a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood
parts and fittings on it.

19
oIn addition check whether there is an electrical socket available,
which will be accessible after the hood is mounted. If you are
going to use the appliance in extractor mode, you should also
ensure that there is space to connect a fumes discharge device
to the outside.
oRawl plugs are provided to secure the hood to most types of
walls and ceilings. However a qualified technician must verify the
suitability of the materials, in accordance with the type of wall
and ceiling. The wall and ceiling must be strong enough to take
the weight of the hood.
oDo not tile, grout or silicone this appliance to the wall. This
appliance is designed to be surface mounted only.
Extraction mode or recirculation mode?
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE
IT IN EXTRACTION MODE OR RECIRCULATION
MODE.
What is the difference between extraction and recirculation
modes?
In extraction mode, the stale air will be taken out of the room via
external ducting.
In recirculation mode stale air is taken via the grease filter(s), and
passed through a charcoal filter for purification. The air then re-enters
the kitchen via an opening in the hood.
For optimum performance, we recommend that the cooker hood is
used in extraction mode and connected to external ducting.
Unfortunately if you live in a flat or the hood is too far from an outside
wall, this may not be possible. The only alternative is to recirculate the
air.
Do I need a charcoal filter?
All cooker hoods have a grease filters but if you are using your cooker
hood in recirculation mode, then a charcoal filter must be fitted in
addition to the grease filters.

20
Installing your cooker hood
oWe recommend that at least two people install
this hood.
oPlease note that the styles of cooker hood shown in the
line drawings on the following pages are sometimes
different to the shape of the BEO910BGL. However the
installation method shown is correct and MUST be
followed.
IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO
YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION
PROCESS HAS BEEN COMPLETED.
1) Position the hood against the wall that you are intending to install it
on and mark the position of the screw holes at the back of the hood
that are to be drilled (as shown in the figure above).
2) Using a drill bit with an 8 mm diameter, make holes in the wall on
the positions that you have marked.
3) Put the rubber stoppers in the holes and screw ST4*30 screws into
the two top holes.
4) Hang the cooker hood onto the fixing screws.
