User Manual for your Baumatic
BT85GL Cooker Hood
90 cm Glass Chimney Hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.

2
YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3
IMPORTANT SAFETY INFORMATION……………………………….…4-5
CARING FOR THE ENVIRONMENT…………………………………………6
USING YOUR COOKER HOOD………………………………..……………..7
MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-10
INSTALLATION INSTRUCTIONS ……………………….……...….11-19
CARBON FILTER …………..11
ELECTRICAL CONNECTION……………12
INSTALLING THE COOKER HOOD….….13-15
INSTALLING THE PIPE…………..16-17
INSTALLATION NOTES – EXTRACTION / PURIFYING VERSION .….18
NOTE ON INSTALLING THE VERSION WITH LOWER BRACKET..……19
TROUBLESHOOTING ……………………………………………20
CONDITIONS OF GUARANTEE……………………………………………21
CONTACT DETAILS…………………………………………………………..22
CONTENTS

3
Congratulations on purchasing a Baumatic Cooker
Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
Cooker Hood has been installed properly.
DIMENSIONS
Width (canopy): 900 mm
Depth (canopy): 400 mm to 500 mm
Height (adjustable): 620 mm to 1090 mm
Dimensions of Chimney Section:
266mm X 266mm
Your stainless steel Cooker Hood is fitted with:
•High extraction tangential motor
•Touch control operation
•5 Speeds & Booster
•Cut-off timer (10 min)
•Service warning indicator
•2 Stainless Steel grease filters
•2 Halogen lights
Extraction capacity – 500 m³/hr
Optional Extras: 1 x C1 carbon filter for air recirculation.
BTSB95SS 90-50cm Stainless Steel
Splashback.
Specifications of your BT85GL Cooker Hood

4
o Any installation work must be
carried out by a qualified
electrician or competent person.
o The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
oIf the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Dptmt.
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood,
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
9Electric cookers:
700 mm
9Gas cookers:
700mm
9Coal/ oil cookers:
800 mm
* NOTE - DO NOT SET YOUR
COOKER HOOD LESS THAN
700mm ABOVE YOUR COOKER!
oWhen installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob & must
hang 50mm or more
away from the side of the
hob surfaces.
oThe edges of the cooker
hood are sharp – be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
oIf other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
Important Safety Information: Please Read this before installing & using.

5
oEnsure the ducting for
the extractor function
has the same diameter as
the outlet hole all the
way through.
o Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o Your cooker hood is for
domestic use only.
o Please dispose of the
packing material
carefully – children are
especially vulnerable to
it.
o Dirty oil is an even
greater fire risk.
o Always put lids on pots
and pans when cooking
on a gas cooker.
o The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or its catching on
fire from failure to
observe fire safety advice
in these instructions.
o Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
oWarning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
:Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
:Do not install above a
cooker with a high level
grill.
: Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
: Do not leave naked
flames under the cooker
hood.
:Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
: Never flambé cook under
this cooker hood.
Important Safety Information: Please Read this before installing & using.

6

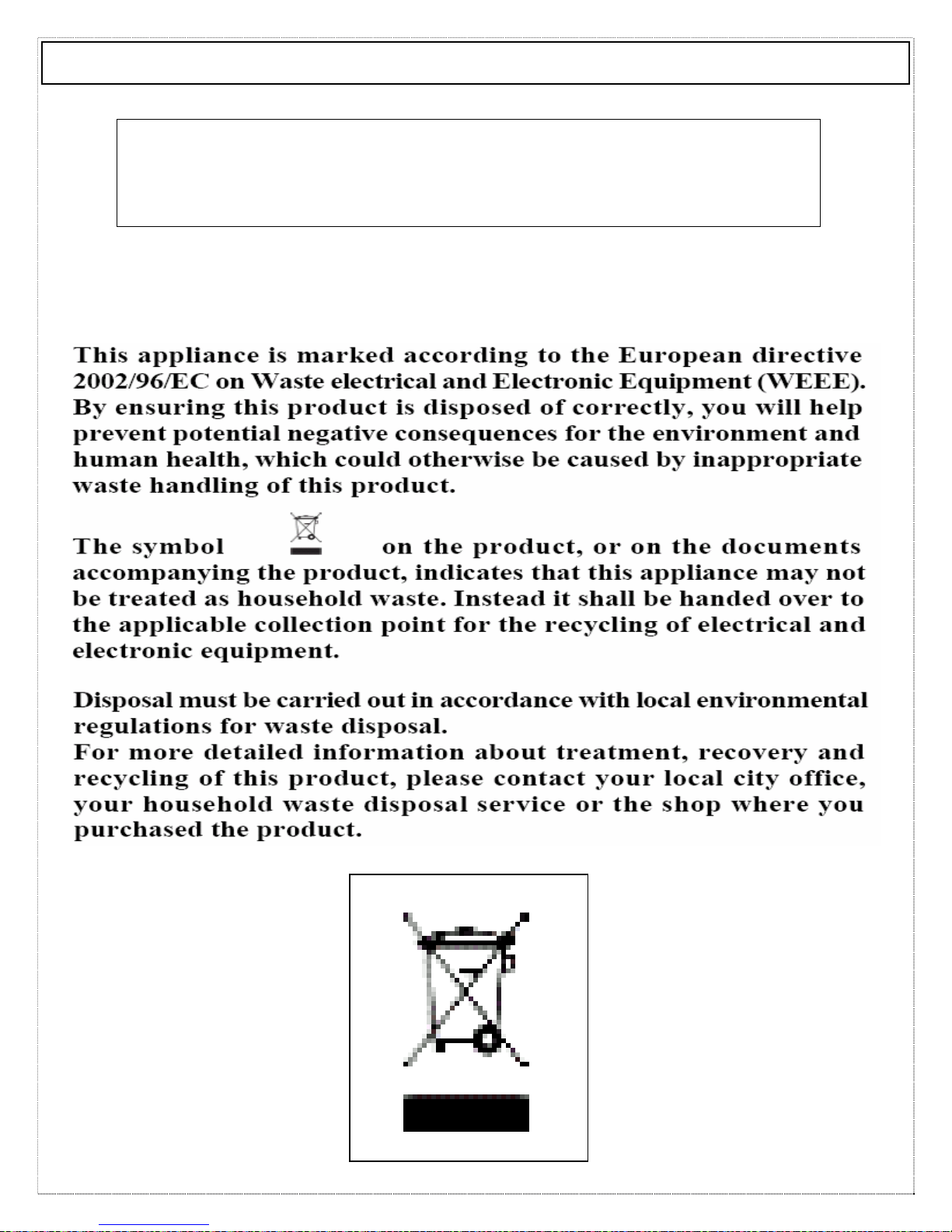

Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.
CONFORMITY TO W.E.E.E. DIRECTIVE
Environmental Note

7
To use your cooker hood:
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located centrally at the front of
the canopy.
3) The CONTROL PANEL contains keys as shown in the Figure
below. These perform separate functions. You will need to
understand what the keys do before you attempt to use your
cooker hood.
* Note: The hood should be switched on at least as soon as you start
cooking.
Key#
1MOTOR ON /OFF switch – Press Key No. 1 to turn the
motor on and off. When switched on, the hood starts
up automatically at the third speed.
2Minus key – This key reduces the setting of the motor
or fan speed.
3Plus key – This key increases the setting of the motor /
fan speed.
4Timer Function – This is used for programmed shut-
down of the motor & lights, 15 minutes after this button
has been pressed.
5Light ‘on/off’ –This switches the light on and off.
Usin
g
y
our Baumatic Cooker Hood:

8
SPECIAL FUNCTIONS:
Your Baumatic Cooker Hood also has
advanced features. These are:
a) Reminder to clean the
Metal Grease Filters
After every 30 hours of use, your
cooker hood’s microprocessor will alert
you to clean the metal grease filters. It
does this by showing a flashing ‘A’
on the display for 5 seconds.
Please ensure that you clean the
filters. Failing to do this could lead to a
damaged cooker hood and / or a fire
hazard.
To cancel the warning message
after cleaning the filters, switch off the
hood, press and hold the MINUS key
(Key No.2 shown on previous page) for
more than 5 seconds. ‘A’ will appear on
the display. After 5 seconds, this
disappears and the microprocessor will
start a new 30 hour (hours-of-use)
countdown until showing the next alert.
b) Your Baumatic Cooker
Hood features an ALERT FUNCTION to
tell you that the CARBON FILTERS need
replacing (if fitted).
If your Hood has carbon filters fitted,
these will purify exhaust fumes. In
time, they will need to be replaced.
PLEASE NOTE THAT YOU WILL NEED TO
PRIME YOUR COOKER HOOD TO
ENABLE THIS ALERT TO FUNCTION. To
do this:
1) Press and hold the ‘ ’ for
more than 5 seconds.
2) If ‘-’ shows on the display, it
means that your cooker hood
is in the process of detecting
its carbon filters.
3) After 5 seconds, this will
change so that ‘C’ is shown on
the display – meaning that
your cooker hood is using
carbon filters. If it has none
fitted, the ‘-’ will not change.
4) From now on, after every 120
hours of use, your cooker
hood’s microprocessor will
show a flashing ‘C’ on the
display to indicate that it’s
time to change the carbon
filters.
NOTE- you should replace the carbon
filters as prompted to ensure that your
cooker hood’s recirculation system is
working at its best and that hygiene is
maximised.
5) To cancel this alert (IE., when
you want it to reset after you
have changed the carbon
filters, switch off your cooker
hood, press and hold the ‘ ’
key for 5 or more seconds.
The letter ‘C’ will show on the
display for 5 seconds. The
microprocessor will then start
a fresh 120 hours-of-usage
countdown before it will show
the alert again.
PLEASE REMEMBER
THAT YOUR BAUMATIC
COOKER HOOD CAN BE
USED EITHER IN
RECIRCULATION MODE
OR IN EXTRACTION
MODE. THE
RECIRCULATION MODE
CALLS FOR THE FITTING
OF CARBON FILTERS.
Usin
g
y
our Baumatic Cooker Hood:

9
IMPORTANT!: Before cleaning, always ensure that you
have switched your cooker hood OFF at the omni-polar
switch, set at the wall from the cable:
Cleaning
ÂClean the external parts with
mild liquid detergents on a
damp cloth.
ÂNever use abrasive powder,
corrosive solvents or brushes.
ÂNever insert pointed objects
into the motor’s protective grid.
ÂOnly clean the control panel
and filter grill with a damp
cloth and delicate detergents.
ÂBe sure to replace the
carbon filter at the
recommended intervals.
Build up could cause a
fire hazard.
ÂNever take out the
grease filters and
attempt to clean the
space above where they
are set.
________________________________________________
Anti-Grease Grille
ÂYour cooker hood includes anti-grease grilles which
help absorb vapour-suspended grease particles to
protect your kitchen & furniture from greasy
residues.
ÂThe metal grilles may become inflammable if they
become saturated with greasy residue.
9To prevent this fire hazard, the grilles should be
cleaned regularly (depending on use) every 10-15
days and at least once a month in a dishwasher or in
hot water with normal washing-up detergent.
Cleanin
g
y
our Baumatic Cooker Hood:Cleanin
g
y
our Baumatic Cooker Hood:

10

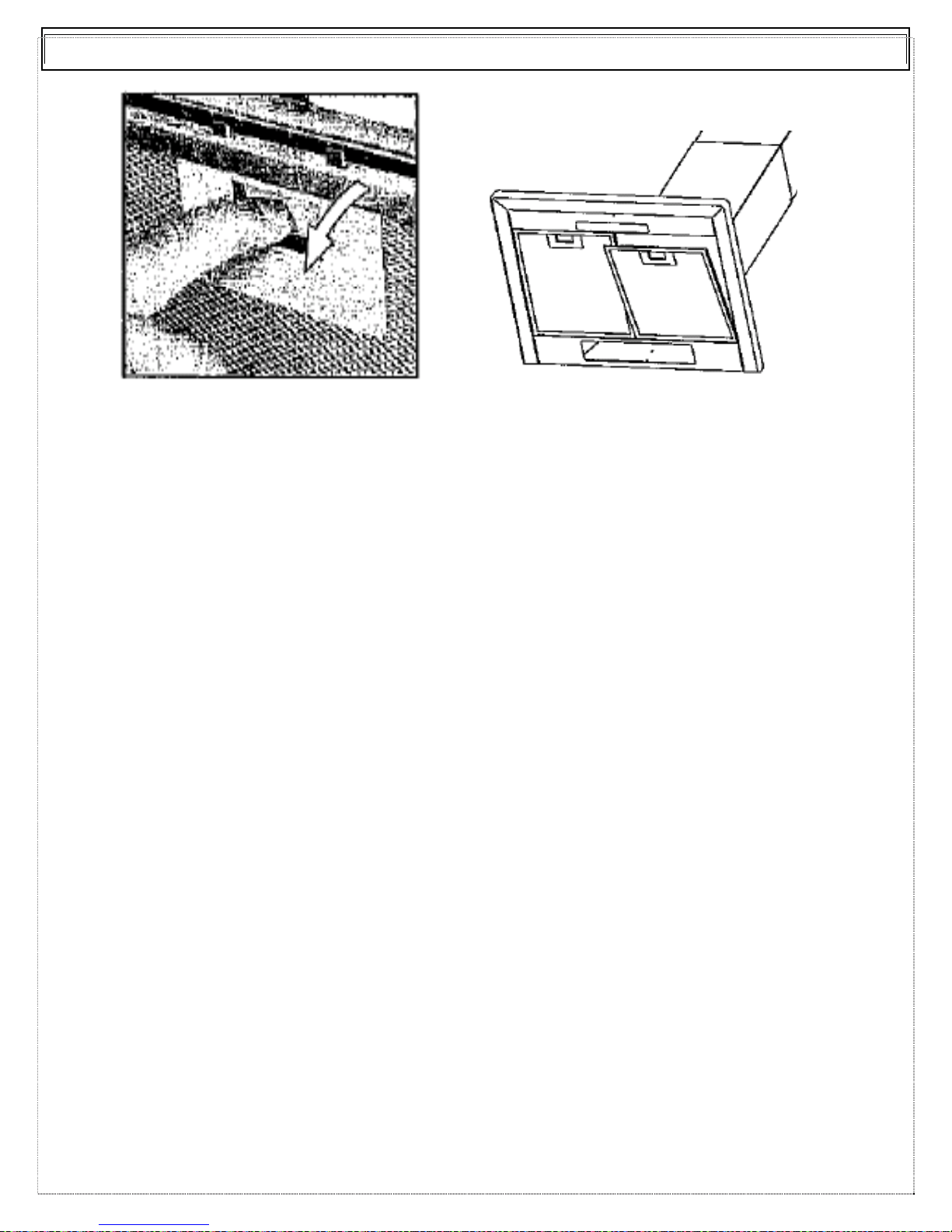

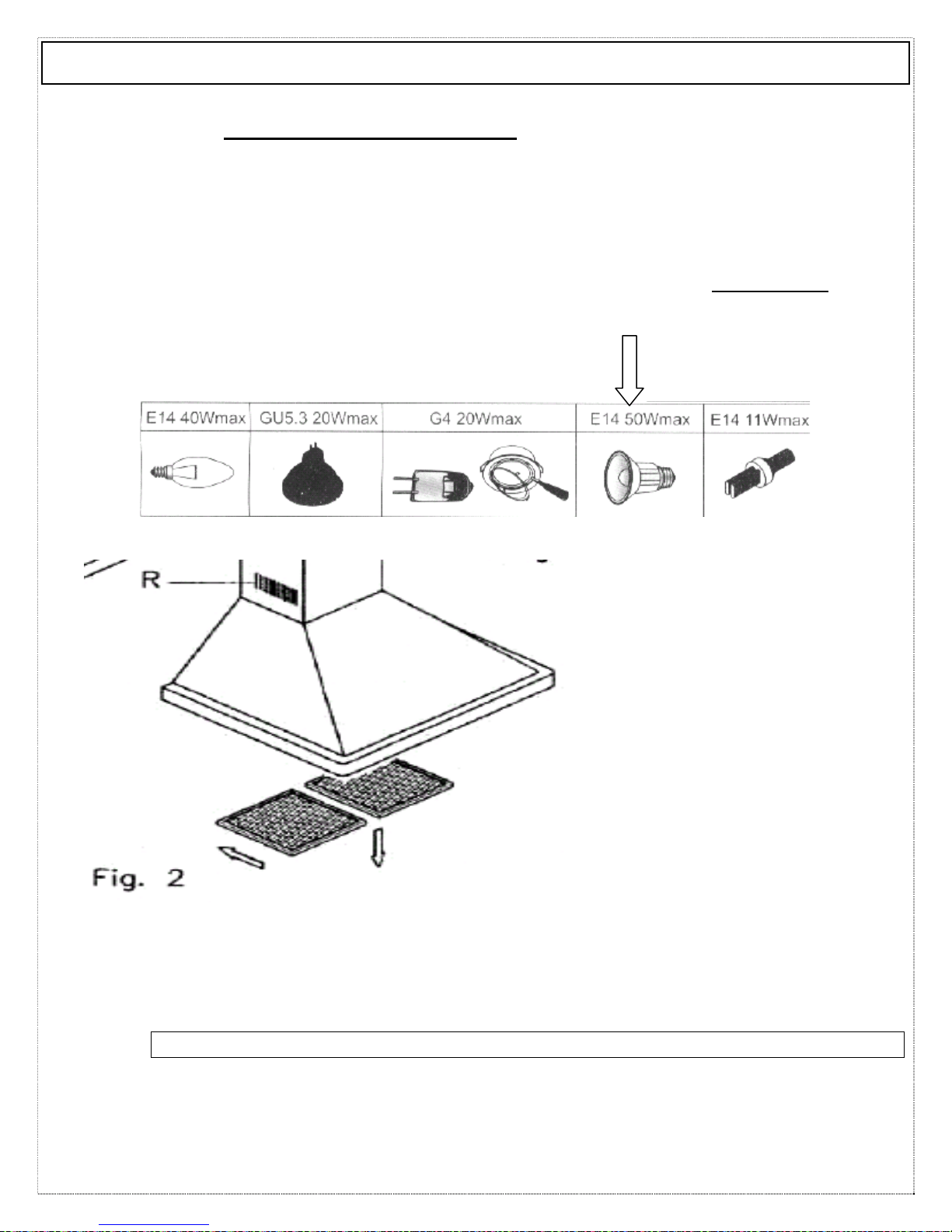

First remove the grille by pulling down on it. Undo the
side catches.
You can now clean the anti-grease filter grilles.
9Soak them for about one hour in hot water with a
grease-loosening detergent then rinse off thoroughly
with hot water.
9Repeat the process if needed. Refit the grease grille
once it has dried.
To clean the grease filter grilles in your dishwasher:
9Place the grease filter grilles in the dishwasher. Select the most
powerful washing programme and highest temperature.
9Repeat the process, if necessary.
9Refit the grease grilles when dry.
9PLEASE NOTE: DISCOLOURATION OF THE GREASE
FILTER CAN TAKE PLACE WHEN CLEANED IN A
DISHWASHER, ETC. Do not worry about the slight
discolouration of the grille – its performance won’t
be affected.
Let the filter grilles dry thoroughly before refitting
them.
Maintenance - Cleaning the Anti-grease Filters

11
a) Changing the light bulb
9Before changing the light bulb, ensure that the appliance is not live (i.e., ensure
that you have switched it off so that it’s in the ‘0’ position).
9Remove the metal anti-grease filters (see Figure 2 below) and find the old bulb
located in the light fixture up inside the exposed canopy. Change the halogen bulb using
only halogen spares with an E14 coupling, max. 50W.
* PLEASE NOTE - Defective bulbs should be replaced immediately.
9Replace the metal anti-grease filters.
Maintenance – Chan
g
in
g
the Li
g
ht Bulb and Carbon Filter

12
______________________________________________________________________________________
Installing / Changing the Carbon Filter.
Your Baumatic Cooker Hood uses a CARBON FILTER to
purify the air for the air recirculation function.
You will find that one filter will attach to the fan motor’s
front (please see figures at bottom of page).
The active carbon filter must be replaced regularly, at least once
every three months, to allow normal operation.
Before starting to fit the carbon filter, turn the omni-polar switch
off.
Changing the Carbon Filters
1) Remove the grease filter grilles.

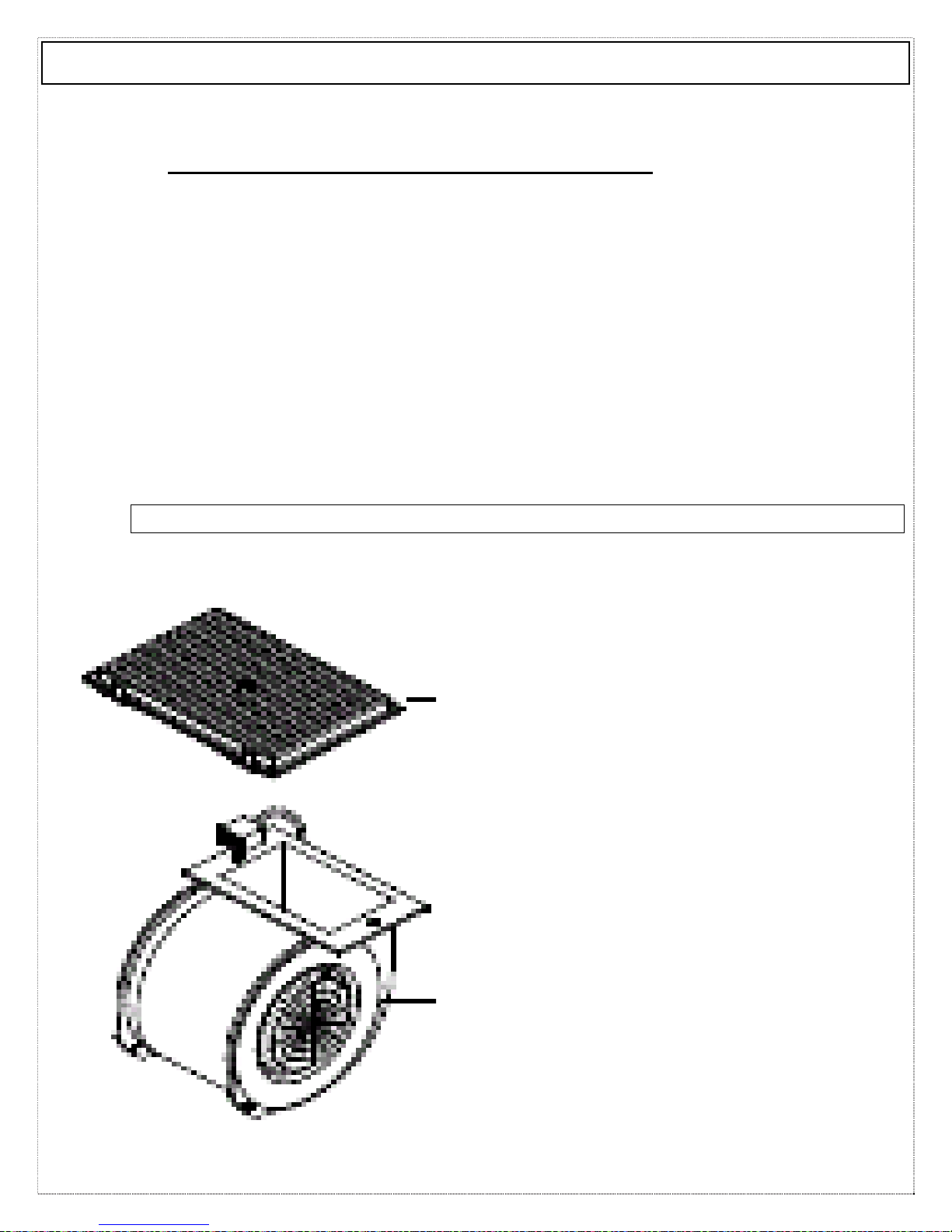

2) Find the old carbon filter on top of the
fan motor.
3) Undo the side clasps to release the old
carbon filter.
4) Place the new carbon filter, ensuring
that the clasps are set in place.
5) Replace the grease filter grilles.
Installin
g
/ Chan
g
in
g
the Carbon Filter

13
Before installation and usage, read all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on the identification plate (found
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibility in the event of failure to observe all the
accident-prevention regulations in force which are necessary for normal use and regular
operation of the electric system.
______________________________________________
ELECTRICAL CONNECTION
Y
Yo ou ur r c co oo ok ke er r h ho oo od d i is s i in nt te en nd de ed d f fo or r f fi it tt te ed d a an nd d p pe er rm ma an ne en nt t i in ns st ta al ll la at ti io on n. .
oThe power cable must be
connected to the terminals
marked L (live) and N (neutral)
in the hood and fixed with a
cable clamp.
oThe cooker hood’s power cable
must be fitted upstream from the
electrical connection using an
omni-polar switch with a contact
distance of at least 3mm.
NOTE: (UK only) WARNING – THIS APPLIANCE MUST NOT BE EARTHED. It should only be
connected by a competent person using fixed wiring via a DOUBLE POLE SWITCHED FUSED
SPUR OUTLET.
We recommend that the appliance is connected by a qualified electrician who is a member
of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in
the mains lead are coloured in accordance with the following U.K. code:
Blue= Neutral, Brown = Live, Green/Yellow = Ground
If you can only find two wires in the cable (blue and brown), neither must be
connected to the Earth terminal!
•As the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
__________________________________________________________
1) The BLUE WIRE
must be connected
to the terminal
marked ‘N’
(Neutral), or
coloured Black.
2) The BROWN
WIRE must be
connected to the
terminal marked
‘L’ (‘Live’), or
coloured RED
(Fig. 7 – at left)
3)
INSTALLATION INSTRUCTIONS - Electrical

14
: The cooker hood must not
be fitted above stoves with a
radiant top plate.
:
We recommend that at least
two people install this hood.
NOTE: Your Baumatic Cooker Hood should only be fitted on a wall. Do
NOT position it any less than 700 mm (70 cm) above the hob.
1) Remove the metal grease filters
2) Take the two angle
brackets (P) that are
included in the
accessories packet
and fix them to the
hood using the
screws (S) as shown
in Fig. 4, at right.
3) Position the hood
against the wall where
you intend to place it.
4) Using the support (D)
and anchoring (E)
holes at the back of
the hood as guides,
mark the wall to
indicate where the
screws will go.
5) Taking a drill with a 6 mm bit diameter, make holes over these marks.
6) Insert the rawlplugs into the holes.
7) Screw the support screws halfway in.
8) Hook the hood onto the screws and fasten it to the wall, tightening both
the support screws and the anchoring screws all the way in.
INSTALLATION INSTRUCTIONS
–
Installin
g
y
our Cooker Hood
PLEASE NOTE THAT YOU WILL HAVE
TO DECIDE BEFORE INSTALLING YOUR
COOKER HOOD THAT YOU CAN ADAPT
IT AS AN EXTRACTION FAN. PLEASE
SEE PAGE 15 NOW TO UNDERSTAND
CRUCIAL DIFFERENCES IN THESE.

15
Fitting the Chimney Pipe
1) Note the tabs at the back of the hood. Take the
two casings ‘A’ & ‘B’. Rest the bottom of casing
‘A’ on the top of the hood.
2) Fix casing ‘A’ onto the hood,
using the screws ‘K’ that are
supplied in the bag of
accessories (see Figure at left).
4) Lift casing ‘B’ until it
reaches the ceiling, checking
that it is perpendicular to the
hood. Mark the side
measurement of casing ‘B’ and
then lower it.
5) Take the fixing support
bracket ‘G’ , centre it with
respect to the mark you have
made for it, being sure to keep it
in contact with the ceiling.
6) Mark the anchoring holes
H.
7) Using a drill bit with a
diameter of 6 mm, make two
holes on the marks
you have made.
8) Insert rawlplugs into these
holes.
9) Put bracket ‘G’ into
position and secure it with the
screws provided.
10) Lift casing ‘B’ up to the
ceiling and secure it to the
bracket ‘G’ using the screws
provided in the holes ‘M’.
INSTALLATION INSTRUCTIONS – Attachin
g
the Hood

16
EXTRACTION OPERATION – Installation Instructions

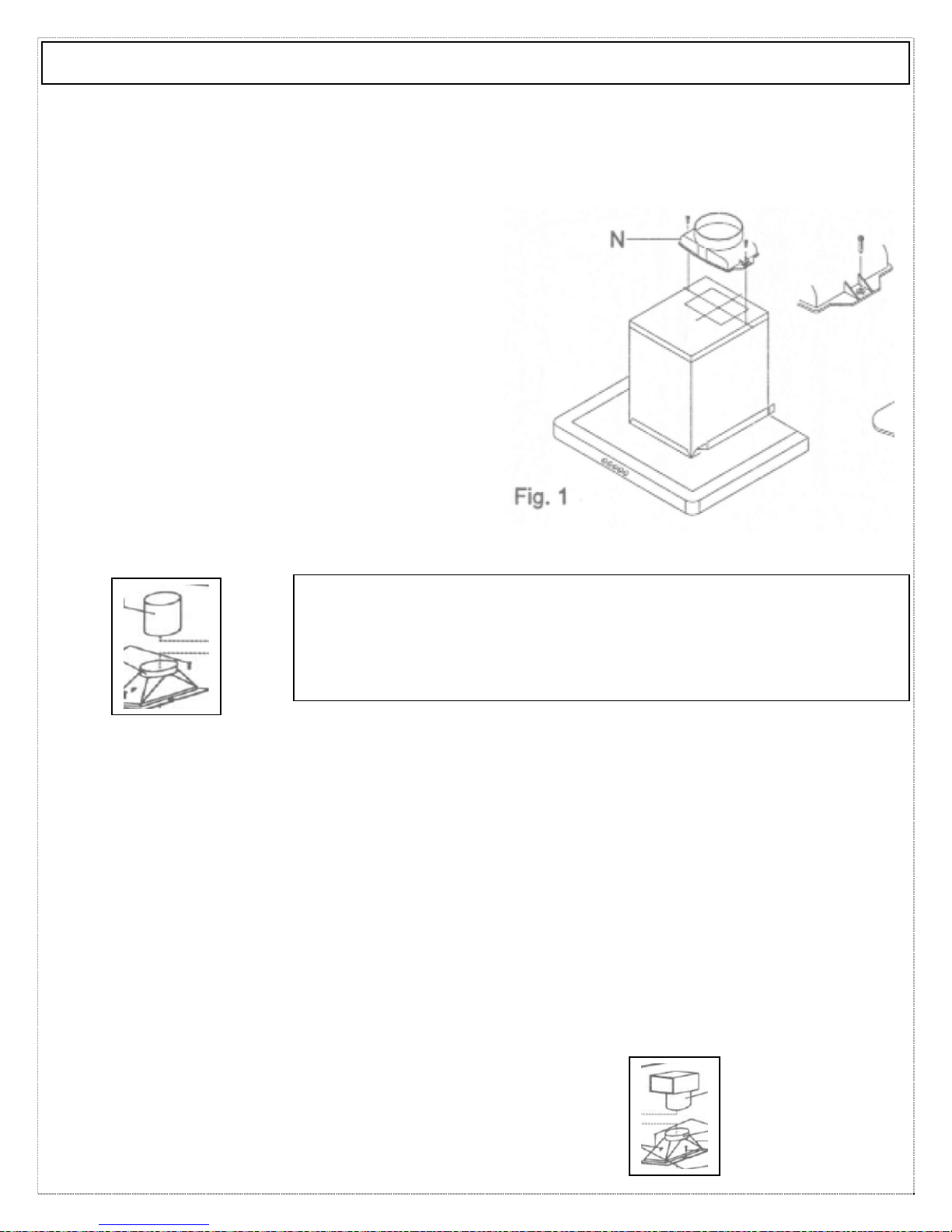

ÂEnsure that you have fitted the
union (‘N’) to the upper part of the
hood using the packaged two
screws supplied inside the packing
(Fig. 1 – on right). Using a 125 mm
diameter pipe, connect the union
(N) on the upper part of the hood
(see Fig. 1) to the discharge outlet
for cooking vapours with a cross-
section of at least 150 cm².
ÂPLEASE NOTE: If there is no
discharge outlet and the hood is to
be fitted to an outside wall of the
building, make a hole in the wall
that is large enough to fit a wind
and rain-proof shutter with a cross
section of at least 150 cm² and
connect this to the outlet union of
the unit by means of a pipe.
__________________________________________________________________________________________________________________________________________________________________________________________________________________________
.
AIR PURIFIER OPERATION - Installation Instructions
The cooker hood can be converted to work as an air purifier in the
event that there is no provision for an external air discharge duct.
In this case, air is recycled through the vent ‘R’ (Fig. 1 – above).
When using the unit as an air purifier, you need to install two active
carbon filters to absorb cooking vapours (please see page 11).
Please note: For the air purifying function, you will need to connect
the spigot (‘N’ in fig. 1 above) to the connecting piece which is
provided. See figure on left.
Extraction / Air Purifier Modes of O
p
eration
Please note: For the extraction function, you will
need to connect a 125 mm diameter outlet chimney
to the spigot ‘N’ in fig. 1 above. This pipe is not
provided with your cooker hood. See figure on left.

17
ATTACHING THE GLASS
9Remove the metal grease filters from
the hood.
9Slacken both anchoring screws
‘F’ (respectively on the left and
right).
9Remove the anchoring corner
marked with the letter ‘Z’, pulling
it upwards.
9Place the glass ‘Q’ on the upper
shelf of the hood, pushing it
towards the wall.
9Insert the anchoring corner ‘Z’
onto the short side of the unit,
tightening the screws ‘F’ again
in the hole and connecting
them to the unit.
9NOTE – DO NOT
OVERTIGHTEN THESE
SCREWS – DOING SO MAY
DAMAGE / DISTORT THE
UNIT!
9Take care that the anchoring corner is
firmly fastened, tightening it well. Re-
insert the metal filters.
9Connect the ventilation tube
with the tube below).
INSTALLATION INSTRUCTIONS – Attachin
g
the
g
lass

18
If something has gone wrong with your Cooker Hood, checking
against this chart might keep you from having to call for service.
Symptom Solution
The cooker hood will not start!
•Check that the hood is connected
to the electricity supply.
•Check that the fan speed control is
set properly.
The cooker hood is not working
effectively!
•The fan speed is not set high enough.
•The grease filter is dirty.
•The kitchen is not ventilated well
enough.
•If the hood is set for recirculation,
check that the carbon filters have not
expired.
•If the hood is set for extraction, check
that the ducting and outlets are not
blocked.
The cooker hood has switched off
during operation!
•The safety cut-out device has been
tripped.
•Turn off the hob and then wait for the
device to reset.
•Note that if you have installed your
cooker hood too low, this will happen.
If it happens frequently, it will be
damaged.
Troubleshootin
g

19
BAUMATIC LTD. - CONDITIONS OF GUARANTEE.
Dear Customer,
The conditions of guarantee which apply to your Baumatic appliance are as follows: This product is
guaranteed for 12 months from the date of original purchase.
Baumatic Ltd will repair any defect that arises due to faulty materials or workmanship free of charge
during this period.
In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge
the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect
that arises due to faulty materials or workmanship within a period of 5 years from the original purchase
date.
An additional and annually renewable insurance scheme for labour is available should you wish to extend
the warranty period.
Should any person other than an authorised representative of Baumatic Ltd interfere with the appliance,
the policy is negated and Baumatic Ltd will be under no further liability.
The guarantee covers the appliance for normal domestic use only, unless otherwise stated.
Any claims made under the terms of the guarantee must be supported by the original invoice/bill of sale
issued at the time of purchase.
This guarantee is transferable only with the written consent of Baumatic Ltd.
If the appliance fails and is considered either not repairable or uneconomical to repair between twelve
months and five years from purchase date, a free of charge replacement will not be offered.
The guarantee for any replacement will only be for the remainder of the guarantee on the original product
purchased.
This guarantee does not cover:
1Sinks and taps
2Failure to comply with the manufacturer’s instructions for use.
3The replacement of cosmetic components or accessories.
4Accidental damage or wilful abuse.
5Subsequent loss or damage owing to the failure of the appliance or electrical supply.
6Incorrect installation.
7Losses caused by Acts of God, civil war, failure to obtain spare parts, strikes or lockouts.
8Filters, fuses, light bulbs, external hoses, damage to bodywork, paintwork, plastic items, covers,
baskets, trays, shelves, burner bases, burner caps, decals, corrosion, rubber seals, refrigeration
system blockage.
In the course of the work carried out it may be necessary to remove the appliance from its operating
position. Whilst all reasonable care will be taken, Baumatic Ltd cannot accept responsibility for damage
sustained to any property whatsoever in this process.
This guarantee is in addition to and does not diminish your statutory or legal rights.
Contacting Baumatic.
SALES
TEL: [phone]
FAX: [phone]
SERVICE
TEL: [phone]
FAX: [phone]
SPARES
TEL: [phone]
FAX: [phone]
TECHNICAL / ADVICE
TEL: [phone]
FAX: [phone]
For mainland UK and Northern Ireland, please contact one of the above numbers for further information or
any other query you may have.
For ROI (Republic of Ireland), please contact one the numbers below:
TEL: [phone] FAX: [phone]
Thank you for buying Baumatic.
