Baumatic BT26 User manual

1
User Manual for your Baumatic
BT26SS Cooker Hood
60 cm Chimney Hood in Stainless Steel
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.

2
YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3
IMPORTANT SAFETY INFORMATION……………………………….…4-5
CARING FOR THE ENVIRONMENT…………………………………………6
USING YOUR COOKER HOOD………………………………..……………..7
SPECIAL FUNCTIONS……………………………………………………8
MAINTAINING AND CLEANING YOUR COOKER HOOD ……….9-11
INSTALLATION INSTRUCTIONS ……………………….……...….12-20
CARBON FILTER …………..12
ELECTRICAL CONNECTION……………13
INSTALLING THE COOKER HOOD….….14-16
INSTALLING THE PIPE…………..17-18
INSTALLATION NOTES – EXTRACTION / PURIFYING VERSION .….19
NOTE ON INSTALLING THE VERSION WITH LOWER BRACKET..……20
TROUBLESHOOTING ……………………………………………21
CONDITIONS OF GUARANTEE……………………………………………22
CONTACT DETAILS…………………………………………………………..23
CONTENTS

3
Congratulations on purchasing a Baumatic Cooker
Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
Cooker Hood has been installed properly.
DIMENSIONS
Width (canopy): 600 mm (at front)
Depth (canopy): 470 mm (excluding handles)
Height (adjustable): 766 mm to 1116 mm
Dimensions of Chimney Section:
197 mm (at tip of arch) /167 mm (at base of arch) X 222
mm
Your stainless steel Cooker Hood is fitted with:
•High extraction tangential motor
•Touch control operation
•5 Speeds and Booster
•Cut off timer (10 min)
•Service Warning Indicator
•3 metallic grease filters
•2 Halogen lights
Extraction capacity – 500 m³/hr
Optional Extra: 2 x UCF1 Carbon filters for air
recirculation.
Specifications of your BT26SS Cooker Hood

4
o Any installation work must be
carried out by a qualified
electrician or competent person.
o The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
oIf the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Dptmt.
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood,
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
9Electric cookers:
700 mm
9Gas cookers:
700mm
9Coal/ oil cookers:
800 mm
* NOTE - DO NOT SET YOUR
COOKER HOOD LESS THAN
700mm ABOVE YOUR COOKER!
oWhen installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob & must
hang 50mm or more
away from the side of the
hob surfaces.
oThe edges of the cooker
hood are sharp – be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
oIf other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
Important Safety Information: Please Read this before installing & using.

5
oEnsure the ducting for
the extractor function
has the same diameter as
the outlet hole all the
way through.
o Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o Your cooker hood is for
domestic use only.
o Please dispose of the
packing material
carefully – children are
especially vulnerable to
it.
o Dirty oil is an even
greater fire risk.
o Always put lids on pots
and pans when cooking
on a gas cooker.
o The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or its catching on
fire from failure to
observe fire safety advice
in these instructions.
o Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
oWarning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
:Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
:Do not install above a
cooker with a high level
grill.
: Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
: Do not leave naked
flames under the cooker
hood.
:Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
: Never flambé cook under
this cooker hood.
Important Safety Information: Please Read this before installing & using.

6

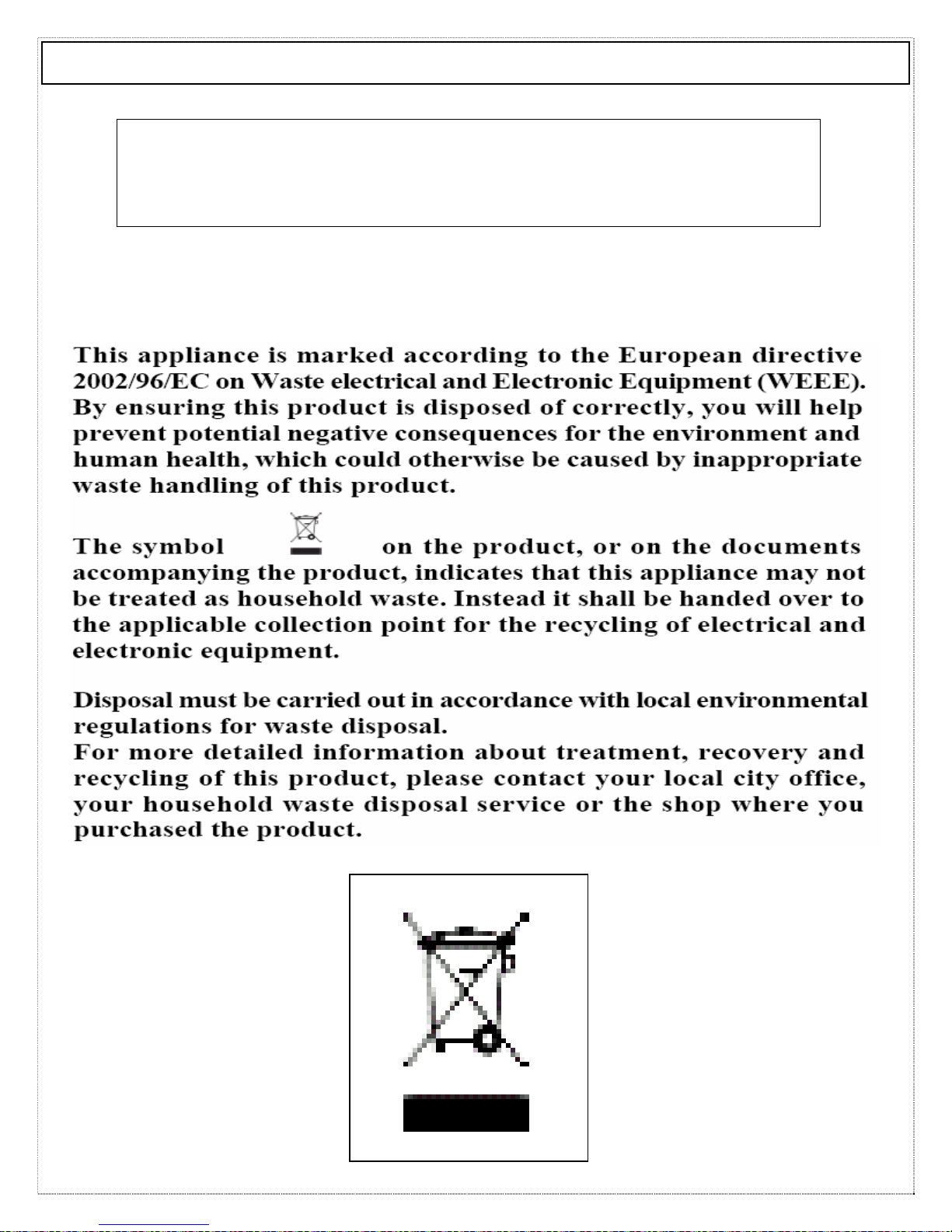

Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.
CONFORMITY TO W.E.E.E. DIRECTIVE
Environmental Note

7
To use your cooker hood:
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located centrally at the front of
the canopy.

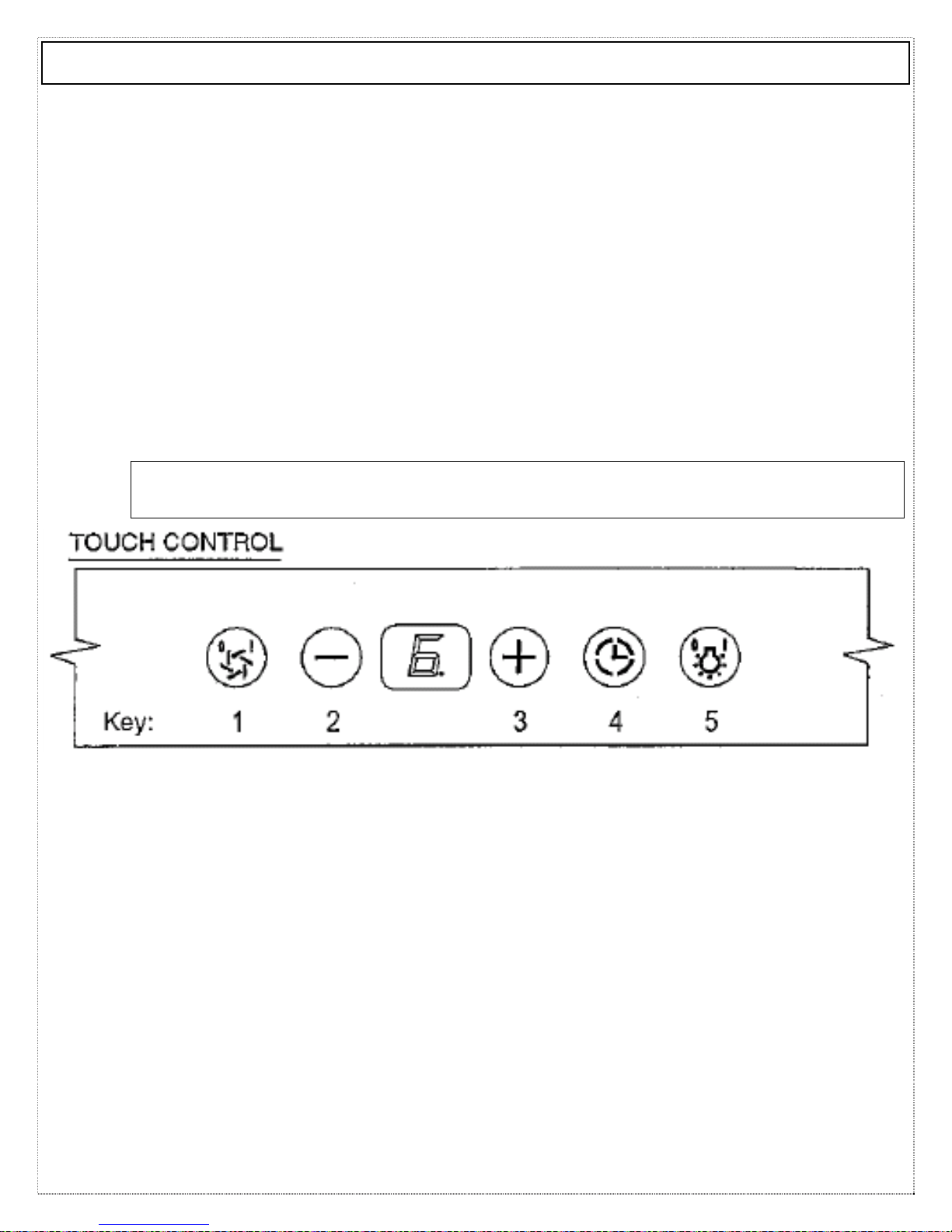

3) The CONTROL PANEL contains keys as shown in the Figure
below. These perform separate functions. You will need to
understand what the keys do before you attempt to use your
cooker hood.
* Note: The hood should be switched on at least as soon as you start
cooking.
Key#
1MOTOR ON /OFF switch – Press Key No. 1 to turn the
motor on and off. When switched on, the hood starts
up automatically at the third speed.
2Minus key – This key reduces the setting of the motor
or fan speed.
3Plus key – This key increases the setting of the motor /
fan speed.
4Timer Function – This is used for programmed shut-
down of the motor & lights, 15 minutes after this button
has been pressed.
5Light ‘on/off’ –This switches the light on and off.
Usin
g
y
our Baumatic Cooker Hood:

8
SPECIAL FUNCTIONS:
Your Baumatic Cooker Hood also
has advanced features. These are:
a) Reminder to clean the
Metal Grease Filters
After every 30 hours of use, your
cooker hood’s microprocessor will alert
you to clean the metal grease filters. It
does this by showing a flashing ‘A’
on the display for 5 seconds.
Please ensure that you clean the
filters. Failing to do this could lead to a
damaged cooker hood and / or a fire
hazard.
To cancel the warning message
after cleaning the filters, switch off the
hood, press and hold the MINUS key
(Key No.2 shown on previous page) for
more than 5 seconds. ‘A’ will appear on
the display. After 5 seconds, this
disappears and the microprocessor will
start a new 30 hour (hours-of-use)
countdown until showing the next alert.
b) Your Baumatic Cooker
Hood features an ALERT FUNCTION to
tell you that the CARBON FILTERS need
replacing (if fitted).
If your Hood has carbon filters fitted,
these will purify exhaust fumes. In
time, they will need to be replaced.
PLEASE NOTE THAT YOU WILL NEED TO
PRIME YOUR COOKER HOOD TO
ENABLE THIS ALERT TO FUNCTION. To
do this:
1) Press and hold the ‘ ’ for
more than 5 seconds.
2) If ‘-’ shows on the display, it
means that your cooker hood
is in the process of detecting
its carbon filters.
3) After 5 seconds, this will
change so that ‘C’ is shown on
the display – meaning that
your cooker hood is using
carbon filters. If it has none
fitted, the ‘-’ will not change.
4) From now on, after every 120
hours of use, your cooker
hood’s microprocessor will
show a flashing ‘C’ on the
display to indicate that it’s
time to change the carbon
filters.
NOTE- you should replace the carbon
filters as prompted to ensure that your
cooker hood’s recirculation system is
working at its best and that hygiene is
maximised.
5) To cancel this alert (IE., when
you want it to reset after you
have changed the carbon
filters, switch off your cooker
hood, press and hold the ‘ ’
key for 5 or more seconds.
The letter ‘C’ will show on the
display for 5 seconds. The
microprocessor will then start
a fresh 120 hours-of-usage
countdown before it will show
the alert again.
PLEASE REMEMBER
THAT YOUR BAUMATIC
COOKER HOOD CAN BE
USED EITHER IN
RECIRCULATION MODE
OR IN EXTRACTION
MODE. THE
RECIRCULATION MODE
CALLS FOR THE FITTING
OF CARBON FILTERS.
Usin
g
y
our Baumatic Cooker Hood:

9
IMPORTANT!: Before cleaning, always ensure that you
have switched your cooker hood OFF at the omni-polar
switch, set at the wall from the cable:
Cleaning
ÂClean the external parts with
mild liquid detergents on a
damp cloth.
ÂNever use abrasive powder,
corrosive solvents or brushes.
ÂNever insert pointed objects
into the motor’s protective grid.
ÂOnly clean the control panel
and filter grill with a damp
cloth and delicate detergents.
ÂBe sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
ÂNever take out the
grease filters and
attempt to clean the
space above where they
are set.
________________________________________________
Anti-Grease Grille
ÂYour cooker hood includes an anti-grease grille
which helps absorb vapour-suspended grease
particles to protect your kitchen & furniture from
greasy residues.
ÂThe metal grille may become inflammable if it
becomes saturated with greasy residue.
9To prevent this fire hazard, the grille should be
cleaned regularly (depending on use) every 10-15
days and at least once a month in a dishwasher or in
hot water with normal washing-up detergent.
Cleanin
g
y
our Baumatic Cooker Hood:

10
First remove the grille by pulling down on it. Undo the
side catches.
You can now clean the anti-grease filter grilles.
9Soak them for about one hour in hot water with a
grease-loosening detergent then rinse off thoroughly
with hot water.
9Repeat the process if needed. Refit the grease grille
once it has dried.
To clean the grease filter grilles in your dishwasher:
9Place the grease filter grilles in the dishwasher. Select the most
powerful washing programme and highest temperature.
9Repeat the process, if necessary.
9Refit the grease grilles when dry. Do not worry about the slight
discolouration of the grille – its performance won’t be affected.
REMEMBER THAT DISCOLOURATION OF THE GREASE
FILTER CAN TAKE PLACE WHEN CLEANED IN A
DISHWASHER – THIS IS NORMAL.
Let the filter grilles dry thoroughly before refitting
them.
Maintenance - Cleaning the Anti-grease Filters

11
a) Changing the light bulb
9Before changing the light bulb, ensure that the appliance is not live (i.e., ensure
that you have switched it off so that it’s in the ‘0’ position).
9Remove the metal anti-grease filters (see Figure 2 below) and find the old bulbs
located in the light fixture up inside the exposed canopy. Change the halogen bulbs using
only those spares indicated below with arrows. Never exceed 50W Halogen bulb
replacements.
* PLEASE NOTE - Defective bulbs should be replaced immediately.
9Replace the metal anti-grease filters.
Maintenance – Chan
g
in
g
the Li
g
ht Bulb and Carbon Filter

12
______________________________________________________________________________________
Installing / Changing the Carbon Filter.
Your Baumatic Cooker Hood uses CARBON FILTERS to
purify the air for the air recirculation function.
You will find two filters that will attach to both sides of
the fan motor (please see figures at bottom of page).
The active carbon filters must be replaced regularly, at least once
every three months, to allow normal operation.
Before starting to fit the carbon filter, turn the omni-polar switch
off at the wall.
Changing the Carbon Filters

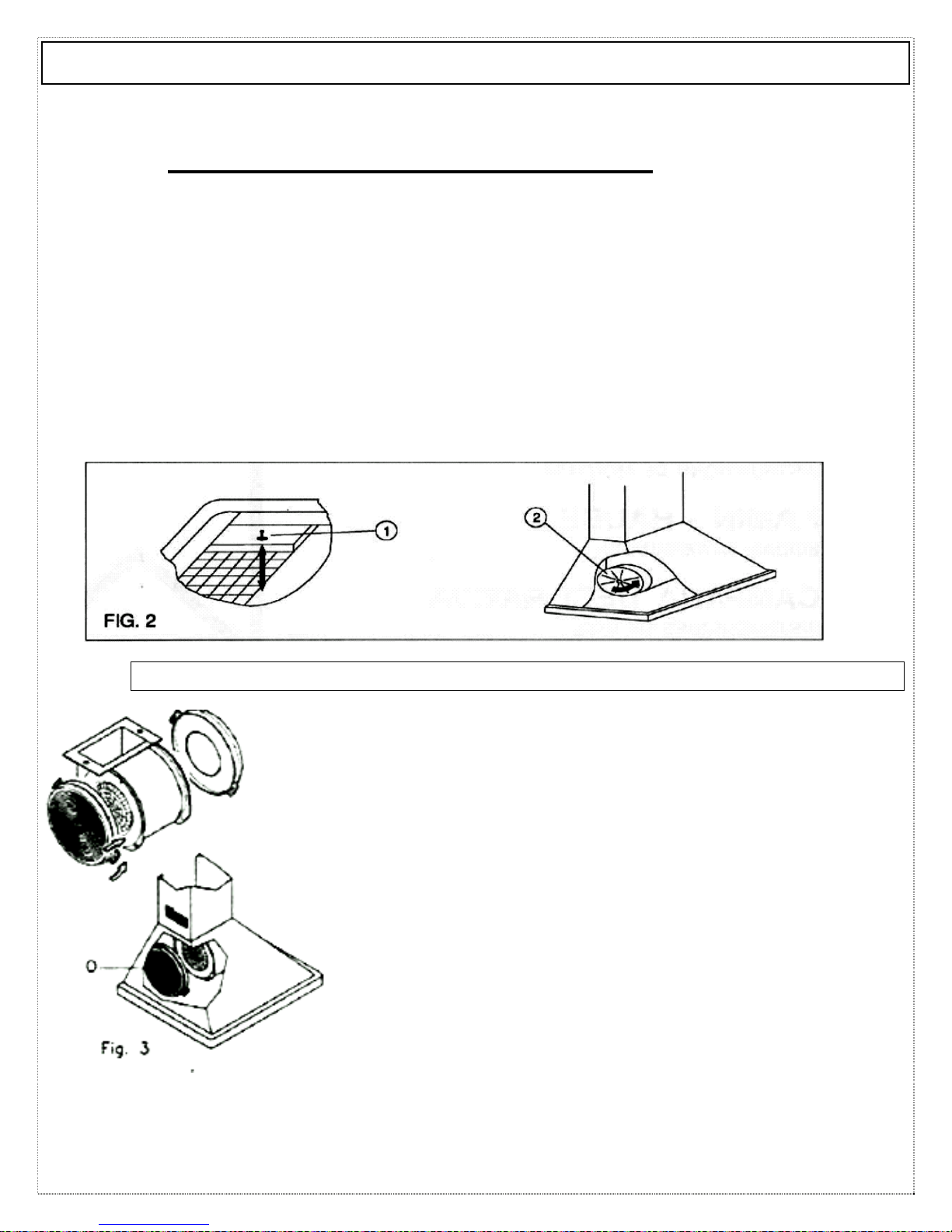

1) Press the handle of the metal grease
filter towards the rear part of the unit
until it is released from the front
housing, and remove it by pressing
downwards (Fig. 2 - above).
2) Remove the old carbon filters by
twisting them anticlockwise until they
unlatch from the sides of the motor.
3) Place the new carbon filters (which
have two fixing tongues), turning
clockwise so that the tongues latch
onto the motor’s sides. (Fig. 3 - left).
4) Reposition the anti-grease metallic filter grilles.
Installin
g
/ Chan
g
in
g
the Carbon Filter

13
Before installation and usage, read all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on the identification plate (found
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibility in the event of failure to observe all the
accident-prevention regulations in force which are necessary for normal use and regular
operation of the electric system.
______________________________________________
ELECTRICAL CONNECTION
Y
Yo ou ur r c co oo ok ke er r h ho oo od d i is s i in nt te en nd de ed d f fo or r f fi it tt te ed d a an nd d p pe er rm ma an ne en nt t i in ns st ta al ll la at ti io on n. .
oThe power cable must be
connected to the terminals
marked L (live) and N (neutral)
in the hood and fixed with a
cable clamp.
oThe cooker hood’s power cable
must be fitted upstream from the
electrical connection using an
omni-polar switch with a contact
distance of at least 3mm.

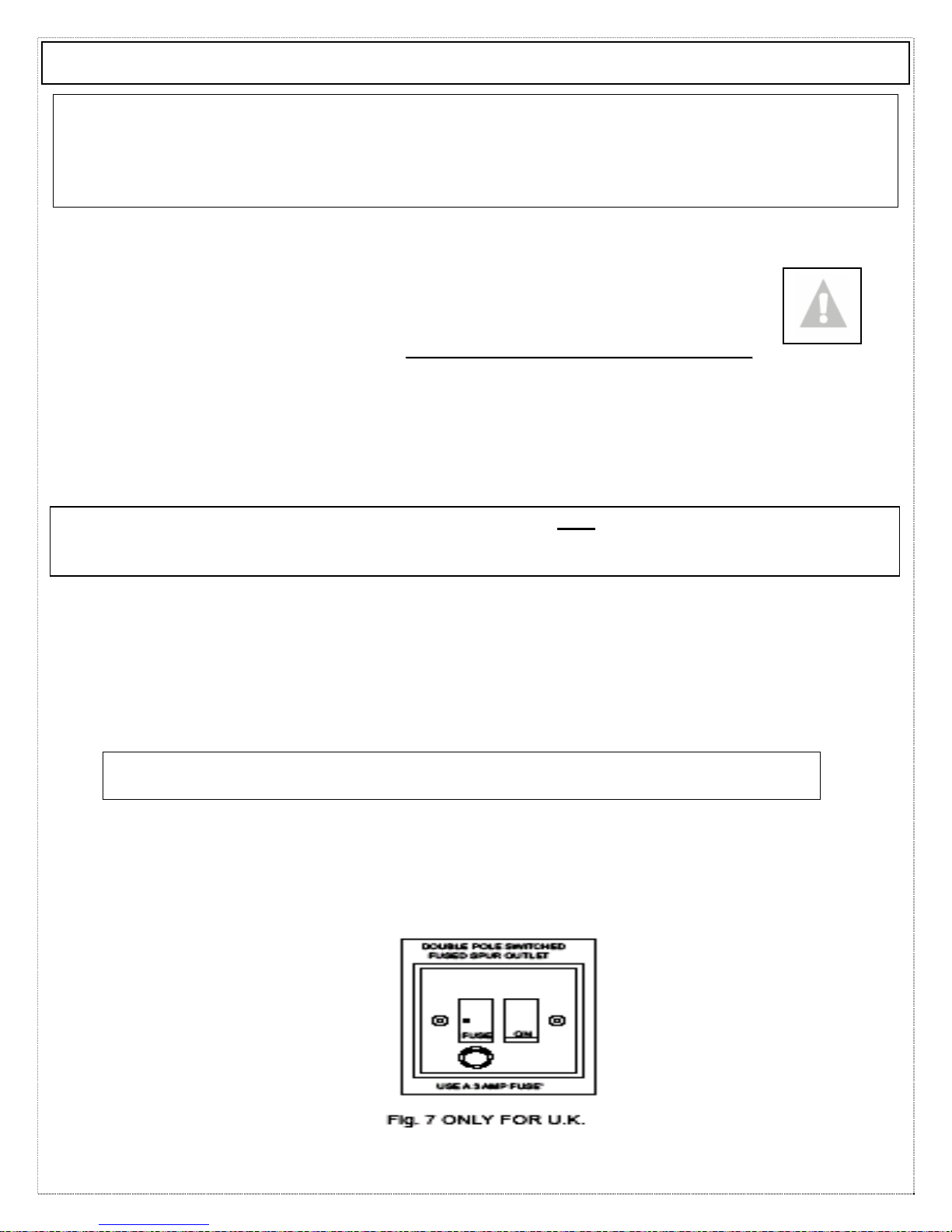

NOTE: (UK only) WARNING – THIS APPLIANCE MUST NOT BE EARTHED. It should only be
connected by a competent person using fixed wiring via a DOUBLE POLE SWITCHED FUSED
SPUR OUTLET.
We recommend that the appliance is connected by a qualified electrician who is a member
of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in
the mains lead are coloured in accordance with the following U.K. code:
Blue= Neutral, Brown = Live, Green/Yellow = Ground
If you can only find two wires in the cable (blue and brown), neither must be
connected to the Earth terminal!
•As the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
__________________________________________________________
1) The BLUE WIRE
must be connected
to the terminal
marked ‘N’
(Neutral), or
coloured Black.
2) The BROWN
WIRE must be
connected to the
terminal marked
‘L’ (‘Live’), or
coloured RED
(Fig. 7 – at left)
INSTALLATION INSTRUCTIONS - ElectricalINSTALLATION INSTRUCTIONS – Electrical Connection.

14
: The cooker hood must not
be fitted above stoves with a
radiant top plate.
:
We recommend that at least
two people install this hood.
NOTE: Your Baumatic Cooker Hood should only be fitted on a wall. Do
NOT position it any less than 700 mm (70 cm) above the hob.

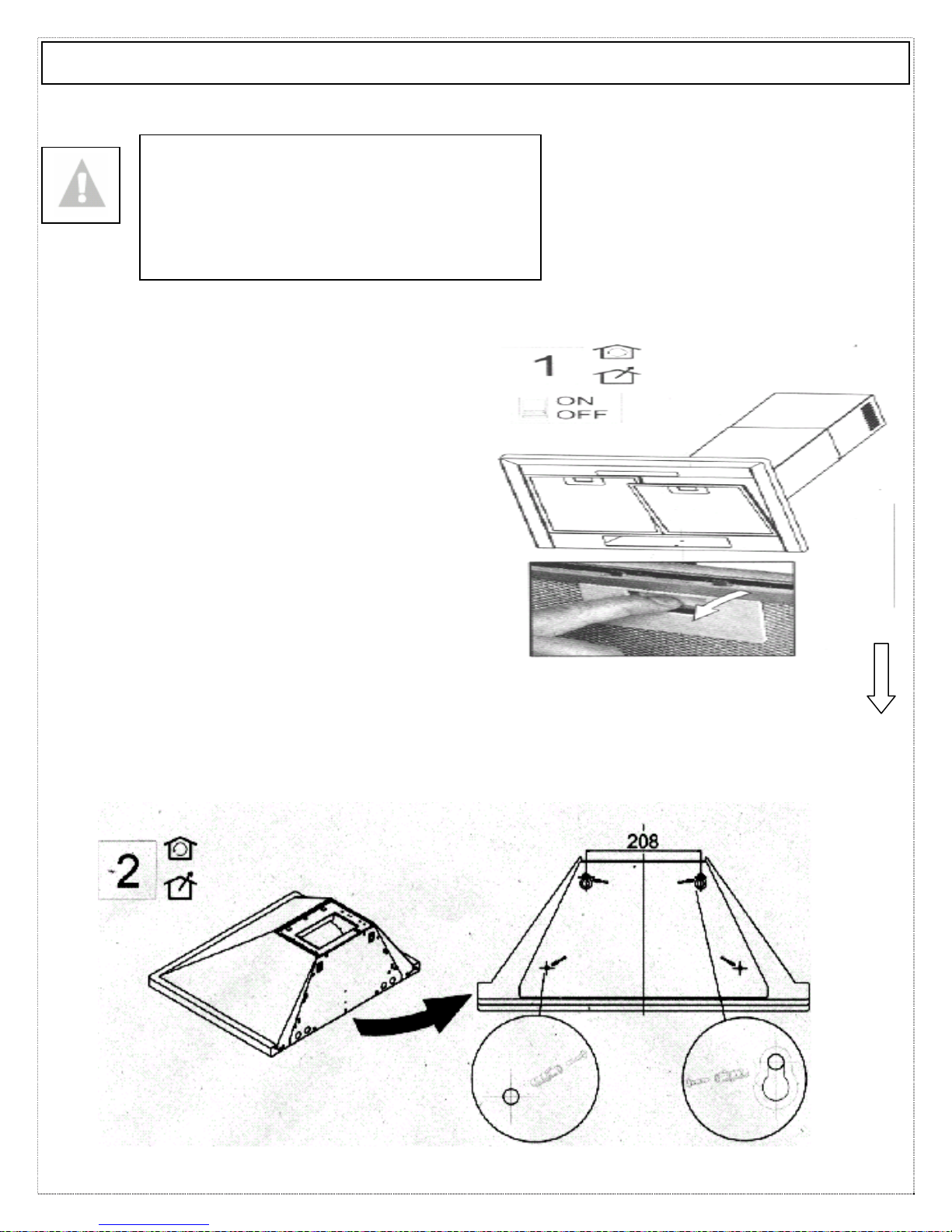

1) Remove the metal anti-grease filters
(See figure at right).
2) Position the hood against the wall and mark the position of the support
holes that are to be drilled as shown in the figure below. These support
holes can be found on Fig. 4 on next page marked as ‘D’ with the anchoring
holes marked as ‘E’ (Fig. 4 on next page). If you hood comes with an
attached jig, use that as a guide to make the marks for the screw holes.
INSTALLATION INSTRUCTIONS
–
Installin
g
y
our Cooker HoodINSTALLATION INSTRUCTIONS
–
Installin
g
y
our Cooker Hood
PLEASE NOTE THAT YOU WILL HAVE
TO DECIDE BEFORE INSTALLING YOUR
COOKER HOOD THAT YOU CAN ADAPT
IT AS AN EXTRACTION FAN. PLEASE
SEE PAGE 19 NOW TO UNDERSTAND
CRUCIAL DIFFERENCES IN THESE.

15
--------------------------------------------------------------------------
3) Using a drill bit with a 6 mm diameter, make holes in the wall where you have
marked these positions (see below).
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
4) Insert the expansion fixings (rawlplugs) in the holes and then screw the
support screws halfway in (see below figure, at right).
5) Hook the hood onto the screws (see above figure) and fasten it onto the
wall, tightening the support and anchoring screws the rest of the way in (next
page, at top.)
Rear view of your
cooker hood.
INSTALLATION INSTRUCTIONS – Attachin
g
the Hood

16
-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------
6) (EXTRACTION FUNCTION ONLY) Connect the coupling to the top of the
cooker hood (see below). Then connect the discharge pipe to the coupling as
shown below. Remember that your ducting will have to have to match the
specifications shown in the notes on Extraction / Air Purifier (Recirculation)
Modes on p.19.
INSTALLATION INSTRUCTIONS – Attachin
g
the Hood

17
FITTING THE PIPE – Once your Cooker Hood has
been installed, you can now fit the pipe.

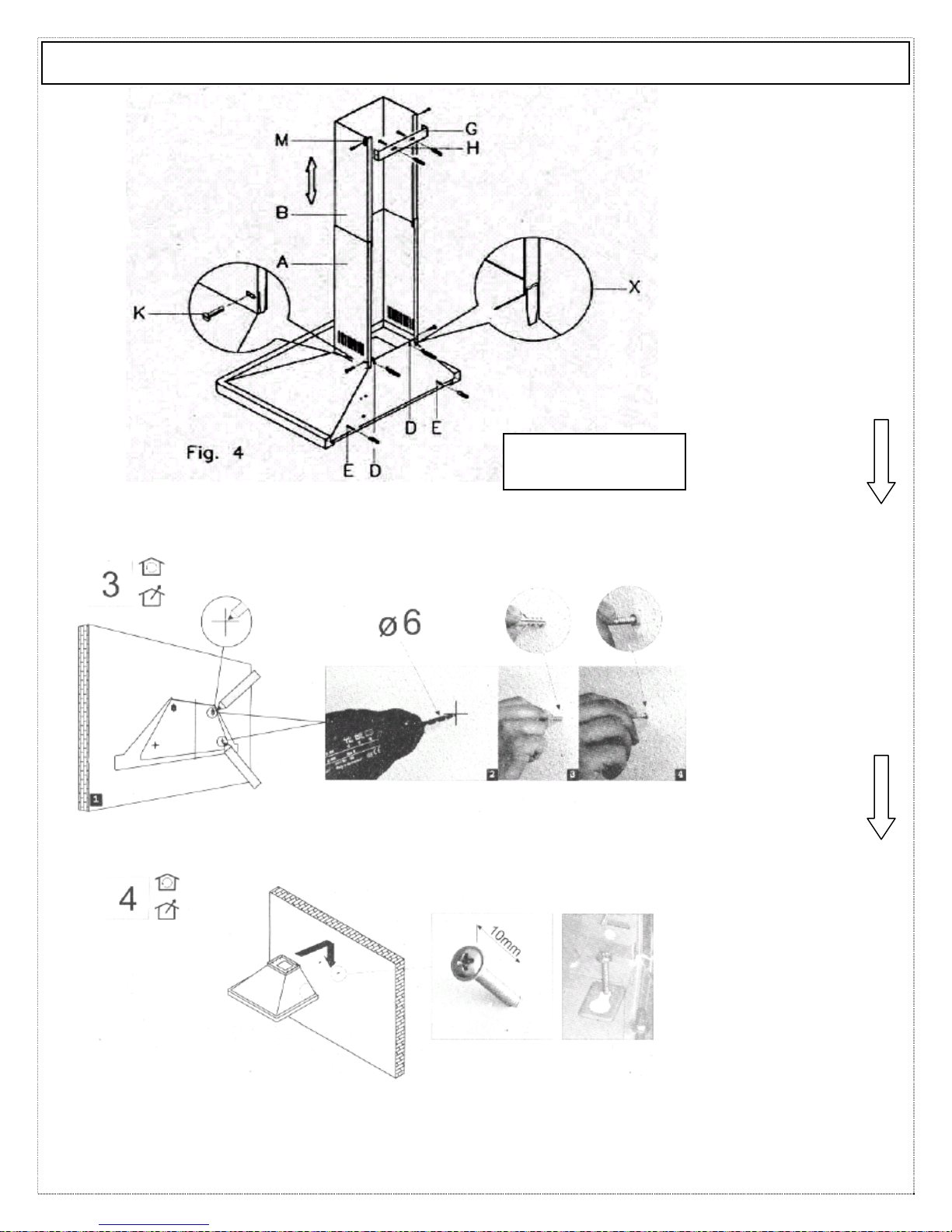

1) Take the two casings ‘A’ and ‘B’:
2) Rest the bottom of the casing ‘A’
on the top of the hood, taking
care to position the tabs of the
casing correctly on the back of
the hood as shown as part ‘X’ in
Figure 4 at right.
3) Fix casing ‘A’ onto the hood
using the two screws ‘K’
supplied in the bag of
accessories (Figure 4 – at right).
4) Lift the mobile part ‘B’ until it reaches the ceiling, checking
that it is perpendicular to the hood.
5) Mark the side measurement of the mobile casing ‘B’ and then
lower it (see below).
INSTALLATION INSTRUCTIONS – Fittin
g
the Chimne
y

18
6) Take the fixing bracket ‘G’ (Fig. 4 – previous page), centre it
with respect to the mark you previously made, keeping it in
contact with the ceiling, and then mark the anchoring holes
(‘H’).
7) Using a drill bit with a 6mm diameter, make two holes on the
fixing marks you previously made (see below).
8) Insert the expansion fixings (rawlplugs) provided, put bracket
‘G’ (see Fig. 4 on previous page) in position and secure it with the
screws provided.
9) Lift casing ‘B’ up to the ceiling and secure it to the bracket ‘G’,
inserting the screws provided in the holes ‘M’ (Fig. 4 – previous
page).
INSTALLATION INSTRUCTIONS – Fittin
g
the Chimne
y

19
EXTRACTION OPERATION – Installation Instructions
ÂEnsure that you have fitted the
union (‘N’) to the upper part of the
hood using the packaged two
screws supplied inside the packing
(Fig. 1 – on right). Using a 125 mm
diameter pipe, connect the union
(N) on the upper part of the hood
(see Fig. 1) to the discharge outlet
for cooking vapours with a cross-
section of at least 150 cm².
ÂPLEASE NOTE: If there is no
discharge outlet and the hood is to
be fitted to an outside wall of the
building, make a hole in the wall
that is large enough to fit a wind
and rain-proof shutter with a cross
section of at least 150 cm² and
connect this to the outlet union of
the unit by means of a pipe.
__________________________________________________________________________________________________________________________________________________________________________________________________________________________
.
AIR PURIFIER (RECIRCULATION) OPERATION - Installation
Instructions
The cooker hood can be
converted to work as an air
purifier in the event that there is
no provision for an external air
discharge duct.
In this case, air is recycled through
the vent ‘R’ (Fig. 1 – above). When
using the unit as an air purifier, you
need to install two active carbon
filters to absorb cooking vapours
(please see page 11).
Please note: For the air purifying
function, you will need to connect
the spigot (‘N’ in fig. 1 above) to the
connecting piece which is provided.
See figure on left.
Extraction / Air Purifier Modes of O
p
eration
Please note: For the extraction function, you
will need to connect a 125 mm diameter outlet
chimney to the spigot ‘N’ in fig. 1 above. This
pipe is not provided with your cooker hood. See
figure on left.
