Baumatic GEH6021W User manual

User Manual for your
GEH6021W &
GEH6013
Fixed Rangehoods
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.

1
Welcome to Think Appliances……………….….……………..………….3
IMPORTANT SAFETY INFORMATION………………………………….…4
ENVIRONMENTAL NOTE ………….……………………………………….5
USING YOUR COOKER HOOD……………………………...……………..6
MAINTAINING AND CLEANING YOUR COOKER HOOD ……….7-9
INSTALLATION INSTRUCTIONS ……………………….……...….10-13
CARBON FILTER ………….……..10
ELECTRICAL CONNECTION………….………11
INSTALLING THE COOKER HOOD………….…12-13
TROUBLESHOOTING ……………………………………………14
CONDITIONS OF GUARANTEE………………………………………15-16
HT Mod 11/02/11
CONTENTS

Dear Customer,
Congratulations on purchasing your new product from Think Appliances.
To register your parts and labour warranty (some conditions apply please refer to your
warranty card for more details) please contact out Customer Care team on:
1800 444 357
Our Customer Care centre is there to ensure you get the most out of your appliance. For
example, should you want to learn more about recommended cooking temperatures, the
various cooking functions available, how to set and program your LED clock, and importantly
taking care of your appliance when cleaning, please call us because we are here to help you.
It is important that you read through the following use and care manual thoroughly to
familiarize yourself with the installation and operation requirements of your appliance to
ensure optimum performance.
We also carry a complete range of spare parts for all Think products. For all your spare parts
enquiries please contact our team at Pronto Parts on:
1300 306 973
Again, thank you for choosing an appliance brought to you by Think Appliances and we look
forward to being of service to you.
Kind regards
Management
Think Appliances

3
To ensure the maximum benefit and operation of your
appliance, please firstly familiarise yourself with its
specifications, safety advice and operational instructions
included in this manual. You will also need this manual to
ensure that your Cooker Hood has been installed properly.
Your cooker hood can work either as a ducted extraction fan,
which is highly recommended or if required, recirculated air
extractor. Whichever mode you choose, you will need to
bear in mind that the extractor calls for ducting, to be
worked from the exhaust of your fan, while the recirculation
function will require the regular replacement of carbon
filters.
Please see the installation section of this manual for details.
DIMENSIONS
Width: 600 mm (at rear)
Depth: 500mm
Height: 150 mm
Your Cooker Hood is fitted with:
Slider control operation
3 speed fan operation
2 lights
Extraction capacity: 180 m³/hr
Optional Extra: 1 x SF11 Grease and carbon filter for air
recirculation.
Specifications of your Cooker Hood

4
o Any installation work must be
carried out by a qualified
electrician or competent person.
o The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
oIf the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Dptmt.
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood,
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
Electric cookers:
700 mm
Gas cookers:
700 mm
Coal/ oil cookers:
800 mm
* NOTE - DO NOT SET YOUR
COOKER HOOD LESS THAN
600mm ABOVE YOUR COOKER
as per Australian Standards!
oWhen installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob and
their undersides must be
at least 50 mm off from
the hob edges.
oThe edges of the cooker
hood are sharp –be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
o DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
oIf other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
Important Safety Information: Please Read this before installing & using.

5
o
oEnsure the ducting for
the extractor function
has the same diameter as
othe outlet hole all the
way through.
o Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o Your cooker hood is for
domestic use only.
o Please dispose of the
packing material
carefully –children are
especially vulnerable to
it.
o Dirty oil is an even
greater fire risk.
o Always put lids on pots
and pans when cooking
on a gas cooker.
o The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or its catching on
fire from failure to
observe fire safety advice
in these instructions.
o Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
oWarning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
Do not install above a
cooker with a high level
grill.
 Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
 Do not leave naked
flames under the cooker
hood.
Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
 Never flambé cook under
this cooker hood.
Important Safety Information: Please Read this before installing & using.

6
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.

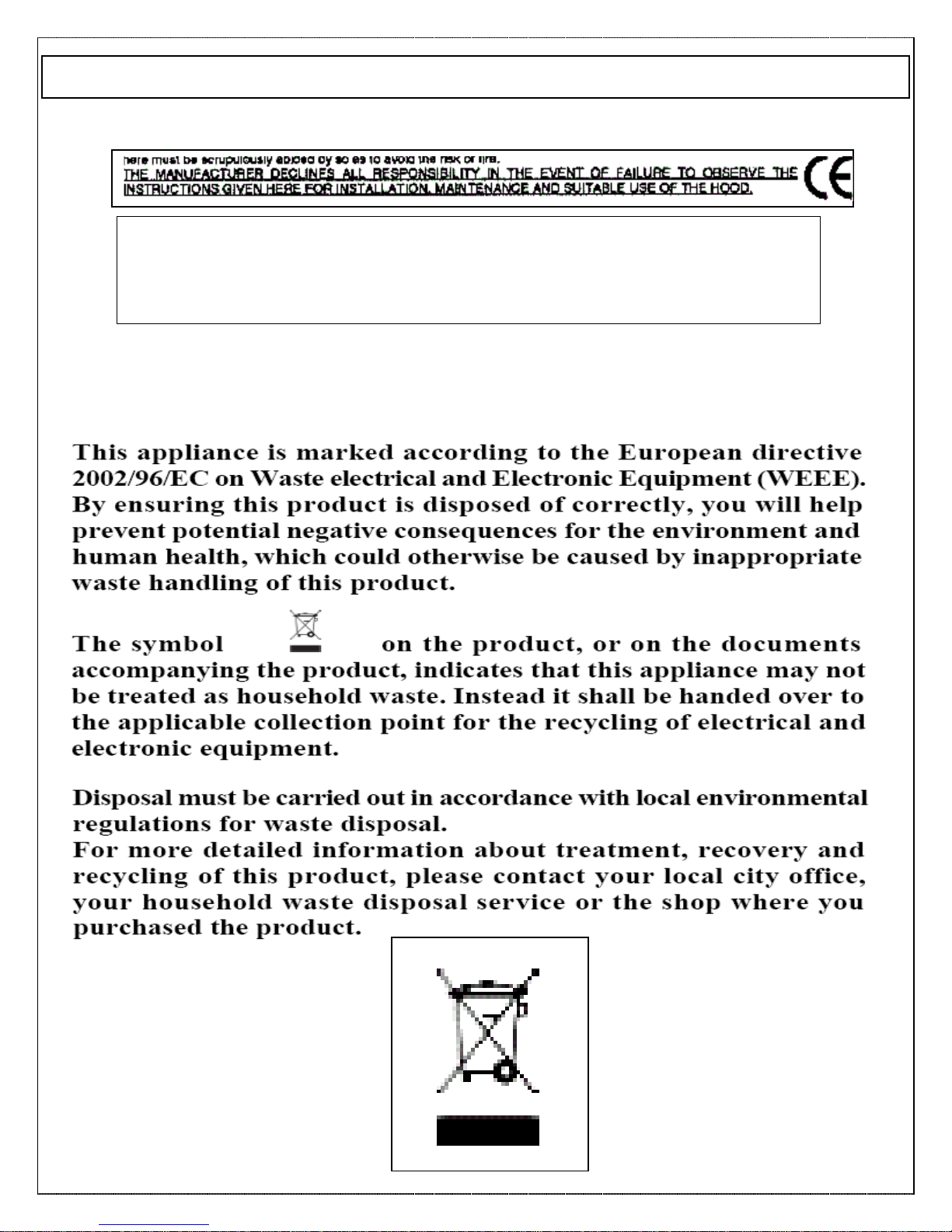

CONFORMITY TO W.E.E.E. DIRECTIVE
Environmental Note

7
To use your cooker hood:
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located on the hood’s front
surface near the upper right corner of the unit.

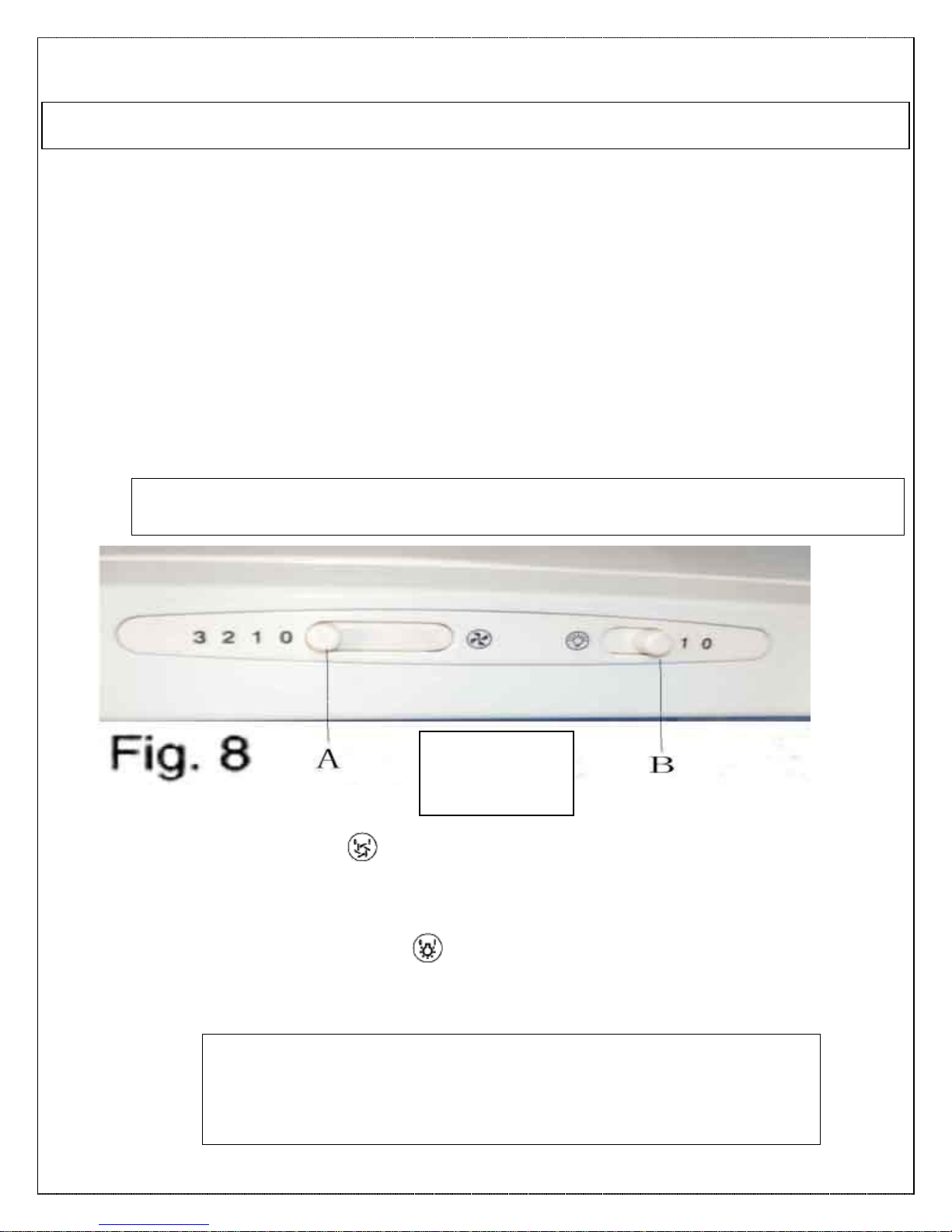

3) The CONTROL PANEL contains switches as shown in the Figure below.
These perform separate functions. You will need to understand what
both switches do before you attempt to use your cooker hood.
* Note: The hood should be switched on at least as soon as you start
cooking.
MOTOR ON /OFF switch –the ‘ ’ switch (‘A’ in figure above) turns the motor
on and off and adjusts its speed. There are three speeds, pushing the switch to
the right increases the speeds.
LIGHT ON/OFF switch - Pressing the ‘ ’ switch (‘B’ in figure above) turns your
cooker hood’s light on and off.
PLEASE NOTE THAT YOUR COOKER HOOD CAN BE USED EITHER
IN RECIRCULATION MODE OR IN EXTRACTION MODE. TO USE
IN RE-CIRCULATION MODE, YOU WILL NEED TO FIT THE
CARBON FOAM.
Using your Cooker Hood:
Your Cooker
Hood’s
Control Panel

8
* IMPORTANT: Before cleaning, always ensure that you
have switched your cooker hood OFF at the omni-polar
switch, set at the wall from the cable:
Cleaning
Clean the external parts with
mild liquid detergents on a
damp cloth.
Never use abrasive powder,
corrosive solvents or brushes.
Never insert pointed objects
into the motor’s protective grid.
Only clean the control panel
and filter grill with a damp
cloth and delicate detergents.
Be sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
Never take out the
grease filters and
attempt to clean the
space above where they
are set.
______________________________________________
Anti-Grease Grille
Your cooker hood includes an anti-grease grille
which helps absorb vapour-suspended grease
particles to protect your kitchen & furniture from
greasy residues.
The metal grille may become inflammable if it
becomes saturated with greasy residue.
Think Appliances recommends that you use Hillmark
Rangehood FilterKleen cleaning products for
optimum rangehood performance. Available from
our Customer Care Department on 1800 444 357 or
your local supermarket.
To prevent this fire hazard, the grille should be
cleaned regularly (depending on use) every 10-15
days and at least every three months in a dishwasher
or in hot water with normal washing-up detergent.
Cleaning your Cooker Hood:

9
First remove the anti-
grease filter by sliding the
securing nibs at the sides
of the grille on the
underside of the hood.
You can now clean
the anti-grease grille:
To clean the grille by hand:
Soak it for about one hour in
hot water with a grease-
loosening detergent then rinse off
thoroughly with hot water.
Repeat the process if needed.
Refit the grease grille once it has
dried.
Clean filters using FilterKleen
as described above.
NOTE - After carefully rinsing and drying the anti-
grease grille, put it back in place. Never put it back
in wet!
Never attempt to use your Cooker hood without the
grease filter grille in place!
Maintenance - Cleaning the Anti-grease Filters
on: Please Read this before installing & using.

10
a) Changing the light bulb
Before changing the light bulb, ensure that the appliance is not
live (i.e., ensure that you have switched it off at the omni-polar switch on
the wall switch plate.).
Open the grease filter support grille (see previous page).
Find the bulb in its position.
Change the bulb using only olive-shaped spares with an E14
coupling, max. 40W.
* PLEASE NOTE - Defective bulbs should be replaced
immediately.
Replace the grease filter support grille.
Maintenance –Changing the Light Bulb and Carbon Foam

11
Your Cooker Hood uses a CARBON and GREASE Filter to
purify the air for the air recirculation function.
You will find that one filter will attach over the front of the
fan motor (please see figure at bottom of page).
The active carbon filter must be replaced regularly, at least once
every three months, to allow normal operation.
B Be ef fo or re e s st ta ar rt ti in ng g t to o f fi it t t th he e f fi il lt te er r, , t tu ur rn n t th he e o om mn ni i- -p po ol la ar r
s
sw wi it tc ch h ( (w wh he er re e c ca ab bl le e m me ee et ts s w wa al ll l p pl la at te e) ) O OF FF F. .
To change the Carbon and Grease Filter
1) Remove the metal grease filter
grille (see page 9).
2) Take carbon foam above the
grease filter .
3) Put the small steel wire press the
carbon foam, please make sure
press tidy and not removable.
.
4) Replace the anti-grease
filter grille.
Installing / Changing the Carbon Foam

12
Before installation and usage, read all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on the identification plate (found
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibility in the event of failure to observe all the
accident-prevention regulations in force which are necessary for normal use and regular
operation of the electric system.
______________________________________________
ELECTRICAL CONNECTION
Y
Yo ou ur r c co oo ok ke er r h ho oo od d i is s i in nt te en nd de ed d f fo or r f fi it tt te ed d a an nd d p pe er rm ma an ne en nt t i in ns st ta al ll la at ti io on n. .
oThe power cable must be
connected to the terminals
marked L (live) and N (neutral)
in the hood and fixed with a
cable clamp.
oThe cooker hood’s power cable
must be fitted upstream from the
electrical connection using an
omni-polar switch with a contact
distance of at least 3mm.

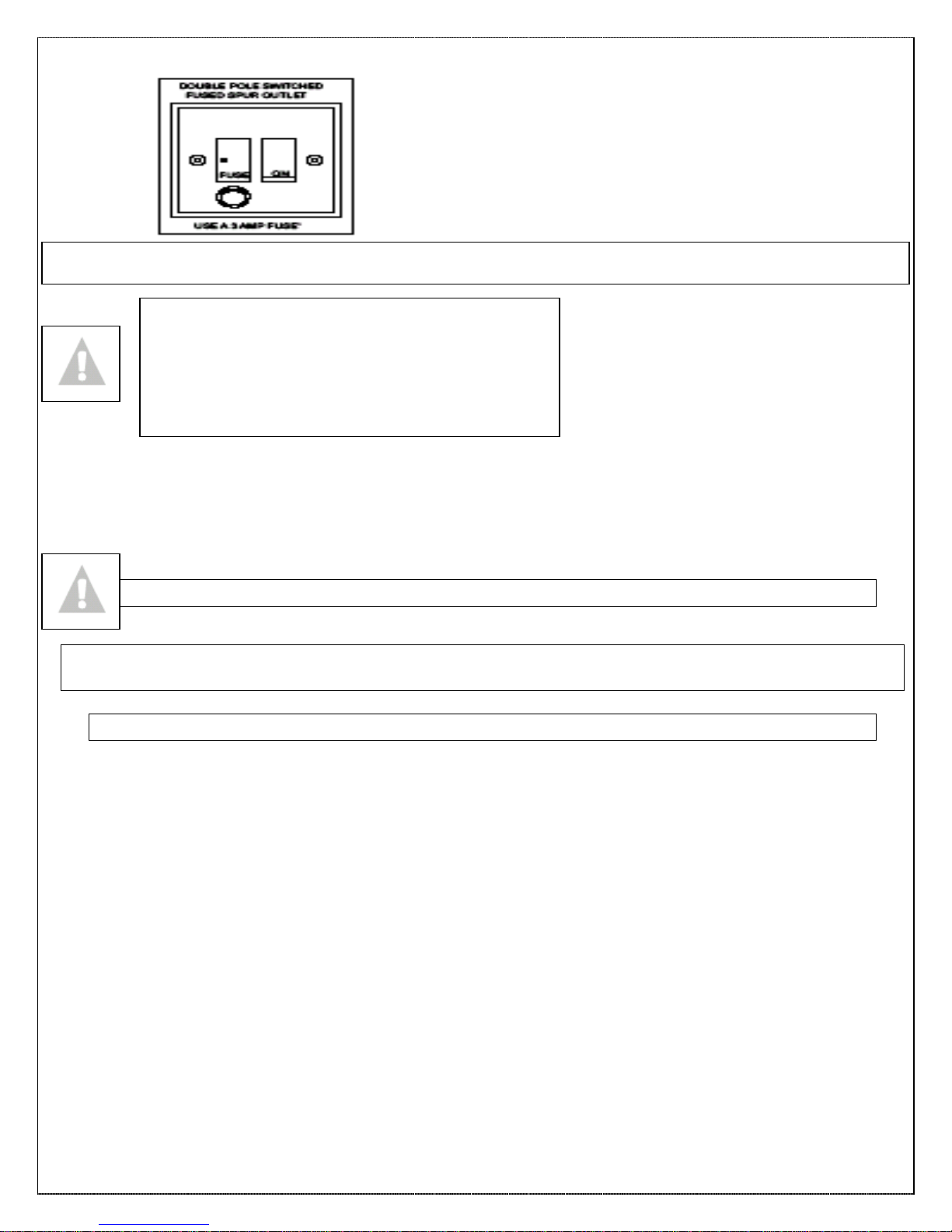

NOTE: (UK only) WARNING –THIS APPLIANCE MUST NOT BE EARTHED. It should only be
connected by a competent person using fixed wiring via a DOUBLE POLE SWITCHED FUSED
SPUR OUTLET.
We recommend that the appliance is connected by a qualified electrician who is a member
of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in
the mains lead are coloured in accordance with the following U.K. code:
Blue= Neutral, Brown = Live, Green/Yellow = Ground
If you can only find two wires in the cable (blue and brown), neither must be
connected to the Earth terminal!
As the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
__________________________________________________________
1) The BLUE WIRE
must be connected
to the terminal
marked ‘N’
(Neutral), or
coloured Black.
INSTALLATION INSTRUCTIONS - Electrical

13
2) The BROWN
WIRE must be
connected to the
terminal marked
‘L’ (‘Live’), or
coloured RED
(Fig. 7 –at left)
 With the hood installed
above a hob, there should
always be a pot or pan on
the hob zone or ring that is
in use.
 We recommend that at least
two people install this hood.
Your Cooker Hood should only be fitted on a wall on the underside of a cabinet
unit.
Do NOT position it any less than 700 mm (70 cm) above the hob.
Before Installing, Remove the metal anti-grease filter (see page 9).
NOTE: YOU HAVE THE CHOICE OF FITTING YOUR COOKER HOOD TO A DUCTING HOLE THAT WILL
EITHER GO ABOVE YOUR COOKER HOOD OR BEHIND IT.(E)
WALL INSTALLATION
1) Position the hood against the wall and mark the positions for the
supporting bracket bolt holes (see Fig. 4 below) of the exhaust hole (this
hole must be 130mm in diameter).
2) Drill these holes into the wall using a 6 mm diameter drill bit. If you
intend to use your Cooker Hood as an extraction fan, you will need to fit
a ducting kit through this that will connect to your appliance.
INSTALLATION INSTRUCTIONS –installing your Cooker Hood
PLEASE NOTE THAT YOU WILL HAVE TO
DECIDE BEFORE INSTALLING YOUR
COOKER HOOD WHETHER YOU WANT IT
AS AN EXTRACTION FAN! THE
INSTRUCTIONS FOR EXTRACTION FAN
MODE WILL BE MARKED ‘(E)’ BELOW

14
3) Insert the rawlplugs into the holes and then insert the top screws
part way, so that the screws stick out by 10mm.
4) Hang the hood up on the screws. Insert the bottom screws.
5) Tighten the screws the rest of the way in.
6) (E) For the extraction function, connect the exhaust outlet pipe to
the collar strip. Find the screw holes in the top and rear of the
cooker hood. Tighten the bolts from inside the hood.
7)
KITCHEN UNIT / UNDERSIDE OF CABINET INSTALLATION
NOTE: Ensure that the grease filter grille has been removed.
1) (E) –Extraction Function only If you
are using the top exhaust outlet
(meaning that you have plugged the
rear one), first cut a hole measuring
130mm in diameter in the floor of the
cupboard into which the hood will be
set (see Fig. 2, bottom centre of page)
so that the collar strip can be fastened.
2) If necessary, make a hole for the power
cable to feed through.
3) Hold the hood against the underside of
the hood and mark the points for the
supporting and fastening holes.
4) Screw in the four screws supplied with
the installation accessory kit.
5) Hook the hood onto the supporting
screws and tighten them completely
(Fig. 4 –on right). Alternatively, use
the attachment holes near the previous
ones.
__________________________
6)
7)
6) Close the grease filter grille.
INSTALLATION INSTRUCTIONS –installing your Cooker Hood
ALL SCREWS,
RAWLPLUGS,
ETC. COME
WITH YOUR
COOKER HOOD!

15
If something has gone wrong with your Cooker Hood, checking
against this chart might keep you from having to call for service.
Symptom
Solution
The cooker hood will not start!
Check that the hood is connected
to the electricity supply.
Check that the fan speed control is
set properly.
The cooker hood is not working
effectively!
The fan speed is not set high enough.
The grease filter is dirty.
The kitchen is not ventilated well
enough.
If the hood is set for recirculation,
check that the carbon filters have not
expired.
If the hood is set for extraction, check
that the ducting and outlets are not
blocked.
The cooker hood has switched off
during operation!
The safety cut-out device has been
tripped.
Turn off the hob and then wait for the
device to reset.
Note that if you have installed your
cooker hood too low, this will happen.
If it happens frequently, it will be
damaged.
Troubleshooting
