Baumatic F60.2BL User manual

BTC6720BL/BTC6720SS/
BTC6720W
F60.2BL/F60.2SS
Cooker Hood

User Manual for your Baumatic
BTC6720BL/BTC6720SS/BTC6720W
F60.2BL/F60.2SS
Cooker Hood
60 cm Cooker Hood in black
60 cm Cooker Hood in stainless steel
2
60 cm Cooker Hood in white
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 18/05/09

3
Contents Page
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8 - 9
F60.2BL/F60.2SS 8
BTC6720BL/BTC6720SS/BTC6720W 9
Using your Baumatic cooker hood 10
Beforefirstuse 10
To use your cooker hood 10 - 11
Cleaning your Baumatic cooker hood 11
The grease filters 11
Maintenance 12
Removing and cleaning the grease filters 12
Changingalightbulb 13
Fitting the carbon filters 14
Installation 15 - 23
Electrical connection 15 - 16
Before beginning installation 16 - 17
Installing your cooker hood 17 –19
Connecting to external ducting 20
Fitting the chimney 20 – 22
Completing the installation 23
Extraction mode or recirculation mode? 23
Troubleshooting 24 – 25
Contactdetails 26

ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
CONFORMITY TO W.E.E.E. DIRECTIVE
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Advice Line.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
¾Electric cookers: 700 mm
¾Gas cookers: 700 mm
¾Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
oWhen installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
5

oThe edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.
6

oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
oNote that it removes odours from your room, not steam.
oWarning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
oDo not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use
as overheated fats and oils might catch fire.
oDo not leave naked flames under the cooker
hood.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
oNever flambé cook under this cooker hood.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
7

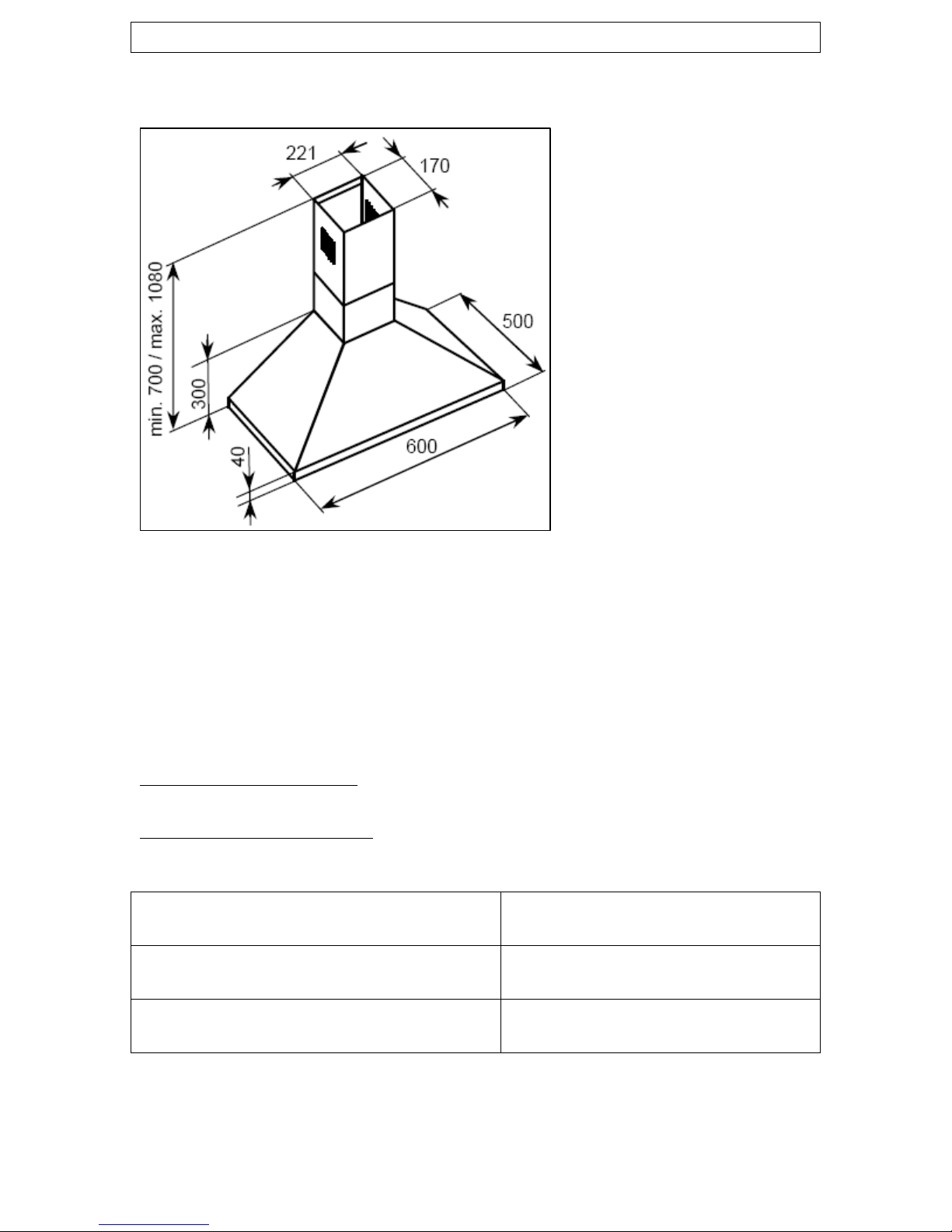

Specifications of your cooker hood
F60.2BL/F60.2SS
PRODUCT
DIMENSIONS
Height: 700 mm –
1080 mm
Width: 600 mm
Depth: 500 mm
DIMENSIONS OF
CHIMNEY SECTION:
170 mm x 221 mm
Your stainless steel cooker hood is fitted with:
oHigh extraction tangential motor
oPush button control operation
o3 Speeds
o2 Metallic grease filters
o2 lights
Extraction capacity: 500 m³/hr
Noise level min/max: 54 – 62 dB
MODEL NUMBER CARBON FILTER
REQUIRED
F60.2 from serial number
07300001
ST1
F60.2 upto serial number
07300000
S1
8

Specifications of your cooker hood
BTC6720BL/BTC6720SS
PRODUCT
DIMENSIONS
Height: 645 mm –
1025 mm
Width: 600 mm
Depth: 500 mm
DIMENSIONS OF
CHIMNEY SECTION:
170 mm x 221 mm
Your stainless steel cooker hood is fitted with:
oHigh extraction tangential motor
oPush button control operation
o3 Speeds
o2 Metallic grease filters
o2 lights
Extraction capacity: 750 m³/hr
Noise level min/max: 54 – 62 dB
MODEL NUMBER
CARBON FILTER REQUIRED
BTC6720BL/SS/W S1
9

Using your Baumatic cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE COOKER HOOD IS USED FOR THE FIRST
TIME.
oYou should use a good quality stainless steel cleaner on ALL of
the stainless steel areas of your cooker hood, before it is used
for the first time.
oThis will help to leave a silicone water-resistant film to protect
the stainless steel surfaces.
To use your cooker hood
oMake sure that it has been installed by a suitably qualified
person, as per the information contained in Baumatic’s
installation instructions.
oFind the control panel, which is located at the front right of the
canopy.
oThere are several buttons on the control panel, which perform
separate functions.
oA = ON/OFF button
oB = Speed selection buttons
= Low speed
= Medium speed
= High speed
10

oC = Light on/off button
IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR
HOOD TEN MINUTES BEFORE YOU START TO COOK,
OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.
YOU SHOULD ALSO RUN YOUR HOOD FOR TEN
MINUTES AFTER YOU HAVE FINISHED COOKING.
Cleaning your Baumatic cooker hood
IMPORTANT: BEFORE CLEANING, ALWAYS
ENSURE THAT YOU HAVE SWITCHED YOUR
COOKER HOOD OFF AT THE OMNI-POLAR
SWITCH, SET AT THE WALL FROM THE CABLE.
Cleaning
oClean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
oNever use abrasive powder, corrosive solvents or brushes.
oNever insert pointed objects into the motor’s protective grid.
oOnly clean the control panel and grease filter grill with mild liquid
detergents and a new damp cloth.
oIf you are using the appliance in recirculation mode, then be
sure to replace the carbon filter at the recommended interval
(see section on “Fitting the carbon filter”). A build up of grease
could cause a fire hazard.
oNever attempt to clean the area above the grease filters.
The grease filters
oYour cooker hood includes grease filters which help to absorb
grease particles to protect your kitchen & furniture from greasy
residues.
oThis metallic filters may become inflammable if they become
saturated with this greasy residue.
oTo prevent this fire hazard, the filters should be cleaned
regularly. Depending on use, this should be done every 10-15
days or at least once a month, using hot water and normal
washing-up detergent.
11
oDO NOT WASH THE GREASE FILTERS IN A DISHWASHER.

Maintenance
Removing and cleaning the grease filters

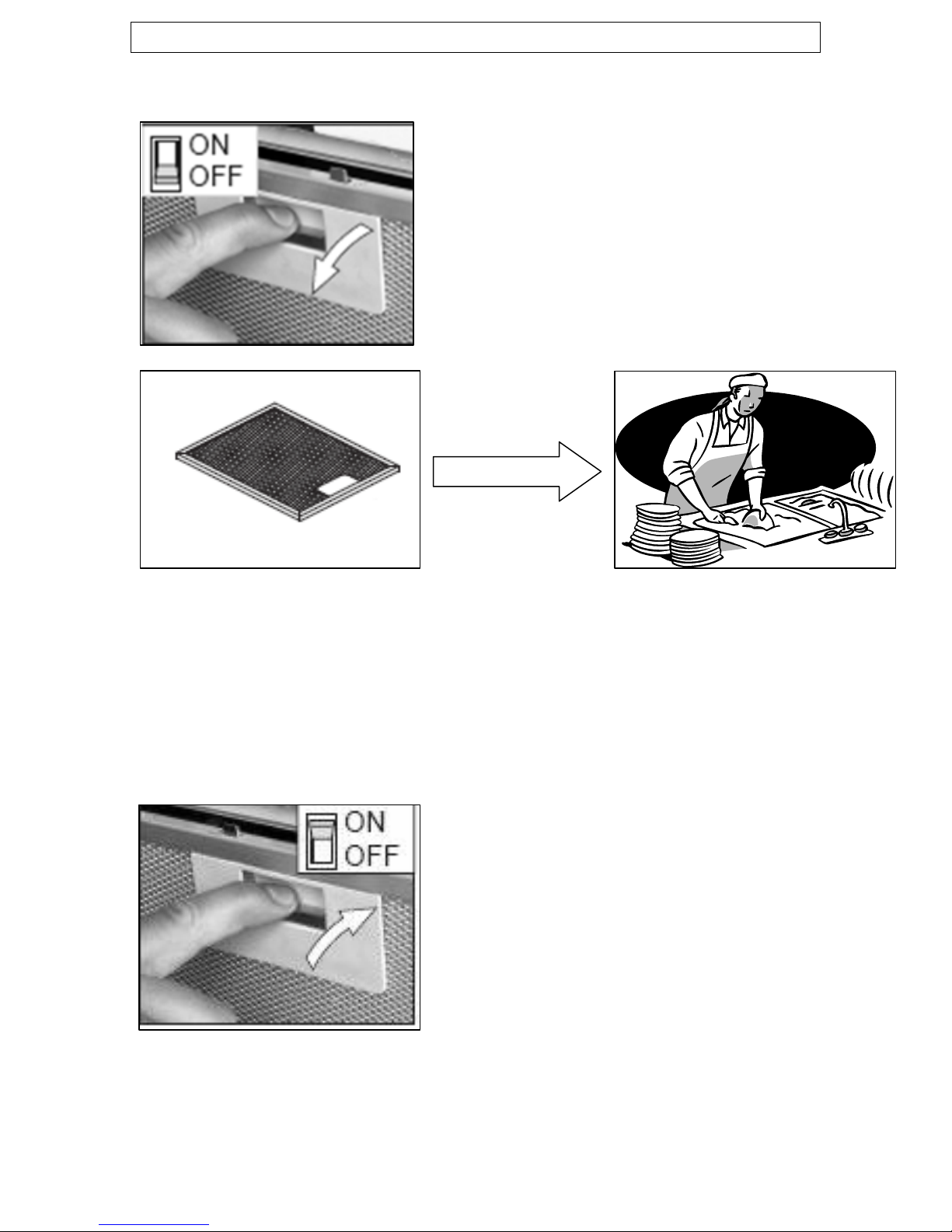

oFirst remove the grease filters by
pulling down on the handle and
pulling them away from the
cooker hood.
oSoak the grease filter in hot water and washing up liquid for
about an hour.
oRinse them off thoroughly with hot water.
oRepeat the process if required.
oRefit the grease filters once they
have dried.
oIMPORTANT: Let the grease filters dry thoroughly before
refitting them in the cooker hood.
12

Changing a light bulb
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FROM
YOUR MAINS SUPPLY.
oRemove the grease filters (as
described on page 11).
oPrior to touching the light bulbs ensure they are cooled down.
oFind the bulb that requires replacement, you will find it located in
the light fixture which is inside the exposed section of the
canopy.
oUnscrew the light bulb that needs to be replaced and insert a
new E14 40W (max) bulb.
oIMPORTANT: Defective bulbs should be replaced immediately.
oIf the lights still do not work, make sure that the lamps are fitted
properly into their housings before you call for technical
assistance.
oRefit the grease filters.
13

Fitting the carbon filters
If the appliance is being used to be used in recirculation mode then it
is necessary to fit carbon filters. This will help to absorb unpleasant
odours caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.
1) Remove the grease filters.
2) Hook the carbon filter over
the pins that are located at the
end of the motor.
3) Turn the carbon filter anticlockwise, until you feel
it click into place.
oRepeat this process for the second carbon filter. You need to
place a carbon filter at either end of the motor.
oRefit the grease filters.
oThe carbon filters should be replaced every three months or if
they show signs of damage.
14

Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found behind the grease filter.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
Electrical connection
YOUR COOKER HOOD IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
oThe cooker hood’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm. THE FUSE MUST BE RATED AT 3
AMPS.
WARNING: THIS APPLIANCE MUST BE EARTHED. It
should only be connected by a competent person, using
fixed wiring via a double pole switched fused spur outlet.
(UK ONLY).
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:
Blue = Neutral, Brown = Live, Green/Yellow = Ground
If you only find two wires in the main’s lead (blue and brown),
then neither must be connected to the earth terminal.
15

oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
oThe blue wire must be connected to the
terminal marked “N” (neutral), or coloured
black.
oThe brown wire must be connected to the
terminal marked “L” (live), or coloured red.
Before beginning installation
oCheck that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
oCarry out all necessary masonry work prior to the fitting of the
cooker hood.
oEnsure that all electrical connections are carried out by a suitably
qualified person.
oBefore commencing installation of the cooker hood the grease
filters should be removed.
oCheck inside the product and insure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future
use.
oIf possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
ceiling. If this is not possible, then a thick, protective covering
should be placed over the worktop, hob top or cooker. This will
help to protect these surfaces from damage and debris.
oSelect a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood
parts and fittings on to it.
oRawl plugs are provided to secure the hood to most types of
walls and ceilings. However a qualified technician must verify the
suitability of the materials, in accordance with the type of wall
and ceiling. The wall and ceiling must be strong enough to take
the weight of the hood.
16

oDo not tile, grout or silicone this appliance to the wall. This
appliance is designed to be surface mounted only.
Installing your cooker hood
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE
IT IN EXTRACTION MODE OR RECIRCULATION
MODE. PLEASE TURN TO PAGE 22 NOW TO
UNDERSTAND THE DIFFERENCES BETWEEN THESE
TWO MODES.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. a naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
oWe recommend that at least two people install this hood.
oThe lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO
YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION
PROCESS HAS BEEN COMPLETED.
1) Remove the metal grease filters.
17
2) Position the hood against the wall
that you are intending to install it on and
mark the position of the support holes
that are to be drilled (as shown in the
figure below).

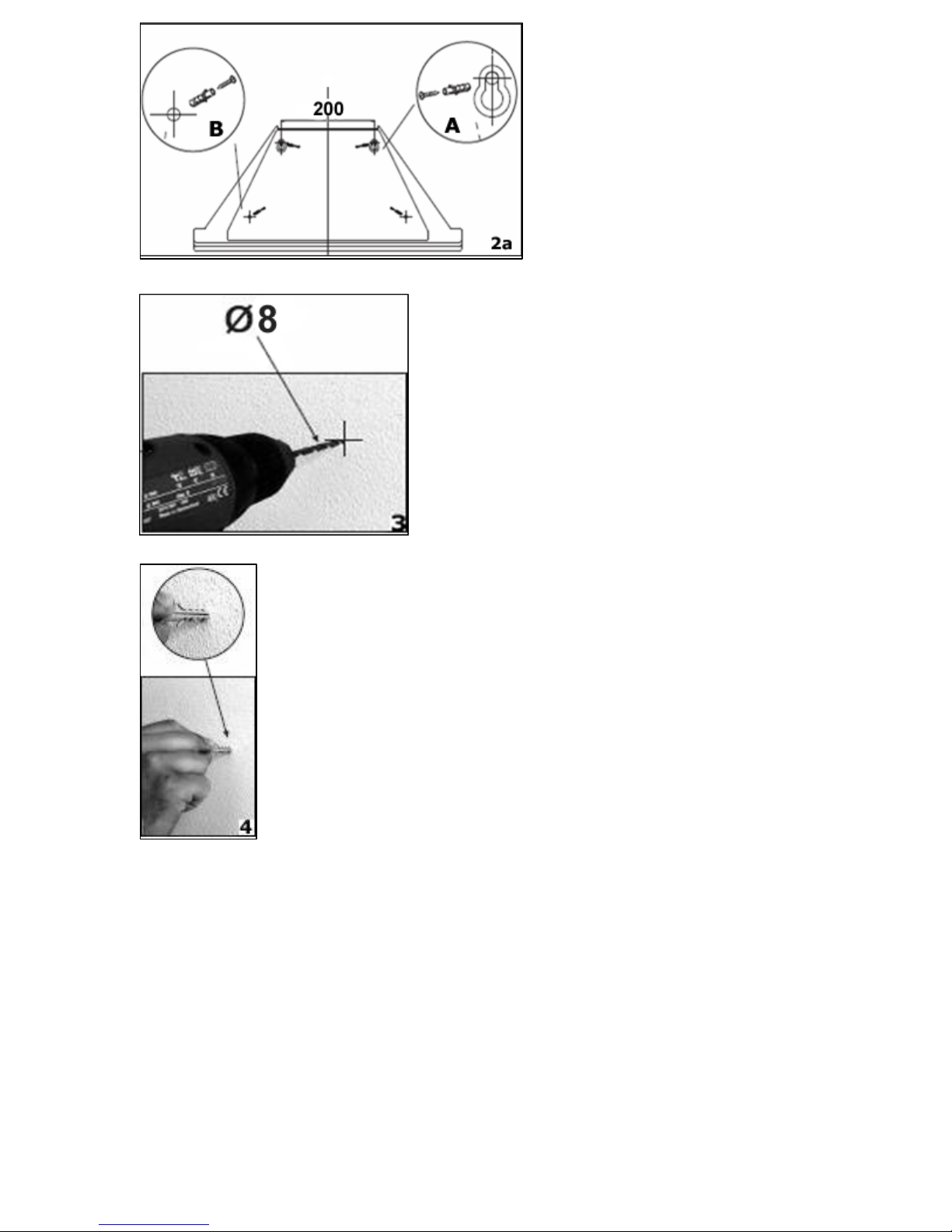

2a) The support screw holes
are indicated by figure Ain
this drawing and the
anchoring screw holes are
indicated by figure B.
18
3) Using a drill bit with a 8 mm
diameter, make holes in the wall on the
positions that you have marked in step
2.
4) Insert rawl plugs into all of the holes that you have
drilled.

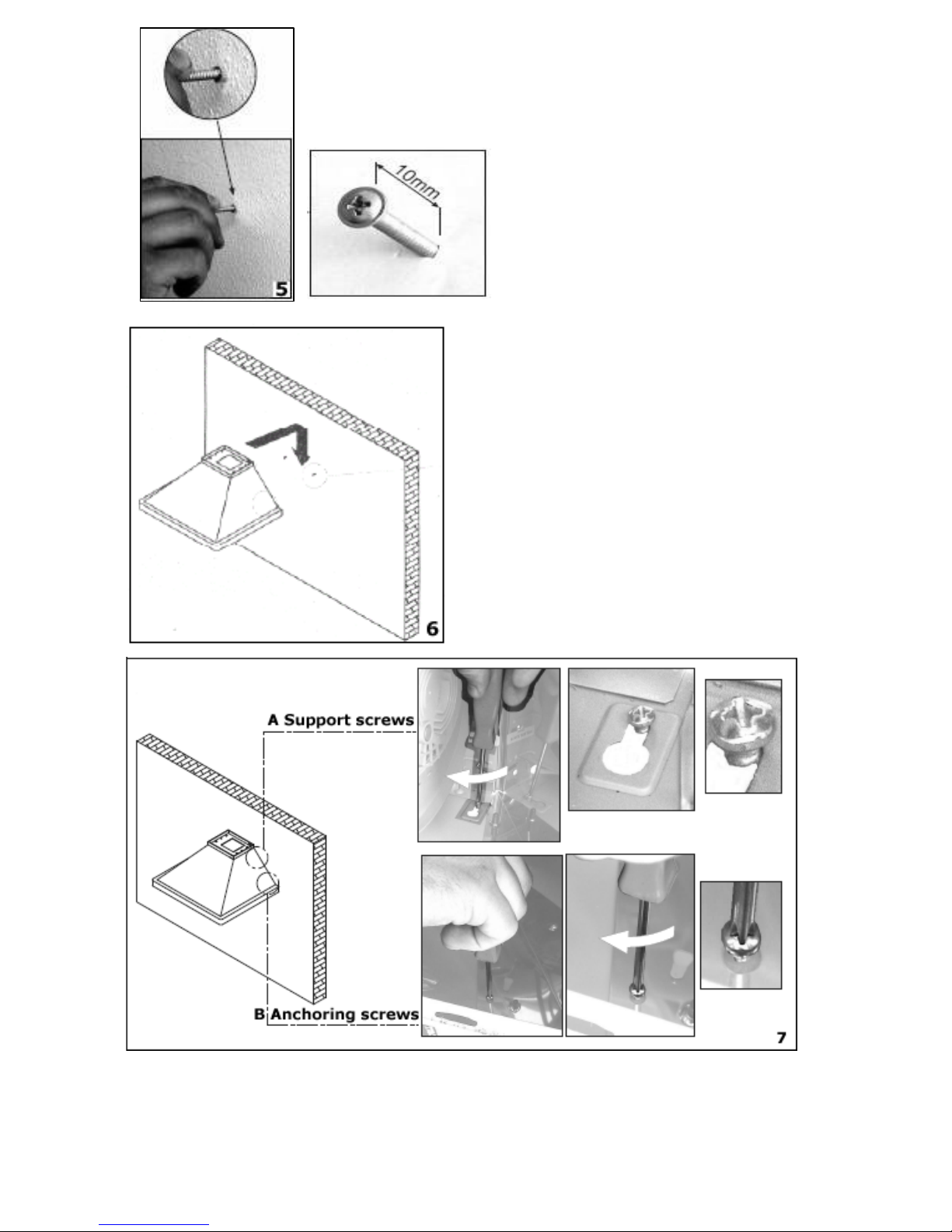

5) Fasten the support screws
halfway in, leaving them 10 mm
out of the wall.
6) Hang the hood onto the support
screws.
7) Fully tighten the support screws (A) and then screw the anchoring
screws (B) through the relevant holes in the cooker hood. Fully
tighten the anchoring screws fully into the wall.
19

Connecting to external ducting
8) Connect the coupling to the top of the cooker hood, and then
connect a 125 mm ducting hose to the coupling (please note that
the ducting hose is not supplied with the appliance).
oThe other end of the ducting hose should be connected to a
discharge outlet that is suitable for cooking vapours. It should
have a cross section of at least 150 cm².
oThe maximum distance between the coupling and your discharge
outlet should be 3 metres, with one 90 degree bend.
Fitting the chimney
9) Take the two chimney
sections (C and D).
oRest the bottom of
chimney section Con the
top of the hood. You
should take care to
position the tabs on the
chimney section into the
rear of the hood.
oMark the side
measurement of both
sides of chimney section C
on the wall with a pencil.
20
