Baumatic GEH6009 User manual

User Manual for your
GEH6009 Cooker
Hood
60 cm Chimney Hood in Stainless Steel
NOTE : This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance Please keep it
in a safe place so that it is easily available for future reference
11/10/05

1
YOUR COO ER HOOD’S SPECIFICATIONS ….……………..………….2
IMPORTANT SAFETY INFORMATION……………………………….…3-4
CARING FOR THE ENVIRONMENT…………………………………………5
USING YOUR COO ER HOOD………………………………..……………..6
MAINTAINING AND CLEANING YOUR COO ER HOOD ……….7-9
INSTALLING / CHANGING THE CARBON FILTER …………………10
INSTALLATION INSTRUCTIONS ……………………….……...….11-19
ELECTRICAL CONNECTION……………11
INSTALLING THE COO ER HOOD………12-14
FITTING THE CHIMNEY…………………15-16
INSTALLATION NOTES – EXTRACTION / PURIFYING VERSION .….18
NOTE ON INSTALLING THE VERSION WITH LOWER BRAC ET..……19
TROUBLESHOOTING ……………………………………………20
CONDITIONS OF GUARANTEE……………………………………………21
CONTACT DETAILS…………………………………………………………..22
CONTENTS

2
Congratulations on purchasing a Cooker Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
Cooker Hood has been installed properly.
DIMENSIONS
Width canopy): 600 mm
Depth canopy): 500 mm
Height adjustable): 700 mm to 1040 mm
Dimensions of Chimney Section:
165 mm X 222 mm
Your stainless steel Cooker Hood is fitted with :
•High extraction tangential motor
•Pushbutton control operation
•3 speeds
•2 metallic grease filters
•2 lights
Extraction capacity – 500 m ³ /hr
Optional Extra: 1 x Pair of S1 Carbon filters for air
recirculation.
Specifications of your GEH6009 Cooker Hood

3
o Any installation work must be
carried out by a qualified
electrician or competent person.
o The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
oIf the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of ractice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (L Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Dptmt.
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood,
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
Electric cookers:
700 mm
Gas cookers:
700 mm
Coal/ oil cookers:
800 mm
* NOTE - DO NOT SET YOUR
COOKER HOOD LESS THAN
700mm ABOVE YOUR COOKER!
oWhen installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob.
oThe edges of the cooker
hood are sharp – be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
oIf other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
Important Safety Information: Please Read this before installing & using.

4
oEnsure the ducting for
the extractor function
has the same diameter as
the outlet hole all the
way through.
o Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o Your cooker hood is for
domestic use only.
o lease dispose of the
packing material
carefully – children are
especially vulnerable to
it.
o Dirty oil is an even
greater fire risk.
o Always put lids on pots
and pans when cooking
on a gas cooker.
o The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or its catching on
fire from failure to
observe fire safety advice
in these instructions.
o Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
oWarning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
oIf the supply cord is
damaged it must
replaced by the
manufacturer or service
agent in order to avoid
hazard.
 Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
Do not install above a
cooker with a high level
grill.
 Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
 Do not leave naked
flames under the cooker
hood.
Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
Important Safety Information:
Please Rea
d this before installing & using.

5
fitted or if the filters are
excessively greasy!
 Never flambé cook under
this cooker hood
.
Note : Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.

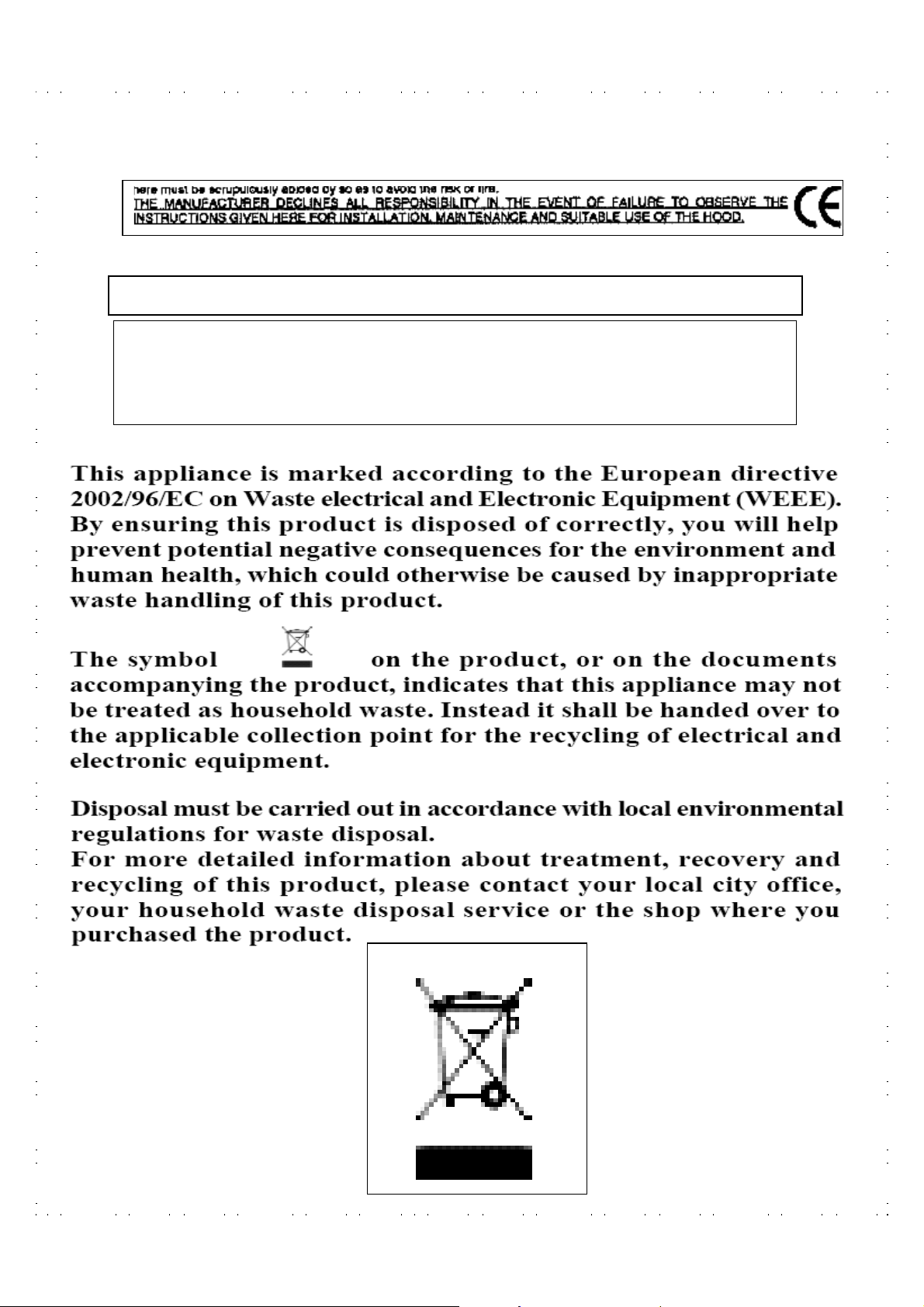

CONFORMITY TO W.E.E.E. DIRECTIVE
Environmental Note

6
To use your cooker hood:
1) Make sure it has been properly installed.
2) Find the CONTROL PAN L. It is located at the front of the
canopy, to the right.
3) The CONTROL PAN L contains buttons as shown in the Figure
below. These perform separate functions. You will need to
understand what these buttons do before you attempt to use your
cooker hood.
* Note: The hood should be switched on at least as soon as you start
cooking.
KEY
‘V’- Motor Off button
‘W’ - Motor operation:
= low speed, = mid speed, = high speed.
‘U’ - Light ‘ON/OFF’ button-This button controls the light
LEASE NOTE THAT YOUR COOKER HOOD CAN BE USED EITHER
IN RECIRCULATION MODE OR IN EXTRACTION MODE. TO USE
THE HOOD IN RECIRCULATION MODE, YOU WILL NEED TO FIT
THE CARBON FILTERS (SEE AGE 11).
Using your Cooker Hood:

7
IM ORTANT!: Before cleaning, always ensure that you
have switched your cooker hood OFF at the omni-polar
switch, set at the wall from the cable:
Cleaning
Clean the external parts with
mild liquid detergents on a
damp cloth.
Never use abrasive powder,
corrosive solvents or brushes.
Never insert pointed objects
into the motor’s protective grid.
Only clean the control panel
and filter grill with a damp
cloth and delicate detergents.
Be sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
Never take out the
grease filters and
attempt to clean the
space above where they
are set.
________________________________________________
Anti-Grease Grille
Your cooker hood includes an anti-grease grille
which helps absorb vapour-suspended grease
particles to protect your kitchen & furniture from
greasy residues.
The metal grille may become inflammable if it
becomes saturated with greasy residue.
 To prevent this fire hazard, the grille should be
cleaned regularly (depending on use) every 10-15
days and at least once a month in a dishwasher or in
hot water with normal washing-up detergent.
Cleanin
g your Cooker Hood:

8
First remove the grille by pulling down on it. Undo the
side catches.
You can now clean the anti-grease filter grilles
Soak them for about one hour in hot water with a
grease-loosening detergent then rinse off thoroughly
with hot water.
Repeat the process if needed. Refit the grease grille
once it has dried.
To clean the grease filter grilles in your dishwasher:
lace the grease filter grilles in the dishwasher. Select the most
powerful washing programme and highest temperature.
Repeat the process, if necessary.
Refit the grease grilles when dry.
LEASE NOTE: DISCOLOURATION OF THE GREASE
FILTER CAN TAKE LACE WHEN CLEANED IN A
DISHWASHER, ETC. Do not worry about the slight
discolouration of the grille – its performance won’t
be affected.
Let the filter grilles dry thoroughly before refitting
them
Maintenance - Cleaning the Anti-grease Filters
on
:

9

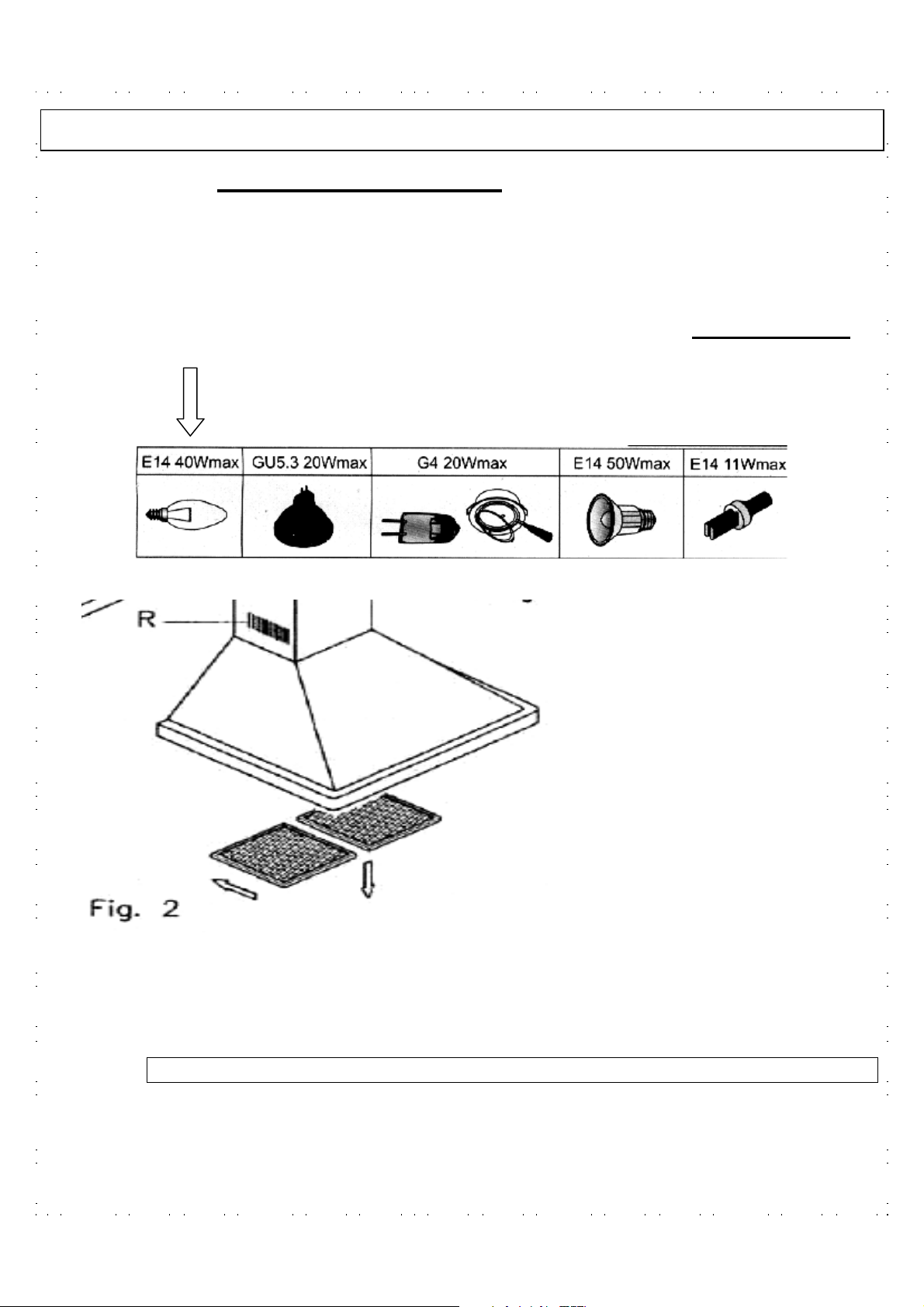

a) Changing the light bulb
Before changing the light bulb, ensure that the appliance is not live (i.e., ensure
that you have switched it off at the wall switch).
Remove the metal anti-grease filters (see Figure 2 below) and find the old bulb
located in the light fixture up inside the exposed canopy. Change the incandescent bulb
using only olive-shaped spares with an E14 coupling, max. 40W.
* LEASE NOTE - Defective bulbs should be replaced immediately.
Replace the metal anti-grease filters.
Maintenance
–
Changing the Light Bulb and Carbon Fi
lter

10
______________________________________________________________________________________
Installing / Changing the Carbon Filter.
Your Cooker Hood uses a pair of CARBON FILTERS to
purify the air for the air recirculation function.
You will find that the filters will attach to both sides of the
fan motor (please see figures at bottom of page).
The active carbon filters must be replaced regularly, at least once
every three months, to allow normal operation.
Before starting to fit the carbon filter, turn the omni-polar switch
off at the wall.
Changing the Carbon Filters
1) ress the handle of the metal grease
filter towards the rear part of the unit
until it is released from the front
housing, and remove it by pressing
downwards (Fig. 2 - above).
2) Remove the old carbon filters by
twisting them anticlockwise until they
unlatch from the sides of the motor.
3) lace the new carbon filters (which
have two fixing tongues), turning
clockwise so that the tongues latch
onto the motor’s sides. (Fig. 3 - left).
4) Reposition the anti-grease metallic filter grilles.
Installing / Changing the Carbon Filter

11

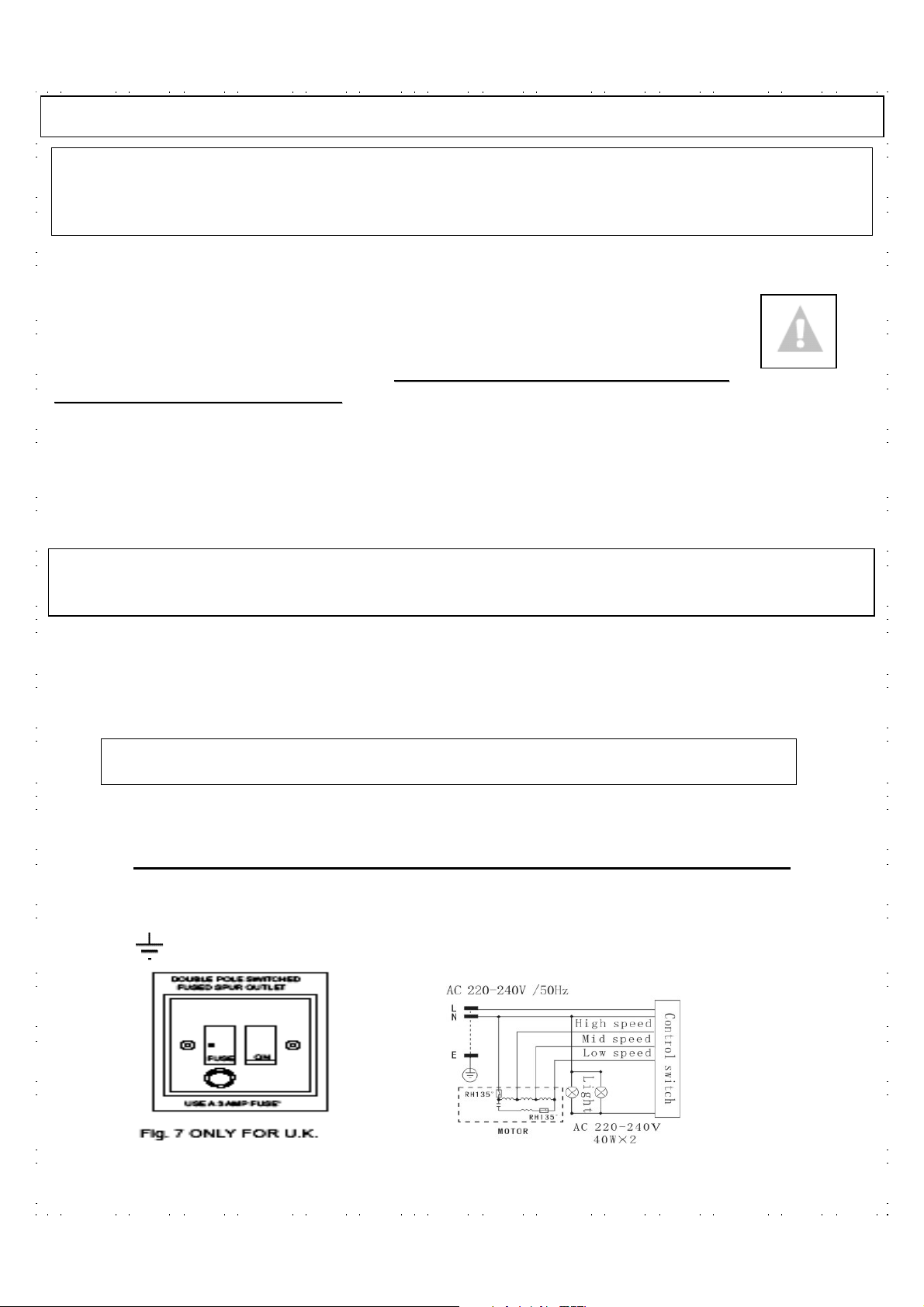

Before installation and usage, read all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on the identification plate (found
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibility in the event of failure to observe all the
accident-prevention regulations in force which are necessary for normal use and regular
operation of the electric system.
______________________________________________
ELECTRICAL CONNECTION
Y
Yo ou ur r c co oo ok ke er r h ho oo od d i is s i in nt te en nd de ed d f fo or r f fi it tt te ed d w wi it th h p po ow we er r c co or rd d & & p pu ul lg g f fo or r
c
co on nn ne ec ct ti io on n t to o p po ow we er r o ou ut tl le et t . .
oThe power cable must be
connected to the terminals
marked L (live) and N (neutral)
in the hood and fixed with a
cable clamp.
oThe cooker hood’s power cable
must be fitted upstream from the
electrical connection using an
omni-polar switch with a contact
distance of at least 3mm.
NOTE: (UK only) WARNING – THIS A LIANCE MUST BE EARTHED. It should only be
connected by a competent person using fixed wiring via a DOUBLE OLE SWITCHED FUSED
S UR OUTLET.
We recommend that the appliance is connected by a qualified electrician who is a member
of the N.I.C. .I.C. and who will comply with the I. . . and local regulations. The wires in
the mains lead are coloured in accordance with the following U.K. code:
Blue= Neutral, Brown = Live, Green/Yellow = Ground
If you can only find two wires in the cable (blue and brown), neither must be
connected to the Earth terminal!
•As the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
1) The BLUE WIRE must be connected to the terminal marked “N” (Neutral), or coloured Black
2) The BROWN WIRE must be connected to the terminal marked “L” (LIVE), or coloured Red
3) The Green/Yellow wire must be connected to the terminal marked “E” or
(Earth) (Fig 7 – at left) (Wire diagram-at right)
INSTALLATION INSTRUCTIONS
-
Electrical
INSTALLATION INSTRUCTIONS
–
Electrical Connection.

12


 The cooker hood must not
be fitted above stoves with a
radiant top plate.
 We recommend that at least
two people install this hood.
NOTE: Your Cooker Hood should only be fitted on a wall. Do
NOT position it any less than 700 mm (70 cm) above the hob.
1) Remove the metal anti-grease filters
(See figure at right).
2) osition the hood against the wall and mark the position of the support
holes that are to be drilled as shown in the figure below. These support
holes can be found on Fig. 4 on next page marked as ‘D’ with the anchoring
holes marked as ‘E’ (Fig. 4 on next page). If you hood comes with an
attached jig, use that as a guide to make the marks for the screw holes.
INSTALLATION INSTRUCTIONS
–
Attaching the Hood
PLEASE NOTE THAT YOU WILL HAVE
TO DECIDE BEFORE INSTALLING YOUR
COOKER HOOD THAT YOU CAN ADAPT
IT AS AN EXTRACTION FAN PLEASE
SEE PAGE 18 NOW TO UNDERSTAND
CRUCIAL DIFFERENCES IN THESE
INSTALLATION INSTRUCTIONS
–
Installing your Cooker Hood

13
--------------------------------------------------------------------------
3) Using a drill bit with an 8 mm diameter, make holes in the wall where you have
marked these positions (see below).
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
4) Insert the expansion fixings (rawlplugs) in the holes and then screw the
support screws halfway in (see below figure, at right).
5) Hook the hood onto the screws (see above figure) and fasten it onto the wall,
tightening the support and anchoring screws the rest of the way in (next page, at
top.)
Rear view of your
cooker hood.
8

14
-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------
6) (EXTRACTION FUNCTION ONLY) Connect the coupling to the top of the
cooker hood (see below). Then connect the discharge pipe to the coupling as
shown below. Remember that your ducting will have to match the
specifications shown in the notes on Extraction / Air urifier (Recirculation)
Modes on p.18.
INSTALLATION INSTRUCTIONS
–
Attaching the Hood

15
FITTING THE I E – Once your Cooker Hood has been
installed, you can now fit the pipe.
1) Take the two casings ‘A’ and ‘B’:
2) Rest the bottom of the casing ‘A’
on the top of the hood, taking
care to position the tabs of the
casing correctly on the back of
the hood as shown as part ‘X’ in
Figure 4 at right.
3) Fix casing ‘A’ onto the hood
using the two screws ‘K’
supplied in the bag of
accessories (Figure 4 – at right).
4) Lift the mobile part ‘B’ until it reaches the ceiling, checking
that it is perpendicular to the hood.
5) Mark the side measurement of the mobile casing ‘B’ and then
lower it (see below).
INSTALLATION INSTRUCTIONS
–
Fitting the Chimney

16
6) Take the fixing bracket ‘G’ (Fig. 4 – previous page), centre it
with respect to the mark you previously made, keeping it in
contact with the ceiling, and then mark the anchoring holes
(‘H’).
7) Using a drill bit with an 8mm diameter, make two holes on
the fixing marks you previously made (see below).
8) Insert the expansion fixings (rawlplugs) provided, put bracket
‘G’ (see Fig. 4 on previous page) in position and secure it with the
screws provided.
9) Lift casing ‘B’ up to the ceiling and secure it to the bracket ‘G’,
inserting the screws provided in the holes ‘M’ (Fig. 4 – previous
page).
INSTALLATION INSTRUCTIONS
–
Fitting the Chimney
8

17
EXTRACTION O ERATION – Installation Instructions

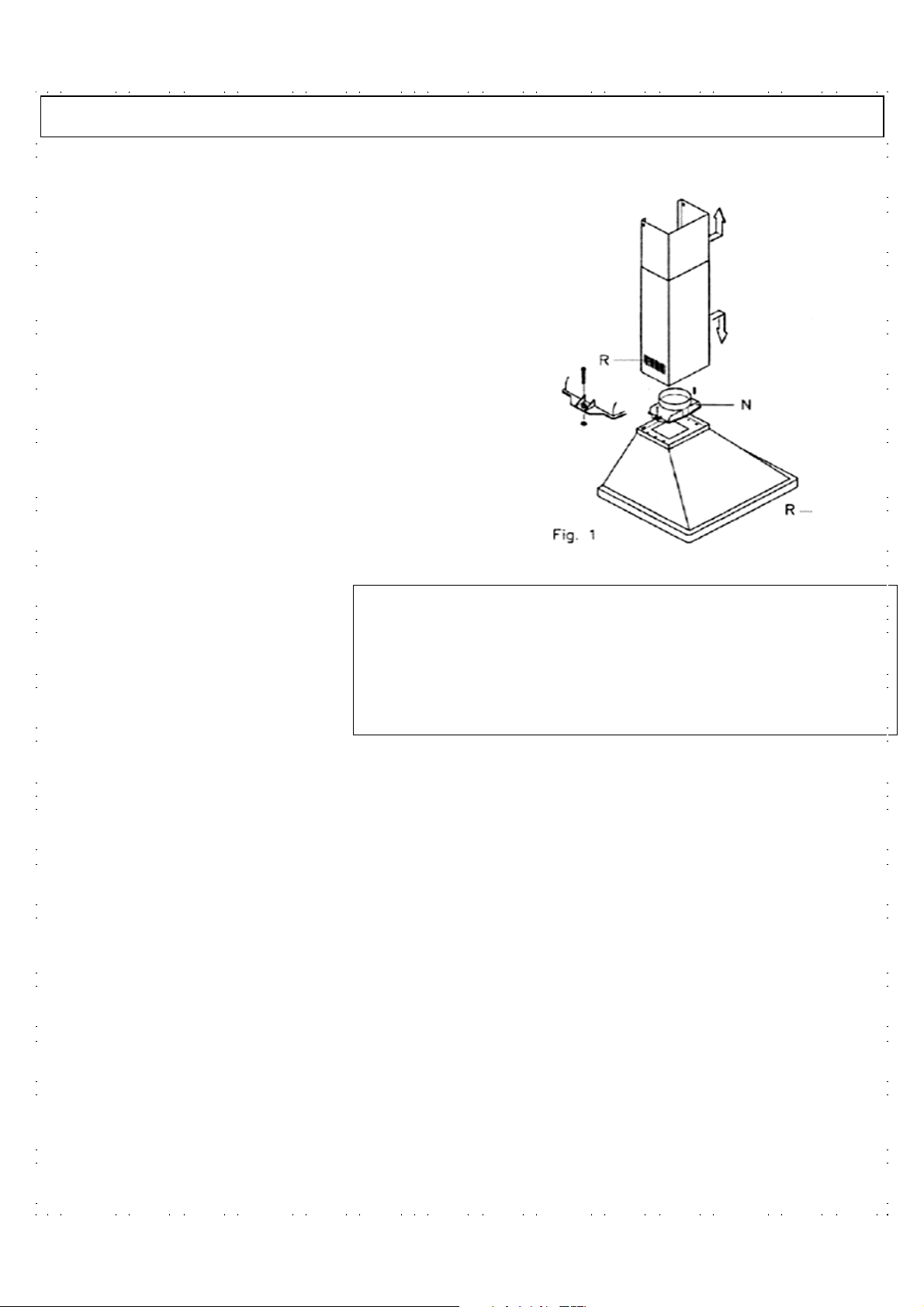

Ensure that you have fitted the
union (‘N’) to the upper part of the
hood using the packaged two
screws supplied inside the packing
(Fig. 1 – on right). Using a 125 mm
diameter pipe, connect the union
(N) on the upper part of the hood
(see Fig. 1) to the discharge outlet
for cooking vapours with a cross-
section of at least 150 cm ² .
PLEASE NOTE: If there is no
discharge outlet and the hood is to
be fitted to an outside wall of the
building, make a hole in the wall
that is large enough to fit a wind
and rain-proof shutter with a cross
section of at least 150 cm ² and
connect this to the outlet union of
the unit by means of a pipe.
________________________________________________________________________________________________________________________________________________________________________________________________________________________
.
AIR URIFIER (RECIRCULATION) O ERATION - Installation
Instructions
The cooker hood can be
converted to work as an air
purifier in the event that there is
no provision for an external air
discharge duct.
In this case, air is recycled through
the vent ‘R’ (Fig. 1 – above). When
using the unit as an air purifier, you
need to install two active carbon
filters to absorb cooking vapours
(please see page 11).
Extraction / Air Purifier Modes of Operation
lease note: For the extraction function, you
will need to connect a 125 mm diameter outlet
chimney to the spigot ‘N’ in fig. 1 above. This
pipe is not provided with your cooker hood. See
figure on left.

18
* Note on what to do if your Cooker Hood is the version that
comes with a BRACKET.
lease note that your cooker hood may include a lower bracket. If
this is the case, you will need to have it installed as such.
This will mean a slight change in how the cooker hood is to be
installed from the process shown on page 13.
In Fig. 6, below, you will see an exploded view of your cooker hood
and (inset), the bracketed connecting area of the hood (‘N’).
Hook or attach the hood to the bracket using the
screws supplied and carefully check that it has
been done properly. A few hoods may be
supplied with specific screws for vertical or
horizontal adjustment.
If your Cooker Hood comes with a Lower Bracket

19
If something has gone wrong with your Cooker Hood, checking
against this chart might keep you from having to call for service.
Symptom Solution
The cooker hood will not start!
•Check that the hood is connected
to the electricity supply.
•Check that the fan speed control is
set properly.
The cooker hood is not working
effectively!
•The fan speed is not set high enough.
•The grease filter is dirty.
•The kitchen is not ventilated well
enough.
•If the hood is set for recirculation,
check that the carbon filters have not
expired.
•If the hood is set for extraction, check
that the ducting and outlets are not
blocked.
The cooker hood has switched off
during operation!
•The safety cut-out device has been
tripped.
•Turn off the hob and then wait for the
device to reset.
•Note that if you have installed your
cooker hood too low, this will happen.
If it happens frequently, it will be
damaged.
Troubleshooting
