Baumatic BWD1409W User manual

BWD1409W
60 cm 9 kg
Freestanding
washer dryer

USER MANUAL FOR YOUR BAUMATIC
BWD1409W
60 cm 9 kg
Freestanding washer dryer
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 08/03/11
2

3
Contents
Environmental note 4
Important safety information 5 – 6
Specifications 7 – 12
Description of the appliance 8
Controlpanel 9-10
LEDdisplay 11
Detergentdrawer 12
Preparing the wash cycle 13 - 16
Preparing your garments for washing 13
A selection of wash care symbols 14
Detergents and conditioners 14 - 15
Wash program table 15 - 16
Wash program guidance 16
Selecting a wash program 17 - 25
Descriptions of the wash programs 17 – 23
Endofcycle 23
Pausing a wash program 23
Changing a wash program 23 - 24
Delaystartfeature 24
Childlock 25
Maintenance and cleaning 25 - 31
Indailyuse 25
Control panel and washer dryer cabinet 25
Detergent drawer 25 - 26
The washer dryer drum 26
Door 26
95° maintenance wash 26 - 27
Cleaning the drain pump filter 27 – 28
Cleaning the water inlet filter 28
Winterstorage 28
Removingstains 28
Stainremovalrules 29
Stain removal guide 29 - 30
Poorwashresults 31
Installation 32 - 37
Removing the transit bolts 32
Locating your washer dryer 33
Connecting to the mains water supply 33 - 34
Connecting to the water outlet 35
Levelling the appliance 35 - 36
Powersupply 36-27
Before first use maintenance wash 37
Error code failure system 37 – 39
General troubleshooting 39 – 40
Contact details 41

Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
4

Important safety information
Your safety is of the utmost importance to
Baumatic. Please make sure that you read this
instruction booklet before attempting to install or
use the appliance. If you are unsure of any of the
information contained in this booklet, please
contact the Baumatic Advice Line.
General Safety
oRepairs to your appliance must only be carried out by a
Baumatic engineer or one of its authorised service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your washer dryer.
oIf you notice that the mains cable is damaged. The appliance
must not be used. The same applies if you notice that the
worktop, control panel or base area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe glass of the porthole door may become hot during the higher
temperature wash programs.
oThe machine should be allowed to cool before carrying out an
emergency drain or cleaning the drain filter.
oIt is possible for small animals to chew either the mains cable or
water hoses, which could cause an electric shock hazard.
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.
5

6
oBefore the first use of the appliance, we advise that a 95
degree cotton wash is completed. No garments should be
placed inside the machine; however a small amount of
detergent must be used.
During Use
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThis appliance is only designed to wash normal domestic
washloads. If you use your washer dryer in any other way or it is
incorrectly used, then Baumatic accepts no liability for any
damage that might be caused and any guarantee will be void.
oNo attempt should be made to alter or modify the specifications
of this appliance.
oThe detergents that you place in this appliance should be
suitable for automatic washer dryers. With regards to dosage
levels, the detergent manufacturer’s recommendations should be
followed.
oYou should not wash garments that have been in contact with
flammable materials.
oYour washer dryer should not be used for dry cleaning.
oIf you use either dyes or bleaching agents inside this machine,
then you should consult with the manufacturer of these products
to make sure they are suitable for use in your washer dryer.
Baumatic cannot be held responsible for any damage that may
result.
Child Safety
oYour washer dryer should only be used by adults. You should not
allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oIt could be possible for a child or pet to gain access to the
washer dryer through the porthole door. Therefore please check
the drum before using the appliance.
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of a child’s reach and in a safe
place.

7
Specifications
o18 wash programs
o5 drying programs
o9 kg wash load
o7 kg drying load
o1400 rpm maximum spin speed
oLED display
oDelay start
oDigital condensing dry system
oDigital countdown indicator
oWash phase indicator
oTilted drum
oAir bubble washing system
o488 mm porthole and 180° door opening
oAntibacterial surface
oFailure detection system
oImbalance control system
oOverflow protection
oFoam protection
oAdjustable feet
oDirect drive system
oSafety door lock
Appliance dimensions
Height: 850 mm
Width: 600 mm
Depth: 645 mm
Energy ratings
Energy efficiency class (wash only) A+
Wash performance class A
Water extraction performance class A
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your washer dryer will
either be located on the right hand side of the cabinet or behind the
porthole door.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

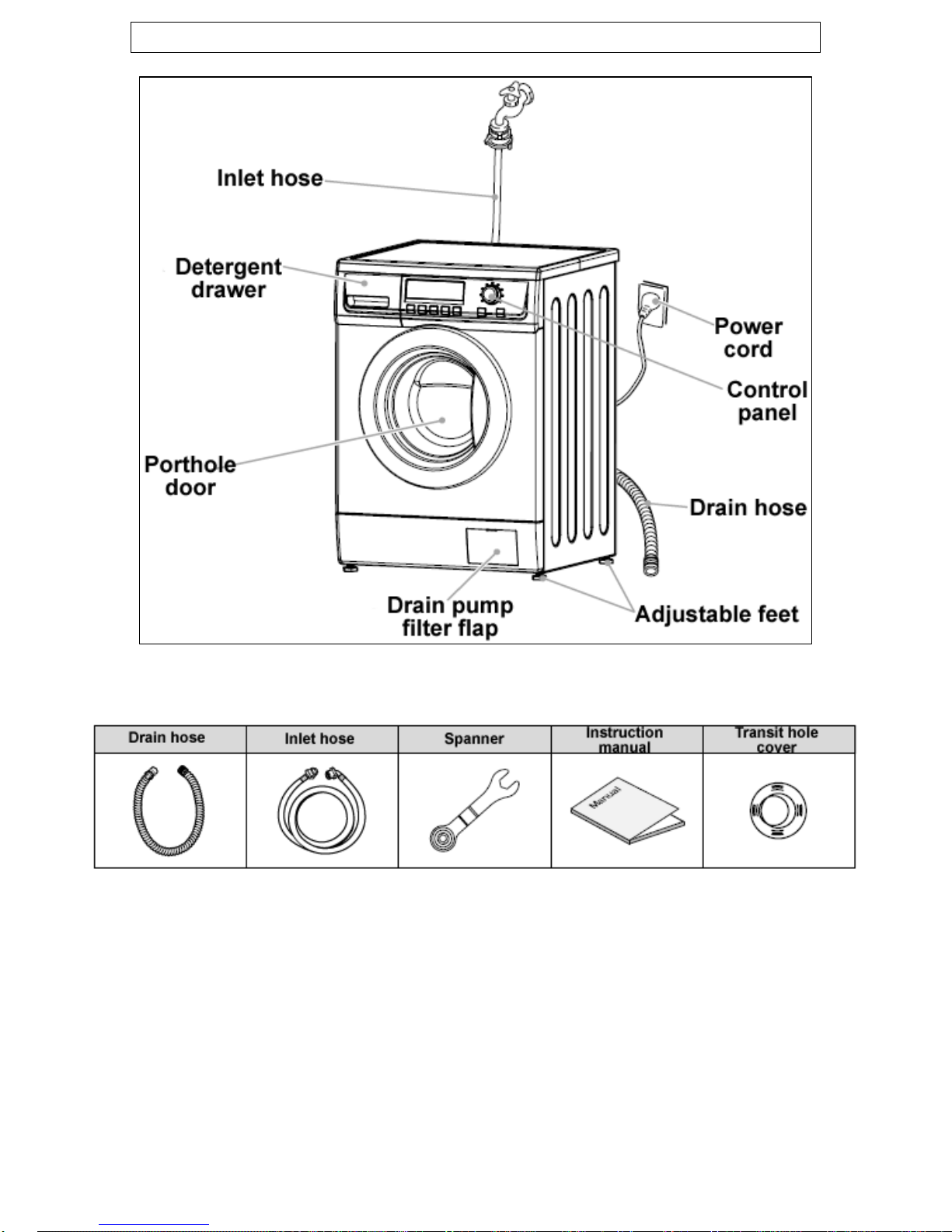

Description of the appliance
Accessories
8

Control panel
1) Power button. Press this button to turn the power on or
off.
2) Start/pause button. Operation and temporary stop is
repeated as it is pressed. When you want to change a
program while it is in use, press this button, then select the
program you want to change to, and then press this button
again.
3) Wash program selection
knob. You can select the wash
cycle you want by rotating the
knob to choose from 8 options
around the outside.
4) Temperature button. This button can be used to
adjust the temperature of the water according to the type
of load that needs cleaning. As the button is pressed, the
temperature of the water can be selected through the
following options:
Cold
Æ 30°C Æ 40°C Æ 60°C Æ 95°C
9

5) Spin button. By pressing this button, the spin speed
can be chosen. You can set the spin speed by rpm through
the following options:
Rinse Hold
Æ 400 Æ 800 Æ 1000 Æ 1400
6) Wash button. You can select the cycle you want by
using this button. The light of the chosen cycle will glow
after selection. As the button is pressed, the wash cycle is
chosen through the following options:
Wash
Æ Soak Æ Pre-wash
7) Dry button. You can select the dry cycle you require by
pressing this button. You can choose through the following
options, depending on how dry you want your items to be:
Low temp Æ Iron Æ Cupboard Æ Very Æ Time
8) Water + button. You can press this button to add an extra 6 litres
of water to the rinse section of any wash cycle, to increase the rinse
performance without lengthening time it takes to complete.
9) Delay start button. This button can be used to delay the start of
the wash cycle from between 1 – 12 hours.
10) Memory button.You can use this button to recall a cycle that you
have previously programmed the washer dryer to remember.
11) Rinse + button. You can press this button to introduce an
additional rinse, which will help to remove traces of detergent residue.
10

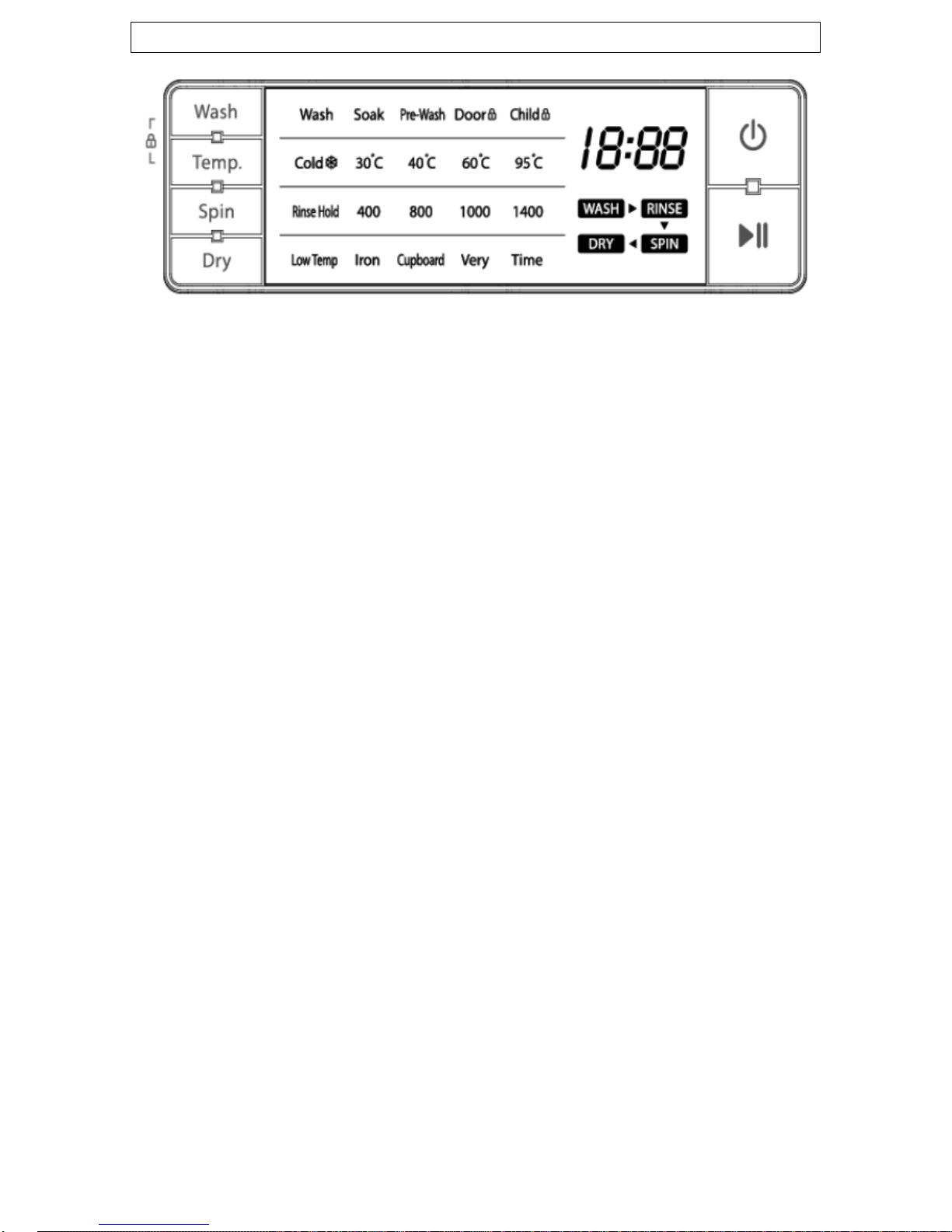

LED display
Wash cycle progress indicator
This lights when a wash cycle is in progress, to indicate what stage of
the wash cycle the appliance has reached from:
Wash
Æ Rinse Æ Dry Æ Spin
Wash display
This lights the wash functions that have been selected such as a pre-
wash or a soak.
Wash program temperatures
This light indicates which wash temperature has been selected.
Spin speeds
This light indicates whether a spin speed has been selected.
Child lock
This light indicates that the child lock has been switched on.
Door lock
This light indicates that the automatic door lock has been activated as
the cycle is in progress.
Timer display
This indicates how long is left of the wash cycle that is in progress.
Dry display
This indicates which drying cycle has been selected.
11

Detergent drawer
Main wash section
This compartment should have detergent placed in it (you should also
put a water softening agent in this section, if you use one). The
detergent will be added to the drum at the start of the main wash
program.
Conditioner section
This compartment should be used for liquid conditioners (fabric
softener, starch). They will be added to the wash load during the final
rinse.
Pre wash section
This compartment should have detergent placed in it, if you are going
to select a pre-wash before the main wash cycle.
12

Preparing the wash cycle
Preparing your garments for washing
oYour washing should be sorted out, according to
the fabric type and the wash care symbol that is
printed on the garment’s wash care label (see
separate section on wash care symbols).
oYour washing should also be sorted out
according to the degree of soiling.
oCheck all pockets on a garment to make sure
that they are empty.
oRemove any detachable metal items (badges,
paperclips, safety pins etc).
oZips should be closed, duvet covers and pillow cases should be
buttoned up and any loose straps should be tied up. This will
help to prevent other garments from getting damaged during the
wash.
oWoollens and knitted coloured fabrics should be turned inside out
before being washed in the appliance.
oSmall delicate items (tights, baby socks) should be placed in
either a washing net or a zipped pillow case.
oCurtains should be handled with particular care. All plastic hooks
or metal strips must be removed before being washed in the
appliance.
13
oColoured items and whites should be washed
in separate wash cycles.
oNew garments often contain an excess of
dye, therefore it is advisable to wash them separately for their
first wash.
oGarments should be unfolded and shook out before being placed
inside the machine.

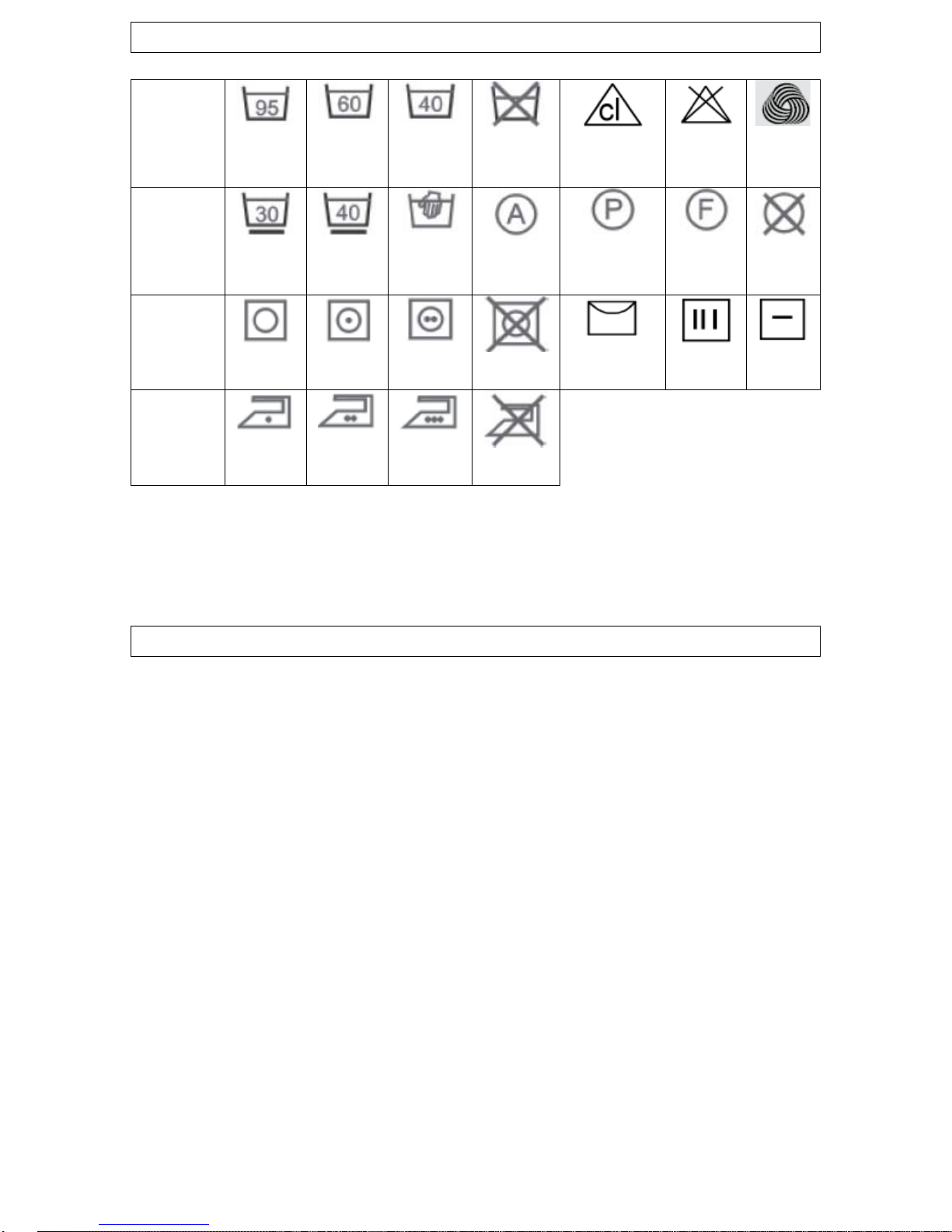

A selection of wash care symbols
Washing
Boiling
temp
95°C
Normal
temp
60°C
Normal
temp
40°C
Do not
wash!
Bleachable
in cold
water
Do not
bleach! Wool seal
Dry
cleaning
Delicate
temp
30°C
Delicate
temp
40°C
Hand
wash
only
All
solvents
All but TRI
Benzine
only
Do not
clean!
Spin
dryer
Normal Low
High
Do not
dry!
Hang to
dry
Drip dry
Dry
flat
Ironing
110°C
150°C
200°C
Do not
iron!
oThe wash care symbols should be used to help you to select the
most suitable wash program. They will also help you to sort your
laundry into different loads, depending on the fabric type and the
highest temperature which the garment can be washed at.
Detergents and conditioners
The amount of detergent that you need to use in your appliance, will
depend on
oThe degree of soiling.Lightly soiled garments in general
require less detergent.
oThe size of the wash load.A smaller wash load will require a
reduction in the amount of detergent.
oThe hardness of your tap water.The harder your water is,
then the more detergent you will need to use. The detergent
manufacturers normally give guidance as to how much extra
detergent should be used, depending on the hardness of the
water.
Liquid detergent
If you are using liquid detergent, then in the majority of cases the
liquid should be placed inside the dosing device supplied by the
14

detergent manufacturer and placed inside the drum. All instructions on
the detergent packaging should be followed.
Water softening agents
If your tap water is hard, then it may be prudent to utilise a water
softening agent. This will help to ensure that the appliance does not
become clogged with hard water deposits. You may also find that it will
allow you to lessen the amount of detergent that you are using.
When using any detergent or water softening
agent, the recommendations of the
manufacturers should be followed.
Wash program table
Program Fabric type Proper
temp. Option Maximum Load
Cotton/
Normal First check if laundry is machine washable (white
cotton, linen towel and
sheets).
Colourfast garments (shirts,
night dresses, pyjamas, and
lightly soiled white cottons,
underwear).
60°C
(Cold, 30°C,
40°C,
95°C).
Pre-wash
+ rinse 9kg
Synthetic Polyamide, acrylic, polyester 30°C (Cold,
40°C). Pre-wash + rinse Less than 3kg.
Delicate/
handwash Delicate laundry easily damaged (silk, curtains). Cold* Less than 3kg.
Intensive Heavy soiled clothes (blue-
jeans, climbing clothes, ruck
sack, sports wear).
60°C (Cold,
30°C, 40°C,
95°C).
Pre-wash
+ rinse Less than 3kg
Quick 20 Coloured laundry which is
lightly soiled. Cold* Less than 3kg.
Sports wear Lightly soiled fast and thin
laundry. Cold (Cold, 30°C,
40°C).
Pre-wash
+ rinse
Tub clean Use to clean (and dry). Cold Dry Without
load.
Drain Drain water in drum to
outside.
Pre Wash:If the laundry is heavily soiled, the pre-wash option is
recommended. This option is available for cotton and synthetic wash
programs. You should place detergent in the pre-wash compartment of
the detergent drawer, as well as in the main wash compartment.
Rinse+: Will introduce an additional rinse, which will help to remove
traces of detergent residue.
15

16
Water+: This will add an extra 6 litres of water to the rinse section of
any cycle to increase the rinse performance without lengthening the
cycle time.
Wash program guidance
oA wash program option can only be selected if the program table
advises that it is possible with the wash cycle you have selected.
oThe washer dryer automatically selects a temperature for a
particular wash program. However it is possible to alter the
temperature by using the temp button. All temperatures will not be
available on certain wash programs.
oThe washer dryer automatically selects a spin speed for a particular
wash program. However it is possible to alter the spin speed by
using the spin button. All spin speeds will not be available on
certain wash cycles.
oImportant: You should make sure that the selected spin speed is
appropriate for the garments that you are washing.
oImportant: Before opening the door of the appliance, you MUST
spin the clothes and drain the water. See the section called “Spin
only”.
oThe active phases will appear at the top of the LED display, as the
wash program progresses.
oThe LCD display shows an approximate time for the selected wash
cycle. Please note that factors external to the machine, e.g. the
temperature of your water supply, your water pressure etc. can
affect the time it takes for a wash cycle to complete.

17
Selecting a wash program
Cotton program
oPut the laundry into the drum and then close the door. The
maximum load size is 9kg for a cotton wash.
oIn the detergent drawer, put detergent into the main wash and
pre-wash compartments.
oPut detergent into the pre wash compartment only if you want to
use the pre-wash option.
oSoftener should be poured into the middle compartment of the
detergent drawer; the level should be below the ‘MAX’ level.
oIf you want to use bleach, then you should put it into the main
wash compartment with your detergent.
oPress and hold the power button (1), the LCD display will show
“---“ and all the program lights will come on.
oIf you press the start/pause button (2) next without selecting a
program, the cotton/normal wash will be selected as the default
program.
oAlternatively you can use the wash program selection knob (3)
to select the cotton program.
oA wash temperature of 40°C, with an 800 rpm spin will be
selected automatically by the appliance.
oYou can use the temp button (4) to adjust the wash
temperature, ‘cold’, 30°C, 40°C, 60°C and 95°C wash
temperatures are available.
oYou can use the spin button (5) to adjust the spin speed.
oYou can use the wash button (6) to select a pre-wash or soak to
a cycle. You can also press the rinse button (11) to include a
rinse.
oPress the start/pause button (2), the door will lock and after a
few seconds you will hear the machine start to fill with water.
The machine will automatically use the appropriate amount of
water by sensing the weight of your laundry.

18
Synthetic program
oPut the laundry into the drum and then close the door. The
maximum wash load size is below 3kg for the synthetic program.
oIn the detergent drawer, put detergent into the main wash and
pre-wash compartments.
oPut detergent into the pre wash compartment only if you want to
use the pre-wash option.
oSoftener should be poured into the middle compartment of the
detergent drawer; the level should be below the ‘MAX’ level.
oIf you want to use bleach, then you should put it into the main
wash compartment with your detergent.
oPress the power button (1), the LCD display will show “---“ and
all the program lights will come on.
oUse the wash program selection knob (3) to select the synthetic
program.
oA wash temperature of 30°C, with an 800 rpm spin will be
selected automatically by the appliance.
oYou can use the temp button (4) to adjust the wash
temperature; ‘cold’, 30°C and 40°C wash temperatures are
available.
oYou can use the spin button (5) to adjust the spin speed. A 1400
rpm spin speed is not available with the synthetic wash program.
oYou can use the wash button (6) to select a pre-wash or soak
and the rinse button (11) can be pressed to program a rinse.
oPress the start/pause button (2), the door will lock and after a
few seconds you will hear the machine start to fill with water.

19
Delicate/ handwash program
oPut the laundry into the drum and then close the door. The
maximum wash load size is below 3kg for the delicate program.
oIn the detergent drawer, put detergent into the main wash
compartment.
oSoftener should be poured into the middle compartment of the
detergent drawer; the level should be below the ‘MAX’ level.
oIf you want to use bleach, then you should put it into the main
wash compartment with your detergent.
oPress the power button (1), the LCD display will show “---“ and
all the program lights will come on.
oUse the wash program selection knob (3) to select the delicate
program.
oA wash temperature of ‘cold’, with a 400 rpm spin will be
selected automatically by the appliance. The wash temperature
of ‘cold’ is not adjustable for the delicate wash program.
oYou can use the spin button (5) to adjust the spin speed. 1400
and 1000 rpm spin speeds are not available with the delicate
wash program.
oYou can use the rinse button (11) to select the rinse cycle
option.
oPress the start/pause button (2), the door will lock and after a
few seconds you will hear the machine start to fill with water.

20
Intensive program
oPut the laundry into the drum and then close the door.
oPut detergent into the main wash and pre-wash compartments in
the detergent drawer. Softener should be below the ‘MAX’ level.
oPut detergent into the pre-wash compartment only if you want to
add pre-wash.
oWhen you want to use bleach, put it into the main wash
compartment with detergent.
oPress the power button (1). The LED shows only “---“ and all
program lights will turn on.
oUse the wash program selection knob to select the intensive
program.
oSelect the intensive program using the program selection dial
(3). The machine will set a washing temperature of 60°C and a
spin speed of 1000rpm. If you want to change the washing
temperature (4), the spin speed (5) or add wash options (pre-
wash or soak) (6) or a rinse (11), then press each button
accordingly.
oPress the start-pause button (2). The door will lock and the
machine will supply wash water depending on the weight of the
laundry. The appliance will then begin washing.
Quick 20 program
oPut the laundry into the drum and then close the door. The
maximum wash load size is below 3 kg for the Quick 20 wash
program.
oIn the detergent drawer, put detergent into the main wash
compartment.
oSoftener should be poured into the middle compartment of the
detergent drawer; the level should be below the ‘MAX’ level.
oIf you want to use bleach, then you should put it into the main
wash compartment with your detergent.
oPress the power button (1), the LCD display will show “---“ and
all the program lights will come on.
