Baumatic BFLW75 User manual

1
BFLW75 60 cm 7.5 kg
Freestanding
Washin
g
Machine

USER MANUAL FOR YOUR BAUMATIC
BFLW75
60 cm 7.5 kg Freestanding
washing machine
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 18/03/13
2

3

4
Contents
Environmentalnote 5
Important safety information 6 – 8
Specifications 9
Description of the appliance 10-13
Controlpanel 11
LEDdisplay 12
Detergentdrawer 13
Preparing the wash cycle 14 - 18
Preparing your garments for washing 14
A selection of wash care symbols 15
Detergentsandconditioners 15-16
Washprogramtable 17
Wash program guidance 18
Selecting a wash program 19-22
Settingawashprogram 19
Endofcycle 19
Pausingawashprogram 19
Delaystartfeature 19
Settingasinglewash 20
Manualsoaking 20
Hightemperatureself-clean 21
Activeenzyme 21
Extrarinse 21
Childlock 22
Addingagarment 22
Poweroffmemory 22
Maintenance and cleaning 23 - 30
Indailyuse 23
Control panel and washing machine cabinet 23
Detergentdrawer 24
The washing machine drum 24
Door 24
Emergency drainage 25
Cleaning the drain pump filter 26
Cleaning the water inlet filter 27
Winterstorage 27
Removingstains 28
Stainremovalrules 28
Stainremovalguide 28-29
Poor wash results - troubleshooting 30
Installation 31 - 36
Removing the transit bolts 31
Locatingyourwashingmachine 32
Connecting to the mains water supply 33
Connectingtothewateroutlet 34
Levelling the appliance 35
Powersupply 35
Before first use maintenance wash 36
Error code failure system 36
General troubleshooting 37–39
Contactdetails 43

Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
5

Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction
booklet before attempting to install or use the
appliance. If you are unsure of any of the
information contained in this booklet, please contact
the Retailer where you purchased your unit.
General Safety
oRepairs to your appliance must only be carried out by an
authorised service agent and only genuine spare parts should be
used. Any attempt by an inexperienced person to repair the
appliance, could result in injury or damage to your washing
machine.
oThis appliance is designed for household use only.
oIf you notice that the mains cable is damaged. The appliance
must not be used. The same applies if you notice that the
worktop, control panel or base area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe glass of the porthole door may become hot during the higher
temperature wash programs.
oThe machine should be allowed to cool before carrying out an
emergency drain or cleaning the drain filter.
oIt is possible for vermin to chew either the mains cable or water
hoses, which could cause an electric shock hazard.
6

7
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.
oBefore the first use of the appliance, we advise that a 95
degree cotton wash is completed. No garments should be
placed inside the machine; however a small amount of
detergent must be used.
During Use
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThis appliance is only designed to wash normal domestic wash
loads. If you use your washing machine in any other way or it is
incorrectly used, then Baumatic accepts no liability for any
damage that might be caused and any guarantee will be void.
oNo attempt should be made to alter or modify the specifications
of this appliance.
oThe detergents that you place in this appliance must be suitable
for front load washing machines. With regards to dosage levels,
the detergent manufacturer’s recommendations should be
followed.
oYou should not wash garments that have been in contact with
flammable materials.
oYour washing machine should not be used for dry cleaning
purposes or commercial use.
oIf you use either dyes or bleaching agents inside this machine,
then you should consult with the manufacturer of these products
to make sure they are suitable for use in your washing machine.
Baumatic cannot be held responsible for any damage that may
result. Avoid leaving bleach containing chlorine in the drum for
an extended period of time.

8
Child Safety
oYour washing machine should only be used by adults. You should
not allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oThis washing machine is not intended for use by persons
(including children) with reduced physical sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning the use of
the appliance by a person responsible for their safety.
oIt could be possible for a child or pet to gain access to the
washing machine through the porthole door. Therefore, please
check inside the washing machine drum before using the
appliance.
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of a child’s reach and stored in
a safe place.

9
Specifications
o15 wash programs
o7.5 kg wash load
o1200 rpm maximum spin speed
oLED display
oElectronic control operation
oDelay start
oDigital countdown indicator
oSpin speed regulation
oTemperature regulation
oWash phase indicator
oDoor locked indicator
oElectronic aqua stop
oStainless steel drum
o180° door opening
oFailure detection system
oImbalance control system
oOverflow protection
oFoam protection
oAdjustable feet
oChild lock
Appliance dimensions
Height: 855 mm
Width: 595 mm
Depth: 565 mm
Ratings
Energy efficiency class (wash only) 3*
Wash performance class 4.5*
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your washing machine
will either be located on the right hand side of the cabinet or behind
the porthole door.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

Description of the appliance
Accessories
10

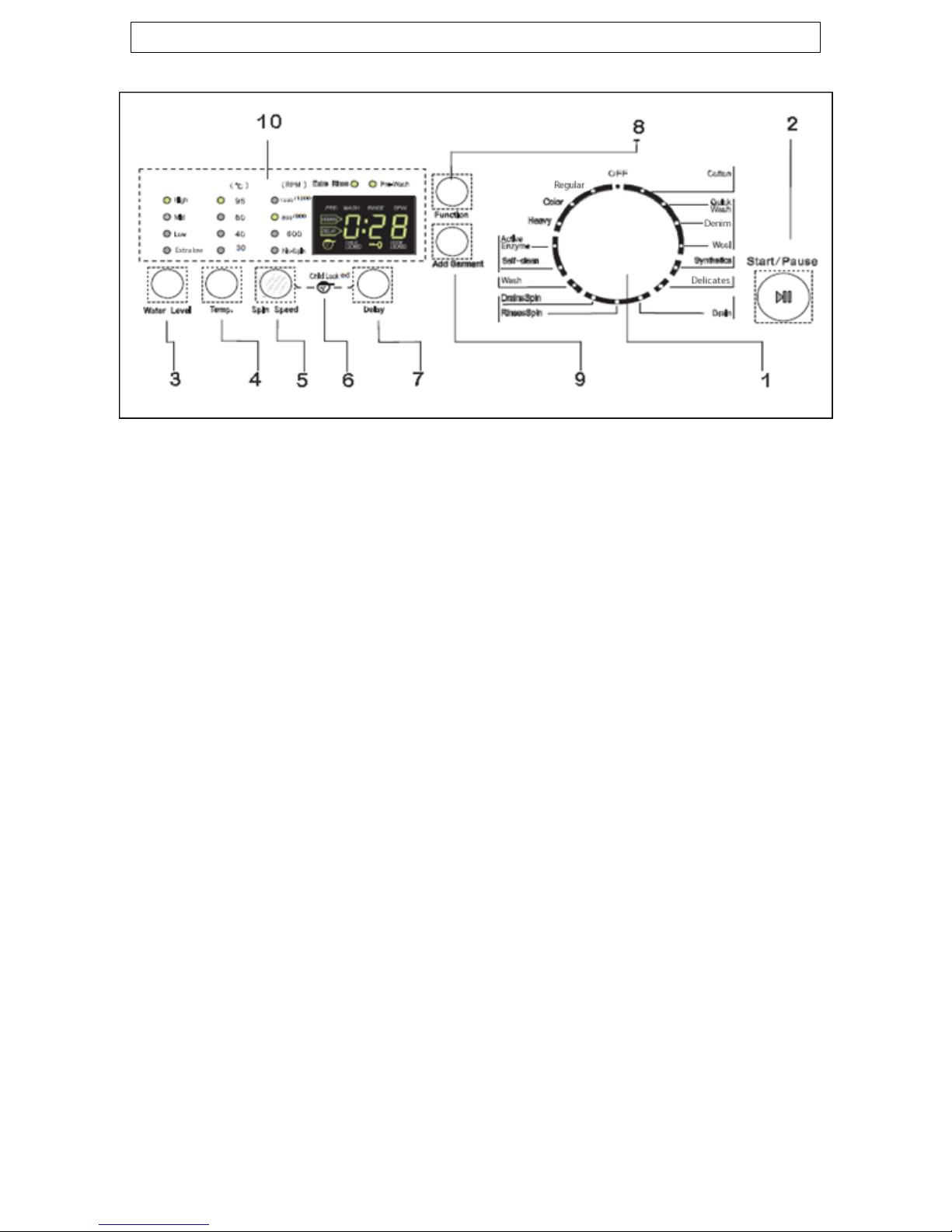

Control panel
1) Washing program selection dial. Use this dial to select the
required washing program.
2) Start / pause button. Press this button to start or pause a
washing cycle.
3) Water level selection button. Press this button to select the
required water level according to the amount of laundry from the
following options:
High
 Mid  Low  Extra Low
4) Temperature selection button. Press this button to set the
temperature of the water for a washing program from the following
options: 95°C
 60°C  40°C  30°C
5) Spin speed selection button. Press this button to select the spin
speed for the chosen washing program from the following options:
1200
 900  600  No Spin
6) Child Lock symbol. Press the Spin Speed button and the Delay
button together to activate/deactivate the child lock.
7) Delay start button. Press this button to delay the start of the
washing cycle. Repeatedly press the button to choose a time
between 0-24 hours.
8) Function button. Press this button to choose from two additional
functions for your washing cycle. You can add an extra rinse or a
pre-wash to get a better washing result.
11

9) Add Garment button. If you want to add a garment to the wash
load during the cycle you can press this button to pause the wash
cycle. The door will unlock and you can add the desired garments.
Press the Start/Pause button to resume the wash cycle. (please
refer to page 22)
10) LED display. (Refer to section below)

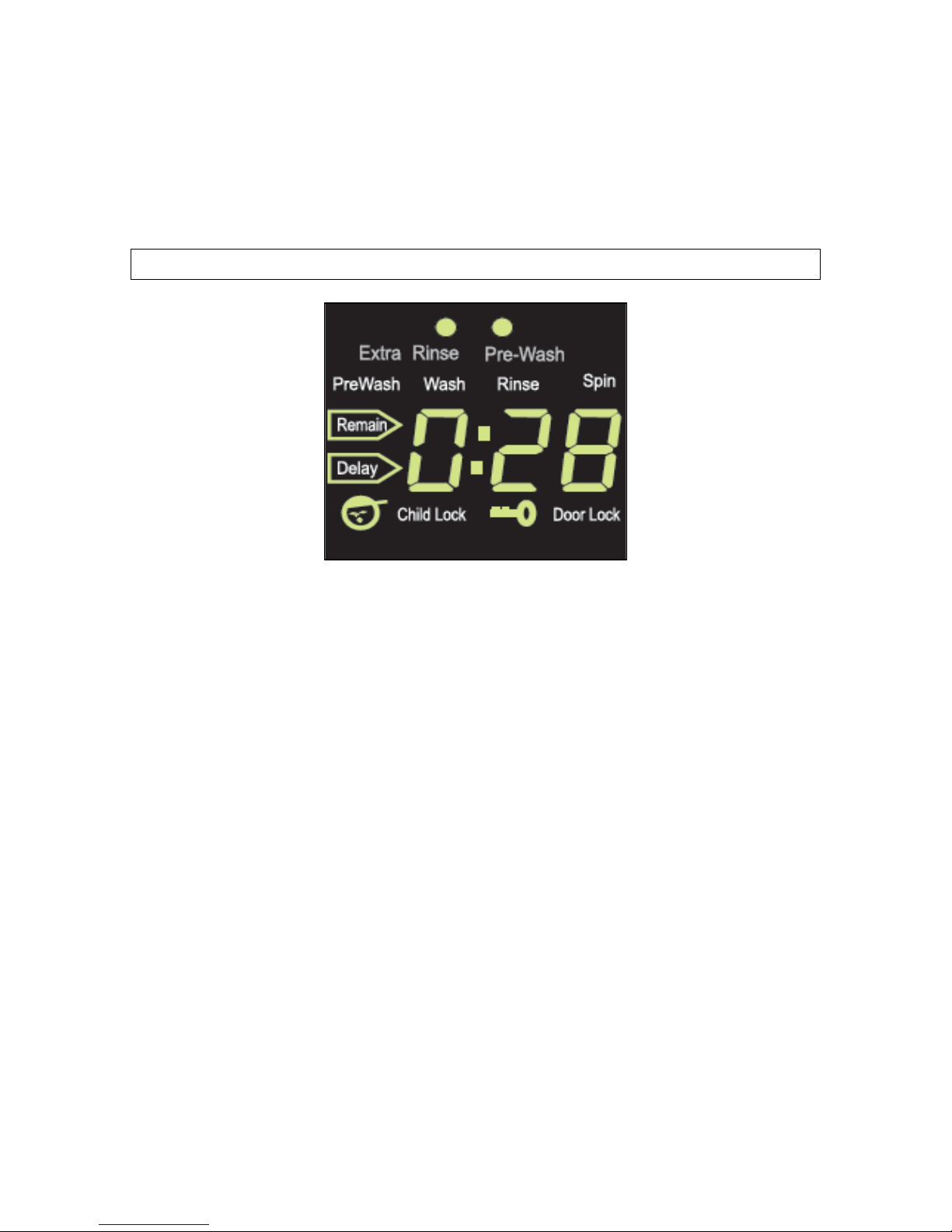

LED display
Wash cycle progress indicator. The current wash cycle phase will
light on the display to indicate the progress of the program from “Pre-
Wash”, “Wash”, “Rinse” and “Spin”.
Delay start. The “Delay” icon will flash to indicate the delay time
which has been set. The program will begin after the set delay time.
Remain indicator. After the washing cycle has begun, “Remain” will
light and the remaining time will be displayed until the wash program
ends.
Child locked. When the child-lock function is activated this icon will
light. The light will go off when the lock is deactivated.
Door locked. When the door is in the lock state, this icon will light.
The door can be opened only after the light turns off.
12

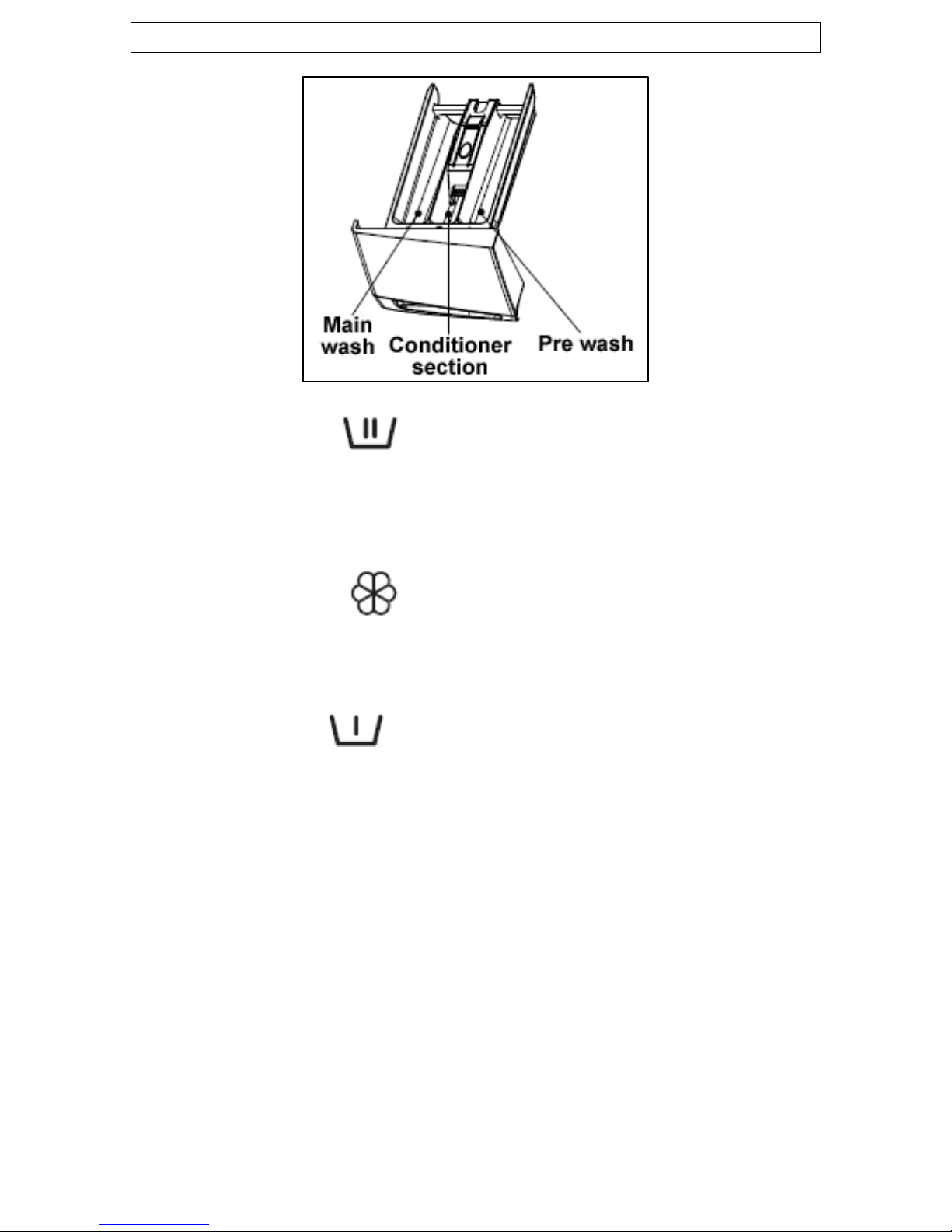

Detergent drawer
Main wash section
This compartment should have detergent placed in it (you should also
put a water softening agent in this section, if you use one). The
detergent will be added to the drum at the start of the main wash
program.
Conditioner section
This compartment should be used for liquid conditioners (fabric
softener, starch). They will be added to the wash load during the final
rinse.
Pre wash section
This compartment should have detergent placed in it, if you are going
to select a pre-wash before the main wash cycle.
13

Preparing the wash cycle
Preparing your garments for washing
oYour washing should be sorted out, according to
the fabric type and the wash care symbol that is
printed on the garment’s wash care label (see
separate section on wash care symbols).
oYour washing should also be sorted out
according to the degree of soiling.
14
oCheck all pockets on a garment to make sure
that they are empty and do not contain coins,
clips or similar items as these can damage
clothing and the washing machine.
oRemove any detachable metal items (badges,
paperclips, safety pins, etc).
oZips should be closed, duvet covers and pillow cases should be
buttoned up and any loose straps should be tied up. This will
help to prevent other garments from getting damaged during the
wash.
oWoollens and knitted coloured fabrics should be turned inside out
before being washed in the appliance.
oSmall delicate items (tights, baby socks, etc) should be placed in
either a washing bag or a zipped pillow case.
oCurtains should be handled with particular care. All plastic hooks
or metal strips must be removed before being washed in the
appliance.
oColoured items and whites should be washed
in separate wash cycles.
oNew garments often contain an excess of dye, therefore it is
advisable to wash them separately for their first wash.
oGarments should be unfolded and shook out before being placed
inside the machine.

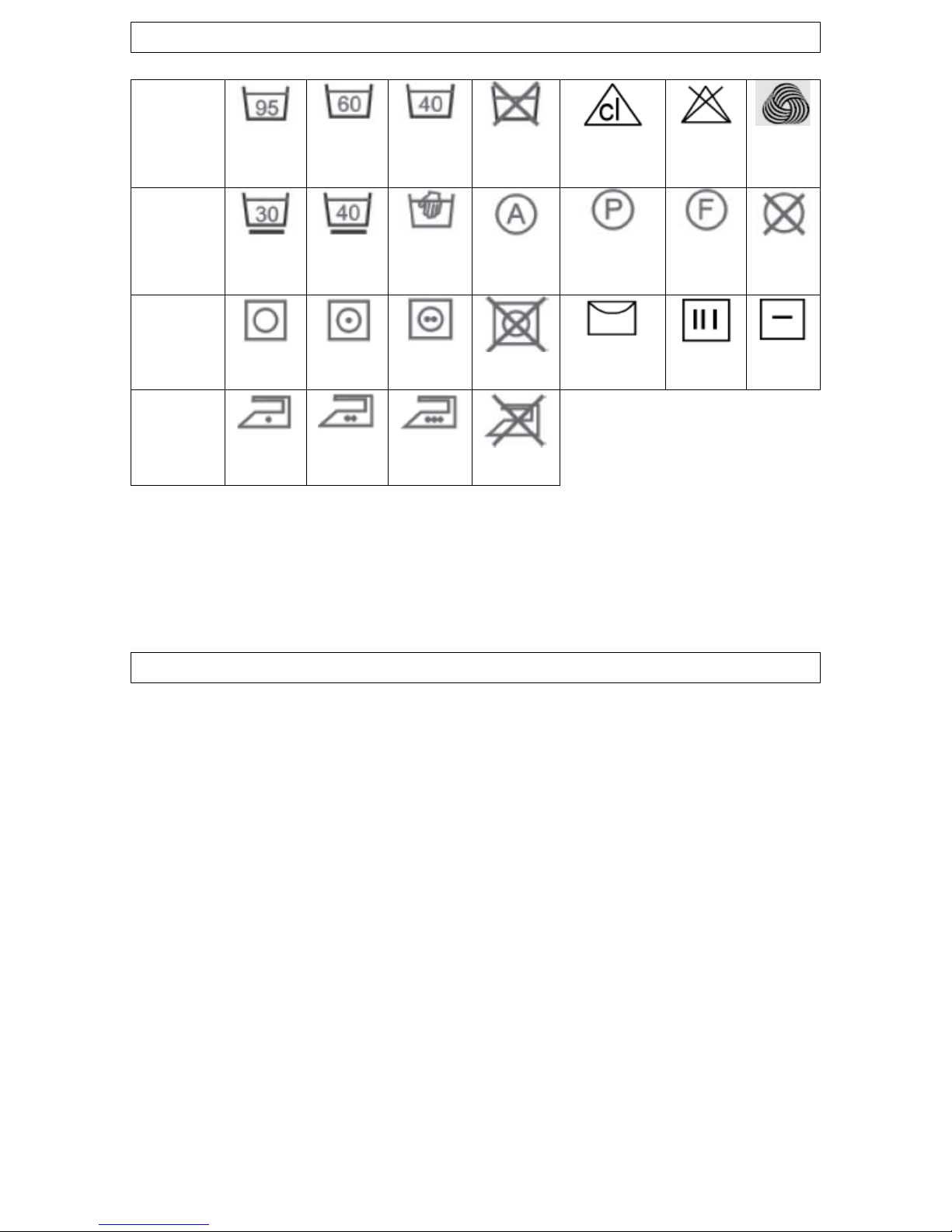

A selection of wash care symbols
Washing
Hot
temp
95°C
Normal
temp
60°C
Normal
temp
40°C
Do not
wash!
Bleachable
in cold
water
Do not
bleach!
Wool
seal
Dry
cleaning
Delicate
temp
30°C
Delicate
temp
40°C
Hand
wash
only
All
solvents
All but TRI
Benzine
only
Do not
clean!
Spin
dryer
Normal Low
High
Do not
dry!
Hang to
dry
Drip dry
Dry
flat
Ironing
110°C
150°C
200°C
Do not
iron!
oThe wash care symbols should be used to help you to select the
most suitable wash program. They will also help you to sort your
laundry into different loads, depending on the fabric type and the
highest temperature which the garment can be washed at.
Detergents and conditioners
IMPORTANT: Only detergents suitable for use in front load
washing machines should be used.
The amount of detergent that you need to use in your appliance, will
depend on
oThe degree of soiling.Lightly soiled garments in general
require less detergent.
oThe size of the wash load.A smaller wash load will require a
reduction in the amount of detergent.
oThe hardness of your tap water.The harder your water is,
then the more detergent you will need to use. The detergent
manufacturers normally give guidance as to how much extra
detergent should be used, depending on the hardness of the
water.
15

Liquid detergent
If you are using liquid detergent then all instructions on the detergent
packaging should be followed.
Low temperatures
oThe enzymes in biological washing detergents work best at low
temperatures to provide excellent cleaning and stain removal
results, but not as low as 20°C.
oLiquid or gel detergents are particularly suitable for low
temperature washing as they dissolve easier and quicker than
powders or tablets.
Water softening agents
If your tap water is hard, then it may be prudent to utilise a water
softening agent. This will help to ensure that the appliance does not
become clogged with hard water deposits. You may also find that it will
allow you to lessen the amount of detergent that you are using.
When using any detergent or water softening
agent, the recommendations of the
manufacturer should be followed.
16

Wash program table
Detergent Box
Wash
Cycle
MAX
temp*
(°C)
MAX
Spin
Speed
(RPM)
MAX
load
capacity
(kg)
Extra
Rinse
Pre-
Wash Pre-
Wash
Main
Wash
**
Default
Operation
Time
(hr:min)
Fabric
suggestions
Quick
wash
40 1000-
1200
3.5 Option No
Option
X 0:28 Lightly soiled
cotton load
Cotton
***
95 1000-
1200
7.5 Option Option √√√3:44 Normally
Soiled Cotton
Load
Denim 95 1200 7.5
Option Option √√√2.47 Thick /Heavy
clothes:
Denim,
overalls, etc.
Wool 40 800-900 2.5 Option No
Option
X 0:58 Woollen
Garments
Marked
Delicate
Synthetic
s
60 800-900 3.5 Option Option √√1:11 Polyester,
Nylon
Delicate
s
30 600 2
Option No
Option
X √√0:42 Silk and
items marked
hand wash
only
Regular 95 1000-
1200
7.5 Option Option √√√1:52 Normally
Soiled Mixed
Fabric Load
Colour 40 1000-
1200
3.5 Option Option √√√1:07 Normally
Soiled
coloured load
Heavy 60 1000-
1200
3.5 Option Set √√√1:38 Heavily soiled
load
Active
Enzyme
60
(default)
1000-
1200
3.5 Option Must √√√2:16 Protein
Stained
Garments
Self-
clean
95
(default)
600 / No
Option
No
Option
X √√1:12 Self-clean
function
(Refer to
page 19)No
detergent
Hand
Wash
95 / 7.5
No
Option
Option √√X 0:32 Load that
only requires
a single wash
Only
Rinse +
Spin
/ 1000-
1200
/ No
Option
No
Option
X X √0:21 Load that
only requires
rinse and
spin
Drain +
Spin
/ 1000-
1200
/
Option
No
Option
X X X 0:12 For hand
washed
garments
Drain / / /
No
Option
No
Option
X X X 0:01
17
* The actual water temperature may differ from the declared cycle
temperature.

18
** Conditioner [Symbol]
*** Energy test program according to AS/NZS 2040.1 & AS/NZS
2040.2: Cotton 60°C. This program is suitable for cleaning normally
soiled cotton laundry and is the most efficient program.
oDetergent and softener only need to be added when required.
oThe operation time of the appliance will change according to the
water temperature, water level, amount of clothes, inlet water
pressure and drain state.
oDo not overload the washing machine as the loaded items may
not wash properly. Please ensure that the wash program chart is
referenced to determine the suitable loading capacity for each
selected cycle.
Wash program guidance
oA wash program option can only be selected if the program table
advises that it is possible with the wash cycle you have selected.
oImportant: You should make sure that the selected spin speed is
appropriate for the garments that you are washing.
oImportant: Before opening the door of the appliance, you MUST
spin the clothes and drain the water. See the section called “Spin
only”.
oThe active phases will appear at the top of the LED display, as the
wash program progresses.
oThe LED display shows an approximate time for the selected wash
cycle. Please note that factors external to the machine, e.g. the
temperature of your water supply, your water pressure etc. can
affect the time it takes for a wash cycle to complete.

19
Selecting a wash program
Setting a wash program
oUse the washing program selection dial (1) to select the required
program.
oYou can set the water level (3), temperature (4) and spin speed
(5) by pressing the relevant buttons on the control panel.
oIf you wish to add an additional function such as a pre-wash or an
extra rinse to the cycle, press the function button (8).
oOnce the desired program has been selected, press the start /
pause button (2) to begin the wash cycle.
End of cycle
oWhen the wash cycle ends a beep will sound.
oIMPORTANT: You should not attempt to open the porthole door
until the door lock light has deactivated.
oWhen the door lock light has deactivated and you hear the door
lock disengage, you can open the porthole door and remove the
laundry.
oTurn off the water tap and rotate the program selection dial (1) to
the OFF position.
oDisconnect the appliance from the electricity supply.
Pausing a wash program
oIf you want to pause a wash program temporarily, you should press
the start/pause button (2).
oWhen you want to restart the wash cycle, press the start/pause (2)
button again.
Delay start feature
Your appliance has a delay start feature, which allows you to delay the
start of a wash cycle until a later time.
oWhen the delay start function is in use, the LED display only shows
the delay start time. The “Delay” indicator will light. When the
programmed time is reached, the indicator light will go off. The LED
display will then show the remaining time of the wash cycle.

20
oThe delay start time on the display informs you in how many hours
the wash program will begin.
1) Use the program selection dial (1) to select the desired cycle.
2) You can adjust the water level (3), temperature (4) and spin speed
(5) by pressing the appropriate buttons. You can also add a pre-
wash and an extra rinse by pressing the function button (8).
3) Once the required cycle has been set, press the delay start button
(7). Repeatedly press this button to set the length of time which
you wish to pass before the washing cycle begins.
4) Press the start / pause button (2) and the machine will enter
standby mode. The cycle will automatically begin when the delay
start time is reached.
Setting a single wash
oYou can choose from the following single cycles: “Wash”, “Drain”,
“Drain and Spin” and “Rinse and Spin”.
1) Use the program selection dial (1) to choose one of these cycles.
Set the required spin speed or “No-Spin” option accordingly.
2) Press the start / pause button (2) to begin the program.
Manual soaking
1) Load the laundry into the washing machine drum
2) Put the detergent into the drawer according to the manufacturer’s
instructions.
3) Use the program selection dial (1) to select the required wash
cycle. Press the start / pause button (2) to begin the cycle.
4) After approximately 10 minutes have passed, press the start /
pause button (2) again to pause the cycle. The clothes are then
able to soak in the water for your chosen length of time. Press the
start / pause button (2) to continue the wash cycle.
