Baumatic BFWM1406W 60 cm6kg User manual

1
BFWM1406W 60 cm 6 kg
BFWM1407W 60 cm 7 kg
Freestanding
Washin
g
Machine

USER MANUAL FOR YOUR BAUMATIC
BFWM1406W 60 cm 6 kg
BFWM1407W 60 cm 7 kg
Freestanding
washing machine
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 23/08/13
2

3
Contents
Environmentalnote 4
Important safety information 5 – 6
Specifications 7
Description of the appliance 8-11
Controlpanel 9
LEDdisplay 10-11
Detergent drawer 11
Preparing the wash cycle 12 - 16
Preparing your garments for washing 12
A selection of wash care symbols 13
Detergents and conditioners 13 - 14
Washprogramtable 15
Washprogramguidance 16
Selecting a wash program 16 - 20
Settingawashprogram 16
Endofcycle 16-17
Pausing a wash program 17
Delaystartfeature 17
Manualsoaking 18
Additional wash cycle options 18
-Easy-Ironfunction 18
-Extrawash 19
-Soakwash 19
-Speedwash 19
-Intensewash 19
Childlock 20
Mycycle 20
Poweroffmemory 20
Maintenance and cleaning 21 - 27
Indailyuse 21
Control panel and washing machine cabinet 21
Detergent drawer 21 - 22
The washing machine drum 22
Door 22
Cleaning the drain pump filter 22 - 23
Cleaning the water inlet filter 24
Winterstorage 24
Removingstains 25
Stainremovalrules 25
Stain removal guide 25 - 26
Poorwashresults 27
Installation 28 - 33
Removing the transit bolts 28
Locating your washing machine 29
Connecting to the mains water supply 30
Connecting to the water outlet 31
Levelling the appliance 32
Powersupply 32-33
Before first use maintenance wash 33
Error code failure system 33 - 34
General troubleshooting 34 - 36
Baumatic consumables 37
Technicaldata 38
Contactdetails 39

Environmental not
4

Important safety information
Your safety is of the utmost importance to
Baumatic. Please make sure that you read this
instruction booklet before attempting to install or
use the appliance. If you are unsure of any of the
information contained in this booklet, please
contact the Baumatic Advice Line.
General Safety
oRepairs to your appliance must only be carried out by a
Baumatic engineer or one of its authorised service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your washing machine.
oIf you notice that the mains cable is damaged. The appliance
must not be used. The same applies if you notice that the
worktop, control panel or base area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe glass of the porthole door may become hot during the higher
temperature wash programs.
oThe machine should be allowed to cool before carrying out an
emergency drain or cleaning the drain filter.
oIt is possible for small animals to chew either the mains cable or
water hoses, which could cause an electric shock hazard.
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.
5

6
oBefore the first use of the appliance, we advise that a 95
degree cotton wash is completed. No garments should be
placed inside the machine; however a small amount of
detergent must be used.
During Use
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThis appliance is only designed to wash normal domestic wash
loads. If you use your washing machine in any other way or it is
incorrectly used, then Baumatic accepts no liability for any
damage that might be caused and any guarantee will be void.
oNo attempt should be made to alter or modify the specifications
of this appliance.
oThe detergents that you place in this appliance should be
suitable for automatic washing machines. With regards to dosage
levels, the detergent manufacturer’s recommendations should be
followed.
oYou should not wash garments that have been in contact with
flammable materials.
oYour washing machine should not be used for dry cleaning.
oIf you use either dyes or bleaching agents inside this machine,
then you should consult with the manufacturer of these products
to make sure they are suitable for use in your washing machine.
Baumatic cannot be held responsible for any damage that may
result.
Child Safety
oYour washing machine should only be used by adults. You should
not allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oIt could be possible for a child or pet to gain access to the
washing machine through the porthole door. Therefore please
check the drum before using the appliance.
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of a child’s reach and in a safe
place.

7
Specifications
o12 wash programs
o6 kg wash load (BFWM1406W)
o7 kg wash load (BFWM1407W)
o1400 rpm maximum spin speed
oLED display
oElectronic control operation
oSpin speed regulation
oSeparate temperature regulation
oDelay start
oDigital countdown indicator
oWash phase indicator
oDoor locked indicator
o180° door opening
oFailure detection system
oImbalance control system
oOverflow protection
oFoam protection
oAnti-crease function
oStainless steel drum
oRemovable top for built-under installation
oAdjustable feet
oChild lock
Appliance dimensions
Height: 855 mm
Width: 595 mm
Depth: 520 mm (BFWM1406W) / 575 mm (BFWM1407W)
Ratings
Energy efficiency class (wash only) A++
Wash performance class A
Water extraction performance class C
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your washing machine
will either be located on the right hand side of the cabinet or behind
the porthole door.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

Description of the appliance
Accessories
8

Control panel
1) Washing program selection dial. Use this dial to select the
required washing program.
2) Start / pause button. Press this button to start or pause a
washing cycle.
3) Temperature selection button. Press this button to set the
temperature of the water for a washing program from the following
options: Cold
 30°C  40°C  60°C  90°C
4) Spin speed selection button. Press this button to select the spin
speed for the chosen washing program from the following options:
No Spin  600  800  1000  1400
5) Delay start button. Press this button to delay the start of the
washing cycle. Repeatedly press the button to choose a time
between 0-24 hours.
6) Option button. Press this button to select additional functions for
your washing cycle.
7) Child lock. Press the Spin button (4) and the delay button (5)
simultaneously for 4 seconds to lock all the other keys on the
control panel to prevent accidental operation by unauthorised
persons such as children.
8) Power button. Press this button to turn the appliance on/off.
9) Selection buttons. Use these buttons to scroll through the
additional wash cycles options.
9

LED display
Wash cycle progress indicators. The current wash cycle phase will
light on the control panel to indicate the progress of the program from
“Pre-Wash”, “Wash”, “Rinse” and “Spin”.
Extra/optional wash cycle indicators. Displays the selected
optional wash cycle options such as “speed wash” and “soak wash”.
This is also the method of choosing to add a “prewash” cycle.
Delay start indicator. The remaining time of the wash delay will
be displayed until the countdown time ends and the wash program
begins.
Remain indicator. After the washing cycle has begun, the
remaining time of the wash cycle will be displayed until the wash
program ends.
10
Child locked. When the child-lock function is activated this icon
will light. The light will go off when the lock is deactivated.
Door locked. This LED will light to show that the door is locked.
When the light is out it means that the door is unlocked.
Audible signal indicator. This LED will light to show that the
audible alarm is operational. You can deactivate the audible alam.
Temperature display. The LED’s will show what temperature has
been set.

Spin speed display. The LED’s will show what spin speed has been
set.
Audible signal adjustment button. Press and hold the Temp
button for 3 seconds to turn the audible signal on/off.
“MY cycle” adjustment button. Press and hold the Spin
button for 3 seconds to save your personalised wash cycle.
Detergent drawer
Main wash section
This compartment should have detergent placed in it (you should also
put a water softening agent in this section, if you use one). The
detergent will be added to the drum at the start of the main wash
program.
Conditioner section
This compartment should be used for liquid conditioners (fabric
softener, starch). They will be added to the wash load during the final
rinse.
Pre wash section
This compartment should have detergent placed in it, if you are going
to select a pre-wash before the main wash cycle.
11

Preparing the wash cycle
Preparing your garments for washing
oYour washing should be sorted out, according to
the fabric type and the wash care symbol that is
printed on the garment’s wash care label (see
separate section on wash care symbols).
oYour washing should also be sorted out according to the degree
of soiling.
oCheck all pockets on a garment to make sure that they are
empty.
12
oRemove any detachable metal items (badges,
paperclips, safety pins etc).
oZips should be closed, duvet covers and pillow cases should be
buttoned up and any loose straps should be tied up. This will
help to prevent other garments from getting damaged during the
wash.
oWoollens and knitted coloured fabrics should be turned inside out
before being washed in the appliance.
oSmall delicate items (tights, baby socks) should be placed in
either a washing net or a zipped pillow case.
oCurtains should be handled with particular care. All plastic hooks
or metal strips must be removed before being washed in the
appliance.
oColoured items and whites should be washed in
separate wash cycles.
oNew garments often contain an excess of dye, therefore it is
advisable to wash them separately for their first wash.
oGarments should be unfolded and shook out before being placed
inside the machine.

A selection of wash care symbols
Washing
Boiling
temp
95°C
Normal
temp
60°C
Normal
temp
40°C
Do not
wash!
Bleachable
in cold
water
Do not
bleach! Wool seal
Dry
cleaning
Delicate
temp
30°C
Delicate
temp
40°C
Hand
wash
only
All
solvents
All but TRI
Benzine
only
Do not
clean!
Spin
dryer
Normal Low
High
Do not
dry!
Hang to
dry
Drip dry
Dry
flat
Ironing
110°C
150°C
200°C
Do not
iron!
oThe wash care symbols should be used to help you to select the
most suitable wash program. They will also help you to sort your
laundry into different loads, depending on the fabric type and the
highest temperature which the garment can be washed at.
Detergents and conditioners
IMPORTANT: Only detergents suitable for use in washing
machines should be used.
The amount of detergent that you need to use in your appliance, will
depend on
oThe degree of soiling.Lightly soiled garments in general
require less detergent.
oThe size of the wash load.A smaller wash load will require a
reduction in the amount of detergent.
oThe hardness of your tap water.The harder your water is,
then the more detergent you will need to use. The detergent
manufacturers normally give guidance as to how much extra
detergent should be used, depending on the hardness of the
water.
13

Liquid detergent
If you are using liquid detergent, then in the majority of cases the
liquid should be placed inside the dosing device supplied by the
detergent manufacturer and placed inside the drum. All instructions on
the detergent packaging should be followed.
Low temperatures
oThe enzymes in biological washing detergents work best at low
temperatures to provide excellent cleaning and stain removal
results, but not as low as 20°C.
oLiquid or gel detergents are particularly suitable for low
temperature washing as they dissolve easier and quicker than
powders or tablets.
Water softening agents
If your tap water is hard, then it may be prudent to utilise a water
softening agent. This will help to ensure that the appliance does not
become clogged with hard water deposits. You may also find that it will
allow you to lessen the amount of detergent that you are using.
When using any detergent or water softening
agent, the recommendations of the
manufacturers should be followed.
14

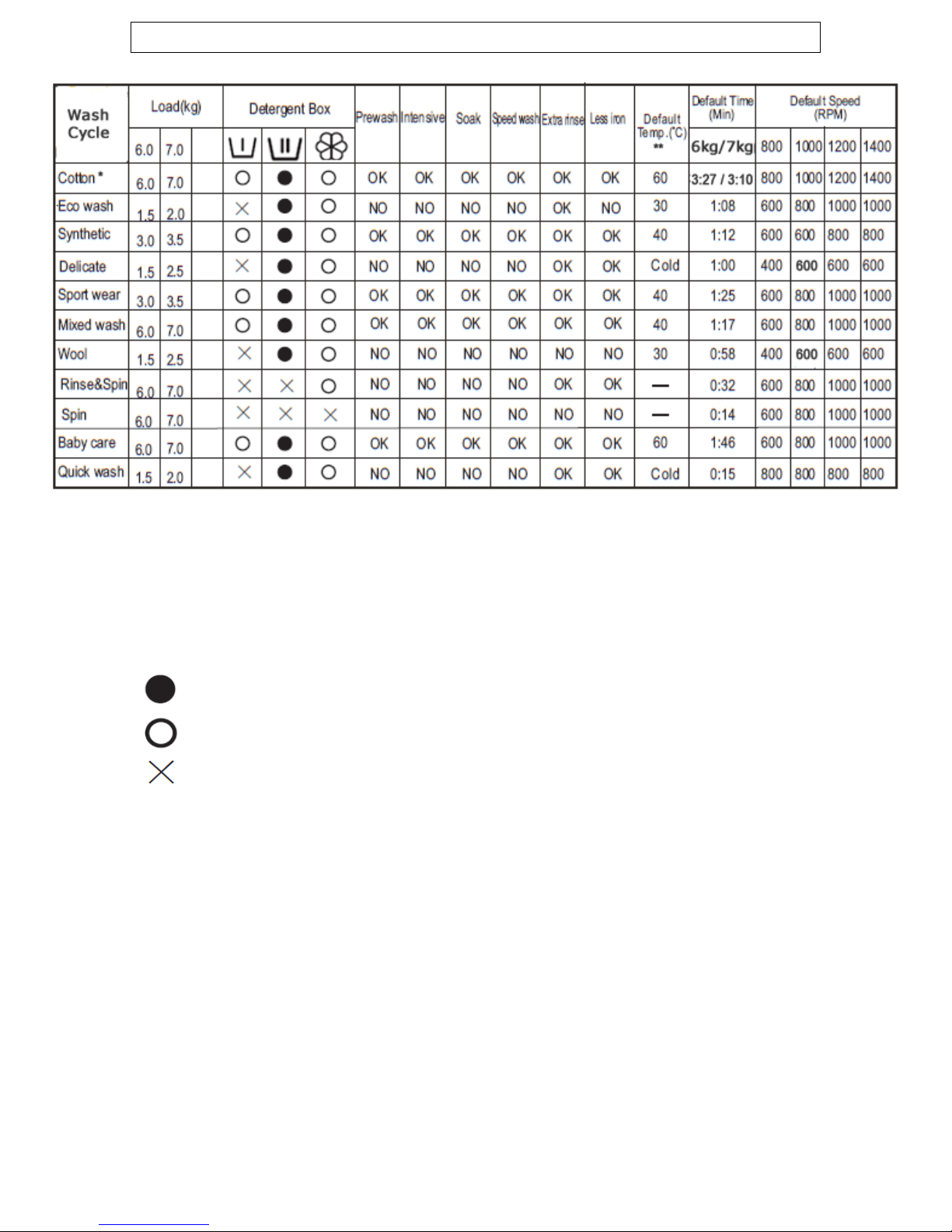

Wash program table
* Energy test program Cotton 60°C/40°C. These programs are suitable
for cleaning normally soiled cotton laundry and are the most efficient
programs.
** The actual water temperature may differ from the declared cycle
temperature.
= Should be used
= Optional
= Not required
oDetergent and softener only need to be added when required.
oThe operation time of the appliance may change according to the
water temperature, water level, amount of clothes, inlet water
pressure and drain state.
15

16
Wash program guidance
oA wash program option can only be selected if the program table
advises that it is possible with the wash cycle you have selected.
oImportant: You should make sure that the selected spin speed is
appropriate for the garments that you are washing.
oImportant: Before opening the door of the appliance, you MUST
spin the clothes and drain the water.
oThe active phases will appear in the LED display, as the wash
program progresses.
oThe LED display shows an approximate time for the selected wash
cycle. Please note that factors external to the machine, e.g. the
temperature of your water supply, your water pressure etc., can
affect the time it takes for a wash cycle to complete.
Selecting a wash program
Setting a wash program
oUse the washing program selection dial (1) to select the required
program.
oYou can set the temperature (3) and spin speed (4) by pressing
the relevant buttons on the control panel.
oIf you wish to select additional wash cycle options, please refer to
the “Additional wash cycle options” section.
oOnce the desired wash program and any additional wash cycle
options have been selected, press the start / pause button (2) to
begin the wash cycle.
End of cycle
oWhen the wash cycle ends an audible signal will sound.
oIMPORTANT: You should not attempt to open the porthole door
until the door lock light has gone out.
oWhen the door lock light has gone out and you hear the door lock
disengage, you can open the porthole door and remove the laundry.

oTurn off the water tap and turn the appliance off by using the on/off
button (8).
oDisconnect the appliance from the electricity supply.
Pausing a wash program
oIf you want to pause a wash program temporarily, you should press
the start/pause button (2).
oWhen you want to restart the wash cycle, press the start/pause (2)
button again.
Delay start feature
Your appliance has a delay start feature, which allows you to delay the
start of a wash cycle until a later time.
oWhen the delay start function is in use, the LED display only shows
the delay start time and the delay start indicator will light. When
the programmed time is reached, the delay start indicator light will
go off. The LED display will then show the remaining time of the
wash cycle and the time remaining indicator will be light.
oThe delay start time on the display informs you in how many hours
the wash program will begin.
1) Select a wash cycle and any additional wash cycle options, as
described previously.
2) Press the delay start button (6) repeatedly to set the length of time
which you wish to pass before the washing cycle begins.
3) Press the start / pause button (2) and the machine will enter
standby mode. The cycle will automatically begin when the delay
start time is reached.
4) If you wish to cancel or change the delay start time you will need to
scroll through the time until you reach “0” or your desired delay
time.
17

18
Manual soaking
1) Load the laundry into the washing machine drum and put the
detergent into the drawer according to the manufacturer’s
instructions.
2) Use the program selection dial (1) to select the required wash
cycle. Press the start / pause button (2) to begin the cycle.
3) After approximately 10 minutes have passed, press the start /
pause button (2) again to pause the cycle. The clothes are then
able to soak in the water for your chosen length of time. Press
the start / pause button (2) to continue the wash cycle.
Additional wash cycle options
oAfter you have selected your main wash cycle using the selection
dial (1) you can proceed to select additional wash cycle options by
pressing the options button (6).
oAfter pressing the option button (6) you can use the selection
buttons (9) to highlight your desired optional extras.
oPress the option button again when the desired extra wash cycle is
illuminated to set that wash program. This process can be repeated
to select multiple optional wash cycle extras.
oOnce the desired wash program and any additional wash cycle
options have been selected, press the start / pause button (2) to
begin the wash cycle.
Easy-Iron function
oThe Easy-Iron function means that the machine will not execute
the last drain of the wash cycle – until the start/pause button is
pressed.
oThis means that the laundry will sit in the water until you are
ready to remove it for drying, preventing it from developing
creases.
oThis must be selected before starting the wash cycle.
NOTE: The maximum running time of this function is 10 hours.
After this time the machine will drain and spin automatically.

19
Extra rinse
oThe extra rinse option is mainly used for the clothes of people
with sensitive skin. The laundry will undergo an additional rinse
to remove more residues of detergent.
oThis must be selected before starting the wash cycle.
Soak wash
oThe soak wash option is mainly used for stained clothes. The
laundry will undergo a thorough rinse before the main wash
cycle.
oThis must be selected before starting the wash cycle.
oAfter the drum fills with water the clothes will be soaked for 5
minutes before the drum rotates for 30 seconds. This process
will repeat four times, giving a total of 20/22 minutes of soaking
prior to the main wash.
Speed wash
oThe speed wash option will decrease the wash times of any
cycle, except for the quick wash and spin cycles, by
approximately 20 minutes.
oThis must be selected before starting the wash cycle.
Intensive
oThe intensive option is mainly used for heavily soiled clothes.
The wash time will be extended.
oThis must be selected before starting the wash cycle.
NOTE: This function does not work with the following wash
programs: Quick wash, rinse, wool, eco, delicate and spin.

Child lock
Your appliance has a child lock option. If this is set it will
mean that nobody can affect the operation of the wash
program once it has started.
oWhen the appliance is in use, press and hold the child lock
buttons (Spin (4) and Delay (5)) for 3-5 seconds to activate the
child lock. No buttons on the control panel will be operable. The
Child lock symbol / LED will light on the display.
oTo deactivate the child lock, press the child lock button again.
The Child lock LED will go out and the buttons on the control
panel will then be operable again.
My cycle
Your appliance has an option which allows you to set a personalised
wash cycle.
oUse the selection dial to select your desired wash program, and
then select any additional functions that you want, including
selecting your desired temperature and spin speed.
oOnce you are happy with the selection you should press
and hold the “Spin” speed button for 4 seconds.
oNow when you turn the selection dial to the “My cycle” it will
select all of the functions that you have previously set and
stored.
oYour “My cycle” can be modified at any time by repeating the
above process.
Power off memory
oYou do not need to do anything if the power supply to the
machine is cut off in the middle of a cycle.
oThe appliance will continue the wash when the power is turned
on again.
IMPORTANT: Please do not open the door by force when the
power is off.
20
