Baumatic BWD12 User manual

0
BWD12

1
Please note- this Instruction Manual contains important safety information. Please
make sure that you read it before using your Washing Machine for the first time. It also
contains valuable Troubleshooting tips so that you can solve faults without having to call
for a service engineer.
Instruction Manual for your Baumatic
BWD12
FULLY INTEGRATED FULL HEIGHT
WASHING MACHINE
28/07/05
Please note: for fast access to using your
Washing Machine, please look at the bold-font
items listed on the Contents page (page 2).

2
CONTENTS
Specifications ……….…………….……………………..………………. 3
Important Safety Information……….…..………..…..…………………..4
Your Washing Machine’s Control Panel…...……..….....……………5-6
Cautions and Advice ………….…………..……....…………………….…7
Using your BWD12.…………...…………………….….……..…………….8
Before Loading your Washing Machine ………….…………..….……..9
Tips for Loading Laundry / Guide to Washing Labels ..………..…..10
Filling your Washing Machine’s Dispenser
Drawer with Detergent …………………………………..……………11-12
Tips on Washing your Clothes / Running your Washing Machine
……………………………………………………….…………………....13-18
The Program Knob ….………………………………14
Selecting a Washing Program ………………..…...15
Washing Temperature Knob ………………………16
Starting a Washing Program ………………..…..…16
Interrupting a Program ……………………..……....17
Additional Functions Buttons ………………….17-18

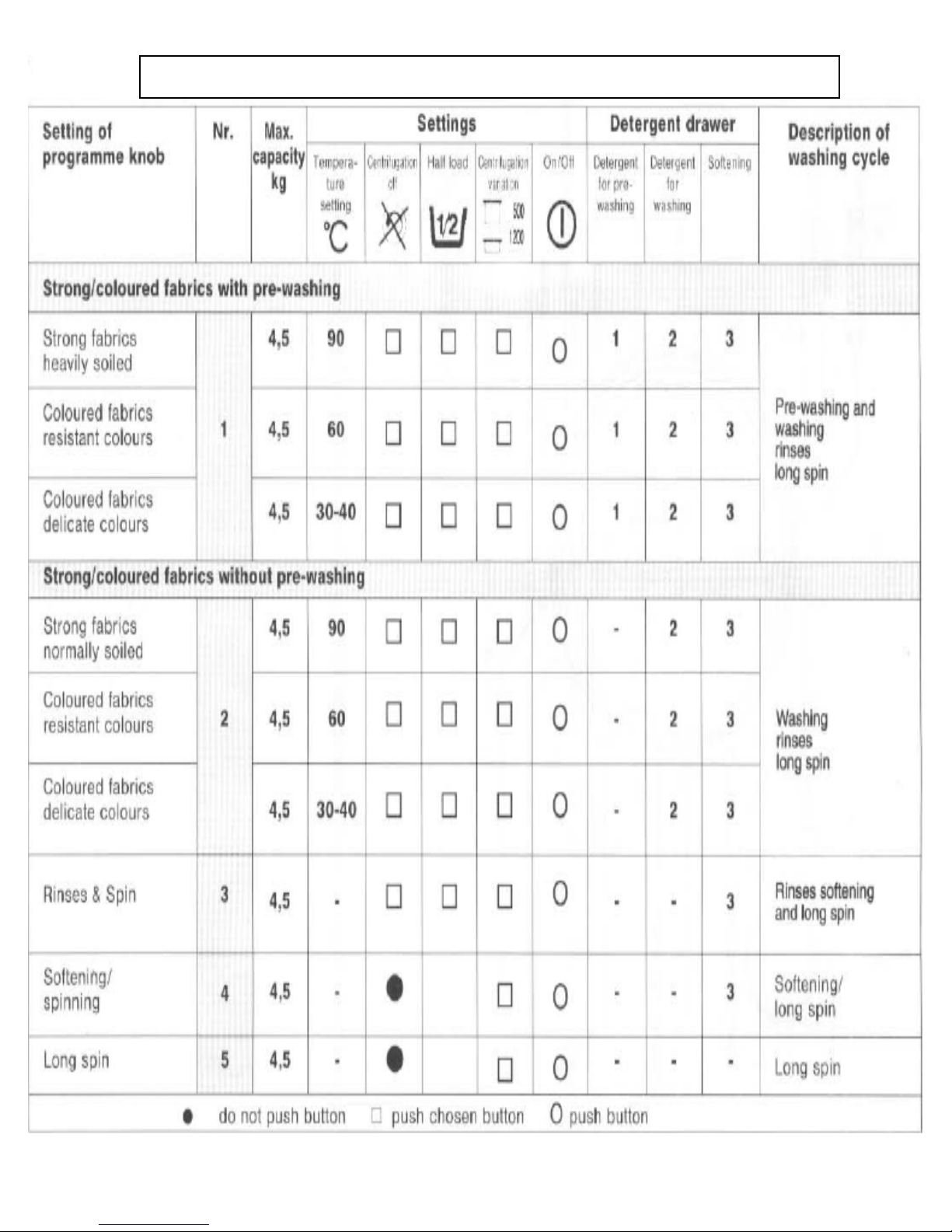

WASHING PROGRAMME CHART …………………………..…….19-20
At the End of a Wash Programme …………….…..….………………21
YOUR DRYER / USING YOUR DRYER…………………………….21-23
Maintenance and Cleaning …………………....……………………24-26
Notes on Stains and How to Remove them
from your Clothes ........................................................................27-28
TROUBLESHOOTING ……………………………..……………….….29-31
INSTALLATION INSTRUCTIONS …………………..………………..32-38
ADJUSTING THE FEET ………..………….......................……………..39
ELECTRICAL CONNECTION ………………..…………………………..39
WATER CONNECTION ……………..………………………………...39-40
Directive Conformity Confirmation ..…………………………………..41
Conditions of Guarantee……………………..….………………............42
Contact Details…………………………..….…………………………...…43

3
1
12 2 washing programmes
Wash load: 4.5 kg
Maximum spin speed: 1200 rpm
o
o
S
ST TA AI IN NL LE ES SS S S ST TE EE EL L D DR RU UM M A AN ND D T TU UB B
+ + G GL LA AS SS S D DO OO OR R
+
+ S SA AF FE ET TY Y D DO OO OR R L LO OC CK K
+ + A AD DJ JU US ST TA AB BL LE E T TH HE ER RM MO OS ST TA AT T
D
Di im me en ns si io on ns s i in n c cm m
( (H He ei ig gh ht t x x W Wi id dt th h x x
D
De ep pt th h) )
8 88 8. .5 5 x x 5 59 9. .5 5 x x 5 55 5
S
SP PE EC CI IF FI IC CA AT TI IO ON NS S O OF F Y YO OU U
R
R
B B
W
W
D
D1 12 2
S
SP PI IN N S SP PE EE ED D 1 12 20 00 0 / / 5 50 00 0 R RP PM M
4 4 O Op pt ti io on n B Bu ut tt to on ns s: :1) On / Off
2) No Spin 3) ½ Spin 4) Spin
Speed select (500 or 1200 rpm)
E
EN NE ER RG GY Y E EF FF FI IC CI IE EN NC CY Y
C CL LA AS SS S: : D D
W WA AS SH HI IN NG G
P
PE ER RF FO OR RM MA AN NC CE E
C
CL LA AS SS S: : A A
W
WA AS SH HI IN NG G
E
EX XT TR RA AC CT TI IO ON N
P
PE ER RF FO OR RM MA AN NC CE E: :
C
C
* *B B, ,A A, ,B B w wa as sh he er r r ra at ti in ng g

4
IMPORTANT SAFETY INFORMATION:
WARNING: THIS IS IMPORTANT SAFETY INFORMATION. PLEASE
READ THIS BEFORE USING YOUR WASHING MACHINE.
:DO NOT USE AN EXTENSION CORD OR PLUG INTO A MULTIPLE
SOCKET.
:DO NOT INSERT A PLUG WITH A DAMAGED CORD OR THAT IS
BROKEN INTO THE SOCKET.
:IF THE CORD IS DAMAGED IT SHOULD BE REPLACED BY THE
MANUFACTURER OR APPOINTED SERVICE AGENT.
:NEVER REMOVE THE PLUG FROM THE SOCKET BY PULLING FROM
THE CORD SECTION. HOLD THE PLUG AS YOU PULL IT OUT.
:DO NOT PLUG INTO THE POWER SUPPLY IF YOUR HANDS ARE WET.
:DO NOT TOUCH THE MACHINE WITH WET HANDS OR FEET.
:DO NOT OPEN THE DETERGENT DRAWER WHILE THE DEVICE IS
RUNNING.
:DO NOT FORCE OPEN THE DOOR OF THE MACHINE WHILE THE
MACHINE IS RUNNING.
:DO NOT TOUCH THE DRAIN HOSE AND WATER DURING DRAINING –
THE WASHING MACHINE CAN REACH HIGH TEMPERATURES DURING
DRAINING.
:DO NOT ATTEMPT TO REPAIR. PLEASE APPLY TO THE NEAREST
AUTHORISED SERVICER.
:DO NOT FORGET THAT THE PACKING MATERIAL OF YOUR MACHINE
MAY BE HAZARDOUS FOR CHILDREN.
:NEVER LET YOUR CHILDREN PLAY WITH YOUR WASHING MACHINE.
:KEEP PETS AWAY FROM YOUR WASHING MACHINE.
:ONLY USE YOUR WASHING MACHINE IN THE HOME. THE WARRANTY
WILL BE INVALID SHOULD YOU USE IT FOR COMMERCIAL
PURPOSES.
:ALWAYS SWITCH OFF THE POWER AFTER USING YOUR APPLIANCE.
:ENSURE THAT YOU REMOVE AND CLEAN THE FILTER.
:THE OUTLET HOSE MUST BE FREE OF RESTRICTIONS.
:THE WATER PRESSURE MUST NOT BE ANY MORE THAN 1 MPa
AND NOT LESS THAN 0.05 MPa.
:DO NOT OVERLOAD THE DRUM.

5

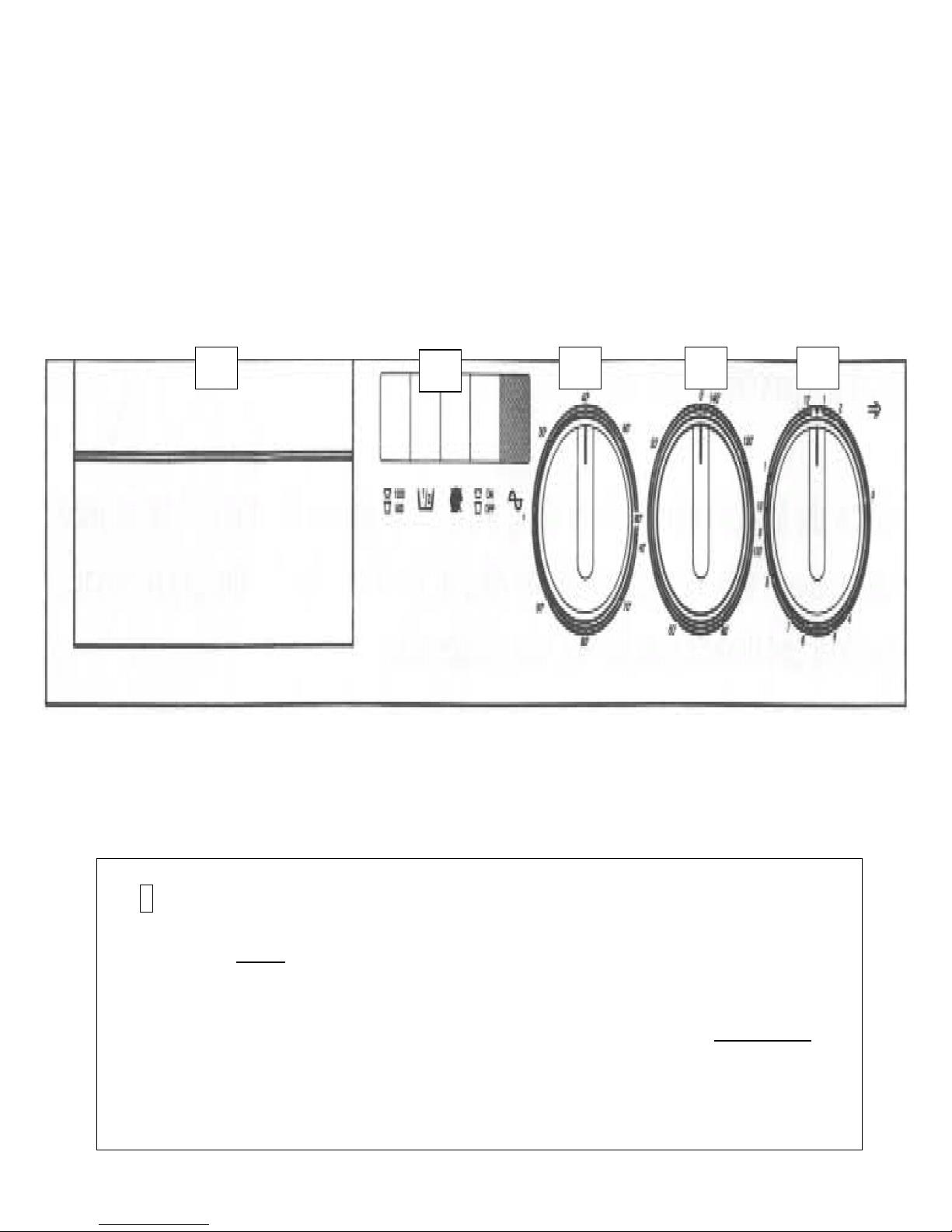

Your BWD12’s Control Panel
Key to above figure:

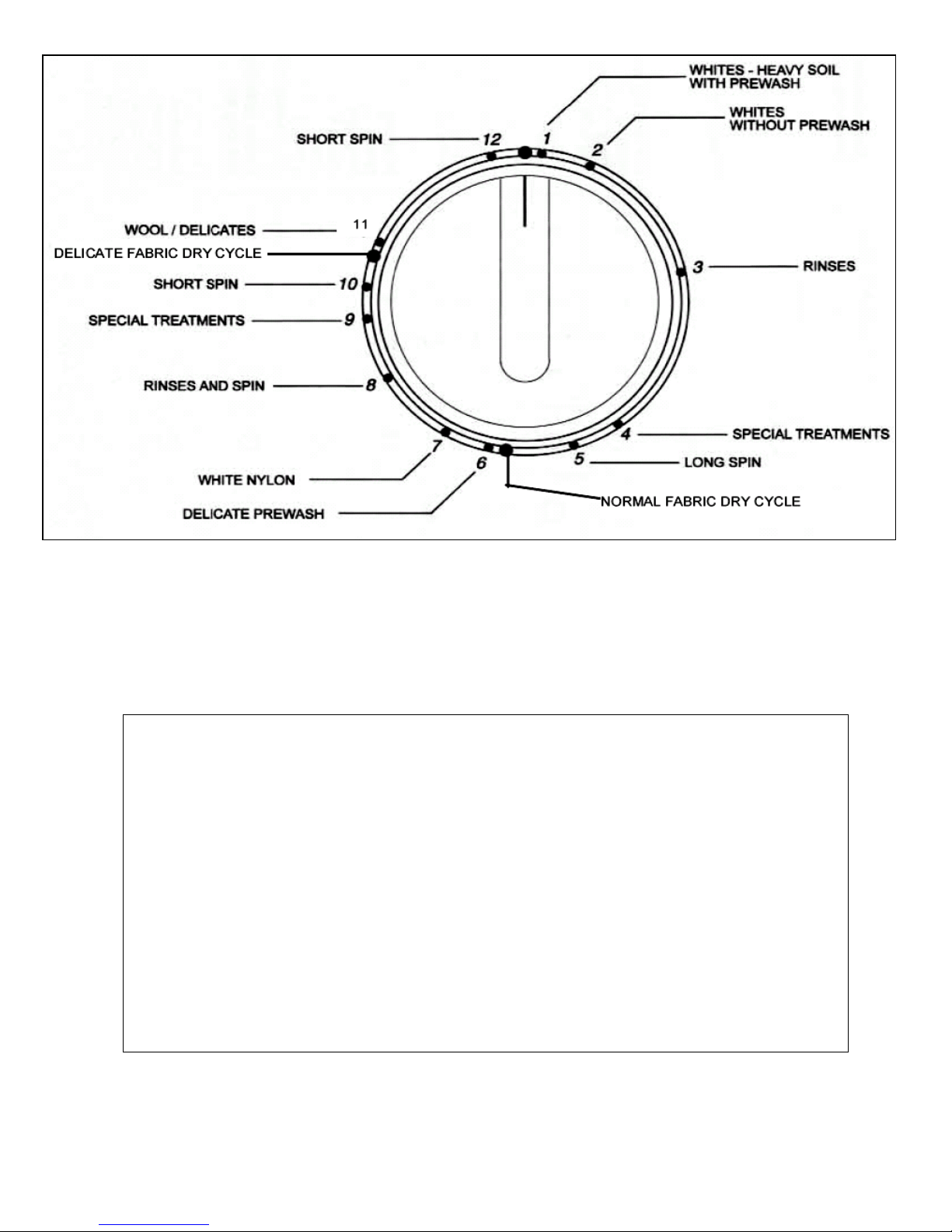

1 – Programme Selector (see page 14 for details on use).
Turn this knob to select a Washing programme AND / OR to select
a Drying programme, depending on the dirtiness of your laundry.
To set the programme, first ensure that machine is OFF (i.e., the
position of the ON/OFF button is out) and turn the knob clockwise
until the needle points to the mark matching the programme you
want to use. A CONTINUOUS wash/dry programme can be set
using this knob (see pages 22-23).
1 2 3
4
5

6
2- Drying Timer (see page 23 for details on use).
This knob adjusts the time of your drying programme for up to
140 minutes. NOTE : The Dryer can only be used when the
half load - - button is pressed and the heat setting is
selected.
3 – Temperature Selector to be used in conjunction with the
Washing programme selector (see page 16 for details on use).
This knob adjusts the temperature of your wash or drying
cycles. Always check the labels of your clothes before grouping
them for a wash load.
4 – Additional option buttons ON/OFF button, and pilot lamp
(see pages 17-18 for details on use).
This selection of buttons allows you to choose options for your
washing cycle, and to turn your appliance ON and OFF. The
pilot lamp will show you when your machine is operating.
5 – Soap Dispenser Drawer (see pages 11-12 for details on
use).
Pull this out to load the soap into your machine, ready for a
washing cycle.

7
Cautions and advice
In order to get maximum satisfaction and performance from your washing machine,
please ensure you follow the instructions given below:
9Select the clothes load correctly and choose the appropriate
programme.
9Before opening the door, check that there is no water in the
machine and the pilot light is off.
9Put the washing products in the right proportion and in the right
compartment.
9Small garments, such as socks, belts, etc. are best put inside a
bag to avoid their being lost.
9Before putting clothes into the washing machine, make sure that
there is nothing in the pockets (coins, buttons, clips, etc.) and that
the zips are undone.
9If you machine has a filter, you should check regularly that
it is clean & not blocked. Be especially wary of coins,
brassiere wire & fluff/hair.
9The interior of the washing machine should be handled by
specialists only. NEVER attempt to repair or modify it
yourself.
9After each wash, leave the door ajar to prevent the rubber seal
from becoming misshapen or mouldy.
9When the clothes to be washed are heavily soiled or splattered
with mud, it is advisable to run a programme with pre-wash.
9Always put the machine on fully loaded. This will conserve energy.
9Do NOT use the dryer function if the clothes have been treated
with any non-aqueous solution.
9Do NOT use the dryer function for items containing any kind of
spongy rubber or similar elastomer materials.
9The dryer must be installed in a well-ventilated place, away from
the influence of gases from other appliances and from defective
installations.
9The lower ventilation, between the floor and the base of the
machine must not be obstructed (by carpet, cloths, etc.).
9When the machine has just been installed, or after a long time
without it being used, it is advisable to run a washing programme
with the machine empty, to eliminate any rusty water in the tubes.

8
Using your BWD12
NOTE: (*VERY IMPORTANT*) – You must
ensure that the transportation bolts
have been removed before you attempt
to use your Washing Machine,
OTHERWISE you will damage or
destroy your appliance. See page 32
for instructions.
Only once you are sure this has been done can you do
the following:
1) Plug in your machine
2) Turn on the water supply
Note on using your
Washing Machine
for the first time:
There may be water
left inside your
machine after factory
tests and trials.
•The first time you run a
wash cycle, you should not
put laundry in your machine
as it may need to drain water.
•Pour half a measuring cup of
normal or all purpose detergent
into compartment 2 ( ) in your
detergent dispenser and select
wash programme 2 (without
prewash) for 90
° C.
•Start the programme.
•Wait until the programme finishes.
*FOR NORMAL USE, SEE NEXT PAGE

9
Before Loading your
Washing Machine
NOTE: Before putting the clothes into the machine:
oSeparate the clothes into 3 lots (cotton,
synthetics and wool).
9Within each group, separate the coloureds from
the whites. *NOTE – see next page for tips.
9Once the clothes have been separated, you can
put them into the drum of the washing machine,
separately and according to colour and group,
loose, piece by piece. Do not exceed the
maximum weight of clothes as given below:
Cotton Maximum: 4.5 kg

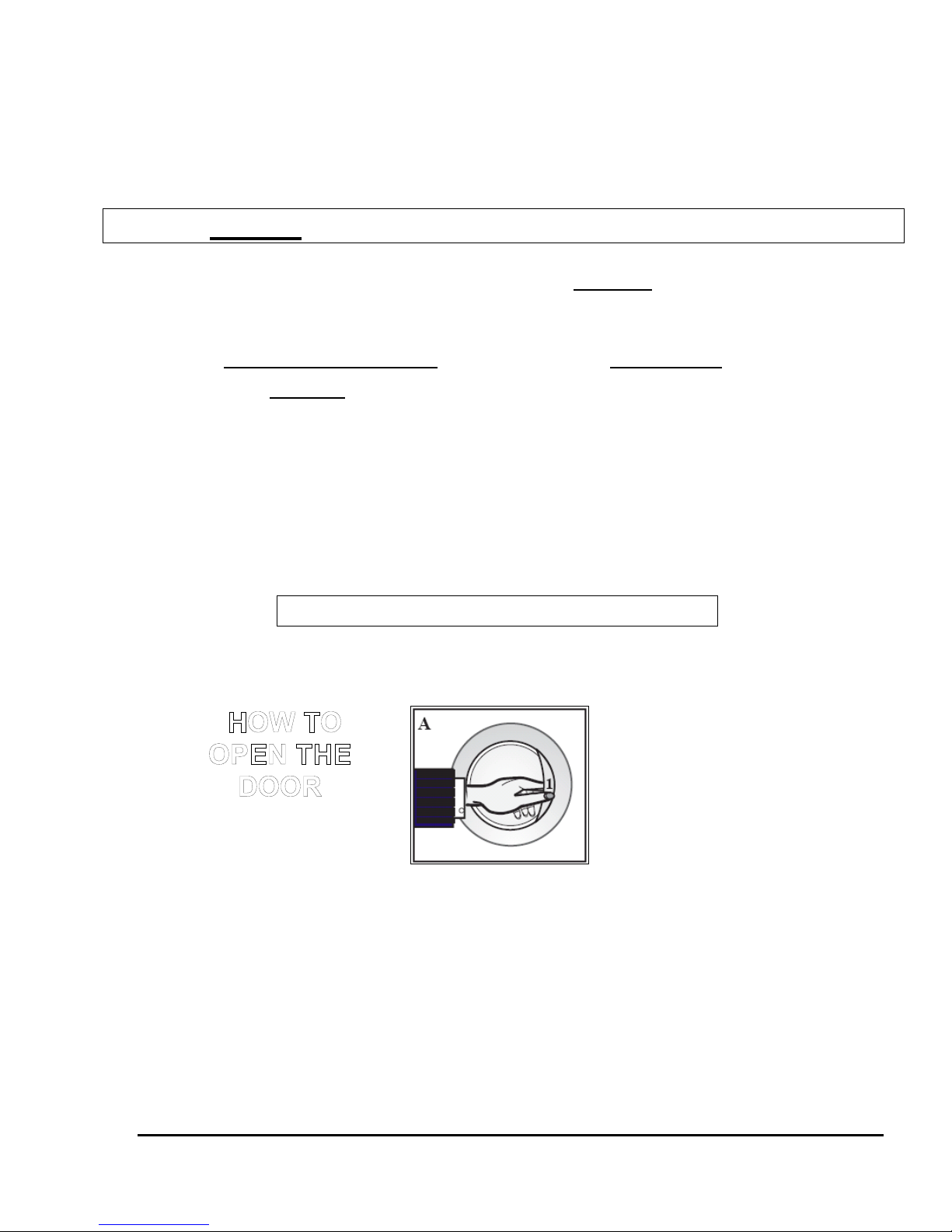

HOW TO
OPEN THE
DOOR
Pressing the hidden
lever (1) with the
index and middle
fingers, pull
outwards.
oLoad your clothes inside the drum one item at a
time and spread them about well.
oShut the door of your machine, being careful
that no pieces of clothing are jammed between
the door and the gasket seal. Make sure the door
is closed tightly otherwise it won’t work.

10
Tips for loading your laundry:
:Never wash
your white
and
coloured
clothes
together.
ÂSince your
new
coloured
clothes may
shed dye on
the first
wash,
wash them
separately.
ÂBe careful that
no metal
pieces are in
the pockets of
your clothes.
There is the
chance of rust
residues
coming off and
causing stains.
ÂZip-up and
button your
clothes.
ÂRemove the
plastic or metal
hooks of curtains
or place them
inside a washing
bag and tie.
ÂPull textiles
like trousers,
knitted fabric, T-
shirts and
sweatshirts inside
out.
ÂWash small
clothes like socks
and handkerchiefs
in a washing bag.
(PLEASE SEE THE CHART BELOW TO UNDERSTAND YOUR WASHING LABELS)
WASHING LABELS & THEIR MEANINGS

11
Filling your Washing
Machine’s Dispenser Drawer
with Detergent

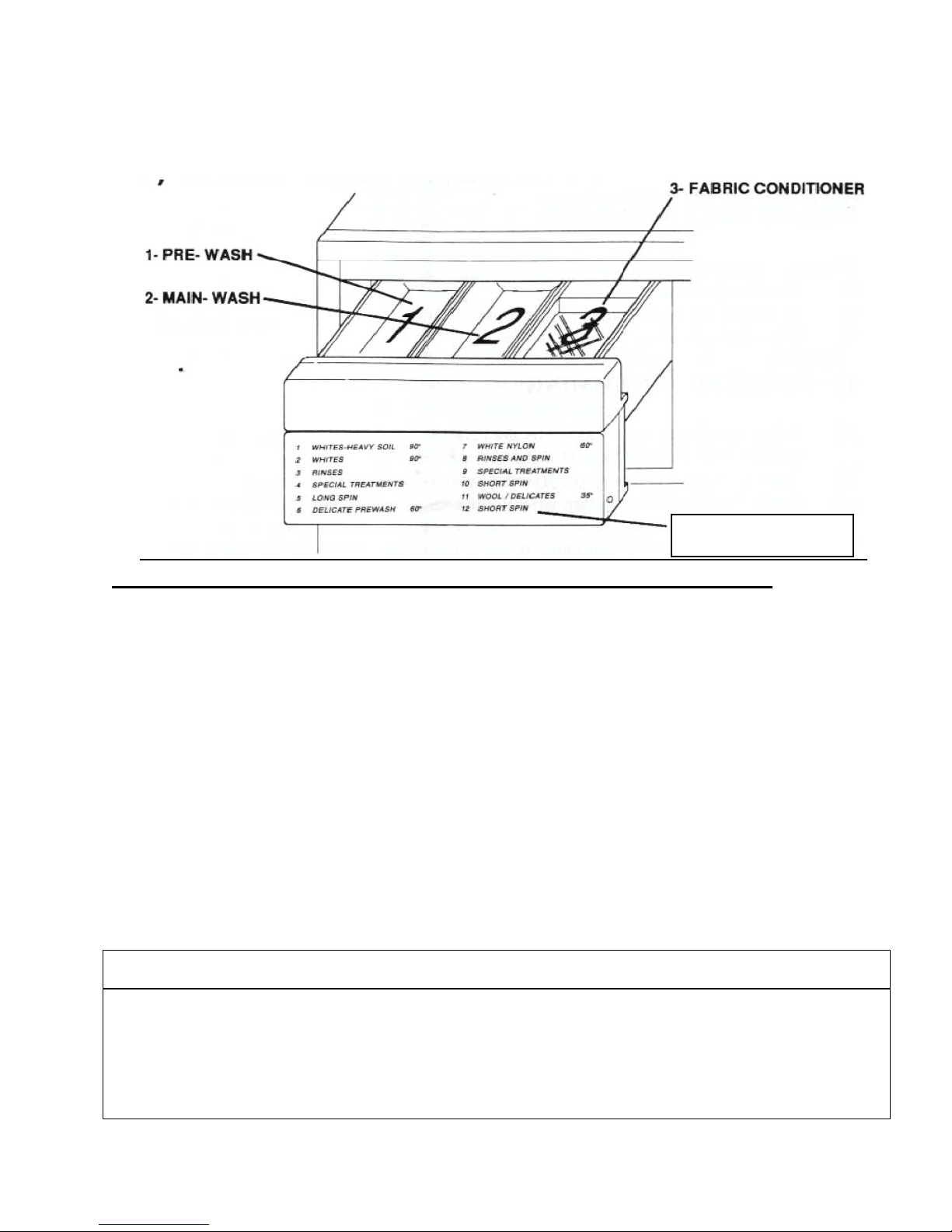

The dispenser drawer consists of three compartments:
1) Pre-wash / Bio-wash Compartment
This compartment should be used only when programmes involving pre-wash or bio-
wash have been selected. The amount of power used will depend on the fabric type
to be washed. We recommend following the detergent manufacturer’s directions.
2) Main wash Compartment
This compartment is used to store detergent that is going to be used in the main
washing cycle of any complete washing programme.
3) Fabric Conditioner Compartment
This compartment is used for fabric softeners. At the end of the washing programme,
water will automatically be siphoned out, leaving the compartment ready for the next
wash. NOTE: THERE IS A SIDE COMPARTMENT ON THE RIGHT (‘CL’) THAT IS FOR
BLEACH.
IMPORTANT!
The detergent dispenser drawer and housing must be cleaned periodically
to ensure that detergent and fabric softener do not build up and reduce
the appliance’s efficiency. To remove the drawer, pull it forward to its
fullest extent, lifting the front edge at the same time, then give a firm tug.
The dispenser drawer should now be rinsed, dried and replaced.
Dispenser Drawer

12
HOW MUCH DETERGENT SHOULD I USE?
NOTE: You will need more detergent for washing cycles
containing dirtier clothes.
oFor very dirty
clothes, select a
programme with pre-
washing, fill
compartment 1 with ¼ of
the amount of the
detergent you are putting
in compartment 2.
oFor clothes that are only
slightly dirty, do not pre-
wash and put only a
small amount of
detergent into
compartment 2 in your
washing machine’s
dispenser drawer.
CAUTION:Only use detergents for automatic
washing machines. The amount needed for different
washing loads and types will be written on the packaging
of your detergent.
NOTE: The harder the water in
your area, the more detergent you
will need to use.
SOFTENERS
9Fill the softener compartment in your detergent drawer with
softener. Do not exceed the MAX level. Otherwise, the softener will
diffuse in the washing water through the siphon. Dilute high density
softeners first.
FLUID DETERGENTS
9You can use fluid detergents in all programs without pre-washing.
For this, move the fluid detergent level plate in the second compartment
of the detergent drawer and pour in the amount of fluid detergent
according to the levels on this plate.

13
Tips on washing your clothes.
Dirtiness
Sort the clothes according to
dirtiness. Give special
treatment to those which are
very dirty or have got difficult
stains.
Treat very dirty areas like
collars and cuffs before
washing.
Wash clothes that are only
slightly dirty in short
programmes. In this way,
you will save energy as well
as get better results.
Wash averagely dirty clothes
in a normal wash programme.
Wash very dirty clothes in a
Long Programme with a
Prewash.
Sensitivity
Certain clothes, either because
of their fabric or the way they
are made, may be sensitive to
action of your machine. When
washing them, it is best to use
DELICATE PROGRAMMES.
You can wash woollen
garments( ) in the SPECIAL
WOOL PROGRAMME. Make
sure, first of all, that your
woollens are washable.
* * * * * * * * * * * * * * * * * * * * *
Running your
Washing Machine
IMPORTANT – The temperature used in any washing programme
you select will be determined by the setting you turn your
temperature dial to, regardless of the programme selected.
Programme Selection and Features.
Select the programme that’s right for the clothes you want
to wash according to the Table on pages 19-20.

14
THE PROGRAMME KNOB
With the programme knob, you can select the
programme you’d like to wash your clothes with.
You can adjust the programme selection process
by turning the programme knob clockwise.
NEVER TURN IT ANTICLOCKWISE.
You must be careful that the marker on the
programme Knob points exactly to the programme
you want to select.

15
KEY to Programmes
o1 & 6 PREWASH
THE PREWASH SHOULD BE SELECTED WHEN YOU
WANT TO WASH HEAVILY SOILED ITEMS.
oThe Prewash cycle (1) can be selected when using
Programme ‘1’ ( ) on the dial. NOTE: This is
for white cotton and linen articles that do not have a
special finish.
oThe Prewash cycle (6) can be selected when using
programme ‘6’ ( ) on the dial. Use this setting for
white nylon polyester cotton mixtures.
oRinse and Spin (3 & 8).
The rinse and spin programme can be selected for
articles that have been hand washed. The rinse and
spin programme (‘3’ on the dial) is for normal fabrics
(1200 rpm). The rinse and spin ‘8’ is for delicate
fabrics (500 rpm).
oTo utilise this function, simply turn the knob to
either ‘3’ or ‘8’ and press in the ‘ON/OFF’
button.
oLONG SPIN (5)
The long spin can be selected by turning the knob to
position ‘5’ on the dial. This should be used only for
normal fabric at 1200rpm, but note: If you have
pressed the spin speed button for 500rpm, the drum
will only revolve at 500rpm.
oSHORT SPIN (12)
The slower spin speed (500 rpm) can be selected by
turning the knob to position ‘12’ and must be used for
delicate items and woollens. Note: Even if you have
pressed the spin speed button for 1200rpm, the short
spin will only turn the drum at 500rpm.
Never use a fast spin programme on wool!

16
THE WASHING
TEMPERATURE
KNOB
Next, use the Temperature
Selector to get the temperature
you would like to use in your
programme.
Turn the knob clockwise
(NEVER ANTICLOCKWISE).
You can select a temperature
between 30 and 95◦C. Please
refer to the label chart on
page 10 to see what is best
for the clothes in your wash
load.
* NOTE: If you turn the Program Knob to the STOP position while your
machine is running, you will end the washing cycle prematurely.
Starting a Washing Programme
Once you have selected the programme and
temperatures you need for your wash, press this
button to start your washing machine.
Note:
•The button will be depressed on the console.
•The ‘ON’ light will come on .
•The door safety mechanism will engage at this
time.
WARNING – DO NOT INSERT ANY KIND OF
PLASTIC CONTAINER FOR DETERGENTS IN THE
DRUM. THE DRYER COULD MELT THIS AND
CAUSE DAMAGE!

17
Interrupting a Programme
You can interrupt a programme at any time
by pressing the ‘ON/OFF’ button. Simply
do this and wait two minutes if you have to
add or remove garments. Caution: Be
careful that the water level inside the drum
is not too high and that the temperature is
not very hot.
To resume, once you have re-closed the
door, simply press the ‘ON/OFF’ button
once again. The programme will pick up
where it had left off.
Additional Functions Buttons
By pressing these buttons, you can include a series of additional
functions and features in the washing programmes you have
selected. These functions will allow you to adjust your washing
programme to your particular needs.
To activate a function, simply press the button showing the
corresponding symbol to the type of wash you want.
500/1200 Spin Speed
Selector : Push in for 1200
rpm. Push in again (so button
pops out) for 500 rpm.

18
HALF LOAD. Use this feature
when you only have a half load
(i.e., your laundry takes up no
more room than half the space
of the drum). This feature uses
less water, thereby saving
water and electricity.
SPIN DELAY
Pressing this button will stop
the wash cycle after the rinse
cycle but before the spin cycle
begins. This option is good for
drip dry, crease resistant and
easy care items of laundry.
ON/OFF BUTTON
When this button is pushed in,
your washer dryer is ON. When
it is sticking out, it means the
power to the appliance is OFF.
MAINS ON/OFF LAMP
When the machine is switched
on, the lamp is illuminated.

19
N
NO OR RM MA AL L
W
W
A
AS SH HI IN NG G
–
–
R RI IG GH HT T H HA AN ND D S SI ID DE E O OF F K KN NO OB B N N. .1 1
