USER MANUAL FOR YOUR BAUMATIC
BWM1409W
60 cm 9 kg
Freestanding
washing machine
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 25/05/10
2

3
Contents
Environmental note 4
Important safety information 5 – 6
Specifications 7
Description of the appliance 8
Controlpanel 9-10
LCDdisplay 10-11
Detergent drawer 11-12
Preparing the wash cycle 12-14
Preparing your garments for washing 12-13
A selection of wash care symbols 13
Detergents and conditioners 14
Wash program table 15
Wash program guidance 15-16
Selecting a wash program 16-23
Descriptions of the wash programs 16 – 22
Endofcycle 22
Pausing a wash program 22
Changing a wash program 22
Delay start feature 22-23
Childlock 23
Maintenance and cleaning 23-30
Indailyuse 23-24
Control panel and washing machine cabinet 24
Detergentdrawer 24
The washing machine drum 24-25
Door 25
95° maintenance wash 25
Cleaning the drain pump filter 25-26
Cleaning the water inlet filter 26
Winter storage 26-27
Removingstains 27
Stainremovalrules 27
Stainremovalguide 28
Poor wash results 29-30
Installation 30-35
Removing the transit bolts 30-31
Locating your washing machine 31
Connecting to the mains water supply 32
Connecting to the water outlet 33
Levelling the appliance 34
Powersupply 35
Before first use maintenance wash 35
Error code failure system 36–37
General troubleshooting 37-38
Contact details 39

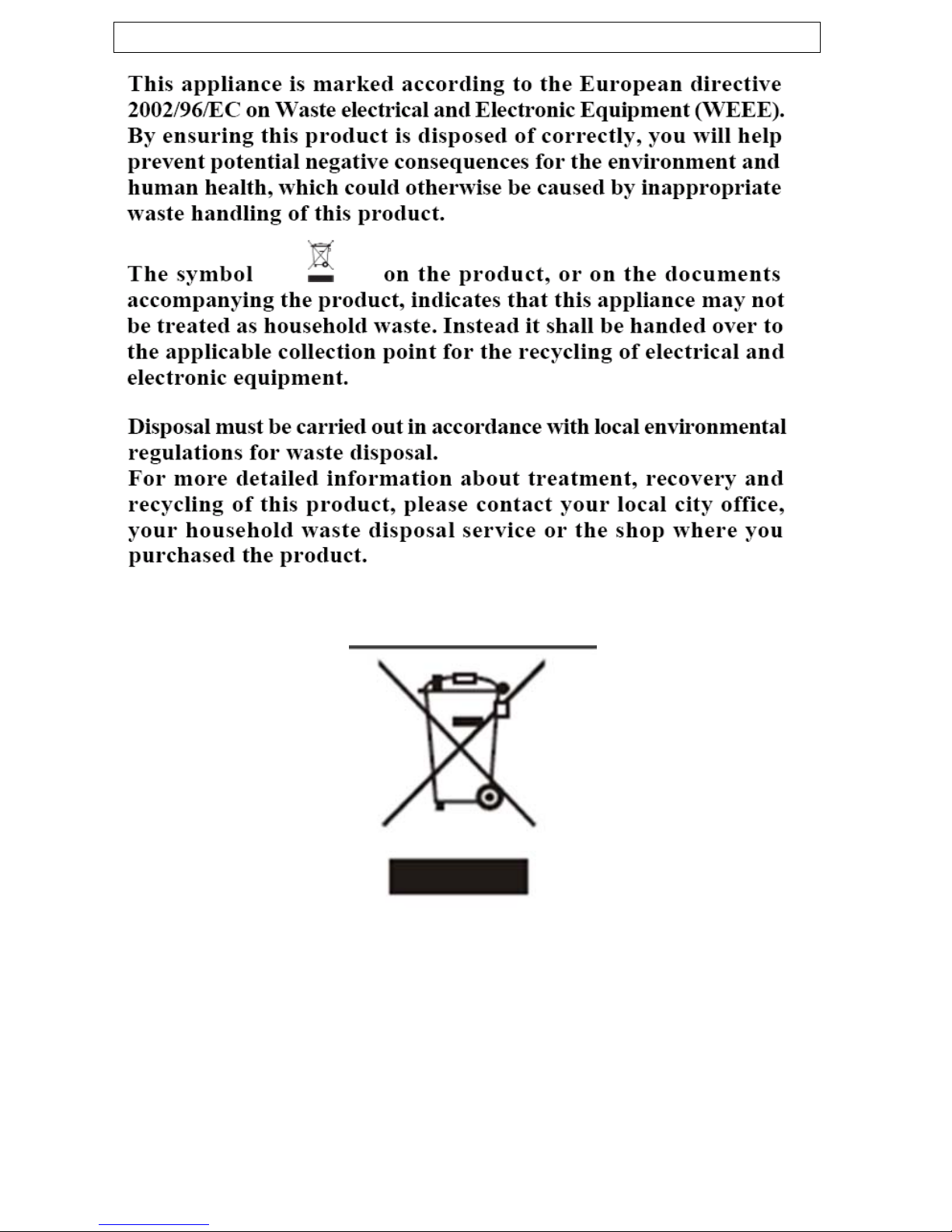

Environmental note
4

Important safety information
Your safety is of the utmost importance to
Baumatic. Please make sure that you read this
instruction booklet before attempting to install or
use the appliance. If you are unsure of any of the
information contained in this booklet, please
contact the Baumatic Advice Line.
General Safety
oRepairs to your appliance must only be carried out by a
Baumatic engineer or one of its authorised service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your washing machine.
oIf you notice that the mains cable is damaged. The appliance
must not be used. The same applies if you notice that the
worktop, control panel or base area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe glass of the porthole door may become hot during the higher
temperature wash programs.
oThe machine should be allowed to cool before carrying out an
emergency drain or cleaning the drain filter.
oIt is possible for small animals to chew either the mains cable or
water hoses, which could cause an electric shock hazard.
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.
5

6
oBefore the first use of the appliance, we advise that a 95
degree cotton wash is completed. No garments should be
placed inside the machine; however a small amount of
detergent must be used.
During Use
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThis appliance is only designed to wash normal domestic
washloads. If you use your washing machine in any other way or
it is incorrectly used, then Baumatic accepts no liability for any
damage that might be caused and any guarantee will be void.
oNo attempt should be made to alter or modify the specifications
of this appliance.
oThe detergents that you place in this appliance should be
suitable for automatic washing machines. With regards to dosage
levels, the detergent manufacturer’s recommendations should be
followed.
oYou should not wash garments that have been in contact with
flammable materials.
oYour washing machine should not be used for dry cleaning.
oIf you use either dyes or bleaching agents inside this machine,
then you should consult with the manufacturer of these products
to make sure they are suitable for use in your washing machine.
Baumatic cannot be held responsible for any damage that may
result.
Child Safety
oYour washing machine should only be used by adults. You should
not allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oIt could be possible for a child or pet to gain access to the
washing machine through the porthole door. Therefore please
check the drum before using the appliance.
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of a child’s reach and in a safe
place.

7
Specifications
o18 wash programs
o9 kg wash load
o1400 rpm maximum spin speed
oLED display
oDelay start
oDigital countdown indicator
oOpen door indicator
oWater supply indicator
oWash phase indicator
oTilted drum
oAir bubble washing system
o488 mm porthole and 180° opening
oAntibacterial surface
oFailure detection system
oImbalance control system
oOverflow protection
oFoam protection
oAdjustable feet
oDirect drive system
oSafety door lock
Appliance dimensions
Height: 850 mm
Width: 600 mm
Depth: 645 mm
Ratings
Energyefficiencyclass A+
Wash performance class A
Water extraction performance class A
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your washing machine
will either be located on the right hand side of the cabinet or behind
the porthole door.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

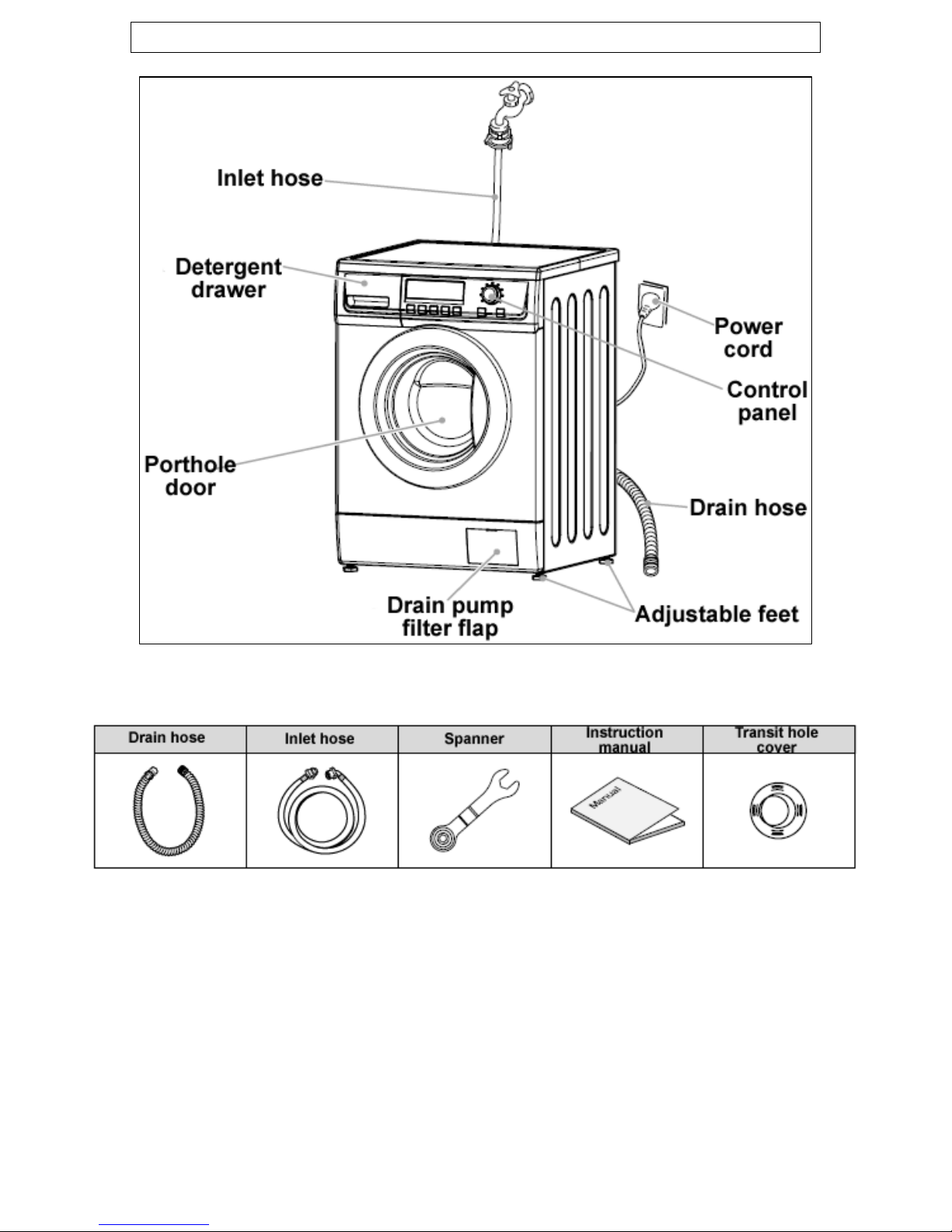

Description of the appliance
Accessories
8

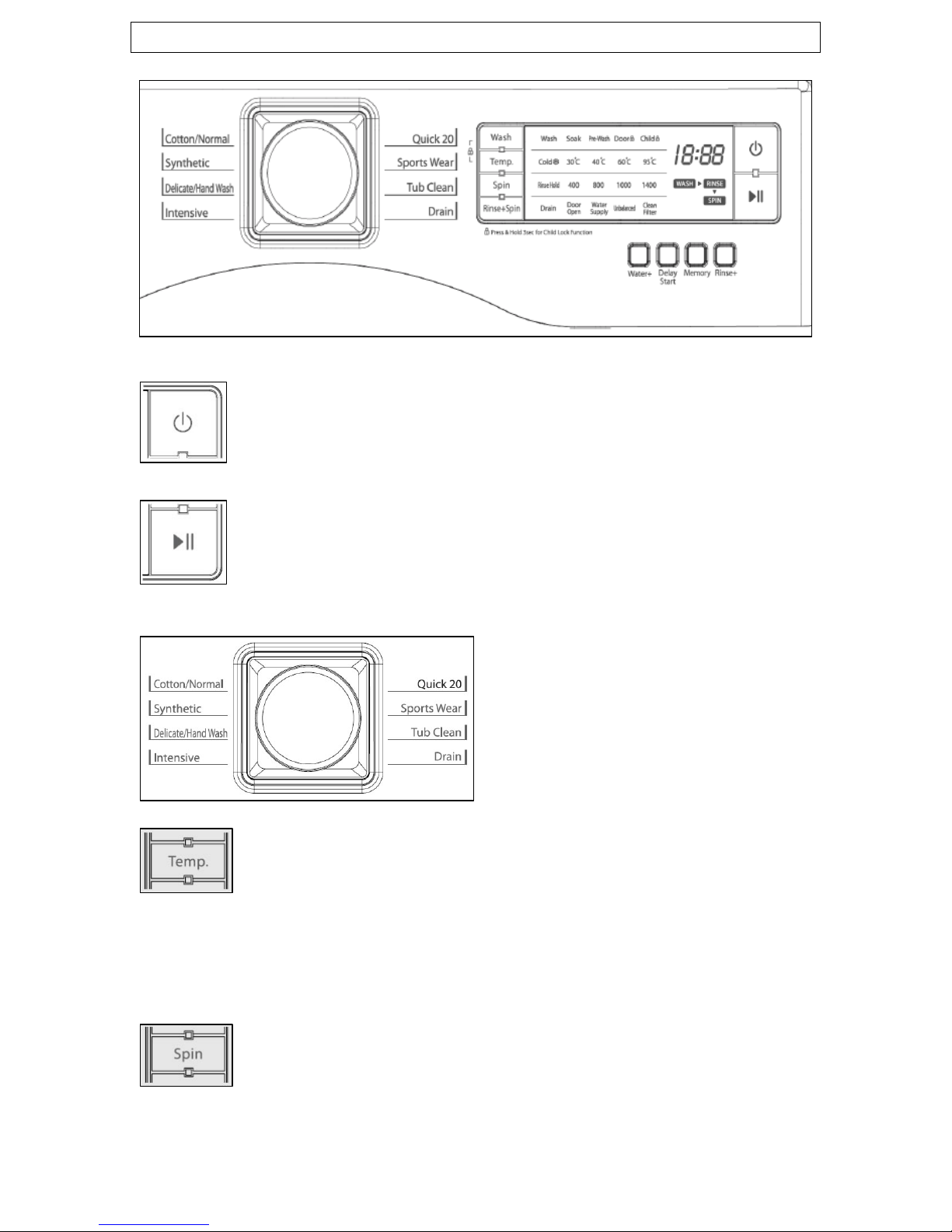

Control panel
1) Power button. Press this button to turn the power on or
off.
2) Start/pause button. Operation and temporary stop is
repeated as it is pressed. When you want to change a
program while it is in use, press this button, then select the
program you want to change to, and then press this button
again.
3) Wash program selection
knob. You can select the cycle
you want by rotating the knob to
choose from 8 options around the
outside.
4) Temperature button. This button can be used to
adjust the temperature of the water according to the type
of load that needs cleaning. As the button is pressed, the
temperature of the water can be selected through the
following options:
Cold
Æ 30°C Æ 40°C Æ 60°C Æ 95°C
5) Spin button. By pressing this button, the spin speed
can be chosen. You can set the spin speed by rpm through
the following options:
Rinse Hold
Æ 400 Æ 800 Æ 1000 Æ 1400
9

6) Wash button. You can select the cycle you want by
using this button. The light of the chosen cycle will glow
after selection. As the button is pressed, the wash cycle is
chosen through the following options:
Wash
Æ Soak Æ Pre-wash
7) Rinse + Spin button. You can select the rinse and
spin cycle by pressing this button.
8) Water + button. You can press this button to add an extra 6 litres
of water to the rinse section of any wash cycle, to increase the rinse
performance without lengthening time it takes to complete.
9) Delay start button. This button can be used to delay the start of
the wash cycle from between 1 – 12 hours.
10) Memory button.You can use this button to recall a cycle that you
have previously programmed the washing machine to remember.
11) Rinse + button. You can press this button to introduce an
additional rinse, which will help to remove traces of detergent residue.
LCD display
Wash cycle progress indicator
This lights when a wash cycle is in progress, to indicate what stage of
the wash cycle the appliance has reached from:
Wash
Æ Rinse Æ Spin
Wash display
This lights the wash functions that have been selected such as a pre-
wash or a soak.
Wash program temperatures
This light indicates which wash temperature has been selected.
10

Spin speeds
This light indicates whether a spin speed has been selected.
Child lock
This light indicates that the Child Lock has been switched on.
Door lock
This light indicates that the automatic door lock has been activated as
the cycle is in progress.
Timer display
This indicates how long is left of the wash cycle that is in progress.
Digital display
This indicates whether there is an imbalance, or the door is open by
lighting the relevant icon.
Warning display
These lights indicate when there is a minor error, for example “Door
Open”, “Unbalanced” or the filter needs cleaning.

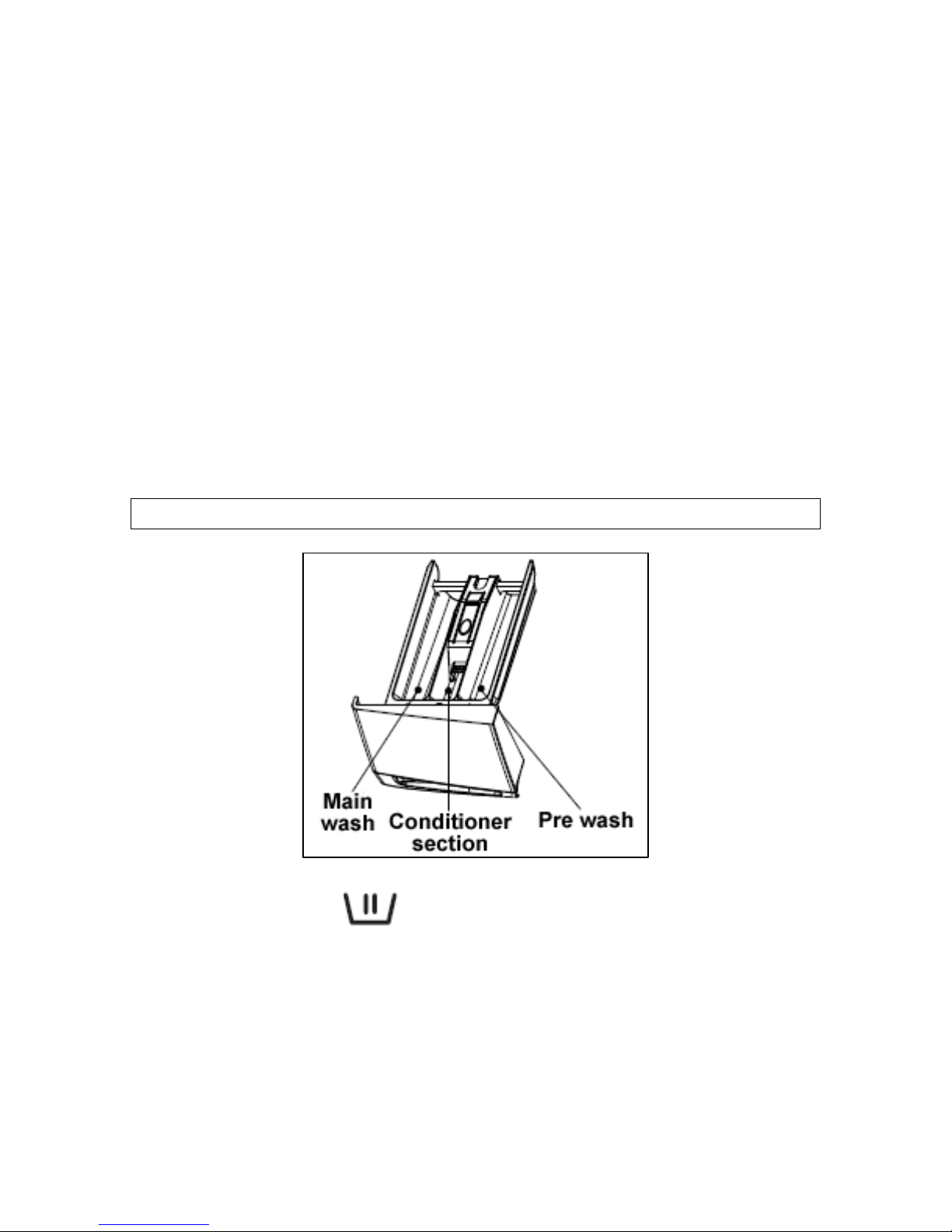

Detergent drawer
Main wash section
This compartment should have detergent placed in it (you should also
put a water softening agent in this section, if you use one). The
detergent will be added to the drum at the start of the main wash
program.
11

Conditioner section
This compartment should be used for liquid conditioners (fabric
softener, starch). They will be added to the wash load during the final
rinse.
Pre wash section
This compartment should have detergent placed in it, if you are going
to select a pre-wash before the main wash cycle.
Preparing the wash cycle
Preparing your garments for washing
oYour washing should be sorted out, according to
the fabric type and the wash care symbol that is
printed on the garment’s wash care label (see
separate section on wash care symbols).
oYour washing should also be sorted out
according to the degree of soiling.
oCheck all pockets on a garment to make sure
that they are empty.
12
oRemove any detachable metal items (badges,
paperclips, safety pins etc).
oZips should be closed, duvet covers and
pillow cases should be buttoned up and any loose straps should
be tied up. This will help to prevent other garments from getting
damaged during the wash.
oWoollens and knitted coloured fabrics should be turned inside out
before being washed in the appliance.
oSmall delicate items (tights, baby socks) should be placed in
either a washing net or a zipped pillow case.
oCurtains should be handled with particular care. All plastic hooks
or metal strips must be removed before being washed in the
appliance.
oColoured items and whites should be washed
in separate wash cycles.

oNew garments often contain an excess of dye, therefore it is
advisable to wash them separately for their first wash.
oGarments should be unfolded and shook out before being placed
inside the machine.

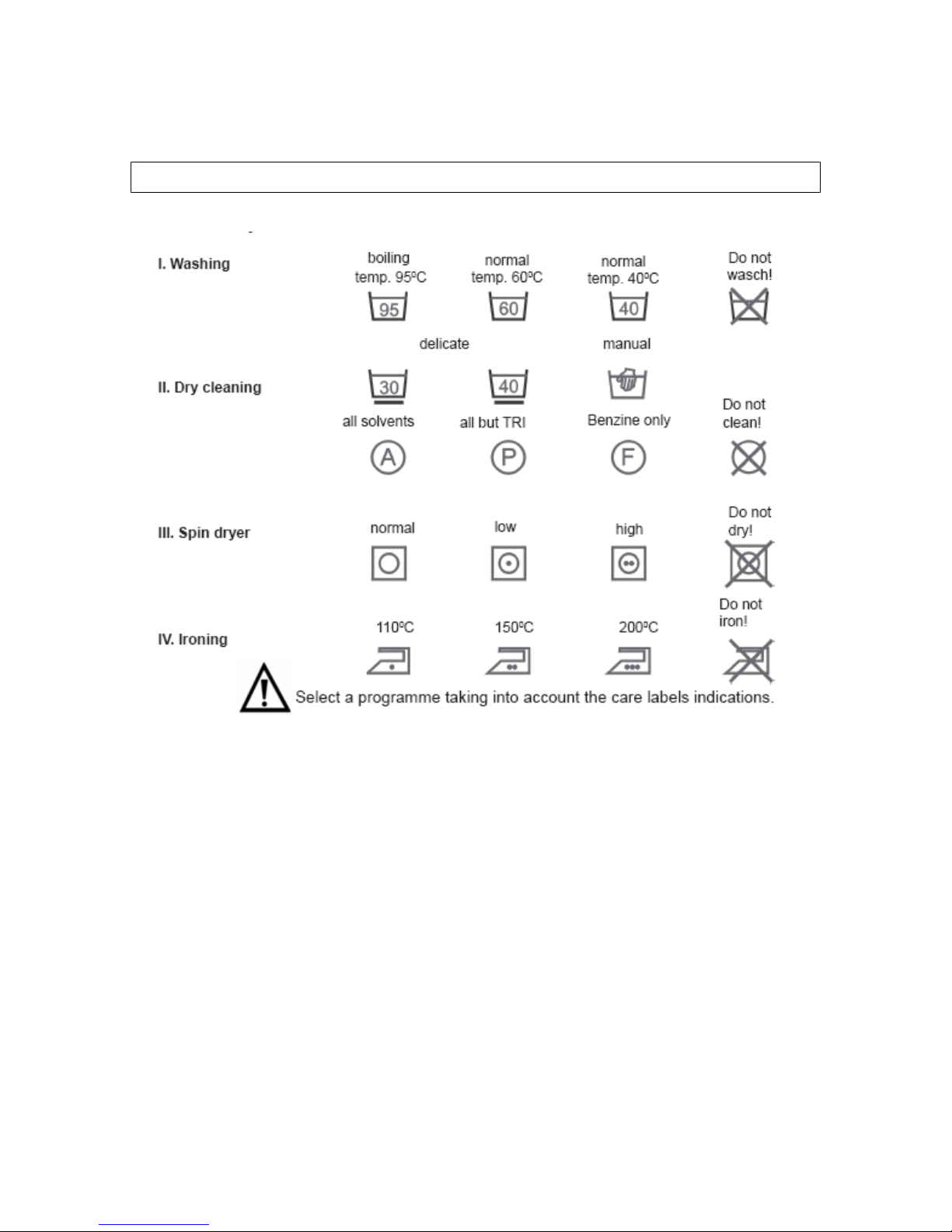

A selection of wash care symbols
oThe wash care symbols should be used to help you to select the
most suitable wash program. They will also help you to sort your
laundry into different loads, depending on the fabric type and the
highest temperature which the garment can be washed at.
13

Detergents and conditioners
The amount of detergent that you need to use in your appliance, will
depend on
oThe degree of soiling.Lightly soiled garments in general
require less detergent.
oThe size of the wash load.A smaller wash load will require a
reduction in the amount of detergent.
oThe hardness of your tap water.The harder your water is,
then the more detergent you will need to use. The detergent
manufacturers normally give guidance as to how much extra
detergent should be used, depending on the hardness of the
water.
Liquid detergent
If you are using liquid detergent, then in the majority of cases the
liquid should be placed inside the dosing device supplied by the
detergent manufacturer and placed inside the drum. All instructions on
the detergent packaging should be followed.
Water softening agents
If your tap water is hard, then it may be prudent to utilise a water
softening agent. This will help to ensure that the appliance does not
become clogged with hard water deposits. You may also find that it will
allow you to lessen the amount of detergent that you are using.
When using any detergent or water softening
agent, the recommendations of the
manufacturers should be followed.
14

15
Wash program table
Program Fabric type Proper
temp. Option Maximum Load
Cotton/
Normal
First check if laundry is
machine washable (white
cotton, linen towel and
sheets).
Colourfast garments (shirts,
night dresses, pyjamas, and
lightly soiled white cottons,
underwear).
60°C
(Cold, 30°C,
40°C,
95°C).
Pre-wash
+ rinse
9kg
Synthetic Polyamide, acrylic, polyester 30°C (Cold,
40°C).
Pre-wash
+ rinse
Less than
3kg.
Delicate/
handwash
Delicate laundry easily
damaged (silk, curtains).
Cold Less than
3kg.
Intensive Heavy soiled clothes (blue-
jeans, climbing clothes, ruck
sack, sports wear).
60°C (Cold,
30°C, 40°C,
95°C).
Pre-wash
+ rinse
Less than
3kg
Quick 20 Coloured laundry which is
lightly soiled.
Cold Less than
3kg.
Sports wear Lightly soiled fast and thin
laundry.
Cold (Cold,
30°C,
40°C).
Pre-wash
+ rinse
Tub clean Use to clean (and dry). Cold Dry Without
load.
Drain Drain water in drum to
outside.
Pre Wash:If the laundry is heavily soiled, the pre-wash option is
recommended. This option is available for cotton and synthetic wash
programs. You should place detergent in the pre-wash compartment of
the detergent drawer, as well as in the main wash compartment.
Rinse+: Will introduce an additional rinse, which will help to remove
traces of detergent residue.
Water+: Will add an extra 6 litres of water to the rinse section of any
cycle to provide better rinse performance without adding any time to
the wash cycle.
Wash program guidance
oA wash program option can only be selected if the program table
advises that it is possible with the wash cycle you have selected.
oThe washing machine automatically selects a temperature for a
particular wash program. However it is possible to alter the
temperature by using the temp button. All temperatures will not be
available on certain wash programs.

16
oThe washing machine automatically selects a spin speed for a
particular wash program. However it is possible to alter the spin
speed by using the spin button. All spin speeds will not be available
on certain wash cycles.
oImportant: You should make sure that the selected spin speed is
appropriate for the garments that you are washing.
oImportant: Before opening the door of the appliance, you MUST
spin the clothes and drain the water. See the section called “Spin
only”.
oThe active phases will appear at the top of the LED display, as the
wash program progresses.
oThe LCD display shows an approximate time for the selected wash
cycle. Please note that factors external to the machine, e.g. the
temperature of your water supply, your water pressure etc. can
affect the time it takes for a wash cycle to complete.
Selecting a wash program
Cotton program
oPut the laundry into the drum and then close the door. The
maximum load size is 9kg for a cotton wash.
oIn the detergent drawer, put detergent into the main wash and
pre-wash compartments.
oPut detergent into the pre wash compartment only if you want to
use the pre-wash option.
oSoftener should be poured into the middle compartment of the
detergent drawer; the level should be below the ‘MAX’ level.
oIf you want to use bleach, then you should put it into the main
wash compartment with your detergent.
•Press the power button (1), the LCD display will show “---“ and
all the program lights will come on.
•If you press the start/pause button (2) next without selecting a
program, the cotton/normal wash will be selected as the default
program.
•Alternatively you can use the wash program selection knob (3)
to select the cotton program.

17
•A wash temperature of 40°C, with an 800 rpm spin will be
selected automatically by the appliance.
•You can use the temp button (4) to adjust the wash
temperature, ‘cold’, 30°C, 40°C, 60°C and 95°C wash
temperatures are available.
•You can use the spin button (5) to adjust the spin speed.
•You can use the wash button (6) to select a pre-wash or soak to
a cycle. You can also press the rinse button (11) to include a
rinse.
*Press the start/pause button (2), the door will lock and after a
few seconds you will hear the machine start to fill with water.
The machine will automatically use the appropriate amount of
water by sensing the weight of your laundry.
Synthetic program
oPut the laundry into the drum and then close the door. The
maximum wash load size is below 3kg for the synthetic program.
oIn the detergent drawer, put detergent into the main wash and
pre-wash compartments.
oPut detergent into the pre wash compartment only if you want to
use the pre-wash option.
oSoftener should be poured into the middle compartment of the
detergent drawer; the level should be below the ‘MAX’ level.
oIf you want to use bleach, then you should put it into the main
wash compartment with your detergent.
•Press the power button (1), the LCD display will show “---“ and
all the program lights will come on.
•Use the wash program selection knob (3) to select the synthetic
program.
•A wash temperature of 30°C, with an 800 rpm spin will be
selected automatically by the appliance.
•You can use the temp button (4) to adjust the wash
temperature; ‘cold’, 30°C and 40°C wash temperatures are
available.

18
•You can use the spin button (5) to adjust the spin speed. A 1400
rpm spin speed is not available with the synthetic wash program.
•You can use the wash button (6) to select a pre-wash or soak
and the rinse button (11) can be pressed to program a rinse.
*Press the start/pause button (2), the door will lock and after a
few seconds you will hear the machine start to fill with water.
Delicate/ handwash program
oPut the laundry into the drum and then close the door. The
maximum wash load size is below 3kg for the delicate program.
oIn the detergent drawer, put detergent into the main wash
compartment.
oSoftener should be poured into the middle compartment of the
detergent drawer; the level should be below the ‘MAX’ level.
oIf you want to use bleach, then you should put it into the main
wash compartment with your detergent.
•Press the power button (1), the LCD display will show “---“ and
all the program lights will come on.
•Use the wash program selection knob (3) to select the delicate
program.
•A wash temperature of ‘cold’, with a 400 rpm spin will be
selected automatically by the appliance. The wash temperature
of ‘cold’ is not adjustable for the delicate wash program
•You can use the spin button (5) to adjust the spin speed. 1400
and 1000 rpm spin speeds are not available with the delicate
wash program.
•You can use the rinse button (11) to select the rinse cycle
option.
*Press the start/pause button (2), the door will lock and after a
few seconds you will hear the machine start to fill with water.

19
Intensive program
oPut the laundry into the drum and then close the door.
oPut detergent into the main wash and pre-wash compartments in
the detergent drawer. Softener should be below the ‘MAX’ level.
oPut detergent into the pre-wash compartment only if you want to
add pre-wash.
oWhen you want to use bleach, put it into the main wash
compartment with detergent.
oPress the power button (1). The LED shows only “---“ and all
program lights will turn on.
oSelect the intensive program using the program selection dial
(3). The machine will set a washing temperature of 60°C and a
spin speed of 1000rpm. If you want to change the washing
temperature (4), the spin speed (5) or add wash options (pre-
wash or soak) (6) or a rinse (11), then press each button
accordingly.
oPress the start-pause button (2). The door will lock and the
machine will supply wash water depending on the weight of the
laundry. The appliance will then begin washing.
Quick 20 program
oPut the laundry into the drum and then close the door. The
maximum wash load size is below 3kg for the Quick 20 wash
program.
oIn the detergent drawer, put detergent into the main wash
compartment.
oSoftener should be poured into the middle compartment of the
detergent drawer; the level should be below the ‘MAX’ level.
oIf you want to use bleach, then you should put it into the main
wash compartment with your detergent.
•Press the power button (1), the LCD display will show “---“ and
all the program lights will come on.
•Use the wash program selection knob (3) to select the Quick 20
program.

20
•A wash temperature of ‘cold’, with an 800 rpm spin will be
selected automatically by the appliance.
*Press the start/pause button (2), the door will lock and after a
few seconds you will hear the machine start to fill with water.
Sports wear program
oPut the laundry into the drum. Put detergent and softener into
the detergent drawer. Softener should be below ‘MAX’ level.
Then close the door.
oPut detergent into the pre-wash compartment only if you want to
add pre-wash.
oWhen you want to use bleach, put it into the main wash
compartment with detergent.
oPress the power button (1) and the LED will show only “---“ and
all program lights will turn on.
oSelect the sports wear program using the program selection dial
(3). The washing temperature will be automatically set at ‘cold’
with a spin speed of 800 rpm.
oYou can alter the temperature of the water by pressing the
temperature button (4). Only ‘cold’, ‘30°C’ and ‘40°C’ are
selectable.
oPress the start/pause button (2) and the door will lock. The
wash water supplied will be influenced by the weight of the
laundry. The appliance will then begin washing.
Spin only
oPut the laundry into the drum and then close the door.
•Press the power button (1), the LCD display will show “---“ and
all the program lights will come on.
•Select the spin speed (5) that you require by pressing the spin
button.
•The water temperature is set to ‘cold’ automatically.
*Press the start/pause button (2), the door will lock and after a
few seconds you will hear the machine start to spin.
