Baumatic BFW1000W User manual

1
Please note- this Instruction Manual contains important safety information. Please
make sure that you read it before using your Washing Machine for the first time. It also
contains valuable Troubleshooting tips so that you can solve faults without having to call
for a service engineer.
Instruction Manual for your Baumatic
BFW1000W
FULLY ELECTRONIC
WASHING MACHINE
Please note: for fast access to using your
Washing Machine, please look at the bold-font
items listed on the Contents page (page 3).
DD 13/02/07

2

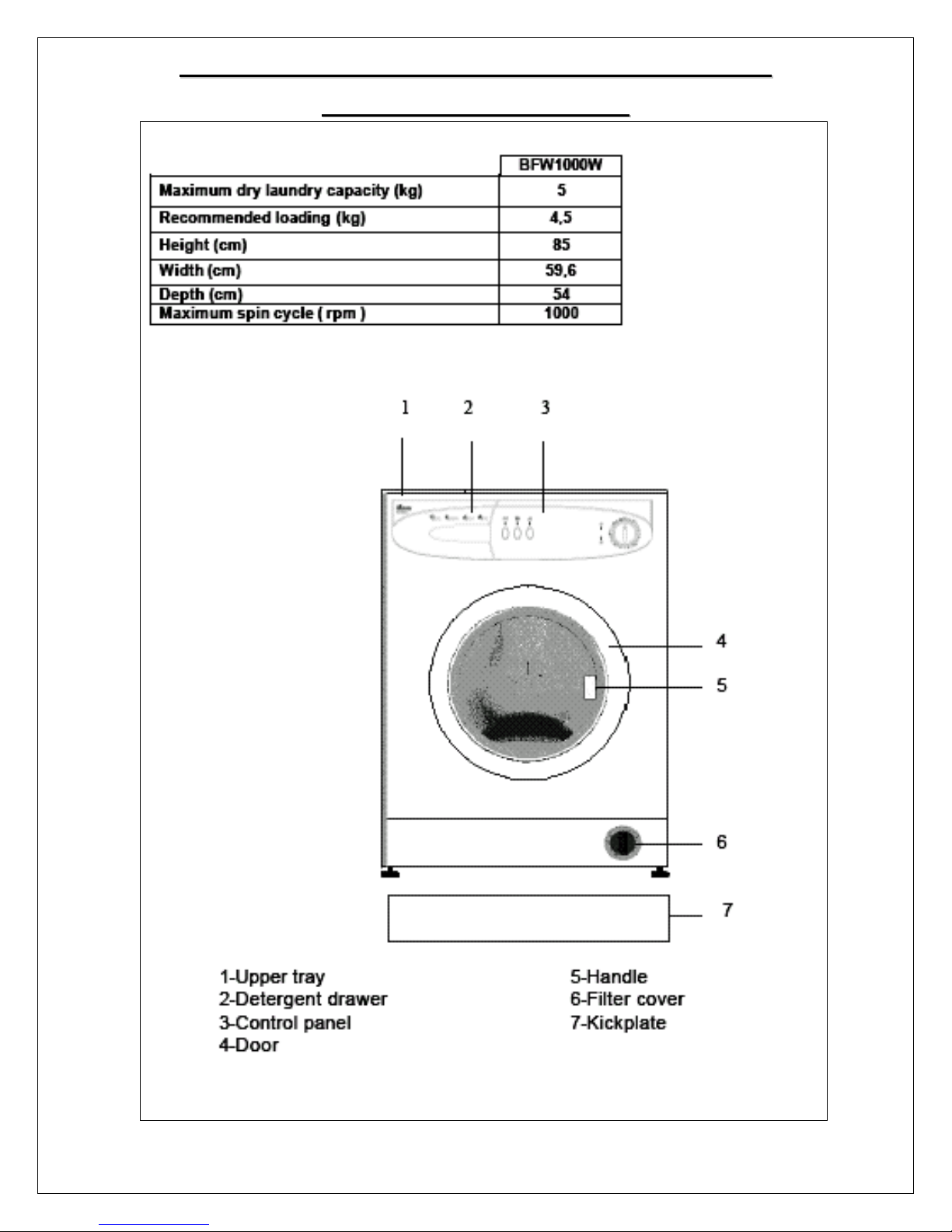

S
SP PE EC CI IF FI IC CA AT TI IO ON NS S O OF F Y YO OU UR R B BA AU UM MA AT TI IC C
W
WA AS SH HI IN NG G M MA AC CH HI IN NE E

3
CONTENTS
Important Safety Information……………………………………………………………….….4
Your Washing Machine’s Control Panel………………………………..…….……...….5
Start / Pause Button………………………………………………………..………………………..5
Function Indicator Lights…………………………………………………….…………………..…5
Function Buttons……………………………………………………………………………………..…6
Easy Iron Function …………………………………………………………….………………………..6
Washing Your Laundry…………………………..…………………………………..……………..7
Before Loading Your Washing Machine………………………………………………..…..7
Washing Labels and their Meanings…………………………………………………………..…8
Loading Your Washing Machine……………….………………………………………………..9
Filling Your Washing Machine’s Dispenser Drawer with Detergent……9-10
Running Your Washing Machine……………………………………………………………...11
Using the Program Knob………………………………………………………………………..…11
Washing Tables……………………………………………………………………………………..12-13
Starting a Washing Program……………………………………………………………………..14
Changing a Program…………………………………………………………….……………………..14
Cancelling a Program……………………………………………………………………………….…14
Ending a Program……………………………………………………………………….………….14-15
Child Lock…………………………………………………………………………………………………..15
Maintenance & Cleaning ..………………………………………………………………………..16
Water Inlet Filters ……………………………………………………………………………………..16
Pump Filter………………………………………………………………….........................17
Cleaning the Detergent Drawer………………………………………………………………...18
Cleaning the Siphon Plug…………………………………………………………...............18
Cleaning the Cabinet…………………………………………………………………………………..19
Cleaning the Drum……………………………………………………………………………………...19
Notes on Stains and how to Remove them from your Clothes……………..20-21
Troubleshooting……………………………………………………..………………………….…22-24
Error Codes………………………………………………………….………………………….…...25-26
Installation Instructions………………………………………………………………..………27-29
Directive Conformity Confirmation……………………………………………………….30-31
Conditions of Guarantee…………………...………………………………………............32
Contact Details………………………………………………………………………………………..…33

4
IMPORTANT SAFETY INFORMATION:
WARNING: THIS IS IMPORTANT SAFETY INFORMATION. PLEASE
READ THIS BEFORE USING YOUR WASHING MACHINE.
:DO NOT USE AN EXTENSION CORD OR PLUG INTO A MULTIPLE
SOCKET.
:DO NOT INSERT A PLUG WITH A DAMAGED CORD OR THAT IS
BROKEN INTO THE SOCKET.
:IF THE CORD IS DAMAGED IT SHOULD BE REPLACED BY THE
MANUFACTURER OR APPOINTED SERVICE AGENT IN ORDER TO
AVOID A HAZARD.
:NEVER REMOVE THE PLUG FROM THE SOCKET BY PULLING FROM
THE CORD SECTION. HOLD THE PLUG AS YOU PULL IT OUT.
:DO NOT PLUG INTO THE POWER SUPPLY IF YOUR HANDS ARE WET.
:DO NOT TOUCH THE MACHINE WITH WET HANDS OR FEET.
:DO NOT OPEN THE DETERGENT DRAWER WHILE THE DEVICE IS
RUNNING.
:DO NOT FORCE OPEN THE DOOR OF THE MACHINE WHILE THE
MACHINE IS RUNNING.
:DO NOT TOUCH THE DRAIN HOSE AND WATER DURING DRAINING –
THE WASHING MACHINE CAN REACH HIGH TEMPERATURES DURING
DRAINING.
:DO NOT ATTEMPT TO REPAIR. PLEASE APPLY TO THE NEAREST
AUTHORISED SERVICER.
:DO NOT FORGET THAT THE PACKING MATERIAL OF YOUR MACHINE
MAY BE HAZARDOUS FOR CHILDREN.
:NEVER LET YOUR CHILDREN PLAY WITH YOUR WASHING MACHINE.
:KEEP PETS AWAY FROM YOUR MACHINE.
:ONLY USE YOUR WASHING MACHINE IN THE HOME. THE WARRANTY
WILL BE INVALID SHOULD YOU USE IT FOR COMMERCIAL
PURPOSES.

5

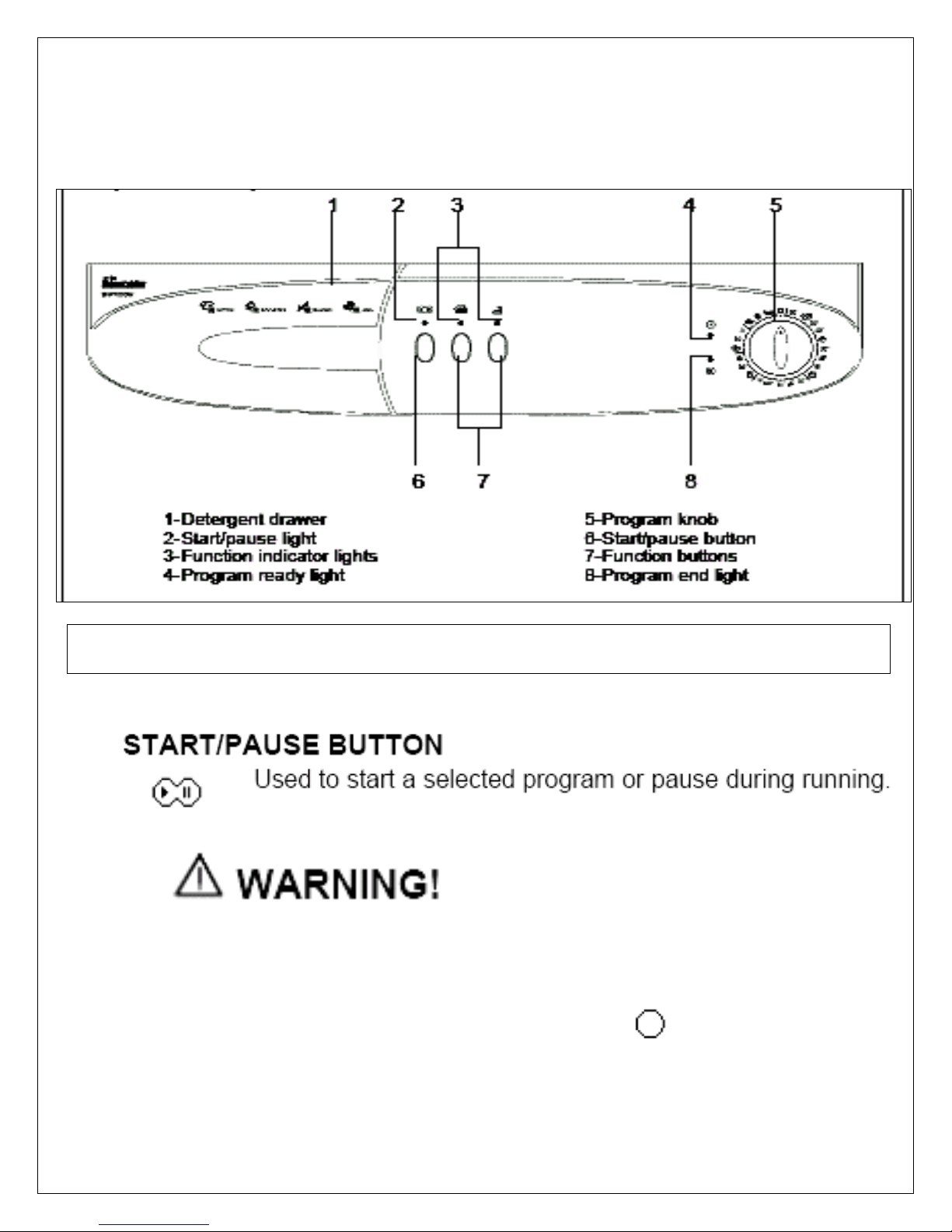

Your Washing Machine’s
Control Panel
*NOTE: Your Washing Machine has soft-touch buttons. You only need to
press these lightly to operate your machine.
You need to make sure that the program knob has been brought fully to the
STOP position before selecting a new program or changing between programs.
Function indicator lights
When the ‘START/PAUSE’ or any other function button is pressed,
the corresponding light will come on. The light goes out when the
function or ‘START/PAUSE’ Button is pressed again, or when the
washing cycle has completed.

6
Function Buttons
Rinse Hold
* NOTE: This function should be used when you’re not
going to be taking your clothes out of your washing machine
immediately after the end of a program.
This will keep wrinkles from appearing, as when the button
is pressed, the last rinsing water is not drained. Press this
button again to make it continue from the same point and
finish the cycle.
If you do not want your sensitive clothes to be spun or if you want
them to be spun gently:
1) Make sure that you turn the Program Knob to the ‘STOP’
position.
2) Then turn the Program Knob round to one of the draining or
spinning programs you want and press the ‘START/PAUSE’
button.
ÂIf the program you have selected is a drain program, your
machine will start draining the water inside it.
ÂIf you have selected a spinning program, your washing
machine will perform a spin first then end the washing
cycle.
EASY IRONING
The Easy Ironing function will make your clothes come out
less wrinkled after a washing cycle.

7
Washing your laundry
NOTE: (*VERY IMPORTANT*) – You must
ensure that the transportation bolts have
been removed before you attempt to use
your Washing Machine. See pages 27-29.
Only once you are sure this has been done,
can you do the following:
1) Plug in you machine
2) Turn on the water supply
Note on using your Washing Machine for the
first time:
There may be water left inside your machine after factory tests and trials.
•The first time you run a wash cycle, you should not put
laundry in your machine as it needs to clear this water out.
oPour half a measuring cup of normal or all purpose
detergent into compartment 2 in your detergent
dispenser and select the cotton program for 90
° C.
_____________________________________________________
Before Loading your Washing Machine:
•Separate your laundry between clothes of
different types (cotton, synthetic, sensitive,
woolen, etc.); the temperatures they need
to be washed at;, and how dirty they are.
•Never wash your white and coloured clothes
together.
•Since your new coloured clothes may shed
dye on the first wash; wash them
separately.
•Be careful that no metal pieces are in the
pockets of your clothes. There is the
chance of rust residues coming off and
causing stains.
•Zip-up and button your clothes.
•Remove the plastic or metal
hooks of curtains or place them
inside a washing bag and tie.
•Pull textiles like trousers, knitted
fabric, T-shirts and sweatshirts
inside out.
•Wash small clothes like socks and
handkerchiefs in a washing bag.

8
•REMEMBER TO READ THE LABELS ON YOUR CLOTHES
BEFORE ATTEMPTING TO WASH THEM:
WASHING LABELS & THEIR MEANINGS

9
Loading your Washing
Machine
Open the door of your washing machine.
Load your clothes inside the drum one item at a
time and spread them about well.
When you shut the door of your machine, be careful
that no pieces of clothing are jammed between the
door and the gasket seal.
Shut the door of your machine tightly, otherwise
your machine will not start the washing process.
Filling your Washing Machine’s
Dispenser Drawer with Detergent
The amount of detergent you will need depends
on the following:
•You will need more detergent for washing cycles containing
dirtier clothes.
oFor very dirty clothes, select a program with pre-
washing, fill compartment 1 with ¼ of the amount of the
detergent you are putting in compartment 2.
oFor clothes that are only slightly dirty, do not pre-wash
and put only a small amount of detergent into
compartment 2 in your washing machine’s dispenser
drawer.

10
*NOTE: Only use detergents for automatic washing machines. The
amount that you will need for different washing loads and
types will be written on the packaging of your detergent.
The harder the water in your area, the more detergent
you will need to use.
SOFTENERS
9Fill the softener compartment in your detergent drawer
with softener. Do not exceed the MAX level.
Otherwise, the softener will diffuse in the washing
water through the siphon.
9Softeners with high density (thick softeners) should be
diluted with water before filling the drawer. This is
because it will block the siphon and prevent the flow of
the softener.
FLUID DETERGENTS
9You can use fluid detergents in all programs without
pre-washing. For this, move the fluid detergent level
plate in the second compartment of the detergent
drawer and pour in the amount of fluid detergent
according to the levels on this plate.
_________________________________________________________

11
Running your
Washing Machine
Program Selection and Features.
Select the program that’s right for the clothes you want to
wash according to the Table on the next page.

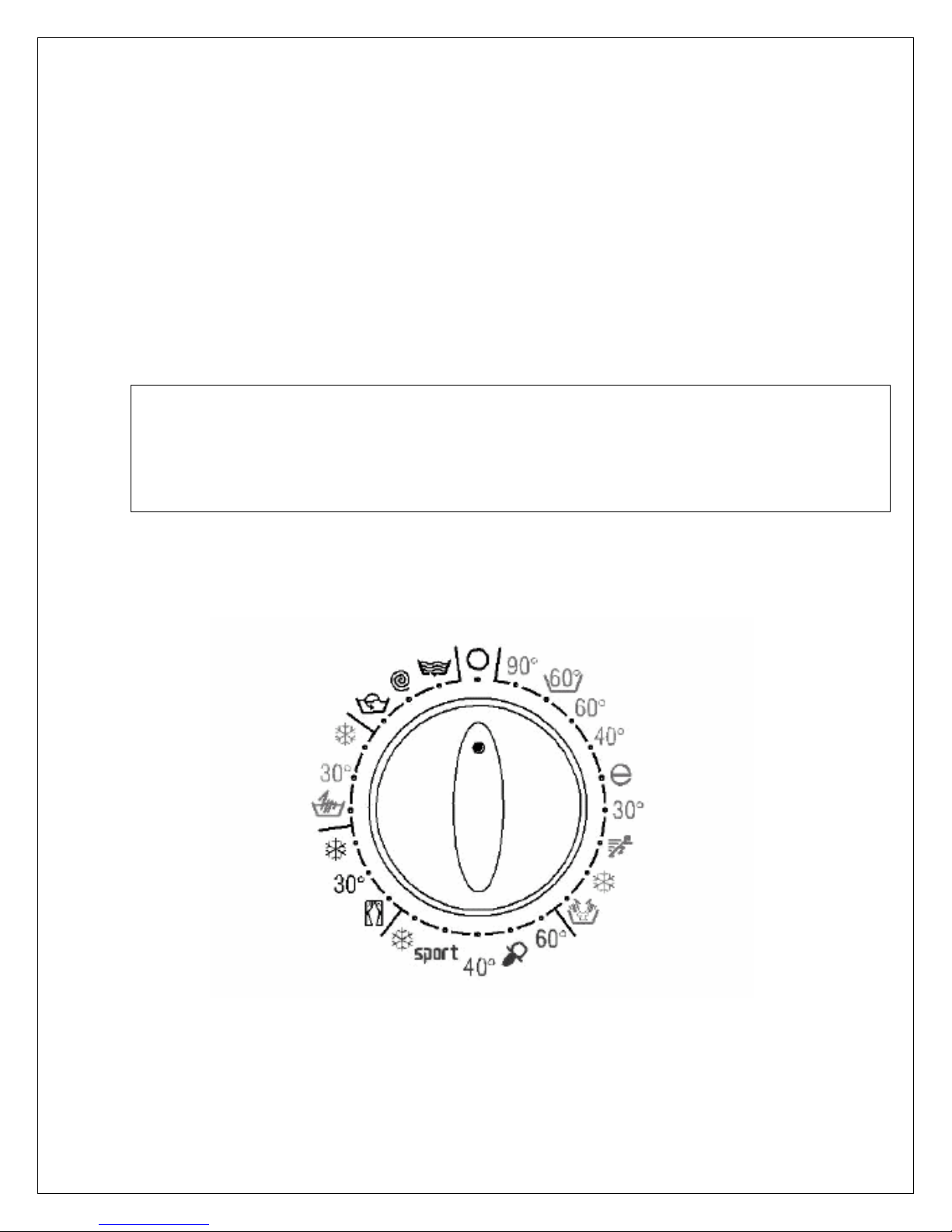

THE PROGRAM KNOB
With the program knob, you can select the program you’d like to
wash your clothes with. You can adjust the program selection process
by turning the program knob in both directions. You must be careful
that the marker on the Program Knob points exactly to the program you
want to select.
*NOTE: If you turn the Program Knob to the STOP
position while your machine is running, you will end the
washing cycle prematurely.
By pressing the ‘Start / Pause’ button, you can start the
program you have selected or pause a running program. See next
page for a list of the different programs you can select.

12

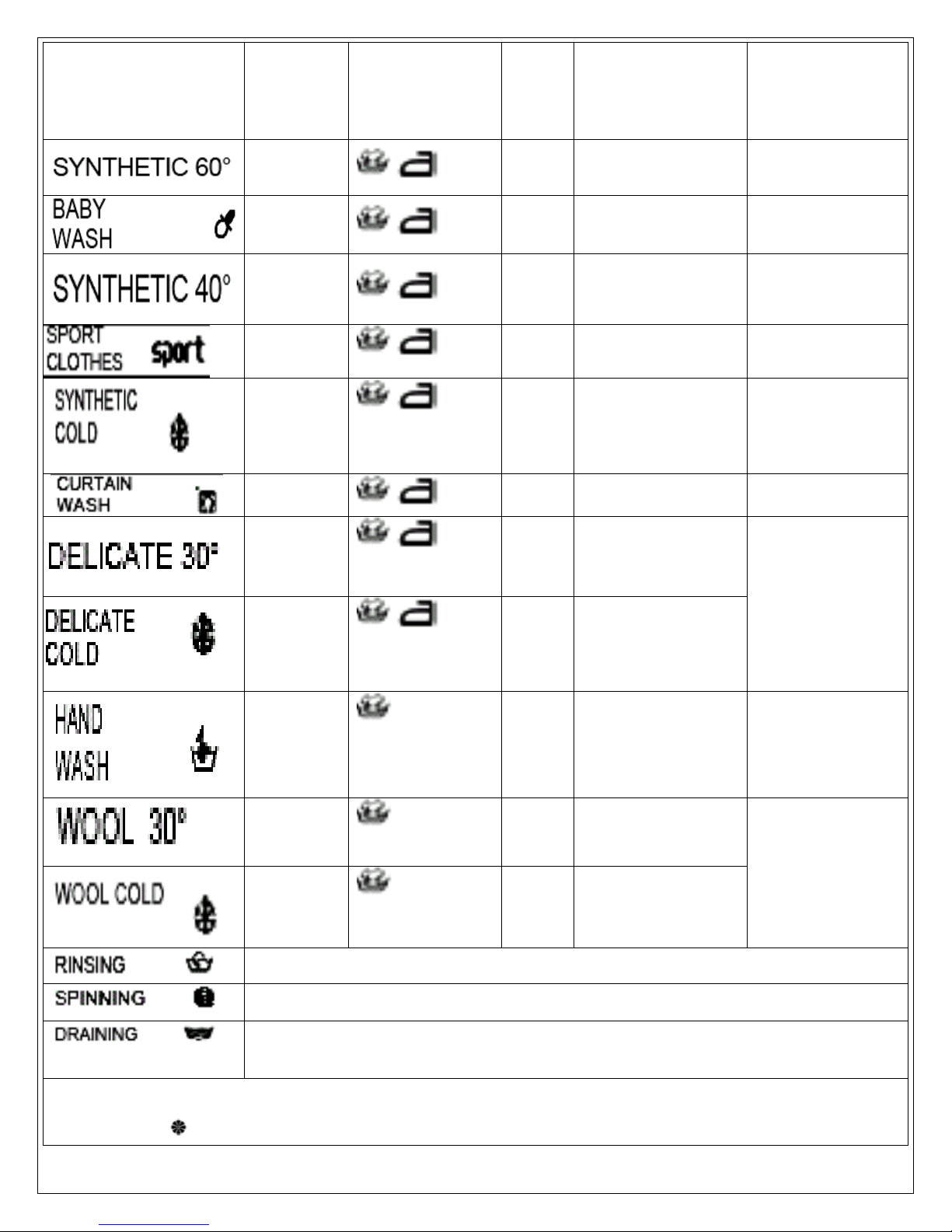

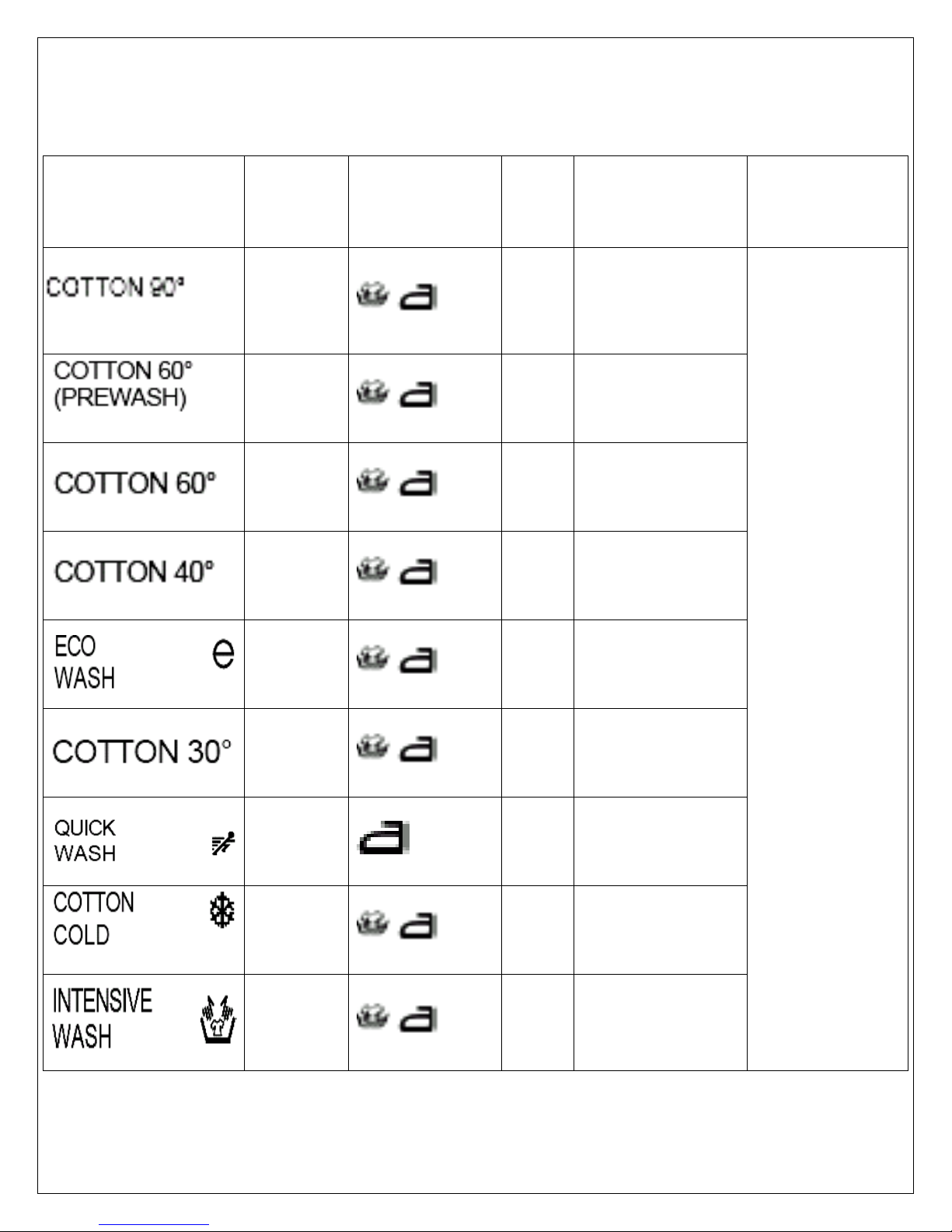

WASHING TABLES – PLEASE FIND THE TYPE OF WASHING YOU
WANT TO PUT INTO YOUR WASHING MACHINE AND CHECK IT AGAINST THE
MAXIMUM WEIGHT ALLOWED.
PROGRAM
DETERGENT
COMPART-
MENT
ADDITIONAL
FUNCTION
BUTTON
MAX
DRY
LOAD
(Kg)
TYPE OF
LAUNDRY
EXAMPLE OF
CLOTHES
2 5 Dirty, boil, cotton
& linen
1+2 5 Very dirty, cotton,
coloured & linen
2 5 Dirty cotton,
coloured & linen
2 5
Slightly dirty, paint
-stained, cotton,
coloured & linen
2 5 Dirty, cotton, colour
-ed & linen
2 5 Slightly dirty cotton,
coloured & linen
2 5 Slightly dirty cotton,
coloured & linen
2 5
Slightly dirty cotton,
coloured & linen.
Washed in cold
Water.
2 5
Dirty or heavily
stained cotton,
coloured and linen
textile
Underwear,
sheets,
Table cloth,
T-shirts,
towels

13
PROGRAM
DETERGENT
COMPART-
MENT
ADDITIONAL
FUNCTION
BUTTON
MAX
DRY
LOAD
(Kg)
TYPE OF
LAUNDRY
EXAMPLE OF
CLOTHES
2 3 Dirty, synthetic or
synthetic mixture
Nylon socks,
blouses.
2 3 Baby laundry All baby laundry
2 3
Slightly dirty, synth-
thetic or synthetic
mixture
Nylon socks,
blouses
2 3 Sport clothes Sports clothes/
Jeans
2 3 Slightly dirty,
Synthetic or synth-
etic mixture.
Sensitive cold wash
laundry
Nylon socks,
blouses
2 2 Tulle and curtains.
Sensitive laundry.
Tulle, curtain,
Diolen, dralon
2 2 Slightly dirty, cotton,
Coloured, synthetic
or synthetic mixture
Sensitive laundry.
2 2 Very slightly dirty,
cold wash cotton,
coloured, synththetic
or synthetic mixture
laundry.
Silk mixture,
shirt, blouses,
polyester,
Pollamid,
Mixture of textile
s
2 2 Slightly dirty, wash
By hand cotton,
Coloured, synthetic
or synthetic mixture
laundry.
All hand wash
laundry
2 2 Dirty, hand &
machine
Wash wool laundry
2 2 Very slightly dirty,
Cold water, hand &
Machine to wash
Wool laundry
All wool laundry
When you need an additional rinsing to be done to your clothes after the washing process,
you can use this program for all kinds of clothes.
When you need an additional spinning to be done to your clothes after the washing process,
use this program for all kinds of clothes.
Use this program to drain the dirty water inside your machine after a washing cycle. If you
want the water inside your machine to drain before the washing cycle completes, use this
program.
*PLEASE NOTE - You can use softeners in all programs (except spinning and draining programs)
optionally. Always check on your softener’s packaging for the amounts to use. Pour it into the softener
compartment ( ) of the detergent drawer.

14
Starting a Washing Program
•Adjust the program knob to a program you desire (see previous page)
oThe ‘PROGRAM READY’ light will come on.
oIf you want, you can select one or more additional functions.
•Run the program which you have selected by pressing the
‘START/PAUSE’ button.
______________________________________________________________
Changing the Program
If you have a selected a program and you don’t want it to continue
•Press the ‘START/PAUSE’ button.
•Turn the Program Knob to the ‘STOP’ position.
•Adjust the Program Knob to the program you want. You can select
this from Table 1 (see previous page).
oThe ‘PROGRAM READY’ light will come on.
•By pressing the Start/Pause button, you can run the program that you
have selected.
______________________________________________________________
Cancelling a Program
If you want to end a running program early.
•Press the ‘START/PAUSE’ button.
•Turn the program knob to ‘Draining’ or ‘Spinning’ programs.
•The ‘PROGRAM READY’ light will come on.
•Run the program you have selected
_______________________________________________________________________________
Ending a Program
•Your Machine will automatically stop when the program you have
selected ends.
•The ‘Program End’ light will be on.
•Turn the PROGRAM KNOB to the ‘STOP’ position.

15
*Note:when the washing cycle has ended, you will not be able to
open the door right away.
9It will unlock approximately two minutes after the
program ends.
You can then open the door by pulling the handle of the door
towards yourself.
oTake out your clothes.
oAfter you unload your clothes, leave the door open to dry the
inside of your machine.
oUnplug your Washing Machine.
WARNING!
If the power is off and on again after a while at any stage of the washing
program, your machine will continue the program from the same place it had
stopped. Note that this is not harmful for your machine.
______________________________________________________________
Child Lock
The Child Lock prevents unauthorized changes on the control
panel while the machine is in operation. The child lock will be activated
after the ‘Start/Pause’ button on the control panel has been pressed for
longer than 2 seconds.
To unlock your washing machine, you will need to
PRESS THE SAME BUTTON FOR LONGER THAN TWO SECONDS.
*NOTE - At the end of a program, the child lock will automatically turn off.

16
MAINTENANCE AND CLEANING:
Please note: Before attempting any kind of maintenance
or cleaning on your washing machine:
9Unplug your machine
9Close the Water Tap
.
WATER INLET FILTERS
On the tap part of your machine’s water inlet hose and the ends of
the water inlet valves, there are filters to prevent dirt and foreign
materials from getting into the water.
* Note: If your Washing Machine cannot get enough water (even
though your water tap is open), it means that these filters will
need cleaning.
9REMOVE THE WATER INLET HOSE
9REMOVE THE FILTERS FOUND ON THE WATER INLET VALVES BY USING
PLIERS AND WASH THOROUGHLY WITH A BRUSH.
9CLEAN THE FILTERS OF THE WATER INLET HOSES AT THE TAP SIDE BY
MANUALLY REMOVING THEM AND THE SEAL.
9AFTER CLEANING THE FILTERS, FIT THEM BACK IN THE SAME WAY AS
YOU HAD REMOVED THEM.
_________________________________________________________
PUMP FILTER
The PUMP FILTER SYSTEM prolongs the life of your PUMP, which drains
away the dirty water. It also keeps lint from entering the pump.
You should clean your pump filter every 2-3 months.
To clean your PUMP FILTER, see the diagram and instructions on
the following page:

17
9Remove the kick-plate by pushing it upwards with your hands
away from the lower securing claws and pulling it towards
yourself.
9Before opening the filter cover, place a cup in front of the filter
cover to prevent flow of the remaining water in the machine.
9Loosen the filter cover by rotating it anti-clockwise and drain the
water.
9Remove the foreign materials and build-up from the filter.
9Check that the pump can rotate with your hand.
9After cleaning the pump, fit the filter cover back on by rotating it
clockwise.
9Fit the kick-plate back into place, watching how the claws latch
into place, and push it closed.
* NOTE: Do not forget that if you do not fit the filter
cover properly, it will leak water!

18
Cleaning the Detergent Drawer
Detergents may form sediment in your detergent drawer or in the
housing of the detergent drawer over time.
•To clean the sediment, pull out the detergent drawer from time to
time.
To pull out the detergent drawer:
•Pull the detergent drawer to the end. (Diagram 1)
•Lift the front of the drawer and pull it out (Diagram 2)
•After the drawer has dried off, put it back into its housing the
same way you had pulled it out.
Cleaning the Siphon Plug
Pull out the detergent drawer. Remove the siphon plug and clean
the residues of the softener thoroughly. Fit the cleaned siphon plug
back in place. Make sure it is sitting properly in place.
DETERGENT DRAWER

19
Cleaning the Cabinet
9Clean the exterior surface of your machine with lukewarm water
and a cleaning substance that will not harm or scratch the cabinet.
After rinsing with clean water, wipe it with a soft and dry cloth.
PLEASE NOTE: If your washing machine is installed in a
location where the ambient temperature can fall below 0 °C, do
the following (once before you know your machine will be unused
for a long time).
oPlug in your Washing Machine.
oClose the water tap and pull out the water inlet hose or hoses from
the tap.
oPlace the ends of the water drain and water inlet hoses in a cup on
the ground.
oAdjust the program knob to ‘Draining’ program.
oThe ‘Program Ready’ light will come on.
oRun the program by pressing the ‘Start/Pause’ button.
oUnplug your machine when the program is over (program end light
is on).
* When you complete this process, the remaining water inside the
machine will be drained. There will now be no danger of ice forming.
When you use your washing machine again, be sure that the ambient
temperature is above 0 ° C.
Cleaning the Drum
*PLEASE NOTE: Do not leave metal parts like needles, staples or
coins inside your Washing Machine. These items cause rust buildup in
the drum. To clean these stains away, use a cleaning substance (that
doesn’t have chlorine in it) and follow the manufacturer’s guidelines.
Never use dish-washing wires or similarly rough objects.
*REMOVAL OF LIME FROM YOUR MACHINE
If you use the right amount of detergent in your washing machine,
there will be no need for lime removal. However, if you want to use
lime removers, please pay attention to their manufacturers’ warnings.

20
NOTES ON STAINS AND HOW TO REMOVE THEM FROM YOUR
CLOTHES
