Baxi Classic 2 719 User manual

5108604/04
OWNER GUIDE
This guide is intended to help you care for your gas fire. Please read thoroughly before
using and keep for future reference
This guide to be left with the owner
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)
WHEN CONVERTED USING CONVERSION KIT NO. 0595221 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31)
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).
Classic 2
Model 719
(GC No. 32-032-53)
INSET LIVE FUEL EFFECT GAS FIRE
Manufactured exclusively for British Gas & Scottish Gas by Valor Heating
For Service Phone [phone]
© Baxi Heating U.K. Ltd.

Safety First.
This gas fire is CE Approved and designed to meet the appropriate British Standards
and Safety Marks.
Quality and Excellence at the heart of every fire.
This fire has been manufactured to the highest standards of quality and excellence and
are manufactured under a BS EN ISO 9001 quality system accepted by the British
Standards Institute.
The Highest Standards
The manufacturer is a member of the Society of British Gas Industries which works to
ensure high standards of safety, quality and performance.
Careful Installation
The manufacturer is a CORGI registered company. All our gas fires must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Valor Heating, Erdington, Birmingham B24 9QP
www.valor.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
OWNER GUIDE

LIST OF CONTENTS
Section Page
SAFETY 4
APPLIANCE DIMENSIONS 5
GAS CONSUMPTION 6
OPERATING YOUR FIRE 6
The Oxysafe flame sensing and flue blockage safety system. 6
To light the fire. 7
To turn the fire off. 8
Lighting with a taper. 8
CLEANING YOUR FIRE 8
Metal Parts 8
Ceramic fuel effect and rear wall. 8
Burner. 9
FUEL BED REFITTING 9
MAINTENANCE 11
Battery replacement. 11
Regular maintenance. 11
Servicing. 11
Owner replaceable parts 12
This gas fire is designed to meet the most stringent quality, performance and safety
requirements to provide you with many years’ trouble-free service.
This guide aims to improve your understanding and appreciation of your gas fire by
providing simple and informative instructions to ensure that you benefit from the
excellent performance and features it has to offer.
Page 3
OWNER GUIDE

SAFETY
Do
have the fire installed by a competent person. In the United Kingdom, installation
must be in accordance with the latest edition of the Gas Safety (installation & use)
Regulations. In the Republic of Ireland, installation must be in accordance with all
national and local regulations in force.
Do
have the chimney swept prior to installation if it was previously used for solid fuel.
Do have the fire installed in accordance with the installation instructions
Do
provide a minimum clearance of 750mm from the top surface of the hearth to any
shelf made of wood or other combustible material where the shelf is not more than
150mm deep. For a shelf deeper than 150mm, add 12.5mm to the clearance for every
25mm of additional shelf depth (See graph1).
Do always use a fireguard complying with BS 8423 for the protection of young
children, the elderly or infirm.
Do wait three minutes before attempting to relight if the fire is switched off or the
flames are extinguished for any reason.(Your fire is fitted with a safety device that will
Page 4
OWNER GUIDE
IF YOU SMELL GAS
DON’T SMOKE
EXTINGUISH ALL NAKED FLAMES
DON’T TURN ELECTRICAL SWITCHES ON OR OFF
TURN OFF THE GAS SUPPLY AT THE METER
OPEN DOORS AND WINDOWS TO GET RID OF THE GAS
IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR LOCAL TELEPHONE
DIRECTORY
Graph 1. Combustible shelf clearances

automatically shut off the gas supply to the fire, if for any reason , the flame goes out)
Do get advice about the suitability of any wall covering near your fire. Soft wall
coverings (e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by
heat. They may, therefore, scorch or become discoloured when close to a heating
appliance. Please bear this in mind whenever you are considering redecorating.
Do
provide a minimum side clearance as detailed in figure 1. Please bear this in mind if
ever you are altering the room.
Don’t hang clothing, towels or any other fabrics over the fire.
Don’t
put more loose coals on the fire than the number given in this guide or use any
coals other than those authorised for this fire. Incorrect combustion could result.
Don’t put paper or other materials onto your fire.
Don’t use the fire with damaged base ceramics.
Don’t place any combustible material (rugs, carpet, plastic tiles, etc.) on the hearth
Don’t
attempt to clean or service the fire until it has been switched off and allowed to
cool completely.
APPLIANCE DIMENSIONS
Page 5
OWNER GUIDE

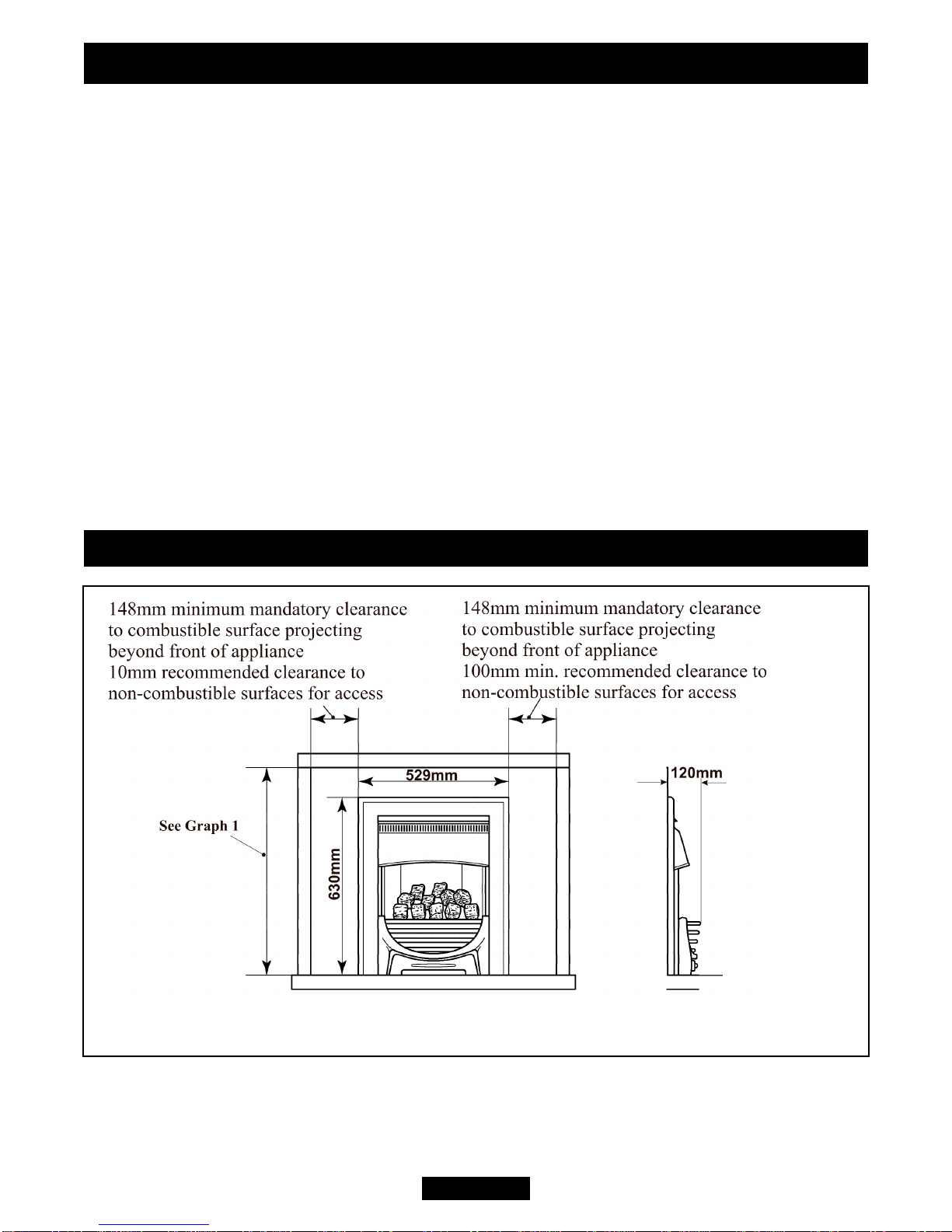

Figure 1. Appliance dimensions

GAS CONSUMPTION
Model 719
Has a maximum natural gas input of 6.0kW (Gross)
Has a maximum natural gas output of 3.5kW
Has a minimum natural gas input of 2.7kW (Gross)
Has a minimum natural gas output of 1.3kW
Model 719 when converted using kit number 0595221
Has a maximum propane gas input of 6.1kW (Gross)
Has a maximum propane gas output of 3.6kW
Has a minimum propane gas input of 4.3kW (Gross)
Has a minimum propane gas output of 2.1kW
OPERATING YOUR FIRE
The Oxysafe flame sensing and flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device which will
shut down the appliance in the event of abnormal flue conditions.
This device is NOT a
substitute for an independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame
goes out due to lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe which senses that the heat from the pilot flame is
correct. If this probe is cool, the device will prevent any gas flow unless the control
knob is held at the ignition position.
If, for any reason, the flames go out when the fire is hot or if the fire is turned off when
hot, always wait at least three minutes before attempting to relight.
Page 6
OWNER GUIDE
PLEASE NOTE
When operating your fire for the first time, some vapours may be given off which may
cause a slight odour and could possibly set off any smoke alarms in the immediate
vicinity. These vapours are quite normal with new appliances. They are totally harmless
and will disappear after a few hours use.

To light the fire.
The slide control is shown in figure 2.
1. Slide the control button to the bottom (ignition) position
marked . In this position, the electronic ignition system
should cause a series of sparks which should light the pilot.
Within four seconds of the pilot igniting, the main burner
should light at its minimum setting.
If no sparks are produced to light the pilot, the battery may
need replacing. Details of battery replacement are given
further on in this manual.
Until you can obtain a replacement battery the fire can be lit with a taper as described
later in the instructions.
2.
Keep the button at the ignition position for a further ten seconds. This will prevent
the flame-sensing device from shutting off the gas while its probe warms up as
explained above.
3.
If low heat is required, release the button. The button will automatically spring up to
the low heat position shown in figure 2 (See note i).
4.
For a higher heat level slide the button upwards. The burner flames and heat output
will gradually increase until the button reaches the high heat position shown in figure 2.
When the button reaches the high heat position you will feel a check to its movement.
Do not slide the button above the high heat position unless you want to turn the fire off
(See note i).
Notes:
i)
If the flames go out while setting the control, repeat the full lighting procedure. If
the flames repeatedly go out have the fire serviced.
ii)
Please note. When first turned on the flames will appear predominantly blue. The
coals will take time to warm up. Although some glow will be seen after approximately
ten minutes, the full visual effect will only be apparent after a somewhat longer time.
iii)
The appliance will operate to its maximum potential if the flue is primed during
the first 20 - 30 minutes of operation. To do this, simply slide the control button to its
highest setting. This will also burn off any carbon deposits that may have formed during
previous operations.
iv)
If operating the appliance for long periods it is beneficial occasionally to change
the settings. This will also help to remove any carbon deposits that may form during
operation.
Page 7
OWNER GUIDE
Figure 2.

To turn the fire off.
Slide the button up past the high heat position to the "O" position.
Both the main burner and the pilot should go out.
While cooling, the coals may make some crackling
noises. This is quite normal.
Lighting with a taper.
(See figure 3).
In the unlikely event of failure of the ignition
spark, the pilot can be lit by a taper or long spill.
Insert the taper or spill through the lower left hand
opening in the front of the fuel effect bed and
operate the slide control as described previously.
CLEANING YOUR FIRE
To maintain the high performance and quality finish of your appliance, please follow
these guidelines:
!
Before attempting to clean the fire, please remember to turn off the fire and wait for
the appliance to cool. The fire will retain heat for some time before cleaning can begin.
!
If any pieces of debris are found in the firebox, have the chimney inspected before
further use.
Metal parts
! Clean the metal parts with a slightly damp cloth and then dry.
! Do not use abrasive cleaners as these will scratch the fire surface.
Ceramic fuel effect and rear wall.
! This product uses fuel effect pieces and burner compartment rear wall
containing Refractory Ceramic Fibres (RCF), which are man-made vitreous
silicate fibres. Excessive exposure to this material may cause irritation to eyes, skin
and respiratory tract. Consequently, it is important to take care when handling
these articles to ensure that the release of dust is kept to a minimum.
!
Light coatings of soot will usually be burnt off during the normal operation of the
fire.
! Should any soot accumulation become excessive, the fuel effect pieces and walls
should be removed from the fire for cleaning.
!
Cleaning should be carried out in a well ventilated area or in the open air by gently
brushing with the pieces held away from your face so that you avoid inhaling the
dust.
!
We suggest that you remove the coals in the reverse order to that shown in the fuel
Page 8
OWNER GUIDE
Figure 3. Lighting with a taper

bed refitting instructions.
Burner.
! The burner surface can be carefully cleaned to remove any loose particles after
taking off the coals. Make sure that no particles are pushed into the burner holes.
FUEL BED REFITTING
The position of the fuel bed ceramic pieces is important. Do not alter the position of
the fuel bed ceramic pieces from that shown in this section of the owner guide.
1. Place the rear base coal in the firebox.
It should rest on the ledges at the rear
sides of the burner unit. When located
gently move the rear base coal so that it is
as far forward as possible. The amount of
movement will be negligible (See figure
4).
2. Place the front base coal in the firebox
with its bottom front locating over the
front rim of the firebox. Pull the coal
forward so that it locates immediately
behind the front rim of the firebox. (See
figure 5).The front base coal will touch
the rear base coal as it is located.
There are two types of loose coals. These are
identified with the letter “A” or “B” on the
underside of the coal.
There are three “A” coals and two “B” coals.
Page 9
OWNER GUIDE

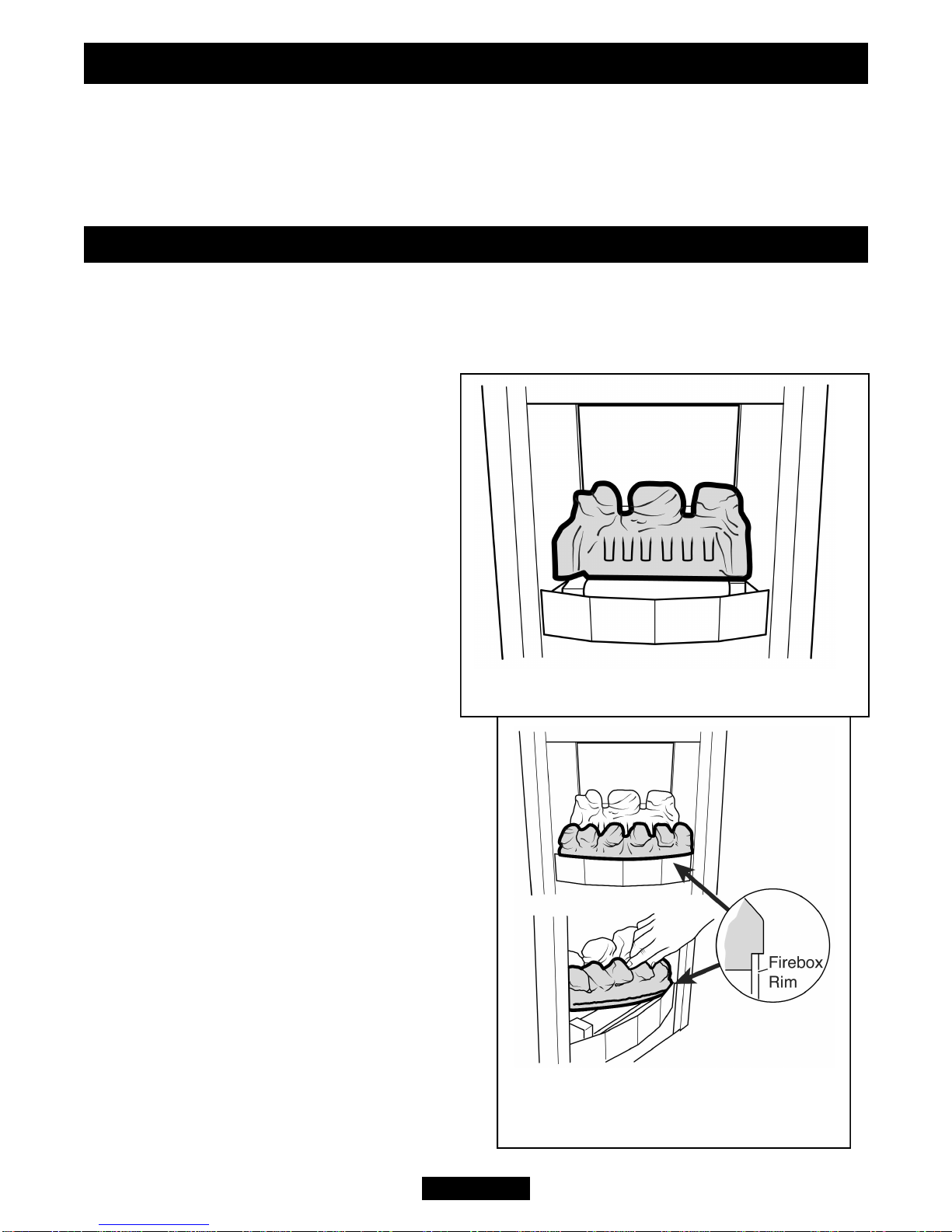

Figure 4. Rear Base Coal Position
Figure 5. Front base
coal position

3. Place a type “A” coal between the
front and rear base coals with the
letter “A” upright and so that the coal
is against the left side of the firebox.
See figure 6.
4. Place a type “B” coal between the
front and rear base coals as shown in
figure 7. The letter “B” should be
upright.
5. Place a type “A” coal between the
front and rear base coals with the
letter “A” upright. The top of the
coal should rest against the centre
coal of the rear base coal as shown
in figure 8.
6. Place the remaining type “B” coal
at the right side of the firebox
between the front and rear base coals.
The letter “B” should be upright. The
coal should touch the right side of the
firebox. See figure 9.
7. Place the remaining type “A”
coal between the front and rear base
coals. The letter “A” should be
upside down with its rear face
between the right and centre coals
of the rear base coal. Angle the coal
so that the gap between it and the
type “B” coal to its right is
appreciably larger than the gap
between it and the type “A” coal to its
left but do not have it touching the
type “A” coal. This will give the best
flame effect. See figure 10.
Page 10
OWNER GUIDE
Figure 9.
Figure 10.
Figure 8.
Figure 7.
Figure 6.

MAINTENANCE
Battery replacement.
The igniter unit uses a 9V PP3 battery. To replace the
battery remove the firefront casting / front cover
casting.
1. Remove and discard the battery from the ignition
block located below the burner tray at the left side.
2. Fit the replacement battery to the ignition block.
(See figure 11). The positive terminal (+) is to the top
as you insert.
3. Replace the firefront casting /front cover casting.
Regular maintenance.
In order to achieve and maintain high levels of personal safety and performance
efficiency, it is essential that the opening at the back of the fire and the flue are kept
clear of any form of obstruction. It is possible that deposits of mortar or soot could fall
and accumulate causing the flue to be blocked or restricted and so preventing proper
clearance of dangerous exhaust fumes.
In the United Kingdom it is the law that a landlord must have any gas appliance, flue
and pipework which is situated in a tenant’s premises checked for safety at least every
twelve months by a competent person (In the U.K, a CORGI registered installer).
We recommend that all gas appliances and their flues, wherever situated, are checked
annually.
Servicing.
! If you require your fire to be serviced, please contact British Gas or Scottish Gas
TELEPHONE [phone] and please quote the following details which can be
found on a ‘swing’ plate located below the burner behind the bottom hearth casting
a) Model and G.C. number.
b) Serial Number (To be found on a ‘swing’ plate located below the burner and
behind the bottom front cover).
!
If you wish to replace any of the owner replaceable parts listed below please quote
the part number shown below.
Page 11
OWNER GUIDE

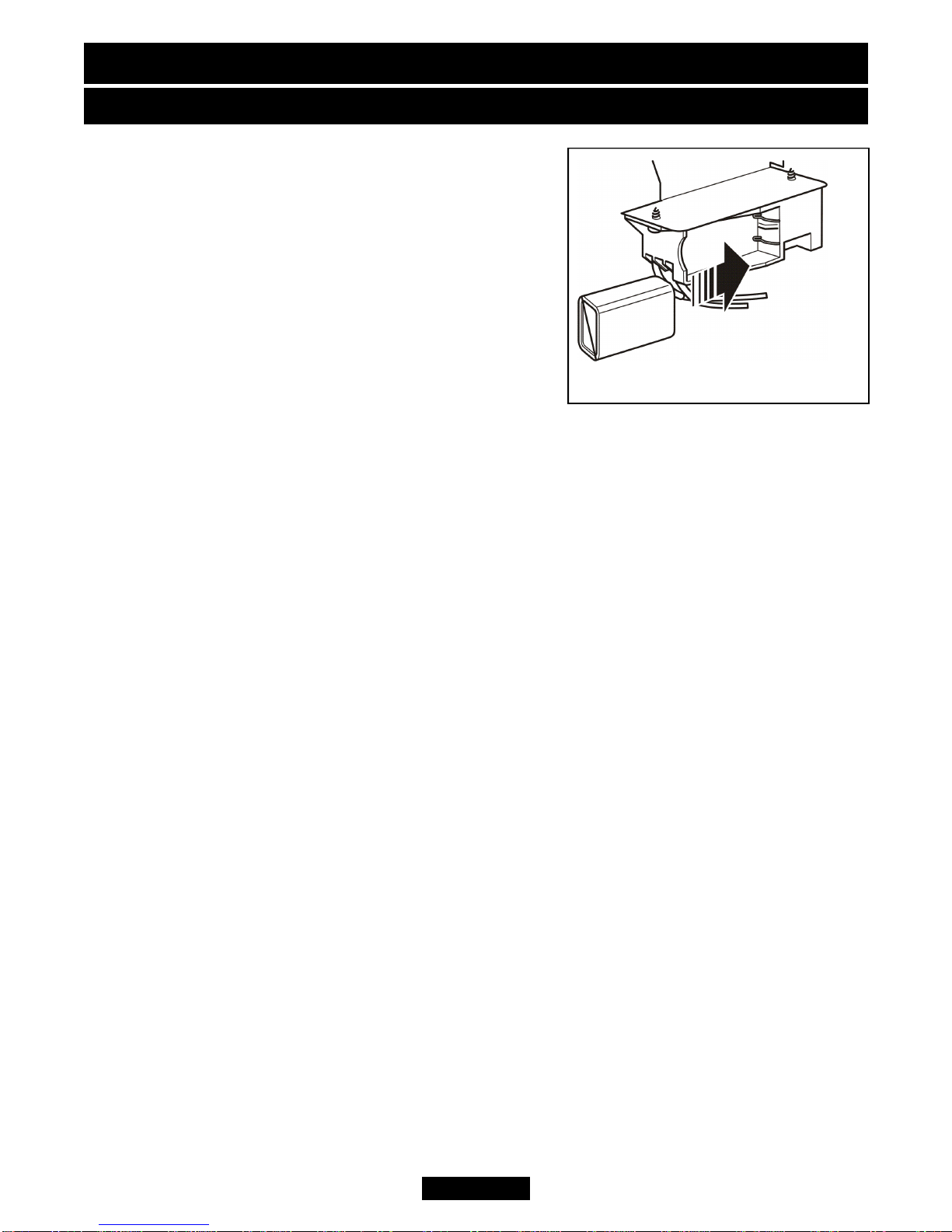

Figure 11. Fitting the battery

Owner replaceable parts
Description Part No
Ceramic rear wall 0579399
Front coal 5108541
Rear base coal 5108542
Pack of loose coals 0582839
!
When fitting replacement parts, follow the instructions contained in this guide.
It is important that only approved parts are used for maximum safety.
Page 12
OWNER GUIDE
