Baxi BERMUDA BBU HE User manual

Bermuda BBU HE
Baxi Bermuda high efciency
Back Boiler Unit with Valor
Dimension
™ Firefront
372075-03.indd 1 01/06/2010 14:34

Baxi’s commitment to innovation, technology and
excellence has defined the company since 1866.
Creating efficient heating and hot water solutions is
all we think about. It’s the reason we’re always one
step ahead and able to create products that meet
your needs.
The original Baxi Bermuda Back Boiler Unit (BBU),
launched in 1966, was so practical and reliable that
Baxi installations accounted for 80% of the back
boilers installed in the UK. Times changed and so did
boilers, but with the introduction of our innovative new
Bermuda BBU HE we continue our tradition of back
boiler expertise. As the only high efficiency BBU in the
UK, it’s the easiest way to replace an existing BBU.
An integral part of a BBU solution is the Valor
Dimension™ range of fires. Valor fires have been
keeping millions of homes warm and cosy since our
initial production of portable oil
heaters in 1902.
Outstanding technological developments and continual
investment in product design have ensured Valor remain
at the forefront of the heating industry.
Part of the Baxi Group and one of the largest UK
manufacturers of electric fire products, Valor produce
The next generation Baxi
Bermuda Back Boiler Unit
Bermuda BBU HE
a range that includes traditional and contemporary
styles, from stand-alone units to suites and surrounds.
Together with Baxi boilers, they provide a complete
heating package.
Package Details
Baxi Bermuda BBU HE p 3, 8 & 9
Valor Dimension™ BBU Range of Firefronts p 4 - 6
Flue Kits & Installation p10 - 11
Optional Extras
Marble Back Panel and Hearths p 6
Surround Sets/Surrounds p 7 & 12
Boiler Accessories p 9
Flue Pull Cone p10
Spacers and Rebated Surrounds p13
2
Gas Industry
Innovation Award 2010
372075-03.indd 2 01/06/2010 14:35

Key features and benefits
l Trusted, reliable Baxi back boiler technology, for
complete peace of mind
l High efficiency back boiler, meeting all current
legislation
l SEDBUK Band A rated, saves energy and reduces
heating bills
l 15kW heat output; modulating boiler adapts to
heat demand ensuring optimum performance at all
times
l Room sealed appliance; eliminating the need for
air vents in the room
l Built in condensate pump and no pump overrun
required, to ease installation
l Factory set to enable easy boiler commissioning
l Simple to use external boiler controls located on
the dedicated Valor Dimension™ firefront
l Single piece flexible concentric flue; eliminates the
need to provide flue inspection access
l 2 year warranty *
l Quiet in operation
*Subject to registration and an annual service
Easy to fit,
efficient to run
Benefits of replacing an old BBU
with a Baxi Bermuda BBU HE
l
The simplest, most convenient way to replace a BBU
- No need to re-site the boiler and modify the pipe work
- No loss of valuable kitchen cupboard space
- No major disruption or redecoration to the property
- The only like-for-like replacement in the UK
l It's the only high efficiency BBU in the UK
- Fully compliant with Building Regulations Part L
- Saves energy – replacing an old boiler can save up
to a quarter on an annual fuel bill *
*Energy Saving Trust, August 2009
3

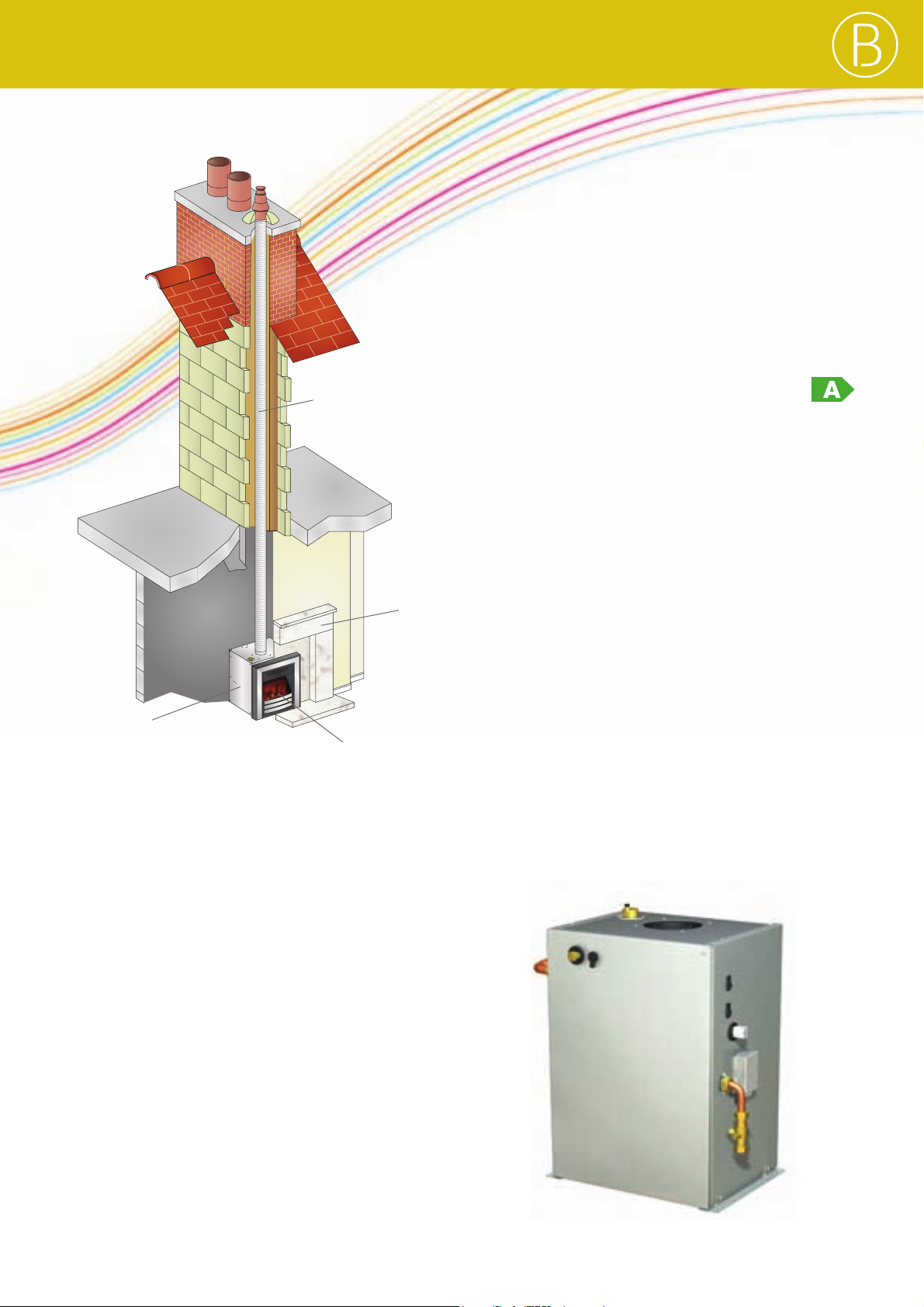

Valor Dimension™ BBU Firefront
(various options
available in the range)
Flue
(10m and 12.5m options
available)
Surround
(various surround
sets/surrounds
available)
Baxi Bermuda Back Boiler
Unit (BBU HE)
372075-03.indd 3 01/06/2010 14:35

Give your fireplace a new
dimension with the Valor
Dimension™ range of fires
The Baxi Bermuda BBU HE has been specifically
designed to work with the Valor Dimension™ range of
BBU Firefronts. The new DimensionTM range of electric
Firefronts from Valor uses cutting edge technology
to create the world’s most authentic ‘real fire effect’.
Redefining the market for fuel effect electric fires, the
Valor DimensionTM range offers both traditional and
contemporary styles, backed by the quality, reliability
and peace of mind you would expect from the leading
name in home heating. It’s a totally new way of enjoying
the atmosphere that only a real fire can create – all at
the press of a button.
Key features and benefits
l Revolutionary, patented fuel bed, with 'real fire effect'
l Traditional and contemporary fire front designs
l Running costs for the fire using the 'effect', are
less than 2p per day
l Heat outputs of 1kW and 2kW
l No servicing required
l The BBU firefront range is a unique range dedicated
to the Baxi Bermuda Back Boiler Unit package
Bermuda BBU HE
4

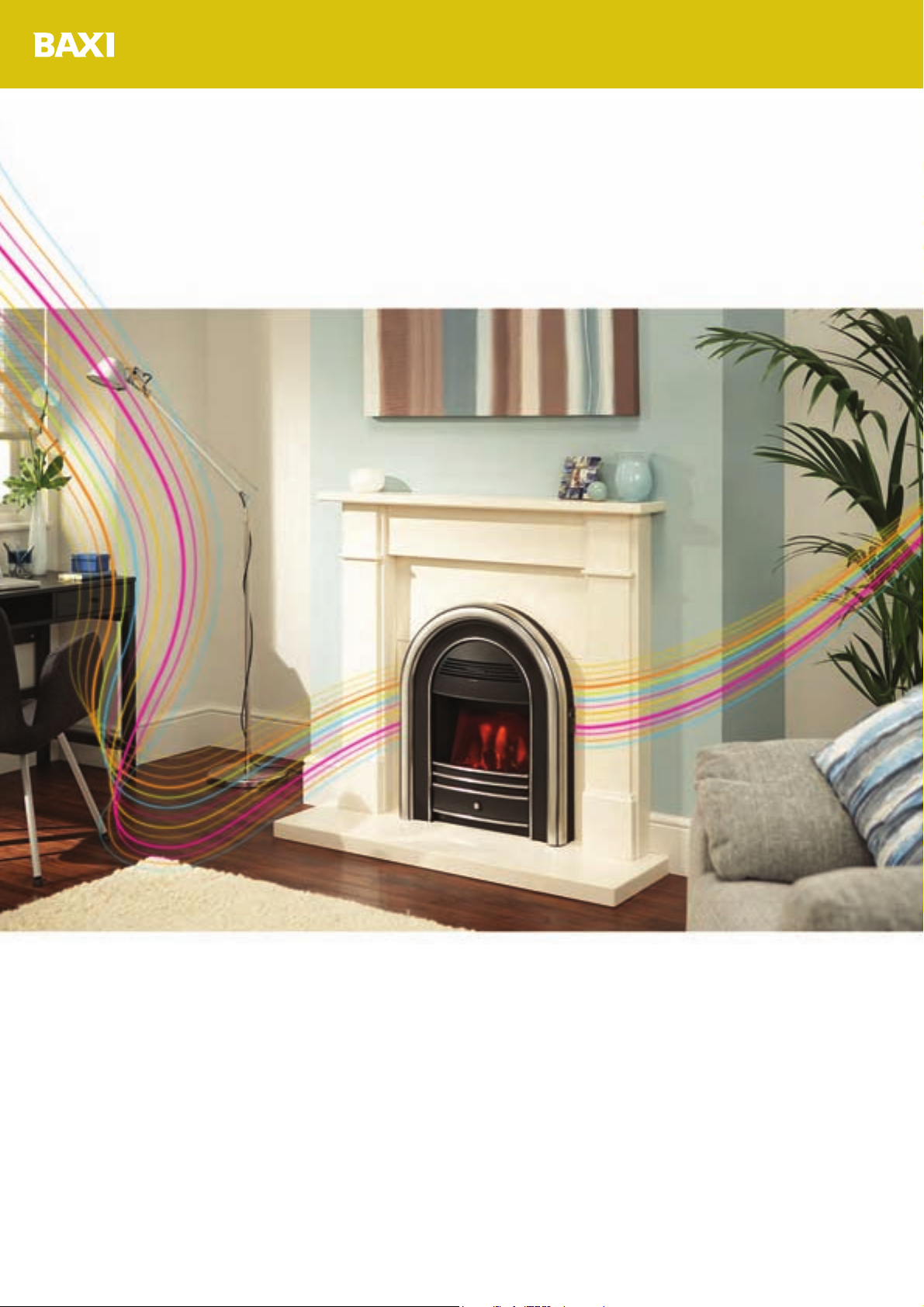

Valor DimensionTM Regalia with Olympia Surround
Featured on Front Cover Valor DimensionTM Dream with Clarissa Oak Surround
Valor DimensionTM BBU HE Range
372075-03.indd 4 01/06/2010 14:35

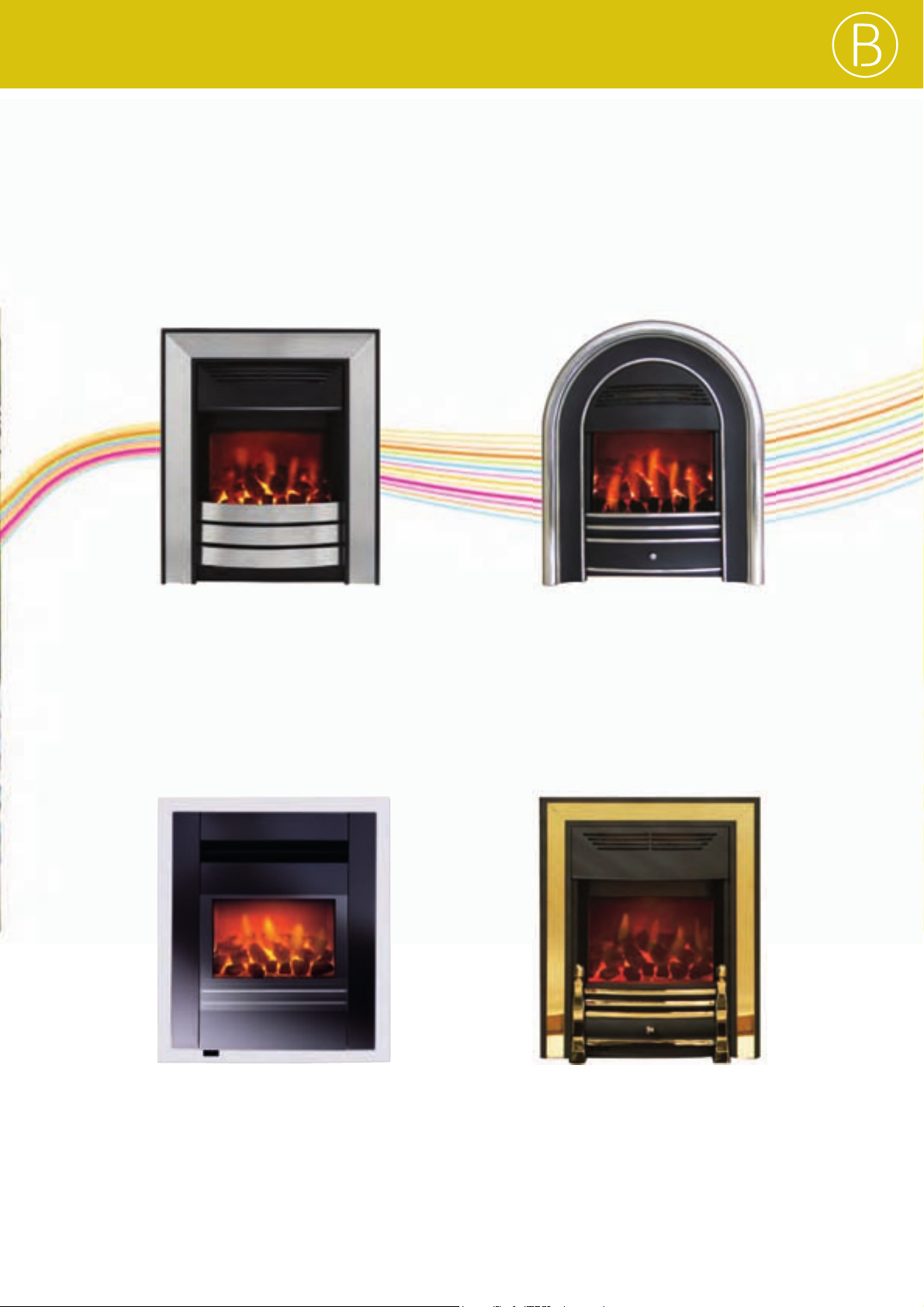

A 'real fire effect' that makes a
real statement
Regalia
Designed with total attention to detail the Regalia has
been created to reect an original style Victorian arch
replace. Its elegant contours make a statement that
is neither fussy nor amboyant and will form a natural
centrepiece to any room.
Innova
Whether it’s switched on or off the Innova re makes
a style statement. The elegant glass and silver design,
combined with ‘real re effect’ technology, creates an
extraordinary focal point for any room. Innova can be
wall mounted or hearth mounted.
Lyrica
The Lyrica design is inspired by traditional redogs and
incorporates them into a free-standing fret design. It
creates an imposing feature that establishes a sense of
tradition without intricate detailing.
Nano
Nano’s sleek stylish appeal and clean lines allow the
innovative DimensionTM effect to take centre stage.
The generous prole of the inset inlays perfectly frame
the full depth 'real re effect' to create a modern and
sophisticated style.
5
372075-03.indd 5 01/06/2010 14:35

Bermuda BBU HE
Revolutionary new Solo-Pro marble or granite solution on a lightweight frame provides a hearth and back panel that is
70% lighter and 80% stronger than bonded marble. It looks stunning and can be tted simply and quickly without the need
for expert
help. It can expand for use with 405mm (16") or 450mm (18") replace openings and is available in black granite,
cream or white micro marble.
Discover the beauty of Valor fires
Dream
From its solid cast iron fascia with plating, to the faithful
nishing and hand craftsmanship, Dream's high quality
showcases timeless beauty along with Valor’s cutting
edge technology.
Classica
The Classica combines a traditional solid cast iron
fascia with authentic hand nishing and honest
materials, to create a design that is both modern
and simple.
6
GOLD CHROME
BLACK
BLACK GRANITE WHITE MICRO MARBLE
CREAM MICRO MARBLE
BLACK PEWTER
BRASS
Solo-Pro Back Panel and Hearth
Match your choice of re and suround with a back panel and hearth. The back panel lls the space between the re and
surround whilst the hearth is positioned on the oor to support the re surround.
372075-03.indd 6 01/06/2010 14:35

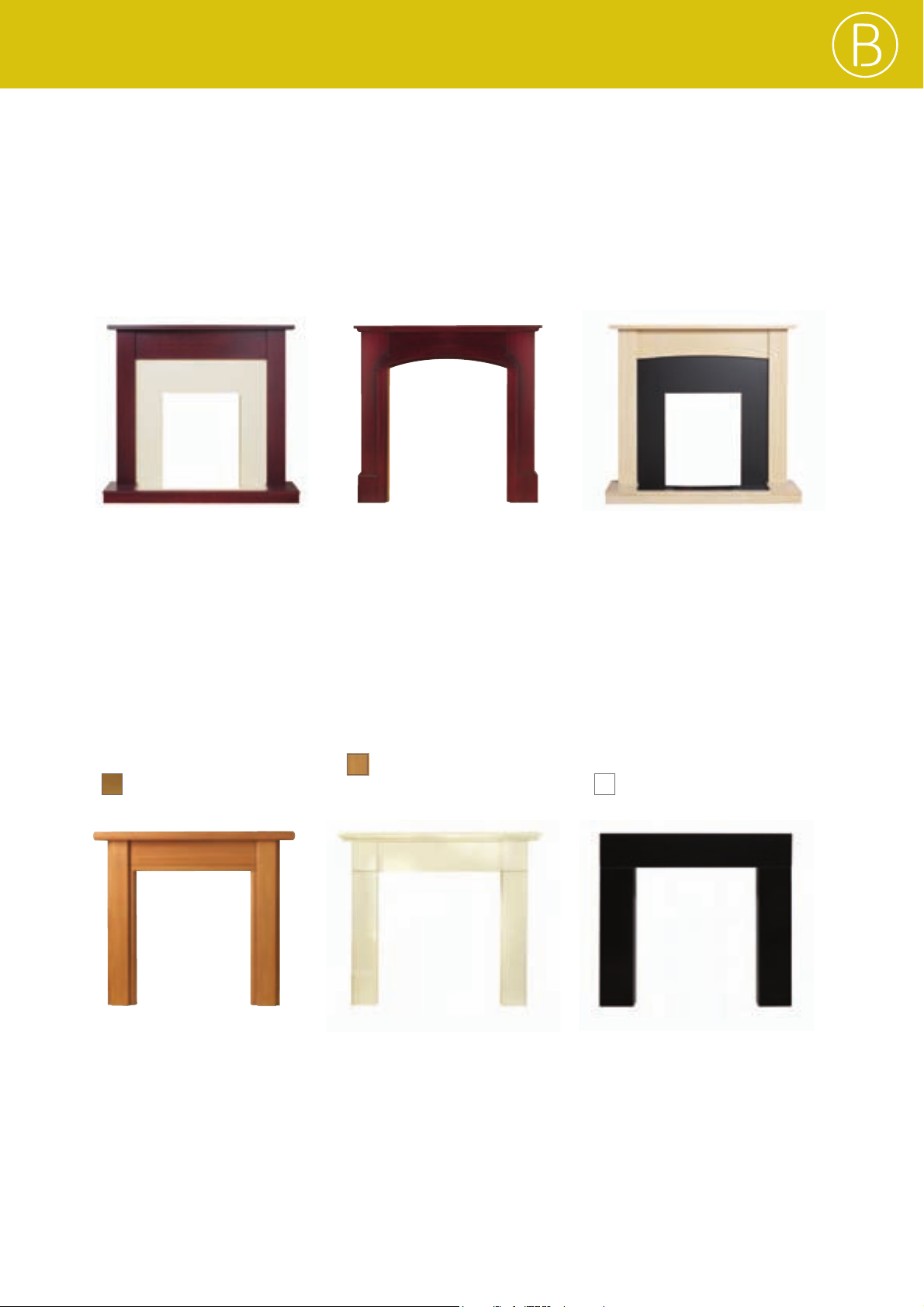

Medway Surround Set
The Medway provides the quality of
a real wood veneer surround and
hearth, while the fully assembled
surround sets, which come complete
with hearth and backpanel, save time
on installation. A 75mm (3") rebate
ensures additional space is available
for the re rear where required.
Finishes also available in
Teviot Surround Set
The Teviot provides the quality of a
real wood veneer surround and
hearth, while the fully assembled
surround sets, which come complete
with hearth and backpanel, save time
on installation. A 75mm (3") rebate
ensures additional space is available
for the re rear where required.
Finishes also available in
Calista Surround
The Calista comes in four easy to
assemble pieces and the 150mm
(6") rebated Oak version ensures
additional space is available for the
re rear where required. The Calista
is also supplied with xing strips for
Solo-Pro back panels and hearths.
Finishes also available in
MAHOGANY MAHOGANY MAPLE
Stylish surroundings for any home
Choose the perfect design to complement your choice of re. Select a surround and match it to a back panel and hearth
or nd a surround that comes with back panel and hearth included. Rebated surrounds are available for properties where the
chimney space cannot accommodate the BBU HE and the Valor DimensionTM re engine. Please see page 13 for details.
Barcelona Surround
A revolutionary lightweight granite
solution that provides the height of
contemporary style. The Barcelona
comes in a natural granite veneer
and three easy to assemble pieces.
A 150mm (6") rebated version is
available to provide additional space
for the re rear where required.
Olympia Surround
Olympia's classic design can be used
in both period and modern interiors.
It's a revolutionary lightweight marble
solution that comes in cream micro
marble veneer and three easy to
assemble pieces.
Clarissa Surround
Understated elegance in an Oak
nish, the Clarissa comes in four
pieces for ease of installation, and is
supplied with xing strips for Solo-
Pro back panels and hearths.
7
NATURAL OAK WHITE
OAK
372075-03.indd 7 01/06/2010 14:35

BBU HE Technical Specification

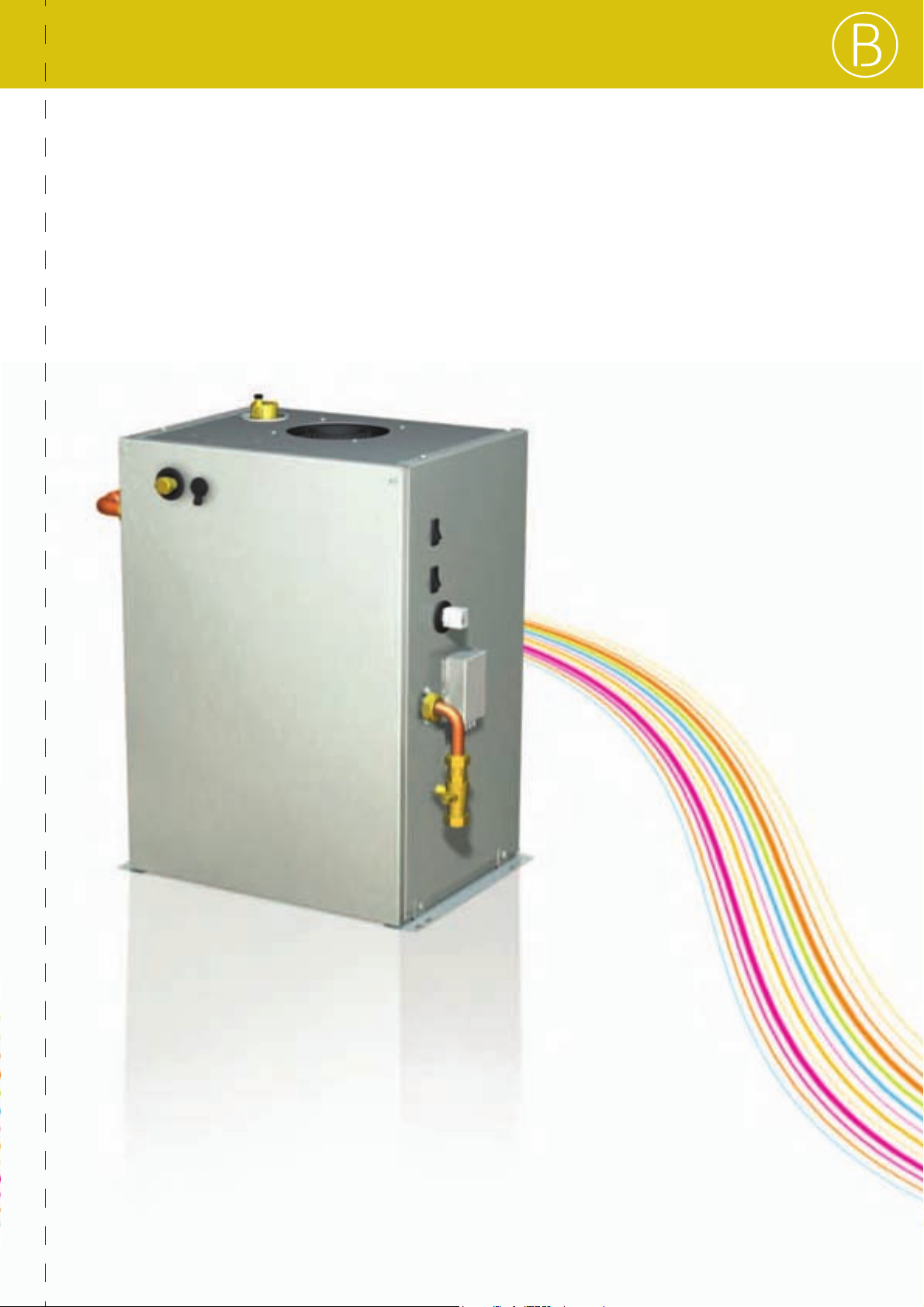

The 3D diagram below displays the key components of the Baxi Bermuda BBU HE.
1. Automatic Air Vent 11. Fan
2. Flue Connection 12. Drain
3. Spark Generator (located behind PCB) 13. Return Connection
4. Spark & Sensing Electrodes (located behind PCB) 14. Air Sampling Point
5. Heat Exchanger (located behind PCB) 15. Flue Sampling Point
6. User Interface Connector 16. Flow Connection
7. Control Wiring Connector 17. Condensate Outlet
8. Condensate Sump 18. PCB Control Box
9. Gas Cock 19. Boiler Control (cover open)
10. Condensate Pump
Bermuda BBU HE
8
372075-03.indd 8 01/06/2010 14:35

560mm min
SURROUND OR FINISHED
WALL FACE
560mm minimum 590mm maximum
570mm minimum
305mm minimum
Solid, non combustible hearth
to support the boiler,
as specified in BS 5871.
HEARTH
LEVEL
Fireplace
Opening
390mm min
490mm max
584mm min
595mm max
570mm min
Builders
Opening
(575mm max Valour Dimension
Regalia ONLY )
560mm min
SURROUND OR FINISHED
WALL FACE
560mm minimum 590mm maximum
570mm minimum
305mm minimum
Solid, non combustible hearth
to support the boiler,
as specified in BS 5871.
HEARTH
LEVEL
Fireplace
Opening
390mm min
490mm max
584mm min
595mm max
570mm min
Builders
Opening
(575mm max Valour Dimension
Regalia ONLY )
538mm
306mm
383mm
9
Boiler dimensions
Site requirements†
Site requirements†

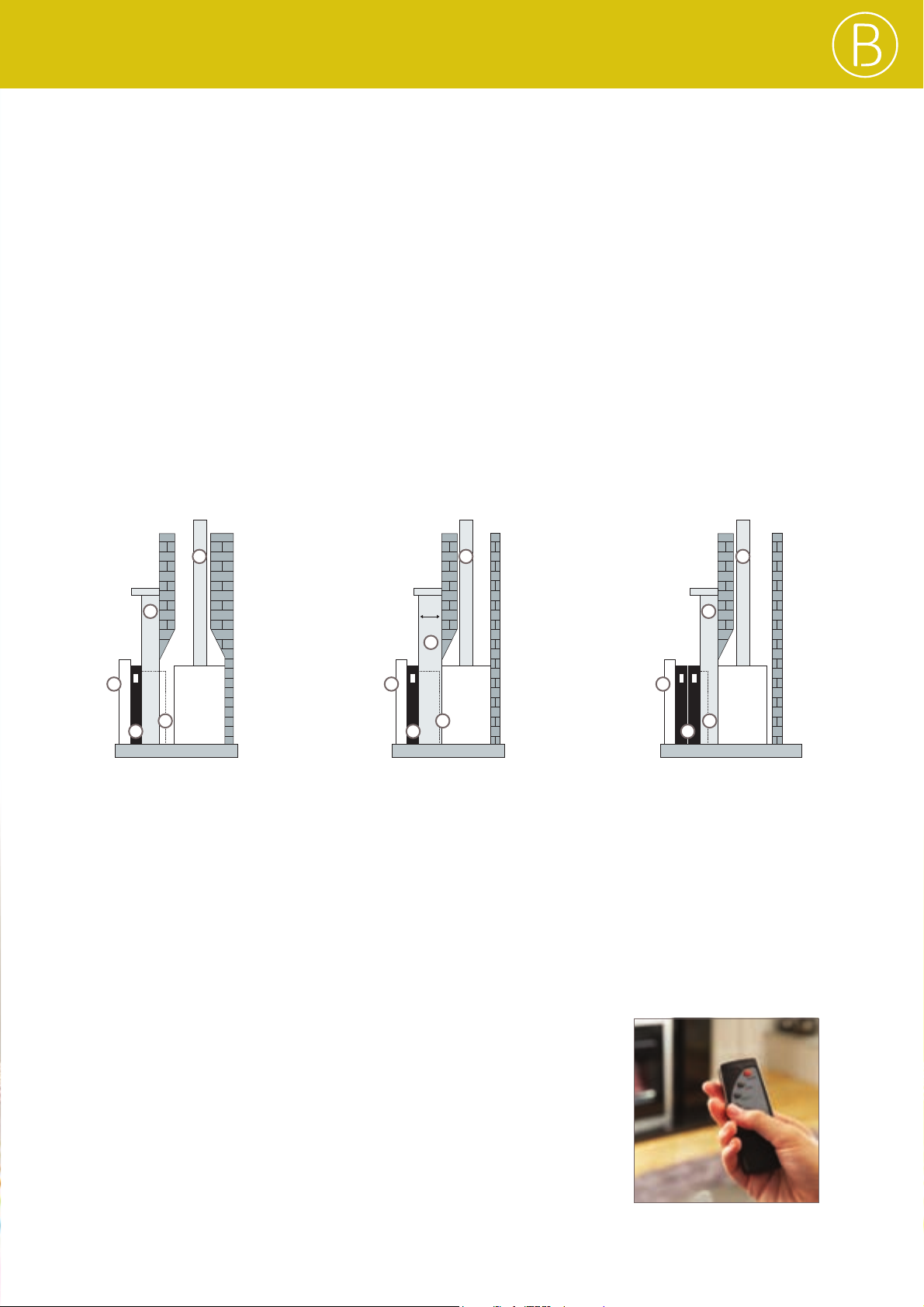

1 To accommodate the firefront without the need for additional spacers, there must be a gap of at least 95mm from the surround or finished face to the front
of the boiler.
2 If necessary this gap can be increased by the use of Frame Extension Kits. Each extension increases the effective depth of the opening by up to 50mm.
Alternatively, a range of rebated fire surrounds are available (please see page 13 for details).
Baxi Bermuda BBU HE
CONTROLS
Boiler Sales Code 710153301
Concealed User Controls Yes
User Adjustable CH Temperature Factory Preset
LED Status/Fault Diagnosis Display Yes
GAS
Gas Supply Pipe Size mm 15mm compression
Natural Gas Yes
LPG (Butane/Propane) No
Nominal Inlet Supply Pressure m3/hr 20
Maximum Gas Rate 1.63
Heat Input Central Heating kW Max Gross 17.1
kW Max Net 15.38
Heat Output CH Non Condensing kW Max 15
Heat Output CH Condensing kW Max 15.7
Seasonal Efciency % 90.1
SEDBUK Rating Band A
Nox Class 5
Nox Levels mg/kWh 31
ELECTRICAL
Electrical Supply Volts/Hz 230/50Hz
Permanent Live Required Yes
Electrical Cable Required 3 core x 0.75mm2
Power Consumption Watts 112
External Fuse Rating Amps 3
Internal Fuse Rating Amps 3.15
Ingress Protection Rating IPXO
Pump Overrun
not required
MECHANICAL & HYDRAULIC
Compartment Ventilation Required No
Flow & Return Pipe Size mm 22 male copper
Condensate Discharge Pipe Connection mm 10
Bypass Required Yes (pressure operated)
Vertical Pipe Route no inverted pipework permitted
CH System Inhibitor Required Yes
CONCENTRIC FLUE SYSTEM
Outside Diameter mm 10 0
Max Equivalent Length Vertical m 10 or 12.5
WEIGHTS
Max Installer Lift Weight kg 27
Gross Packaged Boiler Weight kg 28
ACCESSORIES
Right Hand Plumb Kit Sales Code 720111701
BBU Condensate Pipe Adaptor Sales Code 720415801
372075-03.indd 9 01/06/2010 14:35

Fitting the flue
The Baxi Bermuda BBU HE is only suitable for use with the following flue kits:
The Baxi Bermuda BBU HE
Flue Kit
* The flue pull cone must be used for pulling the concentric flexible flue down the chimney. The flue pull cone can then be retained for future installations.
Description Specication OD Dimensions Sales Code
10m Concentric Flexible Flue Complete with terminal 100mm 710143901
12.5m Concentric Flexible Flue Complete with terminal 100mm 710144001
Flue Pull Cone * 100mm 720111801
Bermuda BBU HE
1. Terminal Cap
2. Flue Duct Adaptor
3. Air Cowl
4. Air Duct Collar
5. Air Duct Clamp
6. Closure Plate
7. Boiler Adaptor
8. 60mm Ø Seal
9. Collar Securing Screws x 4
10. 100mm Ø Seal
11. 60mm Ø Flue Duct
12. 100mm Ø Air Duct
13. ‘C’ Clip
1
2
3
4
5
6
7
8
9
10
8
11
12
13
10
1. Terminal Cap
2. Flue Duct Adaptor
3. Air Cowl
4. Air Duct Collar
5. Air Duct Clamp
6. Closure Plate
7. Boiler Adaptor
8. 60mm O Seal
9. Collar Securing Screws x 4
10. 100mm O Seal
11. 60mm O Flue Duct
not shown
12. 100mm O Air Duct
not shown
13. 'C' Clip
372075-03.indd 10 01/06/2010 14:35

Flue Installation Guide
11
1. Points 2-6 cover general guidelines for flue installation.
For more detailed recommendations, please refer to BS
5440 Part 1 (GB) or I.S. 813 'Domestic Gas Installations'
(IE).
2. Only one of the two available concentric vertical flue kits
approved for use with the Baxi Bermuda BBU HE can
be used. Proprietary flue systems, terminals or adaptors
etc, should NOT be used.
3. The available flue kits are intended for installation within
an existing chimney. This should be clean and sound.
Previous flue installations (liners, dampeners) should
be removed.
4. The flue must have a minimum vertical height of 3m
and have no bends greater than 45°. No horizontal runs
are permitted.
5. The terminal must be sited so that free passage of air
across it can occur at all times.
6. The terminal must be a minimum of 150mm from any
other terminals or obstructions (A). When adjacent to
windows or openings on pitched or flat roofs it must be
at least 600mm away (B). A minimum dimension of
2000mm must be maintained when below windows or
openings in pitched roofs (C).
372075-03.indd 11 01/06/2010 14:35

Bermuda BBU HE
Valor Fire, Surround, Back Panel
and Hearth Technical Specification
FIRES All measurements given in mm
Model Fire only Boiler & Fire Fascia Height Fascia Width Fascia Depth Engine Depth Spacer Depth
Valor DimensionTM Classica Brass BBU Firefront = 0584721 720330701 615 512 51 144 50
Valor DimensionTM Classica Pewter BBU Firefront = 0584701 720330801 615 512 51 144 50
Valor DimensionTM Classica Black BBU Firefront = 05847B1 720330901 615 512 51 144 50
Valor DimensionTM Dream Gold BBU Firefront = 05847C1 720331001 636 518 79 144 50
Valor DimensionTM Dream Chrome BBU Firefront = 05847D1 720331101 636 518 79 144 50
Valor DimensionTM Dream Black BBU Firefront = 05847E1 720331201 636 518 79 144 50
Valor DimensionTM Innova BBU Firefront = 0584711 720331301 632 542 38 144 50
Valor DimensionTM Regalia BBU Firefront = 05847A1 720331401 720 600 45 144 50
Valor DimensionTM Nano Chrome BBU Firefront = 0584521 720331501 616 512 49 144 50
Valor DimensionTM Lyrica BBU Firefront = 0584511 720331601 612 510 74 144 50
SURROUNDS* AND ACCESSORIES All measurements given in mm
Model Part Number Height Width Depth Rebate
Calista Oak 6" Rebate Surround 05070P3 1084 1230 220 150
Barcelona Black 6" Rebate Solo-pro Surround 0507052 1032 1170 200 150
Calista Oak Surround 05070B1 1084 1230 190 75/25
Calista Mahogany Surround 05070C1 1084 1230 190 75/25
Clarissa Oak Surround 05070A1 1097 1230 190 75/25
Barcelona Black Surround 05070M2 1032 1170 150 25
Olympia Cream Surround 05070G2 1055 1180 170 25
Teviot White Surround Set 05070W3 1100 1200 380 75
Teviot Maple Surround Set 05070X2 1100 1200 380 75
Medway Oak Surround Set 05070X3 1100 1200 380 75
Medway Mahogany Surround Set 05070Y2 1100 1200 380 75
Solo-Pro 48" Hearth with Back Panel Black 0507011 990 1220 375 NA
Solo-Pro 48" Hearth with Back Panel Cream 0507001 990 1220 375 NA
Solo-Pro 48" Hearth with Back Panel White 0507012 990 1220 375 NA
Classica, Lyrica, Nano & Innova Spacer Kit 5135632 610 503 50 NA
Regalia Spacer Kit 5135633 715 586 50 NA
Dream Spacer Kit 5135634 625 504 50 NA
12
* Please note that a fire surround (new or existing) is required to complete the installation in order to conceal the builders opening.
=This fire is floor standing only.
Valor DimensionTM Lyrica Brass with Medway Surround
372075-03.indd 12 01/06/2010 14:35

Valor Fire, Surround, Back Panel
and Hearth Technical Specification Spacers and Rebated Surrounds
When fitting a BBU HE unit with a Valor DimensionTM fire engine, both the unit and the back of the fire need to be contained within
the chimney space. For installations where this space is not sufficient there are two options available:
1. Using a rebated surround: This is the simplest and most discrete solution. Rebated surrounds have a smaller inside return on
both the legs and top panel. This allows the back panel to sit further forward, away from the wall, creating a larger space for the
BBU HE and DimensionTM fire engine.
2. Using spacer kits: If a rebated surround is not an option, either because the customer wishes to keep their existing surround,
or has selected a surround that is not available with a rebate, an additional spacer kit can be used. In these instances, the back
panel is fitted as normal, and the DimensionTM fire engine which is visible beyond the back panel is covered with an additional
spacer kit. The BBU HE spacer kits are 50mm deep, and can be joined together to achieve the required depth.
Controls
A remote control is supplied with the Classica, Innova, Regalia and Dream fires. The
Lyrica and Nano models have built in manual controls. Both the remote control and
the manual control allow settings for 'On/Off', ‘Effect Only’, ‘Low 1kW heating’ and
‘High 2kW heating’.
13
1. Standard surround 3. Spacer frame 5. Rebated surround
2. Valor DimensionTM firefront 4. Valor DimensionTM fire engine 6. Flue
BBU HE with
additional spacers
BBU HE
Standard BBU HE
installation
BBU HE
3
2
1
6
4
BBU HE with
rebated surround
BBU HE
3
2
5
6
43
2
1
6
4
372075-03.indd 13 01/06/2010 14:35

Bermuda BBU HE
Alternative Solutions
To ensure all heating and hot water demands are satisfied, and the new BBU installation runs smoothly, it is important that
you assess the minimum site requirements. To help you with the assessment, please refer to the site survey on page 18.
It will help you determine whether a replacement BBU is the most appropriate application and which components you need.
If the BBU HE does not meet your requirements, Baxi Group has the solution for you.
The Baxi Group
Baxi Group is one of Europe's biggest manufacturers and distributors of domestic and commercial water and space
heating systems. The group includes some of the best known and most respected brands in the heating industry: Baxi,
Elson, Heatrae Sadia, Valor, Andrews Water Heaters, Santon and Potterton Commercial.
Baxi Boilers
If the property doesn’t meet the minimum site requirements for the installation of a Baxi Bermuda BBU HE, you can still
take advantage of our range of high efficiency boilers to update your system. They are all built to the same high standard
of quality, reliability and efficiency.
Baxi Duo-tec Combi HE A
Baxi’s award winning range of high
efciency combi boilers is available
in 24, 28, 33 and 40 kW outputs.
LPG Models are also available.
Baxi Megao System HE A
Baxi’s system boiler range is available
in 15, 18, 24, 28 and 32 kW outputs.
LPG Models are also available.
Baxi Solo HE
Baxi’s heat only boiler range is
available in 12, 15, 28, 24 and
30 kW outputs.
For further information visit www.baxigroup.com/uk
14
372075-03.indd 14 01/06/2010 14:35

Megao HE
The Megao HE is an unvented
cylinder, delivers mains pressure
hot water and is available in
70-300 litre capacities in both
direct and indirect versions.
Valor Dream
Hydroame
This unique product
provides the real fire look
but works like a radiator –
it installs directly to the
central heating circuit with
an output of up to 2kW.
Valor Hydroflame can
replace an existing gas fire
to provide a safe and
controllable heat source
when replacing an existing
back boiler.
Valor Suites and
Surrounds
Valor offers a range of re
suites in a variety of
nishes suitable for any
living space. Valor has a
wide selection of surrounds
suitable for both gas and
electric res.
Valor Stoves
The Valor solid fuel stove
range is the authentic
heating experience which
provides both performance
and reliability.
Megalife Vented
The Megalife HE is a vented cylinder
available in 100-210 litre capacities
in both direct and indirect versions.
Megao Systemt
The Megao Systemt is a pre-plumbed
version of the Megao HE and is
designed to reduce on-site installation
time. It is available in 125-300 litre
capacities.
For further information visit www.baxigroup.com/uk 15
Valor Fires
To complete your replacement installation, create that all important focal point in the living room with a gas or electric fire
from Valor. Valor’s wide range of gas and electric fires and stoves come in a variety of style fronts to offer something for every
taste, from contemporary designs to traditional cast iron fires.
Heatrae Sadia Cylinders
For your hot water storage needs, put your trust in a stainless steel cylinder from Heatrae Sadia, the UK’s leading
manufacturer of hot water systems and home of the Megaflo unvented systems. Heatrae Sadia offers the best in innovation,
quality and reliability – backed up by a lifetime cylinder leak warranty.
Valor Gas Fires
Valor's wide range of gas
res offers high efciency
and exceptional heat
output. Valor has a variety
of design and style options
to suit all living spaces and
chimney types.
372075-03.indd 15 01/06/2010 14:35

Bermuda BBU HE
After sales support
heateam is Baxi Group’s own team of engineers who offer customers complete peace of mind by providing free support
during the warranty period. heateam also offers a range of services for out-of-warranty appliances. No-one is more
qualified to repair or service a Baxi appliance.
• heateam employs over 270 engineers providing
nationwide coverage
• heateam’s service centre is open 7 days per week,
363 days per year
• heateam offers priority technical support to installers
registered with the Gas Safe Register via our trade
technical advice line
• heateam supports all Baxi Group appliances, with
unrivalled expertise in our own heating products
• heateam vans are fully stocked with Baxi Group spare
parts, we can repair appliances on the first visit 95%
of the time
• heateam only uses official Baxi Group spare parts –
quality and safety are always our prime concern
• heateam has demonstrated the best performance in
the following areas:
1. The best call handling time for service*
2. The best service visit response time*
3. The best call handling time for technical advice*
*These are the results of independently commissioned research that
recorded average response times. heateam was measured against 6
major manufacturers.
www.heateam.co.uk
16
372075-03.indd 16 01/06/2010 14:35

Baxi Bermuda BBU HE Site
Survey Form
To help with a simple installation complete the site survey overleaf.
(To be completed by a Gas Safe Registered installer.)
17
Please cut here
372075-03.indd 17 01/06/2010 14:35

Baxi Bermuda BBU HE Site Survey Form
NB: If the answer is NO to any of the points below then read the adjacent comments for further guidance.
Yes No Comments
Is the gas supply natural gas? No LPG model currently available.
Is the boiler tted to a fully pumped system? If the heating system is a gravity hot water pumped
heating system it must be converted to a fully
pumped system Y or S Plan.
Is the ow and return connection on the If the existing pipe work is connected from the right
left hand side of the boiler? (looking at the boiler) hand side then the optional extra pipe work kit may
be required to facilitate installation.
Does the system incorporate a bypass? A pressure operated bypass will be required if the
minimum ow rate is lower than 8.3 litre/minute.
Is the boiler installed to a Class 1 Flue? 225mm x 225mm (9" x 9") brick or 175mm (7")
salt glazed lined ue is required.
Check builders opening (see comments). 570mm (22") height, 584mm (23") width, 305mm
(12") depth is the minimum size of the builders
opening. If only the minimum depth is available a
range of spacer kits or rebated surrounds are
available for the refront (see page 13 of the
Baxi Bermuda BBU HE brochure).
Is an existing re surround installed? (see comments). The minimum replace opening size is 558mm
height (22") x 406mm width (16") If installing with
minimum replace dimensions provision will need to
be made for access to the gas service cock and inlet
test point. The surround will need to be removed to
allow access for installation of the BBU.
Does the existing re have an electric light effect? The boiler will require a 3 amp permanent live as
well as a switched live feed from the same source to
operate satisfactorily.
Is there a 13 amp socket in close proximity to the The re will require a separate13 amp supply.
existing re and boiler location? (see comments)
Will there be a clearance of 150mm from the 150mm clearance is required from the BBU
BBU ue terminal to an adjacent terminal? ue terminal to an adjacent terminal.
Measure and check the ue length and its path. There are 2 concentric ue system kits available,
(see comments). 10 metre and 12.5 metre. These lengths may be
cut shorter but cannot be extended beyond their
specied length.
Is there a waste drain point close to the boiler The boiler incorporates a sump pump for the
location? (see comments). removal of condensate. The pump can lift
condensate vertically 2.5 metres (as measured from
the case outlet of the boiler.) Any horizontal run
should be kept as short as practicable with a
miniumum of 3 degrees on all gravity falls.
For guidance on maximum horizontal runs and
number of elbows please refer to Baxi's Installation
Instructions at www.baxi.co.uk.
Bermuda BBU HE
18
Please cut here
372075-03.indd 18 01/06/2010 14:35

19
Training
As part of our Baxi boiler training days, Baxi offers a Baxi Bermuda BBU HE training course for Gas Safe Registered
installers. The hands-on course will take you through all the components of the BBU, flue system and fire front. It covers
the system and site requirements, gas and electrical supply, as well as installation of boiler, flue and fire. The course also
takes you through key BBU diagnostics.
On completion of the course delegates will be able to:
• Understand the Baxi Bermuda BBU HE and how it works
• Be able to install the back boiler, flue and fire front
• Understand the sequence of operation of a back boiler
The skills you gain will enable fast, trouble-free installation, increase confidence in the servicing, maintenance and
trouble-shooting of appliances and lead to complete customer satisfaction in your services and our products.
Who should attend?
Heating engineers, installers, maintenance engineers and specifiers who require a greater knowledge and understanding
of the Baxi Bermuda BBU HE and to capitalise on the opportunity this product presents.
Suggested prior knowledge or understanding
Knowledge of heating and hot water systems. ACS or equivalent qualification.
Baxi Group Training
Our training facilities are centres of excellence for the heating industry. They offer hands-on experience and expert
in-depth tuition. Our courses cover everything from high efficiency boilers, unvented water systems, recognising and
repairing appliance faults, through to electrics, using multimeters and renewable energy products.
We endeavour to provide training courses that are convenient, flexible and effective. We want you to leave with in-depth
knowledge and understanding of our products, that’s why we offer to tailor our courses to suit your specific needs,
ensuring your time spent with us is worthwhile.
For a full list of courses and locations visit
www.baxigrouptraining.com or call 0845 600 7402
Please cut here
372075-03.indd 19 01/06/2010 14:35

P/Range/Jul09/V6
Baxi, A Baxi Group company, Brooks House,
Coventry Road, Warwick, CV34 4LL.
www.baxi.co.uk
Baxi policy is one of continual improvement and development. The right to change
specification and appearance without prior notice is reserved. The reproduction of
colours is as accurate as photographic and printing processes allow.
The consumer's statutory rights are not affected. e&oe
Contact us
For all enquiries please call
0844 871 1525
Open Monday - Friday, 8am - 6pm
Weekends & Bank Holidays, 8.30am - 2pm
We are closed on Christmas Day & New Year’s Day
Please note calls may be monitored or recorded.
362067/03
This Brochure is printed on paper sourced
from well managed forests and other controlled
sources. This Brochure is printed using vegetable
based inks. Please recycle this Brochure when
you have finished with it.
Baxi Range guide V7.qxp:17645_BAXI_RANGE_44PP_BROCH 20/8/09 14:52 Page 1
Contact us
For all enquiries, please call
0844 871 1525
email: [email protected]
visit: www.baxi.co.uk
Open Monday - Friday, 8am - 6pm.
Weekends and Bank Holidays, 8.30am - 2pm.
We are closed Christmas Day & New Years Day.
To book for a training course
please call
0845 600 7402
Open Monday - Thursday, 8.30am - 5pm.
Friday, 8.30am - 4.30pm.
Please note calls may be monitored or recorded
Baxi, a Baxi Group company, Brooks House, Coventry
Road, Warwick CV34 4LL
www.baxi.co.uk
Valor, a Baxi Group company, Wood Lane,
Erdington, Birmingham, B24 9QP
www.valor.co.uk
BBUHE/May10/V4/372075-04
P/Range/Jul09/V6
Baxi, A Baxi Group company, Brooks House,
Coventry Road, Warwick, CV34 4LL.
www.baxi.co.uk
Baxi policy is one of continual improvement and development. The right to change
specification and appearance without prior notice is reserved. The reproduction of
colours is as accurate as photographic and printing processes allow.
The consumer's statutory rights are not affected. e&oe
Contact us
For all enquiries please call
0844 871 1525
Open Monday - Friday, 8am - 6pm
Weekends & Bank Holidays, 8.30am - 2pm
We are closed on Christmas Day & New Year’s Day
Please note calls may be monitored or recorded.
362067/03
This Brochure is printed on paper sourced
from well managed forests and other controlled
sources. This Brochure is printed using vegetable
based inks. Please recycle this Brochure when
you have finished with it.
Baxi Range guide V7.qxp:17645_BAXI_RANGE_44PP_BROCH 20/8/09 14:52 Page 1
372075-03.indd 20 01/06/2010 14:35
