Baxi Gallery Series Assembly instructions

5114794/01
INSTALLER GUIDE
INSTALLER: Please leave this guide with the
owner
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
WHEN CONVERTED USING CONVERSION KIT NO. 0595221 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31).
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).
Model 661
Heat Engine
POWER FLUE INSET GAS FIRE
(GC No. 32-810-15)
© Baxi Heating U.K. Ltd.
For technical advice firstly contact your retailer. If further advice is required then call
0161703 8157 for The Midlands and North or
01462 813 138 for The South.

Safety First.
This gas fire is CE Approved and designed to meet the appropriate British Standards
and Safety Marks.
Quality and Excellence.
This fire has been manufactured to the highest standards of quality and excellence and
was manufactured under a BS EN ISO 9001 quality system accepted by the British
Standards Institute.
The Highest Standards
The manufacturer is a member of the Society of British Gas Industries which works to
ensure high standards of safety, quality and performance.
Careful Installation
The manufacturer is a CORGI registered company. This gas fire must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet.
Baxi Fires Division, Erdington, Birmingham B24 9QP
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
INSTALLER GUIDE

CONTENTS
Section Heading Page
1. SAFETY 4
2. APPLIANCE DATA 4
3. GENERAL INSTALLATION REQUIREMENTS 5
4. APPLIANCE DIMENSIONS 12
5. UNPACKING 14
6. PREPARING FOR INSTALLATION 16
7. WALL PREPARATION 16
7.1 General. 16
7.2 Brick, stone etc. building. Main case in front of wall 17
7.3 Brick, stone etc. building. Main case recessed into wall. 17

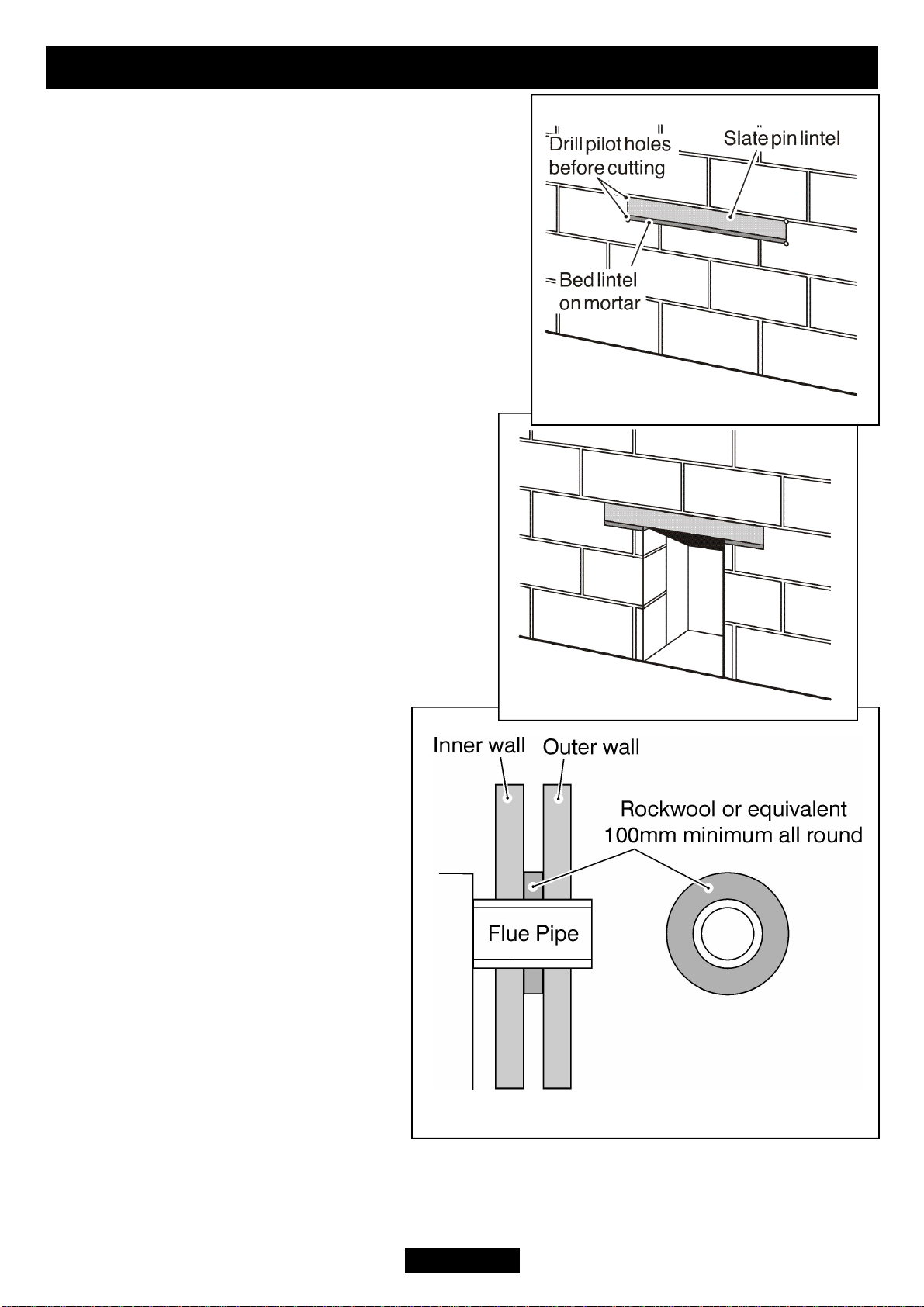

7.4 Lintel installation. 18
7.5 Timber frame building. Firebox in front of wall. 19
7.6 Wall preparation for flue tube. 19
7.7 Core drilling. 19
7.8 Hammer and chisel cutting. 19
7.9 Combustible walls (wood, fibreboard, plasterboard etc.). 20
7.10 Fixing the appliance in position. 21
7.11 Prepare flue assembly. 22
8. INSTALLATION OF ELECTRICS, FIREBOX AND FAN BOX 22
8.1 Fan box installation preparation. 23
8.2 Securing firebox to wall - cable retention. 24
8.3 Securing firebox to wall using fixing brackets. 25
8.4 Completing the fan box installation. 25
8.5 Electrical installation. 26
8.6 Refitting the burner unit. 26
8.7 Electrical test. 26
8.8 Terminal guarding. 27
9. GAS SUPPLY INSTALLATION 27
9.1 Gas supply connection. 27
9.2 Preliminary burner checks. 28
9.3 Check inlet pressure . 29
9.4 Fitting the burner tray trim. 29
10. FITTING THE CERAMICS 29
11. FITTING THE FASCIA AND FIREFRONT 30
12. CHECKS 30
13. FINAL REVIEW 32
14. SERVICING PARTS AND REPLACEMENT 32
Page 3
INSTALLER GUIDE

1. SAFETY
Installer
Before continuing any further with the installation of this appliance please read the
following guide to manual handling
!The lifting weight of this appliance is as below: -
Heat Engine (kg) Fan Box (kg)
7.5 6.0
!One person should be sufficient to lift the fire. If for any reason this weight is
considered too heavy then obtain assistance.
!
When lifting always keep your back straight. Bend your legs and not your back.
!Avoid twisting at the waist. It is better to reposition your feet.
!Avoid upper body/top heavy bending. Do not lean forward or sideways whilst
handling the fire.
!
Always grip with the palm of the hand. Do not use the tips of fingers for support.
!Always keep the fire as close to the body as possible. This will minimise the
cantilever action.
!Use gloves to provide additional grip.
!Always use assistance if required.
2. APPLIANCE DATA
This product uses fuel effect pieces and a burner compartment rear wall
containing Refractory Ceramic Fibres (RCF), which are man-made vitreous
silicate fibres. Excessive exposure to these materials may cause irritation to eyes,
skin and respiratory tract. Consequently, it is important to take care when
handling these articles to ensure that the release of dust is kept to a minimum. To
ensure that the release of fibres from these RCF articles is kept to a minimum,
during installation and servicing we recommend that you use a HEPA filtered
vacuum to remove any dust and soot accumulated in and around the fire before
and after working on the fire. When replacing these articles we recommend that
the replaced items are not broken up, but are sealed within a heavy duty polythene
bag, clearly labelled as RCF waste. This is not classified as “hazardous waste” and
may be disposed of at a tipping site licensed for the disposal of industrial waste.
Protective clothing is not required when handling these articles, but we recommend
you follow the normal hygiene rules of not smoking, eating or drinking in the work
area and always wash your hands before eating or drinking.
This appliance does not contain any component manufactured from asbestos or
asbestos related products. Page 4
INSTALLER GUIDE

* When converted using Kit 0595221.
The appliance data label is located on a plate at the base of the fire. This can be seen by
removing the fire front castings / fire front.
3. GENERAL INSTALLATION REQUIREMENTS
3.1 The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances are
installed by competent persons in accordance with the current edition of the Gas Safety
(Installation and Use) Regulations. Failure to install the appliance correctly could lead
to prosecution. The Council for the Registration of Gas Installers (CORGI) requires its
members to work to recognised standards.
In the United Kingdom, all electrical supply installation must be installed in accordance
with the current edition of the IEE Wiring Regulations (BS7671).
In the United Kingdom the installation must also be in accordance with:
a) All the relevant parts of local regulations.
b) The current edition of the Building Regulations issued by the Department of the
Environment and the Welsh Office or the Building Standards (Scotland) (Consolidation)
Page 5
INSTALLER GUIDE
Gas Natural (G20) Propane (G31) *
Inlet Pressure 20mbar 37mbar
Input - Max. (Gross) 6.0kW (20,472Btu/h) 6.1kW (20,813Btu/h)
Input - Min. (Gross) 2.3kW (7,848Btu/h) 3.8kW (12,966Btu/h)
Output - Max. 3.1kW (10,577Btu/h)
3.15kW (10,748Btu/h)
Output - Min 1.1kW (3,753Btu/h) 1.8kW (6,142Btu/h)
Inlet Test Pressure (Cold) 20.0 ± 1.0mbar (8.0 ± 0.4in
w.g.)
37.0 ± 1.0 mbar (14.85 ±
0.4in w.g.)
Gas Connection 8mm pipe 8mm pipe
Burner Injector Stereomatic Cat 82 - 069 Stereomatic Size 128
Pilot & Atmosphere Sensing
Device Copreci Ref. O.D.S
21500/189
Copreci Ref. O.D.S
21500/189 fitted with RBM
180-02 injector
Ignition Piezo Electric. Integral with
Gas Tap
Piezo Electric. Integral with
Gas Tap
Aeration See section 14.1 See section 14.1
Electrical Supply 230V ~ 50Hz AC 230V ~ 50 Hz AC
Fan motor rating 55W 55W
Fuse rating 3A 3A

Regulations issued by the Scottish Development Department.
c) All relevant codes of practice.
The relevant parts of the current editions of the following British Standards:-
BS 5440 Part 1
BS 5871 Part 2 & 3
BS 6891
In the republic of Ireland the installation must also conform with:
a) The current edition of IS 813 “Domestic gas installations”
b) All relevant national and local rules in force.
c) The current ETCI National Rules for Electrical Installation.
Where no specific instructions are given, reference should be made to the relevant
British Standard Code of Practice.
3.1.2
Electrical isolation of the unit should be by means of a switched 3A fuse spur that
should be readily accessible to the user, easily identifiable and sited within reach of the
mains cable provided. It should only connect this appliance.
3.1.3 This fire is a fan flued appliance for installation on an outward facing wall of a
conventional home which does not have a purpose built flue or chimney.
3.1.4
As supplied, the appliance is suitable for homes constructed of brick, stone, etc.,
the appliance can be installed into walls up to a maximum thickness as shown below.
If the fire box is in front of the finished wall surface: 600mm (23 5/8in) max.
These dimensions are from the finished internal wall surface (including any surround
material) to the external wall surface.
3.1.5

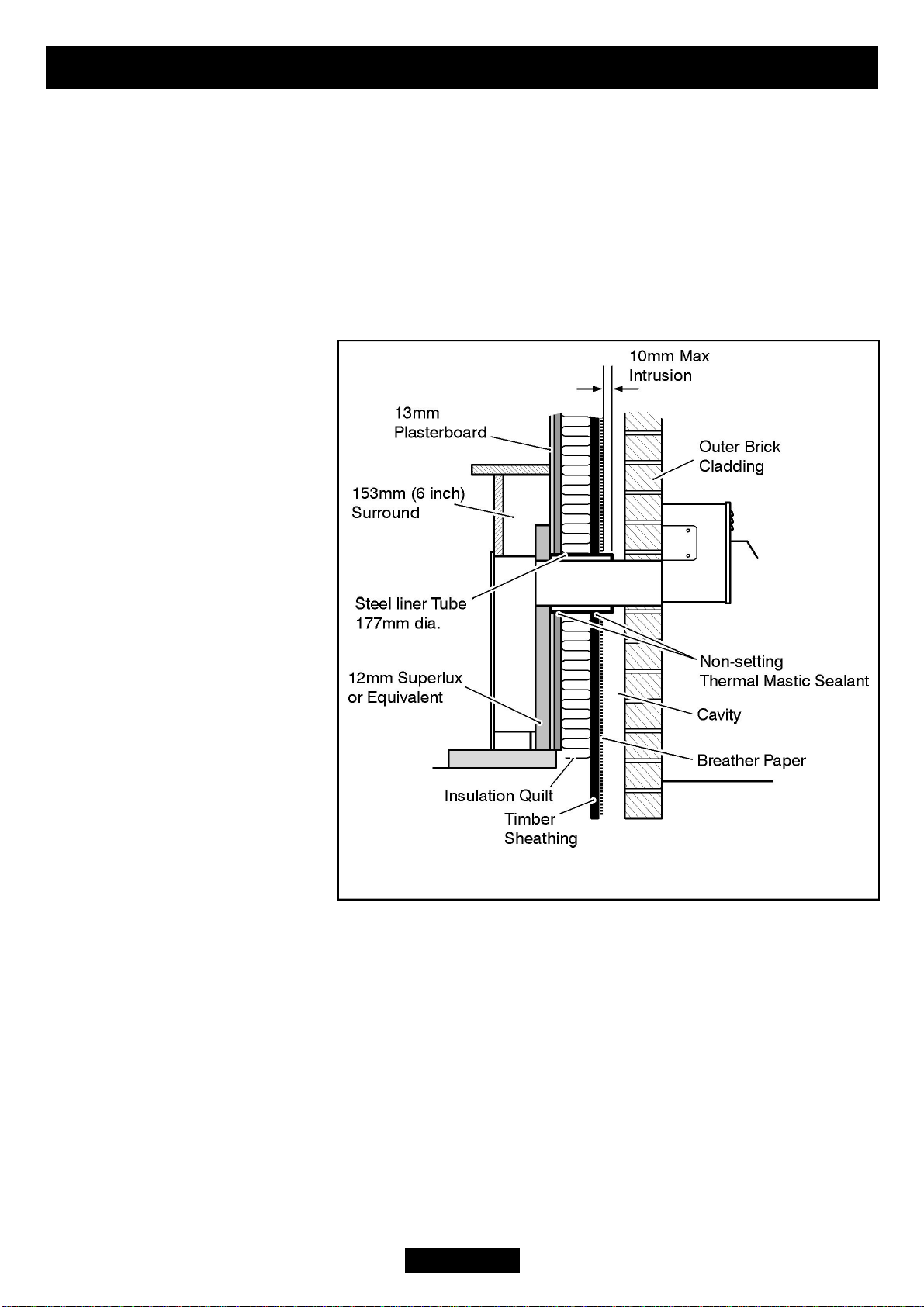

Installation to a timber framed building should be in accordance with the relevant
sections of Institute of Gas Engineers publication IGE/UP/7 “Gas installations in timber
frame buildings”. Please note that advice should be sought before installing in a
timber frame building since the alterations required may nullify any NHBC cover
relating to the property. If in doubt, guidance should be requested from your local
authority planning or building department.
This appliance must be mounted with a non-combustible hearth (See figure 1) (N.B.
conglomerate marble hearths are considered as non-combustible). The fire box must be
mounted on a non-combustible surface level with the hearth. The hearth must project at
least 300mm forward of the fire box front and be at least 625mm wide (see illustrations
in “wall preparation” section). The hearth material must be at least 12mm thick. The
periphery of the hearth (or fender) should be at least 50mm above floor level to
discourage the placing of carpets or rugs over it.
The surface of the hearth must be sufficiently flat to enable the bottom of the front
casting to be aligned horizontally. Any excessive unevenness (uneven tiles, Cotswold
Page 6
INSTALLER GUIDE

stone, etc.) should be rectified.
3.1.6 The appliance must not stand on combustible materials or carpets.
The appliance must not be fitted directly against a combustible wall. If the
appliance is to be fitted against a wall with combustible cladding or skirting board, such
materials must be removed from the area covered by the fascia of the appliance. We
suggest that the fascia is used as a template to mark the area for combustible cladding
removal.
The appliance can be fitted to a purpose made proprietary class “O” 150°C surround.
The opening in the surround or wall recess for the fire box must be within the limits
shown in figure 1.
3.1.7. ‘Hole-in-the-wall’ Installations
It is recommended that a hearth should be installed as in figure 1.
If a reduced depth Hearth is fitted, the fire must be installed so that the distance from
the base of the fireplace opening in the wall to the finished floor level is at least 88
mm.
It is recommended that the reduced hearth has a depth from the fixing plane of the fire
of 100mm minimum. This is necessary to support the lower front casting. The minimum
shelf height will have to be taken from the base of the fireplace opening.
3.1.8 The minimum height from the top surface of the hearth to the underside of any
shelf made from wood or other combustible materials is detailed below.
!For a shelf up to 150mm deep: Minimum height = 700mm.
!For a shelf deeper than 150mm: 700mm + 12.5mm for every 25mm depth over
Page 7
INSTALLER GUIDE

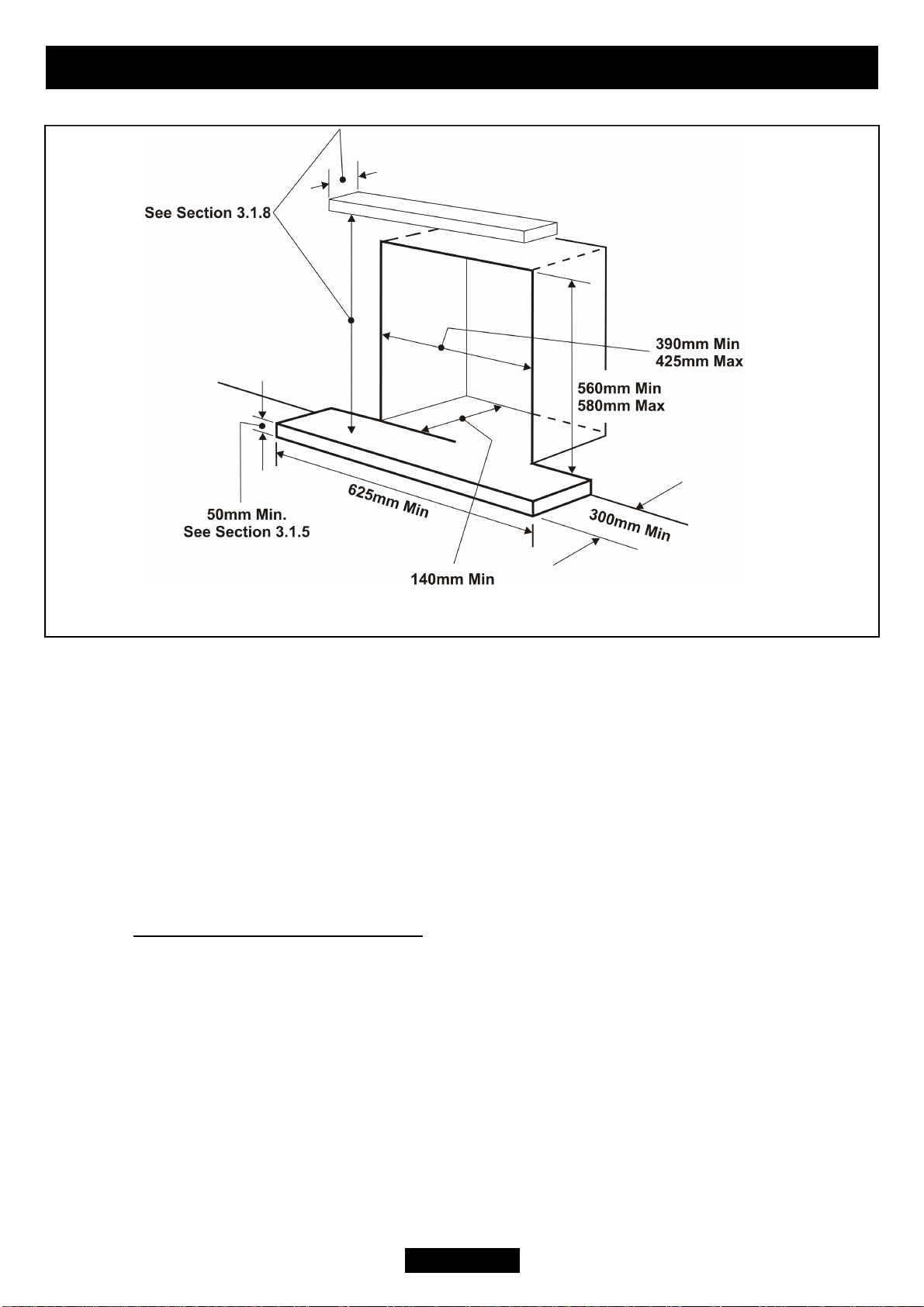

Figure 1. Hearth and recess requirements

150mm (See Graph 1).
3.1.9 The front face of the wall should be reasonably flat over the area that will be
covered by the fire box top and side flanges to ensure a good seal. The minimum height
from the top surface of the hearth to the underside of any shelf made from wood or
other combustible materials is as follows:-
Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by heat.
They may scorch or become discoloured when close to a heating appliance. Please bear
this in mind when installing.
3.1.10
The appliance must not be installed in any room that contains a bath or shower or
where steam is regularly present.
3.1.11
An extractor fan may only be used in the same room as this appliance, or in any
area from which ventilation for the appliance is taken, if it does not affect the safe
performance of the appliance. Note the spillage test requirements detailed further on in
this manual. If the fan is likely to affect the appliance, the appliance must not be
installed unless the fan is permanently disconnected, or provision is made to ensure that
the fan and the appliance cannot be used at the same time.
A fan-powered flue system tends to depressurise the room containing the appliance.
3.1.12 Normal adventitious ventilation is usually sufficient to satisfy the ventilation
requirements of this appliance. In GB reference should be made to BS 5871 Part 2 and
in IE reference should be made to the current edition of IS 813 “Domestic gas
Installations” which makes clear the conditions that must be met to demonstrate that
sufficient ventilation is available, however the spillage check (See further on in this
Page 8
INSTALLER GUIDE
Graph 1.

guide) may indicate a need for further ventilation in order to ensure that there is
adequate air replacement. If necessary seek expert advice.
3.1.13 The appliance is fitted with an A.S.D (Atmosphere sensing device). If the
appliance closes down after a period of operation for no apparent reason, the consumer
should be informed to stop using the appliance until the installation and appliance have
been thoroughly checked. The A.S.D will shut the appliance down if an unacceptable
amount of harmful products of combustion accumulate. Under no circumstances should
the A.S.D be altered or bypassed in any way. Only a genuine manufacturers replacement
part should be fitted. The individual A.S.D components are not replaceable.
3.1.14
A fireguard complying with BS 8423 should be fitted for the protection of young
children, the elderly, or the infirm.
3.1.15 The minimum allowable distance from the outside of the appliance fascia to a
corner wall having combustible material or any other combustible surface which
projects beyond the front of the appliance is 100mm.
For access purposes a 50mm clearance is recommended from non-combustible surfaces.
3.1.16
A concealed gas supply connection can be made through the rear panel. Visible
front connection can be from the left or right side after an opening has been cut in the
appropriate side of the hearth casting.
Electrical connection is from the right side.
3.2 Flue Siting
3.2.1 The flue terminal should be located so that
the wind can blow freely across it at all times and
where any blockage due to leaves, snow, etc. is
unlikely. The minimum allowable distances from
the terminal are shown in figure 3.
Note: The distances are from the edge of the
vertical exit slots in the terminal not from the
edges of the rectangular box (See figure 2).
3.2.2 This appliance is supplied with a terminal
guard. In England and Wales, the Building
Regulations require that the terminal guard is fitted
if the flue terminal can come in contact with
people near the building or be subject to damage.
Even if the regulations do not demand it, we
recommend that the guard is fitted to prevent
damage or blockage of the flue system by leaves etc.
Page 9
INSTALLER GUIDE
Figure 2

Page 10
INSTALLER GUIDE

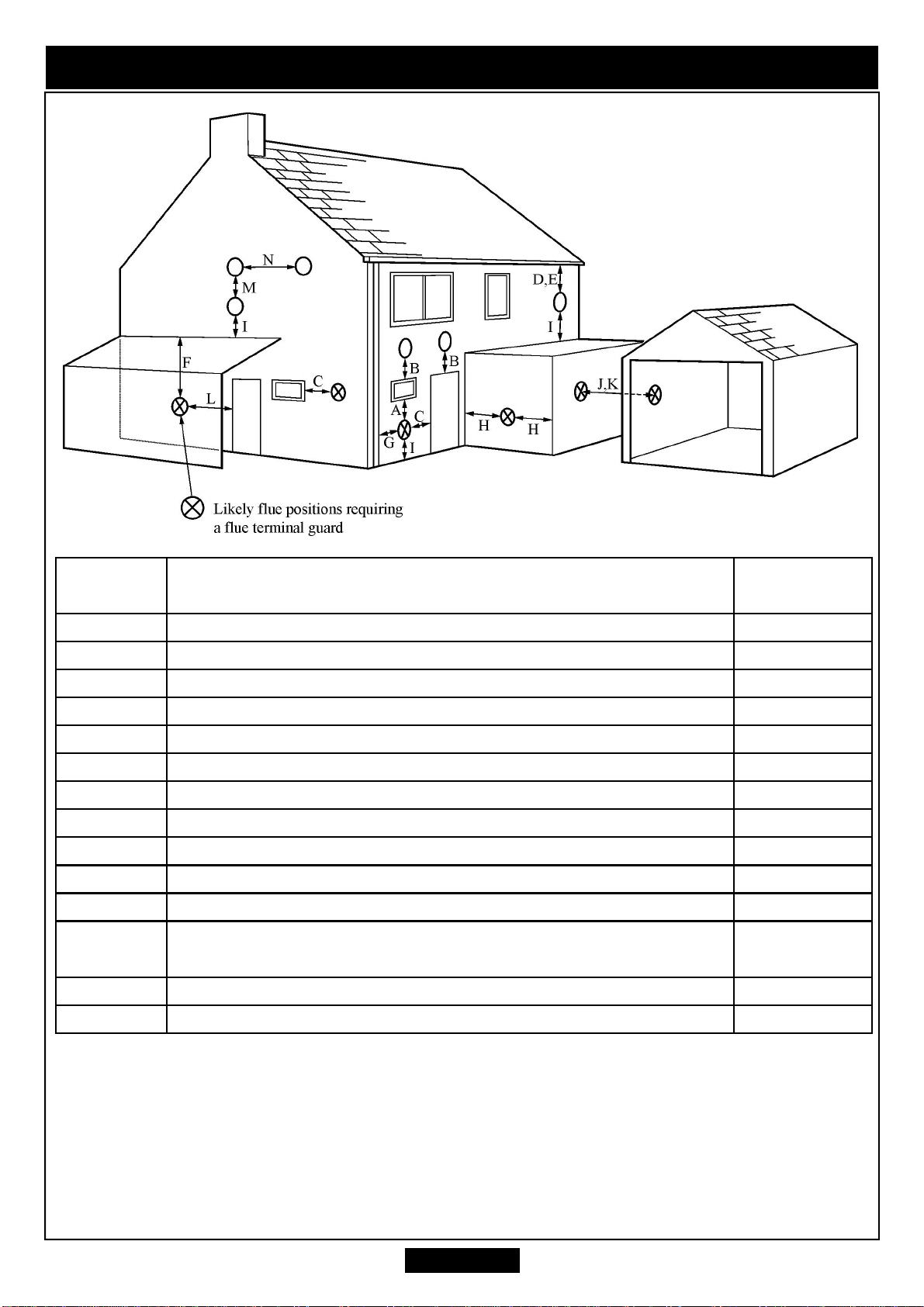

Figure 3
Dimension Terminal Position Minimum
Distance
A* Directly below an opening, air brick, opening window etc. 300mm
B* Above an opening, air brick, opening window etc. 300mm
C* Horizontally to an opening, air brick, opening window etc. 300mm
DBelow gutters, soil pipes or drain pipes 75mm
EBelow eaves 200mm
FBelow balconies or car port roof 200mm
GFrom a vertical drain pipe or soil pipe 150mm
H** From an internal or external corner 200mm
IAbove ground, roof or balcony level 300mm
JFrom a surface facing the terminal 600mm
KFrom a terminal facing the terminal 1200mm
LFrom an opening in a car port (e.g. door, window) into
dwelling 1200mm
MVertically from a terminal on the same wall 1500mm
NHorizontally from a terminal on the same wall 300mm
*In addition, the terminal should not be nearer than 150mm to an opening in the building
fabric formed for the purpose of accommodating a built-in element such as a window frame
or door frame (See figure 3b).
** The reference to external corners does not apply to building protrusions not exceeding
450mm, such as disused chimneys on external walls.

Page 11
INSTALLER GUIDE
Figure 3b.

4. APPLIANCE DIMENSIONS
Page 12
INSTALLER GUIDE
NOTE: ALL DIMENSIONS ARE APPROXIMATE AND SUBJECT TO
MANUFACTURING DEVIATION
Figure 4. Appliance dimensions (Shown with fascia that is close fitted to the outer
flanges of the hotbox. Dimensions ‘A’ and ‘B’ may differ depending upon the fascia
fitted)

Page 13
INSTALLER GUIDE
A470mm
B600mm
C325mm
D525mm
E350mm
F235mm
G125mm
H475mm
I53mm
J5mm
K550mm
L600mm Max. (Flue tube uncut)
150mm min.
M (Fan box projection) 205mm when sited outside wall
55mm when recessed in outer wall
N285mm
O (Flue tube diameter) 125mm
P (Terminal guard) 305mm
Q355mm
R (Recess width) 390mm min.
425mm max.
S (Recess depth) 140mm min
T (Recess height) 560mm min.
580mm max
U (Clearance to wall etc. projecting
forward of appliance firebox) 100mm min.

5. UNPACKING
The pack contains:
1Burner & firebox unit with attached Rockwool jacket
1Fan box assembly
1Flue duct
1Ceramic fuel effect pack (Not shown)
1Burner tray trim
1Terminal weather shield
1Literature pack
1Smoke match tube
2Rolls aluminium tape
1Nut & olive for 8mm inlet pipe
1Retention kit (4 wall plugs, 4 eye bolts, 2 tension adjusters and two cable
assemblies).
10 Wall plugs
10 Woodscrews
2Taptite screws (For fan box)
1Rockwool jacket top section
2Cable ties
1Firebox fixing bracket assembly (2 brackets & 2 self tapping screws)
1Terminal guard fixing assembly (4 screws & washers )
1 Terminal guard (In separate pack)
2Black machine screws (For fascia fitting)
2Fascia infill panels (Not shown)
3M5 x 8 screws (For securing infill panels to fascia)
1M4 x 10 screw (For securing infill panels to fascia)
Carefully remove the contents. Take special care in handling
the ceramic fuel effect pieces. Check that the listed parts are present and in good
condition.
Page 14
INSTALLER GUIDE

Page 15
INSTALLER GUIDE
Figure 5. Contents

6. PREPARING FOR INSTALLATION
Check ignition spark.
Before attempting to install, it is worth checking that the
ignition system performs satisfactorily.
! Set the control knob to the off position.
! Depress the control knob and rotate it anticlockwise to the
pilot ignition position. A 'click' will be heard as the integral
piezo operates. A spark should be seen between the electrode
and pilot tip (See figure 6).
If there is no spark check the following: -
! Ensure that the electrode lead is connected to the terminal
at the base of the electrode.
! If the above is correct, check for damage to the electrode
lead.
In the majority of cases, the burner
unit will need to be detached. Detach
the burner unit from the convection
box by removing two screws (See
figure 7). Carefully lift the burner unit
out from the hotbox and place
immediately in front of the hotbox. Do
not attempt to lift the burner module
away from the front of the firebox as
this may damage the solenoid leads.
Disconnect the solenoid leads from the
control box.
7. WALL PREPARATION
7.1 General.
1.
Make sure that the installation will comply with all the relevant requirements in part
3 of this manual.
2. Attempt to keep the hole sizes as close to the minimum dimensions as possible in
order to minimise the sealing required.
3.
Make sure that the damp course or any electrical wiring, piping etc. in the wall is not
affected when cutting the installation hole.
4. Any gas supply pipe installed in the wall, floor or cavity of a cavity wall must be
continuous and enclosed in a factory fitted gas tight sleeve (Ref: Gas safety (Installation
& Use) Regulations 1994 as amended & Certificate of exemption no.1 1996)
Page 16
INSTALLER GUIDE

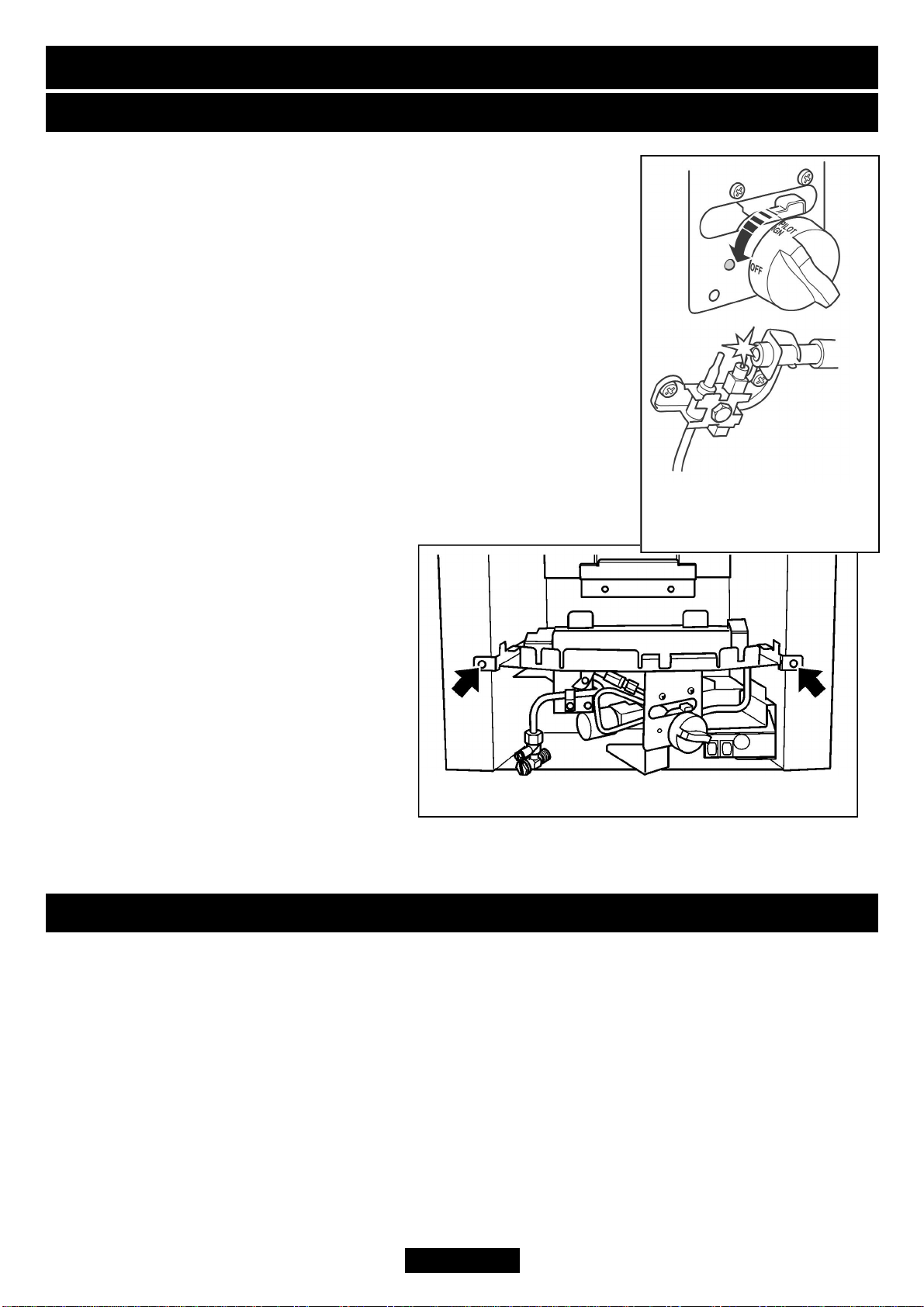

Figure 6. Pilot ignition
system.
Figure 7. Burner unit removal.

7.2 Brick, stone etc. building. Main case in front of wall (Figure 8).
1. This installation is for use with a fire surround
or false chimney breast having a minimum depth
of 140mm (5 1/2in.). The flue length may be cut
to suit the wall thickness. (See prepare flue
assembly section) Combustible material within a
false chimney breast must be at least 75mm from
the fire box.
2. The non-combustible hearth must project at
least 300mm in front of the convection box front
flanges and be at least 625mm wide (Figures 1 &
8).
3. The cavity should be sealed where the flue tube
hole has been cut. We recommend filling fully
across the cavity with Rockwool or equivalent to
at least 100mm around the opening (See figure 12)
7.3 Brick, stone etc. building. Main case
recessed into wall.
(Figure 9)
1. This installation has the fire box recessed into
the inner wall of the building. The front flanges
of the fire box and the appliance fascia will abut
the front surface of the wall.
2. The non-combustible hearth must project at
least 300mm in front of the convection box
front flanges and be at least 625mm wide
(Figure 1).
The recess in the inner wall for the fire box
should be to the size shown in figure 1. The
bottom of this recess should be at the same level
as the top surface of the hearth.
A lintel may be required above the recess for the
fire box. If in doubt, seek expert building advice
before commencing to cut the recess.
Whenever a lintel is required to support the
recess in the inner leaf of a brick/blockwork building, refer to the following section (See
figures 10 and 11).
Page 17
INSTALLER GUIDE

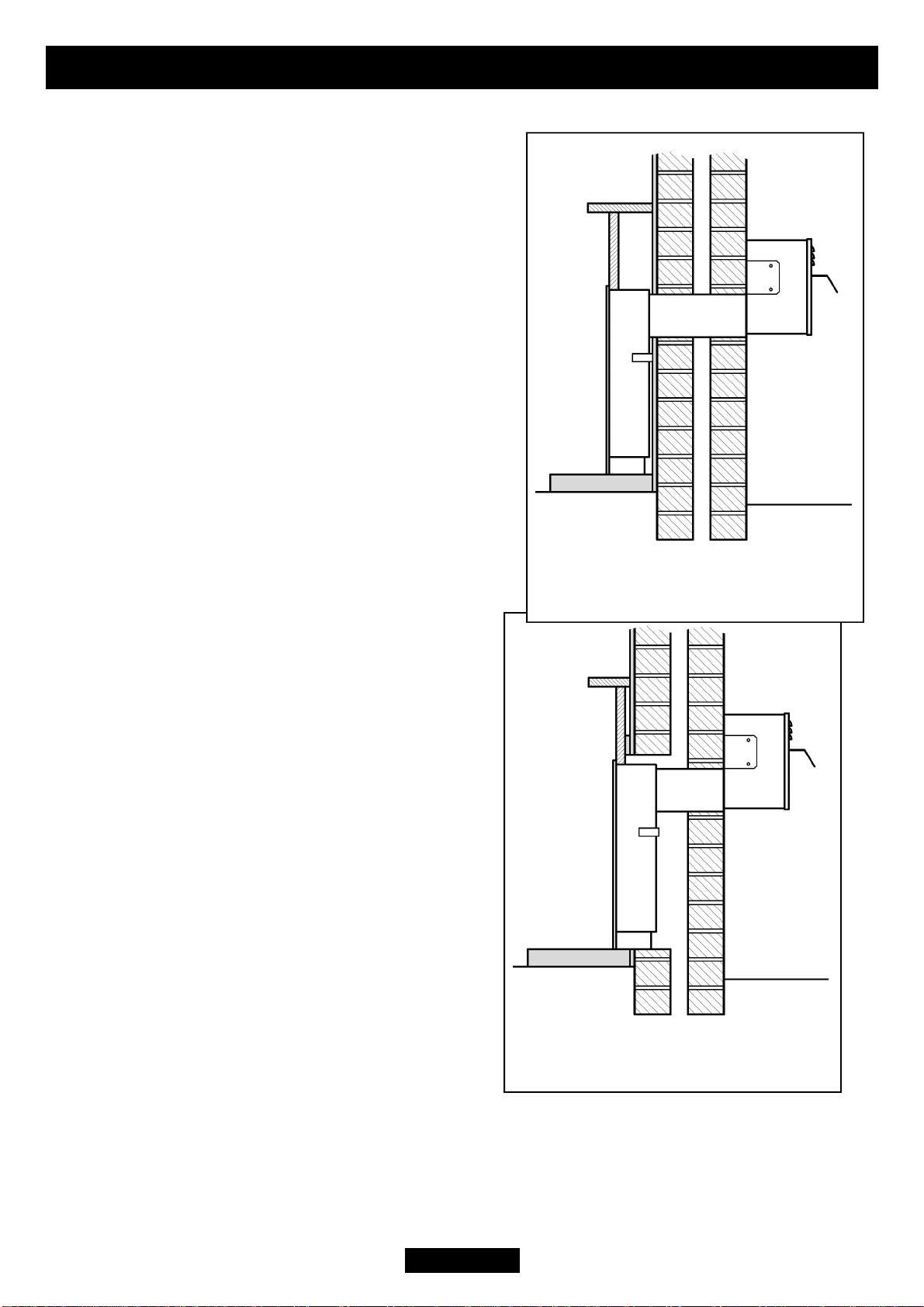

Figure 9. Main case recessed into
wall.
Figure 8. Main case in front of
wall.

Page 18
INSTALLER GUIDE
7.4 Lintel installation.
1.The lintel should be either steel (Catnic) or
reinforced precast concrete. It should be 750mm
long x 75mm deep x inner leaf thickness.
2. The opening should be, as near as possible,
centrally below a joint in the inner leaf block.
3. Cut out the opening for the lintel.
Where cutting through masonry, drill pilot holes
and then cut out the slot using a mechanical cutter.
This will minimise damage to the surrounding
structure.
4. Insert the lintel. Bed the lintel on mortar.
Don’t dry bed. Slate pin to ensure the lintel and
structure above is secure and safe
5. Make the opening below the lintel by
removing the masonry and clearing debris. If
the cavity has loose fill (e.g. granular)
insulation material, pack the edges of the
opening with Rockwool as you proceed to hold
back the insulating material.
6. The wall cavity must not be bridged other
than by the flue tube assembly. The fire box
must not project into the cavity
between the inner and outer walls by
more than 10mm.
See wall preparation for flue
tube.
The cavity should be sealed where the
opening has been cut. We recommend
filling fully across the cavity with
Rockwool or equivalent to at least
100mm all around the flue tube. Fill at
the bottom of the opening to the level
of the hearth/fireplace floor. It may be
simplest to back fill the cavity with
the insulation material and then cut
through the insulation to the size of
the flue box hole. Figure 12. Flue pipe insulation
Figure 11.
Figure 10.

7.5 Timber frame building. Firebox in front of wall.
This installation is for use in timber framed buildings in conjunction with a fire
surround having a minimum depth of 153mm (6 inch).
1.
The non-combustible hearth must project at least 300mm in front of the convection
box flanges and be at least 625mm wide. For this type of installation the hearth must be
at least 50mm thick over its total area (Figure 1). Installation must be in accordance
with the current edition of Institute of Gas Engineers publication IGE/UP/7.
2.
The back surface of the firebox and flue tube assembly must be separated from the
timber frame by 25mm of non-combustible material. This can consist of the usual
13mm plasterboard wall lining plus 12mm of “Superlux” or similar non-combustible
material. The opening should be between studs.
7.6 Wall preparation for flue tube.
1.
The flue must be installed so that it is at right angles to the back panel of the fire all
round the flue circumference. The fire itself should be fitted vertically against a flat
wall. Where this is difficult to achieve due to building inaccuracies care should be
taken to ensure that the back of the fire is not stressed in any way due to distortion of
the assembly when tightening the fixing screws. Where necessary, non-combustible
packing pieces should be used to provide a satisfactory fixing surface.
2.
Before cutting the hole in the wall make sure that the height to the top surface of the
finished floor is known. The height from this surface to the flue hole centre is shown in
figure 14.
3.
If a loose hearth or plinth is to be used, the height from its top surface must be used
when determining the flue height.
4. Place dust sheets on the floor and over any furnishings etc.
5. Make sure that the centre of the flue hole is as shown in figure 14.
6. Cut the hole for the flue unit.
7.7 Core drilling.
1. Drill a pilot hole through the wall. Inspect the hole to ensure that it is in the
brickwork and not in mortar. If it is in mortar, it is advisable to reposition the hole
approximately 25mm away (Ensuring that all other clearances to firebox are complied
with). Remember to reposition the screw fixing holes.
2. Drill the flue hole with a 5in. (127mm) core drill.
3.
Remove any combustible wall cladding material from the area behind the firebox as
described previously.
7.8 Hammer and chisel cutting.
1.
Mark a 127mm (5in) diameter circle for the flue hole. Chisel out the area marked.
It may be necessary to make good both the internal and external wall faces. To achieve
a neat finish and to make any future removal of the flue unit easier, it is recommended
Page 19
INSTALLER GUIDE

that a cardboard cylinder is formed around the flue unit and inserted in the hole whilst
making good. Remove the cardboard cylinder after making good.
7.9 Combustible walls (wood, fibreboard, plasterboard etc.).
1.
Building regulations require that the outer surface of the flue tube and terminal must
not be closer than 25mm to combustible material and must be lined with steel sleeve not
less than 0.5mm thick (See figure 13). The sleeve can be made by coiling a piece of
sheet steel to between 125mm & 127mm outside dia. and fitting it to the combustible
parts of the construction.
2. Mark out and cut a hole
177mm diameter through the
plasterboard.
3. Cut a hole of about 165mm
in the vapour barrier. Clear the
insulation quilt from the hole
area and cut a 177mm dia.
hole in the timber sheathing
and breather paper.
4. Drill a 127mm diameter
hole through a non-
combustible (brick etc.) outer
wall.
5. Fit the steel sleeve. The
sleeve should not protrude
more than 10mm into the
cavity. The sleeve should be
sealed to the inner leaf of the
wall at both ends with a non-
setting thermal mastic sealant.
6.
If the outer wall is combustible drill a 177mm hole and fit the liner sleeve through to
this wall.
7. Cover the hole with a steel plate size 500mm (Vertical) x 235mm, not less than
1.5mm thick with a 127mm diameter hole in the middle. Fix with suitable screws and
plugs.
8.
Where the whole wall is of combustible material a non-corrosive plate 455mm square
with a 127mm diameter hole in the centre must be fitted to the outer face of the wall.
9. The area immediately behind the firebox must be separated from the combustible
elements of the inner wall by 25mm thickness of non combustible material.
This can consist of the usual 13mm plasterboard wall lining plus 12mm of “Superlux”
or similar non-combustible material (See figure 13).
Page 20
INSTALLER GUIDE
Figure 13.
