Bayrol PM5-SA4 User manual

PM5-SA4 Converter 4-20mA
Version 1.1
GB
User manual
Plug-in module with 4 current outputs 4-20mA / Order No.: 127 011
Compatible with
Analyt
PoolManager®
PoolManager® PRO

PM5-SA4

PM5-SA4
3
Index
1Identification of safety information.............................................................................................................................................................4
2General safety information ..........................................................................................................................................................................4
3User qualification..........................................................................................................................................................................................4
4Overview........................................................................................................................................................................................................4
5Erforderliche PoolManager®Software-Version .........................................................................................................................................4
6Installation.....................................................................................................................................................................................................5
6.1 Opening the casing................................................................................................................................................................................5
6.2 Insert the PM5-SA4 plug-in module .....................................................................................................................................................6
7Technical data...............................................................................................................................................................................................7
8Menu Configuration......................................................................................................................................................................................7
8.1 Output of measured values...................................................................................................................................................................7

PM5-SA4
4
1Identification of safety information
Please refer to the information concerning the identification of safety
information in your PoolManager®or Analyt user manual.
2General safety information
HAZARD!
Please follow the general safety information
in your PoolManager®or Analyt user manual carefully.
3User qualification
Please refer to the different user qualifications as defined in your
PoolManager®or Analyt user manual.
4Overview
The PM5-SA4 Converter 4-20mA is a plug-in module for the BAYROL
Measuring, Control und Dosing Systems PoolManager®and Analyt of
the 5th generation (from 2012). It provides 4 standard current outputs
4-20mA, which can be used to transmit the current measurement
readings to external systems, e.g. Building Management Systems
(BMS), remote displays or data loggers.

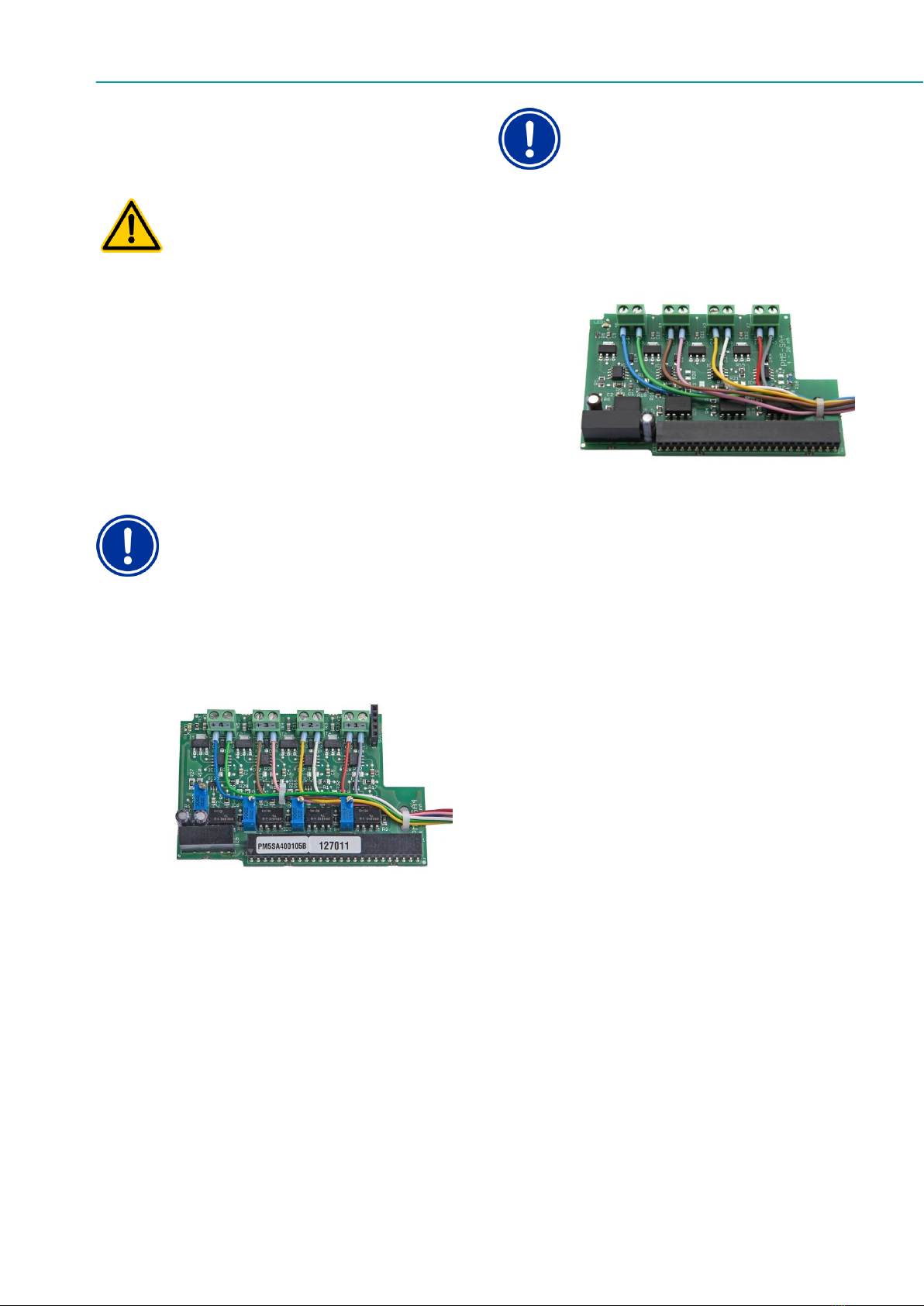

5Required PoolManager®Software Version
NOTE
Required PoolManager®software version for the
current version of the PM5-SA4 converter
In order to use the current version of the PM5-SA4
converter (see figure below) in a PoolManager®
controller, at least the following software version (or
later) must be installed on the controller:
v140325-M1 (5.3.0)
If necessary, please perform a software update with a
USB memory stick, as described in the PoolManager®
manual.
NOTE
Required PoolManager®software version for the
earlier version of the PM5-SA4 converter
In order to use the earlier version of the PM5-SA4
converter (see figure below) in a PoolManager®
controller, at least the following software version (or
later) must be installed on the controller:
v130312-M1 (4.0.0)
If necessary, please perform a software update with a
USB memory stick, as described in the PoolManager®
manual.

PM5-SA4
5
6Installation
This chapter describes the installation of the PM5-SA4 plug-in module
inside the PoolManager®controller and the cable connections.
Required user qualification:
ELECTRICAL SPECIALIST
Electrical connection may only be performed by an
ELECTRICAL SPECIALIST as defined in the chapter
User qualification of your PoolManager®or Analyt user
manual.
6.1 Opening the casing
HAZARD DUE TO VOLTAGE!
Inside the controller you may get in touch with
dangerous electrical voltages.
Potential consequence: Death or the gravest
degree of injury.
Disconnect the controller from mains power supply
before opening the casing and, in particular, the lid of
the connection terminal box.
IMPORTANT NOTICE!
Open on the right
Never open the casing on the left side, as damage may
otherwise occur. Always open on the right side!
1. Firmly press the hinge on the right side out and to the right.
2. Remove the cover plate and unhook the hinge on the bottom.
3. Swing the casing cover open to the left.
4. Unbolt the four screws of the lid of the connection terminal box
and remove the lid. Take out the aluminium rail afterwards.
5. To close the casing, reverse this procedure.

PM5-SA4
6

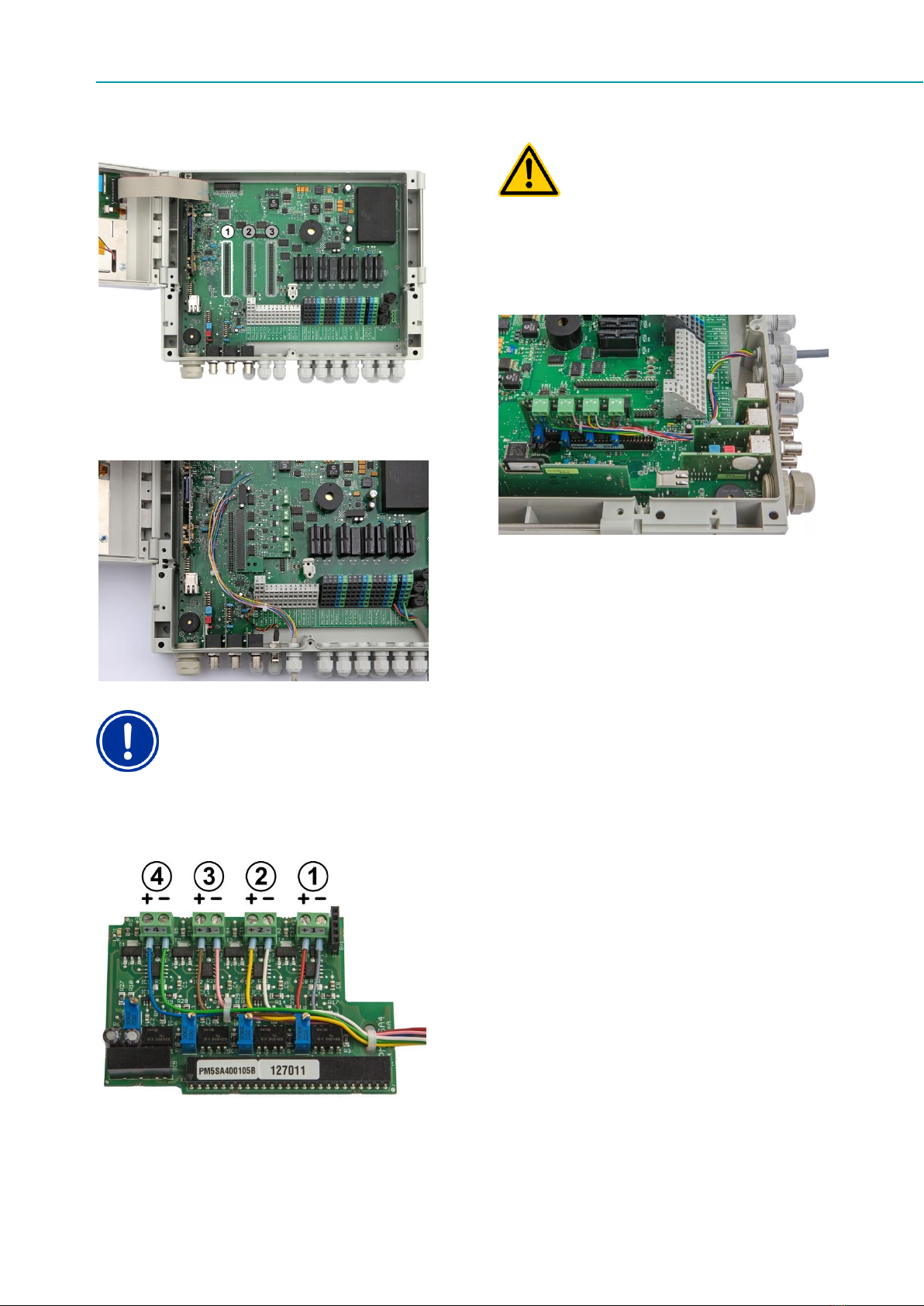

6.2 Insert the PM5-SA4 plug-in module
1. Use plug-in connector 1 (on the left) for the installation of the
PM5-SA4 plug-in module.
2. Dismantle the cable (or cables) on the required length inside the
casing and insert it (them) into the casing through one or more
cable glands.
IMPORTANT NOTICE!
In order to minimize the influence of possible inductive
disturbances, we recommend to use cables with
twisted cable pairs for each channel..
3. Now connect the cable ends to the connection terminals of the
PM5-SA4 plug-in module. The digits 1 to 4 indicate the channel
numbers which you can later select in the configuration menu.
4. Insert the PM5-SA4 plug-in module carefully into the plug-in
connector 1 (on the left).
HAZARD!
Improper positioning
Improper (inaccurate) positioning of the plug-in module
and applying too strong forces may bent or even break
the contact pins of the plug-in connector.
Potential consequence: Irreparable damage of the
plug-in connector, need for factory repair service.
Take care for the correct and accurate position of the
plug-in module and do not apply too strong forces.

PM5-SA4
7

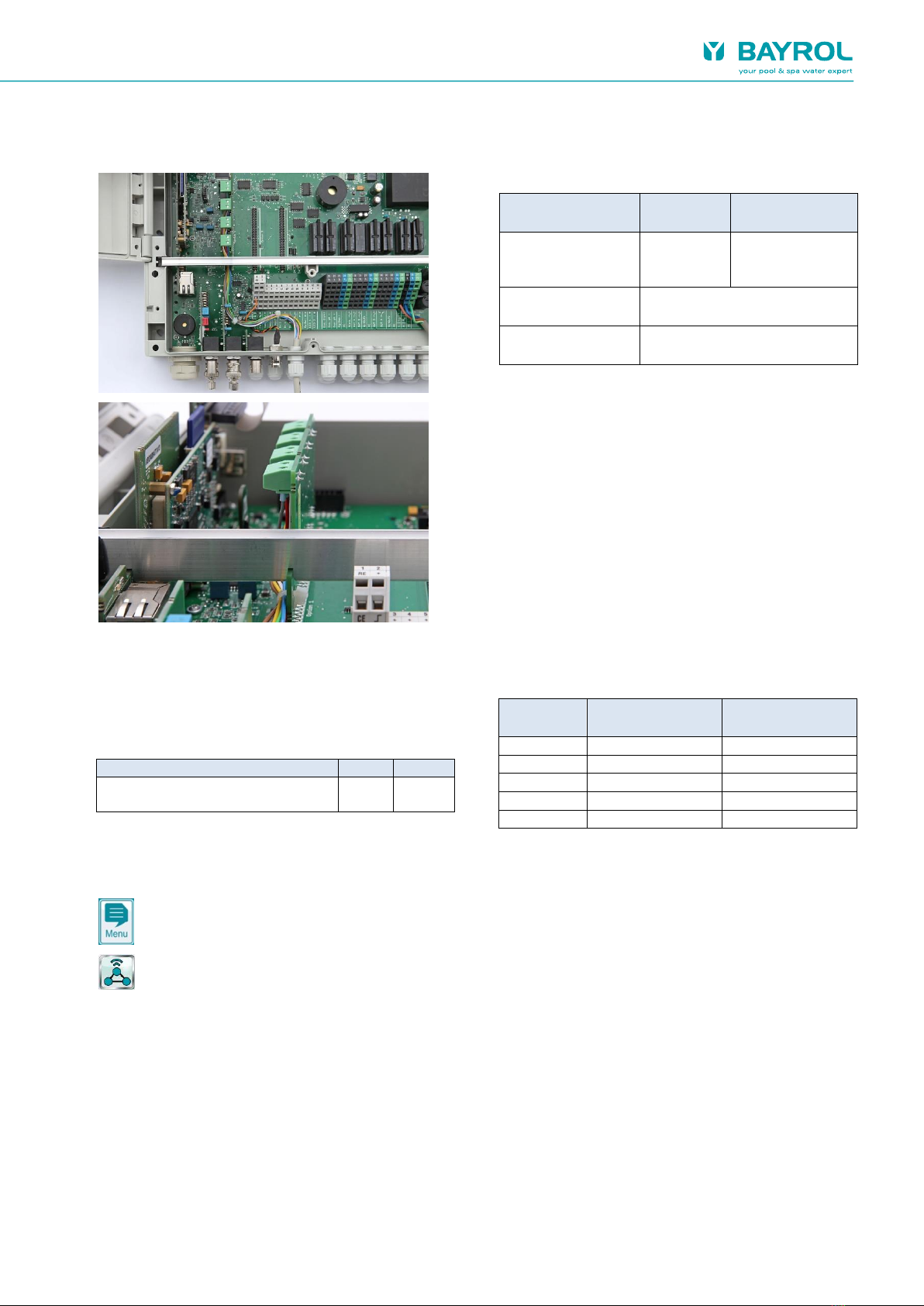

5. Now insert the aluminium rail at its original position. Take care
that the PM5-SA4 plug-in module is exactly located in the
corresponding slot of the aluminium rail as shown on the second
photo below.
6. Remount the lid of the connection terminal box and close the
controller casing.
After completion and verification of the installation you can reconnect
mains power supply to the PoolManager®controller.
7Technical data
Min.
Max.
Allowed ohmic resistance
of the connected current input
0Ω
400Ω
8Menu Configuration
The configuration menu for the PM5-SA4 plug-in module is called up
as follows:
Menü-Hotkey
Communication & Interfaces
Submenu Current outputs 4-20mA:
8.1 Output of measured values
Select the submenu for the current output of the desired
measurement, e.g. Current output pH.
The following parameters can be set in this menu:
Parameter
Possible
settings
Default setting
(default-set Europe)
Current output
pH / Cl / Br / mV / O2 / T1
Current output
1.1 / 1.2 / 1.3 /
1.4(1)
Je nach Messgröße (2)
Minimum value
(at 4 mA)
Depends on measurement (3)
Maximum value
(at 20 mA)
Depends on measurement (3)
(1) Current output x.y means:
- x is the No. of the used plug-in connector
(usually this is plug-in connector 1)
- y is the No. of the current output
on the PM5-SA4 plug-in module
(2) The default allocation is as follows:
- Current output 1.1: pH
- Current output 1.2: Cl or Br
- Current output 1.3: mV or O2
- Current output 1.4: Temperature T1
(3) These Parameters can be used to adjust the desired measuring
range which is output on the 4-20 mA current output. The
minimum value always corresponds with the minimum current
signal of 4 mA; the maximum value corresponds with the
maximum current signal of 20mA.
The default settings are as follows:
Minimum. value
(at 4 mA)
Maximum value
(at 20 mA)
pH
0,00 pH
10,00 pH
Cl or Br
0,00 mg/l
10,00 mg/l
mV
0 mV
1000 mV
O2
0 l
10 l
T1
0°C
50 °C
