bbf A173226G User manual

Part Number A173226G Keep manual for future reference.
Lot Code #
5 S elf Bookcase

A173226G
Get Ready to Assemble

Warning Do Don't Why it's
important
Serious
injury may
occur.
• Assemble following all instructions using all
indicated parts and hardware provided.
• Install tip-over retraint provided.
• Install every indicated nail and/or screw.
• Verify furniture is stable on it's own.
• Place heaviest items in the lower drawers or
shelves.
• Remove items that might tempt kids to climb,
such as toys and remote controls from the top
and upper shelves of furniture.
• Do not move unit when
loaded.
• Do not load with a television
or other heavy equipment.
• Do not exceed the maximum
load limits stated in the
instructions.
• Do not allow children to
stand, climb, or hang on
furniture.
Improper
assembly, use
or loading can
lead to product
instability, tip-over
or collapse.
Advertencia Hacer No Por qué es
importante
Se pueden
producir
lesiones
graves.
• Ensamble siguiendo todas las instrucciones
utilizando todas las piezas y ferretería indicados
provistos.
• Instale la retracción de vuelco provista.
• Instale todos los clavos y / o tornillos indicados.
• Verique que los muebles sean estables por sí
mismos.
• Coloque los artículos más pesados en los
cajones o estantes inferiores.
• Retire los artículos que puedan tentar a los
niños a trepar, como juguetes y controles
remotos de los estantes superiores y superiores
de los muebles.
• No mueva la unidad
cuando esté cargada.
• No cargue con un televisor
u otro equipo pesado.
• No exceda los límites
máximos de carga
establecidos en las
instrucciones.
• No permita que los niños se
paren, trepen o cuelguen
de muebles.
El ensamblaje,
uso o carga
inadecuados
pueden provocar
inestabilidad del
producto, vuelco o
colapso.
PLEASE READ WARNINGS
Improper use can cause safety hazards, or damage
to your furniture and household items.
IMPORTANT SAFETY INFORMATION

Avertissement Faire Ne le fais pas Pourquoi c'est
important
Des
blessures
graves
peuvent
survenir.
• Assemblez en suivant toutes les instructions
en utilisant toutes les pièces et le matériel
indiqués fournis.
• Installez la réintégration de basculement
fournie
• Installez tous les clous et / ou vis indiqués.
• Vériez que les meubles sont stables par eux-
mêmes.
• Placez les articles les plus lourds dans les tiroirs
ou les étagères inférieurs.
• Retirez les objets qui pourraient inciter les
enfants à grimper, comme les jouets et les
télécommandes des étagères supérieure et
supérieure des meubles.
• Ne déplacez pas l'unité
lorsqu'elle est chargée.
• Ne chargez pas avec un
téléviseur ou un autre
équipement lourd.
• Ne dépassez pas les
limites de charge maximale
indiquées dans les
instructions.
• Ne laissez pas les enfants
se tenir debout, grimper ou
s'accrocher aux meubles.
Un assemblage,
une utilisation ou
un chargement
incorrects peuvent
entraîner une
instabilité du
produit, un
renversement ou un
effondrement.
PLEASE READ WARNINGS
Improper use can cause safety hazards, or damage
to your furniture and household items.
IMPORTANT SAFETY INFORMATION

A173226G

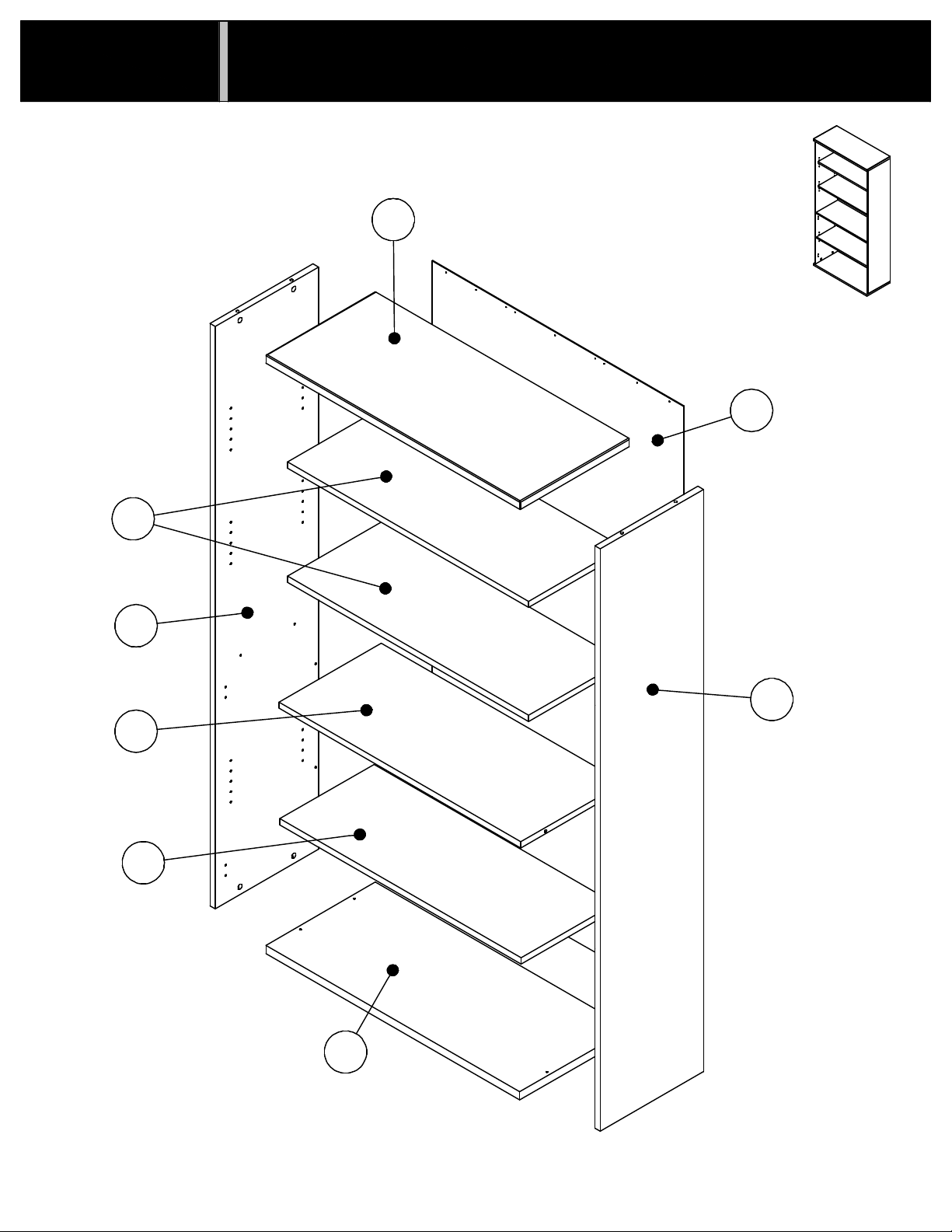

Get to know your Boards
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.
A
B
C
H
E
F
D
F

A173226G
Get to know your Fasteners
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.
Fasteners are s own actual size.
H72988 [ 12 ]
KD Bolt
H71659 [ 12 ]
KD Cam
H34174 [ 49 ]
Nail 19mm
H181434 [ 1 ]
#10 x 2"
H107572 [ 1 ]
#8 x 1-1/2"

A173226G

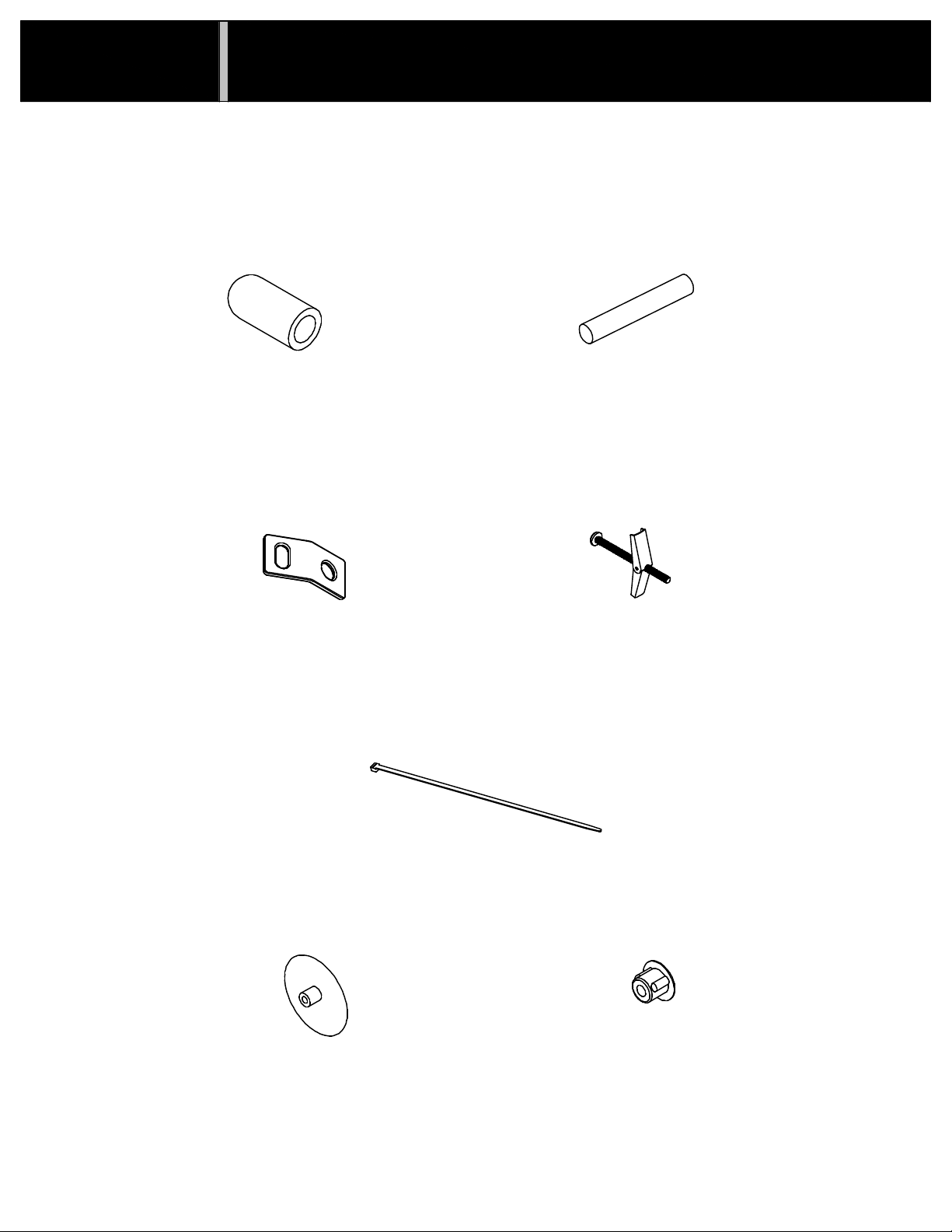

Get to know your Hardware
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.
Hardware not to scale.
H126396 [ 12 ]
S elf Pin Sleeve
H181419 [ 1 ]
Toggle Bolt
H23604 [ 12 ]
S elf Pin
H181412 [ 2 ]
Connecting Plate
H181411 [ 1 ]
Nylon Cable Tie
[ 8 ]
5mm Hole Plug
[ 12 ]
Cover Cap

1
STEP A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.
Prepare Panels
H72988 [ 4 ]
KD Bolt
[ 8 ]
5mm
B
C

2
STEP A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.

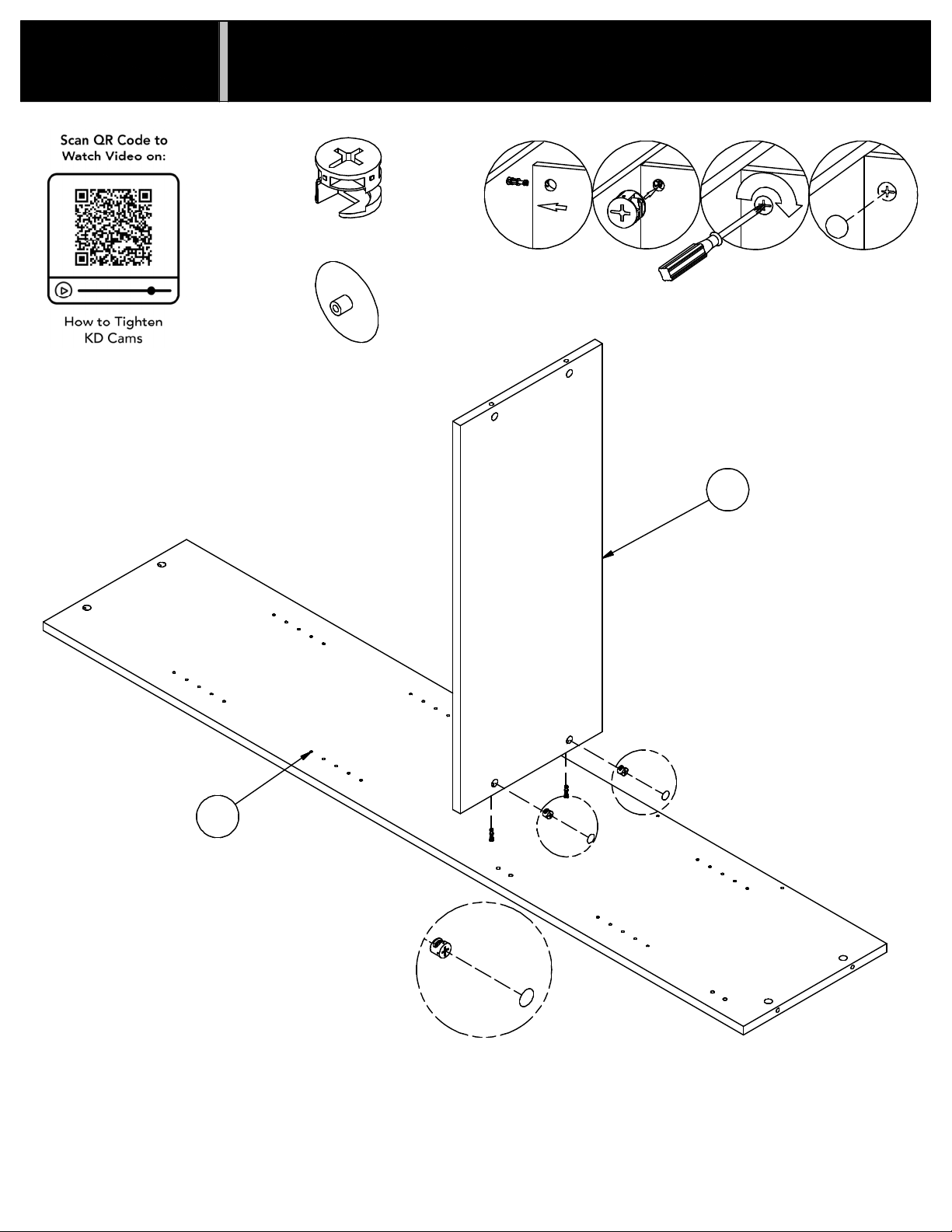

Assemble Panels
H71659 [ 2 ]
KD Cam
[ 2 ]
Cover Cap
D
B
1 3
24

3
STEP A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.
Assemble Panels
[ 2 ]
Cover Cap
H71659 [ 2 ]
KD Cam
C
D
1 3
24

4
STEP A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.
Prepare Panels
H72988 [ 8 ]
KD Bolt
A
E

5
STEP A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.

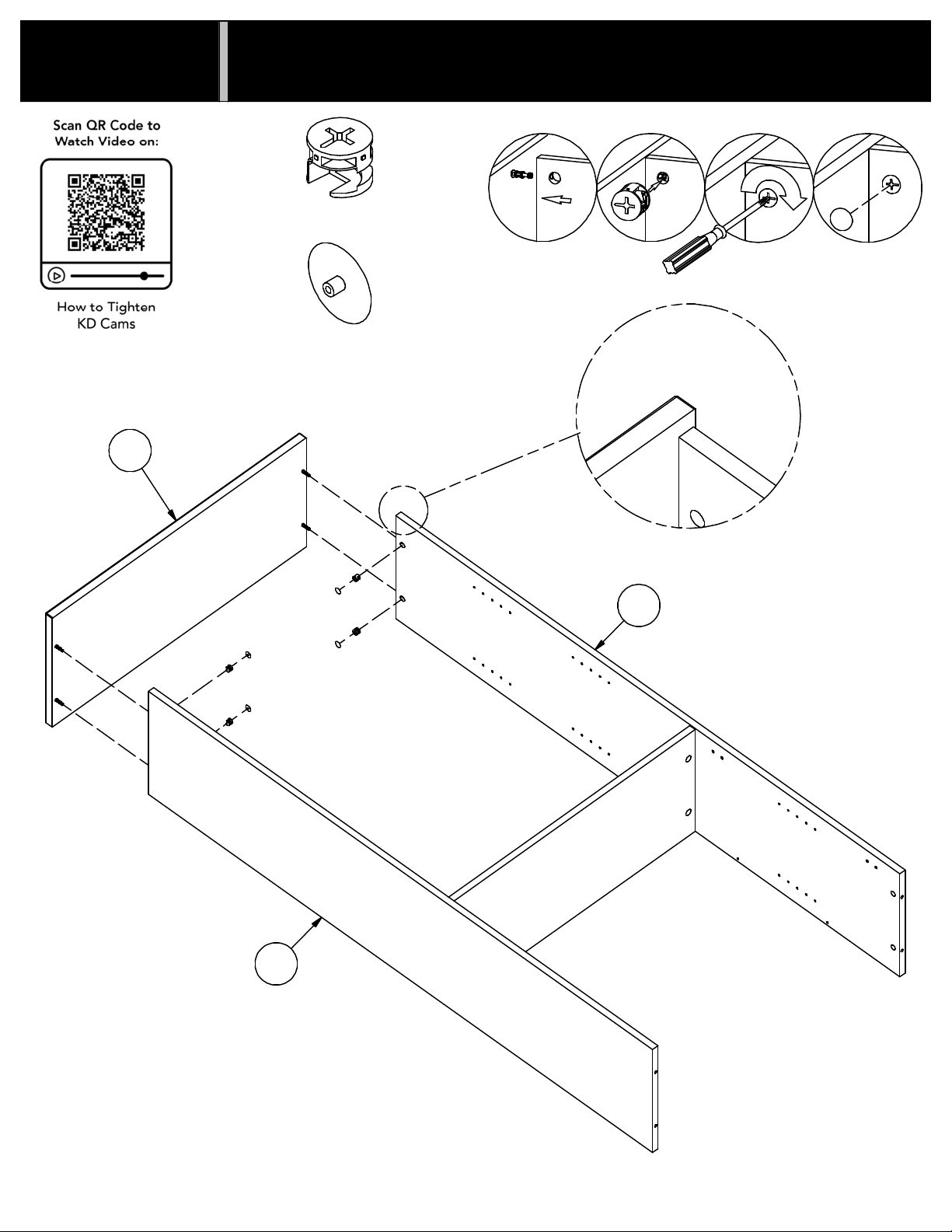

Assemble Panels
[ 4 ]
Cover Cap
H71659 [ 4 ]
KD Cam
A
C
B
1 3
24

6
STEP A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.
Assemble Panels
[ 4 ]
Cover Cap
H71659 [ 4 ]
KD Cam
1 3
24
C
B
E

7
STEP A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.

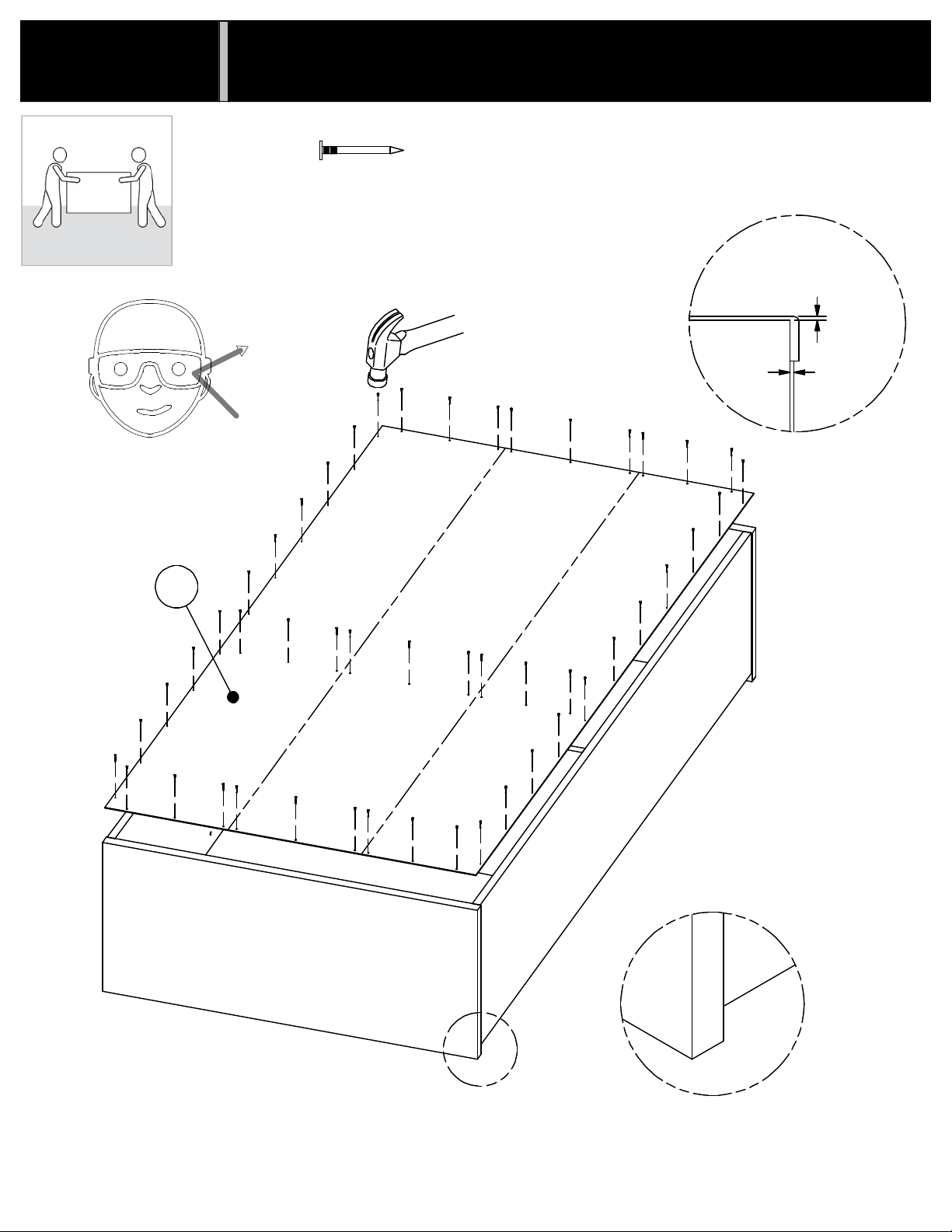

Assemble Panels
H34174 [ 49 ]
Nail 19mm
2mm 1/16"
2mm
1/16"
H
Safety glasses
Gafas de seguridad
Lunettes de protection
Team Lift

FIG A
FIG B
8
STEP A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.
Wall Attac ment
Secure unit to t e wall wit a tip-over restraint.
Unidad de seguro a la pared con un sistema de retención de un vuelco.
Fixer l'unité au mur avec un dispositif de retenue renversement.
1. Place unit in desired location.
2. Locate wall stud nearest unit center. FIG A
3. On wall, mark center of stud location 1" below top of unit. FIG A
4. If a wall stud cannot be located mark ollow wall at unit center. FIG A
5. On back of unit, mark corresponding location 3/8" below top of unit. FIG B
1. Coloque la unidad en el lugar deseado.
2. Localice pie derec o de pared centro de unidad más próxima.
3. En la pared del, marque el centro de la ubicación del montante 1 "abajo la parte superior de la unidad.
4. Si un poste de la pared no se puede localizar marcar pared ueca en el centro de la unidad.
5. En el dorso de la unidad, marque la ubicación 3/8 correspondiente abajo la parte superior de la unidad.
1. Placez l'unité à l'endroit désiré.
2. Localiser centre d'unité la plus proc e de la paroi Stud.
3. Sur le mur, centre de emplacement du montant 1 "ci-dessous dessus de l'appareil de la marque.
4. Si un montant de mur ne peut pas être situé marquer mur creux au centre de l'unité.
5. Le dos de l'appareil, marquer l'emplacement 3/8 correspondant ci-dessous dessus de l'appareil.
1" (25mm)
Mark wall
Marque la pared
Marquez le mur
3/8" (10mm)
Mark back wit in 6" (150mm) of center.
Marcar de vuelta dentro de 6" (150mm) de centro
Mark dans les 6" (150mm) de centre.

9
STEP A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.

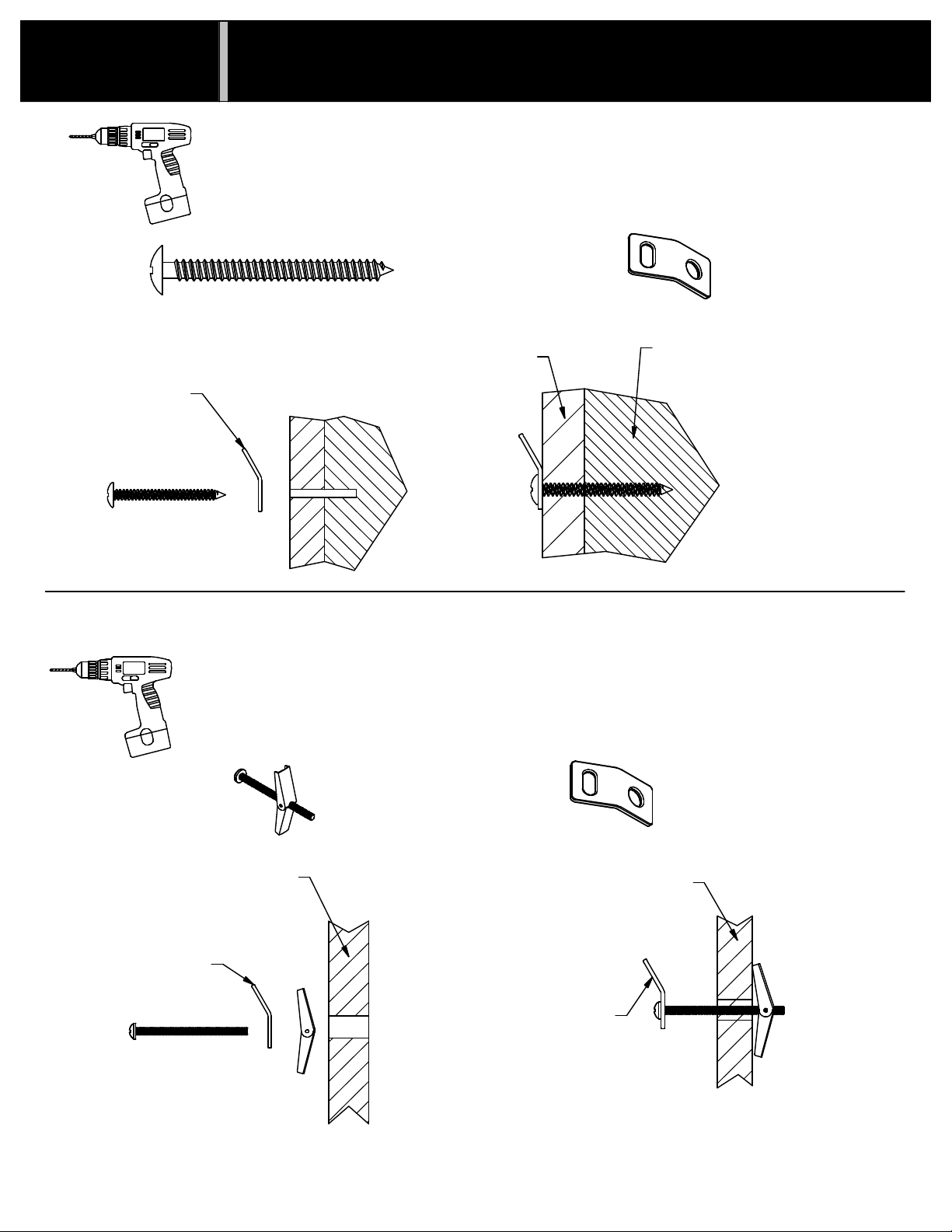

Wall Attac ment
Wood stud
Montante de madera
Stud bois
Drywall
Paneles de yeso
cloisons sèc es
Drywall
Paneles de yeso
cloisons sèc es
Drywall
Paneles de yeso
cloisons sèc es
Pull w ile tig tening
Jale mientras aprieta
Tirer tout en resserrant
WALL STUD ATTACHMENT
Drill 1/8" ole 2" deep at mark on wall.
Taladro 1/8 "agujero 2" de profundidad en la marca en la pared.
Percer 1/8 "trou de 2" de profondeur à la marque sur le mur.
Drill 1/2" ole 1" deep at mark on wall.
Taladro 1/2 "agujero 1" de profundidad en la marca en la pared.
Percer 1/2 "trou de 1" de profondeur à la marque sur le mur.
H181434 [ 1 ]
#10 x 2"
H181412 [ 1 ]
Connecting Plate
H181419 [ 1 ]
Toggle Bolt
H181412 [ 1 ]
Connecting Plate
HOLLOW WALL ATTACHMENT
H181412
H181412

10
STEP A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.
Wall Attac ment
H181412 [ 1 ]
Connecting Plate
H181411 [ 1 ]
Nylon Cable Tie
Correct
Correcto
Corriger
Use replacement cable tie wit minimum breaking strengt of 120lbs.
Utilice reemplazo empate Cable con resistencia a la rotura mínima de 120 libras.
Utilisez remplacement Attac e de câble avec une force de rupture minimale de 120 lbs.
Pull to verify lock
Tire para verificar cerradura
Tirez pour vérifier serrure
H107572 [ 1 ]
#8 x 1-1/2"
Drill 1/8" ole 1" deep at mark on unit.
Taladro 1/8 "agujero de 1" de profundidad en la marca de la unidad.
Percer 1/8 "trou 1" de profondeur à la marque sur l'unité.

11
STEP A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.

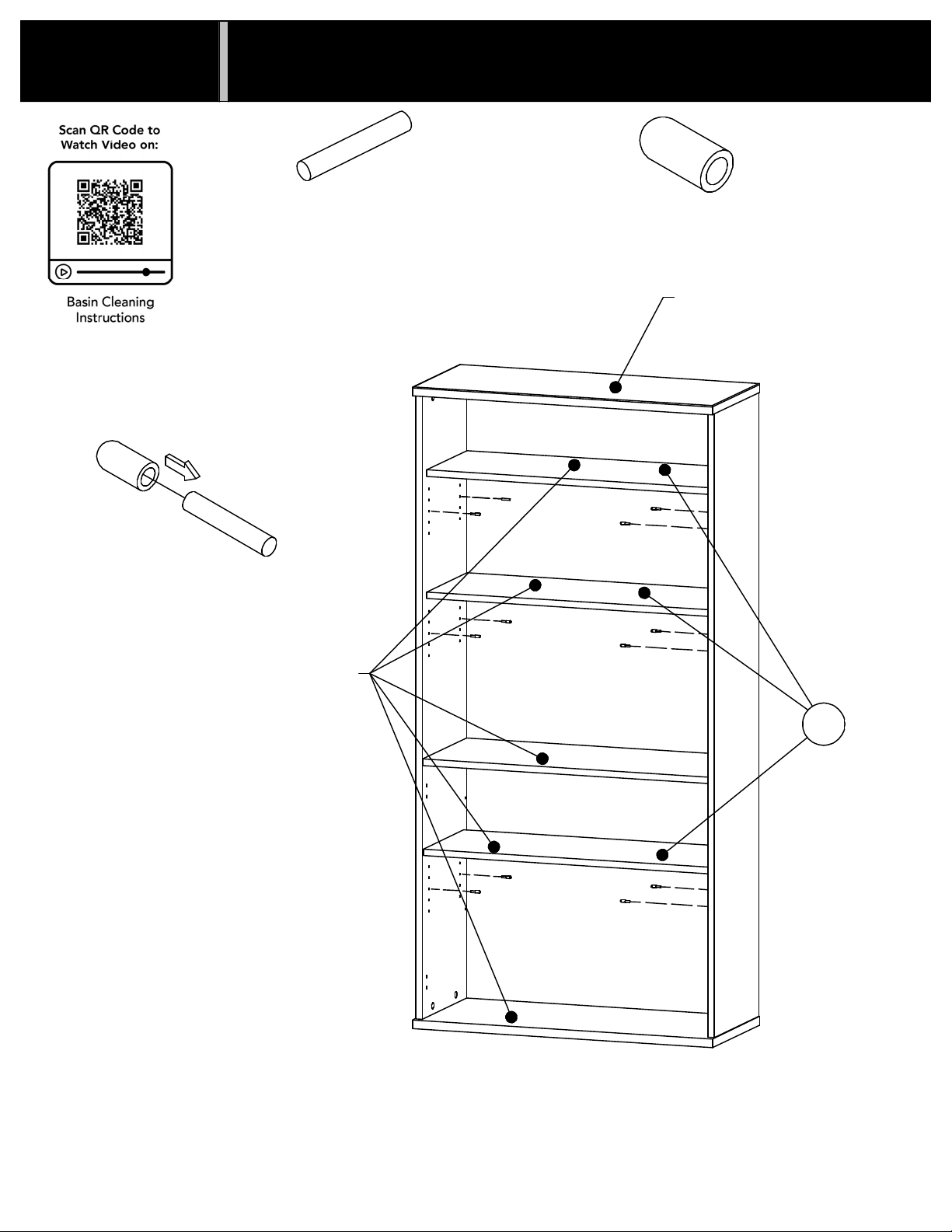

Maximum Loading
H126396 [ 12 ]
S elf Pin Sleeve
H23604 [ 12 ]
S elf Pin
12x
F
Maximum Weight: 0 Lbs.
Peso Máximo: 0 Libras
Poids Maximum: 0.0 kilogramme
Maximum Weight: 50 Lbs.
Peso Máximo: 50 Libras
Poids Maximum: 22.7 kilogramme
Congratulations! You are all done. If
you ave any questions or concerns,
please call.
Gently clean surfaces wit a damp sponge eraser.

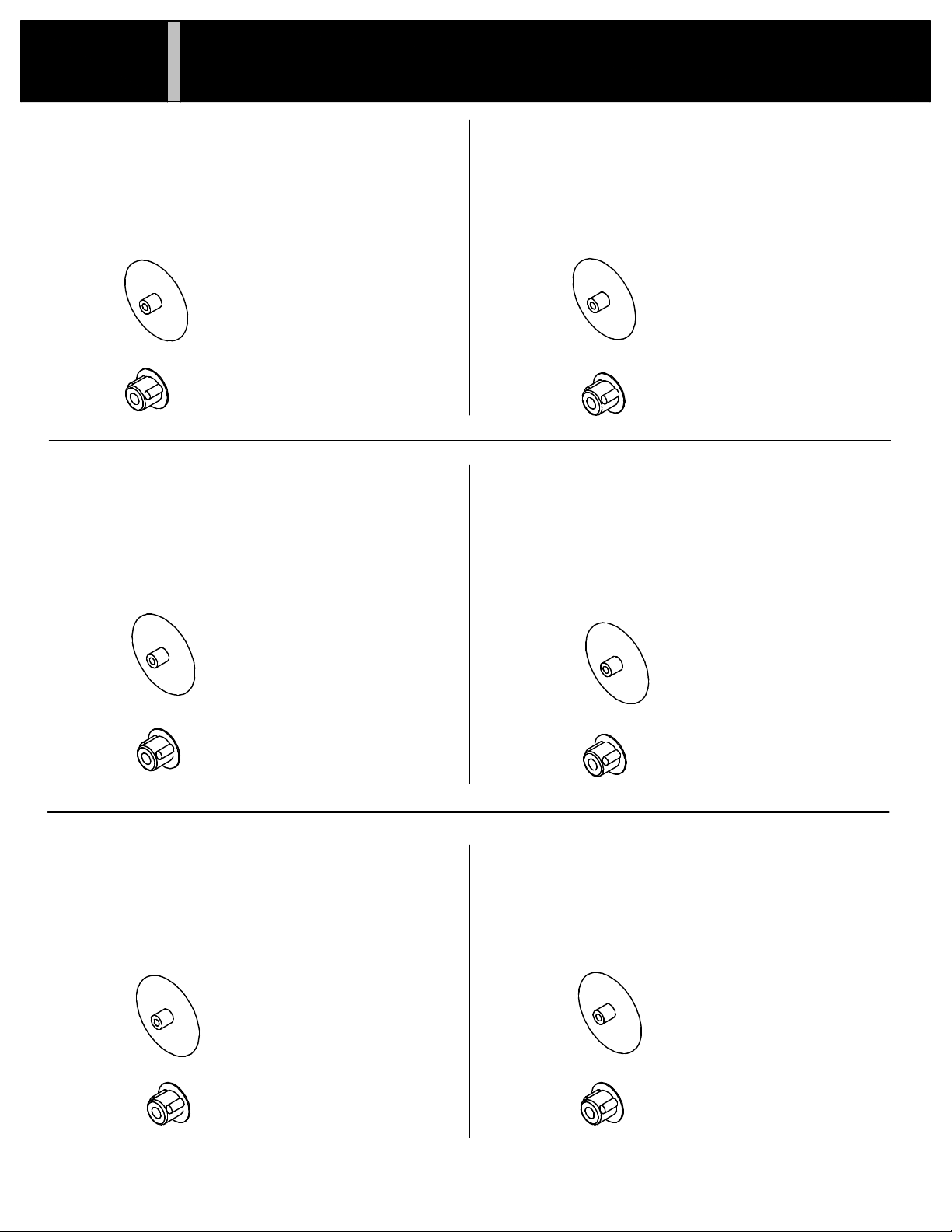

PARTS LIST A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.
H96110 [ 8 ]
5mm
H63904 [ 8 ]
5mm
H95137 [ 12 ]
Cover Cap
H73621 [ 12 ]
Cover Cap
H92520 [ 12 ]
Cover Cap
H92522 [ 8 ]
5mm
H107306 [ 12 ]
Cover Cap
H107309 [ 8 ]
5mm
H87676 [ 12 ]
Cover Cap
H100012 [ 8 ]
5mm
H73620 [ 12 ]
Cover Cap
H96670 [ 8 ]
5mm
A
B
C
D
[ 1 ] W96976
[ 1 ] W173223
[ 1 ] W173224
[ 1 ] W96977
[ 1 ] W145799
[ 3 ] W166124
[ 1 ] W145800
E
F
H
WC72414
E
F
H
[ 1 ] W128033
[ 1 ] W173219
[ 1 ] W173220
[ 1 ] W128034
[ 1 ] W145794
[ 3 ] W166120
[ 1 ] W145795
A
B
C
D
WC60314
WC48514
E
F
H
[ 1 ] W145789
[ 3 ] W166118
[ 1 ] W145790
[ 1 ] W93093
[ 1 ] W173217
[ 1 ] W173218
[ 1 ] W93094
A
B
C
D
WC36714
[ 1 ] W145784
[ 3 ] W166116
[ 1 ] W145785
E
F
H
[ 1 ] W128026
[ 1 ] W173215
[ 1 ] W173216
[ 1 ] W128027
A
B
C
D
WC24414
[ 1 ] W145779
[ 3 ] W166114
[ 1 ] W145780
E
F
H
[ 1 ] W96095
[ 1 ] W173213
[ 1 ] W173214
[ 1 ] W96098
A
B
C
D
WC12914
[ 1 ] W145774
[ 3 ] W166112
[ 1 ] W145775
E
F
H
[ 1 ] W128019
[ 1 ] W173211
[ 1 ] W173212
[ 1 ] W128020
A
B
C
D

PARTS LIST A173226G
Have an assembly question or need a replacement part? Just call
1-800-950-4782, we are ere to elp.
SCB136WH
A
B
C
D
[ 1 ] W191946
[ 1 ] W191947
[ 1 ] W191948
[ 1 ] W191949
E
F
H
[ 1 ] W191950
[ 3 ] W191951
[ 1 ] W184376
SCB136SG
A
B
C
D
[ 1 ] W189339
[ 1 ] W189343
[ 1 ] W189344
[ 1 ] W189340
E
F
H
[ 1 ] W191935
[ 3 ] W189342
[ 1 ] W184422
SCB136PG
A
B
C
D
[ 1 ] W191688
[ 1 ] W191689
[ 1 ] W191690
[ 1 ] W191691
E
F
H
[ 1 ] W191692
[ 3 ] W191693
[ 1 ] W191694
[ 1 ] W189779
[ 3 ] W189780
[ 1 ] W189781
E
F
H
[ 1 ] W189775
[ 1 ] W189776
[ 1 ] W189777
[ 1 ] W189778
A
B
C
D
[ 1 ] W189734
[ 3 ] W189735
[ 1 ] W189736
E
F
H
[ 1 ] W189730
[ 1 ] W189731
[ 1 ] W189732
[ 1 ] W189733
A
B
C
D
SCB136CS SCB136AC
[ 1 ] W192856
[ 3 ] W192857
[ 1 ] W192858
E
F
H
[ 1 ] W192852
[ 1 ] W192853
[ 1 ] W192854
[ 1 ] W192855
A
B
C
D
SCB136SO
H100012 [ 8 ]
5mm Hole Plug
H163153 [ 12 ]
Cover Cap
H184321 [ 12 ]
Cover Cap
H192760 [ 8 ]
5mm Hole Plug
H193368 [ 12 ]
Cover Cap
H193369 [ 8 ]
5mm Hole Plug
H184428 [ 8 ]
5mm
H92523 [ 8 ]
5mm
H73619 [ 12 ]
Cover Cap
H92521 [ 12 ]
Cover Cap
H83021 [ 12 ]
Cover Cap
H112099 [ 8 ]
5mm
