BBV TX1500 system User manual

TX1500 Matrix, TX1500 Keypad,
And TX1500/AL16
Building Block Video Ltd.,
17 Apex Park
Diplocks Industrial Estate,
Hailsham, East Sussex, BN27 JU UK.
Tel: [phone]
Fax: [phone]
Support: [phone]
Web Site: http://www.bbvcctv.com
Installation
Guide

TX1500 Manual V4 1 Oct 2011 doc Page 2 of 32 TX1500 MATRIX
Contents
Unpacking 3
Safety Precautions 3
System Components 3
Description 4
TX1500 components 4
Product Codes 4
TX1500 System Example 5
BBUS control bus 6
BBUS example wiring 7
RS422 Telemetry port 8
RS422 wiring diagrams 8, 9
Video Input Card 10
Monitor Output Card 11
Matrix ALARM 00 & relay connector 11
96 Camera subrack wiring 12
Matrix Dianostics 13
TX1500/AL16 16 Input Alarm Card 14
Configuring the TX1500 15
System Basics 16
Access Tables 17
Alarm Menus 18
Sequences 19
Camera Types 20
Vista Extended Commands 21
Telemetrey Functions 22
Set Password 23
System Parameters 24
System Parameters 2 25
Up-the-coax receiver programming 26
TX1500 USER GUIDE 27
Selecting a Camera 27
Selecting a Monitor 27
Moving a Camera 28
Lens Keys 28
Auxiliary Outputs 28
Go to Preset Position 29
Programming a Preset Position 29
Starting a Preset Patrol 30
Starting a Monitor Sequence 30
Triangle/Relay Key 30
Alarm Key 30
TX1500/KBD System Keypad 31

TX1500 Manual V4 1 Oct 2011 doc Page 3 of 32 TX1500 MATRIX
UNPACKING
Inspect the packaging for signs of damage If damage has occurred, advise the carriers and/or the suppliers
immediately Unpack the units carefully and check that all the items are present and correct
SAFETY PRECAUTIONS
All normal safety precautions as laid down by British Standards and the Health and Safety at Work Act (or the relevant
National safety legislation if installing in a country outside the U K ) should be observed, and servicing should be
referred to qualified service personnel
SYSTEM COMPONENTS
Each complete system will comprise of at least the following:
1 x TX1500 video matrix enclosed in a 19” sub rack
1 x TX1500/KBD system Keypad or TCommand Touch Screen Keypad
3 x RJ45 straight patch cables
3 x RJ45 breakout boxes with self adhesive mounting pad
2 x 12Vdc1000mA power supply (1 for the matrix and 1 for the Keypad)
TX1500/32/8 matrix
Standard TX1500/KBD System Keypad
Optional T Command Touch Screen Keypad

TX1500 Manual V4 1 Oct 2011 doc Page 4 of 32 TX1500 MATRIX
OVERVIEW
The TX1500 is a video matrix and telemetry control system offering control of up to 96 cameras from 4 control
positions Eight monitor outputs are provided with monitors 1,2,3 & 4 having on screen display
BBV & VISTA up-the-coax and BBV 422 & VISTA 485 linked receivers and domes can e controlled when
viewed on any monitor. Pelco and VCL up-the-coax control is limited to monitors 1-4.
Monitor outputs tested via CRT Monitors, recommended maximum cable (RG59) distance from matrix = 25 meters
TFT Monitors may require additional amplification
Site alarms and contacts are handled with alarm cards, each providing 16 inputs Up to 6 alarm cards can be linked
into the TX1500 system either locally or remotely offering 96 alarm inputs
The TX1500/BBUS-IF interface, which appears as another Keypad, gives off-site control, via video/data transmission
equipment, and local control from PC and other equipment The interface can be controlled using either the TX1000 or
TX1500 control protocol via either RS232 or RS422
The TX1500 matrix communicates with all Keypads, alarm cards and BBUS-IF interfaces via a polled 4-wire multidrop
RS422 control bus named BBUS
The matrix itself is in a subrack which can be fitted to a 19” rack using supplied fixing brackets The fixing brackets
can be mounted on the front or rear face of the subrack By fitting the ears on the back of the subrack, it can also be
wall mounted
Alarm cards, BBUS-IF and StarCards are supplied in 1U sub racks as standard or can be fitted into the subrack with
the matrix if specified when ordering
Larger subracks than standard can be supplied if specified when ordering
PRODUCT CODES
TX1500/16/8 16 camera, 8 monitor matrix inc Keypad (supplied in 3U subrack)
TX1500/32/8 32 camera, 8 monitor matrix inc Keypad (supplied in 3U subrack)
TX1500/48/8 48 camera, 8 monitor matrix inc Keypad (supplied in 5U subrack)
TX1500/64/8 64 camera, 8 monitor matrix inc Keypad (supplied in 5U subrack)
TX1500/80/8 80 camera, 8 monitor matrix inc Keypad (supplied in 7U subrack)
TX1500/96/8 96 camera, 8 monitor matrix inc Keypad (supplied in 7U subrack)
TX1500/KBD Keypad with 3-axis joystick
TX1500/AL16 16 input alarm card, volts free normally closed inputs
TX1500/BBUS-IF BBUS Interface to allow control from a PC or other 3
rd
party equipment
STARCARD StarCard with 8 x RS422/485 outputs to allow star wired telemetry
STARCARD/CONVERTER As STARCARD with built in protocol conversion to allow control of domes etc
EXPANDING AN EXISTING SYSTEM on site (maximum of 96 camera inputs)
The TX1500 can be expanded to a maximum of 96 cameras
Larger subracks are inculed when required nesserary All the cards from the existing subrack must be transferred to
the new subrack Note down and put somewhere safe all the external connection information to aid re-commissioning
the system
PRODUCT CODES
TX1500/EXP16/17-32/MK2 16 video input card to expand from a 16 camera to 32 camera system
TX1500/EXP16/33-48/MK2 16 video input card to expand from a 32 camera to 48 camera system
TX1500/EXP16/49-64/MK2 16 video input card to expand from a 48 camera to 64 camera system
TX1500/EXP16/65-80/MK2 16 video input card to expand from a 64 camera to 80 camera system
TX1500/EXP16/81-96/MK2 16 video input card to expand from a 80 camera to 96 camera system
3U TX1500/3U-SUBRACK
5U TX1500/5U-SUBRACK
7U TX1500/7U-SUBRACK

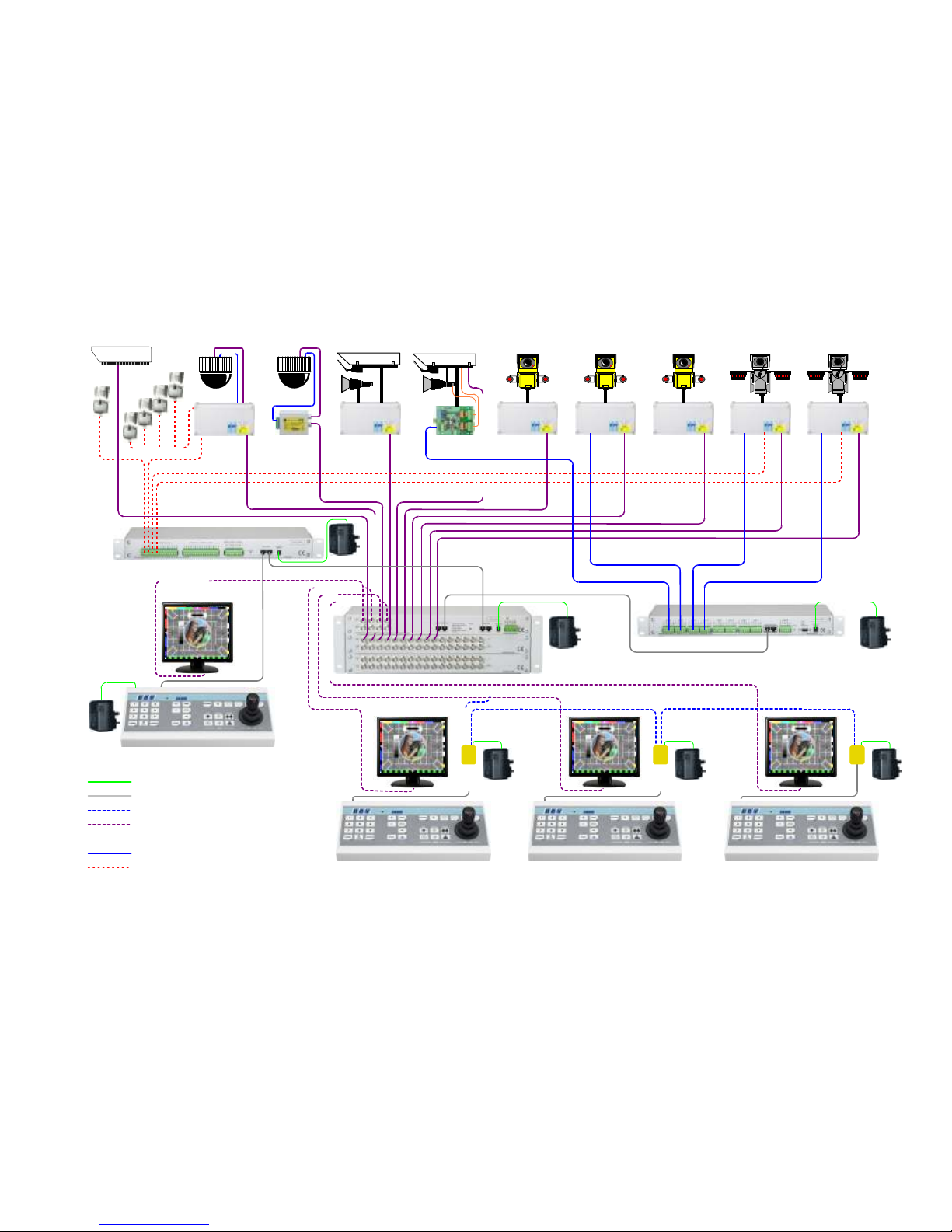

TX1500 Manual V4 1 Oct 2011 doc Page 5 of 32 TX1500 MATRIX EXAMPLE
RX400P
AC P/T Zoom/Focus
Full Scene Presets
STATIC
static camera
RX55X
Multi protocol + DC
Preset pan/tilt camera
RX45X
Multi protocol + AC
Preset pan/tilt camera
RX35X
static camera with
lights/wash/wipe
RX300
static camera with
lights/wash/wipe
RX200
static camera with
lights/wash/wipe
RX10X
+ dome camera
RX100
+ dome camera
RX25X
static camera with
2 Auxiliaries
TX1500 ALARM CARD
TX1500/32/8 VIDEO MATRIX
STARCARD
9 -12 V ac or dc Supply
RJ45 Patch cable
RS422 BBUS Network
Video form Matrix to Monitor
Video form Cameras to Matrix
BBV422 telemetry control bus
Alarm circuit (normally closed)
TX1500/KBD (address 1)
TX1500/KBD (address 3) TX1500/KBD (address 4)TX1500/KBD (address 2)
PSU
PSU
PSU PSU
PSUPSUPSU

TX1500 Manual V4 1 Oct 2011 doc Page 6 of 32 TX1500 MATRIX
4 = TxA from MONITOR CARD (data +)TxB from MONITOR CARD (data -) = 5
(0v) GROUND= 7
DO NOT USED = 8
BLUE (CAT5)(CAT5) WHITE/BLUE
(CAT5) WHITE/BROWN
(CAT5) BROWN
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
RxB to MONITOR CARD (data -) = 6
(CAT5) GREEN
3 = RxA to MONITOR CARD (data +)
WHITE/GREEN (CAT5)
2 = DO NOT USE (+V)
1 = DO NOT USE

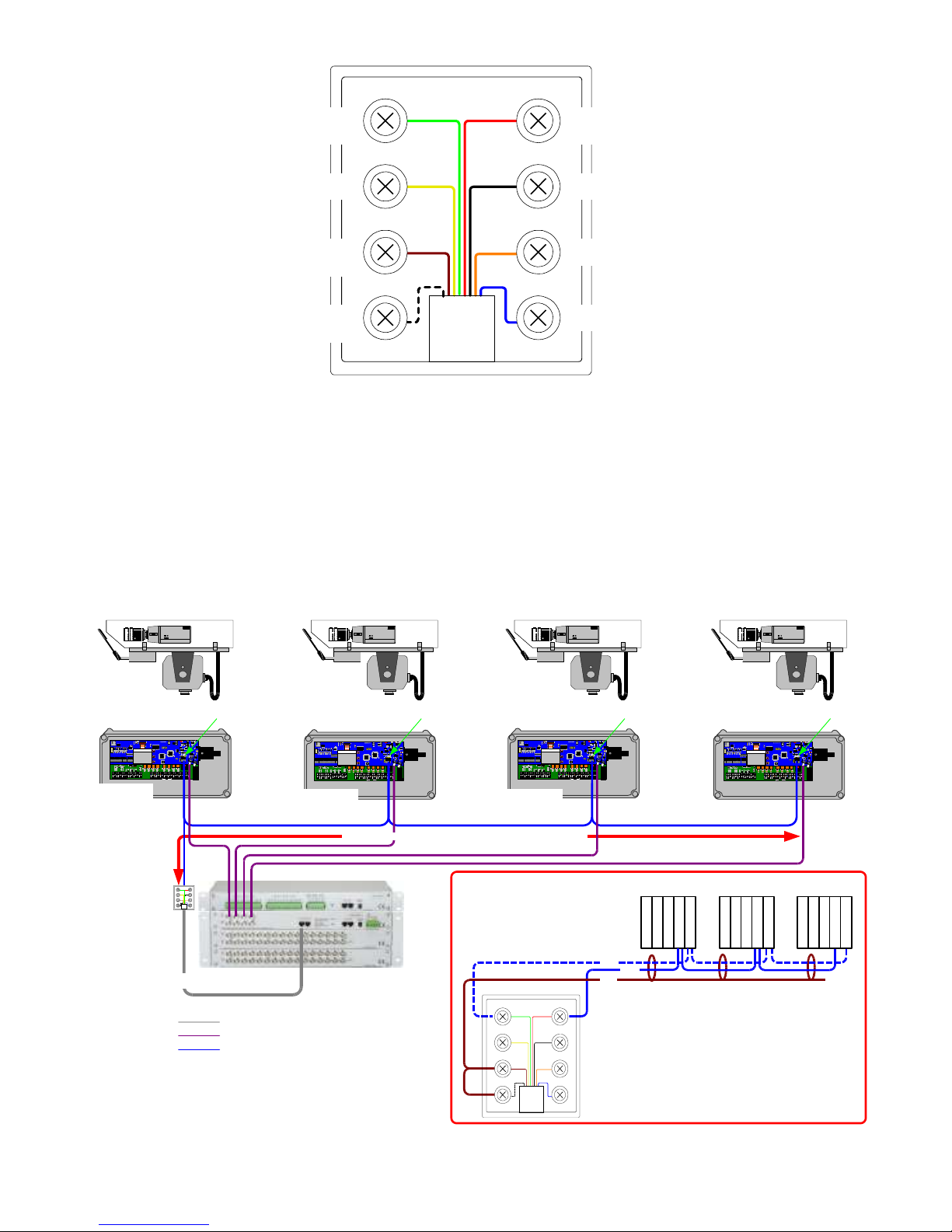

BBUS CONTROL BUS
The TX1500 communicates with all Keypads, alarm cards and BBUS-IF interfaces via a polled 4 wire multidrop
RS422 control bus named BBUS
All the units are equipped with standard RJ45 connectors allowing cat 5 patch cables to be used to connect over
short distances On the larger sites RJ45 break out boxes are used to link between cat 5 cables and good quality
screen twin twisted pair data cable Suitable types are the following Belden cables: 9842, 9829, 8162, 8132
Fig 5 BBUS - RJ45 breakout box connector, MONITOR CARD end of BBus
BBUS maximum distance 1200m end to end
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW BL ACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
BLUE/WHITE
GREEN/WHITE
BLUE
GREEN
Tx Data (From matrix)
Rx Data (To matrix)
SCREEN SCREEN
SCREEN
TX1500/AL16
Keypad 2
BBUS Terminated
1 - 5 = Keypad Address
6 = # & Program Enable
7 & 8 = BBUS termination
RJ45 patch cable max length = 2m
Alarm card
BBUS Un-Terminated
Switch 7-8 OFF
Keypad 1
BBUS Un-Terminated
TX1500/32/8
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
9-12Vdc
PSU
9-12Vdc
PSU
9-12Vdc
PSU
9-12Vdc
PSU
Card alarm 1 - 16
1 2 3 4 5 6 7 8
ON

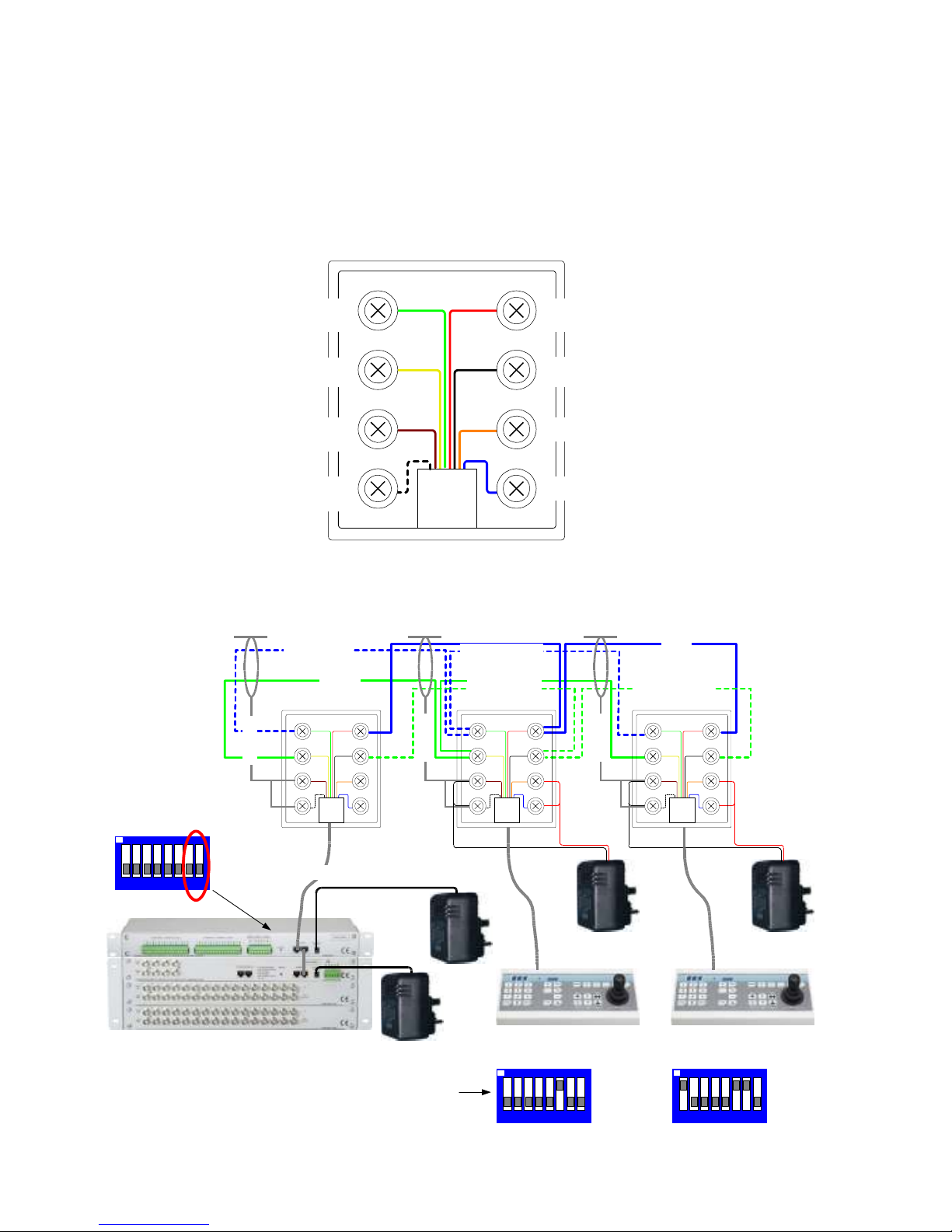

Fig 6 Keypad BBUS wiring

TX1500 Manual V4 1 Oct 2011 doc Page 7 of 32 TX1500 MATRIX
SYSTEM BBUS WIRING EXAMPLES
The following diagrams show examples of various wiring schemes
Keypad 1
BBUS Un-Terminated
PROGRAM Enabled
1 2 3 4 5 6 7 8
ON
GREEN RED
YELLOW B LACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW B LACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW B LACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
BBUS maximum distance 1200m end to end
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
Keypad 2
BBUS Un-Terminated
PROGRAM Disabled
Keypad 3
BBUS Un-Terminated
PROGRAM Enabled
Keypad 4
BBUS Terminated
PROGRAM Enabled
Matrix SW2
BBUS Terminated
Fig 7 Example with all Keypads daisy chained from the TX1500 matrix using a single BBUS leg
Keypad 1
BBUS Un-Terminated
PROGRAM Enabled
1 2 3 4 5 6 7 8
ON
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
BBUS maximum distance 1200m end to end
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
Keypad 2
BBUS Un-Terminated
PROGRAM Disabled
Keypad 3
BBUS Un-Terminated
PROGRAM Enabled
Keypad 4
BBUS Terminated
PROGRAM Enabled
Matrix SW2
BBUS Un-Terminated
Fig 8 Example with all Keypads daisy chained from the TX1500 matrix using two BBUS legs
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
GREEN RED
YELLOW BLACK
ORANGE
BLUEWHITE
BROWN
Fig 9 Use of a starcard to allow star wiring of keypads
