BC H7 User manual
H7 Robot Vacuum
Intelligent cleaning for a beautiful life
Please read this manual carefully before use
Boolean Cloud
Please Scan the QR code on the right to
download the"Smart Life" APP.
TABLE OF CONTENTS
Important Safety Instruction…………………………………………….................................................02
（1）WARNING……………………………………………................................................................02
（2）Important Safety Instruction(cont.)………………...................................................................02
（3）FCC Warning…………………………………………...............................................................04
Package Contents…………………………………………………………..............................................05
About Your Robot Vacuum……………………………………………...................................................06
（1）Robotic…………………………………………….....................................................................06
（2）Self-empty station…………………………………………….....................................................07
（3）2in1 Water Tank and removable mop…………………………………………….......................08
Using Your Robot Vacuum…………………………………………...................................................…09
（1）Operating…………………………………………...................................................…...............09
（2）Button instruction………………………………………….....................................................…10
（3）APP Contaction…………………………………………...................................................….....10
Precautions…………………………………………...................................................…......................13
Regular Robot Care…………………………………………….............................................................14
Troubleshooting……………………………………………...................................................................17
Technical Specifications……………………………………........................................................……...19
Boolean Cloud Customer Care......………………………........................................................……....20
Intelligent cleaning for a beautiful life US
For more questions please contact
IMPORTANT SAFETY INSTRUCTION
IMPORTANT SAFETY INSTRUCTION (CONT.)
WARNING
WARNING: TO REDUCE THE RISK OF INJURY OR DAMAGE, PLEASE READ THE FOLLOW-
ING SAFETY PRECAUTIONS WHEN SETTING UP, USING, AND MAINTAINING YOUR ROBOT.
THIS APPLIANCE IS NOT INTENDED FOR USE BY CHILDREN YOUNGER THAN 8 YEARS OLD
OR BY PERSONS WITH REDUCED PHYSICAL, SENSORY, OR MENTAL CAPABILITIES OR
LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPER-
VISION OR INSTRUCTION ON HOW TO USE THE APPLIANCE SAFELY AND UNDERSTAND
THE HAZARDS INVOLVED. DO NOT ALLOW CHILDREN TO PLAY WITH THE APPLIANCE.
DO NOT ALLOW CHILDREN TO CLEAN OR SERVICE THE APPLIANCE WITHOUT SUPERVISION.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE YOUR
ROBOT'S ELECTRONICS OR THE INTEGRATED DOCK-CHARGER KNOWN AS THE
HOME BASE. THERE IS NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALI- FIED SERVICE PERSONNEL. DO NOT HANDLE YOUR ROBOT AND CHARGE BASE
WITH WET HANDS.
Only service personnel who have been professionally trained and have obtained may service
the sweeper.
If your sweeper is abnormal, refer to the Common Fault Analysis and Elimination and email us.
• WARNING: Risk of electric shock, use indoors in dry locations only.
• Your robot is not a toy. Do not sit or stand on this device. Small children and pets should be
supervised when your robot is operating.
• Store and operate your robot in room temperature environments only.
• Do not use this device to pick up sharp objects, glass, or anything that is burning or smoking.
• Do not use this device to pick up spills of water, bleach, paint, other chemicals, or anything wet.
• Do not spray or pour liquids on your robot.
• Before using this device, pick up objects like clothing, loose papers, pull cords for blinds or
curtains, power cords, and any fragile objects. If the device passes over a power cord and drags
it, there is a chance an object could be pulled off a table or shelf.
• If the room to be cleaned has a balcony, a physical barrier should be used to prevent access to
the balcony and ensure safe operation.
• Do not place anything on top of your robot.
• Be aware that the robot moves on its own. Take care when walking in the area that the robot is
operating in to avoid stepping on it.
• Do not operate the robot in areas with exposed electrical sockets in the floor.
• WARNING Shock Hazard: Your robot comes with a region approved power supply cord. Do
Intelligent cleaning for a beautiful life
For more questions please contact
02
US
not use any other power supply cord. For replacement cords, please contact Customer Care to
ensure the proper selection of a country-specific power supply cord.
• This robot is intended for dry floor use only.
• WARNING Shock and Fire Hazard: This product is designed to be plugged into a standard
electical socket only. The product may not be used with any type of power converter. Use of
power converters will immediately void the warranty.
• Do not use non-rechargeable batteries. Use only the rechargeable battery supplied with the
product.
• CAUTION: Only charge one of the following: maximum 14.4V, maximum 3000mAh Ni-MH, or
maximum 3200mAh Li-ion battery. Other types of batteries may burst. Always contact Customer
Care to ensure the correct replacement of your battery.
• WARNING Shock Hazard: Do not use a Home Base with a damaged cord or plug. If the cord or
plug is damaged, it must be replaced.
• Always charge and remove the battery from your robot and accessories before long-term storage
or transportation.
• If you live in an area prone to electrical storms, it is recommended that you use additional surge
protection. Your robot’s Home Base should be protected with a surge protector in the event of
severe electrical storms.
• WARNING! Shock Hazard: Always disconnect your robot from the Home Base before cleaning
or maintaining it.
• Before every use, check the battery pack for any signs of damage or leakage. Do not charge
damaged or leaking battery packs.
• WARNING! Chemical Exposure: If the battery pack is leaking, do not allow the liquid to come in
contact with skin or eyes. If contact has been made, wash the affected area with copious
amounts of water and seek medical advice. Place the battery in a sealed plastic bag and
dispose of it safely according to local environmental regulations.
• The battery pack must be removed from the robot before disposal.
• WARNING! Fire or Explosion Hazard: Do not crush or dismantle battery packs. Do not heat or
place the battery pack near any heat source or direct sunlight. Do not incinerate or short-circuit
the battery pack. Do not subject batteries to mechanical shock.
• Do not immerse the battery pack in any liquid.
• Contact your local waste management authority for more information on battery recycling and
disposal regulations in your area.
This symbol on the product or its packaging indicates:
Do not dispose of electrical appliances or batteries as unsorted municipal waste,
use separate collection facilities. Contact your local authority for information regarding the
collection systems available. If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the groundwater and get into the food chain, damag-
ing your health and well-being. Please contact your local or regional authority for more
information on collection, reuse, and recycling programmes.
For more questions please contact
Intelligent cleaning for a beautiful life US
FCC WARNING
This device is in compliance with Part 15 of the FCC Rules. Its operation is subject to the following
two conditions:
This device must not cause harmful interference.
This device must accept any interference it receives, even if such interference results in undesired
operation. Any changes or modifications not explicitly approved by the party responsible for com-
pliance could revoke the user's authority to operate the equipment.
Please take note: This equipment has been thoroughly tested and found to meet the standards for
a Class B digital device, as per Part 15 of the FCC Rules. These standards are designed to offer
reasonable protection against harmful interference in a residential setting. This equipment gener-
ates and uses radio frequency energy and, if not installed and used in accordance with the provid-
ed instructions, it may potentially cause interference with radio communications. However, it's
important to understand that there's no guarantee that interference won't occur in a specific instal-
lation.
If this equipment does indeed cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, we encourage the user to attempt to cor-
rect the interference by taking one or more of the following steps:
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and the receiver.
Plug the equipment into an outlet on a different circuit than the one to which the receiver is con-
nected.
Seek assistance from the dealer or an experienced radio/TV technician.
This equipment is compliant with FCC radiation exposure limits specified for an uncontrolled envi-
ronment. It should be installed and operated with a minimum distance of 20cm between the radia-
tor and your body.
For more questions please contact
04
Intelligent cleaning for a beautiful life
US
PACKAGE CONTENTS
Robot Vacuum X1
Mop x2
HEPA Filter X2 Cleaning Brush X1
Rolling brush X1
Dust Bag X2
Charging Station X1 User Manual X1
Mop Pad X1 Side Brush X2
For more questions please contact
Intelligent cleaning for a beautiful life US
ABOUT YOUR ROBOT VACUUM
For more questions please contact
06
Intelligent cleaning for a beautiful life
US
(1) Robotic
Intelligent recharge
Switch /Plan cleaning
Infrared receiving sensor
Network configuration
Laser radar
Top cover
Collision sensor
Universal wheel
Side brush
charging pole piece
Cliff sensor
Rolling brush cover
Rolling brush
Right wheel Revolver
Mopping module
Reset key: Force shutdown key
Infrared sensor
Charging
electrode head
Charging
electrode head
Fan screen
Top cover
Open the top cover and put in/remove the dust bag.
Dust bin
Indicator light
Dust collector charging shrapnel Infrared lens
Suction opening
Get the garbage from the mainframe through
Suction port, suction into the dust bag
For more questions please contact
Intelligent cleaning for a beautiful life US
(2) Self-empty station
* When the dust collector is faulty, the orange light flashes.
After the power supply
is turned on, the white
indicator is steady on.
Turn off when power
is removed.
Dust bag full or Dust
bag not pro-perly
installedThe orange
light flashes.
Indicator light
Instructions
Remark
Orange
Self Empty&Charging Station indicator description
White Extinguish
For more questions please contact
08
Intelligent cleaning for a beautiful life
US
(3) 2in1 Water Tank and removable mop
Tank water inlet
Mop support
Open Clip
210ml Water Tank
Release Button
Mop
Strainer support
HEPA
200ml Dirst Tank
For more questions please contact
Intelligent cleaning for a beautiful life US
USING YOUR ROBOT VACUUM
(1) Operating
1.Remove the protective materials from the robot vacuum cleaner and base.
2.Place the automatic dust emptying base against a wall, but make sure there is clear
space in the front of the base and on both sides of it.
Note: Please fully charge the robot vacuum cleaner before your first-time use. Manually
align the charging contacts of the robot vacuum cleaner with those on the base.
take down
take down
➀ ➁
For more questions please contact
10
Intelligent cleaning for a beautiful life
US

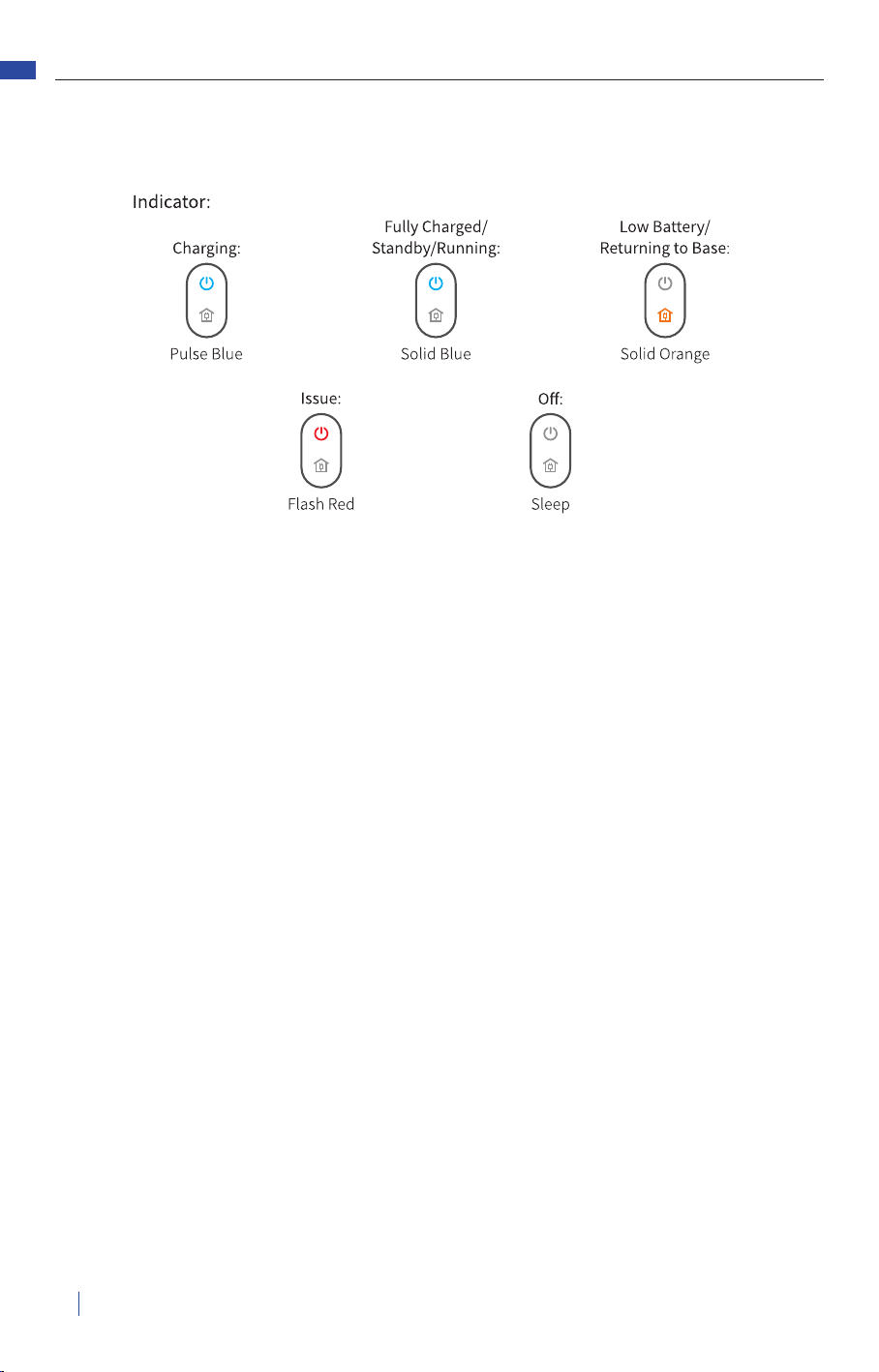

(2) Tough Sheet
(3) APP Contaction
Notes:
lt takes up to 6 hours to reach a full charge. This will provide up to 150 minutes of cleaning
time on hard floors with minimum suction power.
lf the robot vacuum cleaner doesn't charge, please directly email us at: support@shoux-
in168.com.
To extend the battery's lifespan, please recharge the robot at least once every 2 months if
it's not been used for a long time.
➀
➁
➂
1.All of First，Please Scan the QR code on the right to download the "Smart Life" APP.
To make sure the app you download is the official ”Smart Life ” App, please scan our QR
code to download it!
For more questions please contact
Intelligent cleaning for a beautiful life US
➀
➁
➂
➃
➄
➅

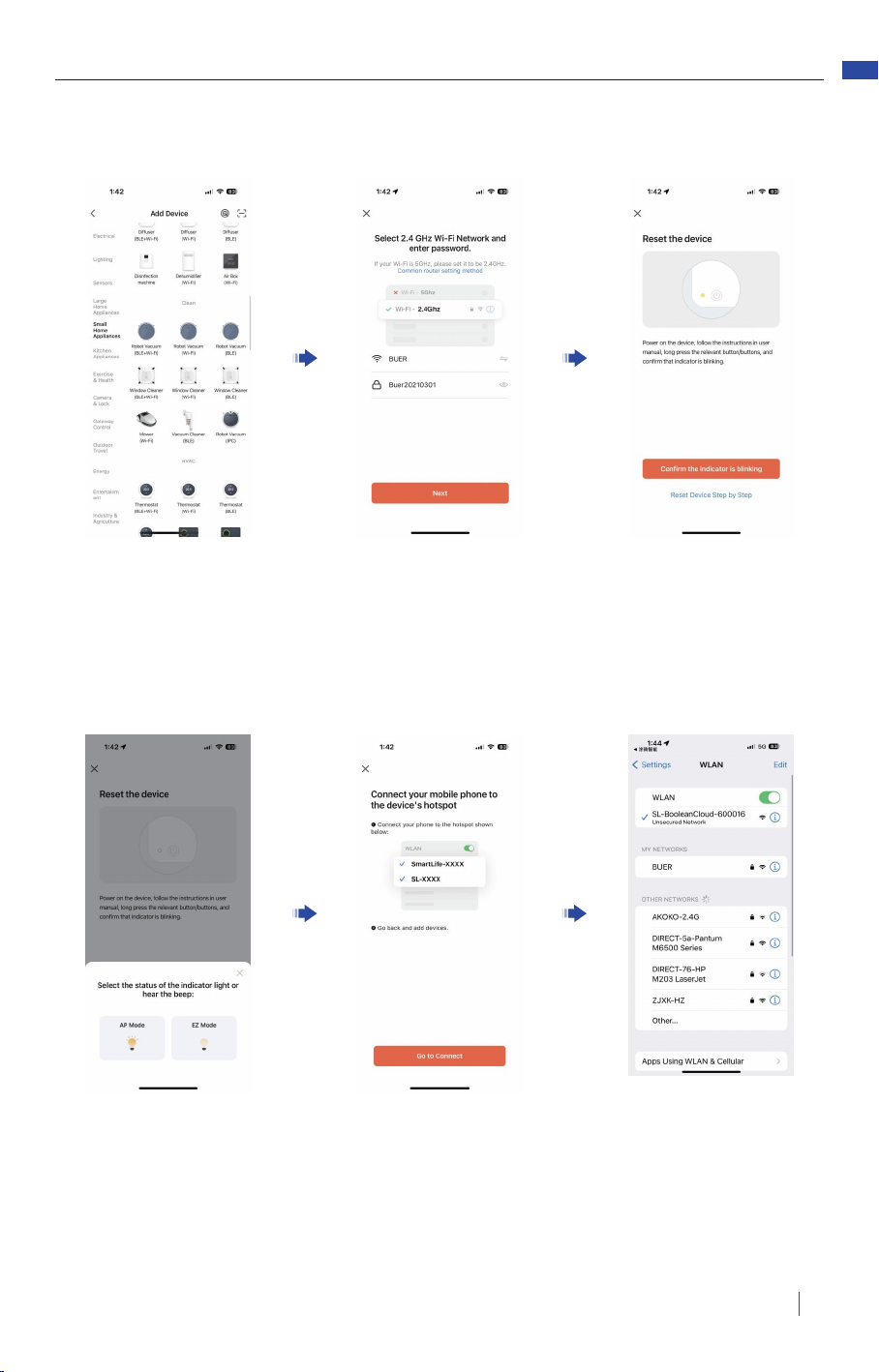

On the Add Device page, select "Home Vacuum (wifi)".
Jump to the link wifi page, enter your home WiFi password to link with your WiFi.
Jump to the link channel with the robot vacuum and 'Confirm'
Please choice the AP Mode only;
Ensure that AP Mode is selected, then Continue;
Jump to the machine hotspot link, find the SL-Boolean Cloud wifi to contect.
1.
For more questions please contact
12
Intelligent cleaning for a beautiful life
US
PRECAUTIONS
➆
➇
Waiting patiently for the link;
Successfully add your robot vacuum.
Very Important!
Do not move the machine by hand after starting to
clean.
DON'T do any artificial behavior may obstacles the
machine is sweeping automatically. These will
result in the machine can't clean cleanly, or
cleaning program be messed, and the robot
vacuum will not be able to return to the charging
place properly.
If you need to interrupt cleaning to self charge,
please choose to pause cleaning and recharge on
the app instead of manually moving it to the front of
the charging station.
1
Keep away from the socket with wire
Keep away from place with water
when the machine is working
Do not bring a mop when clean carpet
as it will wet the carpet and the resis-
tance of the mop is too high to trigger
collision prevention sensing. Unable to
clean properly.
The machine can only climb over
obstacles of less than 2 cm,It is not
possible to do more than 2cm
Keep away from the fire DO NOT approach stairs
23
45
67
For more questions please contact
Intelligent cleaning for a beautiful life US
PRECAUTIONS
REGULAR ROBOT CARE
5. After injecting water into the two-in-one water
tank, close the two-in-one water tank, shake the
two-in-one water tank from left to right, pour out
the dirty water, and repeat several times until the
two-in-one water tank is cleaned.
6. Turn the two-in-one water tank over and
remove the mop support to replace the mop
or clean it.
Operating
3. Remove the strainer.
Filter bracket
rosebox
Tip:
1. If the mop is too dirty, it will affect the mopping effect, please clean it in time.
2. Be sure to remove the mop to clean and wring out the installation. Do not install it on the two-in-one
water tank for cleaning, otherwise it is easy to damage the two-in-one a tank of water.
3.It is recommended to replace the mop every 6-12 months to ensure the cleaning effect.
For more questions please contact
14
Intelligent cleaning for a beautiful life
US
1. Press and hold the 2-in-1 water tank
release button while pulling the 2-in-1 water
tank outwards.
2. Snap the grip of the two-in-one water
tank dust box and remove the filter support.
4. Clean the debris on the filter and filter
card with a cleaning brush.
Cleaning roller
Rolling brush cover
Rolling brush
Clean/replace the edge brush
Tip: It is recommended to replace the side brush after 3-6 months to ensure the cleaning effect.
installation
take out
2. Use a cleaning knife to cut the tangled hair on the
rolling brush, and use the cleaning brush at the other
end of the cleaning knife to clean the rolling brush.
3.Install the rolling brush and rolling brush cover, and
press to fasten the buckle.
For more questions please contact
Intelligent cleaning for a beautiful life US
1. Install the side brush, insert the card slot into
place, and click until the installation is complete.
2. If you want to clean or install a new edge brush,
remove it by hand and reinstall it.
Dust bag replacement
Open the top cover.
Dust duct
Clear dust duct
cover
Dust duct
When the dust bag is full, the orange light of the dust collector flashes, or the APP notifies you,
please replace the dust bag in time. When the dust bag is in normal use, the white light is on.
If the orange light of the dust collecting station flashes after
replacing the dust bag, it is recommended to unplug the power
plug, reverse the dust collecting charging pile, and check
whether the dust channel is blocked by foreign matter. If the
dust passage is blocked, remove the transparent cover of the
dust passage with a screwdriver and clean out the foreign
matter by referring to the following figure.
Note: Violent disassembly is prohibited. When you're done, put
it back.
Use a damp cloth to clean all sensors and the robot top once per month.
For more questions please contact
16
Intelligent cleaning for a beautiful life
US
Pull the dust bag
upward to remove the
dust bag.
Throw away the old
dust bags.
Put in new dust bag
and cover top and
bottom.
Sensors, Robot Top and Charging/Dust Collecting Contacts
TROUBLESHOOTING
For more questions please contact
Intelligent cleaning for a beautiful life US
Fault warning Solution
The charging is abnormal. Please
clear the charging contact area.
Please check whether the original power adapter is
used, please Check whether the charging seat is
placed in a horizontal position; Please close After
turning off the power supply of the host and charging
base, wipe the metal Contact plate.
There are too many obstacles near the charging seat, please place
the charging seat in an open area. The host is too far away from the
recharge seat, please place the host near the charging seat to try.
Battery power is low, please charge by the charging seat before
use; Ambient temperature too low (below 0°C) or too high (above
50°C）
The battery is low, please charge it by the charging seat before use.
The temperature of the host is
abnormal. Wait until the tempera-
ture recovers
The temperature of the host is too high or too low. Wait
until the temperature recovers.
Check and remove foreign objects
from the impact sensor
Please try to press the collision bar and remove the
foreign object after heavy newly start.
A strong magnetic field is detect-
ed. Please move to the new
location and try again
Please wipe the cliff sensor and
move it to a new position to start
Make sure the LiDAR is unblocked
Please move the host to a new location and try again.
Please wipe the host cliff sensor and try again (sens-
ing please refer to the manual for the location of the
device) or move the host Restart at the new location.
Please check or remove foreign objects around LiDAR,
or Move the host to a new location and restart.
Problem types Terms of settlement
Unable to boot
Unable to clean
Unable to recharge
For more questions please contact
18
Intelligent cleaning for a beautiful life
US
Make sure that the charging dock and the host are within Wi-Fi
range and the model is good, and follow the instructions to reset the
Wi-Fi before pairing
Ensure that the device is successfully networked and always within
Wi-Fi coverage
The phone cannot
be paired with a
device
The host is always
offline
Please confirm that the device is connected to the network, if the
device is not connected,Regular cleaning tasks
Scheduled cleaning
does not work
Make sure that there is enough space around the charging device is
not connected,Regular cleaning tasks base and that the surface of
the charging base electrode is free of dust and obstructions
Unable to charge
The host will regenerate the map after the fixed point cleaning or
long-distance moving. If the charging seat is far away, it may not be
able to be automatically recharged. Please manually put the host
back into the charging seat to charge.
Procedure cannot
return to charging base
after fixed point
cleaning or moving
position
Make sure that the host is not in Do not disturb mode. In this mode,
the scan will not be continued when the host is manually recharged
or the host is placed back in the charging dock
The breakpoint failed
to be recharged
The Wi-Fi signal is not good, please ensure that the host is in a
good Wi-Fi signal coverage area; If the Wi-Fi connection is abnor-
mal, reset the Wi-Fi and download the latest APP to try connecting
again.
Unable to connect to
Wi-Fi
The two-in-one water tank is full, please clean the two-in-one water
tank; Hipa assembly has been blocked, please clean; Roll brush is
entangled by foreign matter, please clean the main brush
The cleaning ability is
reduced or ash is
dropped
Roll brush, side brush or left/right wheel may wrap foreign objects,
please clean up after stopping
There is a strange
noise when cleaning
SolutionProblem type
Abnormal behavior Turn it off and turn it back on
Table of contents
