Welcome
Thank you for purchasing our IP camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!

ii
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC in the IEC60950-1.This series product supports PoE too. Please note:
Do not connect these two power supplying sources to the device at the same time; it may result
in device damage!
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
This series IP camera should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
Thunder-proof device is recommended to be adopted to better prevent thunder.
The grounding studs of the product are recommended to be grounded to further enhance the reliability
of the camera.
6. Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily maintenance
work.

iii
Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens
surface.
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
7. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
Accessory Name Amount
IPC Unit 1
Quick Start Guide 1
CD 1
Installation Accessories Bag 1

iv
Table of Contents
1General Introduction ..................................................................................................................1
1.1 Overview........................................................................................................................1
1.2 Features.........................................................................................................................1
1.3 Specifications................................................................................................................2
1.4 Factory Default Setup..................................................................................................3
2Structure ......................................................................................................................................8
2.1 Components..................................................................................................................8
2.2 Framework and Dimension.........................................................................................8
3Device Installation ....................................................................................................................10
3.1 Installation Steps ........................................................................................................10
3.2 Restore Factory Default Setup Introduction...........................................................12
4Quick Configuration Tool.........................................................................................................13
4.1 Overview......................................................................................................................13
4.2 Operation .....................................................................................................................13
5Web Operation..........................................................................................................................16
5.1 Network Connection...................................................................................................16
5.2 Login and Logout........................................................................................................16
6FAQ ............................................................................................................................................19
Appendix Toxic or Hazardous Materials or Elements ...............................................................20

1
1General Introduction
1.1 Overview
This series IP camera integrates the traditional camera and network video technology. It adopts video
data collection, transmission together. It can connect to the network directly without any auxiliary
device.
This series IPC uses standard H.264 video compression technology, which maximally guarantees the
video quality.
It supports the IR night vision function. In the night environments, the device can use the IR light to
highlight the object which is suitable for the surveillance function in the low illumination environments.
The waterproof design conforms to the IP 66 level. It has the sound waterproof function suitable for
use in the outdoor environments.
It can be used alone or used in a network area. When it is used lonely, you can connect it to the
network and then use a network client-end. Due to its multiple functions and various uses, this series
IPC is widely used in many environments such office, bank, road monitor and etc.
1.2 Features
User
Management
zDifferent user rights for each group, one user belongs to one group.
zThe user right shall not exceed the group right.
Storage
Function
zSupport central server backup function in accordance with your configuration
and setup in alarm or schedule setting
zSupport record via Web and the recorded file are storage in the client-end
PC.
zSupport network storage function such as FTP.
Network
Monitor
zIPC supports one-channel video data transmit to network terminal and then
decode. Delaying time is within 270ms (network bandwidth support needed)
zMax supports 20 connections.
zAdopt the following video transmission protocol: HTTP, TCP, UDP,
MULTICAST, RTP/RTCP, RTSP and etc.
zSupport web access.
Network
Management
zRealize IPC configuration and management via Ethernet.
zSupport device management via web or client-end.
Power
zExternal power adapter DC 12V.
zSupport PoE.
Warning！
Do not connect these two power supplying sources to the device at the
same time; it may result in device damage!
Assistant
Function
zLog function
zSupport system resource information and running status real-time display.
zDay/Night mode auto switch.
zSupport picture parameter setup such as electronic shutter and gain setup.
zSupport motion detect.
zBacklight compensation: screen auto split to realize backlight compensation
to adjust the bright.
zSupport video watermark function to avoid vicious video modification.
zBuilt-in IR light. Support IR night vision.
zThe enclosure conforms to the IP 66 protection. Has the waterproof function.

2
1.3 Specifications
Please refer to the following sheet for IPC performance specification.
Model
Parameter IPC-HDW2100P/N Series
Main Processor TI Davinci high performance DSP
OS Embedded LINUX
System
Resources Support real-time network, local record, and remote operation at the same time.
User Interface Remote operation interface such as WEB, DSS, PSS
System
System Status Bit stream statistics, log, and software version.
Image Sensor 1/3-inch CMOS
Pixel 1280(H)*960(V)
Gain Control Fixed/Auto
White Balance Manual/Auto
Exposure Mode Manual/Auto
PAL: It ranges from 1/3 to 1/10000
NTSC: It ranges from 1/4 to 1/10000
Video
Compression
Standard H.264/JPEG/MJPG
PAL:
Main stream(1280*960@15fps),
extra stream,（352*288@15fps)）
Main stream（1280*720@25fps），
extra stream（352*288@25fps）
Video Frame
Rate NTSC:
Main stream（1280*960@15fps），
extra stream（352*240@15fps）
Main stream（1280*720@30fps），
extra stream（352*240@30fps）
Video Bit Rate H.264: 56Kbps-8192Kbps. MJPEG is adjustable and bit rate is adjustable.
Support customized setup.
Video Flip Support mirror.
Support flip function.
Snapshot Max 1f/s snapshot. File extension name is JPEG.
Privacy Mask Supports max 4 privacy mask zones
Video Setup Support parameter setup such as bright, contrast.
Video
Information Channel title, time title, motion detect, camera masking.
Lens 2.8mm, 3.6mm, 6mm, 8mm. Fixed focus.
Video Parameter
Lens Interface M12. Lens is the default accessories
Video
Motion Detect
396 (18*22) detection zones；sensitivity level ranges from 1 to 6 (The
6th level has the highest sensitivity)
Activation event: video storage, image snapshot, log, email function
and etc.
Record Priority Manual>External alarm >Video detect>Schedule
Record and Backup
Storage
Management Support display local storage status

3
Wire Network 1- channel wire Ethernet port, 10/100 Base-T Ethernet
Network Protocol Standard HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP,UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour,
SNMP.
Remote
Operation Monitor, system setup, file download, log information, maintenance , upgrade and etc
Restore Default
Setup Built-in Reset button
Network
IR light 12 LED. IR light 20M.
Power DC12V power and PoE.
Warning！
Do not connect these two power supplying sources to the device
at the same time; it may result in device damage!
Power
Consumption 4W MAX
Working
Temperature -10℃~+60℃
Working
Humidify 10%~90%
Dimensions(mm) Φ113×86
Weight 280g（Excluding box）
General Parameter
Installation Fixed on the wall, ceiling and etc.
1.4 Factory Default Setup
Please refer to the following sheet for factory default setup information.
Default Setup
Setup Item IPC-HDW2100P/N Series
Brightness 50
Contrast 50
Hue 50
Saturation 50
Gain Mode Auto
Gain Limit 50
Exposure Mode Auto
Scene Mode Auto
Day/night Mode Auto
BLC Off
Conditions
Flip Off
Bit stream
type General
Encode mode H.264
Resolution 720P（1280*720）
Frame Rate
（FPS）
PAL: 25
NTSC:30
Camera
Video Video bit stream
Main
Stream
Bit Rate Type CBR

4
Default Setup
Setup Item IPC-HDW2100P/N Series
Recommende
d Bit 2048-6144Kb/S
Bit Rate 4096
I Frame
interval 50
Watermark Enable
Watermark
character DigitalCCTV
Enable Enable
Bit stream
type General
Encode
mode H.264B
Resolution CIF(352*288/352*240)
Frame Rate
（FPS）
PAL: 25
NTSC:30
Bit Rate Type CBR
Recommend
ed Bit 192-1024Kb/S
Bit Rate 1024
Sub
Stream
I Frame
interval 50
Snapshot
Type General
Image Size 720P（1280*720）
Quality 5
Snapshot
Interval 1s
Privacy Mask Disable
Channel Title Enable
Video Overlay
Time Title Enable
Snapshot
Path C:\PictureDownload
Path
Record Path C:\RecordDownload
Host Name IPC
Ethernet Card Wire(Default)
Mode Static
Mac Address Device MAC address when it is shipped out of the
factory
IP Version IPV4
IP Address 192.168.1.108
Network
TCP/IP
Subnet Mask 255.255.255.0

5
Default Setup
Setup Item IPC-HDW2100P/N Series
Default
Gateway 192.168.1.1
Preferred
DNS 8.8.8.8
Alternate
DNS 8.8.8.8
Enable
ARP/Ping set
device IP
address
service
Enable
Max
Connection 10
TCP Port 37777
UDP Port 37778
HTTP Port 80
Connection
RTSP Port 554
Enable Disable
Username none
PPPoE
Password N/A
Server Type Disable，CN99 DDNS
Server IP none
Server Port 80
Domain
Name none
User none
Password ****
DDNS
Update
Period 5 minutes
IP Filter Trusted sites Disable
SMTP Server none
Port 25
Anonymity Disable
User Name anonymity
Password ****
Sender none
Authenticatio
n (Encryption
mode)
N/A
SMTP(Email)
Title (Subject) IPC Message

6
Default Setup
Setup Item IPC-HDW2100P/N Series
Attachment N/A
Mail Receiver 0 seconds
Email Test Disable，interval=60 minutes
UPnP Enable UPnP Disable
SNMP v1 Disable
SNMP v2 Disable
SNMP Port 161
Read
Community public
Write
Community private
Trap Address N/A
SNMP
Trap Port 162
Enable Enable
Bonjour Server Name Device factory SN
Multicast
Address 239.255.42.42
Multicast
Port 36666
Real-time
Monitor 0
QoS
Command 0
Enable Disable
Anti-dither 5 seconds
Sensitivity 3
Record
Channel Enable
Record Delay 10 seconds
Send Email Disable
Motion Detect
Snapshot Disable
Enable Disable
Record
Channel Enable
Record Delay 10 seconds
Send Email Disable
Video detect
Video
Masking
Snapshot Disable
Enable Disable
Record Enable
Disconnection
Record Delay 10 seconds
Enable Disable
Event
Abnormality
IP Conflict
Record Enable

7
Default Setup
Setup Item IPC-HDW2100P/N Series
Record Delay 10 seconds
Enable FTP Disable
Server IP N/A
Port 21
Username anonymity
Password N/A
Remote path share
Storage
FTP
Emergency
(Local) Disable
Pack Duration 8 minutes
Pre-record 5 seconds
Disk Full Overwrite
Record Mode Auto
Storage
Record Control
Bit Stream Main Stream
Device No Device MAC address
Language English
Local Host
Video
Standard NTSC
Date Format Y-M-D
Time Format 24H
Time Zone GMT+08:00
System Time Sync
DST Disable
DST Type Week
Start Time 00:00:00 of the first Sunday of the month
End Time 00:00:00 of the second Monday of the month
NTP Disable
NTP Server clock.isc.org
Port 37
General
Date and time
Update
Period
10 minutes
Auto Reboot Enable
System
Auto Maintenance Auto Delete
Old Files Disable

8
2Structure
2.1 Components

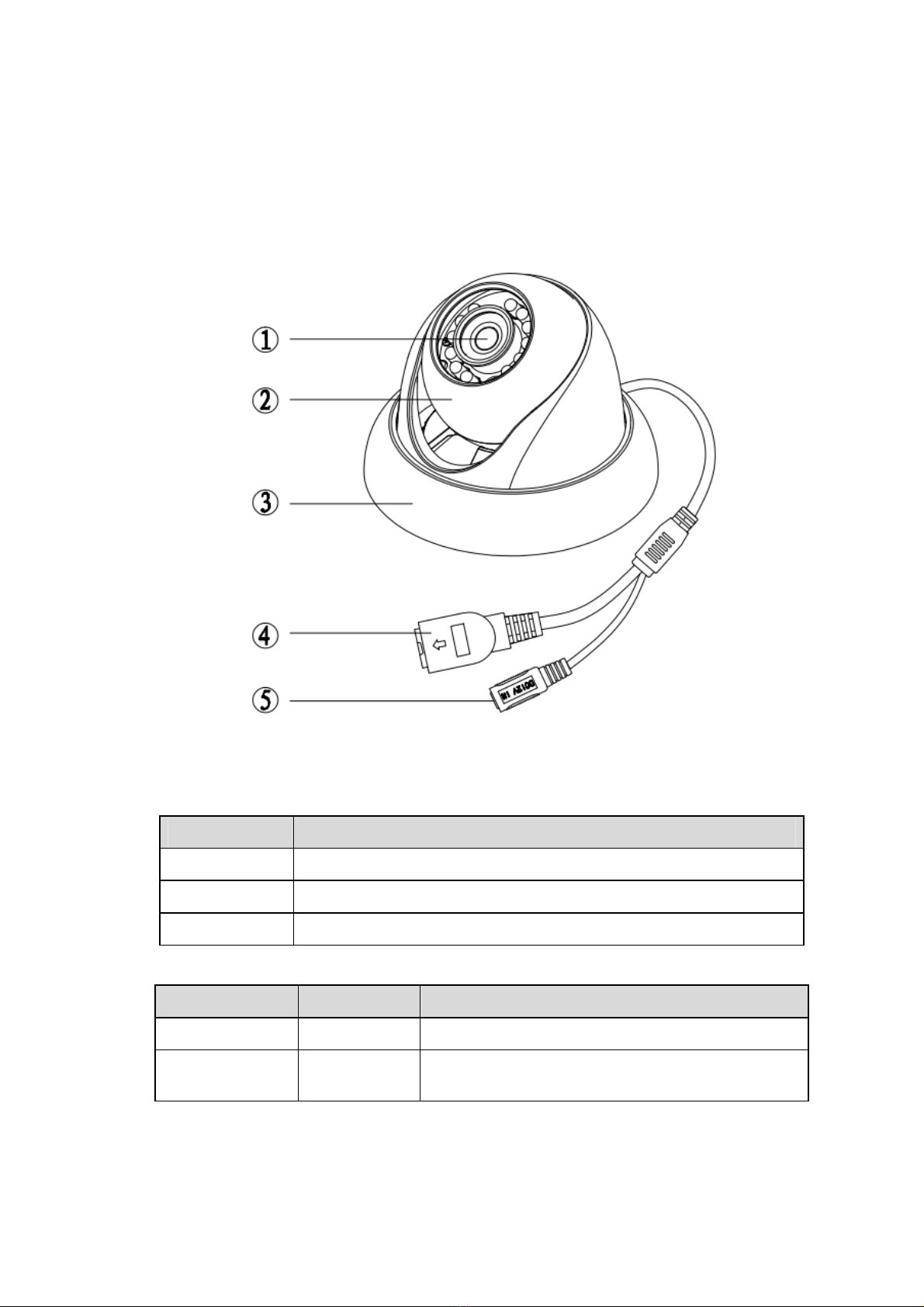

You can refer to the following figure for multiple-function combination cable information. See Figure
2-1.
Figure 2-1
Please refer to the following sheet for detailed information.
Port Name Function Note
Port 4 Network port Connect to standard Ethernet cable.
Port 5 DC 12V
power Power input port. Input DC 12V.
2.2 Framework and Dimension
Component Component Name
Component 1 Device lens
Component 2 Dome body
Component 3 Dome enclosure

9
Please refer to the following two figures for dimension information. The unit is mm. See Figure 2-2 and
Figure 2-3.
Figure 2-2
Figure 2-3

10
3Device Installation
3.1 Installation Steps
Important
Before the installation, please make sure the installation environments can at least support 3x weight
of the camera.

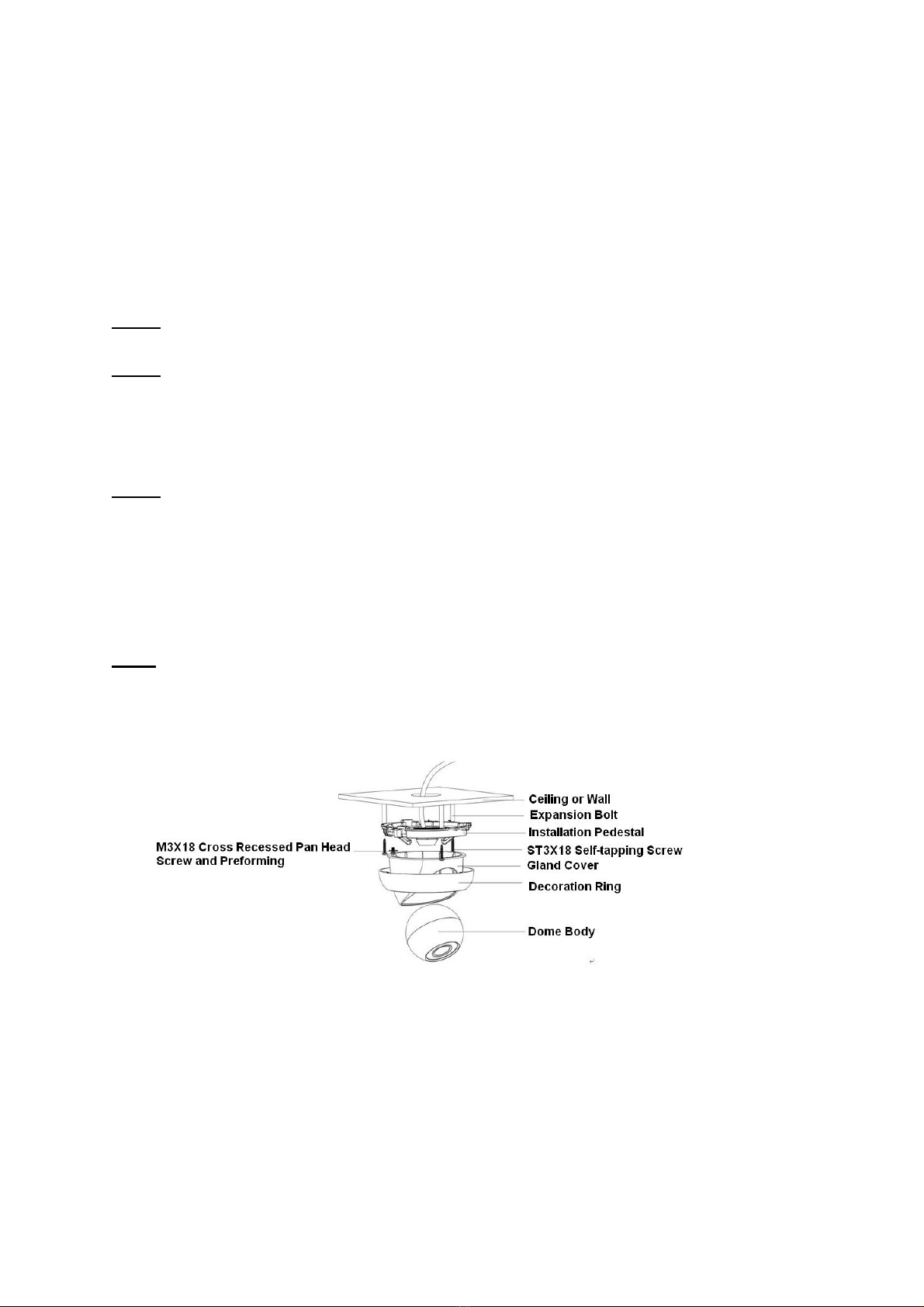

Please follow the steps listed below to install the device. Please refer to Figure 3-1 for reference.
Step 1
Turn clockwise to remove the decoration ring from the snap joints.
Step 2
Please take the installation position map in the accessories bag, and then paste it on the ceiling or the
wall according to your monitor area requirements. Draw and then dig three plastic expansion bolts
holes in the installation surface and then insert three expansion bolts in the holes. Secure these three
bolts firmly. Please draw the cable out from the cable exit when you install the device.
Step 3
Adjust the device installation pedestal to the proper position and then line up the three screw holes in
the device pedestal to the three plastic expansion bolt holes in the installation position. Put the three
self-tapping screws in the three plastic expansion bolts firmly. Loosen the M3X8 cross recessed pan
head slot screw of the pedestal to unfasten the preforming. (Do not remove, loosen a little bit will be
OK.). Adjust the lens to the proper monitor angle and then use the original preforming to turn the M3X8
cross recessed pan head slot screw back.
Step4
Line up the three spigots of the decoration ring to the jags from the bottom to the top and then turn
clockwise until you hear a clear sound ”KA”. Now the installation is complete.
Figure 3-1
Important
Please pay attention to the dome camera direction when you are installing. Please refer to the
following figure for detailed information. See Figure 3-2.

11
Figure 3-2
Note
This series product supports two cable exits. One is from the bottom and the other is from the side.
Please refer to the following figure for cable exit from the side information.
Figure 3-3
Please earth the GND port of the device to enhance the device reliability. The GND port is near the
cable exit port on the rear of the dome. The GND screw uses the M2X5 pan screw.

12
Figure 3-4
3.2 Restore Factory Default Setup Introduction
Important
Please use RESET button when device is running.
Step1
Please refer to step1 and step2 in chapter 3.1to loose the dome body. Push a little bit; you can take
the dome body from the gland cover.
Step2
Take the dome body out and then turn the top cover hard to remove.
Step3
Slightly press the RESET button to complete the reset function. See Figure 3-5.
Step4
Turn the top cover back to the original position. Please make sure it reaches the original position,
otherwise it may result in water leakage!
Step5
Put the dome back to the gland cover. Please refer to step4 in chapter 3.1 to install the decoration ring
back.
Figure 3-5

13
4Quick Configuration Tool
4.1 Overview
Quick configuration tool can search current IP address, modify IP address. At the same time, you can
use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.
4.2 Operation

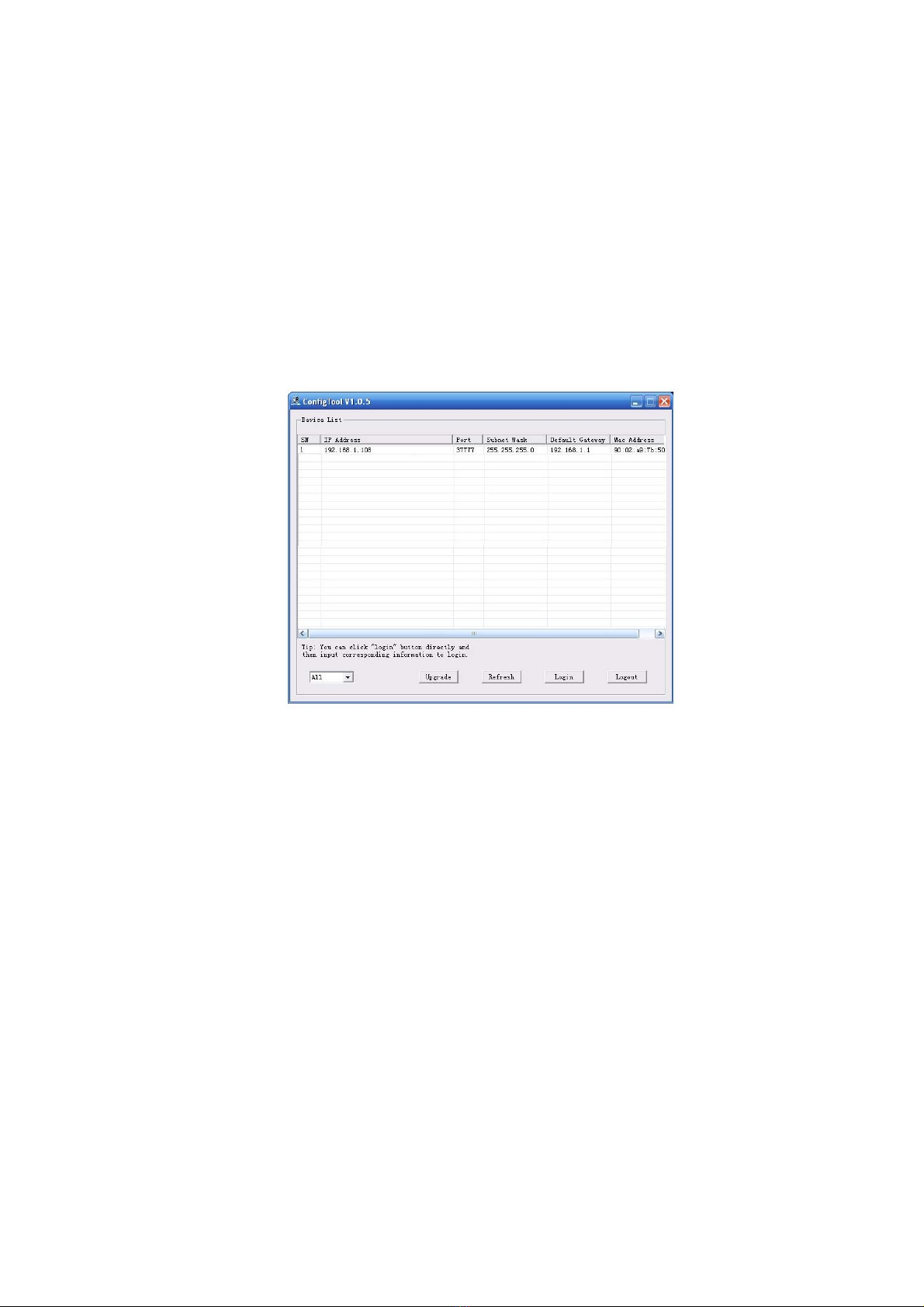

Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 4-1.
In the device list interface, you can view device IP address, port number, subnet mask, default
gateway, MAC address and etc.
Figure 4-1
Select one IP address and then right click mouse, you can see an interface is shown as in Figure 4-2.
Note:
You can set the IP address, subnet mask and gateway for the IPC and PC. Please note IPC IP
address and PC IP address shall be in the same network segment if there is no router. IPC default IP
address is 192.168.1.108. If there is a router, please set the corresponding gateway and subnet mask.
The factory default user name is admin and password is admin. For security reasons, please modify
your password after you first login.
For detailed WEB operation, please refer to the IPC Web Operation Manual in the resource CD.

14
Figure 4-2
Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure
4-3.
Figure 4-3
If you want to modify the device IP address without logging in the device web interface, you can go to
the configuration tool main interface to set.
In the configuration tool search interface (Figure 4-1), please select a device IP address and then
double click it to open the login interface. Or you can select an IP address and then click the Login
button to go to the login interface. See Figure 4-4.
In Figure 4-4, you can view device IP address, user name, password and port. Please modify the
corresponding information to login.
Please note the port information here shall be identical with the port value you set in TCP port in Web
Network interface. Otherwise, you can not login the device.
If you are use device background upgrade port 3800 to login, other setups are all invalid.

15
Figure 4-4
After you logged in, the configuration tool main interface is shown as below. See Figure 4-5.
Figure 4-5
For detailed information and operation instruction of the quick configuration tool, please refer
to the Quick Configuration Tool User’s Manual included in the resources CD.
