BCS MOTOZOOM BCS-TIP5401IR-V-III User manual

User Manual
Code: BCS-TIP5401IR-V-III
IP CAMERA BCS-TIP5401IR-V-III - 4.0 Mpx 2.7 ... 12 mm - MOTOZOOM
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-04-07 BCS-TIP5401IR-V-III 1/6
Warning!
Please read the user manual included in this work as it contains important information related with safety of installation and use of
the device.
Only persons who read the user manual may use the device.
The user manual must be kept because it may be required in the future. The device is to be used exclusively for purposes specified
in this user manual.
The device must be unpacked prior to starting-up. After removing the packaging make sure the device is in working order.
If the product has defects, it should not be used until it is repaired.
The product is intended for use at home and commercial use and may not be used for other than intended use.
The manufacturer is not liable for damages resulting from not adhering to the rules contained in the user manual, therefore, we
recommend to follow the aforementioned safety rules for operation and maintenance of the device. In this way you will ensure
yourself safety and avoid causing damage to the device.
The manufacturer and the supplier are not liable for losses or damages arising out of the product, including financial or intangible
losses, loss of profits, income, data, pleasure from use of the product or other products related with it - indirect, incidental or
consequential loss or damage. The above provisions apply whether the loss or damage concerns:
1. Deterioration of quality or the lack of operation of the products or products related with it due to damage as well as the lack of
access to the product when it is undergoing repair, which results in stoppage the loss of user's time or a break in business activity;
2. Improper results of operation of the product or products related with it;
3. It applies to losses and damages according to any legal category, including negligence and other losses, termination of a
contract, expressed or implied guarantee and strict liability (even if the manufacturer or the supplier was notified about the
possibility of occurrence of such damages).
Safety measures:
Particular attention at designing was directed to quality standards of the device where ensuring safety of operation is the most
important factor.
The device must be secured against contact with caustic, staining and viscous fluids.
The device was designed in such a way that it restarts operation when power supply is restored after a break.
Attention! We recommend using protections to further protect the device from possible overvoltages in installations.
Surge protectors are effective protection against accidental pass to the device voltages higher than the rated. Damages
caused by pass the voltages higher than specified in manual, are not under warranty.
Turn off the device before transporting it.
Prior to connecting the device to a power source check whether the supplied voltage is consistent with rated voltage specified in
the user manual.
Proper product disposal:
A marking of a crossed out waste bin indicates that the product may not be disposed together with other household waste in the
entire EU. To avoid possible damage to the natural environment of health due to uncontrolled waste disposal, therefore, it should be
handed over for recycling, propagating in this way sustainable use of natural resources.
To return a worn-out product, use a collection and disposal system of this type of equipment or contact a seller from whom it was
purchased. He will then be recycled in an environmentally-friendly way.

User Manual
Code: BCS-TIP5401IR-V-III
IP CAMERA BCS-TIP5401IR-V-III - 4.0 Mpx 2.7 ... 12 mm - MOTOZOOM
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-04-07 BCS-TIP5401IR-V-III 2/6
IP camera with efficient H.264 image compression
algorithm for clear and smooth video streaming at maximal
resolution of 2688 x 1520 (4.0 MPx). Due to above it is
perfect solution for surveillance systems requiring persons
or vehicles recognition.
The range of IR illumination according to the manufacturer
data, depends on outer conditions (visibility - air
transparency, environment, wall colors ie. scene
reflectance). Camera is according to IP66 Index of
Protection norm.
The used motozoom lens with 2.7 ... 12 mm focal length
allows to remote view angle adjustment. PoE powering
possibility, compatible with the 802.3af standard makes the
device more universal and easier to install.
Standard: TCP/IP
Sensor: 1/3 " Progressive Scan CMOS
Matrix size: 4.0 Mpx
Resolution:
2688 x 1520 - 4.0 Mpx ,
2560 x 1440 - 3.6 Mpx ,
2304 x 1296 - 3.0 Mpx ,
1920 x 1080 - 1080p
1280 x 1024 - 1.4 Mpx
1280 x 960 - 1.3 Mpx
1280 x 720 - 720p
Lens: 2.7 ... 12 mm - Motozoom
View angle: • 100 ° ... 35 ° (manufacturer data)
• 93 ° ... 31 ° (our tests result)
Compression: H.264 / MJPEG
S/N ratio: > 50 dB
Alarm inputs / outputs:
Bitrate: 40 ... 10240 kbps - H.264
Range of IR illumination: 60 m
Main stream frame rate: 20 fps - 4.0 Mpx
25 fps - 3.0 Mpx
Network interface: 10/100 Base-T (RJ-45)

User Manual
Code: BCS-TIP5401IR-V-III
IP CAMERA BCS-TIP5401IR-V-III - 4.0 Mpx 2.7 ... 12 mm - MOTOZOOM
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-04-07 BCS-TIP5401IR-V-III 3/6
Network protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP,
SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Audio:
WEB Server: Built-in, NVR compliance
Memory card slot: Micro SD memory cards up to 128GB support (possible local recording)
Max. number of on-line users: 20
ONVIF: 2.42
Mobile phones support:
Port no.: 37777 or access by a cloud (P2P)
• Android: Free application DMSS
• iOS (iPhone): Free application DMSS
Default admin user / password: admin / admin
Default IP address: 192.168.1.108
Web browser access ports: 80, 37777
PC client access ports: 37777
Mobile client access ports: 37777
Port ONVIF: 80
RTSP URL:
rtsp://admin:hasł[email protected]:554/cam/realmonitor?channel=1&subtype=0 -
Main stream
rtsp://admin:hasł[email protected]:554/cam/realmonitor?channel=1&subtype=1 - Sub
stream
RS-485 interface:
Main features:
• 3D-DNR - Digital Noise Reduction
• WDR - 120 dB - Wide Dynamic Range
• Motion Detection
• Configurable Privacy Zones
• ICR - Movable InfraRed filter
• BLC - Back Light Compensation
• HLC - High Light Compensation (spot)
• AGC - Automatic Gain Control
• Auto White Balance
• Mirror - Mirror image
• Sharpness - sharper image outlines
Power supply: • PoE (802.3af),
• 12 V DC / 1080 mA
Power consumption: ≤ 12.9 W
Operation temp: -30 °C ... 60 °C
Housing: Compact, Metal
Color: White
"Index of Protection": IP66
Supported languages: English, Polish
Weight: 0.66 kg
Dimensions: 213 x 80 x 72 mm

User Manual
Code: BCS-TIP5401IR-V-III
IP CAMERA BCS-TIP5401IR-V-III - 4.0 Mpx 2.7 ... 12 mm - MOTOZOOM
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-04-07 BCS-TIP5401IR-V-III 4/6
Manufacturer / Brand: BCS
Guarantee: 2 years

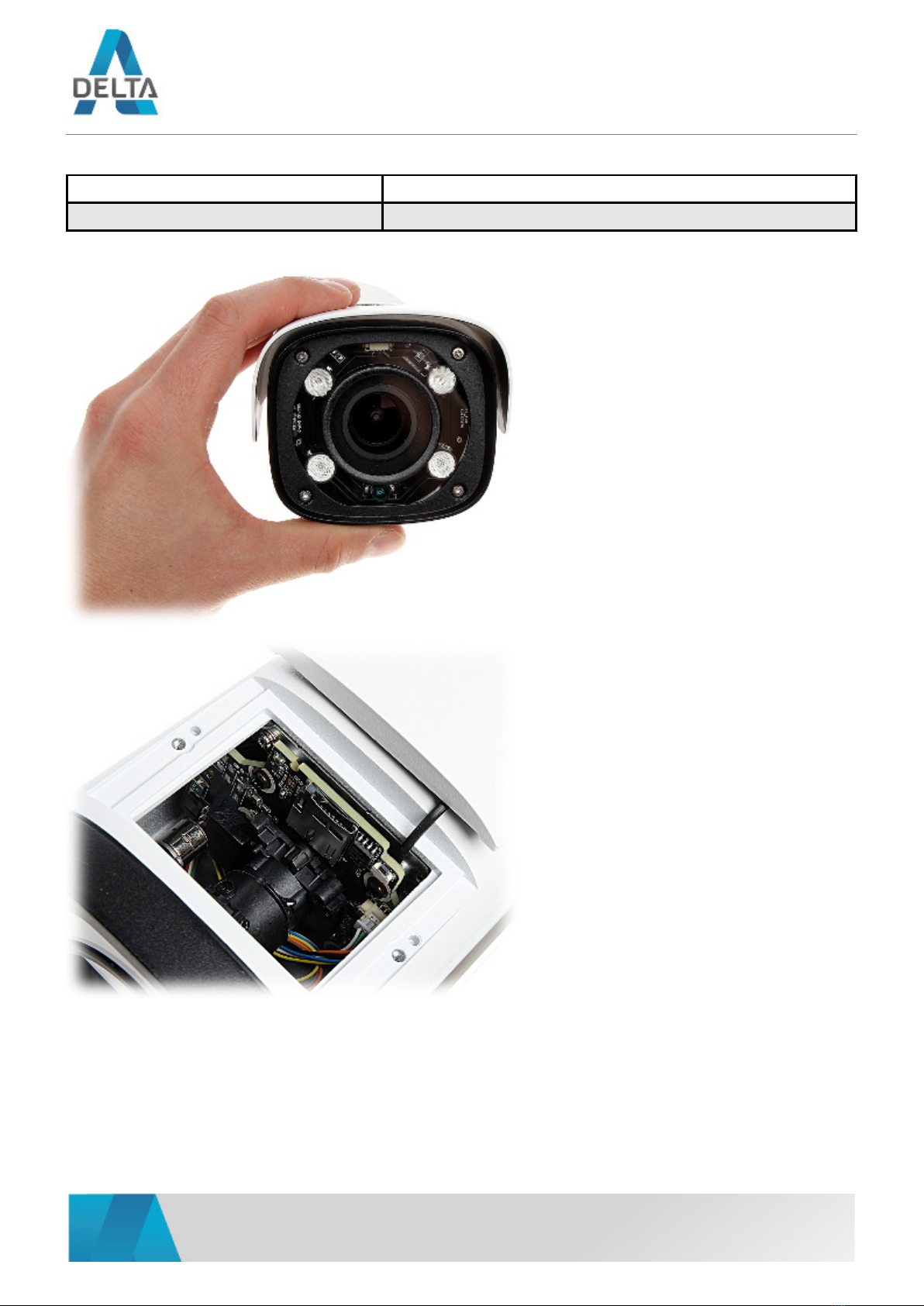

Front view:
Bottom view (after remove the cover):
Side view:

User Manual
Code: BCS-TIP5401IR-V-III
IP CAMERA BCS-TIP5401IR-V-III - 4.0 Mpx 2.7 ... 12 mm - MOTOZOOM
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-04-07 BCS-TIP5401IR-V-III 5/6
Mounting side view:
In the kit:
