BE Ag & Industrial AGRI EASE BE-TR Series Application guide

PURCHASE DATE MODEL NO. SERIAL NUMBER
DEALER
COMBINATION
TEDDER RAKE
BE-TRXX
OPERATIONS & PARTS MANUAL
FOR MODELS:
• BE-TR300
• BE-TR300T

TABLE OF CONTENTS
3SAFETY
6ADJUSTMENTS
8TRANSPORT
9MAINTENANCE
11 EXPLODED VIEW & PARTS LIST

BE-TRXX USER MANUAL 3
USED TERMS AND SYMBOLS
Specifications are subject to change without previous notice.
Directional indicators (such as “right”, “left”, “front”, “rear”, etc.) are to be interpreted when facing in
direction of travel; parts are numbered from left to right.
This is also the basic position for defining the direction in connection with which:
• RH (rotation) = clockwise rotation
• LH (rotation) = counter clockwise rotation
• Rotation around a vertical axis is defined when looking from top to bottom
• Rotation around a horizontal axis almost perpendicular to the direction of travel is defined when looking
from left to right.
• Rotation of bolts, nuts, hand cranks, etc. is defined when looking from the position of operation.
Unit of measurement are given both in Imperial (US) and international metric units; the metric value shall be
decisive (conversion table inside fold-out page).
Abbreviations used are:
CW = Clockwise
CCW = Counter Clockwise
IPL = Illustrated Spare Parts Lists
PIN* = Product Identification No. (= machine serial no.) PSN* = Production Series No.
* = You can find this number on the identity plate of the machine.
DANGER:
When you see this safety alert heading, be alert to the danger of injury or death of men and animals.
ATTENTION:
When you see this heading, be alert to the possibility of damage to equipment, crops, buildings, etc., but
to financial and/or juridical problems (warranty, product liability).
Note:
This heading indicates a remark to make a job easier, better and safer.
SAFETY AND LIABILITY
Avoid accidents! Don’t learn safety the hard way!
Stay Alert! Think SAFETY! Work SAFELY!
Note: Everyone must be given operating instructions before starting to operate the equipment. Pass on all
safety advices to other users!
You are responsible for the SAFE operation and maintenance of your equipment. It is the operator’s
responsibility to read and understand ALL safety and operating instructions in the manual and to follow
these. You must ensure that you and anyone else who is going to operate, maintain or work around the unit
be familiar with the operating and maintenance procedures and related SAFETY information contained
in this manual. The manual will take you step-by-step through your working day and alert you to all good
safety practices that should be adhered to while operating this equipment.

4 BE-TRXX USER MANUAL
Remember, you are the key to safety. Good safety practices not only protect you but also the people around
you. Make these practices a working part of your safety program. Be certain EVERYONE operating this
equipment is familiar with the recommended operating and maintenance procedures and follow all safety
precautions.
Most accidents can be prevented. Do not risk injury or death by ignoring goof safety practices.
Machines must never be tested on a tractor in an enclosed space because of the danger from exhaust fumes!
Always check trac and operational safety before putting the machine into operation.
Adhere to the general rules of health and safety precautions besides the advice of this manual.
The installed warning and advisory signs give important hints for a safe operation; adhering to these serves
your own safety.
Keep safety decals and signs clean and legible at all times.
Replace safety decals and signs that are missing or have become illegible.
If original parts on which a safety decal or sign was installed are replaced, be sure that the replacement part
also displays the current decal or sign.
When making use of public roads adhere to applicable trac rules.
Become acquainted with all installations and control devices as well with the function BEFORE starting
operation.
The clothing of the operator should be tight. Avoid wearing any loose clothing.
Before beginning to drive and/or operate, check surrounding area (children!) Ensure sucient during all
operation and transport.
No one shall drive on the machine during transport and/or operation.
Attach accessories in accordance with mounting instructions and only to the appropriate attaching points.
Special care shall be taken when (dis)mounting the machine on/o the tractor.
When attaching/detaching the machine, place the jack stand into the corresponding position.
Always fit front weights to the fixing points provided for that purpose.
For road transport, bring machine in a transport position and secure it.
Install and check transport equipment, e.g., lighting, warning devices and guards. Adhere to maximum
permissible axle loads, total weights and transport dimensions.
Never leave the operator’s seat during operation or transport.
Moving behavior, steer ability and braking performances are influenced by mounted implements and ballast
weight. Ensure sucient braking eect and safe manageability.
Always adapt the speed to the local conditions. When making short turns note the larger radius because of
increased width or length of the combination as well as mass and inertia changes due to the other center of
gravity position.
No one should operate the machine unless all protection is installed and in functional position.
Never stay or allow anyone to stay within the operating area.
Never stay or allow anyone to stay within the turning and slewing area.
Before leaving the tractor, lower the machine onto the ground, apply the parking brake, shut down the
engine and remove the ignition key.
Allow nobody to stay between tractor and machine unless the tractor is prevented from inadvertent rolling
away by applied parking brake and/or placed chocks.
Store the unit in an area away from human activity.
Do not permit children to play on or around the stored unit. Use the provided jack supports, store in sable
machine mode.

BE-TRXX USER MANUAL 5
WARRANTY
In order to ensure safety. All persons working at and/or with this machine must read and understand this
operation manual. Furthermore, this machine shall always be used, handled and stored in accordance with
the design and construction destination (intended use) which also means:
• Exclusively work in accordance with the instructions given in the appropriate assembly, operation and repair
instructions (manual) including all valid errata supplements as well as taking into account the relevant
service bulletins; exclusively use correct tools and equipment being in a perfect condition.
• Strictly observe the applicable local regulations concerning safety and accident prevention, generally
acknowledged and approved technical, medical and trac rules as well the functional limitations and safety
instructions stated in above mentioned technical documentation.
• Do not use any parts (spares, accessories, lubricants) other than those complying with manufacturer
requirements. A part complies with manufacturer requirement when either genuine or approved by
the manufacturer or when all its properties can be proven to meet with the appropriate manufacturer
requirements for that very use/function.
• Only well instructed people being familiar with all possible danger shall work with or at the machine.
• The machine shall not be used nor transported unless all safety devices (cover, plates, rails, curtains, locks,
etc). are correctly installed and in a perfect condition and set in the appropriate safety position. All safety
decals and signs shall be legible and in the correct place.
• Unauthorized modification of or arbitrary changes on the machine or parts of it exclude any responsibility
and reliability of the machine manufacturer for the consequences of that operation.
ATTENTION:
Those disregarding above mentioned rules act grossly negligent (careless) through which all manufacturers
warranty and reliability for damages and all other consequences become extinct.
The negligent person carries all risks!
Safety decals
This machine has been marked with safety decals of the new generation in accordance with ISO11684, i.e.
without text. The decals are shown below.
TR 2005:
DANGER:
Stop the engine and ensure it cannot be re-started during performance of work on the machine!
TR 2011:
DANGER:
When three-point linkage is controlled from outside ensure no one is between tractor and machine!

6 BE-TRXX USER MANUAL

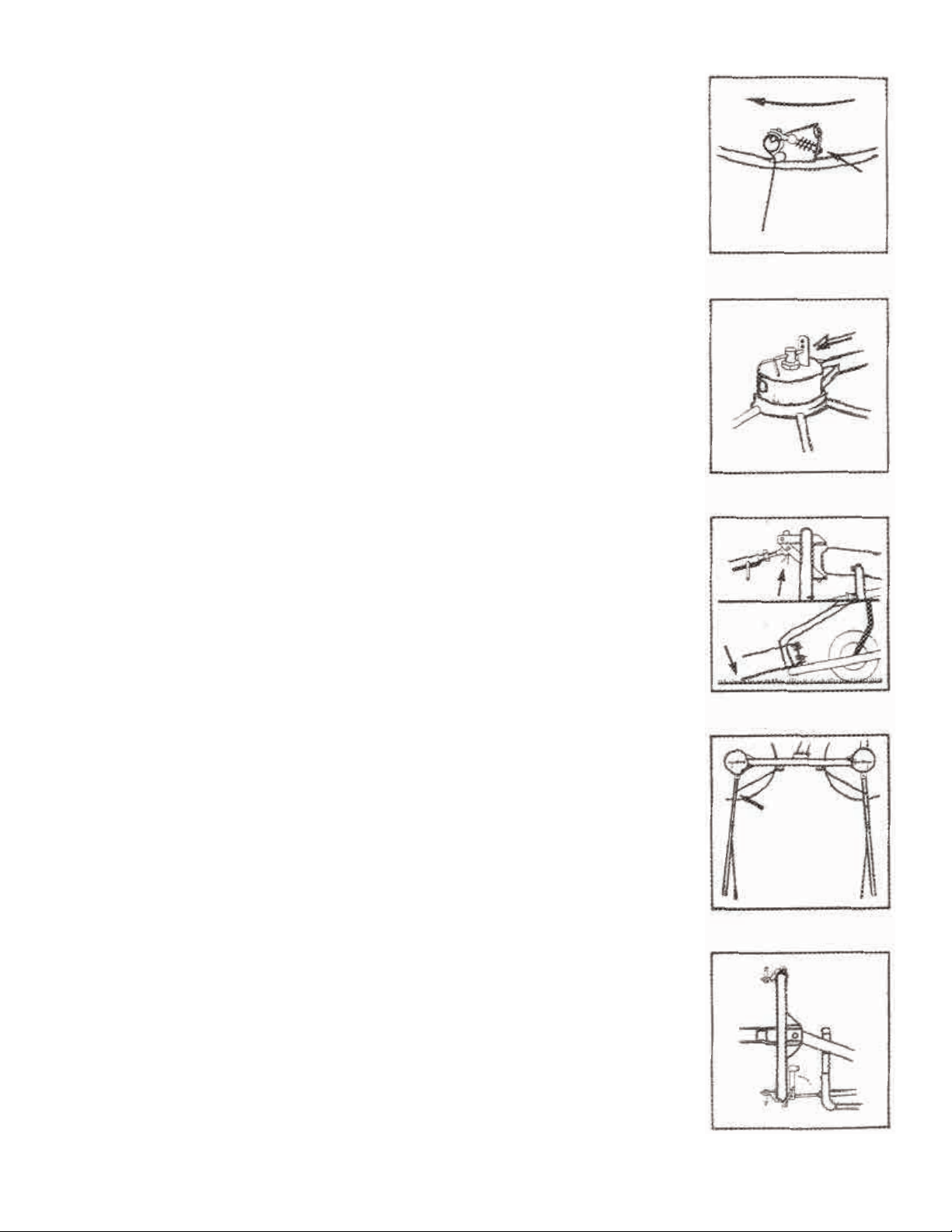

ADJUSTMENT FOR SPREADING AND TEDDING
1. Tines
Put the tines in the tedding position by moving the tine shaft. Check all tines
are in the correct position.
2. Wheels
The wheels must be in the lower or middle position, for this operation; i.e.
the machine will be in its highest position.
3. Top Link
The top link is attached in the lower hole of the hitch-frame.
When the points of the tines exactly touch the stubble in front of the top link
is correct.
At 430 RPM of the PTO the tines have reached their lowest position.
4. Swath Deflectors
If required either one or both deflectors can be used to separate the swaths.
This is particularly useful when working the outsides of a field.
5. Locking Device
Disconnect the locking device.

BE-TRXX USER MANUAL 7

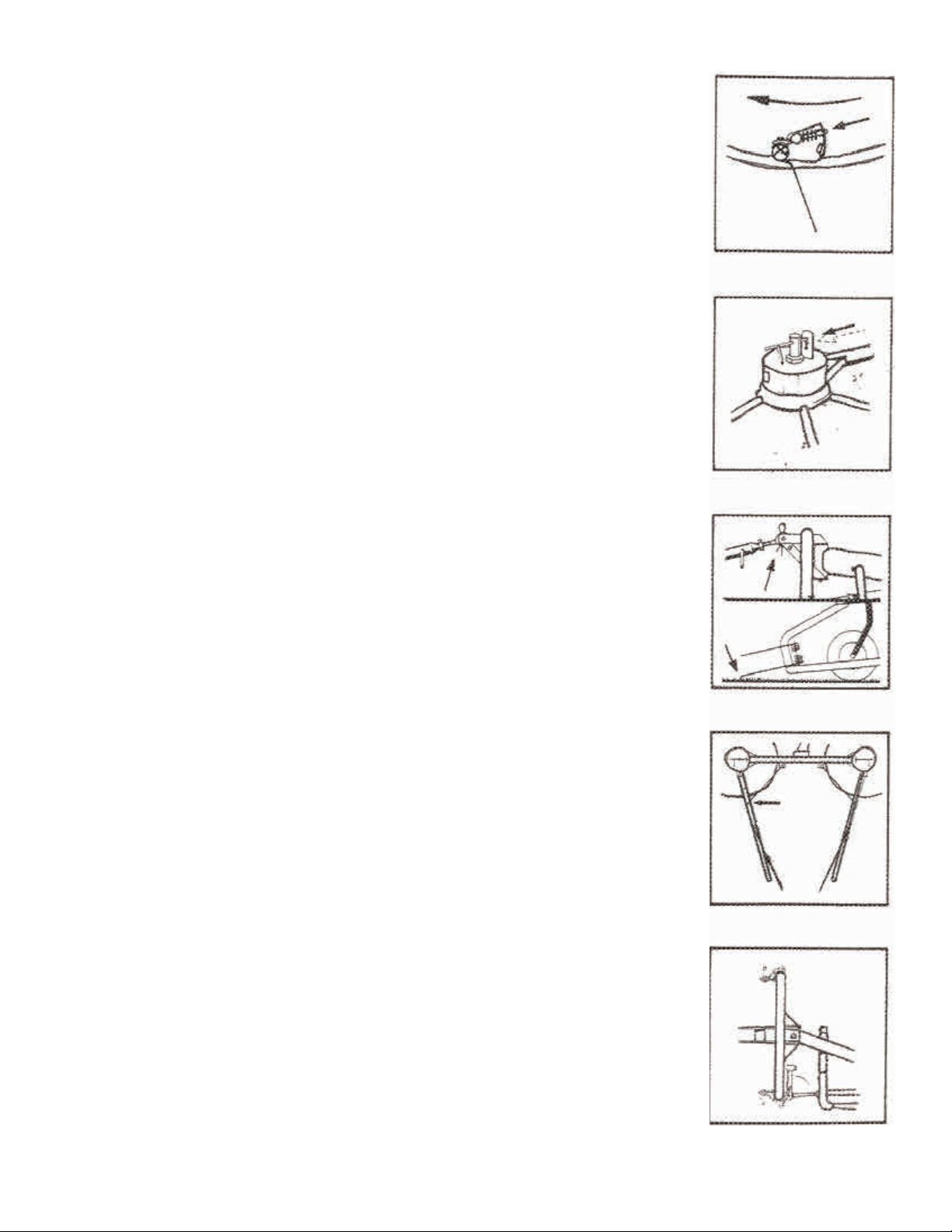

ADJUSTMENT FOR RAKING AND WINDROWING
1. Tines
Place the tines in the raking position by moving the tine pivot shaft. Check
all tines are in the correct position.
2. Wheels
The wheels must be set in the upper or middle position for this operation; i.e.
the machine will be in its lowest position.
3. Top Link
The top link is attached in the upper hole of the hitch-frame. When the point
of the tines exactly touch the stubble in front of the rotors and the machine
turns at full speed the length of the top link is correct. At 430 RPM of the
PTO, the tines have reached their lowest position.
4. Swath Deflectors
By placing the swath deflectors in the position shown an equal swath is built.
5. Locking Device
Disconnect the locking device.

8 BE-TRXX USER MANUAL

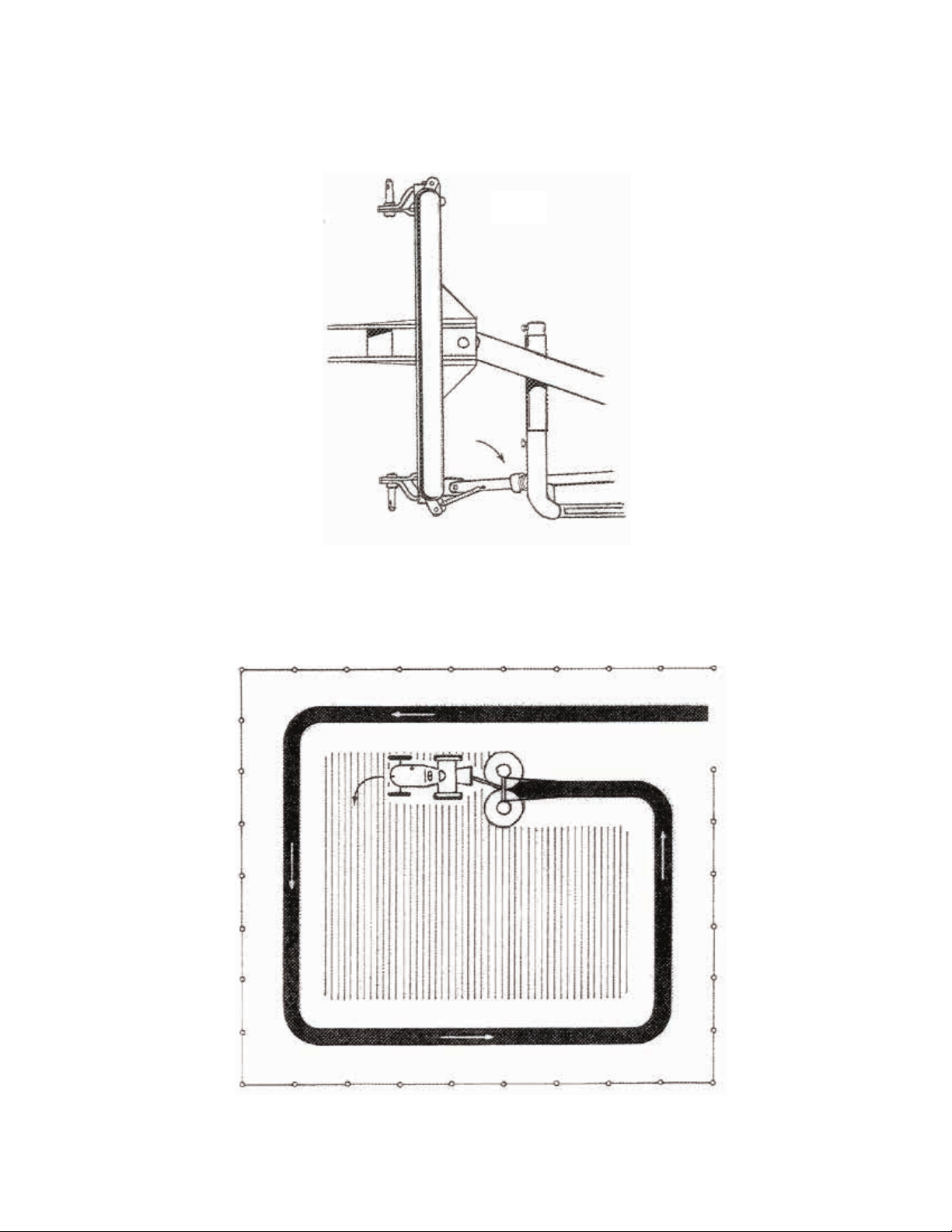

TRANSPORT POSITION
Lift the machine.
During transport the locking device in the center behind the tractor (see fig. 6). This also prevents the
machine from sideways movement.
In working position, the Haybob is a trailed machine, allowing you to make left hand turns without trouble.
For making right hand turns it is necessary to loft the machine on the tractor linkage.
fig. 6
fig. 8

BE-TRXX USER MANUAL 9
RAKING TWO SWATHS TOGETHER
When you place the swath deflectors as shown in fig. 9, the swaths are laid down close together in the first
operation. These swaths are easily put together afterwards.
fig. 9
LUBRICATION AND MAINTENANCE
• Every 5 hours of work, the nipples and the inner tube of the PTO shaft must be greased.
• Every 10 hours of work, the nipples (2) on the gearboxes must be greased.
• Every 10 hours of work, the nipples (2) in the wheels must be greased.
• At the end of the season, the machine must be cleaned and made ready for the following season.
INSTRUCTIONS FOR ORDERING SPARE PARTS
Your order for spare parts should contain the following information:
1. Machine-type and frame number.
2. Description, part number and quantity of parts in question.
If in doubt, send a rough sketch or pattern clearly marked with your name and address. Only original PZ
spars ensure excellent quality and correct fitting.

10 BE-TRXX USER MANUAL

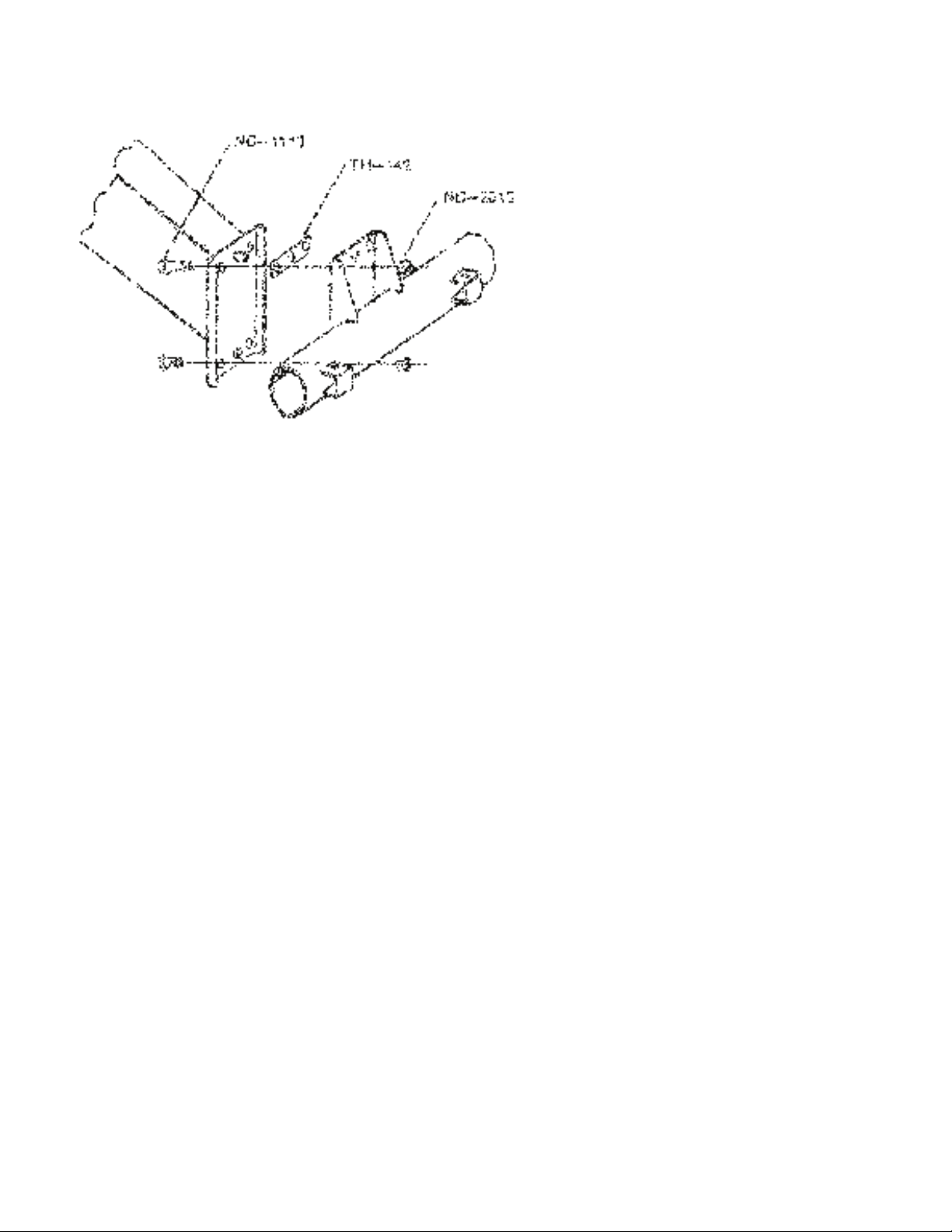

ACCESSORIES
When using tractors, the lift capacity of which is insucient, it may occur that the haybob cannot be raised
high enough in some cases. In order to improve this, the following set can be fitted (see fig 10).
fig. 10
1x TH-142 (Spacer)
2x ND-1113 (Bolt M12x40)
2x ND-2015 (Snap Nut M12 H130)
The part number of this set read TH-00142
Attention: The bolt and nuts must be tightened firmly and this has to be checked after some hours of work.

BE-TRXX USER MANUAL 11
EXPLODED VIEW & PARTS LIST
REF PART NO DESCRIPTION QTY
1GV 037 HITCH FRAME 1
2 GZ 0281 EYE PIN 1
3 GZ 283V PIN 1
4 HK 0028V PIN 1
5 HS 182V PIN 2
6 HS 0188 HITCH BRACKET 2
7 HS 0200 JACK STAND 1
8 HS 0210V PIN 1
9 HS 0218 LOCKING LEVER 1
10 MT 84V RING 1
11 ND 1037V BOLT (M16X20) 2
12 ND 2090V LOCK NUT (M16) 3
13 ND 4020V COTTER PIN (Ø5X35) 3
14 ND 4022V COTTER PIN (Ø8X60) 1
15 ND 4040 SPRING PIN (Ø8X60) 1
16 ND 4044V SPRING PIN (Ø6X60) 1
17 ND 4055V COTTER PIN (Ø6X35) 2
18 ND 9347 CORD (Ø5X1900) 1
19 ND 9610 PTO DRIVE SHAFT W2200-K32-1350-SC14 1
20 PZ 25V SPRING CLIP (Ø4) 1
21 PZ 199V SPRING CLIP (Ø6) 1
22 PZ 281V COMPRESSION SPRING 1
23 TH 0179 SUBFRAME 1
24 TH 0181 CROP DIVIDER 1
25 TH 00205 HITCH FRAME ASSEMBLY 1

12 BE-TRXX USER MANUAL
REF PART NO DESCRIPTION QTY
1GT 37 NUT (1-1/2” R) 1
2 MT 174 NUT (M30X1.5) 1
3 MT 365 DUST SHIELD 1
4 ND 5027 BALL BEARING - 8207-2RS 1
5 ND 5036 BALL BEARING - 6210-2Z-C3 4
6 ND 5048 BALL BEARING - 6207-2Z 3
7 ND 7003 KEY (8X7X50) 3
8 ND 8008 CIRCLIP - A-35 2
9 ND 9004V GREASE NIPPLE (M6X180°) 2
10 PZ 72 CIRCLIP 1
11 TH 2 BEVEL PINION 3
12 TH 041 RH TRUNNION 1
13 TH 65 SPACING TUBE 2
14 TH 67 MAIN DRIVE SHAFT 1
15 TH 68 SPACING TUBE 1
16 TH 0078 SHIM SET (-X50, 2X58, 5) -
17 TH 0079 SHIM SET (-X35, 2X43) -
18 TH 94 PLUG (NYLON) 1
19 TH 00137 BEVEL GEAR COMPL. 2
20 TH 0140 LH TRUNNION 1
21 TH 141 NUT (LH THREADED) 1-1/2”L 1
22 TH 00145 SHIM SET (-X60X72) -
23 TH 0173 MAIN FRAME 1
24 TH 190 DRIVE SHAFT 1
25 TH 00190 MAIN FRAME COMPL. 1
26 VS 81 TAB WASHER (INT) 1

BE-TRXX USER MANUAL 13
REF PART NO DESCRIPTION QTY
1 ND 1075V BOLT (M12X40) 30
2 ND 2085V LOCK NUT (M12) 20
3 ND3105V SPRING WASHER (13MM) 10
4 ND 4027 SPRING PIN ( 6X40) 20
5 PZ 99 TORSION SPRING (LH) 10
6 PZ 100 TORSION SPRING (RH) 10
7 PZ 106 RH TINE NARROW (YELLOW) 5
8 PZ 107 LH TINE NARROW (BLUE) 5
9 PZ 110 LH TINE WIDE (BLUE) 5
10 PZ 111 RH TINE WIDE (YELLOW) 5
11 TH 42 STOP RING (NYLON) 20
12 TH 93 SLEEVE (NYLON) 20
13 TH 100V PLAIN WASHER (12MM) 20
14 TH 107 BEARING HOUSING 20
15 TH 108 RH TINE MOUNTING (YELLOW) 10
16 TH 0109 LH TINE MOUNTING (BLUE) 10
17 TH 0203 LH ROTOR (BLUE) 1
18 TH 00203 LH ROTOR ASSY. (BLUE) 1
19 TH 0204 RH ROTOR (YELLOW) 1
20 TH 00204 RH ROTOR ASSY. (YELLOW) 1

14 BE-TRXX USER MANUAL
REF PART NO DESCRIPTION QTY
1 ND 1072V Bolt (M12x25) 30
2 ND 3105V Spring Washer (13mm) 20
3 ND4035V Spring Pin ( 5x20) 10
4 ND 5002 Ball Bearing (6205) 20
5 ND 9820V Wheel Cap 10
6 ND 9779 Tube (15x6.00) 10
7 ND 9781 Rim 5
8 ND 9827 Rim Assembly 5
9 ND 9841 Wheel Assembly 5
REF PART NO DESCRIPTION QTY
10 ND 9842 TIRE (15X6.00-6 4PR) 20
11 TH 9 DUST RING (NYLON) 20
12 TH 33V SPRING SLEEVE 20
13 TH 062V LOCK 20
14 TH 66 Spacing Tube 10
15 TH 100V Plain Washer 10
16 TH 0188 Wheel Carrier 1
17 TH 00188 Wheel Carrier Assembly 1
REF PART NO DESCRIPTION QTY
1 01.012.025 Hex Bolt (12x25x1.75) 2
2 121.327 Dust Cap (52mm) 2
3 51.000.013 Tire (15”x600-6 4-Ply) 2
4 51.000.014 Tube (15”x600-6) 2
5 BE-TR-TANDEM TR300 - Tandem Axel 2
6 ND 9827 Rim Assy. (15”x6.00-6) 2
7 TH 100V Washer (29x12x5) 2
8 TH 9 Dust Ring 2
BE-TR300T - Tandem Wheel Kit
* Tandem Wheel Kit not illustrated in parts breakdown.
••Tandem Wheel Kit uses components from existing rake.

BE-TRXX USER MANUAL 15
REF PART NO DESCRIPTION QTY
1 JH 66 2
2 ND 1007 6
3 ND 1055V 4
4 ND 1063 4
5 ND 2064V 10
6 ND 2091V 4
7 ND 3009V 2
8 ND 4025V 2
9 PZ 114 10
10 PZ 115 2
REF PART NO DESCRIPTION QTY
11 PZ 300V Compression Spring 2
12 PZ 301V Circlip 2
13 TH 115 LH Spring Holder 1
14 TH 116 RH Spring Holder 1
15 TH 125 Shield 2
16 TH 0208 RH Deflector Frame 1
17 TH 00208 RH Deflector Assy 1
18 TH 0209 LH Deflector Frame 1
19 TH 00209 LH Deflector Assy 1

16 BE-TRXX USER MANUAL
ND 9610 W2200-K33-2350 GES.-SC14
REF PART NO DESCRIPTION QTY
11 55.210.03 Star Ratchet Clutch Compl. (K33-R-2200-1
3/8” (6) M=700Nm) 2
12 20.10.00 Quick-Disconnect Yoke Compl. AG 2200-1
3/8” (6) 6
13 85.01.12 Quick-Disconnect Pin 4
14 66.01.49 Compression Spring 4
15 16.11.22 Washer 10
21 20.00.00 Cross Bearing Kit Compl. 4
22 62.23.00 Retaining Ring (24x1.5) 2
23 63.22.01 Grease Nipple 2
24 20.11.00 Inboard Yoke (RG 2200-0V) 10
25 61.05.04 Spring Type Straight Pin (10x65 DIN 1481) 2
26 75.11.16* Profile Tube 39.4in. lg. (Ov: L=1000mm) 2
27 75.15.16* Profile Tube
39.2in. lg. (1: L=995mm) 2
28 20.12.00 Inboard Yoke (RG 2200-1) 1
51 84.03.06 Guard Cone 1
52 82.83.06 Bearing Ring 2
53 80.37.03* Outer Guard with Collar 37in. lg.
(L=940mm) 1
REF PART NO DESCRIPTION QTY
54 80.36.03* Inner Guard Tube with Bearing Housing
37in. lg. (L=940mm) 2
55 84.02.101 Guard Cone 2
56 82.36.03 Safety Chain 1
66 62.07.00 Snap Ring (SP 42 DIN 5417) 1
67 16.20.14 Backup Ring 2
68 65.03.05 Lock Collar 1
69 66.01.46 Compression Spring 1
70 62.15.00 Retaining Ring (80x2.5) 1
71 55.15.00 Supporting Ring 1
72 55.17.11 Sealing Ring 1
73 64.01.02 Ball (1/2”V DIN 5401) 2
74 55.14.18 Hub (1-3/8” (6) 1
75 55.01.03 Cam 1
76 66.01.04 Compression Spring; Outer 1
77 66.01.05 Compression Spring; Inner 1
78 20.31.03 Clutch Housing 1

BE-TRXX USER MANUAL 17
REF PART NO DESCRIPTION QTY
1 GZ 154 Brace 3
2 GZ 00156 Lamp Support Assembly 3
3 GZ 0252 Lamp Support 3
4 ND 1068V Bolt (M10x35) 1
5 ND 1137V Bolt (M8x50) 3
6 ND 1269 Bolt (M12x70) 2
7 ND 2084 Lock Nut (M10) 1
8 ND 2085V Lock Nut (M12) 2
9 ND 2091V Lock Nut (M12) 3
10 TH 0194 LH Guard Rail 1
11 TH 00194 Protection Compl. 1
12 TH 0195 RH Guard Rail 1

18 BE-TRXX USER MANUAL
PHONE: [phone]
FAX: [phone]
TOLL FREE PHONE: [phone]
TOLL FREE FAX: [phone]
BRABEREQ.COM
[e-mail]
