AGT AGT-SSFM User manual
AGT INDUSTRIAL
PRODUCT MANUAL
Forestry Mulcher
Model:AGT-SSFM
Ver.1.1.3
OPERATION INSTRUCTIONS
17/25
TABLE OF CONTENTS
SAFETY PRECAUTIONS
3/25
MULCHER ASSEMBLES
8/25
TROUBLESHOOTING
24/25
[email protected]m https://www.agrotkindustrial.com/
P1
TO THE OWNERS
2/25
NOTES
25/25
[email protected]m https://www.agrotkindustrial.com/
P2
TO THE OWNERS
GENERAL COMMENTS
Congratulations for having this Forestry Mulcher! Your Forestry Mulcher was
carefully designed and manufactured to give you years of dependable
service. Your Forestry Mulcher will require some minor maintenance to keep
it in top working condition.
Please observe all safety precautions and maintenance procedures as
described in this manual.
BEFORE OPERATION
Thoroughly read and understand the instructions given in this manual before
operation. Refer to the "Safety Label" section, read all instructions noted on
them.
Do not allow anyone to operate his equipment who has not fully read and
comprehended this manual and who has not been properly trained in the
safe operation of the equipment.
SERVICE
Please remember to use only manufacturer replacement parts. Substitute
parts may not meet the standards required for safe, dependable operation.
[email protected]m https://www.agrotkindustrial.com/
P3
SAFETY PRECAUTIONS
BEFORE OPERATION
1. The operator must read the operation manual carefully before installation,
operation or maintenance. Improper operation will cause the machine
damage or the operator death.
2. Read all the safe signs and safe declarations. Follow all the professional
safe terms, local laws or the professional directions.
3. Familiar with the Forestry Mulcher about functions, specs and operation.
Replace the to-be-damaged parts in time. Make sure all the hydraulic
installations and couplings connect firmly, and all the safe signs stick on the
suitable positions clearly.
IMPORTANT
1. Operator should be familiar with all functions of the unit.
2. Make sure all guards and shields are in place and secured before operating
implement.
3. Keep all persons away from equipment and work area.
4. Dismounting from a moving unit can cause serious injury or death.
5. Keep hands, feet, and clothing away from power-driven parts.
6. Detach and store implement in an area where children normally do not play.
Secure implement by using blocks and supports.
Always wear proper safety glasses, goggles, or a face shield when
driving pins in or out, or when any operation causes dust, flying
debris, or any other hazardous material.

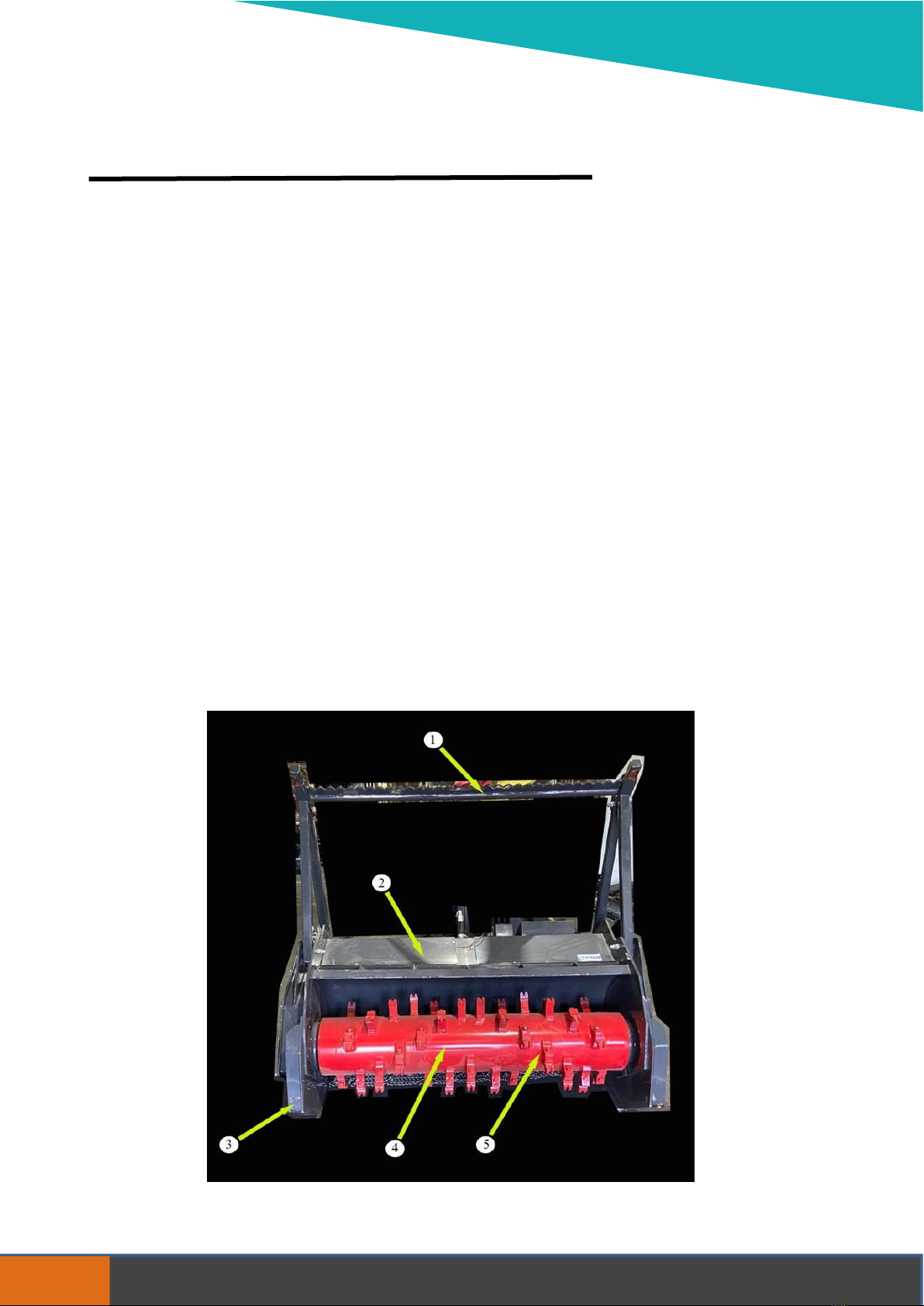

Mulcher Overview
Key Components List:
1.
Push Bar
2.
Upper Cover Plate
3.
Wear Skid Plates
4.
Cutting Drum
5.
Cutting Tooth
6-8. Hydraulic Hoses
9.
Pressure Gauge
10.
Skid Steer MountPlate
11.
Chain Guard
12.
Bearing
[email protected]m https://www.agrotkindustrial.com/
P6
MULCHER ASSEMBLES
b.
Do Not AllowRiders
i. Never lift or carry anyone on the mulcher.
ii.
Never use mulcher as lift platform or to carry passengers.
c.
Drive Slow and Avoid Rollover
i. When traveling forward, keep mulcher low to ground on rough and
uneven terrain.
ii.
Avoid sharp turns.
iii.
Use caution when operating on any slope.
iv.
Do not exceed load capacity of your skid steer.
d.
Avoid Power Lines
i.
Always check for clearance and working area before raisingmulcher.
ii. Do NOT leave operator’s seat if any part of the equipment contacts
electric lines or cables.
e.
Detach Mulcher Safely
i.
Detach on a firm and flat surface to prevent mulcher from rolling or
falling over.
f.
Raised Attachment
i. A raised mulcher can lower unexpectedly, NEVER enter area under
raised implement.
ii.
Before servicing, lower mulcher to ground, engage parking brake in
machine, shut off engine and remove key.
g.
Avoid High Pressure Fluids
i.
Escaping fluid under pressure can penetrate skin and cause serious
injury.
ii.
Relieve pressure before connecting or disconnecting hydraulic lines.
iii.
Verify hydraulic lines are connected properly before engaging
pressure. Search for leaks with a piece of cardboard or wood.
iv.
Wear protective clothing to prevent hand and body from high
pressure fluids. Seek medical help immediately if accident occurs.
h.
Do Not ModifyEquipment
[email protected]m https://www.agrotkindustrial.com/
P17
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
i.
Pre-Operation Checklist.
It is the operator’s responsibility to perform the
following checks prior to operations of mulcher:
i. Verify all hardware is tightened.
ii.
Inspect hoses and fittings for wear, damage, and leaks. Replace
damaged or leaking hoses before use.
iii.
Refer to operating machine user’s manual for prestart instructions.
iv.
Review and understand this manual and operating machine manual.
v. Inspect planned working area for local utilities, power lines, or other
potential dangers.
vi.
Before first use, ensure gear oil has been added to port
(85W/90GL- 5) to appropriate level. See “Grease/Oil Points"
section on Pages 7- 10 for more details.
vii.
Before first use, ensure belt tension pulley has been greased. See
“Grease/Oil Points" section on Pages 7-10 for more details.
j.
Attach and DetachMulcher:
i.
Follow all safety instructions.
ii.
Attach mulcher to skid steer mount plate, verify pins are secure in
correct position.
iii.
Connect hydraulic hoses. Verify hoses are clear of moving parts.
iv.
Connect electrical wiring to skid steer power source. This powers
the internal fan.
v.
Mulcher requires a case drain port on skid steer to operate.
[email protected]m https://www.agrotkindustrial.com/
P18
OPERATION INSTRUCTIONS
k.
Operation Procedures:
i.
Test functions in clear, open area with skid steer in idle. Understand
controls of machine before using at full speed onbrush/trees.
ii. Starting Mulcher:
1.
Lower the mulcher so skid plates are grounded.
2.
Slowly engage mulcher at low idle, and increase mulcher
drum to approximately half speed (1000 RPM). Verify the
drum and host machine are working properly before
increasing to full speed.
3.
Increase the drum to full speed and slowly proceed forward
into brush. Optimal drum speed is 1700-2000 RPM.
iii.
Stopping Mulcher:
1.
Set engine speed to low idle, lower the mulcher to
ground, disengage hydraulics until rotor stops.
2.
Stop skid steer engine and remove key.
iv.
Instructions for Debris Types:
1. Brush: When clearing brush, set the skid plates on ground
level and travel forward at a pace that does not decrease
rotor RPM. Once the pass is complete, angle the mulcher
slightly forward and reverse back through the trail. This will
produce a more finished surface.
2.
Trees: Start at trunk with the mulcher tilted back at a slight
angle. When you are 75% through the tree, tilt forward so the
push bar is helping pushing the tree down. Once fallen,
position the mulcher on top of the tree to grind off the limbs.
Then grind down the remainder of the trunk slowly.
This can
take many passes depending on tree type and diameter.
3. Ground Mulching: Mulcher is capable of mulching about
3” below ground level. However, note engaging the
ground will wear teeth much faster than brush.
[email protected]m https://www.agrotkindustrial.com/
P19
