BE Ag & Industrial BACKHOE BE-BK Series Application guide

PURCHASE DATE MODEL NO. SERIAL NUMBER
DEALER
BACKHOE
BE-BKXX
OPERATIONS & PARTS MANUAL
FOR MODELS:
• BE-BK61
• BE-BK71

TABLE OF CONTENTS
3Safety
6Specifications
7Introduction
8Operation
12 Lubrication & Maintenance
14 Troubleshooting
17 General Information
18 Exploded view & Parts lists

BE-BKXX USER MANUAL 3
SAFETY PRECAUTIONS
Understand that your safety and the safety of other persons is measured by how you service and operate
this backhoe. Know the position and operations of all controls before you try to operate. Make sure you
check all controls in all safe area before starting.
Read this manual completely and thoroughly and make sure you understand all controls. All equipment has
a limit. Make sure you are aware of the stability and load characteristics of this backhoe before you begin
operation.
The safety information given in this manual does not replace any safety codes, insurance needs, federal,
state and local laws. Make sure your machine has the correct equipment required by your local laws and
regulations.
Before starting the engine of your tractor, make sure all operation controls are in park lock or neutral
position.
Operate controls only when seated in the operator’s seat.
Equip your tractor with a ROPS cab or frame for your protection. See your tractor operator’s manual for
correct seat belt usage.
A frequent cause of personal injury or death in persons falling o and being run over. Do not permit others
to ride on your tractor. Only one person, the operator, should be on the machine when it is in operation.
Before leaving the tractor, stop the engine, put all controls in neutral, engage the parking brake and remove
the key from the ignition.
When using remote hydraulic tractor valves on some tractors, the backhoe’s cylinder will continue moving
unless the control levers are manually returned to neutral, or until relief pressure is reached at the ends of
piston strokes. Observe the bucket movement and maintain control with the control levers.
Stop the backhoe arms gradually when lowering or lifting loads. Stay o of slopes too steep for safe
operation.
Shift down before you start up or down before you start up or down a hill with a heavy load.
Avoid “free wheeling”.
Travel speed should be such that complete control and machine stability is maintained at all times. Where
possible, avoid operating operation near ditches, embankments and holes. Reduce speed when turning,
crossing slopes and on rough, slick or muddy surfaces.
Never use your hand to check for suspected leaks under pressure. Use a piece of cardboard or wood for this
purpose. Escaping hydraulic oil or diesel fuel leaking under pressure can have sucient force to penetrate
the
skin and cause infection or other injured by leaking fluid, seek medical attention immediately.
To prevent personal injury, relieve all pressure before disconnecting fluid lines.
Before applying hydraulic pressure, make sure all hydraulic connections are tight and components are in
good condition.
Contact with overhead power lines can cause severe electrical burn or death from the electrocution. Make
sure there is enough clearance between raised equipment and overhead power lines.
Add recommended rear tire liquid weight or rear wheel weights for increased stability.
A backhoe attachment should be transported in a low position at slow ground speeds. Make turns slowly
and the tractor brakes cautiously. A loaded attachment in the raised position alters the center of gravity
location of the machine and increase the possibility of mishaps.
Do not stand, walk or work under a raised backhoe or attachment unless it is securely blocked or held in
position. Accidental movement of a control lever or leak in the hydraulic system could cause the backhoe to
drop, or attachments to dump, causing severe injury.
Make sure all parked backhoes on stands are on a hard level surface with all safety devices engaged to
prevent backhoe from falling and being damaged or injuring someone.
When using a backhoe, be alert of bucket, boom and arm position at all times.
CAUTION
This safety alert symbol indicates important safety messages in this manual.
When you see this symbol, carefully read the message that flows and be alert to
the possibility of personal injury or death.

4 BE-BKXX USER MANUAL
SAFETY DECAL LOCATION
IMPORTANT: Warning decals are visible when getting on backhoe. Refer to the left and right hands used
in this manual, it’s the position of the operator when seated in the operating positions of the backhoe.
CARE OF SAFETY DECALS
1. Keep safety decals clean and free of obstructing material.
2. Clean safety decals with soap and water and dry with a soft cloth.
3. Replace damaged or missing safety decals with new decals from your local dealer.
4. If a component with a safety decal(s) axed is replaced with a new part, make sure new safety decals(s)
are attached in the same location(s) as the replaced components.
5. Mount new safety decals by applying on a clean dry surface and pressing air bubbles to outside edges.
Location: Both sides of mainframe
Location: Beside Locking Hole at
Boom Mainframe Location: Both leg cylinders Location: Both sides of mainframe
Location: Mainframe
Boom
Lock

BE-BKXX USER MANUAL 5
Location: Main valve cover
Location: Left side valve lever
Location: Side or left inner lever Location: Side or right inner lever
Location: Main valve coverLocation: Both sides of dipper stick
Location: Right leg guard
Location: Right side valve lever
BK-61 BK-71

6 BE-BKXX USER MANUAL
SPECIFICATIONS
REF DESCRIPTION BE-BK61 BE-BK71
A Digging Depth (2ft Flat Boom) 1860mm 2160mm
B Reach From Center Line of Swing Pivot 2820mm 3277mm
C Loading Height (Bucket At 60°) 1590mm 2032mm
D Maximum Leveling Angle 10° 10°
E Swing Arc 180° 180°
F Transport Height (Maximum) 1880mm 1930mm
G Transport Overhang 1145mm 1320mm
H Bucket Rotation 180° 180°
I Stabilizer Spread (Down Position) 1730mm 1730mm
J Stabilizer Spread (Up Position) 1320mm 1320mm
K Angle of Departure 21° 21°
Shipping Weight (Without Bucket) 430kg 463kg
Bucket Digging Force 1050kg 1180kg
Dipperstick Digging Force 700kg 860kg
Operating Pressure 160bar 160bar
BUCKET TEETH QTY STRUCK CAPACITY HEAPED CAPACITY SHIPPING WEIGHT
12” 3 1.01 cu. ft. 1.24 cu. ft. 35kg 77lbs
Specifications may vary depending on tractor model, tire size and bucket used.
3. BACKHOE SPECIFICATIONS
Backhoe Model
BK215
A
Digging Depth (two foot flat bottom)
2200mm
86.6”
B
Reach from center line of Swing Pivot
3200mm
126”
C
Loading Height(bucket at 60°)
1850mm
72.8”
D
Maximum Leveling Angle
10°
10°
E
Swing Arc
180°
180°
F
Transport Height (maximum)
2120mm
83.5”
G
Transport Overhang
1230mm
48.4”
H
Bucket Rotation
180°
180°
I
Stabilizer Spread (down position)
1750mm
68.9”
J
Stabilizer Spread (up position)
1180mm
46.5”
K
Angle of Departure
21°
21°
Shipping Weight (without bucket)
415kg
916(lbs)
Bucket Digging Force
1175kg
2592(lbs)
Dipperstick Digging Force
895kg
1975(lbs)
Operating Pressure
160bar
2320psi

BE-BKXX USER MANUAL 7
TRACTOR PREPARATION
Rear Counterweight
WARNING
Do not exceed the manufacturer’s rating for maximum gross vehicle weight.
Refer to Operator’s Manual or ROPS serial plate provided with tractor.
Certain specific conditions may not permit safe use of backhoe at backhoe rating or may require more
careful restricted operation at the rated load.
ROPS SYSTEM
The tractor must be equipped with an approved ROPS System to ensure adequate operator’s protection.
TRACTOR HYDRAULIC SYSTEM
The tractor operation in a backhoe application significantly increase demands on the tractor Hydraulic
System.
Check the tractor Hydraulic system fluid level daily. Refer to your tractor Operator’s Manual maintenance
section for instructions regarding tractor hydraulic system maintenance.
Adhere to recommendation in your Tractor Operator’s Manual concerning hydraulic fluid and filter
specifications and change intervals.
WARNING
The tractor/backhoe must only be operated with all safety equipment properly installed.
INTRODUCTION
The purpose of this manual is to assist you in maintaining and operating your backhoe. Read it carefully, it
furnishes information and instructions that will help you achieve years of dependable performance. Some
information may be general in nature due to unknown and varying conditions. However, through experience
and these instructions, you should be able to develop operating procedure suitable to your particular
situation.
“Right” and “Left” as used throughout this manual are determined by facing the direction the machine will
travel when in use.
The photos, illustrations and data used in this manual are current at the time of printing, but due to possible
in-line production changes, your machine may vary slightly in detail. The manufacturer reserves the right to
redesign the machine as may be necessary without notification.
IMPORTANT
Illustrations used in this manual may not show all safety equipment that is recommended to ensure safe
operation of tractor and backhoe. Refer to the Safety Precautions section of this manual for information
concerning safety. Consult your dealer for further information.
SERIAL NUMBER & LOCATION
The serial number is important information about the machine it may be necessary to know it before
obtaining the correct replacement part. The serial number is located on the right side of backhoe mainframe.
The serial number should be recorded on the Delivery and Registration from and also below for your
reference.
Made in China
Model
Serial No:
Date MFD
CE

8 BE-BKXX USER MANUAL
TIRE INFLATION
Front tires must be maintained at the maximum recommended inflation to maintain normal tire profile with
the added weight of backhoe/material.
Rear tires must be maintained at equal pressure within the recommended tire inflation range. Unequal rear
tire inflation can prevent backhoe attachment from contacting the ground across its full width.
WHEEL TREAD SETTINGS
Tractor front wheel tread setting must be restricted to wheel tread spacing recommended in the tractor
Operator’s Manual.
BLACKHOE OPERATION
CAUTION
The tractor/backhoe should only be operated with all safety equipment properly installed. Keep assistants
or by standers a safe distance from the equipment operating area.
PRECAUTIONARY NOTES
• Check below items before operating for your safety.
• Read and understand this manual to avoid accidents.
• Check the hydraulic fitting lines to be correct and set tightly.
• Maintain and repair (if it is needed) the parts or assemblies, check bolts and pins to be sure they are
positioned tightly.
• Check tractor with tractor operator’s manual that it can be prepared for operating.
• Warm up and operate the tractor and backhoe carefully. Purge any air in the hydraulic lines and cylinders
by fully cycling all cylinders several times.
• Check hydraulic level in the tank. It should be full (Refer to the Tractor Operator’s Manual).
• Do not operate the hydraulics when not seated in the backhoe operators’ seat.
• Keep all assistants out of area of operation.
• Do not operate rapidly.
• Do not allow riders other than the operator to be on the tractor while operating.
IMPORTANT
Use tractor engine speed that your experience permits. At first set PTO RPM of the tractor to slow.
Do not use the boom, dipperstick, swing and stabilizers to lift, push or full objects. Use only to maneuver and
operate the bucket.
Practice quickly turning o the engine or stopping the backhoe immediately in case of an emergency.
Do not operate while the rear tractor wheels are o the ground by stabilizer. It is dangerous to operate the
backhoe while rear wheels are o the ground. Position vehicle so that the backhoe is as near to the pile as
possible and in such a direction as to minimize the amount of tractor turning required to dump. Keep the
unit clean and perform regular service. Observe safety messages whenever cleaning, servicing or lubricating.
WE URGE YOU TO FOLLOW THIS ADVICE:
1. Read and understand this manual as well the Tractor Operator’s Manual.
2. Remember and observe the Safety Precautions brought to your attention in this manual, the tractor
manual and on the machinery itself.
3. Use good common sense in the everyday operation of this unit. Safety recommendations can never be all-
inclusive and you are responsible for watching out for and avoiding unsafe conditions.
4. Never exceed the limits of the machinery. If its ability to do a job, or to do so safely, is in question, don’t
try it.
5. Don’t hurry the learning process or take the unit for granted. Ease into it and become familiar with your
new backhoe and tractor.

BE-BKXX USER MANUAL 9

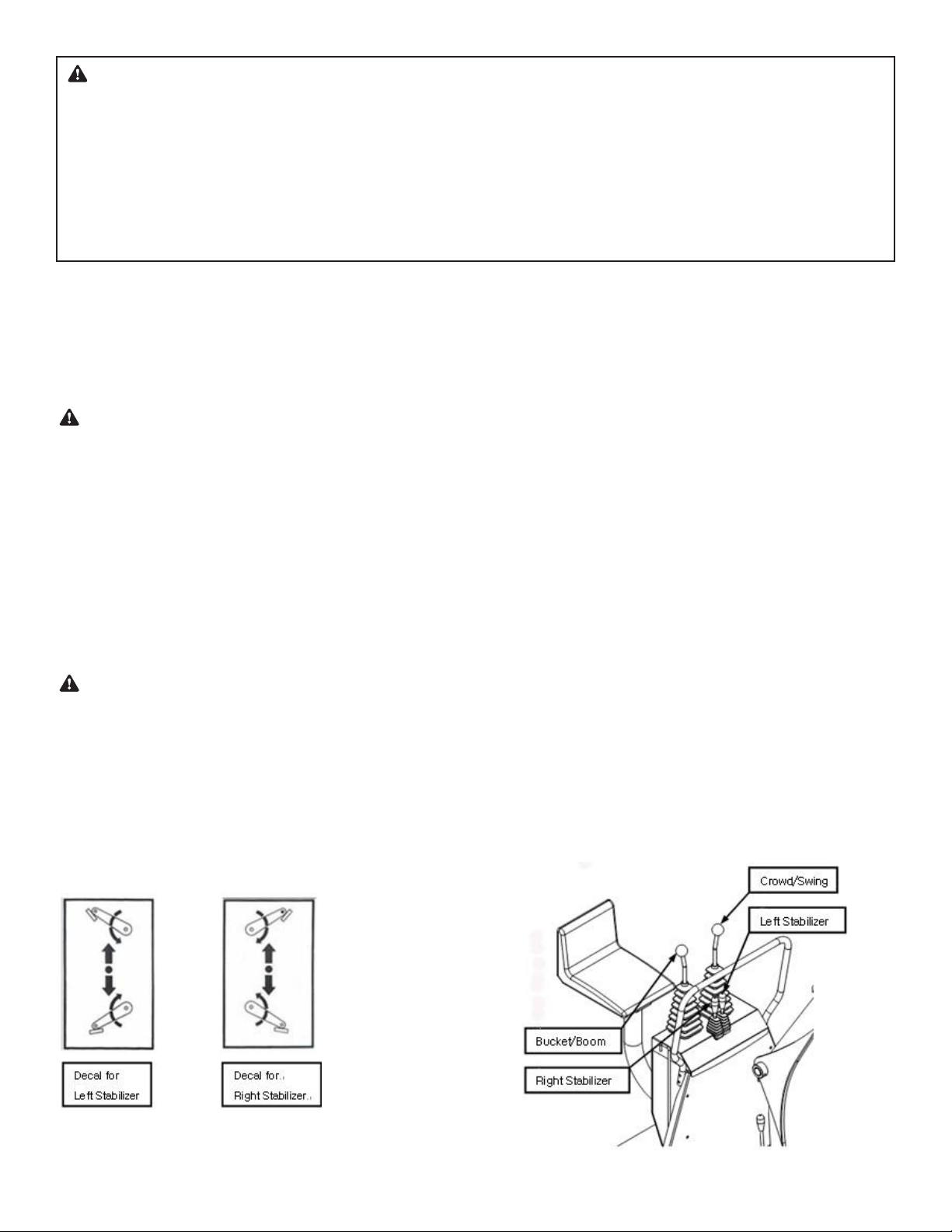

Left and Right stabilizer controls
Left and Right Stabilizer controls
Push the left hand inner control lever, left stabilizer
lowers. And pull up the lever, left stabilizer raises.
Push the right hand inner control lever, right stabilizer
lowers. And pull up the lever, right stabilizer raises.
Do not dig near the stabilizers to avoid possible
accident. Do not lift the tractor rear wheels by
stabilizers. Also, be sure the stabilizers are seated on
hard ground to support.
The backhoe/tractor.
Crowd and Swing controls
Push the left hand outer control lever, arm
(dipperstick) moves toward the operator, and pull
back the lever, arm (dipperstick)
moves away from
operator .
Move the left hand outer control lever to the left,
boom swings moves to the left. Move lever right,
boom swing moves to the Right.
Bucket and Boom controls
Push the right hand outer control lever, boom
moves down
, and pull back the lever, boom
moves up.
Move the right hand outer control lever to the
left, bucket curls in. Move lever right, bucket
extends out from operator.
Left and Right stabilizer controls
Left and Right Stabilizer controls
Push the left hand inner control lever, left stabilizer
lowers. And pull up the lever, left stabilizer raises.
Push the right hand inner control lever, right stabilizer
lowers. And pull up the lever, right stabilizer raises.
Do not dig near the stabilizers to avoid possible
accident. Do not lift the tractor rear wheels by
stabilizers. Also, be sure the stabilizers are seated on
hard ground to support.
The backhoe/tractor.
Crowd and Swing controls
Push the left hand outer control lever, arm
(dipperstick) moves toward the operator, and pull
back the lever, arm (dipperstick)
moves away from
operator .
Move the left hand outer control lever to the left,
boom swings moves to the left. Move lever right,
boom swing moves to the Right.
Bucket and Boom controls
Push the right hand outer control lever, boom
moves down
, and pull back the lever, boom
moves up.
Move the right hand outer control lever to the
left, bucket curls in. Move lever right, bucket
extends out from operator.
INITIAL BACKHOE OPERATION
Before operating the backhoe, fully raise and lower the boom, arm, swing and stabilize two or three times.
Then raise the bucket above the ground and cycle the bucket cylinders three times. Lower the bucket to the
ground.
Check the tractor hydraulic oil and the correct oil level.
CAUTION
Before leaving the machine, stop the engine, remove the key, place all controls in neutral, and either set
the parking brake or place tractor in park as equipped.
Always keep cylinders in a retracted position when the backhoe is not in use to guard against rust and
contamination which may cause damage to the cylinder rods or hydraulic system. Also, lock the swing and
boom while tractor is moving and storing for an extended period of time.
COLD WEATHER OPERATION
For smooth operation in cold weather, let the tractor warm up. Slowly cycle all of the cylinders several
times to warm the oil in the hydraulic system. The backhoe may operate erratically until the hydraulic oil has
warmed up to operating temperatures.
CAUTION
Operate controls only when seated in the operator’s seat.
CAUTION
When lowering a heavy load, ease it downward slowly. Never drop a loaded attachment and “catch it
hydraulically”. Stopping a load after it has gained downward momentum places undue strain on the
unit and may cause unnecessary damage to the backhoe or tractor or even worse, personal injury.
Before disconnecting hydraulic lines, relieve all hydraulic pressure. Escaping hydraulic oil under
pressure can have sucient force to penetrate the skin causing serious personal injury. If inured by
escaping hydraulic oil, seek medical attention immediately.
Do not operate the backhoe if the fittings are leaking or if the hoses are damaged. A sudden line burst
would cause the boom, or dipperstick bucket to drop suddenly, causing damage to the tractor or
backhoe or injury to personnel.
Left and Right Stabilizer Controls
Left and Right Stabilizer Controls
Push the left-hand inner control lever, left stabilizer lowers. Pull up the lever, left stabilizer raises. Push the
right-hand inner control lever, Right stabilizer lowers. Pull up the lever, right stabilizer raises. Do not dig near
the stabilizers to avoid possible accident. Do not lift the tractor rear wheels by stabilizers. Also, be sure the
stabilizers are seated on hard ground to support the backhoe/tractor.

10 BE-BKXX USER MANUAL
Push the left-hand outer control lever, arm (dipperstick) moves toward the
operator. and pull back the lever, arm moves away from the operator.
Move the left-hand outer control lever to the left, boom swing moves to the left.
Move lever right, boom swing moves to the right.
Push the right-hand outer control lever, boom moves down, and pull back the
lever, boom moves up.
Move the right hand outer control lever to the left, bucket curls in. Move lever
right, bucket extends out from operator.
Crowd and Swing Controls
Bucket and Boom Controls
These two levers (crowd & swing control lever, bucket & boom control lever) provide four simultaneous
operations. Both experience and practice are needed to eliminate excess motion and increase operating
eciency.
Swing Lock & Boom Lock
When transporting or dismounting backhoe, you must
lock the backhoe’s swing and boom. Position boom
straight back and drop pin through holes in swing
frame and boom. When not in use, store pin i hole
provided on swing frame and boom.
Observe the following safety warnings when working
with your new backhoe/tractor:
CAUTION
When using a backhoe, be aware of bucket & boom
location at all times. When raising arm (dipperstick)
with bucket rolled forward, material can spill onto
non-target area causing injury to assistant or damage
other objects.
Do not dig near stabilizers. Ground under stabilizer
could collapse. Make all movements slow and gradual
when practicing operation.
Operate from backhoe operators’ seat only. Pay
attention, be ready to stop, immediately in case of an
emergency.
To help prevent roll-over, adjust the rear wheels to
their widest setting to maximize stability.
Refer to your Tractor’s Operator’s Manual for
recommendations.
These two levers (Crowd and swing control lever, Bucket and Boom control lever) provide four
simultaneous operations. Both experience and practice are needed to eliminate excess motion and
increase operating efficiency.
Swing Lock and Boom Lock When
transporting or dismounting backhoe, you
must lock the backhoe's swing and boom.
Position boom straight back and drop pin
through holes in swing frame and boom.
When not in use, store pin in hole provided
on swing frame and boom. Observe the
following safety warnings when working
with your new backhoe/tractor.
CAUTION
When using a backhoe, be aware of bucket and boom location at all times. When raising a arm
(dipperstick) with bucket rolled forward, material can spill onto non target area causing injury to
assistant or damage other objects.
Do not dig near stabilizers. Ground under stabilizers could collapse. Make all movements slow
and gradual when practicing operation.
Operate from backhoe operators seat only. Pay attention, be ready to stop, immediately in case
of an emergency.
To help prevent roll-over, adjust the rear wheels to their widest setting to maximize stability.
Refer to your Tractor Operator's Manual for recommendations.

BE-BKXX USER MANUAL 11
CAUTION
Move the backhoe to flat, firm and wide place to remove the equipment.
Do not allow to be removed without bucket and stabilizers. Also, dump the remaining material from the
bucket to empty. Use other lifting equipment to remove when the backhoe has damage.
1. Move the tractor to backhoe storage place.
2. Use inner two levers to lower the stabilizers until they contact ground. Use the boom and dipperstick
control lever to raise the boom and dipperstick completely.
3. Center the boom and then lock the swing with lock pin.
4. Using the control levers, position the dipperstick vertically, curl the bucket until it’s bottom is level with
the ground then lower the boom until bottom of the bucket rests on the ground.
5. Remove pins that secure the backhoe.
CAUTION
Remove the backhoe on firm level ground. Do not allow other persons in the area.
Be careful to avoid injury during removal of the backhoe.
The hydraulic oil is dangerous for skin or eyes. Wash the skin and seek medical service if it is necessary.
6. Lower the backhoe mainframe to the ground by raising stabilizers and boom. Use the wood plate or block
if necessary.
7. Turn o the tractor engine, relieve hydraulic pressure by actuating all the control levers in each direction,
then disconnect the backhoe hose couplers from the tractor hydraulic couplers.

12 BE-BKXX USER MANUAL

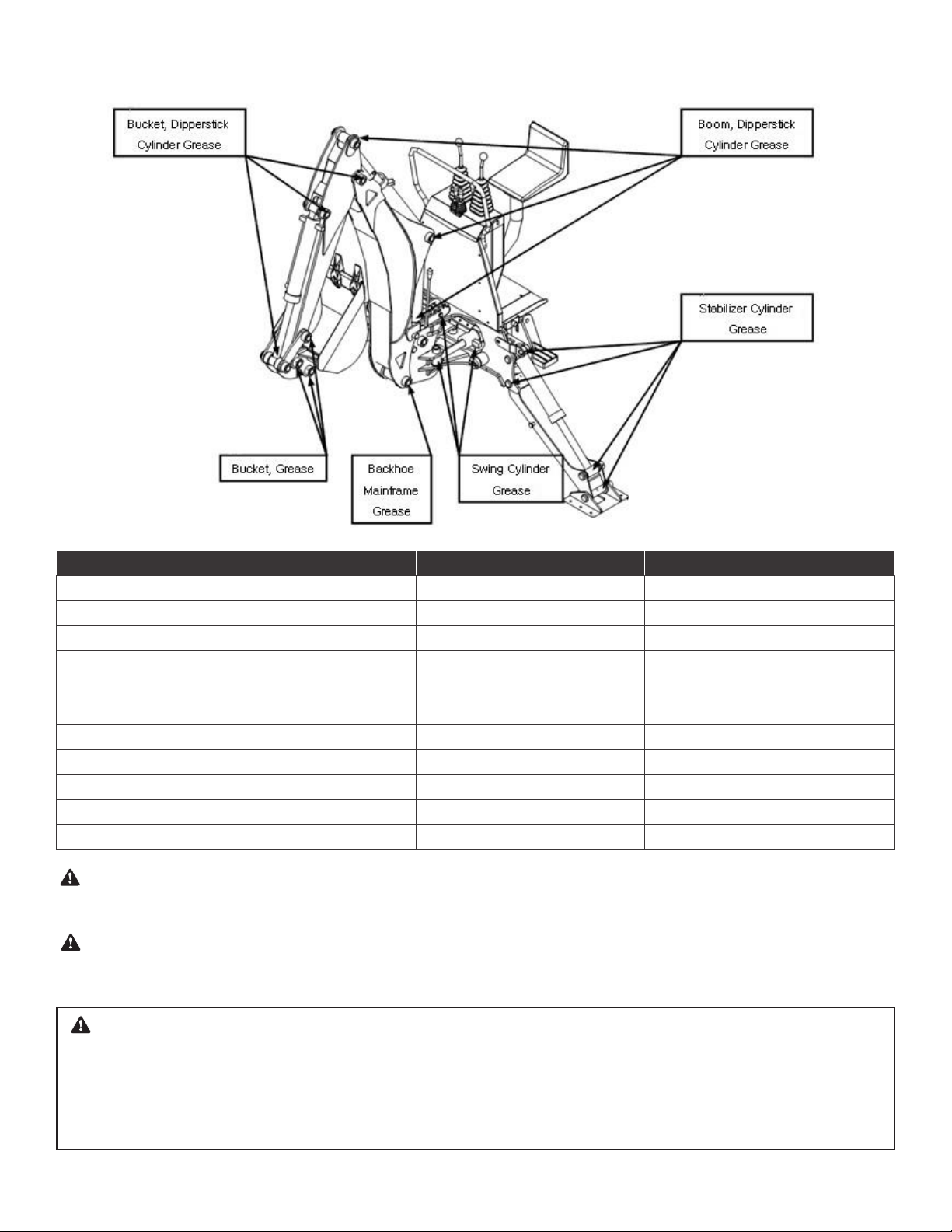

LUBRICATION & MAINTENANCE
ITEM SERVICE SERVICE INTERVAL
Hydraulic System Oil Level Check Daily/10 Hours
Hydraulic System Oil/Filter Replace As specified in Tractor Manual
Tire Inflation Check Weekly/50 Hours
Backhoe Pivot Points Lubricate Daily/10 Hours
Backhoe Hydraulic Lines, Hoses, Connections Check for leaks, wear Daily/10 Hours
Boom, Arm, Swing & Bucket Check for seepage, Daily/10 Hours
Cylinder Rod Packing service as needed Daily/10 Hours
Pivot Pin Bolts & Dust Covers Check, replace if missing Daily/10 Hours
Friction of All Pins Check, replace if necessary Daily/10 Hours
Backhoe Mount Hardware Check visually Every 25 Hours
Bolts & Nut Release Re-torque
CAUTION
Do not perform service or maintenance operations with backhoe raised oFF the ground. For additional
access to tractor components remove backhoe.
IMPORTANT
Lower the backhoe to the ground and relieve pressure in backhoe hydraulic lines prior to performing any
service or maintenance operations on the tractor or backhoe.
CAUTION
Escaping fluid under pressure can have sucient force to penetrate the skin, causing serious injury.
Before disconnecting lines, be sure to relieve all pressure. Before applying pressure to the system, be
sure all connections are tight and that lines, pipes and hoses are not damaged. Fluid escaping from a
very small hole can be almost invisible. Use a piece of cardboard or wood rather than your hands to
search for suspected leaks. If injured by escaping fluid, seek medical attention immediately. Serious
infection or reaction can develop if correct medical treatment is not administered immediately.
8. LUBRICATION AND MAINTENANCE
LUBRICATION AND MAINTENANCE
ITEM
SERVICE
SERVICE INTERVAL
Hydraulic System Oil Level
Check
Daily/10 hours
Hydraulic System Oil/Filter
Replace
As specified in Tractor
Operator's Manual
Tire Inflation
Check
Weekly/50 hours
Backhoe Pivot Points
Lubricate
Daily/10 hours
Backhoe Hydraulic Lines,
Hoses, Connections
Check for leaks, wear
Daily/10 hours
Boom, Arm, Swing and Bucket
cylinder rod packing
Check for seepage, service as
needed
Daily/10 hours
Pivot pin bolts and dust covers
Check, replace if missing
Daily/10 hours
Friction of All pins
Check, replace if necessary
Daily/10 hours
Backhoe mount hardware
Check visually
Daily/10 hours
Bolts and Nut release
Re-torque
Every 25 hours
CAUTION
Do not perform service or maintenance Operations with backhoe raised off the ground. For
additional access to tractor components remove backhoe.
Important:
Lower the backhoe to the ground and relieve pressure in backhoe hydraulic lines prior to
performing any service or maintenance operations on the tractor or backhoe.

BE-BKXX USER MANUAL 13
CAUTION
Do not operate the backhoe if the fittings are leaking or if the hoses are damaged.
A sudden line burst could cause the boom, dipperstick or bucket to drop suddenly, causing damage
to the tractor or backhoe or injury to personnel.
Operate the backhoe from the operator seat only.
Do not stand or walk under a raised backhoe. Accidental movement of control lever or leak in
hydraulic system could cause boom or dipperstick to drop, causing severe injury
Refer to “Lubrication & Maintenance Chart” for quick reference to Maintenance Operations.
Check the hydraulic system as outlined in the Tractor Operator’s Manual.
NOTE: When checking hydraulic system oil level, the backhoe should be on the ground and bucket fully
retracted (all cylinders in retracted position).
Grease all backhoe pivot points daily (10 hours). Refer to Tractor’s Operator Manual for lubricant
recommendations.
Inspect hydraulic hoses, connections, control valve and cylinders for evidence of leakage.
Tractor tires should be maintained at maximum recommended inflation to maintain normal tire profile with
added weight of backhoe/material. Unequal rear tire inflation can result in bucket not being level to the
ground

14 BE-BKXX USER MANUAL
TROUBLESHOOTING
The trouble shooting chart is provided for reference to possible backhoe operational problems. Determine
the problem that best describes the operational problem being experienced and eliminate the possible
causes as listed by following the correction procedures.
PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY
Swing, Boom, Dipperstick & Bucket
Cylinders not operating properly.
•Low hydraulic fluid level.
•Hydraulic hoses connected improperly.
•Hydraulic hoses to/from control valve are
blocked.wwwwwwwww
•Check & replenish hydraulic fluid.
•Check & correct hydraulic hose connections.
•Check for damage (kinked) hoses, etc.
•Check system pressure. Repair or replace relief valve.
Refer to the Tractor Operator’s Manual.
•Check system pressure. Repair or replace pump.
•Inspect. Replace as required.
•Check coupler connections. Replace coupler(s) if
necessary.
•Check for evidence of damage to hoses or tube lines
that would block flow of oil between cylinders & control
valve.
•Check cylinders for internal leakage as described under
cylinder leakage tests.
•Inspect for blockage. Disassemble valve if necessary.
Cylinders operate in wrong
direction relative to control valve
lever position.
•Hydraulic hoses connected incorrectly. •Correct hydraulic hose connections.
Inadequate lifting capacity.
•Engine RPM too slow
•Excessive load. Material loading exceeds
specified backhoe capacity.
•Relief valve setting below specifications.
•Bucket, Boom & Dipperstick Cylinder Piston
Assembly leakage.
•Control valve leaking internally.
•Hydraulic Pump defective.
•Increase engine RPM.
•Reduce Load.
•Check & reset relief valve setting as needed.
•Check cylinders for leakage. Repair as needed.
•Replace control valve & recheck operation.
•Refer to “Hydraulic Pump Capacity Inadequate”.
Slow or erratic movement of
Cylinder (Noisy operation of
cylinder).
•Low hydraulic fluid level.
•Cold hydraulic fluid.
•Hydraulic oil viscosity too heavy or incorrect
oil.
•Engine RPM too slow (hydraulic pump RPM
too slow).
•Excessive weight in bucket. Material weight
exceeds maximum specified backhoe
capacity.
•Control valve linkage binding/defective.
•Aeration of hydraulic fluid.
•Quick disconnect coupler restriction or
coupler “Flow checks”.
•Hydraulic hose or tube line restriction
(hoses/tube line) kinked or pinched.
•Boom, Dipperstick or Bucket cylinder piston
assembly leakage.
•Relief valve erratic or set below
specifications.
•Control valve leaking internally.(hypassing
fluid within valve).
•Check & replenish hydraulic fluid.
•Allow hydraulic system to warm up to operating
temperature.
•Check oil number & viscosity, Refill correct hydraulic oil.
•Increase engine speed to obtain satisfactory backhoe
operation.
•Reduce material load (Digging load).
•Check control valve linkage & repair if worn/defective.
•Refer to “aeration of Hydraulic Fluid”.
•Check coupler connections. Repair or replace.
•Check hoses & tube lines for evidence of restriction.
•Check cylinders for leakage. Repair as needed.
•Check & reset relief valve. Setting as needed.
•Replace control valve & recheck operation.
Aeration of Hydraulic Fluid
(Generally indicated by foamy
appearance of fluid).
•Low hydraulic fluid level.
•Air leaking into suction side of hydraulic
pump.
•Hydraulic fluid foaming due to improper
hydraulic oil usage.
•Check & refill hydraulic system to proper level.
•Check for loose or defective connections between
hydraulic oil using recommended hydraulic oil.
•Refer to Tractor Operator’s Manual & replace hydraulic
oil using recommended hydraulic oil.
System relief valve squeals.
•Cold Hydraulic Fluid.
•Hydraulic Oil viscosity too heavy or incorrect
oil.
•Excessive load in bucket. Loading exceeds
specified backhoe capacity.
•Relief valve setting below specifications.
•Hydraulic hose, tube line or quick disconnect
coupler restriction.
•Allow hydraulic fluid to warm up to operating
temperature.
•Check oil number & viscosity, Refill correct hydraulic oil.
•Reduce load.
•Check & reset valve setting as needed.
•Check for evidence of restriction in hydraulic oil flow.
Repair or replace defective components.

BE-BKXX USER MANUAL 15
PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY
Backhoe drops with valve spool in
“centered” position (no external oil
leakage evident) Note: A gradual
drop over an extended period of
time is a normal condition.
•Cylinder piston assembly leakage.
•Control valve internal leakage.
•Check cylinders for leakage.
•Replace control valve & recheck.
Control valve spool(s) will not
return to centered position.
•Control lever linkage binding.
•Control valve spool centering is broken.
•Control valve spool binding in valve body
spool bore.
•Determine origin of binding & repair.
•Replace centering spring.
•Disassemble valve for inspection & repair.
External hydraulic fluid leakage.
•Loose hydraulic connection.
•Defective hydraulic hose, tube line, adapter
fitting or adapter fitting o-ring.
•Control valve spool or body damaged or
worn.
•Cylinder rod packing set leakage
•Check for origin of oil leak & replace defective part.
•Replace defective o-rings.
•Check cylinders for leakage. Repair as needed.
Hydraulic pump capacity
inadequate.
•Cold hydraulic fluid.
•Engine RPM too slow.
•Low hydraulic fluid supply.
•Hydraulic hose restriction.
•Hydraulic pump defective.
•Allow hydraulic fluid to warm up to operating
temperature.
•Increase engine RPM.
•Refer to Tractor Operator’s Manual for service
recommendations.
•Check for evidence of restriction in hydraulic hoses.
•Refer to Tractor Operator’s Manual for service
recommendations.
•Check for evidence of restriction in hydraulic hoses.
•Refer to Tractor Operator’s Manual for recommended
service procedures. Replace hydraulic pump if
determined to be defective.
Cylinder rod bend when cylinders
extended.
•Excessive shock load on cylinder during
transport.
•Replace defective parts. Review and observe proper
and safe operational practices.

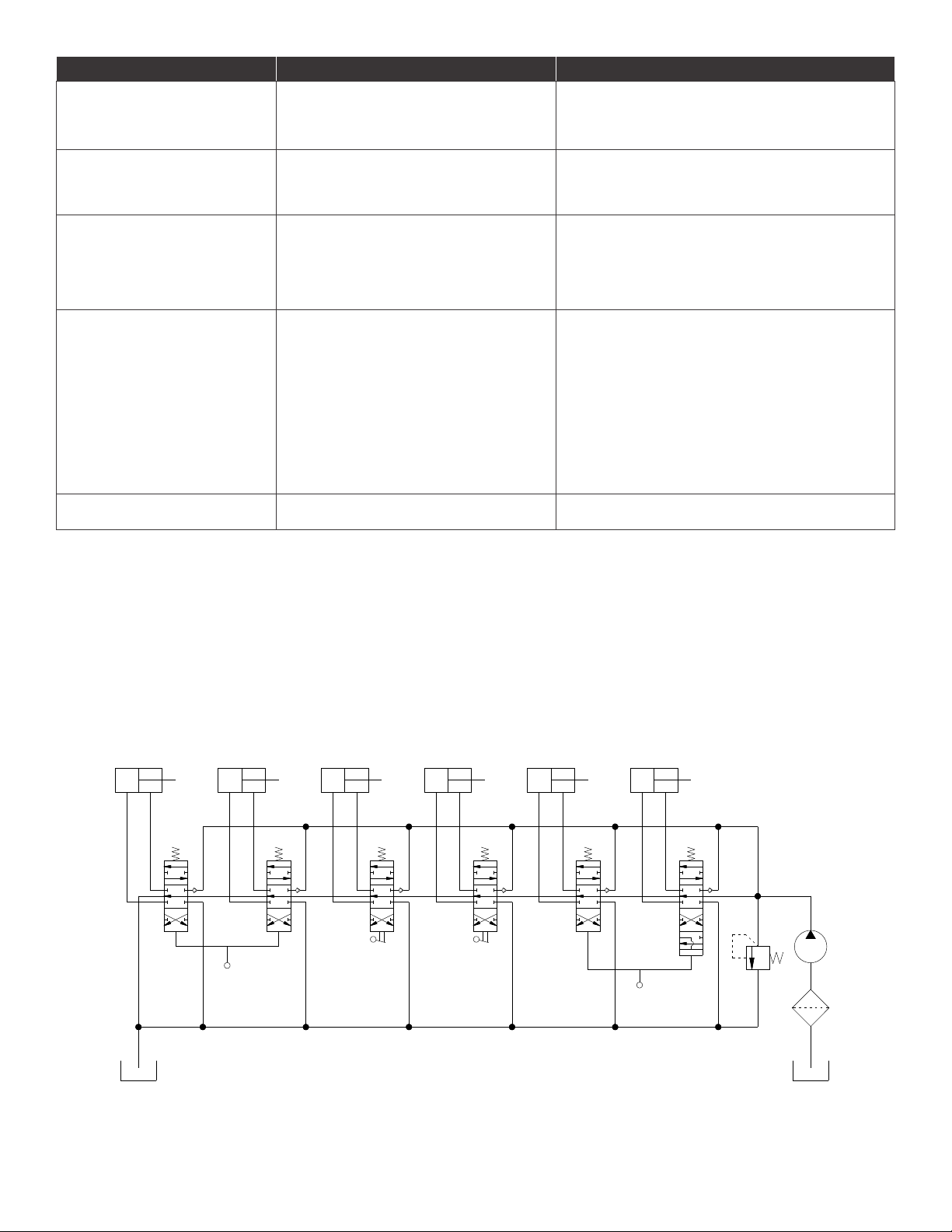

HYDRAULIC SYSTEM SCHEMATIC AUXILIARY HYDRAULIC VALVE PACKAGE.
10. HYDRAULIC SYSTEM SCHEMATIC
HYDRAULIC SYSTEM SCHEMATIC AUXILIARY HYDRAULIC VALVE PACKAGE
Bucket
Cylinder
Right
Stabilizer
Cylinder
Left
Stabilizer
Cylinder
Dipperstick
Cylinder
Swing
Cylinder
Boom
Cylinder

16 BE-BKXX USER MANUAL
TORQUE TIGHTENING CHART 1
TORQUE TIGHTENING CHART 2

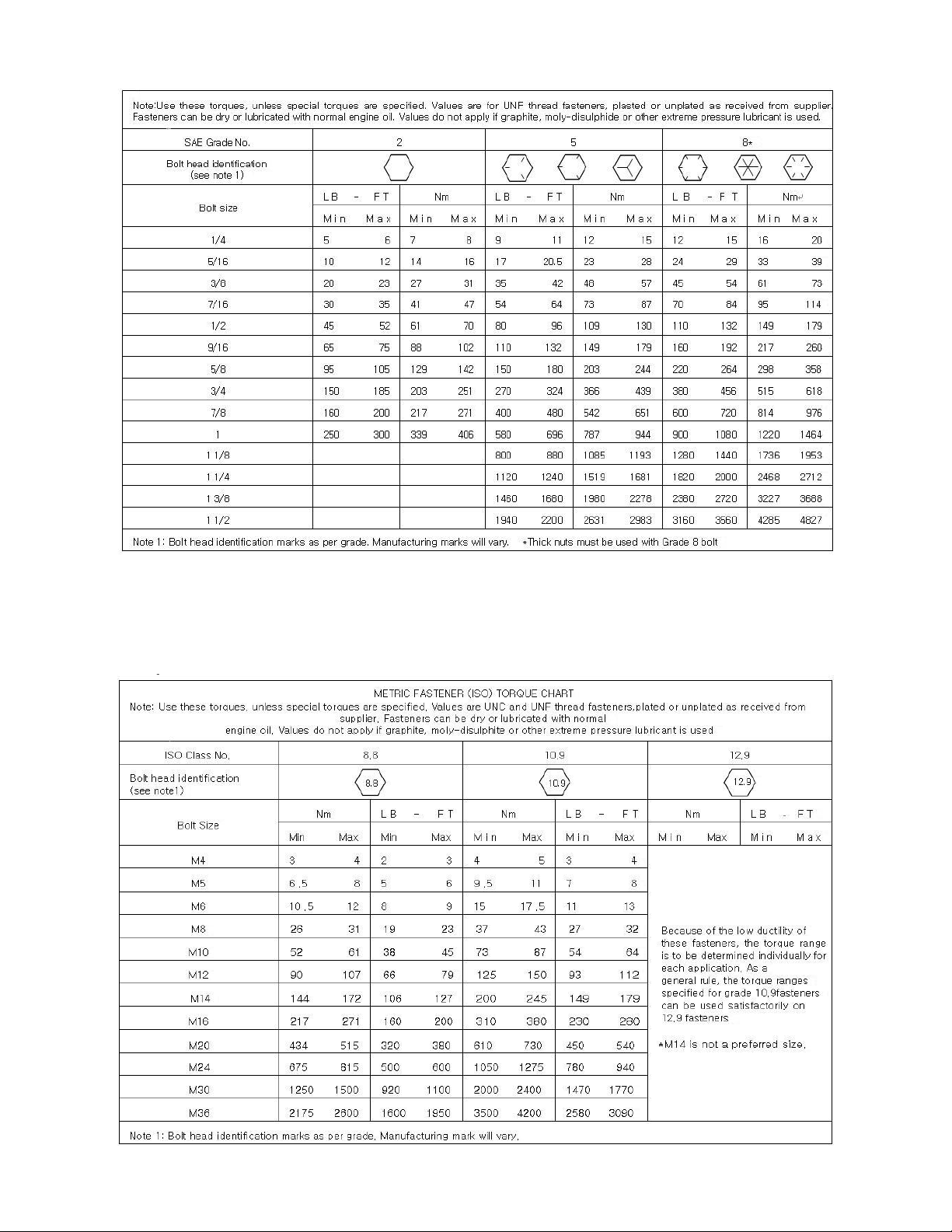

11. TORQUE TIGHTENING CHART
TORQUE TIGHTENING CHART 1
TORQUE TIGHTENING CHART 2
11. TORQUE TIGHTENING CHART
TORQUE TIGHTENING CHART 1
TORQUE TIGHTENING CHART 2

BE-BKXX USER MANUAL 17
GENERAL INFORMATION
ILLUSTRATIONS
The individual parts in their normal relationship to each other. Reference numbers are used in the
illustrations.
These numbers correspond to those in the: Number” Column and are followed by the quantity required and
description.
DIRECTIONAL REFERENCE
“Right-hand” and “Left-hand” sides are determined by standing at the rear of the unit and facing in the
direction of forward travel.
PART ORDER
Orders must give the complete description, correct part number, the total amount required, the product
model, all the necessary serial numbers, the method of shipment and the shipping address.
12. PART ILLUSTRATIONS
GENERAL INFORMATION
Illustrations
The individual parts in their normal relationship to each other. Reference numbers are used in
the illustrations. These numbers correspond to those in the "Number" column and are followed by
the quantity required and description.
Directional Reference
"Right hand" and "left hand" sides are determined by standing at the rear of the unit and facing
in the direction of forward travel.
Part Order
Orders must give the complete description, correct part number, the total amount required, the
product model, all the necessary serial numbers, the method of shipment and the shipping
address.
12.1 IN-OUT HOSE KIT

18 BE-BKXX USER MANUAL
EXPLODED VIEW & PARTS LIST
12.2 SEAT CONTROL ASSEMBLY
REF. PART NO. DESCRIPTION QTY
1 BK215.033 Seat 1
2 GB5782-M12x115 Bolt-M12x115 1
3 GB97.1-12 Washer-Plain 12 24
4 BK215.016 Seat Plate 1
5 GB97.1-8 Washer-Plain 8 40
6 GB93-8 Washer-Spring 8 12
7 GB5782-M8x20 Bolt-M8x20 22
8 GB889.1-M12 Nut Lock -M12 10
9 BK215.015 Link Assembly 1
10 BL25.10.110 R-Pin, Ø3.2 1
11 BK215.106 Pin, Ø12 1
12 GB5782-M12x40 Bolt - M12x40 12
13 GB93-12 Washer - Spring 12 4
14 BK215.013 Support Seat 1
REF. PART NO. DESCRIPTION QTY
15 GB5782-M12x100 Bolt - M12x100 1
16 BK215.104 Foot Plate - Center 1
17 BK215.105 Top Cover 1
18 BK215.107 Guide Bar 1
19 GB5782-M8x35 Bolt - M8x35 4
20 BK215.124 Front Cover 1
21 BK215.014 Valve Room Assembly 1
22 GB889.1-M8 Nut Lock - M8 14
23 BK215.103 Foot Plate - LH 1
24 BK215.102 Foot Plate - RH 1
25 BK215.123 Rubber Boss 1
26 BK215.027 Swing Bin 1
27 Bk215.028 Swing Pin Hanger 1
12.2 SEAT，CONTROL ASSEMBLY
No
PART No
DESCRITION
名称
Q’TY
REMARK
1
BK215.033
Seat
座椅
1
2
GB5782-M12x115
Bolt-M12x115
螺栓 M12x115
1
3
GB97.1-12
Washer-Plain 12
平垫 12
24
4
BK215.016
Seat Plate
座椅支座焊合件
1
5
GB97.1-8
Washer-Plain 8
平垫 8
40
6
GB93-8
Washer-Spring 8
弹垫 8
12
7
GB5782-M8x20
Bolt-M8x20
螺栓 M8x20
22
8
GB889.1-M12
Nut Lock -M12
自锁螺母 M12
10
9
BK215.015
Link Assembly
座椅连接板焊合件
1
10
BL25.10.110
R-Pin, φ3.2
φ3.2R 销
1
11
BK215.106
Pin,φ12
座椅销
1

BE-BKXX USER MANUAL 19
12.3 MAIN FRAME ASSEMBLY
REF. PART NO. DESCRIPTION QTY
35 GB5782-M16x60 Bolt - M16x60 4
36 GB97.1-16 Washer - Plain 16 8
37 GB889.1-M16 GB889.1-M16 4
38 BK215.026 Cross Bar 1
39 GB6172.1-M8 Nut - M8 4
40 BK215.402 U-Bolt 1
41 BK215.011 Main Frame Assembly 1
42 BK215.128 Rubber Stop 2
43 BK215.127 Pin, Ø24.5x173 4
44 BK215.126 Pin, Ø24.5x154 2
45 BK215.031 Stabilizer Assembly -
LH 1
46 BK215.029 Foot Plate 2
47 BK215.125 Pin, Ø24.5x166 2
48 BK215.121 Stabilizer Lock 2
48 BK215.131 Rubber Cushion 2
REF. PART NO. DESCRIPTION QTY
50 BK215.130 Washer 4
51 BK215.129 Bushing 2
52 GB5782-M10x95 Bolt - M10x95 2
53 GB96.2-10 Big Washer - Plain 10 2
54 BK215.032 Bracket - Cushion 2
55 GB97.1-10 Washer - Plain 10 6
56 GB889.1-M10 Nut Lock - M10 4
57 BK215.122 Spring 2
58 GB5782-M10x50 Bolt - M10x50 2
59 BK215.030 Stabilizer Assembly -
RH 1
60 GB889.1-M8 Nut Lock - M8 8
61 GB5782-M8x50 Bolt - M8x50 8
62 GB/T97.1-6 Plain Washer 6 2
63 GB/T889.1-M6 Nut Lock - M6 2
64 GB/T70.1-M6x40 Bolt - M6x40 2
12.3 MAIN FRAME ASSEMBLY
No
PART No
DESCRITION
名称
Q’TY
REMARK
35
GB5782-M16x60
Bolt-M16x60
螺栓 M16x60
4
36
GB97.1-16
Washer-Plain 16
平垫 16
8
37
GB889.1-M16
Nut Lock-M16
自锁螺母 M16
4
38
BK215.026
Cross Bar
摆动油缸座
1
39
GB6172.1-M8
Nut-M8
六角螺母 M8
4
40
BK215.402
U-bolt
U形抱箍
1
41
BK215.011
Main Frame Assembly
底座焊合件
1
42
BK215.128
Rubber Stop
撑脚橡胶垫
2
43
BK215.127
Pin, φ24.5x173
撑脚油缸销二
4
44
BK215.126
Pin, φ24.5x154
撑脚油缸销一
2
45
BK215.031
Stabilizer Assembly-LH
撑脚焊合件-左
1
46
BK215.029
Foot Plate
撑板焊合件
2
47
BK215.125
Pin, φ24.5x166
撑板销
2
48
BK215.121
Stabilizer Lock
撑脚固定板
2
49
BK215.131
Rubber Cushion
摆座防撞橡胶垫
2

20 BE-BKXX USER MANUAL
12.4 SWING FRAME ASSEMBLY
No
PART No
DESCRITION
名称
Q’TY
REMARK
71
GB889.1-M10
Nut Lock-M10
自锁螺母 M10
1
72
GB97.1-10
Washer-Plain 10
平垫 10
2
73
BK215.118
Lock Plate
锁架铰链板
1
74
GB5782-M10x35
Bolt-M10x35
螺栓 M10x35
1
75
BK215.101
Pin, φ39.5x115
摆座销
2
76
GB5782-M8x70
Bolt-M8x70
螺栓 M8x70
2
77
GB889.1-M8
Nut Lock-M8
自锁螺母 M8
6
78
BK215.120
Pin, φ24.5x117
摆动油缸销
2
79
GB5782-M8x55
Bolt-M8x55
螺栓 M8x55
2
80
BK215.012
Swing Frame Assembly
摆座焊合件
1
81
BK215.112
Pin, φ29.5x161
小臂销
1
82
GB5782-M8x60
Bolt-M8x60
螺栓 M8x60
1
83
GB5782-M8x25
Bolt-M8x25
螺栓 M8x25
1
84
GB97.1-8
Washer-Plain 8
平垫 8
2
85
BK215.022
Handle Set
锁架手柄
1
86
BK215.114
Plastic Ball
锁架手柄套
1
87
GB894.1-22
Snap Ring, 22
轴用卡簧 22
2
88
BK215.117
Pin, φ22x190
锁架销
1
89
BK215.023
Lock Frame Assembly
锁架焊合件
1
90
BK215.119
Spring
拉簧
1
12.4 SWING FRAME ASSEMBLY
REF. PART NO. DESCRIPTION QTY
71 GB889.1-M10 Nut Lock - M10 1
72 GB97.1-10 Washer - Plain 10 2
73 BK215.118 Lock Plate 1
74 GB5782-M10x35 Bolt - M10x35 1
75 BK215.101 Pin, Ø39.5x115 2
76 GB5782-M8x70 Bolt - M8x70 2
77 GB889.1-M8 Nut Lock - M8 6
78 BK215.120 Pin, Ø24.5x117 2
79 GB5782-M8x55 Bolt - M8x55 2
80 BK215.012 Swing Frame
Assembly 1
REF. PART NO. DESCRIPTION QTY
81 BK215.112 Pin, Ø29.5x161 1
82 GB5782-M8x60 Bolt - M8x60 1
83 GB5782-M8x25 Bolt - M8x25 1
84 GB97.1-8 Washer - Plain 8 2
85 BK215.022 Handle Set 1
86 BK215.114 Plastic Ball 1
87 GB894.1-22 Snap Ring, 22 2
88 BK215.117 Pin, Ø22x190 1
89 BK215.023 Lock Frame Assembly 1
90 BK215.119 Spring 1
