BE Power Equipment PIN HE050-3 User manual

OWNER’S MANUAL
FAN HEATERS
Model No.: PIN HE050-3, PIN HE100-3,
PIN HE150-3, PIN HE300-3
POWER EQUIPMENT
ASSEMBLY & OPERATION INSTRUCTIONS
V1.0 2024

Page 1
POWER EQUIPMENT
POWER EQUIPMENT
FAN HEATERS OWNER’S MANUAL
WARNING
1. Read all instructions before using the fan heater.
2. The heater must not be located immediately below the socket-outlet.
3. : Do not cover.
4. WARNING: in order to avoid overheating, do not cover the heater.
5. Do not use this heater in the immediate surroundings of a bath, a shower or
swimming pool.
6. Do not use this heater if it has been dropped.
7. Do not use it if there are visible signs of damage to the heater.
8. Use this heater on a horizontal and stable surface.
9. WARNING: Do not use this heater in small rooms when they are occupied
by persons not capable of leaving the room on their own, unless constant
supervision is provided.
10. WARNING: To reduce the risk of re, keep textiles, curtains, or any other
ammable material a minimum distance of 1 m from the air outlet.
11. If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualied person in order to avoid a hazard.
12. This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
13. Children shall not play with the appliance.
14. Cleaning and user maintenance shall not be made by children without
supervision.
15. Children of less than 3 years should be kept away unless continuously
supervised. Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed or installed in its
intended normal operating position and they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children aged from 3 years and less than 8 years shall not
plug in, regulate and clean the appliance or perform user maintenance.
16. CAUTION — Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are
present.

Page 2
POWER EQUIPMENT
POWER EQUIPMENT
FAN HEATERS OWNER’S MANUAL
17. Only connect the fan heater to a single-phase socket with a main voltage as
specied on the rating plate.
18. Do not leave your home while the appliance is in function: ensure that the
switch is in OFF (0) position. Always unplug the appliance.
19. Keep combustible material such as furniture, cushions, bedding, paper, clothes,
curtains etc. At least 100cm away from the fan heater.
20. Always unplug the heater when not in use. Do not pull the cord to unplug the
heater.
21. Keep the air inlet and outlet free from objects: at least 1 m in front and 50 cm
behind the heater.
22. Do not let animals or children touch or play with the fan heater. Pay attention!
The air outlet gets hot during operation (more than 80°, or 175 F).
23. Do not use the fan heater in the rooms with explosive gas or while using
inammable solvents, varnish or glue.
24. Keep the fan heater clean. Do not allow any objects to enter any ventilation
or exhaust opening as this may cause electric shock, or re or damage to the
heater.
25. This product must not be disposed together with the domestic waste. This
product has to be disposed at an authorized place for recycling electrical
and electronic appliances. By collecting and recycling waste, you help save
natural resources, and make sure the product is disposed in an environmentally
friendly and healthy way.
2. INTRODUCTION
2.1 Depending on the power cord type his fan heater may be used only in
households, warehouses and workshops, building sites or greenhouses depending. It
incorporates a thermostat and a self-resetting thermal cut-out to control the heating
elements. The thermostat feels the air temperature and controls the surrounding
temperature. The fan motor is controlled by thermostat, and it stops when the
thermostat cuts off the heating element. The self-resetting thermal cut-out will switch
off the heater to ensure the safety when overheating.

Page 3
POWER EQUIPMENT
POWER EQUIPMENT
FAN HEATERS OWNER’S MANUAL
3. TECHNICAL SPECIFICATIONS
Model PIN HE050-3
Waterproof Class IP24
Voltage 400V
Required Power 5000W
Current 7.2A
Setting 80/2500W/5000W
Size of Heater (mm) 400*240*360
N.W.(KG) 6.6
Model PIN HE100-3 PIN HE150-3 PIN HE300-3
Waterproof Class IP24 IP24 IP24
Voltage 400V 400V 400V
Required Power 10000W 15000W 30000W
Current 14.4A 21.7A 43.3A
Setting 80/5000W
10000W
95/5000W
10000W/15000W
120/20000W
30000W
Size of Heater (mm) 440*300*430 322*600*555 435*710*615
N.W.(KG) 10.4 17.9 31

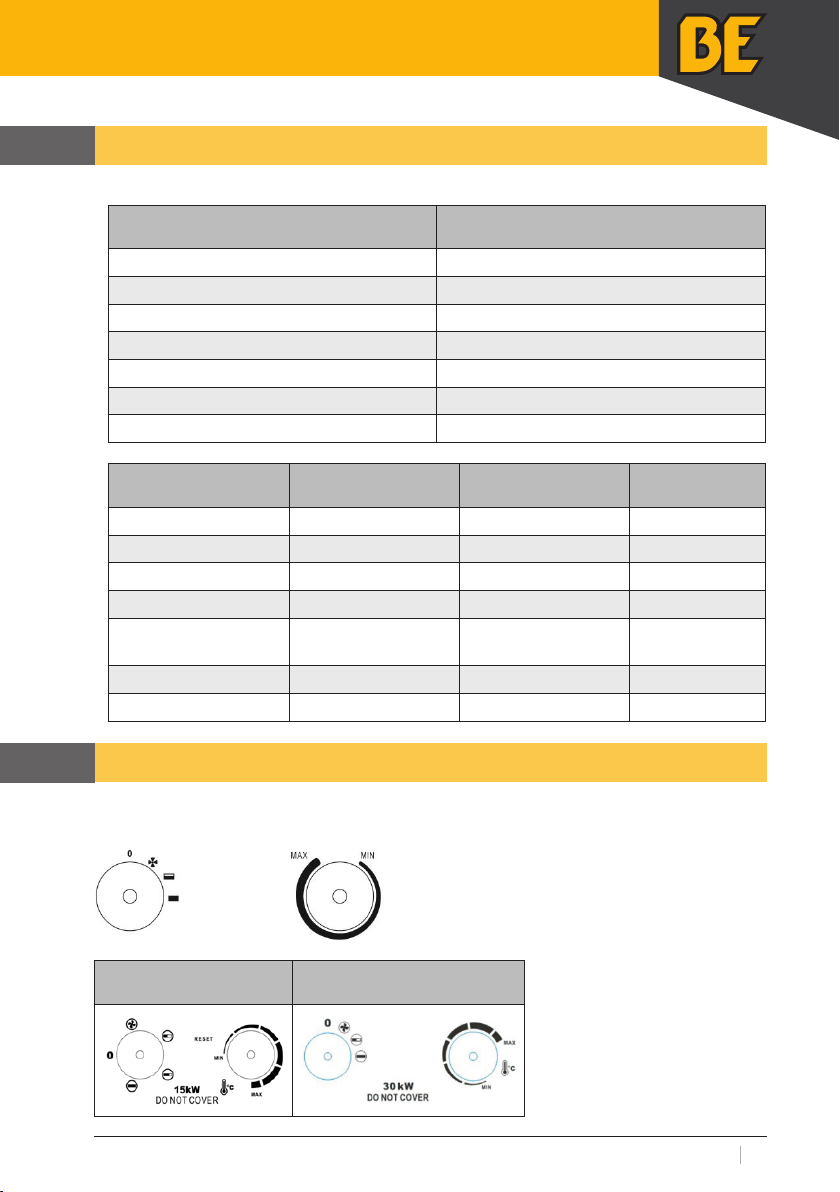

4. DESCRIPTION OF CONTROL PANEL
PIN HE050-3 / PIN HE100-3
Model PIN HE100-3

Page 4
POWER EQUIPMENT
POWER EQUIPMENT
FAN HEATERS OWNER’S MANUAL
5.1 Before use, please check the marking on the power cord. Depending on the
power cord type this appliance may be used in different ambient conditions:
Type You can use the appliance in Do not use in
H07RN-F
household, warehouses and
workshops, building sites or
greenhouses
H07RN8-F household, warehouses and
workshops or greenhouses
H05RN-F household, warehouses and
workshops or greenhouses building sites
H05RR-F household, warehouses and
workshops
building sites or
greenhouses
5.2 When using electrical appliance basic precautions should always be followed
including below:
5.2.1 The fan heater is not suitable for use outdoors in damp weather, in bathrooms
or in other wet or damp environments.
5.2.2 Please note that the fan heater can become very hot and should, therefore,
be placed at a safe distance from ammable objects such as furniture, curtains and
similar.
5.2.3 Do not cover the fan heater.
5.2.4 The fan heater must not be located immediately below a socket outlet.
5.2.5 Do not connect the fan heater using an on/off timer or other equipment
which can automatically switch the device on.
5.2.6 The fan heater must not be placed in rooms where ammable liquids or
gases are used or stored.
5.2.7 If an extension cord is used, it must be as short as possible and always be
fully extended.
5.2.8 You must not connect other appliances to the same mains socket as the fan
heater.
5.2.9 Do not use this fan heater in the immediate surroundings of a bath, a shower
or a swimming pool
5.2.10 If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualied persons in order to avoid a hazard.
5.2.11 Make sure heater is always under surveillance and keep children and animals
away from it;
5.2.12 Do not place the appliance on moving vehicles or somewhere easy to be
tipped over.
5.2.13 When you don’t use the appliance for a long time, unplug the appliance.
Don’t leave the heater for a considerable amount of time when in use. Pull the plug
straight out, never remove the plug by pulling on the cord.

Page 5
POWER EQUIPMENT
POWER EQUIPMENT
FAN HEATERS OWNER’S MANUAL
5.2.14 Keep the heater far from curtains or places where the air inlet can easily be
blocked.
5.2.15 The power coupler is waterproof when not in use. In order to prevent
possible electric shock or leakage current, never use the appliance with wet hands
or operate the appliance when there is water on the power cord.
5.2.16 Do not dispose of electrical appliances as unsorted municipal waste, use
separate collection facilities. Contact your local government for information
regarding the collection systems available. If electrical appliances are disposed of
in landlls or dumps, hazardous substances can leak into the groundwater and get
into the food chain, damaging your health and well-being.
5.2.17 This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
5.2.18 Children should be supervised to ensure that they do not play with the
appliance.
6. USING INSTRUCTIONS
6.1 Position the fan heater so that it stands upright on a rm surface and at a safe
distance from wet environments and ammable objects.
6.2 Connect the fan heater to the mains.
6.3 The fan heater will switch on when the heating selector is set to one of the
power settings.
6.4 Once the room reaches the required temperature, heating element will stop
working but fan also working. Once the temperature decreases, the heating
element will be working. The fan heater now starts and stops automatically and
thus keeps the room temperature constant.
7. CLEANING AND MAINTENANCE
7.1 Before cleaning the appliance, disconnect it from the socket and let it cool
down. The enclosure is easy to get dirty, wipe it often with soft sponge. For every
dirty parts, wipe with a sponge dipped in <50°C water and mild detergent, then
dry the heater enclosure with clean cloth. Be careful not to let the water enter the
appliance inner. Don’t splash water onto the heater, never use solvent like gasoline
etc. to clean the heater, in order to protect the enclosure.
7.2 Clean the cord and plug, dry and pack it in a plastic bag.
7.3 When you store the heater, let it cool down rst, keep it dry. Then cover it with
a plastic bag, put it in a packing box and store it in a dry, ventilated place.

Page 6
POWER EQUIPMENT
POWER EQUIPMENT
FAN HEATERS OWNER’S MANUAL
8. TROUBLE SHOOTING:
You can solve many common problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before
calling the service center.
Problem Possible cause Treatment
The heater does not
operate, even when
it is plugged in
The plug is
loose, bad
connection
Pull out the plug, check the connection
of the plug and socket. Then connect
again.
No power in
socket outlet Insert the plug in a proper socket
Heating element
does not heat
The input
voltage is too
high or too low
Use power supply according to the
rating on the label
The air inlet
grill is blocked
Keep the heater far away from articles
like curtain, plastic bag, paper and other
things which can cover the inlet or can
be easily cover on the air inlet
Self-reset
temperature
control
disconnection
Keep the machine running to reduce the
internal temperature. After the self-reset
temperature control is reset, the product
can continue to heat.
The self-
resetting cut-
out operated
Turn the heater off and inspect the
blockage of inlet or outlet. Disconnect
the plug and wait at least 10 minutes for
the protection system to reset before
attempting to restart the heater.
Manual reset
thermostat off
Open the shell and gently press the
manual reset temperature control reset
button. After hearing the “click” sound,
it indicates that the temperature control
has been reset and connected.
Abnormal noise
The appliance
is not stands
upright
The wind blade is deformed, or the
product shell is deformed after the
product is dropped, resulting in
resonance.
Environmental Protection
Waste electrical production should not be disposed of with
household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.

Distributed in Australia by
CONTACT DETAILS
B.A.R Group P/L
15 Hudson Place,
Mulgrave, NSW, Australia 2756
Phone: [phone]
www.bargroup.com.au
Distributed in New Zealand by
CONTACT DETAILS
BE Pressure Supply
541D Te Rapa Road, Te Rapa,
Hamilton 3200, New Zealand
Phone: [phone]
www.bepressure.co.nz
Errors and omissions excepted.
Specications and performance may change.
Version 5.1; 2021
AIR COMPRESSOR
OPERATORS MANUAL
Version 5.1
