FLAIL MOWER
BE-EFGCXXXF
OPERATIONS & PARTS MANUAL
FOR MODELS:
• BE-EFG95F
• BE-EFGC105F
• BE-EFGC125F
• BE-EFGC145F
• BE-EFGC155F
• BE-EFGC165F
• BE-EFGC175F
• BE-EFGC200F
TABLE OF CONTENTS
3SAFETY
9PRODUCT SPECIFICATIONS
10 OPERATION
13 SERVICE & MAINTENANCE
15 STORAGE
16 TROUBLESHOOTING
17 EXPLODED VIEWS & PARTS LISTS
BE-EFGCXXXF USER MANUAL 3
Before operating the Flail Mower read the following safety instructions.
Failure to comply with these warnings may result in serious injury or
death.
SAFETY PRECAUTIONS
Congratulations On the purchase of your new BE Flail Mower.
This information is to assist you in preparing, operating and maintaining your Flail Mower.
Please read and understand the information completely before operating your mower, paying special
attention to all the safety details. Keep this manual handy for a ready reference.
SAFETY FIRST
YOU are responsible for the SAFE operation and maintenance of your flail mower. YOU must ensure that
you and anyone else who is going to operate, maintain or work around the Flail Mower is familiar with the
operating and maintenance procedures and related SAFETY information contained in this manual.
This manual will take you step-by-step through your working day and alert you to a good safety practices
that should be adhered to while operating the Flail Mower.
Remember, YOU are the key to safety. Good safety practices not only protect you but also the people
around you.
Make these practices a working part of your safety program. Be certain that EVERYONE operating this
equipment is familiar with the recommended operating and maintenance procedures and follows all the
safety precautions.
Most accidents can be prevented. Do not risk injury or death by ignoring safety practices.
Flail mower owner must give operating instructions to operators or employees before allowing them to
operate the machine.
The most important safety feature on this equipment is a SAFE operator. It is the operator’s responsibility to
read and understand ALL Safety and Operating Instructions in the manual and follow these.
All accidents can be avoided.
A person who has not read and understood all operating and safety instructions is not qualified to operate
the machine. An untrained operator jeopardizes himself and bystanders to possible serious injury or death.
Do not modify the equipment in any way. Unauthorized modification may weaken the function and/or safety
and could aect the life of the equipment.
Think SAFETY! Work SAFELY!
GENERAL SAFETY
Read the operator’s manual and all safety signs carefully before operating, maintaining, adjusting or
removing the Flail Mower.
Do not allow passengers to ride on the Flail Mower.
Operate only at a safe distance from bystanders. Clear the area of people, especially children, before
starting.
Stop PTO before dismounting tractor.
Keep hands and feet from under Flail Mower at all times.
Keep all shields in place. If shield removal becomes necessary for repairs, replace the shield prior to use.
Do not stay between the tractor and the Flail Mower.
Do not approach the Flail Mower until all motion has stopped.
All rotary blades have the ability to discharge objects at high speeds, which could result in serious injury to
bystanders or passers-by, use extreme caution.
Place all controls in neutral, stop tractor engine, set park brake, remove ignition key and wait for all moving
parts to stop before servicing, adjusting, repairing, attaching or removing.
Review safety related times annually with all personnel who will operate or maintain the Flail Mower.
4 BE-EFGCXXXF USER MANUAL
Do not operate machine if you feel unwell or physically unfit, in which case you should stop working.
This machine was designed with safety very much in mind. However, there is no real substitute for caution
and attention in preventing accidents. Once an accident has happened, it is too late to think about what you
should have done.
Use a tractor equipped with a Roll Over Protective Structure (ROPS). Always wear your seatbelt.
Serious injury or even death could result from falling o_ the tractor - particularly during a turnover when the
operator could be pinned under the ROPS or the tractor.
Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely, is in question
DON’T TRY IT.
Clear working area of stones, branches or hidden obstacles that might be hooked or snagged, causing injury
or damage.
OPERATING SAFETY
Read and understand the Operator’s Manual and all safety signs before operating, servicing, adjusting,
repairing or removing.
Do not allow riders.
Install and secure all guards and shields before starting or operating.
Keep hands, feet, hair and clothing away from moving parts.
Place all controls in neutral, stop tractor engine, set park brake, remove ignition key and wait for all moving
parts to stop before servicing, adjusting, repairing, attaching or removing.
Place tractor and machine controls in neutral before starting.
Never start or operate machine unless sitting on tractor’s seat.
Clear the area of bystanders, especially small children, before starting.
Stay away from PTO shaft and machine when engaging PTO. Keep others away.
Use warning lights in tractor when transporting.
Do not put hands or feet under machine while tractor engine or machine is running.
Do not operate Flail Mower in the raised position.
Objects can be thrown out from under the machine with sucient force to severely injure people.
Stay away from machine when it is running. Keeps others away.
Always know what you are cutting. Never operate Flail Mower in an area that has hidden obstacles.
Remove sticks, stones, wire or other objects from working area before starting.
Review safety instructions with all operators annually.
STORAGE SAFETY
Store the machine in an area away from human activity.
Do not permit children to play on or around the stored machine
Store the machine in a dry, level area.
Clean grease and oil as required and protect it from the elements.
MAINTENANCE SAFETY
Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.
Follow good shop practices.
Keep service area clean and dry.
Be sure electrical outlets and tools are properly grounded.
Use adequate light for the job at hand.
Make sure there is plenty of ventilation. Never operate the engine of the tractor in a closed building.
The exhaust fumes may cause asphyxiation.
Before working on this machine, shut o_ the engine, set the brakes and remove the ignition key.
Never work under equipment unless it is secured by a mechanical stand.
Use personal protection devices such as eye, hand and hearing protectors, when performing any service or
maintenance work. Use heavy gloves when handling blades.
BE-EFGCXXXF USER MANUAL 5
Only use genuine parts for service and maintenance.
A fire extinguisher and first aid kit should be kept readily accessible while performing maintenance on
this equipment.
Periodically tighten all bolts, nuts and screws and check that all pins are properly installed to ensure unit is in
a safe condition.
When completing a maintenance or service function, make sure all safety shields and devices are installed
before placing machine in service.
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
2
3
4
8
7
1
6
5
1. Blade axle 2. Blade axle cover 3. Combined fender
4. Stand 5. Gear box 6. Top Link Bracket
7. Transmission shaft 8. Belt & Pulley Cover
PTO Shaft
Safety Guard
Universal Joint
Grease Nipple
BE-EFGxxxF
6 BE-EFGCXXXF USER MANUAL
SAFETY & MODEL DECALS
The position of safety decals is shown in the illustration below. Good safety requires that you familiarize
yourself with the various safety signs and increase your SAFETY AWARENESS.
The position of safety decals are shown in the illustration below. Good safety requires that you familiarize yourself
with the various safety signs and increase your SAFETY AWARENESS.
SAFETY & MODEL DECALS
EFGC Model
EFGCH Model
BE-EFGxxxF
BE-EFGCXXXF USER MANUAL 7
EFG-125
Model No.
Description/ Information
Date Country of Origin
Serial No.
SAFETY & MODEL DECALS (CONTINUED) BE-EFGxxxF
8 BE-EFGCXXXF USER MANUAL
SAFETY & MODEL DECALS (CONTINUED) BE-EFGxxxF
BE-EFGCXXXF USER MANUAL 9
PRODUCT SPECIFICATIONS
FLAIL MOWER MODELS:
EFGC - Flail Mower, Medium Duty
EFGCH - Hydraulic Side Shift Flail, Medium Duty
PRODUCT SPECIFICATIONS
Product No.
FLAIL MOWER MODELS:
EFGC - Flail Mower, Medium Duty
EFGCH - Hydraulic Side Shift Flail, Medium Duty
Implement Specifications
IMPLEMENT SPECIFICATIONS
MODELS EFGC-105 EFGC-115 EFGC-125 EFGC-135 EFGC-145 EFGC-155 EFGC-165 EFGC-175
Tractor HP 18 - 25 18 - 25 25 - 30 25 - 30 25 - 30 30 - 40 30 - 40 30 - 40
3.P.L. Cat 1 Cat 1 Cat 1 Cat 1 Cat 1 Cat 1 Cat 1 Cat 1
Length 1165 1265 1365 1485 1585 1685 1785 1885
Width 790 790 790 790 790 790 790 790
Height 845 845 845 845 845 845 845 845
Weight 170 kg 185 kg 200 kg 215 kg 230 kg 245 kg 260 kg 275 kg
Cutting Width 1015 1115 1215 1315 1415 1515 1615 1715
PTO 540 r/min 540 r/min 540 r/min 540 r/min 540 r/min 540 r/min 540 r/min 540 r/min
Gearbox HP 50 HP 50 HP 50 HP 50 HP 50 HP 50 HP 50 HP 50 HP
16 20 20 24 24 24 28 28
32 40 40 48 48 48 56 56
MODELS EFGCH-105 EFGCH-115 EFGCH-125 EFGCH-135 EFGCH-145 EFGCH-155 EFGCH-165 EFGCH-175
Tractor HP 18 - 25 18 - 25 25 - 30 25 - 30 25 - 30 30 - 40 30 - 40 30 - 40
3.P.L. Cat 1 Cat 1 Cat 1 Cat 1 Cat 1 Cat 1 Cat 1 Cat 1
Length 1165 1265 1365 1485 1585 1685 1785 1885
Width 1020 1020 1020 1020 1020 1020 1020 1020
Height 960 960 960 960 960 960 960 960
Weight 210 kg 225 kg 240 kg 255 kg 270 kg 285 kg 300 kg 315 kg
Cutting Width 1015 1115 1215 1315 1415 1515 1615 1715
PTO 540 r/min 540 r/min 540 r/min 540 r/min 540 r/min 540 r/min 540 r/min 540 r/min
Gearbox HP 50 HP 50 HP 50 HP 50 HP 50 HP 50 HP 50 HP 50 HP
16 20 20 24 24 24 28 28
32 40 40 48 48 48 56 56
BE-EFGxxxF
Uses:
• Perfect for use after storms when debris is scattered throughout areas usually maintained with normal
mowers
• Multi-purpose machines for mulching foliage and sticks
• Ideal for thick grass, sticks, undergrowth and light vine mulching
• Vegetable & pasture topping
• Roadside maintenance
10 BE-EFGCXXXF USER MANUAL
Features:
• Cutting height controlled by adjustable skids
• High strength mulching blades
• Belt driven
• Safety flaps to prevent debris being thrown
• Extra strong and designed with safety in mind
• Support leg for storage
• Solid hitch

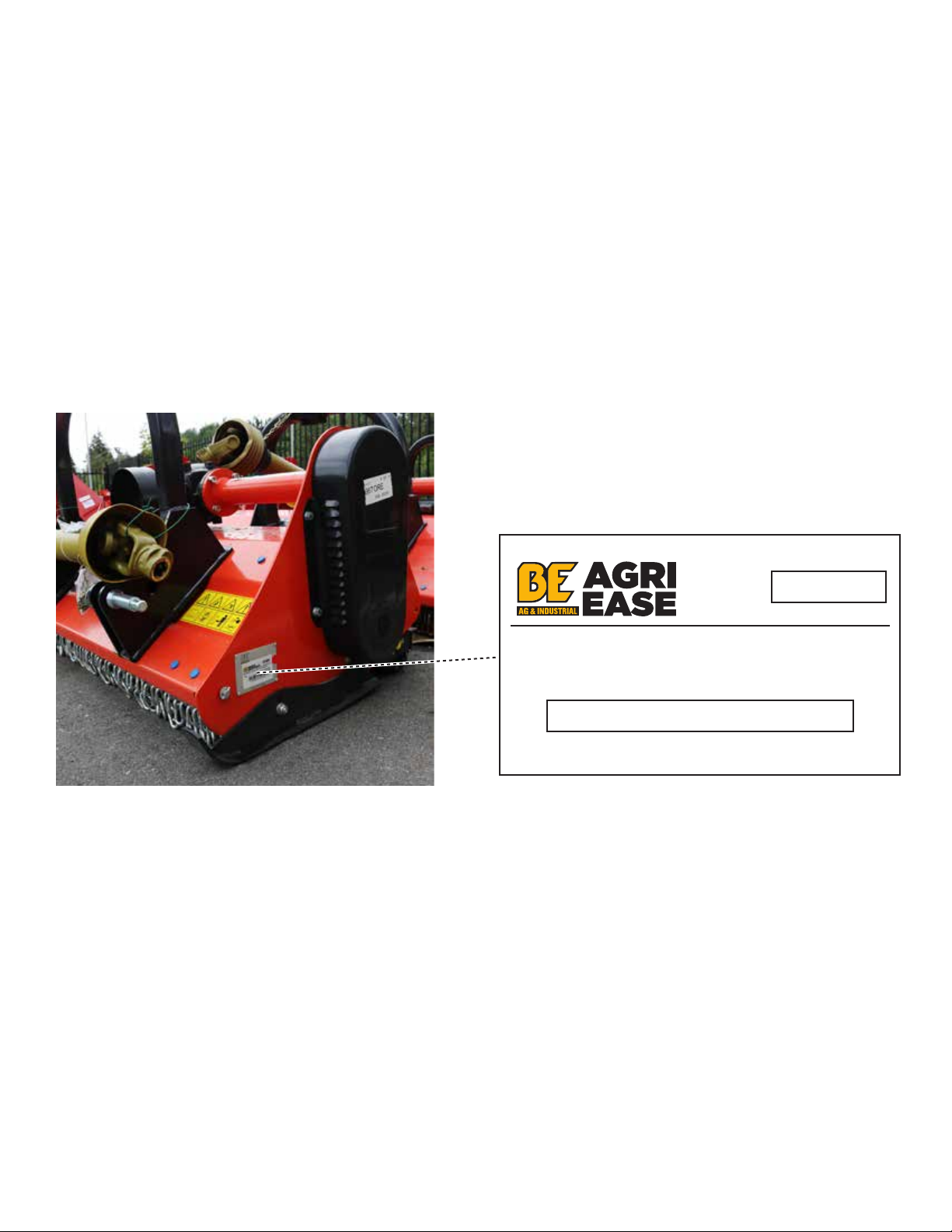

IDENTIFICATION OF THE IMPLEMENT
An identification plate is axed to the frame of each implement. It contains the “CE” Certification brand and
information about the Manufacturer, Model, Serial Number, Year of Manufacture and Weight.
CE Identification Plate
IMPLEMENT SPECIFICATIONS (CONTINUED)
IDENTIFICATION OF THE IMPLEMENT
Uses:
• Perfect for use after storms when debris is scattered throughout areas usually maintained with normal mowers
• Multi-purpose machines for mulching foliage and sticks
• Ideal for thick grass, sticks, undergrowth and light vine mulching
• Vegetable & pasture topping
• Roadside maintenance
Features:
• Cutting height controlled by adjustable skids
• High strength mulching blades
• Belt driven
• Safety flaps to prevent debris being thrown
• Extra strong and designed with safety in mind
• Support leg for storage
• Solid hitch
An identification plate is axed to the frame of each implement. It contains the “CE” Certification brand and
information about the Manufacturer, Model, Serial Number, Year of Manufacture and Weight.
CE Identification Plate
Model No.
Description/ Information
Date Country of Origin
Serial No.
BE-EFGxxxF
CHECKING BEFORE OPERATIONG
Before operating the machine, the following areas should be checked o:
1. Before starting up the machine, check and lubricate all grease points on the machine and drive shaft.
2. Use only an agricultural tractor with horsepower within limits of the implement.
3. Check that the machine is properly attached to the tractor. Be sure retainers are used on the mounting
pins.
4. Be sure extra weights are mounted on the front of the tractor, if required.
5. Check the oil level in the gearbox. Add as required.
6. Check that the tractor PTO shaft turns freely and that the machine driving shaft can telescope easily.
7. Check the blades. Be sure they are not damaged or broken and swing freely in their mount. Repair or
replace as required
8. Check and tighten the blade bolts.
9. Check for entangled material in all rotating parts. Remove this material.
10.Install and secure all guards, doors and covers before starting.
11. Before installing the PTO, ensure the engine is stopped and the PTO shaft is in safe working order.
BE-EFGCXXXF USER MANUAL 11

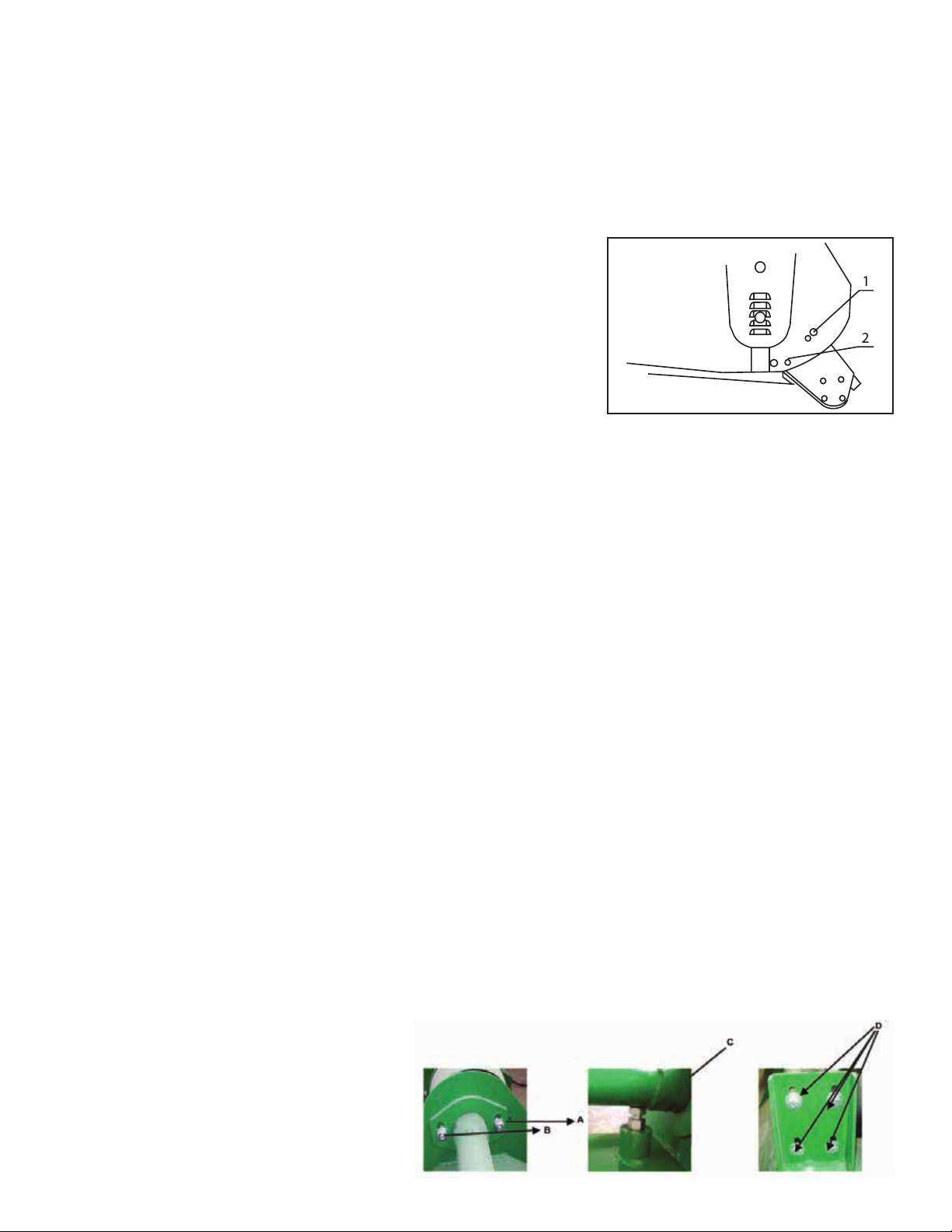

1. On a flat piece of ground, attached the Flail Mower to the Tractor using the three point linkage.
2. Use a solid adjustable top link.
3. Lower three point linkage to its lowest position.
4. With the roller at the rear in contact with the ground, adjust the length of the top link so that the lower edge
at the side of the flail mower is parallel with the ground.
5. Rotate the blade drum by hand so that a row of blades hang vertically towards the ground.
6. Measure the clearance between the bottom of the extended blades and the ground:
• Minimum 50mm
• Note in rough or lumpy paddocks the clearance needs to be increased to ensure that the blades don't
impact the ground in operation.
7. Adjust the roller height to increase or decrease the blade clearance as required.
8. Go through steps 4 to 7 until the required clearance is achieved.
When the Flail Mower has been set up with the required tolerances:
Operate the Flail Mower with tractor in low range and the PTO delivering 540 RPM.
FLAIL MOWER ADJUSTMENT
Loosen screw (A) and (B) that locks the support shaft and loosen the counter nut (C).
Loosen the screws that lock the gearbox on the mounting plate (D).
Adjust the drive belt tension. The correct belt tension is achieved when the belt can be deflected by the belt
thickness about 10mm at the center point between the pulleys.
Align the gearbox so the drive shaft is parallel with the body.
Use a straight edge to make sure the belt pulleys are in-line and running true.
If mis-angled, call your dealer or service agent for technical support.
Fit safety covers and tighten the mounting bolts before operating.
DRIVE BELT ADJUSTMENT
Approx.10mm
deflection
Align with a
Straight Edge
BE-EFGxxxF
12. All other people shall leave the area before connecting the driving power from the tractor. Keep the
output of the tractor at 540 RPM.
13. Before cleaning, repairing and lubricating the machine, stop the motor and take the key away with you.
14. When the PTO shaft is not connected with the tractor, support it through the frame to protect it from
lying in the dirt.
15. Don’t approach the machine when it is operating.
ADJUSTING THE HEIGHT
To get the most out of your flail mower, it should be set within the
recommended height.
To save fuel, power and reduce the wear and tear, the cutting height
must be regulated correctly.
When adjusting the working height, loosen screw (1), remove screw
(2) on both sides;
The roller height (see following drawing) can be adjusted by aligning
the selected hole in the roller support bracket at position 2. The
lowest hole is the highest working height; put the screw (2) into the
selected hole; tighten screw (1) and screw (2).
FLAIL MOWER ADJUSTMENT
1. On a flat piece of ground, attached the Flail Mower to the Tractor using the three point linkage.
2. Use a solid adjustable top link.
3. Lower three point linkage to its lowest position.
4. With the roller at the rear in contact with the ground, adjust the length of the top link so that the lower
edge at the side of the flail mower is parallel with the ground.
5. Rotate the blade drum by hand so that a row of blades hang vertically towards the ground.
6. Measure the clearance between the bottom of the extended blades and the ground:
• Minimum 50mm
• Note in rough or lumpy paddocks the clearance needs to be increased to ensure that the blades don’t
impact the ground in operation.
7. Adjust the roller height to increase or decrease the blade clearance as required.
8. Go through steps 4 to 7 until the required clearance is achieved.
When the Flail Mower has been set up with the required tolerances:
Operate the Flail Mower with tractor in low range and the PTO delivering 540 RPM.
DRIVE BELT ADJUSTMENT
Loosen screw (A) and (B) that locks the support shaft and loosen the counter nut (C).
Loosen the screws that lock the gearbox on the mounting plate (D).
Adjust the drive belt tension. The correct belt tension is achieved when the belt can be deflected by the belt
thickness about 10mm at the center point between the pulleys.
Align the gearbox so the drive shaft is parallel with the body.
Use a straight edge to make sure the belt pulleys are in-line and running true.
If mis-angled, call your dealer or service agent for technical support.
Fit safety covers and tighten the mounting bolts before operating.
Before operating the machine, the following areas should be checked o:
1. Before starting up the machine, check and lubricate all grease points on the machine and drive shaft.
2. Use only an agricultural tractor with horsepower within limits of the implement.
3. Check that the machine is properly attached to the tractor. Be sure retainers are used on the mounting pins.
4. Be sure extra weights are mounted on the front of the tractor, if required.
5. Check the oil level in the gearbox. Add as required.
6. Check that the tractor PTO shaft turns freely and that the machine driving shaft can telescope easily.
7. Check the blades. Be sure they are not damaged or broken and swing freely in their mount.
Repair or replace as required
8. Check and tighten the blade bolts.
9. Check for entangled material in all rotating parts. Remove this material.
10. Install and secure all guards, doors and covers before starting.
11. Before installing the PTO, ensure the engine is stopped and the PTO shaft is in safe working order.
12. All other people shall leave the area before connecting the driving power from the tractor.
Keep the output of the tractor at 540 RPM.
13. Before cleaning, repairing and lubricating the machine, stop the motor and take the key away with you.
14. When the PTO shaft is not connected with the tractor, support it through the frame to protect it from
lying in the dirt.
15. Don’t approach the machine when it is operating.
CHECKING BEFORE OPERATING
To get the most out of your flail mower, it should be set within the recommended height.
To save fuel, power and reduce the wear and tear, the cutting height must be regulated correctly.
When adjusting the working height, loosen screw (1), remove screw (2) on both sides;
The roller height (see following drawing) can be adjusted by aligning the selected hole in the roller support
bracket at position 2. The lowest hole is the highest working height; put the screw (2) into the selected hole;
tighten screw (1) and screw (2)
ADJUSTING THE HEIGHT
BE-EFGxxxF
12 BE-EFGCXXXF USER MANUAL
1. On a flat piece of ground, attached the Flail Mower to the Tractor using the three point linkage.
2. Use a solid adjustable top link.
3. Lower three point linkage to its lowest position.
4. With the roller at the rear in contact with the ground, adjust the length of the top link so that the lower edge
at the side of the flail mower is parallel with the ground.
5. Rotate the blade drum by hand so that a row of blades hang vertically towards the ground.
6. Measure the clearance between the bottom of the extended blades and the ground:
• Minimum 50mm
• Note in rough or lumpy paddocks the clearance needs to be increased to ensure that the blades don't
impact the ground in operation.
7. Adjust the roller height to increase or decrease the blade clearance as required.
8. Go through steps 4 to 7 until the required clearance is achieved.
When the Flail Mower has been set up with the required tolerances:
Operate the Flail Mower with tractor in low range and the PTO delivering 540 RPM.
FLAIL MOWER ADJUSTMENT
Loosen screw (A) and (B) that locks the support shaft and loosen the counter nut (C).
Loosen the screws that lock the gearbox on the mounting plate (D).
Adjust the drive belt tension. The correct belt tension is achieved when the belt can be deflected by the belt
thickness about 10mm at the center point between the pulleys.
Align the gearbox so the drive shaft is parallel with the body.
Use a straight edge to make sure the belt pulleys are in-line and running true.
If mis-angled, call your dealer or service agent for technical support.
Fit safety covers and tighten the mounting bolts before operating.
DRIVE BELT ADJUSTMENT
Approx.10mm
deflection
Align with a
Straight Edge
BE-EFGxxxF
Before starting the machine, check and adjust the following items:
• Drive belt tension
• Gearbox oil level
• Grease nipples on bearing and PTO shaft
• All bolts, nuts and screws
Before starting the machine, check and adjust the following items:
• Drive belt tension
• Gearbox oil level
• Grease nipples on bearing and PTO shaft
• All bolts, nuts and screws
In order to keep the machine stable, lower the adjustment stand when the machine is stopped
(see drawing above).
Follow all safety precaution detailed in this manual.
The machine is equipped with a standard category one, three point linkage.
Back the tractor into position in front of the flail mower. Lower the tractor hydraulic lift arms.
Turn the tractor o. Maneuver the implement by hand and attach the lower link arms to the lower link pin.
Ensure they are secured with lynch pin. Attach the top link to the top link bracket.
Adjust the lower link sway chains to allow minimal lateral movement. Attach the PTO shaft to the tractor PTO
ensuring it has been cut to the required length.
FLAIL MOWER ADJUSTMENT
Storage
Position
Operating
Position
BE-EFGxxxF
Before starting the machine, check and adjust the following items:
• Drive belt tension
• Gearbox oil level
• Grease nipples on bearing and PTO shaft
• All bolts, nuts and screws
In order to keep the machine stable, lower the adjustment stand when the machine is stopped
(see drawing above).
Follow all safety precaution detailed in this manual.
The machine is equipped with a standard category one, three point linkage.
Back the tractor into position in front of the flail mower. Lower the tractor hydraulic lift arms.
Turn the tractor o. Maneuver the implement by hand and attach the lower link arms to the lower link pin.
Ensure they are secured with lynch pin. Attach the top link to the top link bracket.
Adjust the lower link sway chains to allow minimal lateral movement. Attach the PTO shaft to the tractor PTO
ensuring it has been cut to the required length.
FLAIL MOWER ADJUSTMENT
Storage
Position
Operating
Position
BE-EFGxxxF
In order to keep the machine stable, lower the adjustment stand when the machine is stopped (see drawing
above).
Follow all safety precaution detailed in this manual.
The machine is equipped with a standard category one, three point linkage.
Back the tractor into position in front of the flail mower. Lower the tractor hydraulic lift arms.
Turn the tractor o. Maneuver the implement by hand and attach the lower link arms to the lower link pin.
Ensure they are secured with lynch pin. Attach the top link to the top link bracket.
Adjust the lower link sway chains to allow minimal lateral movement. Attach the PTO shaft to the tractor PTO
ensuring it has been cut to the required length.
BE-EFGCXXXF USER MANUAL 13
HYDRAULIC CONNECTION
In order to keep the machine stable, lower the adjustment stand when the machine is stopped (see drawing
above).
Follow all safety precaution detailed in this manual.
The machine is equipped with a standard category one, three point linkage.
Back the tractor into position in front of the flail mower. Lower the tractor hydraulic lift arms.
Turn the tractor o. Maneuver the implement by hand and attach the lower link arms to the lower link pin.
Ensure they are secured with lynch pin. Attach the top link to the top link bracket.
Adjust the lower link sway chains to allow minimal lateral movement. Attach the PTO shaft to the tractor PTO
ensuring it has been cut to the required length.
GREASING AND LUBRICATION
Each 4 hours of work:
• Check and tighten nuts and bolts
• Grease with lithium based grease when it is indicated by the symbol GREASE.
After 50 hr of work, check and fill the gearbox to the required level, using oil type SAE 90 EP API GL4 Oil.
Each 100 hr of work, check the gearbox oil level. Replace as required.
Switch the engine o, set the handbrake and remove ignition key. Push the hydraulic lever to release pressure
at the remotes. Connect the implement’s hydraulic hoses to the remotes using the quick couplers,
having checked the quick couplers are clean and in good condition.
Start the engine and activate the hydraulics to check the connection.
Check there are no oil leaks at the connection or the implement.
Before disconnecting, stop the engine and move the remotes lever back and forth to release the hydraulic
oil pressure as previously mentioned.
HYDRAULIC CONNECTION
Each 4 hours of work:
• Check and tighten nuts and bolts
• Grease with lithium based grease when it is indicated by the symbol GREASE.
After 50 hr of work, check and fill the gearbox to the required level, using oil type SAE 90 EP API GL4 Oil.
Each 100 hr of work, check the gearbox oil level. Replace as required.
GREASING AND LUBRICATION
BE-EFGxxxF
SERVICE & MAINTENANCE
Fluids and Lubricants
Grease:
• Use a multi-purpose lithium based grease.
Gearbox:
• Use SAE 90 gear oil.
Storing Lubricants:
Your machine can operate at top eciency only if clean lubricants are used.
Use clean containers to handle all lubricants.
Store them in an area protected from dust, moisture and other contaminants.
Greasing
• Use a hand-held grease gun for all greasing.
• Wipe grease nipple with a clean cloth before greasing, to avoid injecting dirt and grit.
• Replace broken nipples immediately.
14 BE-EFGCXXXF USER MANUAL
• If nipples will not take grease, remove and clean thoroughly. Also, clean lubricant passageway.
Replace nipple if necessary.
MAINTENANCE
The period recommended is based on normal operating conditions. Severe or unusual conditions may
require more frequent maintenance.
Hours or Daily Maintenance
• Check all nuts and bolts, tighten as required.
• Check the blade and blade bolts every day and replace the damaged parts.
Don’t install damaged, worn and unbalanced blades. Replace sleeves as they become worn.
Note: The operator should put on gloves and use suitable tools before changing blade.
• Check the oil in gearbox. Fill up to line if necessary.
• Pump grease into each grease into each grease nipple three to five times.
• Clean the implement; remove grass and mud.
Season Maintenance
• Check the machine as in the terms of daily maintenance.
• Check the oil in gearbox; replace if it is contaminated.
• Check the blade spindles for wear and tear. If worn, disassemble, clean them and replace them, if necessary,
grease as required.
Annual Maintenance
• Thoroughly clean mud and grass o the machine.
• Check and clean blade axles. Replace seals and grease as required.
• Check all blades, replace them if they are worn or damaged.
• Repair or replace the side skirts back to their original size and shape.
Replace damaged or broken protective devices.
The oil should be drained out and replaced after the first 50 hours of operation, then the oil should be
changed every 250 hours, or at least once a year.
Drain oil from the gearbox thoroughly. Check and clean it. Fill with new gear oil up to the dedicated oil level.
The draining procedure is as follows:
Remove the draining bolt under the gearbox, so that the oil drains o.
After the oil is drained out, put the plug back and fill with gear oil up to the dedicated oil level.
The oil should be drained out and replaced after the first 50 hours of operation, then the oil should be changed
every 250 hours, or at least once a year.
Drain oil from the gearbox thoroughly. Check and clean it. Fill with new gear oil up to the dedicated oil level.
The draining procedure is as follows:
Remove the draining bolt under the gearbox, so that the oil drains o.
After the oil is drained out, put the plug back and fill with gear oil up to the dedicated oil level.
SERVICE AND MAINTENANCE
The PTO shaft is designed to telescope to allow for dimensional changes as the machine goes through its
operating range.
A Tubular guard encloses the driving components and is designed to turn relative to the driving components.
The shaft should telescope easily and the guard turn freely on the shaft at all times. Annual disassembly,
cleaning and lubrication is recommended to insure that all components function as intended.
To maintain the shaft, follow this procedure:
1. Remove the front he machine
2. Pull shaft apart.
3. Use a screwdriver to pry the tabs out of the sleeves on each end.
4. Pull the shaft out of the plastic tubular guard.
5. Use a solvent to clean the male and female portions of the telescoping ends.
6. Apply a light coat of grease to each end.
7. Clean the grooves on each end where the tabs are located. Clean each tab also.
8. Apply a light coat of grease to each groove.
9. Insert the shaft into its respective guard and align the slots with the groove.
10. Insert the tabs through the slots and seat in the groove.
11. Check that each guard turns freely on the shaft.
12. Assemble the shaft.
13. Check that the shaft telescopes easily.
14. Replace any components that are damaged or worn.
15. Install the shaft on the machine.
PTO SHAFT MAINTENANCE
8hrs/ Daily 50hrs/Weekly /Annually
Lubricate PTO Shaft
Lubricate Caster Wheels
Lubricate Blade Spindle
Check Gear Box Oil Level
Clean Machine
Lubricate and Clean PTO Shaft Cover
BE-EFGxxxF
BE-EFGCXXXF USER MANUAL 15
PTO SHAFT MAINTENANCE
The PTO shaft is designed to telescope to allow for dimensional changes as the machine goes through its
operating range.
A Tubular guard encloses the driving components and is designed to turn relative to the driving
components.
The shaft should telescope easily and the guard turn freely on the shaft at all times. Annual disassembly,
cleaning and lubrication is recommended to ensure that all components function as intended.
To maintain the shaft, follow this procedure:
1. Remove the front of the machine
2. Pull shaft apart.
3. Use a screwdriver to pry the tabs out of the sleeves on each end.
4. Pull the shaft out of the plastic tubular guard.
5. Use a solvent to clean the male and female portions of the telescoping ends.
6. Apply a light coat of grease to each end.
7. Clean the grooves on each end where the tabs are located. Clean each tab also.
8. Apply a light coat of grease to each groove.
9. Insert the shaft into its respective guard and align the slots with the groove.
10.Insert the tabs through the slots and seat in the groove.
11. Check that each guard turns freely on the shaft.
12. Assemble the shaft.
13. Check that the shaft telescopes easily.
14. Replace any components that are damaged or worn.
15. Install the shaft on the machine.
GEARBOX MAINTENANCE
The gearbox used on the Flail Mower will give many years of trouble-free service with minimal maintenance
requirements. Maintain the gearbox by following this procedure:
Oil Level:
• Remove the level plug from the rear or side of the gearbox.
• Add oil through the filler plug located on top of gearbox until oil comes out of the level plug.
• Add through the level plug if required.
• If gearbox has a dipstick on filler plug, then fill to indicator mark.
IMPORTANT: Check the oil level only when the unit is cold and the machine is on the level.
STORAGE
• Clean the machine inside and out, so as to avoid corrosion.
• Don’t spray water on the rolling bearing if you clean the machine with high pressure sprayer.
• Check and clean the universal joint, driving belt press roller or replace them if they are not in good
condition.
• Spread oil on all parts required.
• Re-coat the parts rubbed and damaged for anti corrosion.
• Store the machine in a dry, level area.
16 BE-EFGCXXXF USER MANUAL
OPERATION & AFTER STORAGE
Before the machine is started back up, check the following items regularly:
• Check oil level and add if required.
• Check and tighten all screws and nuts.
• Check the blade condition. Replace as required.
• Check the air hole on the gearbox. If it is blocked, clean or open the hole with compressed air.
• Don’t spread oil or grease on the driving belts. IF there is oil or grease on the belts, wipe the belts, to avoid
slippage and premature wear.
• Check all moving parts and replace them if necessary.
• Check the protective cover are complete and operate correctly.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY
Excessive vibration of the machine.
Broken flails.
Broken rotor support.
Broken driving support shaft
Bent rotor.
Replace Broken flail.
Flails can be replaced by a competent operator.
In other cases, replacement must be done by specialized sta.
Replace rotor support with original parts.
Replace shaft support with original parts.
Replace rotor with original parts.
The grass is not cut.
Broken flails.
Broken belts.
Pulleys slipping on shafts.
Broken gearbox.
Replace flails. For replacement of flails, adjustment or
replacement belts and fixing lock joints, see paragraph relating
to maintenance.
Replace Belts.
Fix pulley lock joints.
Repair or replace gearbox.
Clogging of hammers/knives. Rotor speed is too low. Increase rotor speed.
Excessive wear of hammers/knives. Rotor speed is too high. Decrease rotor speed.
Flail mower vibrates during work.
Foreign matter stuck in between blades.
Hammer/knives broken.
Bolts of the rotor shaft support have
come loose.
Remove foreign matter. Secure flail mower on a mechanical
stand before maintaining blades or rotor.
Replace hammer/knives.
Lock bolts.
BE-EFGCXXXF USER MANUAL 17
EXPLODED VIEW & PARTS LIST
REF PART NUM DESCRIPTION SPECIFICATION QTY
1 503010763 Nut DIN985-M12 16
2 506010057 Washer GB97.1-12 25
3-1 801680014 Suspension bracket EFGCM105-175 EFGCHM120.014B 1 105-175
3-2 801740006 Suspension bracket EFGCM200-220 EFGCHM200.014 1 200-220
4 802480066 (140-180Model) pin shaft EFAG140.014 2
5 701680001 Small plate EFGCHM120.101 4
6 501011127 Bolt GB5783-M12X35 12
7 700920107 Fender EF100.00.121 1
8 700920108 Fender EF100.00.122 13
9 506010056 Washer GB97.1-10 22
10-1 700940005 (105Model) fender shaft EFGCM105 EF100.00.123 1
10-2 700950005 (115Model) fender shaft EFGCM115 EF110.00.123 1
10-3 700960009 (125Model) fender shaft EFGCM125 EF120.00.123 1
10-4 700970005 (135Model)fender shaft EFGCM135 EF130.00.123 1
10-5 700980005 (145Model) fender shaft EFGCM145 EF140.00.123 1
10-6 700990019 (155Model) fender shaft EFGCM155 EF150.00.123 1
10-7 701000005 (165Model) fender shaft EFGCM165 EF160.00.123 1
10-8 701010005 (175Model) fender shaft EFGCM175 EF170.00.123 1
18 BE-EFGCXXXF USER MANUAL
REF PART NUM DESCRIPTION SPECIFICATION QTY
10-9 701010006 (200Model) fender shaft EFGCM200 EF200.00.123 1
10-10 701010007 (220Model) fender shaft EFGCM220 EF220.00.123 1
11 508011473 Pin shaft GB879.1-4X25 2
12-1 801140010 (105Model)(L=1003)blade axle EFGCM105 EFG100.013A 1
12-2 801150010 (115Model)(L=1103) blade axle EFGCM115 EFG110.013A 1
12-3 801160038 (125Model)(L=1203) blade axle EFGCM125 EFG120.013A 1
12-4 801170010 (135Model)(L=1303) blade axle EFGCM135 EFG130.013A 1
12-5 801180010 (145Model)(L=1403) blade axle EFGCM145 EFG140.013A 1
12-6 801190010 (155Model)(L=1503) blade axle EFGCM155 EFG150.013A 1
12-7 801200010 (165Model)(L=1603) blade axle EFGCM165 EFG160.013A 1
12-8 801210010 (175Model)(L=1703) blade axle EFGCM175 EFG170.013A 1
12-9 802080080 (200 Model) blade axle EFGCM200 EFG200.013A-G2 1
12-10 802080085 (220Model) blade axle EFGCM220 EFG220.013A-G2 1
13-1 511040032 Bearing UC207 2 105-175
13-2 511040009 Bearing UC208 2 200-220
14-1 510020417 Oil seal GB13871-FB-55X80X8 1 105-175
14-2 510020397 Oil seal CFW-60X85X8 1 200-220
15-1 705380014 (EFG105-175)(L=48) sleeve RK120.109A 1 105-175
15-2 702080005 (EFG200-220)sleeve G2-150.105 1 200-220
16 509010008 Oil cup GB1152-M8X1 4
17 801240022 Base plate EFGC120.014 1
18 501011126 Bolt GB5783-M12X30 17
19 701160033 Small plate EFG120.103 1
20 506030037 Washer GB93-12 12
21-1 701160006 Small pulley EFG120.105A 1
21-2 701160034 (EFGCM200 EFGCM220) small pulley EFG120.105B 1
22 701240046 U cover EFGC120.138 1 105-175
23-1 701250006 (H=100) belt cover EFGC120.111 1 200-220
23-2 706160004 (H=120) belt cover EFGC200.111 1
24 501011112 Bolt GB5783-M10X25 4
25-1 701160007 Big pulley EFG120.106A 1 105-175
25-2 701160040 (EFGCM200) big pulley EFG120.106B 1 200-220
26 514010001 Belt 17X991 3
27-1 515010001 Sleeve REACH04-35X60 2 105-175
27-2 515010007 Sleeve REACH04-40X65 2 200-220
28 503010137 Nut GB6173-M16X1.5 1
29 501011905 Bolt GB5786-M16X1.5X50 1
30 501011141 Bolt GB5783-M14X35 2
31-1 701240007 Lath EFGC120.102A 1 105-175
31-2 706160003 Lath EFGC200.102 1 200-220
32 509010007 Oil cup GB1152-M6 2
33 501030185 Bolt GB70.3-M8X25 10
34 801160004 Roller supporting EFG120.018 1
35 511040007 UC205 bearing EF100.00.012 2
36-1 801140008 (105Model)(L=1040) mud shield EFG100.024 1
36-2 801150008 (115Model)(L=1140) mud shield EFG110.024 1
36-3 801160030 (125Model)(L=1240) mud shield EFG120.024 1
36-4 801170008 (135Model)(L=1340) mud shield EFG130.024 1
BE-EFGCXXXF USER MANUAL 19
REF PART NUM DESCRIPTION SPECIFICATION QTY
36-5 801180008 (145Model)(L=1440) mud shield EFG140.024 1
36-6 801190008 (155Model)(L=1540) mud shield EFG150.024 1
36-7 801200008 (165Model)(L=1640) mud shield EFG160.024 1
36-8 801210008 (175Model)(L=1740) mud shield EFG170.024 1
36-9 801130012 (200Model)(L=1990) mud shield EFG200.024 1
36-10 801130013 (220Model)(L=2190) mud shield EFG220.024 1
37 506010055 Washer GB97.1-8 2
38 503010761 Nut DIN985-M8 2
39-1 801140004 (105Model)(L=1027) roller EFG100.012 1
39-2 801150004 (115Model)(L=1127) roller EFG110.012 1
39-3 801160017 (125Model)(L=1227) roller EFG120.012 1
39-4 801170004 (135Model)(L=1327) roller EFG130.012 1
39-5 801180004 (145Model)(L=1427) roller EFG140.012 1
39-6 801190004 (155Model)(L=1527) roller EFG150.012 1
39-7 801200004 (165Model)(L=1627) roller EFG160.012 1
39-8 801210004 (175Model)(L=1727) roller EFG170.012 1
39-9 801160036 (200Model)(L=1977) roller EFG200.012 1
39-10 801160041 (220Model)(L=2177)roller EFG220.012 1
40 801160001 Roller supporting EFG120.017 1
41 801240019 Left base EFGC120.013 1
42 503010740 Nut DIN985-M16X1.5 20
43 701240009 (Y) blade EFGC120.104 20
44 701240008 Sleeve EFGC120.103 20
45 501014730 Bolt ZDLS-M16X1.5X85 20
46 503010762 Nut DIN985-M10 2
47 506010058 Washer GB97.1-14 2
48 503010764 Nut DIN985-M14 2
49-1 801680030 (105Model) hood EFGCHM100.011B 1
49-2 801680031 (115Model) hood EFGCHM110.011B 1
49-3 801680024 (125Model) hood EFGCHM120.011B 1
49-4 801690024 (135Model) hood EFGCHM130.011B 1
49-5 801700024 (145Model) hood EFGCHM140.011B 1
49-6 801710024 (155Model) hood EFGCHM150.011B 1
49-7 801720024 (165Model) hood EFGCHM160.011B 1
49-8 801730024 (175Model) hood EFGCHM170.011B 1
49-9 801740001 (200Model) hood EFGCHM200.011A 1
49-10 801750001 (220Model) hood EFGCHM220.011A 1
50-1 801240026 (105Model) gearbox with shaft EFGC100.015 1
50-2 801240023 (125Model) gearbox with shaft EFGC120.015 1
50-3 801240027 (135Model) gearbox with shaft EFGC130.015 1
50-4 802520119 (200/220/250Model) gearbox
with shaft EFGCH200.021A 1
51 506010037 Washer GB96.1-12 4
52 703400008 PTO cover FM120.00.199 1
53 702420030 Shaft cover EF100.00.177 1
54 506010036 Washer GB96.1-10 4
55 506030036 Spring washer GB93-10 4
20 BE-EFGCXXXF USER MANUAL
GEARBOX ASSEMBLY
REF PART NUM DESCRIPTION SPECIFICATION QTY
1-1 510020640 GB13871-FB-35X72X12 FB35X72X12 oil seal 1
1-2 510020405 GB13871-FB-40X80X10 FB40X80X10 oil seal (200,220) 1
2-1 506060188 GB893.1-72 72 cir clip 1
2-2 506060191 GB893.1-80 80 cir clip (200,220) 1
3-1 511021666 GB276-6207-2Z 6207 bearing 1
3-2 511021529 GB276-6208-2Z 6208 bearing (200,220) 1
4-1 701220003 EFGC100.133A (EFGC105-115Model) shaft 1
4-2 701240003 EFGC120.133A (EFGC125Model) shaft 1
4-3 701250003 EFGC130.133A (EFGC135-175Model) shaft 1
4-4 701600034 EFGCH200.166B (EFGCHZ/M/H-200)(L=638) shaft 1
5 507010086 GB1096-A-10X8X40 A10X40 key 1
6 701240025 EFGC120.132 Sleeve 1
7 701240024 EFGC120.131 Gasket 1
8 507010091 GB1096-A-10X8X70 A10X70 key 1
9-1 801240040 XH50.300Z.02 Gearbox 1
9-2 801380003 XH50.300Z.02-200 (EFGCM200) gear box 1
10-1 801220004 EFGC100.018A (EFGC100-110) shaft cover 1
10-2 801240004 EFGC120.018A (EFGC120-170) shaft cover 1
10-3 801600032 EFGCH200.026A (EFGCHZ/M/H-200)(L=640) shaft cover 1
11 506030037 GB93-12 12 washer 4
12 505011445 GB70.1-M12X35 M12X35 bolt 4
13 705290211 CBW-00-011B Breath plug 1
14 516010003 ZBT32001.3-ZG3/8-19" ZG3/8"-19 tapered plug 1
This manual suits for next models
8
Other BE Farm Equipment manuals
