Sumo Subsoiler Installation and maintenance instructions

3, 4, and 5 leg Mounted Machi
3,4,5 and 7 Leg Mounted
Subsoiler
2016
Operator Manual
and
Parts List
Redgates
Melbourne
York
YO42 4RG
Tel. [phone]
Fax. [phone]

1.0 Registration
To activate your SUMO Warranty, you must complete this page and send it
back to us at: Sumo UK Ltd
Redgates
Melbourne
York
YO42 4RG
Tel. [phone]
Fax. [phone]
(NO REGISTRATION = NO WARRANTY)
SUMO SERIAL No:
For your own records.
(Serial plate on side of headstock)
Sumo Subsoiler Registration Document
NAME:
ADDRESS:
SUMO SERIAL No.
(Serial plate on
side of headstock)
DEALERSHIP
NAME AND
BRANCH:
COMMENTS:
Postcode:
DATE:
Page 1

In order to obtain your free pair of Sumo overalls and baseball cap please
fill in this form and send back to us at:
Sumo UK Ltd
Redgates
Melbourne
York
YO42 4RG
Tel. [phone]
Fax. [phone]
SUMO SERIAL No:
Overall size:
tick where applicable
NAME:
ADDRESS:
Small (38 chest)
Medium (42 chest)
Large (46 chest)
Extra large (50 chest)
XX Large (54 chest)
XXX Large (58 chest)
Postcode:
Page 2

2.0 Summary
All the subsoilers feature a strong V shaped frame which lets soil and trash flow more efficiently,
allowing the legs to be run closer together giving total loosening. This aggressive action increases the
aeration, leaving a surface 50 - 100mm raised up. The Sumo range of Subsoilers can be used successfully
as a primary and a secondary source of cultivation, leaving the surface weather proof and ready to drill.
Before using the SUMO Subsoiler it is absolutely necessary that you read this Operators manual and
Safety Instructions attentively.
Specifications, descriptions and illustrations in this brochure are accurate, as known, at the time of
publication but may be subject to change.
Page 3

Table of Contents
1.0 Registration ...Page 1
2.0 Summary ...Page 3
3.0 Safety ...Page 5
3.1 Qualification and Training ...Page 5
3.2 General Safety ...Page 6
3.3 Special Safety Instructions ...Page 6
3.4 Risk Assessment ...Page 7
4.0 Operation and Adjustment ...Page 8
4.1 Operating ...Page 8
4.2 Adjustments ...Page 8
4.3 Auto Reset ...Page 8
5.0 Maintenance ...Page 9
5.1 Spares ...Page 9
5.2 Winter Storage ...Page 9
6.0 Parts and Assembly ...Page 10
6.1 Auto Reset Assembly ...Page 10
6.2 Shear Bar Assembly ...Page 11
6.3 Leg and Point Assembly ...Page 12
6.4 Packer Bearing Assembly ...Page 13
6.5 Packer Depth Assembly ...Page 14
6.6 Scraper Assembly ...Page 15
6.7 Light Assembly ...Page 16
6.8 Main Frame ...Page 17
6.9 Hydraulics –3 Leg ...Page 18
6.10 Hydraulics –4 Leg ...Page 19
6.11 Hydraulics –5 Leg ...Page 20
6.12 Hydraulics –7 Leg ...Page 21
6.13 Stickers ...Page 24
Page 4

3.0 Safety
This manual contains basic advice, which should be observed during setting-up, operation and
maintenance. Therefore, this operating manual must be read by the personnel concerned prior to starting
up and using the machine and be available at all times.
If safety instructions are not complied with, then this can lead to the risk of injury to yourself and others
as well as damage to the environment or the machine. Non-compliance to the safety instructions can also
lead to claims for damages becoming invalid.
3.1 Qualification and Training
Reliable personnel may only perform any work on, or, with the machine. Statutory minimum age
limits must be observed.
Employ only trained or instructed staff; the individual responsibilities of the personnel concerning
operation, setting up, maintenance and repair must be clearly established.
Make sure that only authorized personnel work on or with the machine.
Define the machine operators’ responsibilities – also with regard to observing traffic regulations.
The operator must have the authority to refuse any instructions issued by third parties, which
contravene safety.
Persons undergoing training or instruction or taking part in a general training course should not be
allowed to work on or with the machine unless they are under the constant supervision of an
experienced person.
The use of spare parts, accessories and ancillary equipment not supplied and/or not approved by
SUMO could have detrimental effects to the construction of the SUMO machine or on its
functions and hence impair the active and/or passive driving and/or operational safety (accident
prevention).
SUMO shall not be responsible for any damage caused by the use of spare parts, accessories and
ancillary equipment not supplied and/or approved by SUMO.
Conversions of or modifications to the machine may only be carried out after consultation with
SUMO.
Page 5

3.2 General safety
Warning signs and other notices on the machine provide important information for the safe
operation. Observing them will serve your safety.
Before starting work, make yourself familiar with all the equipment and controls as well as their
functions.
The user should wear close-fitting clothing.
Keep the machine and in particular the bearings clean to avoid risk of fire.
Check around the machine before moving off or starting up (watch out for children!). Make sure
you have adequate all-round visibility.
Always match your speed to the local conditions. Avoid sudden turning manoeuvres when driving
uphill or downhill or when travelling across a slope.
Observe the respective regulations when using public roads.
Take into account the wide overhang and/or the sideways force acting on the machine when
turning or negotiating curves.
3.3 Special safety instructions
Take extreme care when hitching up or unhitching machine to/from the tractor.
Never allow persons to stand between the tractor and the machine unless the tractor is secured
against rolling away by means of parking brake and/or wheel chocks.
During transport, secure the packer (using both pins) to prevent shock loading when encountering
road undulations. Ensure stands are raised to their transport position.
It is forbidden to allow persons to ride on the machine at any time. A safe distance should be
maintained from the machine by observers when in work.
Driving, steering and braking characteristics are influenced by mounted machines and ballast
weights. Therefore, ensure adequate steering and braking ability.
Never stand or work beneath suspended loads. Ensure stands are in position before commencing
maintenance work.
Page 6

Hazard identified in using machine
Who might be harmed
Risk evaluation/level 1-5
Precautions in place
Further action required
Machine collision while in transport.
Operator, members of the
public
-
Tail lights, reflectors.
Take care when using in both field and
road situations. Maintain good visibility
at all times.
Trapped fingers during leg depth
position change.
Operator
1 - low
Warnings, maintenance stands
Observe warning signs, maintain safe
distance from moving parts, wear
gloves. Ensure both of the stands are
down. Clear excess soil (weight) from
points before attempting to adjust legs.
Risk of crushing:
- When coupling a tractor to the
Sumo implement.
- When changing points.
Operator
-
Warnings, maintenance stands
Take extreme care when working on
legs, changing depth, replacing points
etc, make sure stands are down and the
machine is on a suitable firm piece of
land. Ensure tractor hydraulics are in
good working order. Ensure tractor is
safely positioned and the parking brake
is engaged when coupling up to the
Sumo implement.
Falling from machine
Operator
-
Most alterations and
maintenance do not require the
operator the climb on the
machine
Lower the machine to the floor to allow
access for greasing discs, checking

Model:
Mounted Subsoiler
Date assessment written:
16th February 2012
Year:
2012
Assessor:
R. A. Hight
Purpose of machine:
Primarily designed to alleviate compaction and improve soil structure in an agricultural environment.
Notes:
Ensure the
operator manual is
read and fully
understood.
Description of machine:
A three-point-linkage mounted farm implement consisting of 2 major elements.
1. A bank of staggered subsoiler legs.
2. A rigid packer roller
All of the above is arranged in a heavy duty fabricated steel framework.
The Machine is designed to couple to a suitably powered tractor.
3.4 RISK ASSESSMENT

4.0 Operation and Adjustment
4.1 Operating
Before attaching a subsoiler to a tractor is essential that the stands are in the down position to ensure a
short top link once attached. Once attached securely to the tractor the machine can then be raised and the
stands lifted out of the way. When the machine is removed from the tractor it is equally as important to
leave the machine on the stands.
Due to the physical nature and weight distribution of the Sumo Subsoiler a category three enclosed ball
top link is highly recommended as the best option for dealing with the exaggerated loads experienced
during normal working conditions.
The top link should be as short as possible whilst remaining as close to horizontal as is achievable. In the
majority of cases this means using the bottom hole on the Subsoiler and the top hole on the tractor. It is
important to ensure the machine is running level to allow the optimum level of soil disturbance as well as
to prolong the life of the wearing parts.
Changing the points on the Subsoiler must only be done on level ground. When it is deemed necessary to
change the points, the stands should be lowered to the static position and other appropriate jacks, stands
and chocks put into position in sensible locations. To avoid the risk of sinking and potential injury it is
important to only change the points where ground conditions permit, i.e. solid concrete, tarmac etc. Care
should be taken to ensure the subsoiler is firmly and safely held before changing the points. The tractor
engine must be turned off with the parking brake applied. In order to change the points it is first necessary
to remove the nut and bolt behind the point freeing the worn part. Then a new point can be replaced in the
same position, with the appropriate nut and bolt tightened up to secure the point in position.
Bearings should be greased (see 5.0 Maintenance), stands must be in the raised position and all relevant
pins in the correct holes prior to commencing work.
Forward working speed should be governed by the local conditions as well as the finish produced by the
Subsoiler.
4.2 Adjustments
Depth adjustment of the subsoiler legs is achieved by altering the height at which the packer is set and a
combination of the top link length and lower linkage height. The machine should always remain level in
when working. The lower packer pin must be placed in the upper-most hole under the packer arm to
prevent the arms chasing and wearing in the slots every time the machine is raised. Failure to do this can
result in excessive wear to the packer arms, main side plates and the quadrants.
DO NOT TIGHTEN POINTS UP WITH AIR RACHETS OR OVER TIGHTEN WITH
SPANNERS. EXCESSIVE TIGHTENING WILL RESULT IN POINTS CRACKING
Page 8

4.3 Auto Reset hydraulic circuit
1) To lift the legs up and out of the work position; pressurize line B (the lower of the two hoses
entering the valve block & marked “B” on the valve itself). The legs will lift as oil is returned to
the tractor through Line A.
2) To lower the legs back down and into the work position; pressurize line A, the legs will lower one
by one. Keep pumping until all of the legs come to a stop at the end of their stroke. Keep
pumping for a few more seconds and the two lines will then pressure up. Keep an eye on the
gauge on the right hand side of the machine as this displays the leg trip resistant pressure. The
system needs then to be put into the “float” or pressureless state between the tractor and the valve
so that any back pressure from the tractor does not affect the preset valve pressures. Putting the
system into “float” means the factory set pressure readings of 80bar on the full bore side of the
ram (gauge on RHS of machine) and 20bar on the rod side of the ram. This is unless of course
they have been adjusted to suit local conditions. The resistant pressure in adjustable up to a
maximum of 150bar
3) To increase the trip resistance of the legs –the knob marked X should be wound in. The lift and
lower process should then be repeated.
A
B
A
B
X
Page 9

5.0 Maintenance
The packer bearings should be greased with one pump once a week and after washing off.
The condition of the subsoiler legs and the points should be regularly monitored in order to maintain the
most efficient use of the machine.
Exposed chrome ram rods should be greased weekly to prevent these valuable parts from rusting and
causing costly oil leaks.
The condition and position of the packer scrapers should also be observed in order to prevent soil
building up on the packer. Ensure the scrapers are not touching the packer though, as this will add rolling
resistance as well as causing premature wear of the packer.
5.1 Spares
When ordering replacement parts please have your serial number, part numbers (listed in Section 6.0) and
quantities at hand.
5.2 Winter storage
When machines are to be parked up for the winter period, correct storage techniques are an important part
of protecting the machine to ensuring a hassle free season. When the machine has finished work it should
be cleaned down and washed off to remove all traces of soil.
Following washing of the packer bearings should be greased with one pump. Other grease points on auto
reset machines are located on both ends of all rams and auto reset pivot hinge bushes; these should
receive two or three pumps of grease.
Exposed chrome ram rods should be greased to prevent these valuable parts from rusting over winter and
causing costly oil leaks.
When the machine is parked up a note should be made of what wearing parts require replacing ready for
the next seasons work. The wearing parts can then be ordered in time ready for the next season’s work in
good time to avoid delays when the machine is required earlier than expected!
Page 10

1
2
3
4
7
5
6
8
9
13 14
15
10
12
9
11
11
6.0 Parts and Assembly
ITEM
NO.
PART NO. DESCRIPTION QTY.
1 SW399 Auto Reset Socket 1
2 SWH125 705/2 Ram 1
3 SWB374
Spring Tension Bush
30x36x25
2
4 SWB108 PB1 Bush 50x50x58 2
5 SW398 30x125 Tabbed Pin 1
6 SW400 35x125 Tabbed Pin 1
7 SW395 30x165 Tabbed Pin 1
8 SW396 50x230 Tabbed Pin 1
9 SWM1245 M12x45 Bolt 2
10 SWM12004 M12 Nylock Nut 2
11 SWM1665 M16x65 Bolt 2
12 SWM16004 M16 Nylock Nut 2
13 SWM30140 M30x140 Bolt 1
14 SWM30001 M30 Washer 2
15 SWM30004 M30 Nylock Nut 1
SCALE 1:7
TITLE:
DO NOT SCALE DRAWING
DATE: INITIAL: REVISION:
Drawings and design information found
herein remain the sole property of Sumo
UK Ltd. Reproductions may only be
made with the permission of the owner.
MACHINE/COMPONENT:
10/12/12 TW
Auto Reset Assembly
Mounted Subsoiler

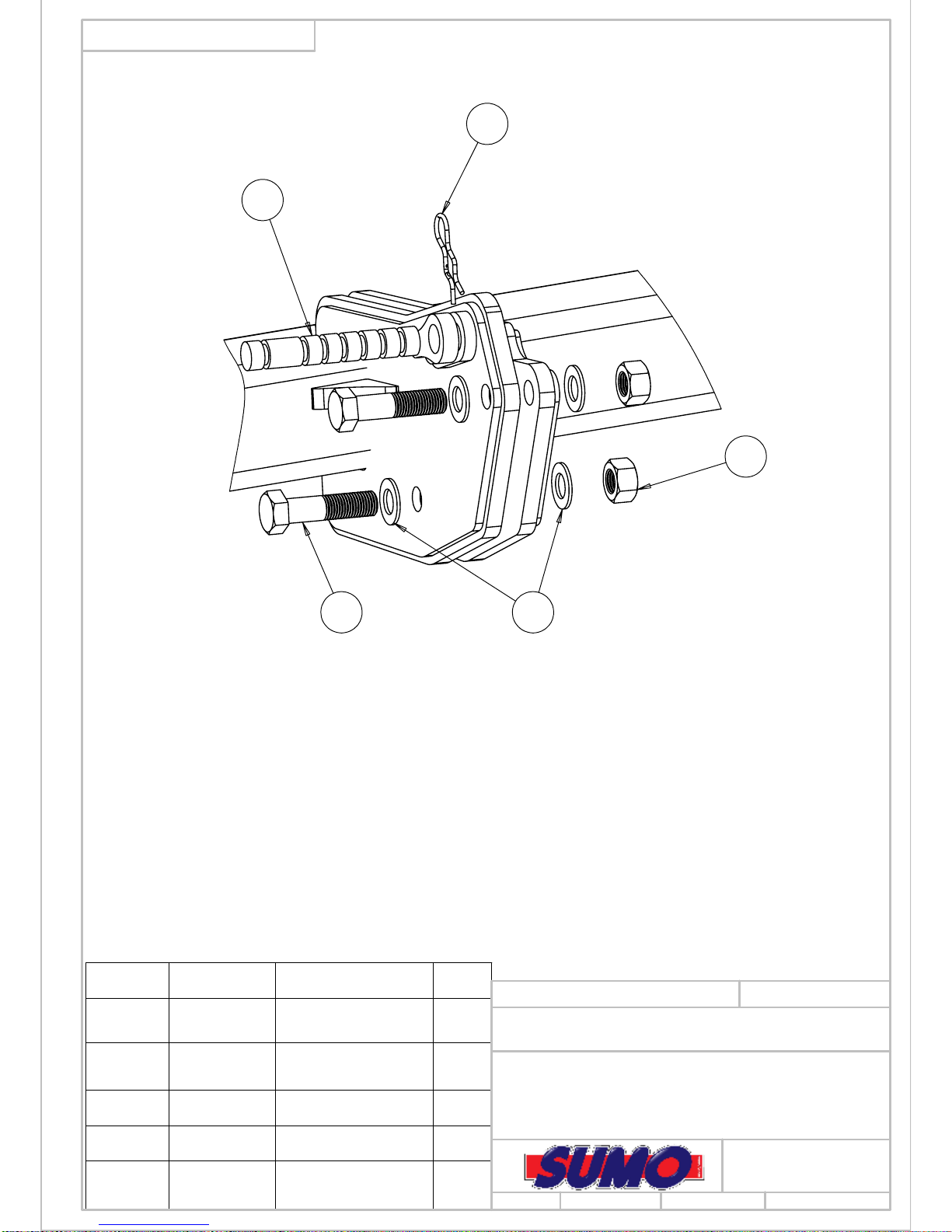

6.1 Auto Reset Assembly

1
2
3 44
5
ITEM NO. PART NO. DESCRIPTION QTY.
1 SW355
Subsoiler Shear
Bar
1
2 SWB106 Shear Bar R-Clip 1
3 SWM30110 M30 x 110 Bolt 2
4 SWM30001 M30 Washer 4
5 SWM30004 M30 Nylock Nut 2
SCALE 1:5
TITLE:
DO NOT SCALE DRAWING
DATE: INITIAL: REVISION:
Drawings and design information found
herein remain the sole property of Sumo
UK Ltd. Reproductions may only be
made with the permission of the owner.
MACHINE/COMPONENT:
7/12/12 TW
Shear Pin Assembly
Mounted Subsoiler
6.2 Shear Bar Assembly

1
2
3
4
5
DO NOT TIGHTEN POINTS UP WITH AIR RACHETS OR
OVER TIGHTEN WITH SPANNERS.
EXCESSIVE TIGHTENING WILL RESULT IN POINTS CRACKING
ITEM NO. PART NO. DESCRIPTION QTY.
1 SW191 Subsoiler Leg 1
2 SW194M Cast Subsoiler Point 1
3 SWM1665 M16 x 65 Bolt 1
4 SWM16004 M16 Nylock Nut 1
5 SW192
25mm Weld on Leg
Bottom
1
SCALE 1:6
TITLE:
DO NOT SCALE DRAWING
DATE: INITIAL: REVISION:
Drawings and design information found
herein remain the sole property of Sumo
UK Ltd. Reproductions may only be
made with the permission of the owner.
MACHINE/COMPONENT:
7/12/12 TW
Leg and Point Assembly
Mounted Subsoiler
6.3 Leg and Point Assembly

1
2
3
4
6
5
7
8
8
9
9
1010
11
12
13
14
15
ITEM
NO.
PART NO. DESCRIPTION QTY.
1 SW248 Subsoiler Packer Arm 1
2 SW112 Stand Holder 1
3 SW118 Stand Pin 1
4 SWB105 Lynch Pin 1
5 SW117 Subsoiler Stand 1
6 SWB144
80mm Rubber Stand
Cap
1
7 SWB104 Packer Bearing 1
8 SWM1665 M16x65 Bolt 6
9 SWM16001 M16 Washer 12
10 SWM12004 M12 Nylock Nut 6
11 SWM2070 M20x70 Bolt 3
12 SWM20001 M20 Washer 6
13 SWM20004 M20 Nylock Nut 3
14
SW252
3 Leg Subsoiler Scraper
Bar
1
SW1201
4 Leg Subsoiler Scraper
Bar
1
SW253
5 Leg Subsoiler Scraper
Bar
1
15
SW255 3 Leg Subsoiler Packer 1
SW1200 4 Leg Subsoiler Packer 1
SW256 5 Leg Subsoiler Packer 1
SCALE 1:10
TITLE:
DO NOT SCALE DRAWING
DATE: INITIAL: REVISION:
Drawings and design information found
herein remain the sole property of Sumo
UK Ltd. Reproductions may only be
made with the permission of the owner.
MACHINE/COMPONENT:
10/12/12
TW
Packer Bearing Assembly
Mounted Subsoiler
6.4 Packer Bearing Assembly

1 2 3
4
5
6
7 8
4
9
ITEM
NO.
PART NO. DESCRIPTION QTY.
1 SW130 Packer Depth Pin 2
2 SWB105 Lynch Pin 2
3 SWM30110 M30 x 110 Bolt 1
4 SWM30001 M30 Washer 2
5 SW129
15mm Large
Spacer
1
6 SW126
10mm Small
Spacer
1
7 SW125
12mm Small
Spacer
1
8 SWM30004 M30 Nylock Nut 1
9 SW248
Subsoiler Packer
Arm
1
SCALE 1:5
TITLE:
DO NOT SCALE DRAWING
DATE: INITIAL: REVISION:
Drawings and design information found
herein remain the sole property of Sumo
UK Ltd. Reproductions may only be
made with the permission of the owner.
MACHINE/COMPONENT:
7/12/12 TW
Packer Depth Control
Mounted Subsoiler
6.5 Packer Depth Control

11
2
4
5
6
77
88
6
5
3
ITEM
NO.
PART NO. DESCRIPTION QTY.
1 SWM12100UB M12x100 U Bolt 2
2 SWM12005 M12 Flanged Nut 4
3 SW961 Scraper Hanger 1
4 SW651 Scraper 2
5 SWM1235CHSQ
M12x35 Cup Head
Square
4
6 SWM12001 M12 Washer 4
7 SWM12002 M12 Spring Washer 4
8 SWM12003 M12 Plain Nut 4
9 SW1003
Triple Scraper
Hanger (not
shown)
1
SCALE 1:7
TITLE:
DO NOT SCALE DRAWING
DATE: INITIAL: REVISION:
Drawings and design information found
herein remain the sole property of Sumo
UK Ltd. Reproductions may only be
made with the permission of the owner.
MACHINE/COMPONENT:
10/12/12 TW
Scraper Assembly
Mounted Subsoiler
6.6 Scraper Assembly

1
2
6
7
8
5
4
3
9
ITEM
NO.
PART NO. DESCRIPTION QTY.
1 SWB715 Rear Light 1
2 SWB162 Warning Triangle 1
3 SWM616CSK
M6 x 16 Countersunk
Bolt
2
4 SWM6001 M6 Washer 4
5 SWM6004 M6 Nut 4
6 SWM1660 M16 x 60 Bolt 2
7 SWM16001 M16 Washer 4
8 SWM16004 M16 nylock Nut 2
9 SW761/SW760
Light Bracket L/H &
R/H (not shown)
1
10 SWB175
Wiring Loom (not
shown)
1
SCALE 1:3
TITLE:
DO NOT SCALE DRAWING
DATE: INITIAL: REVISION:
Drawings and design information found
herein remain the sole property of Sumo
UK Ltd. Reproductions may only be
made with the permission of the owner.
MACHINE/COMPONENT:
29/10/12 TW
Light Assembly
Mounted Subsoiler
6.12 Light Assembly

1
22
33
4
ITEM
NO.
PART NO. DESCRIPTION QTY.
1 SW627ext Top Link Pin 1
2 SW626ext Bottom Link Pin 2
3 SWB107 Safety Lynch Pin 3
4
SW249
3 Leg Shear Bar Main
Frame
1
SW1202
4 Leg Shear Bar Main
Frame
1
SW250
5 Leg Shear Bar Main
Frame
1
SW401
3 Leg Auto Reset
Main Frame
1
SW1203
4 Leg Auto Reset
Main Frame
1
SW402
5 Leg Auto Reset
Main Frame
1
SCALE 1:10
TITLE:
DO NOT SCALE DRAWING
DATE: INITIAL: REVISION:
Drawings and design information found
herein remain the sole property of Sumo
UK Ltd. Reproductions may only be
made with the permission of the owner.
MACHINE/COMPONENT:
10/12/12 TW
Main Frame
Mounted Subsoiler
6.8 Main Frame
