BEA 10TD900TR User manual

75.5868.01 900 MHZ TOUCHLESS RETROFIT TRANSMITTER 20160412 Page 1 of 4
TOUCHLESS RETROFIT TRANSMITTER
900 MHz transmitter for
touch-to-touchless plate retrot
applications
(US version)
ENGLISH

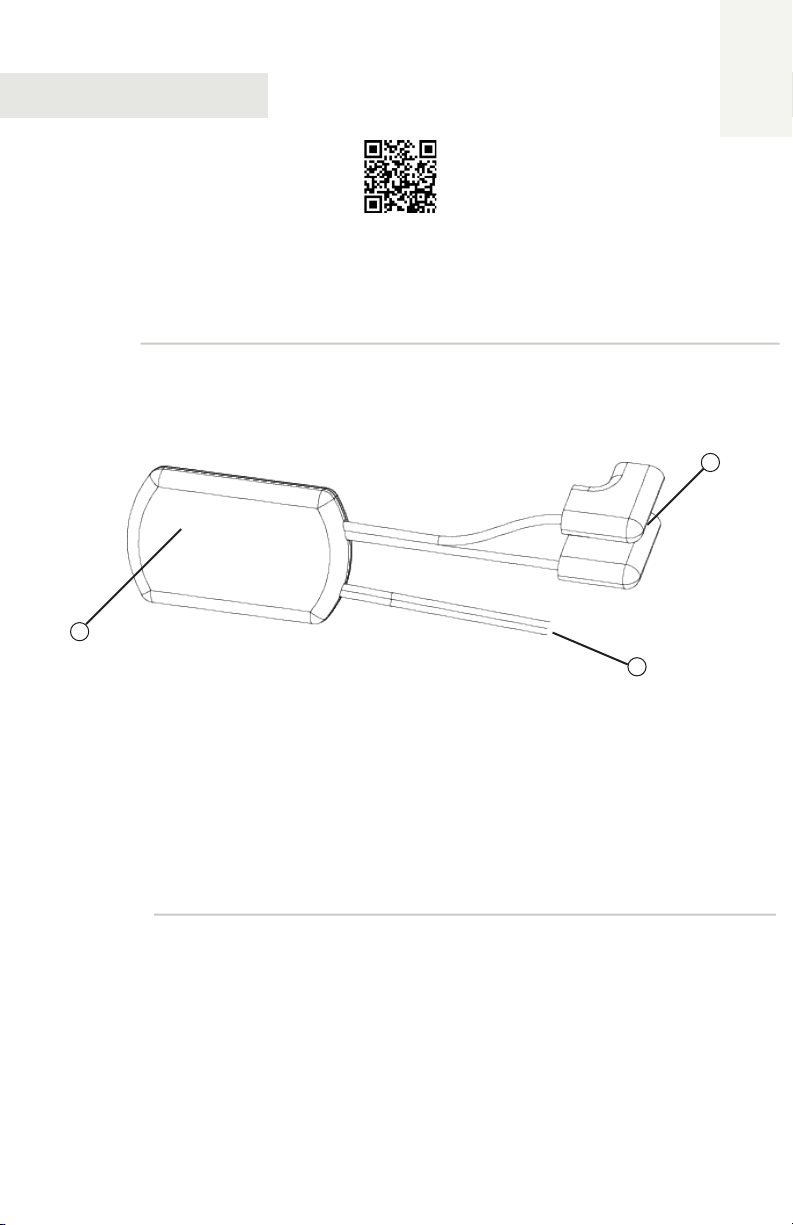

DESCRIPTION
1. 900 MHz Wireless Transmitter
2. White & Green Activation Wires with Flag Connectors
3. Red & Black Power Wires
INTRODUCTION
1
3
2
For existing hard-wired touch pushplates, most often, only two (2) wires are
installed, running within the wall from the pushplate to the door control for
activation. The 900 MHz Touchless Retrofit Transmitter allows an existing hard-
wired touch pushplate to be retrofitted with a new touchless plate that requires four
(4) wires [2 wires for power and 2 wires for activation] without running additional
wires. This is achieved by use of a powered wireless transmitter and wireless
receiver.

Page 2 of 4 75.5868.01 900 MHZ TOUCHLESS RETROFIT TRANSMITTER 20160412
• The device should not be used for purposes other than its intended use. All other uses cannot be
guaranteed by the manufacturer of the sensor.
• The installer of the door system is responsible for carrying out a risk assessment and installing the sensor and
the door system in compliance with applicable national and international regulations and standards on door
safety.
• The manufacturer of the sensor cannot be held responsible for incorrect installations or inappropriate
adjustments of the sensor.

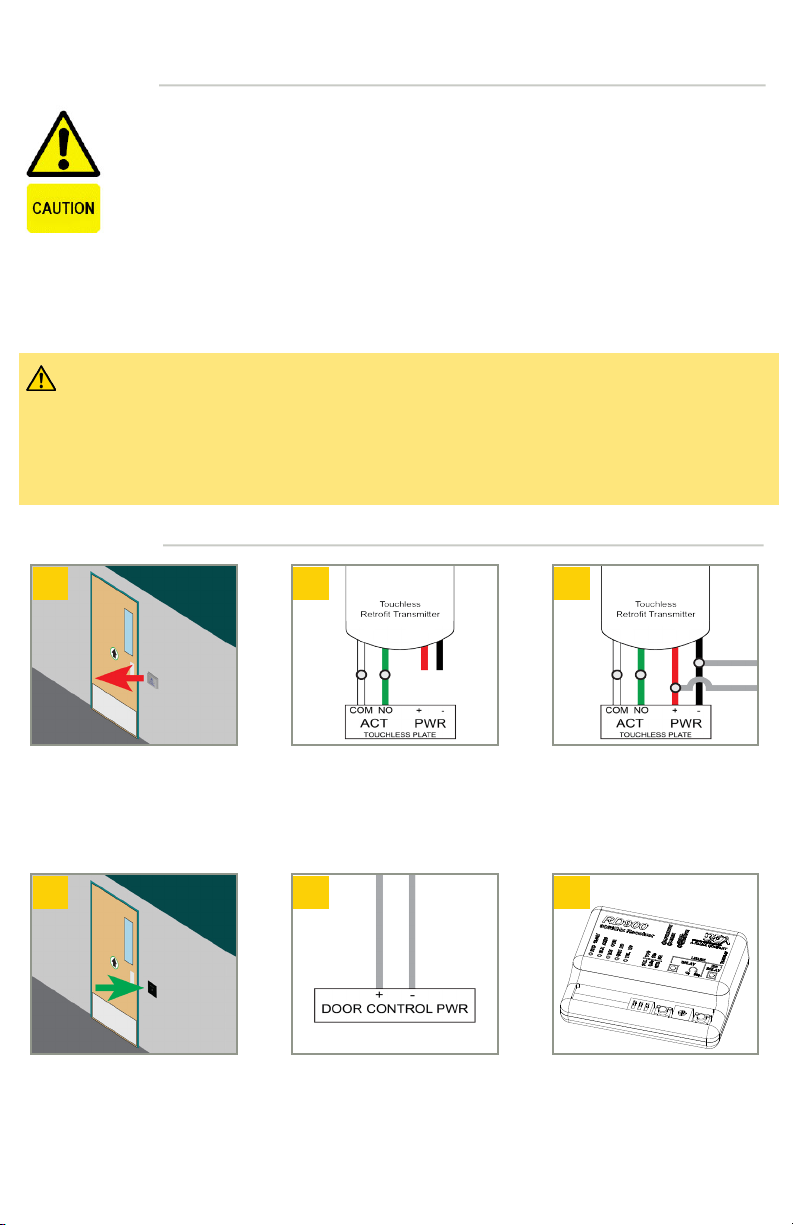

1 2 3
Remove existing touch
pushplate and disconnect two
(2) existing in-wall wires from
pushplate and door control
activation.
Connect green and white
wires to new touchless plate
activation output.
Parallel red and black wires
with two (2) existing in-wall
wires and connect to new
touchless plate power input.
INSTALLATION
4 5 6
Mount new touchless plate. Connect two (2) existing in-
wall wires to power source in
door control header.
Install 900 MHz wireless
receiver in header (sold
separately).
Shut off all power going to header before attempting any wiring procedures.
Maintain a clean & safe environment when working in public areas.
Constantly be aware of pedestrian trafc around the door area.
Always stop pedestrian trafc through the doorway when performing tests that may result in unexpected reactions by
the door.
ESD (electrostatic discharge): Circuit boards are vulnerable to damage by electrostatic discharge. Before handling
any board ensure you dissipate your body’s ESD charge.
Always check placement of all wiring before powering up to ensure that moving door parts will not catch any wires
and cause damage to equipment.
Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of installation.
DO NOT attempt any internal repair of the components. All repairs and/or component replacements must be per-
formed by BEA, Inc. Unauthorized disassembly or repair:
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product resulting in a voided warranty.
PRECAUTIONS

75.5868.01 900 MHZ TOUCHLESS RETROFIT TRANSMITTER 20160412 Page 3 of 4
TROUBLESHOOTING
No activation Power wires not connected Verify power connection at
transmitter, touchless plate, and
power source
Activation wires not
connected
Verify activation connection at
transmitter and door control
Receiver not programmed Setup transmitter
Constant activation Something is moving in
front of touchless plate
Clear area around plate
Transmitter connected to
NC of touchless sensor
Connect to NO
Receiver and/or touchless
sensor set to Toggle Mode
Set receiver and/or touchless sensor
to Pulse Mode
SETUP
1
Learn transmitter and
receiver1.
NOTES:
1. Refer to 900 MHz wireless receiver User’s Guide 75.5786 for full
programming instructions.

Page 4 of 4 75.5868.01 900 MHZ TOUCHLESS RETROFIT TRANSMITTER 20160412
Upon completion of the installation or service work, at a minimum, perform a daily safety check in accordance with the minimum
inspection guidelines provided by AAADM. Provide each equipment owner with an owner’s manual that includes a daily safety
checklist and contains, at a minimum, the information recommended by AAADM. Offer an information session with the equipment
owner explaining how to perform daily inspections and point out the location of power/operation switches to disable the equipment if
a compliance issue is noted. The equipment should be inspected annually in accordance with the minimum inspection guidelines. A
safety check that includes, at a minimum, the items listed on the safety information label must be performed during each service call.
If you are not an AAADM certi ed inspector, BEA strongly recommends you have an AAADM certi ed inspector perform an AAADM
inspection and place a valid inspection sticker below the safety information label prior to putting the equipment into operation.
ANSI / AAADM Compliance
TECHNICAL SPECIFICATIONS
Power: 12-24 V AC/DC +/- 10%
Transmitter Frequency: 908-918 MHz (frequency hopping)
Emitted radio power: -25 dBm
Power consumption: 22 mA
Temperature range: 14° F to +131° F (-10° C to +55° C)
LEDs: Red (activation)
Dimensions: 1.72” (L) x 1.06” (W) x 0.32” (T)
Material: ABS Plastic
Certification: FCC, IC
Specifications are subject to change without prior notice.
All values measured in specific conditions.
PLEASE KEEP FOR FURTHER USE - DESIGNED FOR COLOR PRINTING
©BEA|OriginalInstructions|75.5868.01900MHZTOUCHLESSRETROFITTRANSMITTER20160412
Tech Support: 1-800-407-4545 | Customer Service: 1-800-523-2462 | General Tech Questions: T[email protected] | Tech Docs: www.beasensors.com
FCC ID: 2ABWS-10TD900TR IC: 4680A-10TD900TR MODEL: 10TD900TR
FCC / IC
“This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.”
Changes or modifications not expressly approved by BEA Incorporated could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
