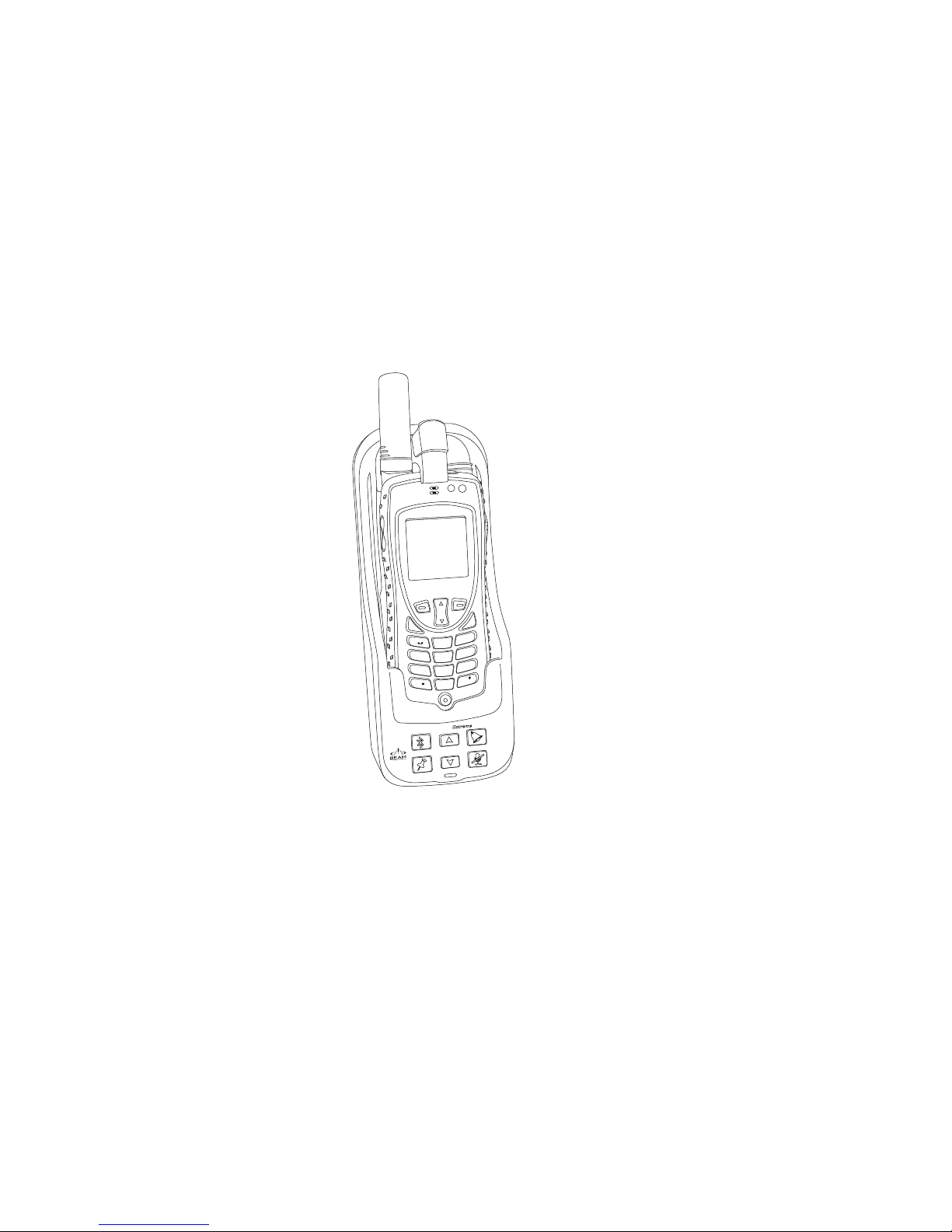

Beam DriveDOCKExtreme Instruction Manual

!"#$%&&%$'(")*)+#,-).%"/%&
Suitable for the Iridium Extreme
Portable Satellite Telephone
!
"
#
!
$
%
&
'
(
!
)
*
+,-
./0 123
456
789: ;<=
"
#
>?@A
!
+
BCD
!"#$%!&'()*+,"%-%
PRESS
!"#$%!&'(01$-,2,
)))*+%,-./--01#.,2#/13*./-
45667!%3#81%97,197-,10:,.20"%97+;7
<=>?7'/--01#.,2#/137@2;7A29

2
304.)5-'6,5789)01$-,2,)
!"#$%&&%$'(")%":)+#,-).%"/%&
Product name: DriveDOCK Extreme
Manual revision: 01
Part Number: USRMAN007101
Release date: December 2011
BEAM Communications Pty Ltd
8 Anzed Court, Mulgrave,
Victoria, 3170, AUSTRALIA
Information furnished by BEAM Communications Pty Ltd (BEAM is
believed to be accurate and reliable. However, no responsibility is assumed
by BEAM for its use, or for any infringement of patents or other rights
of third parties, which may result from its use. No license is granted by
implication or otherwise under any patent or patent rights of BEAM. BEAM
reserves the right to change specications at any time without notice.
Copyright © 2011 BEAM Communications Pty Ltd. All rights reserved
User Information
Please record your serial number here for future reference:
Model: EXTRMDD
Serial no.: SD7!!!!!
This number can be copied from the white label on the
DriveDOCK Extreme Eg. SD700001

3
304.)8(22/"';%$'("#
BEAM Communications, a wholly owned subsidiary of World Reach
Limited (WRR), listed on the Australian Stock Exchange, is a world leader
in design, manufacture and distribution of specialized communications
equipment for the Iridium Satellite Network.
BEAM’s commitment to be at the forefront has continued to increase
its share of the global satellite communications market. Its premium
distribution network spans the world.
Recognized as a leading provider of satellite communication solutions,
BEAM specializes in Voice, Data, Tracking and customized solutions.
BEAM develops innovative products and services to meet market
demands and niche applications.
BEAM’s leading edge products are deployed in a wide range of markets
including Maritime, Transport, Government, Defence, Mining, Construction,
Forestry, Emergency Services, Relief Aid, Telemetry and Rural Telephony.
Supported by a dedicated team of professionals, BEAM has developed
solid relationships with its peers and network of distributors worldwide.
BEAM Communications Pty Ltd
8 Anzed Court, Mulgrave,
Victoria, 3170, AUSTRALIA
Web: www.beamcommunications.com
Info: [e-mail]
Support: [e-mail]
Tel: [phone]
Fax: [phone]

4
8("$,"$#
BEAM Communications 3
Conventions in this Manual 5
Terminology 6
Package Contents 7
Safety Information 9
About this equipment 14
Installation Guidelines 18
DriveDOCK Extreme Usage 31
Data Communications 50
Assuring Quality of Iridium Service 55
Specication Summary 57
Trouble Shooting 61
BEAM Warranty Conditions 63

5
8("6,"$'("#)'")$<'#).%"/%&
Warnings, cautions and notes appear throughout this manual and are
represented by following conventions.
WARNING / CAUTION:
This symbol and associated text indicate a warning note providing
information to prevent damage to equipment or personal injury.
NOTE / IMPORTANT / TIP:
This symbol and associated text indicate a note providing general
operating information.
INTERFERENCE:
All wireless phones may get interference, which could aect
performance
RECORD:
Write details of your unit for easy reference when required. Ideal
when troubleshooting.

6
=,-2'"(&(>?
TERM DESCRIPTION
Eagle Extreme Docks Conguration Tool - MS Windows
Install
GPS Global Positioning System
HF Hands-free
DPL Digital Peripheral Line
SMS Short Message Service
SBD Short Burst Data
Mobile Originating Describes a call initiated by the DriveDOCK
Extreme
Mobile Terminating Describes an incoming call being answered by
the DriveDOCK Extreme
Extreme The Iridium Extreme Satellite Telephone
!The !"symbol, mark and logos are owned
by the respective companies of which the
symbol follows. Any use of such marks by
BEAM Communications is under license. Other
trademarks and trade names are those of their
respective owners.
RF Radio Frequencies
AT Attention command
SMA SubMiniature version A co-axial RF connection

7
@%;A%>,)8("$,"$#
Check that your DriveDOCK Extreme package contains:
!1 x DriveDOCK Extreme Docking Cradle
!1 x Microphone
!1 x Speaker
!1 x DC Power Cable / Fuse Kit
!1 x RAM Bracket
!3 x M4 Screw Set
!User Manual
!Quick Start Guide
!MyBuddy Card
Optional Accessories
The following optional accessories are available for your DriveDOCK
Extreme
• BEAM Privacy Handset Kit (RST755EX)
• WHIP Antenna (RST714)
• Mag Mount Antenna (RST715)
• Bolt Mount antenna (RST720)
• Dual Mode Patch Antenna (RST703)
• Dual Mode Mag Antenna (RST705)
• Cable kits (no need to list all the cables available)
• Emergency Push Button / Cable (RST410)
• Intelligent Handset (RST970)
• Cable kits
See your service provider for pricing and availability of the above
quality BEAM accessories.

8
Additional Information
For the latest in supporting software and documentation for DriveDOCK
Extreme please visit: www.beamcommunications.com/support
Data
To use data on the DriveDOCK Extreme, the specic BEAM USB driver must
be downloaded from the above link and installed on the PC connected to the
DriveDOCK.
Alert Loop
To congure the alert loop (remote distress button) functionality on your
DriveDOCK Extreme, you must rst install the Eagle Conguration Tool
software, which also includes the specic BEAM USB drivers.
Other resources available online
• Advanced Conguration – inbuilt to Eagle
• Quick Start Guide & Manual
• Iridium Direct Internet
• Antenna Installation Guide
• AT Command Set
• Iridium Extreme Firmware Upgrade if required

9
B%C,$?)!"C(-2%$'("
IMPORTANT!
Please read the following information carefully before installing
and using the BEAM DriveDOCK Extreme. Failing to follow instruc-
tions may compromise the safety of the product and may result
in personal injury and/or equipment damage. Please consult your
supplier if you have any further questions.
WARNING:
DO NOT open equipment. There are no user-serviceable parts inside.
If a DC power supply is to be used, its output must comply with the
Safety Extra Low Voltage (SELV) requirements of IEC60950.
All connectors must only be connected to equipment ports
which comply with the Safety Extra Low Voltage (SELV)
requirements of IEC60950.

10
WARNING: POTENTIALLY EXPLOSIVE ATMOSPHERES
• Turn your phone OFF and DO NOT remove your battery or
remove the Extreme handset from the cradle when you are in
any area with a potentially explosive atmosphere.
• Obey all signs and instructions.
• Sparks from your battery in such areas could cause an
explosion or re resulting in bodily injury or even death.
• Areas with a potentially explosive atmosphere are often but
not always clearly marked. They include, but are not limited to:
»fuelling areas such as gasoline stations
»below deck on boats;
»fuel or chemical transfer or storage facilities;
»areas where fuel odors are present (for example, if a gas/
propane leak occurs in a car or home);
»areas where the air contains chemicals or particles, such
as grain, dust, or metal powders;
»any other area where you normally would be advised to
turn o your vehicle engine.
Safety – Iridium Transceiver Extreme
Your Extreme handset is a low power radio transmitter and receiver. When
it is ON, it receives and also sends out radio frequency (RF) signals. (NOTE:
Refer to Iridium Extreme Phone Manual for additional Information)
• The Iridium Extreme handset has a transceiver which is designed to
be used with an external antenna. This antenna transmits RF energy.
The Iridium antenna (tted via an extension coaxial cable to the
cradle) must be located more than > 0.3 meters (1 foot) from human
body (person) when in operation.
• International agencies have set standards and recommendations for
the protection of public exposure to RF electromagnetic energy.
◊ International Commission on Non-Ionizing Radiation
◊ Protection (ICNIRP) 1996
◊ Verband Deutscher Elektrotechniker (VDE) DIN-0848
◊ United States Federal Commission, Radio Frequency
Exposure Guidelines (1996)

11
◊ National Radiological Protection Board of the United
Kingdom, GS 11, 1988
◊ American National Standards Institute
(ANSI) IEEE. C95. 1-1992
These standards are based on extensive scientific review by scientists,
engineers, and physicians from universities, government health
agencies, and industry groups. They review the available body of
research to develop ANSI standard. These ANSI standards are reviewed
regularly for research development.
• Do not operate your satellite telephone when a person is within 1
foot (30 centimeters) of the antenna. A person or object within 1 foot
(30 centimeters) of the antenna could impair call quality and may
cause the phone to operate at a higher power level than necessary
and expose that person to RF energy in excess of that established by
the international standards detailed above.
• As a precaution, please maintain the maximum body distance
possible from the antenna during call transmission.
WARNING: ROAD SAFETY COMES FIRST!
Do not use a hand-held cellular terminal, satellite phone or mobile
when driving a vehicle, unless it is securely mounted in a holder for
speaker phone operation. Before making a call with a handheld
terminal, satellite phone or mobile, park the vehicle stationary.
Please obey local road laws for hands-free speakerphone operation.
Speakerphones (hands-free) must be installed by qualied personnel.
Faulty installation or operation can constitute a safety hazard.
IMPORTANT!
Cellular & Satellite terminals or mobiles operate using radio signals
and communication networks. Because of this, the connection
cannot be guaranteed at all times or under all conditions. Therefore,
you should never rely solely upon any wireless device for essential
communications, for example emergency calls.

12
Electronic Devices
Most modern electronic equipment is shielded from RF signals. Certain
equipment may not be shielded against the RF signals from your phone.
Pacemakers
The Health Industry Manufacturers Association recommends that a
minimum separation of six inches (6”) be maintained between a wireless
phone’s antenna and a pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent with the independent
research by and recommendations of Wireless Technology Research.
Persons with pacemakers:
• Should ALWAYS keep the phone more than six inches from their
pacemaker when phone is turned ON
• Should not carry the phone in a breast pocket.
• Should use the ear opposite the pacemaker to minimize the
potential for interference.
• Should turn the phone OFF immediately if there is any reason to
suspect interference is taking place
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your
device to determine if it is adequately shielded from external RF energy. Your
physician may be able to assist you in obtaining this information.
Turn your phone OFF in health care facilities when any regulations posted
in these areas instruct you to do so. Hospitals or health care facilities may
be using equipment that could be sensitive to external RF energy.
Vehicles
RF signals may aect improperly installed or inadequately shielded
electronic systems in motor vehicles. Check with the manufacturer or
its representative regarding your vehicle. You should also consult the
manufacturer of any equipment that has been added to your vehicle.
Performance of electronically controlled brake and/or guidance systems

13
can, under certain unique conditions, be subject to interference by mobile
radio operation. Although the transceiver exceeds all requirements
regarding RF emissions, you should mount the transceiver as far as
possible from the guidance system and/or braking modulator box (usually
located in the trunk) to minimize any interference.
For Vehicles Equipped with an Air Bag
An air bag inates with great force.
Do NOT place objects, including both installed and portable wireless
equipment, in the area over the air bag or in the air bag deployment area.
If in-vehicle wireless equipment is improperly installed and the air bag
inates, serious injury could result.
Posted Facilities
Turn your phone OFF in any facility where posted notices require such as
hospitals and on-board aircraft.
Aircraft
Airline regulations prohibit using your phone while in the air. Consult the local
Aviation Authority for guidelines on use of the equipment on board an aircraft.

14
4D(/$)$<'#),E/'F2,"$
DriveDOCK Extreme Key Features
DriveDOCK Extreme CRADLE
• Securely holds Extreme handset
• Robust design and construction
• Charges Extreme handset battery ready for use
• Integrated antenna connection; Iridium and GPS
• Integrated USB connectivity
HANDSFREE MODE
• In-built echo cancelling
• Full duplex technology
• Superior voice quality
TRACKING
• Triggering of Quick GPS
• Interfaces to BEAM’s MyBuddy Extreme
PANIC/ALERTS
• Option of additional wired alert buttons
• Interfaces to BEAM’s MyBuddy Extreme
• Supports Iridium Extreme SOS
INTEGRATED BLUETOOTH®
• Bluetooth® in-built in cradle
• Supports Bluetooth® voice connection
IN-BUILT RINGER
• In-built ringer for enhanced ring indication
VOICE, DATA, SMS, SBD
• Supports all Iridium voice, data, SMS & SBD services
PRIVACY HANDSET (Optional)
• Supports optional BEAM privacy handset
• Auto answer when taken out of cup
• Switches between handset and handsfree modes
INTELLIGENT HANDSET (Optional)
• Supports optional Intelligent handset

15
INSTALLATION
• Supports 9 - 32V DC power input
• Installation via universal mount, also suitable for wall mounting
• Antenna, mic and speaker installed in a convenient location
QUALITY
• 2 year replacement guarantee for peace of mind
• 100% factory tested
• Fully certied, Iridium, RoHS, CE, AS/EN60950
DriveDOCK Extreme is an intelligent compact docking station specically
designed for the Iridium Extreme satellite handset.
DriveDOCK Extreme allows the Extreme handset to be used in a vehicle, enabling
quality hands-free calls with echo cancellation and noise reduction support.
DriveDOCK Extreme has an in-built Bluetooth® for voice connectivity.
The DriveDOCK Extreme supports tracking, for periodic location messages
or SOS alert reporting as congured via the Iridium Extreme handset.
!
"
#
!
$
%
&
'
(
!
)
*
+,-
./0 123
456
789: ;<=
"
#
>?@A
!
+
BCD
!"#$% !&'() *+,"% -%
PRESS

16
Tracking / Alert Monitoring
The DriveDOCK Extreme utilizes the Iridium Extreme’s tracking and
emergency notication functions. The Track button is enabled (factory
default setting). The Alert Loop (wires to an emergency distress button) is
disabled, and requires Eagle Conguration Tool to enable it.
Tracking
When the Track button is pressed it initiates a Quick GPS message in the
Iridium Extreme handset.
The Track button can be enabled or disabled by holding the track button
for 5 seconds. the Track button is enabled when Track LED is solid GREEN.
Pressing the Track button (when enabled) then initiates a command for the
Iridium Extreme Handset to send a Quick GPS message. Please ensure that
the Quick GPS settings in the handset are correct before using this feature.
Alert
The DriveDOCK Extreme will trigger the emergency SOS function of the
Iridium Extreme handset when there is a break (OPEN) in the alert loop wires.
Please ensure that the SOS settings in the handset are correct before using
this feature.
MyBuddy Extreme Web Portal
MyBuddy Extreme is BEAM’s own global web based alert, monitoring and
tracking application, which enables you to track, trace and monitor your asset
anywhere, for a small monthly fee through a simple-to-use web portal.
For more information about MyBuddy Extreme please visit
www.mybuddyextreme.com

17

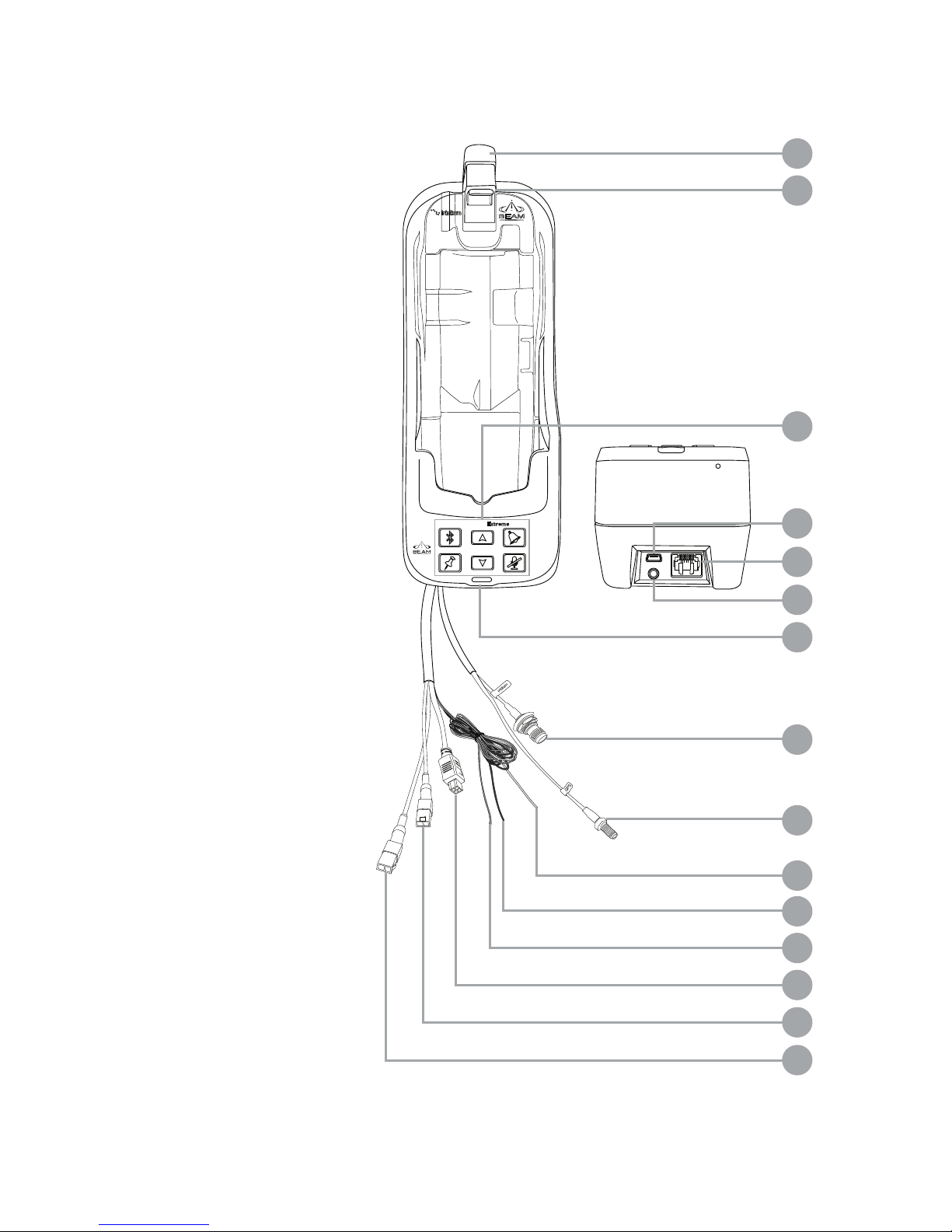

Equipment Overview
1. Latch button
2. Latch
3. Feature buttons
4. Mini-USB port
5. Intelligent
handset port
6. Privacy handset
7. Status LED
8. Iridium connector
9. GPS connector
10. Horn alert (BLUE)
11. Alert loop IN
(BROWN)
12. Alert loop OUT
(GREEN)
13. Input Power
(4-way microt)
14. Speaker connector
15. Mic Connector
GREEN
BROWN
BLUE
!"#$%!& '( )* +, "%-%
PRESS
!
"
#
$
%
&
'
(
)
!*
!!
!"
!#
!$
!%

18
!"#$%&&%$'(")G/':,&'",#
This guide outlines the process for installing the BEAM DriveDOCK Extreme
in conjunction with an Iridium Extreme portable handset.
This kit must only be used with the Iridium Extreme handset.
• Only qualied personnel should install communication
equipment. If necessary, contact the vehicle manufacturer for air
bag information specic to the vehicle.
• Ensure that the Dock is protected from dirt and moisture.
• Select an area to mount components that do not interfere with
driver or passengers seating or leg space.
• Mount all components securely to prevent shifting that could
cause injury or could interfere with safe vehicle operation. Always
use the supplied mounting hardware.
• Leave space around the units to allow airow and ensure there are
adequate clearance for cables.
• Ensure the handset can be easily reached for normal operation.
Routing Cables (for vehicle installations)
If your vehicle is equipped with wiring troughs in the doorsills, use them to
simplify cable installation and to provide maximum protection for the cables.
If wiring troughs are not available, route cables according to these guidelines:
• Route cables so they are protected from pinching, sharp edges,
and crushing to prevent damage to the cables and docking unit.
WARNING:
Air bags inate with great force. DO NOT place objects, including
communication equipment, in the area over the air bag or in the air
bag deployment area. If the communication equipment is improperly
installed and the air bag inates, serious injury could result.
• Where possible, avoid routing cables above the catalytic converter
• Use grommets wherever a cable must pass through a hole in a
metal panel to avoid damaging the cable.

19
• In a vehicle equipped with electronically controlled anti-skid brakes,
route all cables on the opposite side of the vehicle from the braking
modulator box to minimize possible interference from the phone.
• Keep all in-line connectors accessible.
• The suggested path for routing cables in vehicles without wiring
troughs is alongside the drive shaft tunnel, under the carpet.
Guidelines for Electrical Connections
The system is designed to operate in negative ground 9 to 32
Volt DC electrical systems only. IF using the DC cable:
• The best power connection point for the positive primary power
wire (RED) is the positive terminal of the vehicle battery. Often,
direct connection to the battery is inconvenient, and you may
nd it easier to connect the positive wire to the starter solenoid.
Always select a point as close as possible to the battery.
• Connect the (BLACK) negative power wire to a good ground point
on the vehicle chassis or at the battery. If you must attach the
negative primary power wire directly to the negative pole of the
battery, you may optionally insert a 10-amp fuse (not included)
into the ground (0V) line. Failure to insert a fuse can cause
equipment to overheat IF a wiring fault exists.
• Many parts of a vehicle can produce electrical noise that interferes
with the electrical radio system operation. The ignition system
is the most common source of electrical noise interference.
Before you begin installation, ensure that the ignition wiring and
connections to the vehicle battery are in good working condition.
• Verify that low resistance connections are present between the
battery negative terminal, the vehicle chassis, and the engine
block. All wire connections should be clean and tight.
At 13.6 volts, the DriveDOCK Extreme cradle draws a maximum of 2Amp
current. Please ensure that the vehicle’s battery and alternator have sucient
current capacity to deliver at least 1 amp more than the maximum current that
may be required by the vehicle and its other accessories.

20
WARNING:
Do not connect the DriveDOCK Extreme interface power cable
to power the unit until the full installation is completed.
Installation Procedure
Installing the DriveDOCK Extreme Cradle
Install the components in the following order. More detailed instructions
can be found in the sections following.
1. Mount the DriveDOCK Extreme cradle
2. a) Install the external Iridium Antenna Connection and/or
b) Install the GPS Antenna Connection (optional)
3. Connect the speaker and microphone
4. Install the external alert button (optional)
5. Connect the privacy handset (ordered as extra option)
6. Connect the Intelligent handset (ordered as extra option)
7. Connect the DC power cable to the DriveDOCK Extreme
8. Congure Horn Output / Audio system Mute (optional)
9. Congure Bluetooth® (optional)
10. Congure Tracking / Alert (optional)
When selecting a location for the DriveDOCK Extreme, consider these
guidelines:
• Ensure the mounting surface is strong enough to support the cradle.
• Allow enough room so that you can easily insert the Extreme
handset into and remove it from the cradle.
• Ensure that the DriveDOCK Extreme is within cable distance of
power and antenna connections
• Position the handset and cables so that it does not interfere with
the vehicles operation or the occupants (driver or passenger) leg
space or seating position.
• Ensure sucient room is allowed for the antenna and interface
cables to be routed from the rear of the DriveDOCK Extreme.
