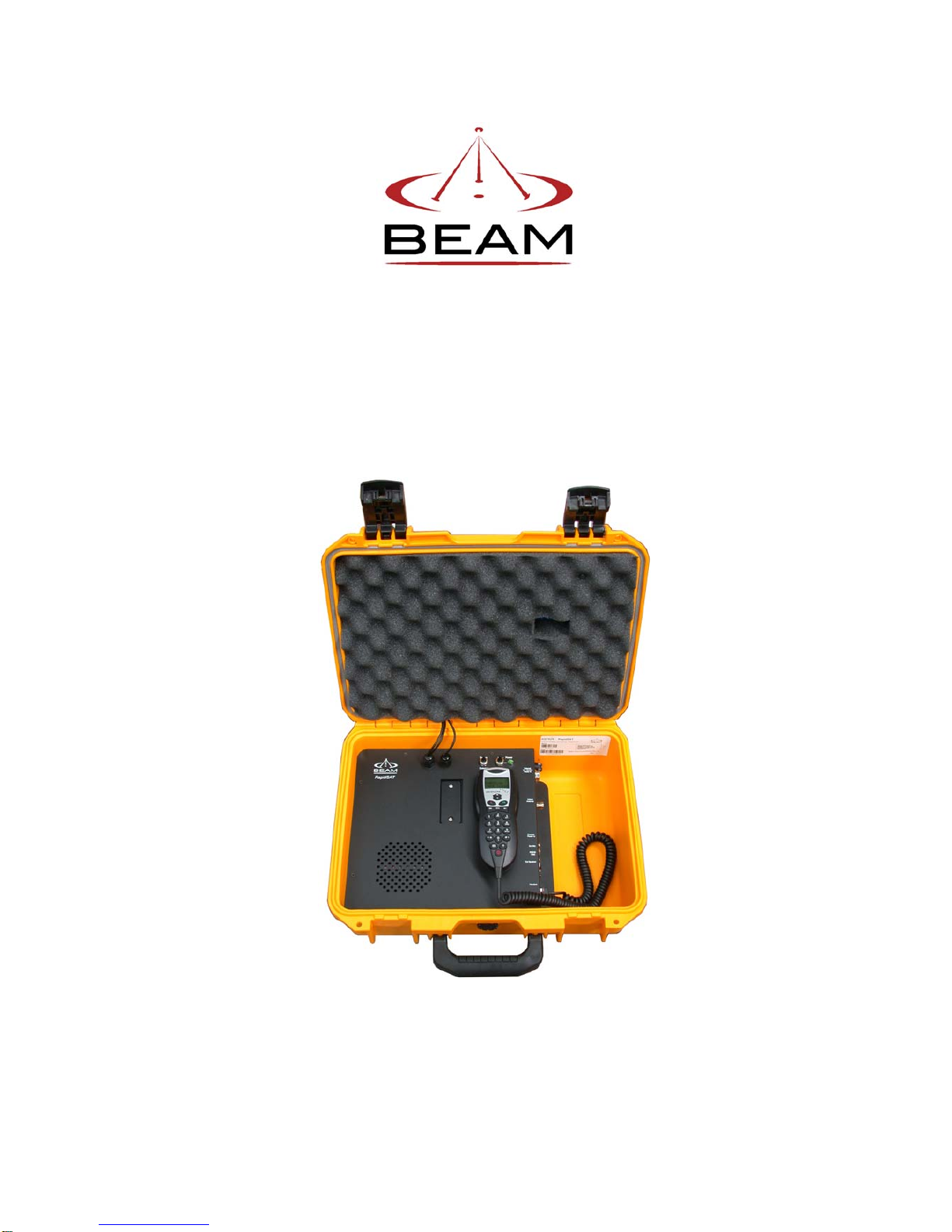

Beam RST625 Instruction Manual

RST625
RapidSAT
Hands-free Telephone
Installation & User Manual
Beam Communications Pty Ltd

RST625 INSTALLATION & USER MANUAL REV 03
2
RapidSAT
Handsfree Telephone
RST625
Installation & User Manual
Beam Communications Pty Ltd
Information furnished by Beam Communications Pty Ltd (Beam) is believed to be accurate and reliable. However, no
responsibility is assumed by Beam for its use, or for any infringement of patents or other rights of third parties which may
result from its use. No licence is granted by implication or otherwise under any patent or patent rights of Beam.
Beam reserves the right to change specifications at any time without notice.
Copyright © 2007 Beam Communications Pty Ltd. All rights reserved
8 Anzed Court, Mulgrave, Victoria, 3170, AUSTRALIA
Product name: RST625 Installation & User Manual
Manual Rev: 03
Part Number: USRMAN002203
Release date: Feb 2007

RST625 INSTALLATION & USER MANUAL REV 03
3
SAFETY INFORMATION
IMPORTANT! Please read the following information carefully before
installing and using your Beam RapidSAT Handsfree Phone. Failing
to follow instructions may compromise the safety of the product and
may result in personal injury and/or equipment damage. Please
consult your supplier if you have any further questions.
DC Fused
The RST625 case has a 2A M205 fuse for short circuit safety. Please replace
with 2A rated fuse if required.
Battery
The RapidSAT Portable system contains a Li-polymer battery unit with high energy
density. Do not disassemble, puncture, throw, drop, crush, bend, or modify this
battery unit. Do not charge the battery while on an airplane.
Exposure to Radio Frequency Signals
Your satellite system is a low power radio transmitter and receiver. When it is ON,
it receives and also sends out radio frequency (RF) signals.
International agencies have set standards and recommendations for the
protection of public exposure to RF electromagnetic energy.
•International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996
•Verband Deutscher Elektrotechniker (VDE) DIN-0848
•United States Federal Commission, Radio Frequency Exposure Guidelines (1996)
•National Radiological Protection Board of the United Kingdom, GS 11, 1988
•American National Standards Institute (ANSI) IEEE. C95. 1-1992
These standards are based on extensive scientific review. For example, over 120
scientists, engineers, and physicians from universities, government health
agencies, and industry reviewed the available body of research to develop the
updated ANSI standard.
As a precaution, please maintain maximum body distance as possible from the
antenna during call transmission.
Antenna Care
Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could damage the phone and may violate
local agency regulations. Please refer to your Service Provider for further
information.
Phone Operation
Do not operate your satellite telephone when a person is within 4 inches (10
centimeters) of the antenna. A person or object within 4 inches (10 centimeters) of
the antenna could impair call quality and may cause the phone to operate at a
higher power level than necessary and expose that person to RF energy in excess
of that established by the FCC RF Exposure Guidelines.

RST625 INSTALLATION & USER MANUAL REV 03
4
Electronic Devices
Most modern electronic equipment is shielded from RF signals. However, certain
equipment may not be shielded against the RF signals from your satellite phone.
Please take all reasonable precautions to reduce possible interference.
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum
separation of six inches (6") be maintained between a wireless phone’s antenna
and a pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and
recommendations of Wireless Technology Research.
Persons with pacemakers:
•Should ALWAYS keep the phone more than six inches from their pacemaker
when phone is turned ON
•Should turn the phone OFF immediately if you have any reason to suspect
interference is taking place
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your
device to determine if it is adequately shielded from external RF energy. Your
physician may be able to assist you in obtaining this information.
Aircraft
Consult the local Aviation Authority for guidelines on use of the equipment on
board an aircraft.
Potentially Explosive Atmospheres
Areas with a potentially explosive atmosphere are often but not always clearly
marked. Possible sparks from the system plugs / sockets (when plugging in whilst
switch is on) in such areas could cause an explosion or fire resulting in bodily injury
or even death. They include, but are not limited to: fueling areas such as gasoline
stations; below deck on boats; fuel or chemical transfer or storage facilities; areas
where fuel odors are present (for example, if a gas/propane leak occurs in a car or
home); areas where the air contains chemicals or particles, such as grain, dust, or
metal powders; and any other area where you normally would be advised to turn off
your vehicle engine.

RST625 INSTALLATION & USER MANUAL REV 03
5
TABLE OF CONTENTS
SAFETY INFORMATION...........................................................3
DC FUSED---------------------------------------------------------------------------------------------- 3
BATTERY------------------------------------------------------------------------------------------------ 3
EXPOSURE TO RADIO FREQUENCY SIGNALS------------------------------------------------------ 3
ANTENNA CARE --------------------------------------------------------------------------------------- 3
PHONE OPERATION ----------------------------------------------------------------------------------- 3
ELECTRONIC DEVICES-------------------------------------------------------------------------------- 4
PACEMAKERS ------------------------------------------------------------------------------------------ 4
OTHER MEDICAL DEVICES--------------------------------------------------------------------------- 4
AIRCRAFT----------------------------------------------------------------------------------------------- 4
POTENTIALLY EXPLOSIVE ATMOSPHERES--------------------------------------------------------- 4
TABLE OF CONTENTS.............................................................5
INTRODUCTION........................................................................8
FEATURES---------------------------------------------------------------------------------------------- 8
PRODUCT CONTENTS--------------------------------------------------------------------------------- 9
INSTALLATION BLOCK DIAGRAM.......................................10

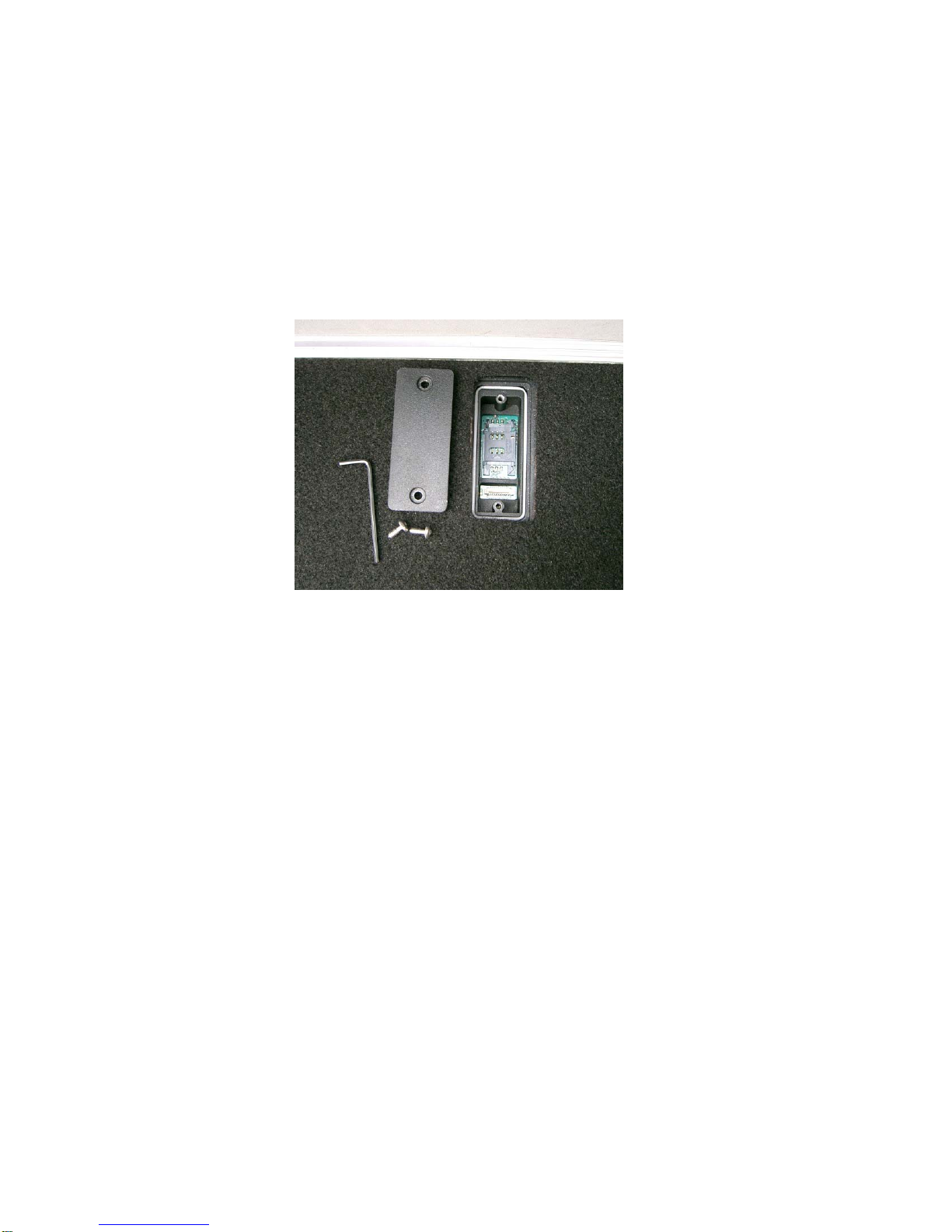

INSTALLING THE SIM CARD-------------------------------------------------------------------------11
ANTENNA INSTALLATION ....................................................12
PLANNING THE ANTENNA INSTALLATION ----------------------------------------------------------12
INSTALLING THE ANTENNA CABLE -----------------------------------------------------------------12
OPERATION OF THE RST625................................................13
USE OF HANDSFREE AND HANDSET---------------------------------------------------------------13
CHECKING PERFORMANCE AFTER INSTALLATION /MAKING CALLS---------------------------13
VOLUME ADJUSTMENT-------------------------------------------------------------------------------14
POWERING OFF---------------------------------------------------------------------------------------14
BATTERY CHARGING ---------------------------------------------------------------------------------15
ASSURING QUALITY OF IRIDIUM SERVICE........................16
OBSTRUCTIONS---------------------------------------------------------------------------------------16
RF INTERFERENCE-----------------------------------------------------------------------------------16
USING YOUR INTELLIGENT HANDSET................................17
POWER-ON MESSAGES -----------------------------------------------------------------------------17
PHONE OVERVIEW -----------------------------------------------------------------------------------18
VOLUME KEYS ----------------------------------------------------------------------------------------18
PLACING A CALL--------------------------------------------------------------------------------------18
MAKING AHANDS FREE CALL:---------------------------------------------------------------------18
MAKING APRIVATE CALL: --------------------------------------------------------------------------18
REFER TO YOUR SERVICE PROVIDER FOR CALLING INSTRUCTIONS: -------------------------19
AUTOMATIC REDIAL----------------------------------------------------------------------------------19
REDIAL LAST NUMBER CALLED --------------------------------------------------------------------19
INTERNATIONAL DIALING ----------------------------------------------------------------------------19
DIAL A NUMBER FROM THE PHONE BOOK --------------------------------------------------------19
EMERGENCY NUMBER DIALING --------------------------------------------------------------------20

RST625 INSTALLATION & USER MANUAL REV 03
6
CALL A NUMBER IN A MESSAGE--------------------------------------------------------------------20
ENDING A CALL ---------------------------------------------------------------------------------------20
RECEIVE A PHONE CALL ----------------------------------------------------------------------------20
RECEIVING APERSONAL CALL ON THE HANDSET: ----------------------------------------------20
UNANSWERED CALLS--------------------------------------------------------------------------------20
VOICEMAIL MAILBOX---------------------------------------------------------------------------------20
CHANGING FROM PRIVATE TO HEADSET ---------------------------------------------------------20
ADJUSTING EARPIECE VOLUME --------------------------------------------------------------------21
MUTING A CALL---------------------------------------------------------------------------------------21
USING THE HANDSET MENUS .............................................21
NAVIGATE THE OPTIONS MENUS-------------------------------------------------------------------22
USING THE QUICK ACCESS MENU -----------------------------------------------------------------22
ACTIVATE THE FEATURE DIRECTLY----------------------------------------------------------------22
DEFAULT QUICK ACCESS SETTINGS --------------------------------------------------------------23
USING THE IN-CALL MENU--------------------------------------------------------------------------23
MANAGING THE PHONE BOOK............................................23
ENTERING THE PHONE BOOK MENU --------------------------------------------------------------24
ORGANIZING YOUR PHONE BOOK -----------------------------------------------------------------24
STORING NAMES AND NUMBERS.......................................25
ADD AN ENTRY ---------------------------------------------------------------------------------------25
ENTERING NAMES------------------------------------------------------------------------------------25
CORRECT AN ENTRY---------------------------------------------------------------------------------25
CALLING,MODIFYING,OR ERASING AN ENTRY --------------------------------------------------25
CALL A SELECTED ENTRY---------------------------------------------------------------------------25
MODIFY A NAME OR NUMBER ----------------------------------------------------------------------26
ERASE A NAME AND NUMBER ----------------------------------------------------------------------26
STORING YOUR VOICEMAIL NUMBER--------------------------------------------------------------26
TEXT (SMS) MESSAGES........................................................26
HOW YOUR PHONE NOTIFIES YOU OF MESSAGES----------------------------------------------26
HOW MESSAGES ARE STORED --------------------------------------------------------------------27
WHAT MESSAGES CONTAIN ------------------------------------------------------------------------27
ACCESSING YOUR MESSAGES...-------------------------------------------------------------------27
READ A NEW MESSAGES NOTIFICATION MESSAGE---------------------------------------------27
TEXT MESSAGES -------------------------------------------------------------------------------------27
DELETE MESSAGES----------------------------------------------------------------------------------28
ACCESSING YOUR MESSAGES...-------------------------------------------------------------------28
GO TO THE NEXT MESSAGE ------------------------------------------------------------------------28
RETURN A CALL FROM NUMBER IN MESSAGE ----------------------------------------------------28
CUSTOMIZING PHONE FEATURES......................................29
ENTERING THE PHONE SETUP MENU -------------------------------------------------------------29
ADJUSTING THE RINGER VOLUME -----------------------------------------------------------------30
SETTING THE RINGER TONE------------------------------------------------------------------------30
GETTING TO PHONE SETUP...----------------------------------------------------------------------30
SETTING THE KEYPAD TONES ----------------------------------------------------------------------31
LOCKING AND UNLOCKING YOUR PHONE---------------------------------------------------------31
LOCK THE PHONE AUTOMATICALLY ---------------------------------------------------------------31

RST625 INSTALLATION & USER MANUAL REV 03
7
LOCK THE PHONE INSTANTLY ----------------------------------------------------------------------31
UNLOCK THE PHONE---------------------------------------------------------------------------------31
CHANGE THE UNLOCK CODE -----------------------------------------------------------------------32
GETTING TO REQUIRE SIM CARD PIN... ---------------------------------------------------------32
PROTECTING THE SIM CARD-----------------------------------------------------------------------32
ACTIVATE AND DEACTIVATE THE SIM CARD PIN CODE----------------------------------------32
GETTING TO REQUIRE SIM CARD PIN…---------------------------------------------------------33
CHANGE THE SIM CARD PIN CODE---------------------------------------------------------------33
UNBLOCK THE PIN CODE ---------------------------------------------------------------------------33
GETTING TO PHONE SETUP...----------------------------------------------------------------------33
SELECTING THE DISPLAY LANGUAGE -------------------------------------------------------------33
RESET OPTIONS TO FACTORY DEFAULTS........................34
CLEAR ALL STORED INFORMATION----------------------------------------------------------------34
ACCESSING THE NETWORK ................................................35
ENTERING THE NETWORK SELECTION MENU ----------------------------------------------------35
GETTING TO NETWORK SELECTION...-------------------------------------------------------------35
REGISTERING WITH THE SATELLITE NETWORK--------------------------------------------------35
SHOWING CALL TIMERS-----------------------------------------------------------------------------36
SHOW THE TIME OF THE LAST CALL---------------------------------------------------------------36
SHOW TOTAL TIME FOR ALL CALLS ---------------------------------------------------------------36
GETTING TO AUDIBLE CALL TIMERS... ------------------------------------------------------------36
GLOSSARY .............................................................................37
TECHNICAL SUPPORT ..........................................................39
BEAM WARRANTY CONDITIONS .........................................40
RST625 SPECIFICATION SUMMARY....................................41

RST625 INSTALLATION & USER MANUAL REV 03
8
Introduction
This guide outlines the details for installing the Beam RapidSAT Handsfree
telephone. This kit should not be used with any other device other than the
components supplied.
Features
The Beam RapidSAT Handsfree
Telephone allows for a quality portable
installation of a satellite phone
system, with a handset and handsfree
interface. It is designed specifically to
powered from a vehicles cigarette-
lighter socket, or from AC. It also
operates stand-alone powered by the
internal battery. The magnetic mount
antenna is simply installed in a
convenient location on the vehicle.
The handset is installed within the
case ready for use.
Handsfree compatibility
The case panel includes built in speaker and microphone which operates whenever
the handset is seated in its cup (cradle). The RST625 also has sockets to support
extended speaker and microphone (optional items).
Intelligent Handset Interface
The RST625 case uses the Beam Intelligent Handset, RST970. The handset
supports voice calls as well as utilizing the Iridium SMS service. The handset is
compact and includes an inbuilt ring alert. The handset also enables a private
conversation, when the handset is taken out of the cup (cradle).
Iridium Data Port
The RST625 case also offers an RS232 (via a DB9 connector) data port. The data
modem AT port is Hayes compatible, and enables up to 2400bps data transfer.
Key Features
♦Easy to carry, Lightweight “StormCase” enclosure
♦Convenient Handsfree Operation
♦Battery Backed – up to 9 hours talk, 12 hours standby
♦Supports Intelligent Handset
♦11-32V DC Power Input
♦100-264V AC Power Input (using supplied plug-pack / wall wort)
♦Iridium Satellite reliability and global coverage

RST625 INSTALLATION & USER MANUAL REV 03
9
Product Contents
The RST625 RapidSAT Case contains the following:
RST625 Integrated case system
RST970 Intelligent DPL Handset (with hang-up cup / cradle)
Iridium dome antenna (magnetic mount) with 5m cable
DC power cable to cirgarette lighter plug
AC/DC 45W power-pack (wall wort) for AC powering
AC/DC power-pack (wall wort) for Battery Charging
AC power cable IEC320 to Australian 3-pin
Socket wrench for SIM card panel access
RST625 User Manual
1 lightweight 60Whr Li-polymer battery bank (fitted to lid)
Extension cable kit for the Intelligent DPL Handset (2m)
Optional items:
8W Extension Speaker
Extension Microphone

RST625 INSTALLATION & USER MANUAL REV 03
10
Installation Block Diagram
The side panel connections are as follows:
External DC
Power Input
10 to 32VDC
Fuse
2A M205
Antenna
RS232
Data Port
(Iridium Data Access)
Optional
Extension
Speaker
Optional
Extension
Microphone
On/Off
Switch
Battery
Charger
Battery or
External
Powered
Switch
Internal
Speaker
