Beam RST600 User manual

Remote Satellite Data Module
RST600
Installation and
User Manual
Beam Communications Pty Ltd

RST600 INSTALLATION &USER MANUAL
RST600
Installation and
User Manual
Beam Communications Pty Ltd
5/8 Anzed Court, Mulgrave,
Victoria, 3170, AUSTRALIA
Information furnished by Beam Communications Pty Ltd (Beam) is believed to be accurate and
reliable. However, no responsibility is assumed by Beam for its use, or for any infringement of
patents or other rights of third parties, which may result from its use. No license is granted by
implication or otherwise under any patent or patent rights of Beam. Beam reserves the right to
change specifications at any time without notice.
Copyright © 2009 Beam Communications Pty Ltd. All rights reserved
Product name: RST600 Installation & User Manual
Manual revision: 06
Part Number USRMAN000706
Issue Date: May 2012
2

RST600 INSTALLATION &USER MANUAL
Contents
CONTENTS........................................................................................................................................................... 3
SAFETY INFORMATION.................................................................................................................................... 4
ABOUT BEAM COMMUNICATIONS...................................................................................................................... 5
CONVENTIONS IN THIS MANUAL.......................................................................................................................... 6
WHAT IS THE RST600?..................................................................................................................................... 7
PACKAGE CONTENTS.......................................................................................................................................... 8
OPTIONAL BEAM ACCESSORIES ......................................................................................................................... 8
RST600 INSTALLATION OVERVIEW.................................................................................................................... 9
INSTALLING THE RST600 ............................................................................................................................. 10
MOUNTING THE RST600................................................................................................................................ 11
CONNECTING THE ANTENNA CABLE ...................................................................................................... 12
CONNECTING THE POWER & DATA CABLES ........................................................................................ 14
SPECIFICATION SUMMARY.......................................................................................................................... 16
RS232 SPECIFICATION .................................................................................................................................. 17
PHYSICAL CONNECTION ................................................................................................................................... 17
RS232 PORT SIGNAL SUPPORT AND HANDSHAKING ...................................................................................... 17
RS232 PORT ELECTRICAL PARAMETERS........................................................................................................ 18
DATA CONNECTIVITY ........................................................................................................................................ 18
9522B PHYSICAL SPECIFICATIONS ........................................................................................................... 19
CONNECTOR SPECIFICATIONS ................................................................................................................. 21
MOUNTING BRACKET PHYSICAL SPECIFICATIONS............................................................................ 23
TROUBLESHOOTING THE RST600 ............................................................................................................. 24
3

RST600 INSTALLATION &USER MANUAL
Safety Information
Note:
Read the following information before installing and using the BEAM RST600. Failing
to follow instructions may compromise the safety of the product and may result in
personal injury and/or equipment damage. Please consult your supplier if you have
any further questions.
Your RST600 is a low power radio transmitter and receiver. When it is ON, it receives and sends out
radio frequency (RF) signals.
The design of your RST600 system complies with international safety standards.
Refer to the appropriate section of the RST600 User Manual for additional relevant safety information.
WARNING:
Do not open equipment. There are no user-serviceable parts inside.
If a DC power supply is to be used and connected to the DC leads, its output must
comply with the Safety Extra Low Voltage (SELV) requirements of IEC60950.
All connectors must only be connected to equipment ports which comply with the Safety
Extra Low Voltage (SELV) requirements of IEC60950.”
4

RST600 INSTALLATION &USER MANUAL
About BEAM Communications
Beam Communications, a wholly owned subsidiary of World Reach Limited (WRR), listed on the
Australian Stock Exchange, is a world leader in design, manufacture and distribution of specialized
communications equipment for the Iridium Satellite Network.
Beam’s commitment to be at the forefront has continued to increase its share of the global
satellite communications market. Its premium distribution network spans the world.
Recognized as a leading provider of satellite communication solutions, Beam specializes in Voice,
Data, Tracking and customized solutions. Beam develops innovative products and services to
meet market demands and niche applications.
Beam’s leading edge products are deployed in a wide range of vertical markets including
Maritime, Transport, Government, Defense, Mining, Construction, Forestry, Emergency Services,
Relief Aid, Telemetry and Rural Telephony.
Supported by a dedicated team of professionals, Beam has developed solid relationships with its
peers and network of distributors worldwide.
Beam Communications Pty Ltd
5/8 Anzed Court, Mulgrave,
Victoria, 3170, AUSTRALIA
Web: www.beamcommunications.com
Info: [e-mail]
Support: [e-mail]
Tel: [phone]
Fax: [phone]
5

RST600 INSTALLATION &USER MANUAL
Conventions in this Manual
Warnings, cautions and notes appear throughout this manual.
They are represented by following conventions.
WARNING:
This symbol and associated text indicate a warning note providing
information to prevent personal injury or damage to equipment.
Note:
This symbol and associated text indicate a note providing general operating
information.
Interference:
All wireless phones may get interference, which could affect performance.
Record:
Write details of your unit for easy reference when required. Ideal when
troubleshooting.
6

RST600 INSTALLATION &USER MANUAL
What is the RST600?
The RST600 uses the Iridium 9522B L-Band Transceiver Module as a dedicated Remote Satellite
data only module designed to provide a reliable and cost effective data service connection when a
wired connection is not available.
It does this by providing a standard interface to the Iridium network — a satellite-based, wireless
communications network that enables remote communication. The RST600 allows the connection of
standard data terminals and other telecommunications devices.
The RST600 from Beam Communications brings you all the convenience and ease of use of a Data
Service anywhere in the world using the Iridium Satellite system.
The data services available on the RST600 terminal include
•Circuit Switched Data
•Short Message Service (SMS)
•Short Burst Data (SBD)
7

RST600 INSTALLATION &USER MANUAL

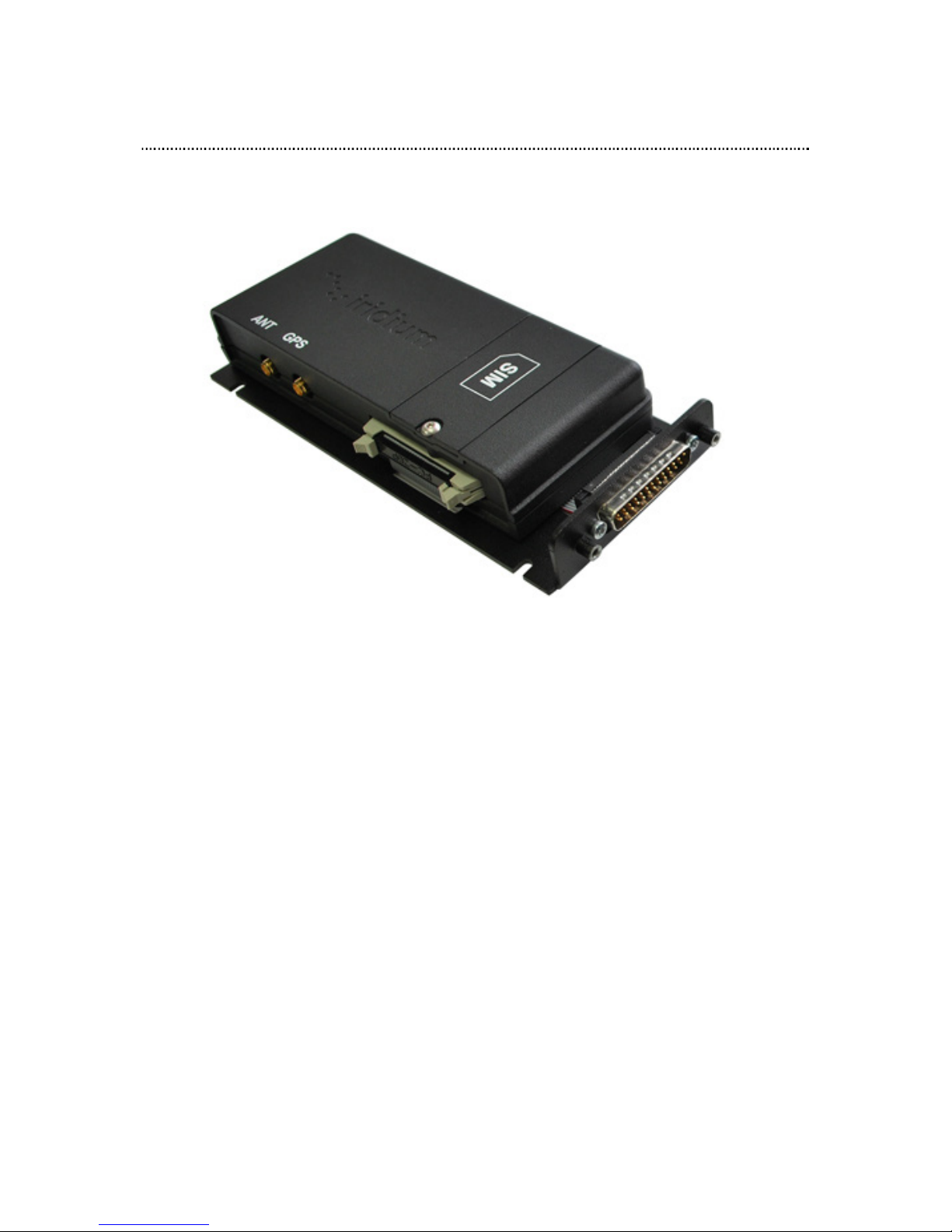

Package Contents

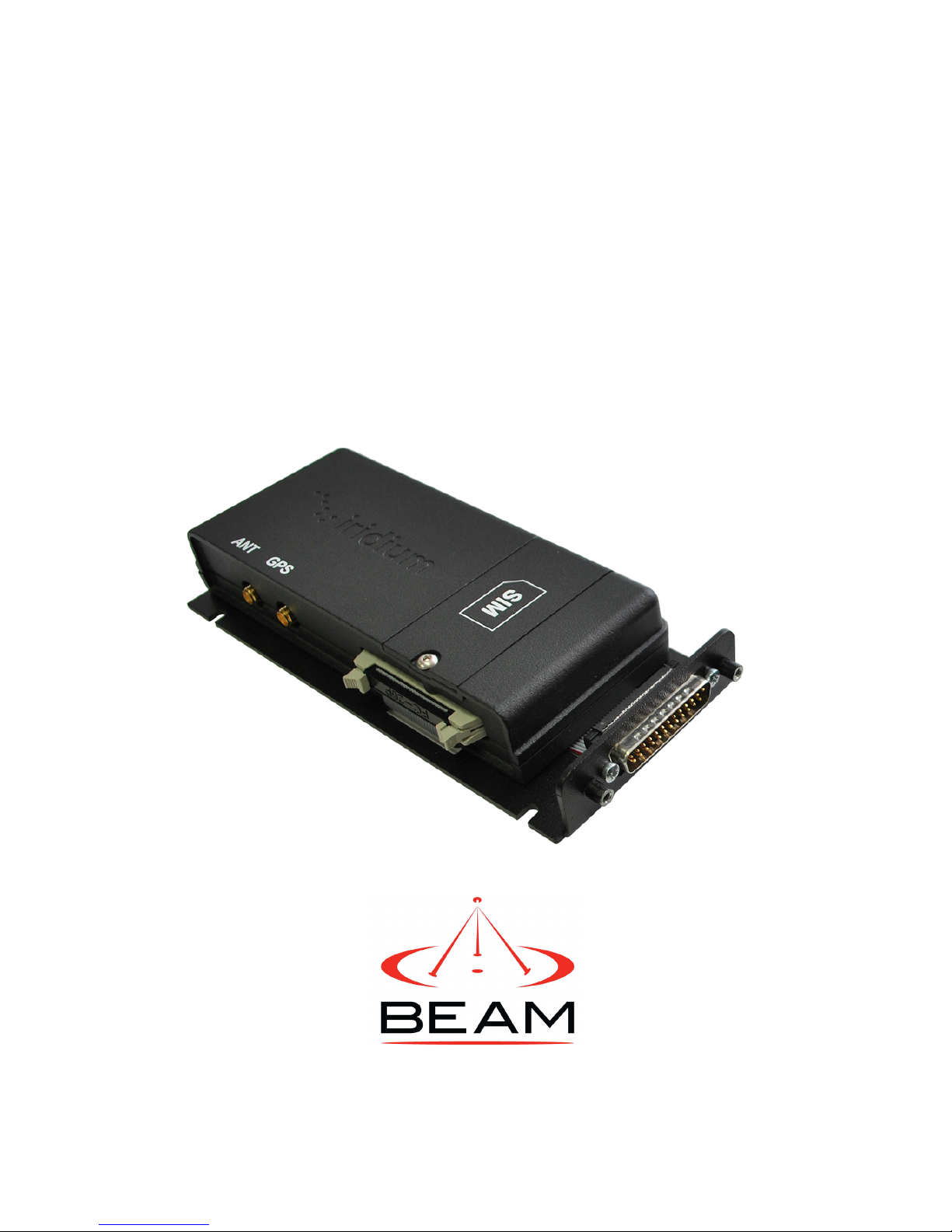

1 x 9522B Iridium Transceiver
1 x Mounting Bracket (base plate) with mounting holes & D25 Connection
1 x Data & Power Interface cable assembly to support D25 Connection
1 x Data & Power Interface cable for use in a compact installation

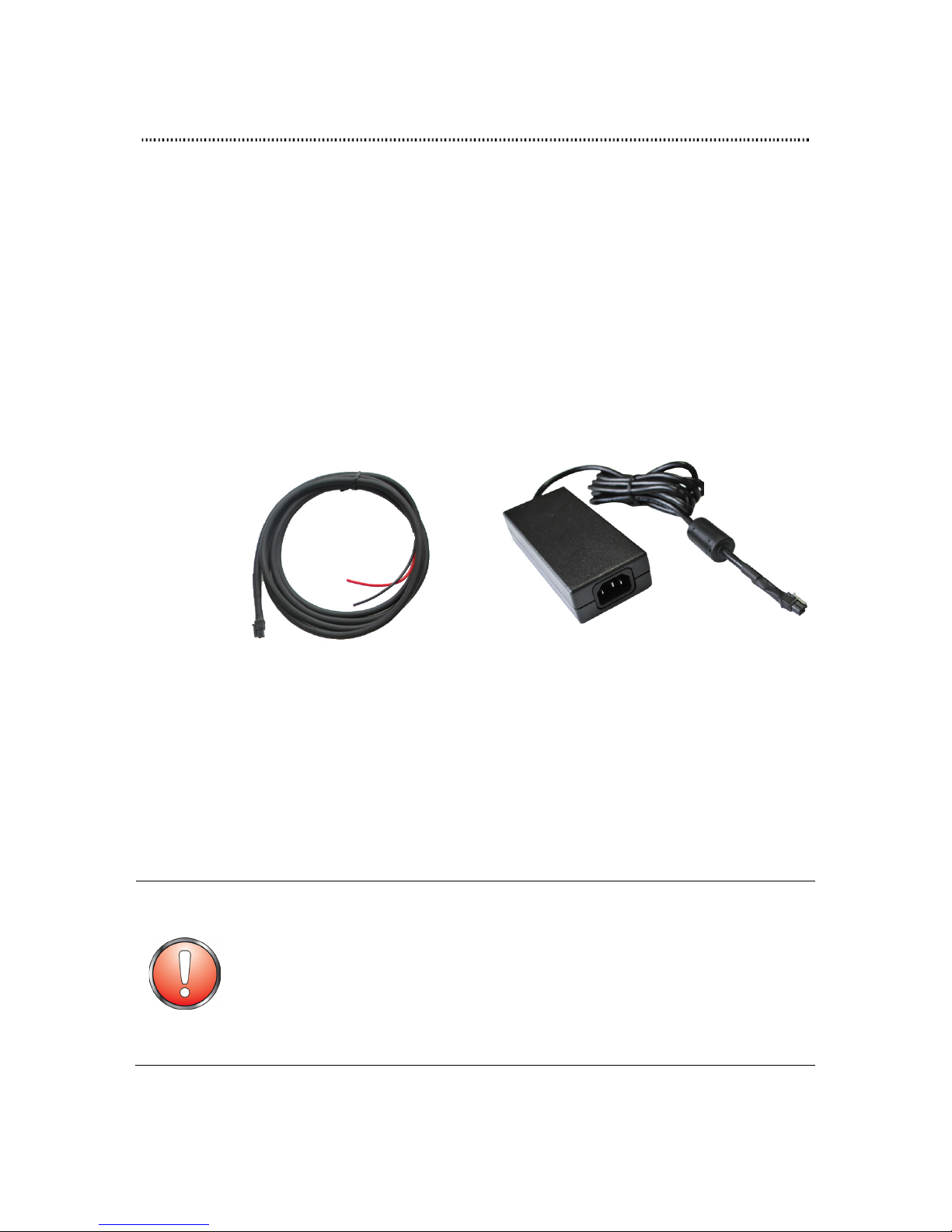

1 x DC Power Cable
1 x User manual in hard copy
1 x Beam Starter CD including AT command set
1 x AC Mains / 12VDC Plug Pack
Optional Beam Accessories
RST710 Fixed Mast Antenna
RST715 Magnetic Mount Antenna
RST720 Bolt Mount Antenna
RST985 Serial to USB Converter Cable
See your Service Provider for pricing and availability of these optional accessories
Note:
The RST600 is supplied with the ability use a fixed mounting plate with the supplied D25
connector for serial data and power or alternatively for a compact installation the
transceiver can be installed on its own using the supplied compact cable.
Standard
Install
Compact
Install
OR
8

RST600 INSTALLATION &USER MANUAL

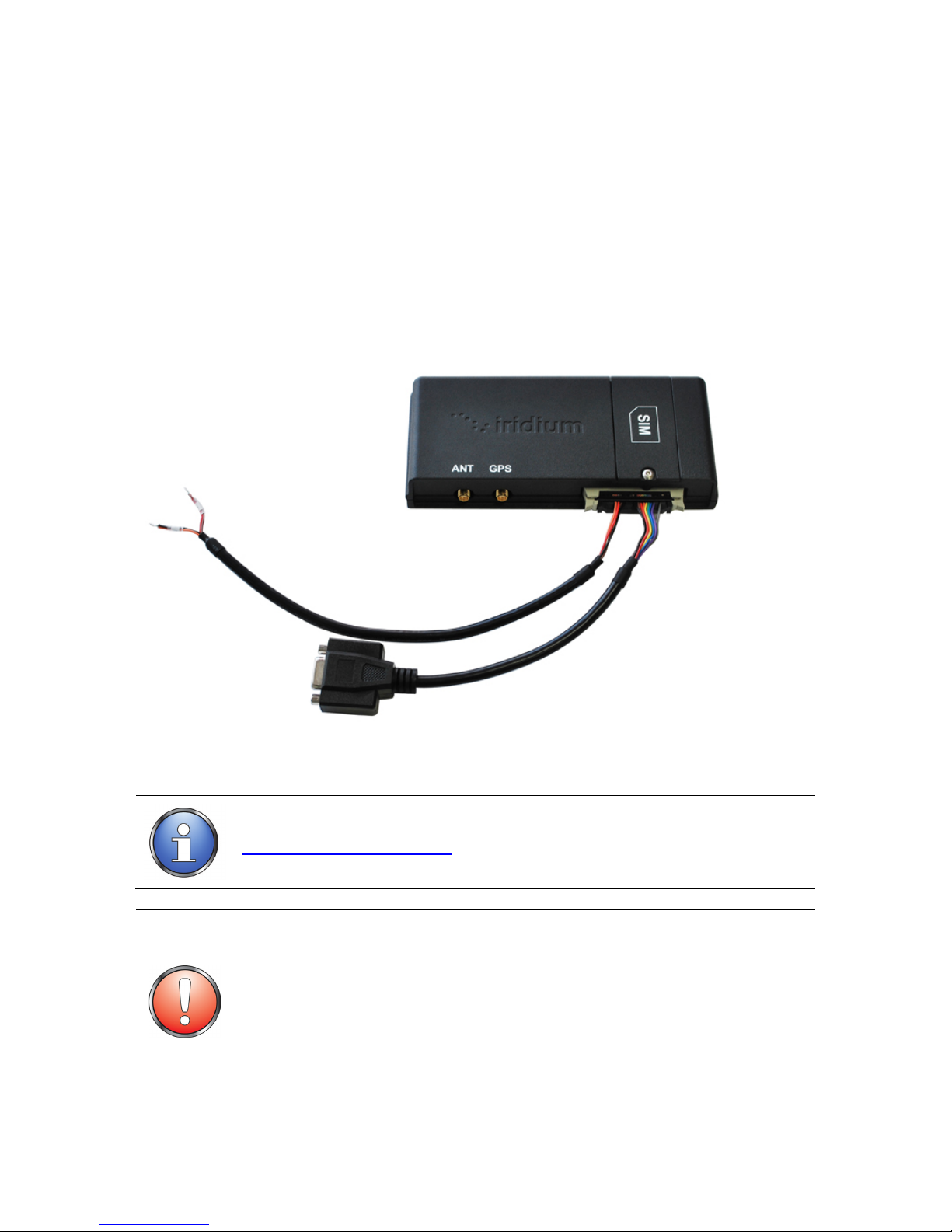

RST600 Installation Overview
25 pin connector to carry power &
data to L-Band Transceiver
9 pin serial
connector (DCE)
Molex power connector to
connect to DC power supply
Compact Installation
Standard Installation using Base-plate
Iridium
Antenna
Connector
SIM card
Housing
IDC 26-way Data &
Power Connection
GPS
Antenna
Connector
DB 25-way
Connects to main cable
loom 25 Way Connector
Iridium
Antenna
Connector
GPS
Antenna
Connector
4.4 - 28VDC
9 pin serial
connector for
data
9

RST600 INSTALLATION &USER MANUAL
Installing the RST600
Warning:
Make sure the power is Not connected to the RST600 before you insert or remove
the SIM card. If you do not, the memory on your SIM card may be damaged.

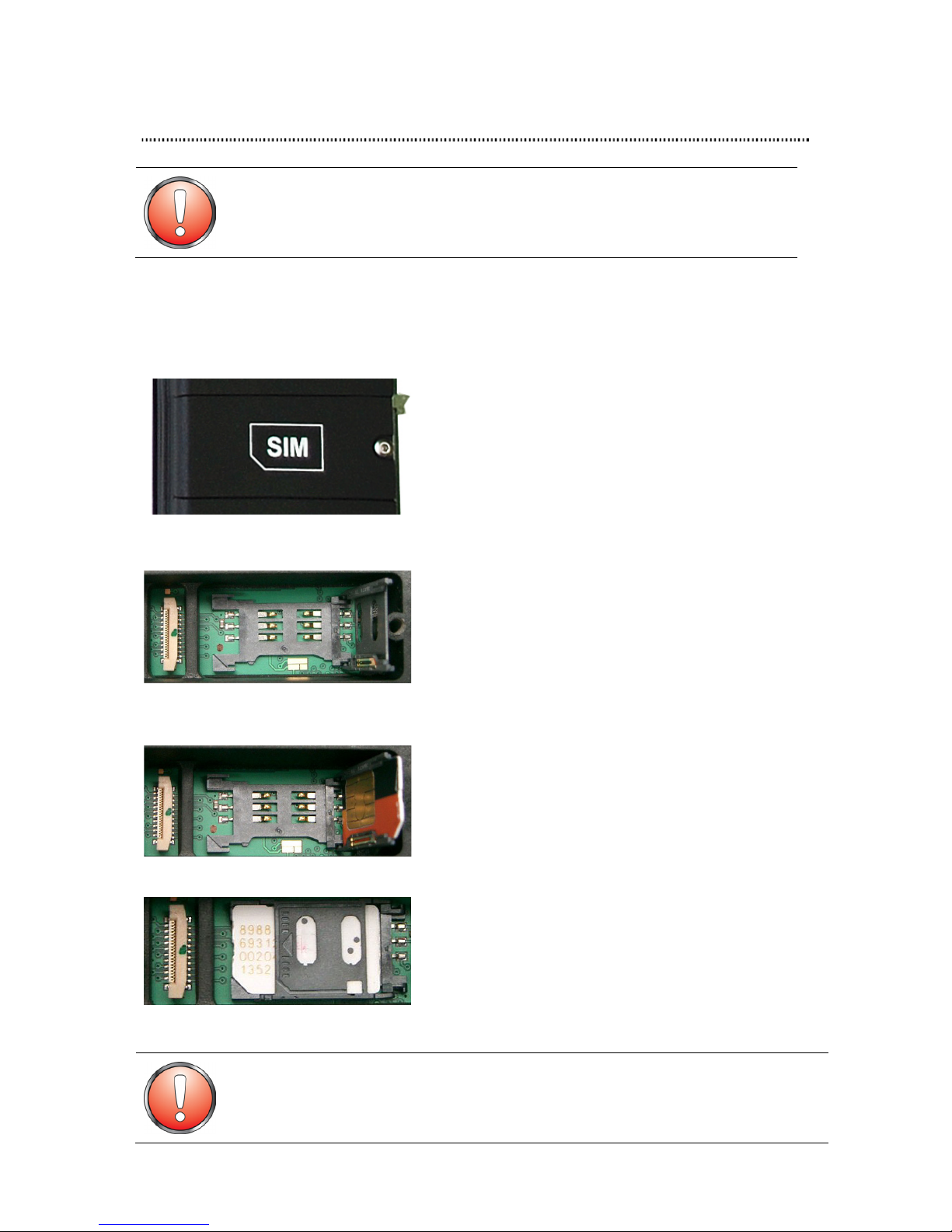

Installing / Removing the SIM Card
1. Use the supplied Allen key (socket wrench to remove the screw on the transceiver module to
remove the SIM card cover plate as shown. Keep the screws in a safe place whilst you install / remove
the SIM card.
2. Once the cover is removed slide the plastic SIM card holder sleeve (opposite direction of the arrow)
to release it from the locked position.
3. Insert the SIM card as shown, with the golden connectors facing inwards and the ‘cut corner’ of the
SIM card facing uppermost.
4. Close the plastic sleeve down, and slide in the direction of the arrow until you feel it click into place.
5. Replace the cover, and fasten the screw.
Scratching or bending the SIM card can easily damage the card or its metal contacts. So
handle the SIM card with care. Avoid exposing the card to static electricity, water or dirt.
10
