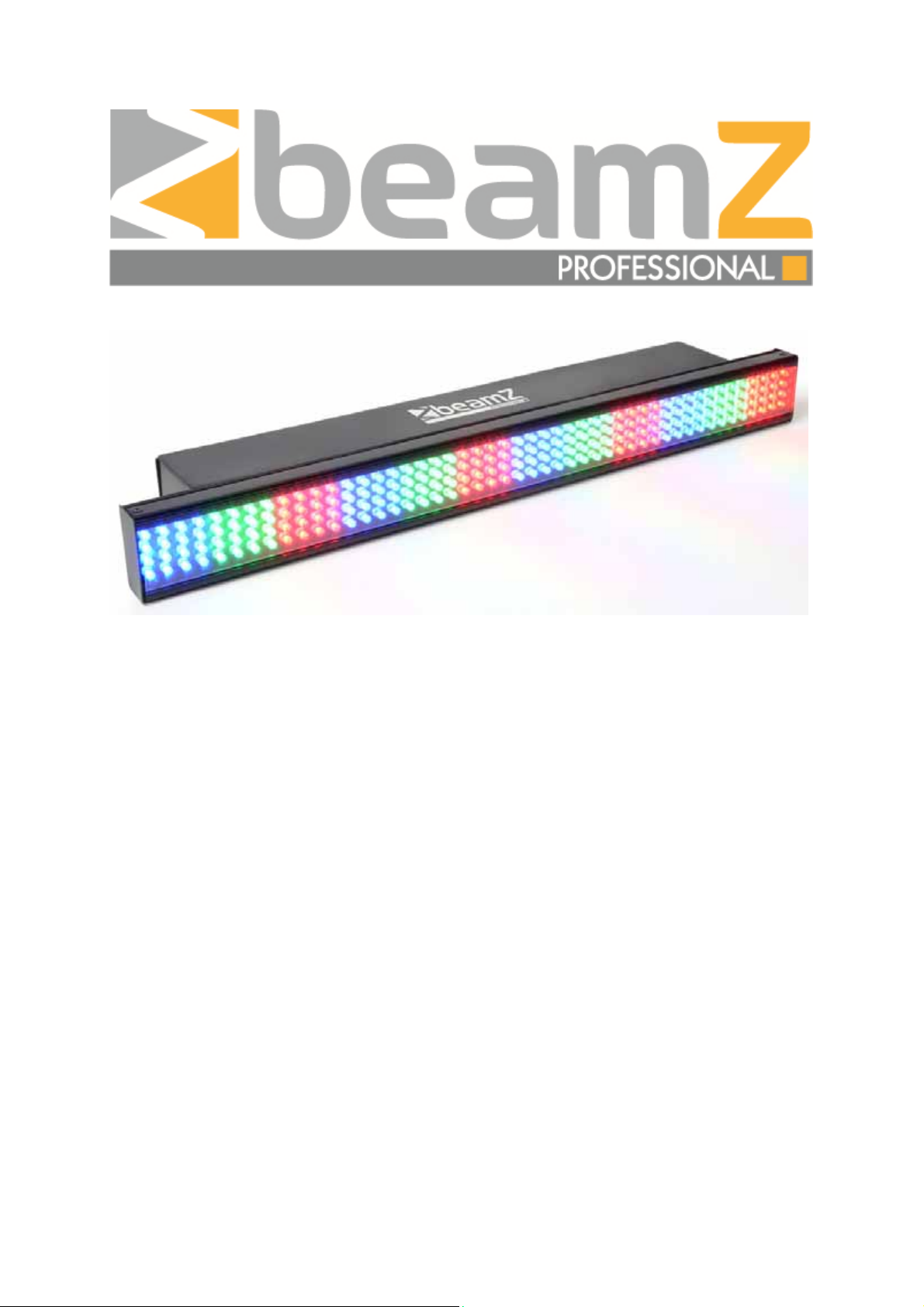

Beamz professional LCB-192 User manual


Ref. Nr. 150.562
LED COLORLINE BAR LCB-192
MANUAL

‐2‐

Thank you for purchasing our company products.
Please read these instructions carefully to enjoy optimum performance and a longer service life before
you start to use.
CONTENTS
CONTENTS...............................................................................................................................................2
UnpackingInspections............................................................................................................................3
Unpackinginstructions........................................................................................................................3
Checkingthecontentsofthecarton:..................................................................................................3
SafetyInstructions...................................................................................................................................3
ProductOverview....................................................................................................................................4
FunctionsIntroductions..........................................................................................................................4
MainFunctions....................................................................................................................................4
OperationInstructions........................................................................................................................5
Powersupplyconnecting：............................................................................................................5
SetparameterintheActionMode..................................................................................................5
SetparameterintheSystemSetupmode:.....................................................................................5
FunctionsforActionmodeandsystemsetupmode：..................................................................6
PowersupplybystoragebatteryofWi‐Powerhouse.....................................................................6
Master/Slavemode.........................................................................................................................7
Automatic........................................................................................................................................7
ControlledbyDMX512....................................................................................................................7
Maintenance.........................................................................................................................................10
Specification..........................................................................................................................................10
CE&R&TTEDeclarationofConformity.................................................................................................11

‐3‐

UNPACKING INSPECTIONS
Unpacking instructions
Please unpack the carton and check the goods carefully when you receive it , if discover
packing damage, shortage or quality problem, please notify the shipper and reject the goods.
Before using this product, please read the instructions carefully and keep it in a safe place for
future reference.

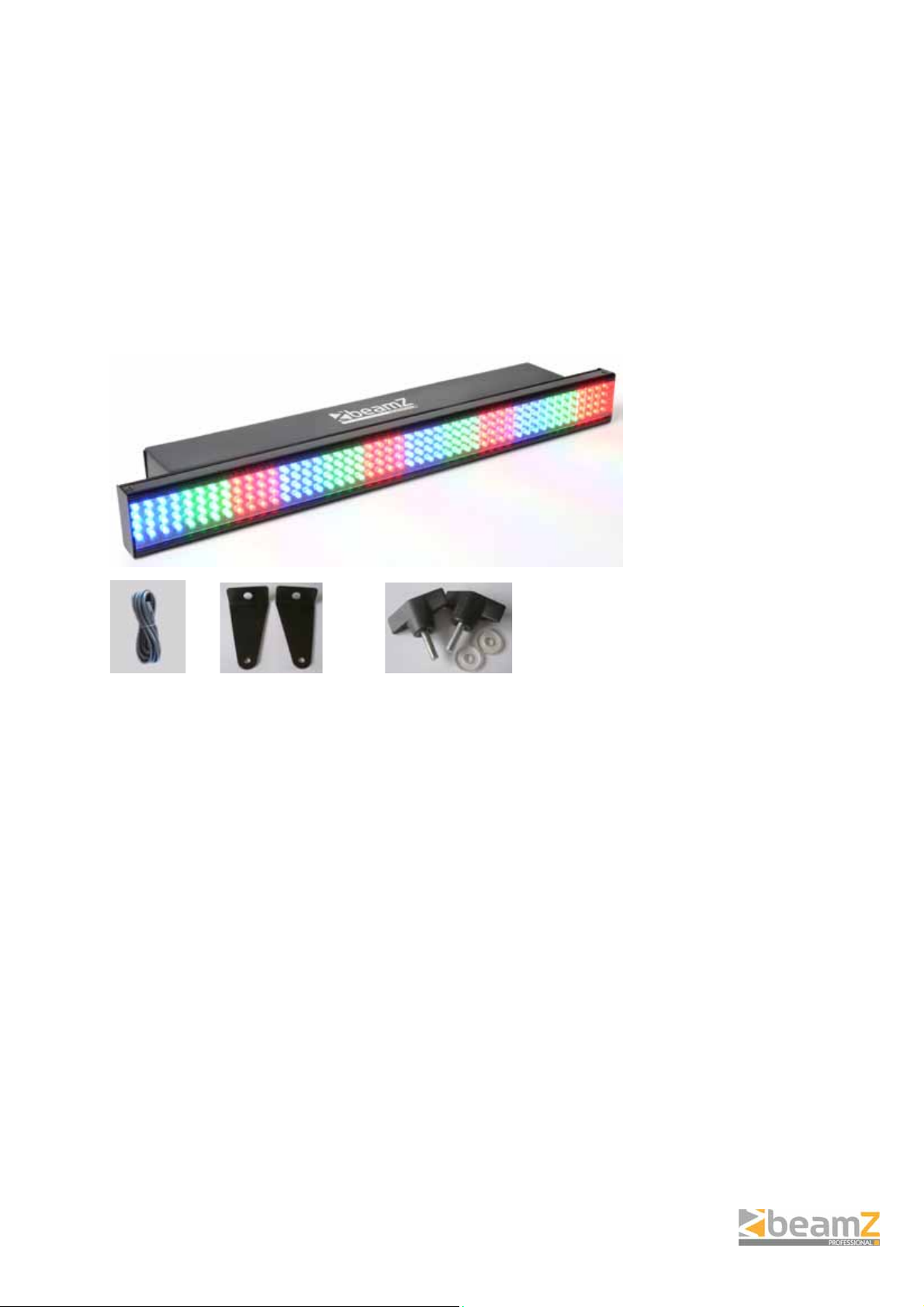

Checking the contents of the carton:
The product, Power cord, Instruction Manual, Mounting Braket *2, Screws
SAFETY INSTRUCTIONS
Safety and regulatory power socket with high quality output should be used .
Always connect the product to a grounded circuit to avoid the risk of electrocution.
Never put tiny metal objects such as a screwdriver, iron wire and coins, etc. into the internal or
stretch into the machine in case of short circuit .
Please make sure to connect the proper voltage and do not higher or lower than that stated on
the decal or rear panel of the product .
Avoid hitting, crashing or squeezing with other objects in transportation. Never carry the
product from the power cord or any moving part . Always use the hanging / mounting bracket
or the handles.
The product is used in door only .
Never pull or tug on the cord and change it for another one , stop using it when it is damaged
or becomes hot .
Stop using the product once there is sparks when connecting with the power plug .
Can not operate product with wet hands and never place it near the water or other liquid.
Make sure there are no flammable materials close to the fixture while operating . Always install
it in a location with adequate ventilation.
Never replace the lighting source with different specification and rating when the original one
is damaged.
Make sure to power off before replacing the light source or the fuse. Never do it while it is on.
The ambient temperature is no more than 40°C(104°F) .
Never clean the fixture by water, thinner or other dissolved agent .

‐4‐

Stop using the product in case of a serious operating problem and send it to our maintenance
agent immediately. Never repair by non-professional workers .
Avoid direct eye exposure to the light source while the product is on.

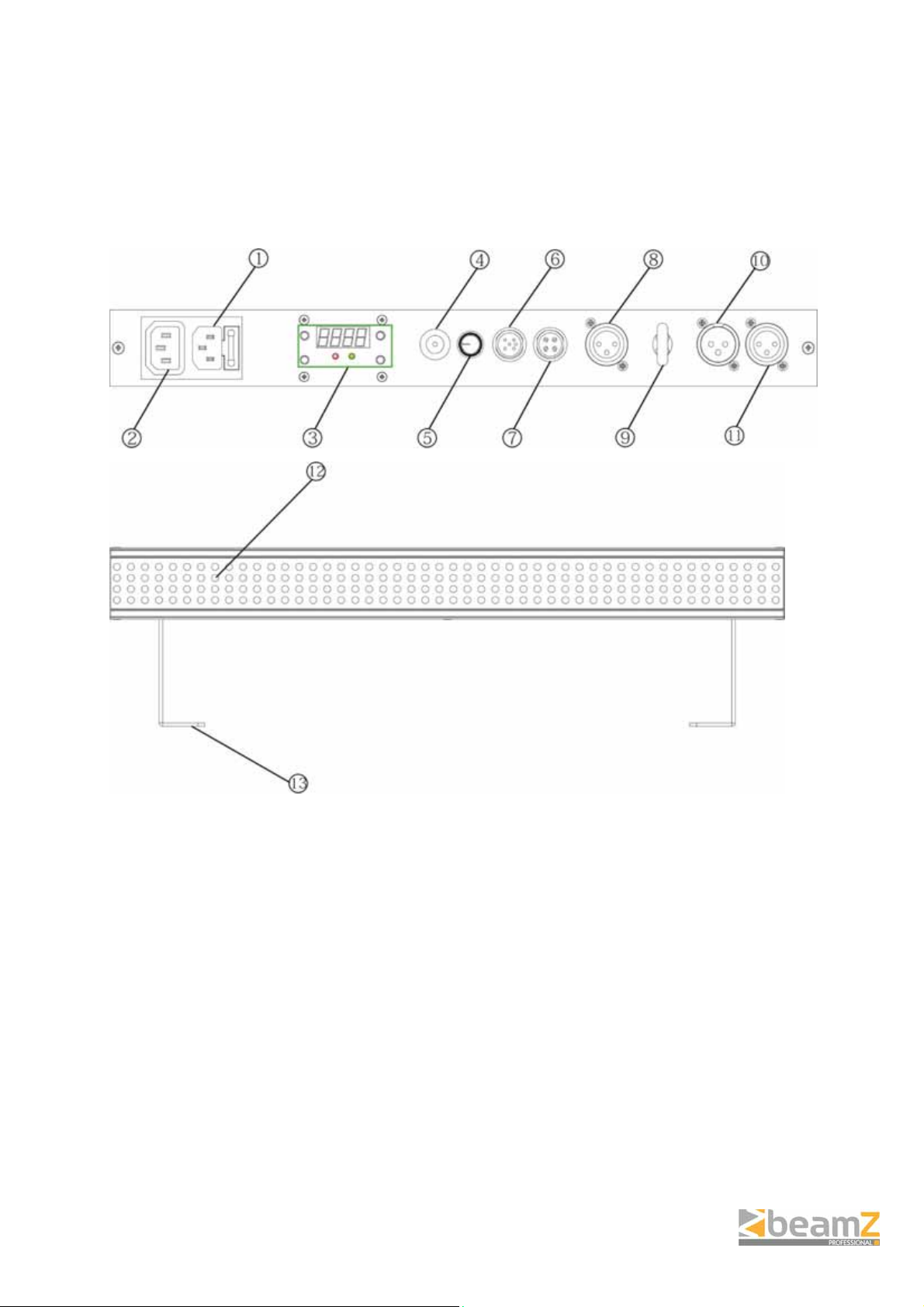

PRODUCT OVERVIEW
1. Power Input
2. Power Output
3. Control panel
4. Microphone
5. Sound Sensitivity Adjustment
6. Six-pin Connetor
7. Four-pin Connector
8. Master/Slave signal output
9. Safety Eyebolt
10. DMX signal input
11. DMX signal output
12. LEDs
13.Mounting Bracket
FUNCTIONS INTRODUCTIONS
Main Functions
4 DMX channels .
Automatic, sound active, 32 units via master/slave mode .
Built-in 23 actions, run speed and strobe speed can be ajusted .
With static colors, strobe, dimmer, color mixing and changing effects .

‐5‐

Operation Instructions

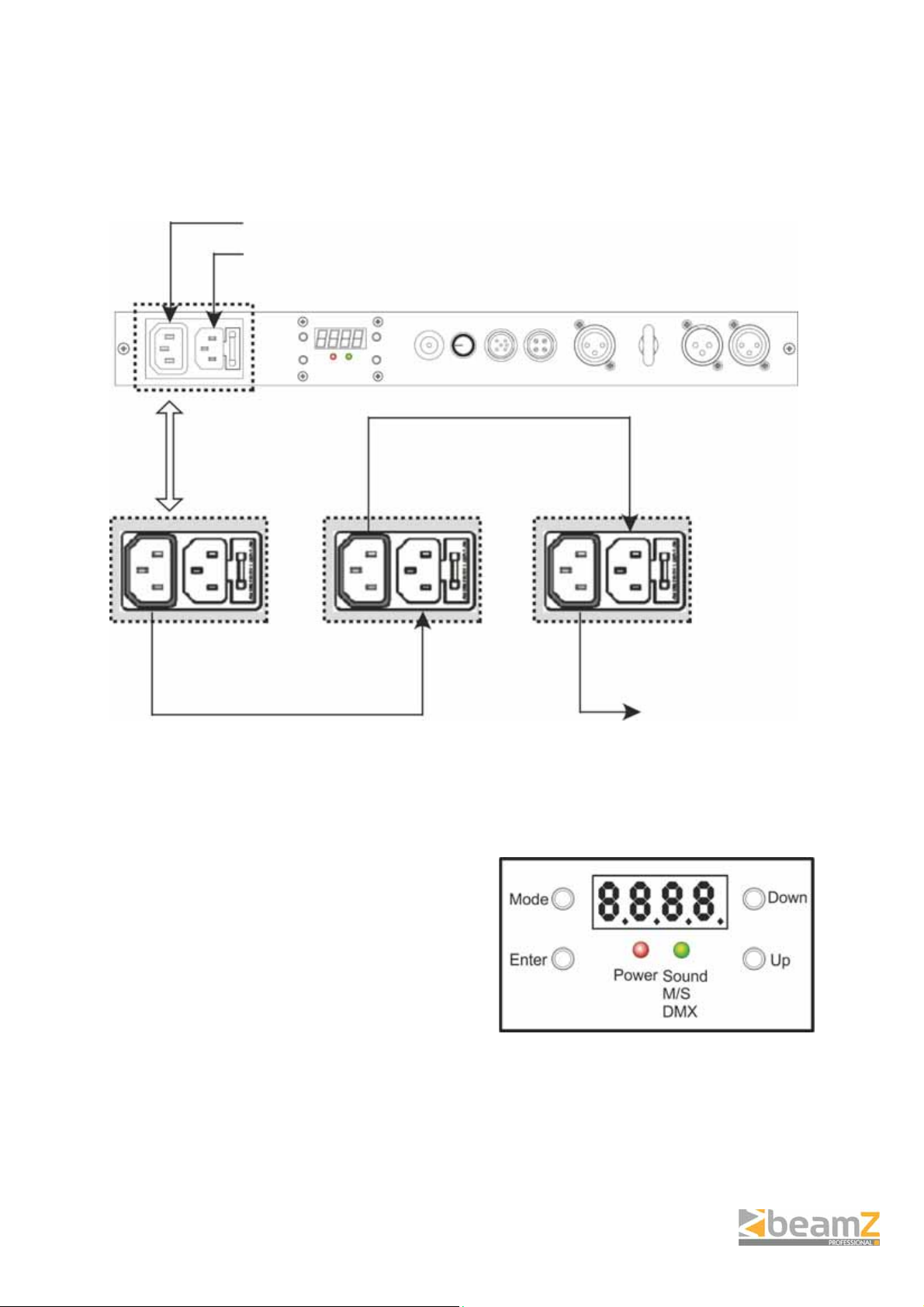

Power supply connecting：
Two sockets in the product, Power In and Power Out , the product can be supplied power by the
power out. Maximum output power of the socket is 460W .
Set parameter in the Action Mode
1. Power on until it resets ok and press Up or Down to display Act.
2. Press Enter and then press UP or Down to choose which kind of action mode you need.
3. Press Enter and then press UP or Down for adjustment , press Enter to the next parameter
when there are many parameters .
4. Press Mode to exit .
Note: Digital means the parameters.
Axxx action mode.
Fxxx Flash Speed, F=000 no flash, F=100
Flash by sound.
Pxxx Run Speed, P=000 Stop running P=50
Fastest speed P=051-100 Sound Active.
A021 Digital means functions：
P000-P100, Red
F000-F100, Green
C000-C100, Blue
Set parameter in the System Setup mode:
1. Power on until it resets ok and press Up or Down to display SYS .
2. Press Enter and then press UP or Down to choose which kind of parameter you need.
3. Press Enter and then press UP or Down to adjust .
4. Press Mode to exit .
Note：
Maximum connecting machines are
20 units with the same model
POWER OUT
POWER IN

‐6‐

When display S DAD and press Enter to set up DMX value .
When display S AAD and press Enter to display 8888, it resets ok with all light on.
5. Factory parameter Settings
With the factory parameter setting function, users can go back the factory parameter setting
after adjusting by pressing the button of Mode for five seconds or so.
Functions for Action mode and system setup mode：
MODE FUNC PROGRAM FUNTION/PROGRAM (P)RUN SPEED (F) FLASH SPEED (C) COLOR
ACt A 000
000 Blackout
001 Red 000 – 100
002 Green 000 – 100
003 Blue 000 – 100
004 Yellow 000 – 100
005 Purple 000 – 100
006 Cyan 000 – 100
007 White 000 – 100
008 Color Change 1
Automatic
000-050
Sound Active
051-100
000 – 100
009 Color Change 2 000 – 100
010 Color Change 3 000 – 100
011 Color Change 4 000 – 100
012 Color Change 5
013 Color Change 6
014 Sequential Color Chase 1
015 Sequential Color Chase 2
016 Sequential Color Chase 3
017 Sequential Color Chase 4
018 Sequential Color Chase 5
019 Sequential Color Chase 6
020 Sequential Color Chase 7
021 RGB Red (000-100) Green (000-100) Blue (000-100)
022 Color Fader 000-100
023 Automatic Program (Sound) 001-100
SYS S dAd DMX Channel Adressing 001-509
S Aad RESET
Power supply by storage battery of Wi-Powerhouse
The storage battery of the Wi-Powerhouse provide DC 12V can be connected through four-pin
connector without other power supply when plug power 220V AC, the Wi-Powerhouse will stop
supplying power .
Wi-Powerhouse input

‐7‐


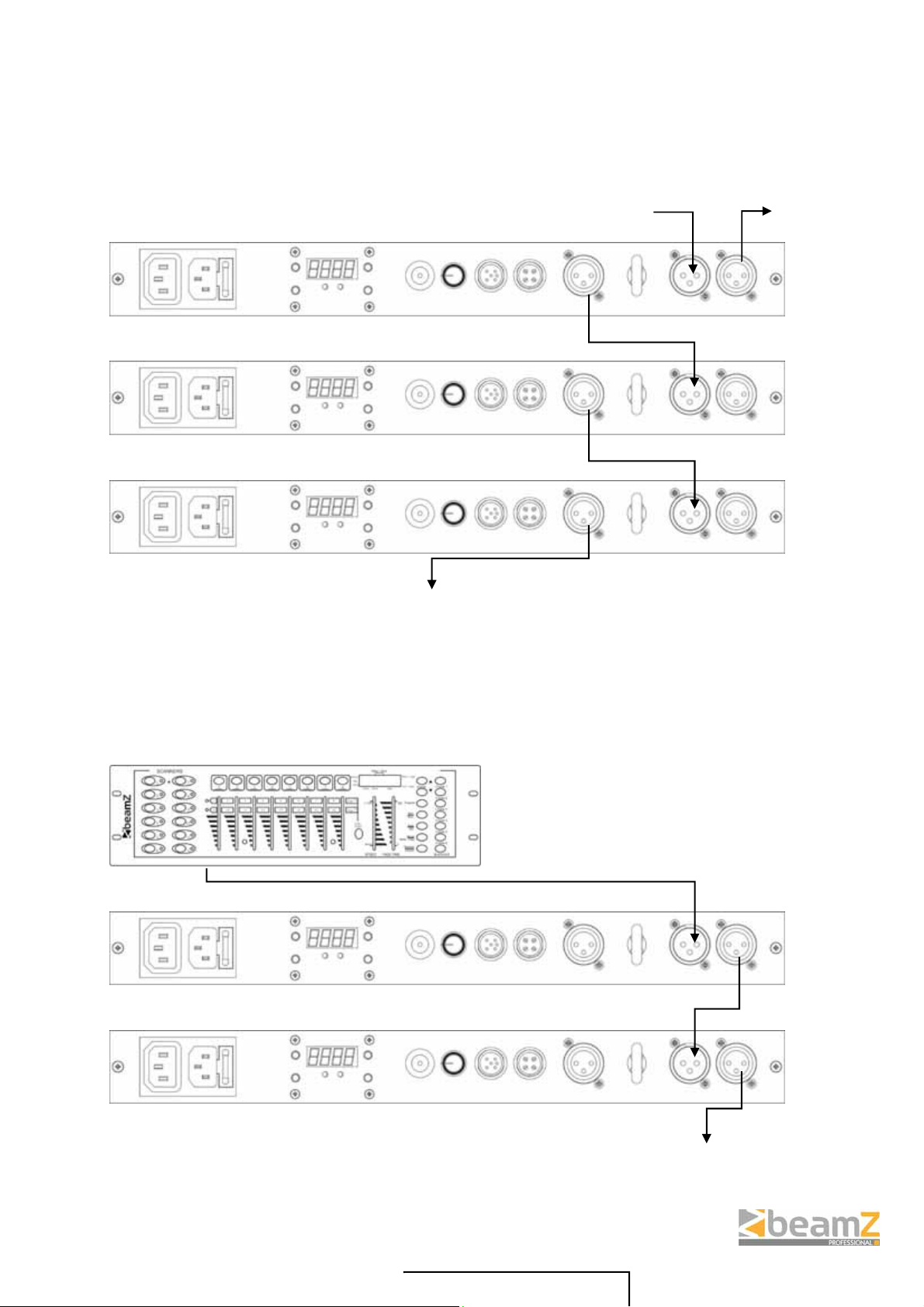

Master/Slave mode
Connect the LCB-192 as below picture and power on all the connecting products. Control panel of
master displays current saved mode and slave displays L005.L009.L013.Number of products
connected can be shown on the slave control panel, slaves follow the actions of master.
Master/Slave connecting：

Automatic
LCB-192 will display current actions automatically without music or when sound sensitivity is turned
off.

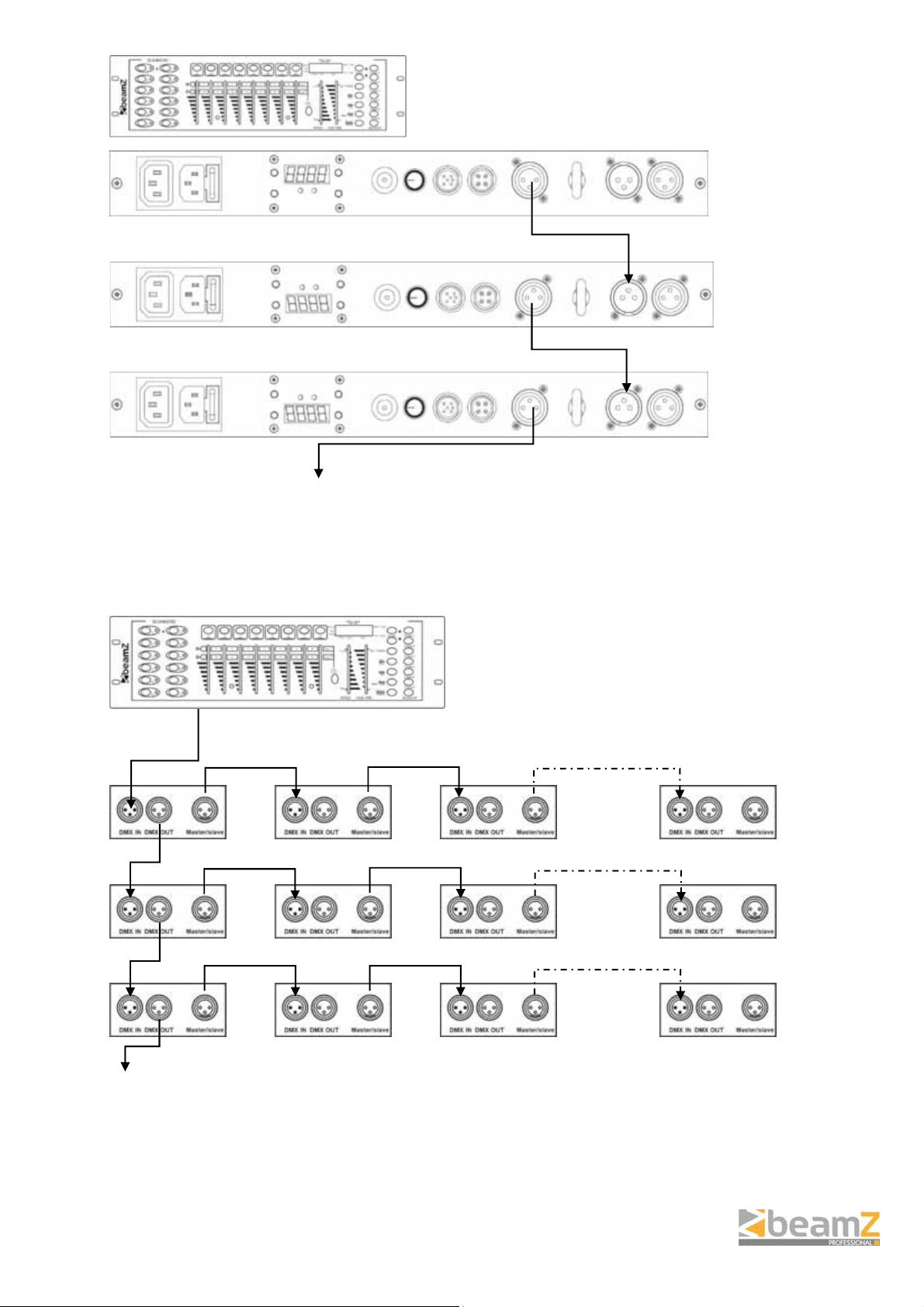

Controlled by DMX512
Follow below picture and power on all connected products. The products will be controlled once the
address is set up.
Master/Slave mode by DMX512:
Signal is received and transmitted by the first product, the others follow the actions of the first one.
DMX IN DMX OUT
Master/Slave link
Slave
Slave
Slave
DMX IN
DMX OUT
DMX IN
DMX OUT
Continue

‐8‐

Multi-groups connecting with DMX
Wonderful colors and beautiful lighting effect can be displayed by multi-groups of products controlled
by DMX512, DMX512 signal is received and transmitted by the the first product for each groups.
Maximum connecting groups are 32.
Operation Instructions for DMX512：
In the mode of System setup, press Up or Down, and then choose “SDAD”to set up DMX value.
The channels for LCB-192：
CH1 Mode （0-23）
DMX IN
SLAVE
SLAVE
SLAVE
DMX
No.1 No.2 No.3 No. ..
No.1 No.2 No.3 No. ..
No.1 No.2 No.3 No. ..
DMX

‐9‐

CH2 Run Speed （0-100%）
CH3 Strobe Speed （0-100%）
CH4 Color （0-100%）
DMX Value Functions
CHANNEL VALUE FUNCTION CH 2 CH 3 CH 4
1
Static colors
Flash
speed
000 – 249
Sound
Active
249 – 255
000 – 009 Blackout
010 – 019 Red
020 – 029 Green
030 – 039 Blue
040 – 049 Yellow
050 – 059 Purple
060 – 069 Cyan
070 – 079 White
Color Changes
Run Speed
Automatic
000 – 127
Sound Active
128 – 255
Flash
speed
000 – 249
Sound
Active
249 – 255
080 – 089 Color change 1
090 – 099 Color change 2
100 – 109 Color change 3
110 – 119 Color change 4
120 – 129 Color change 5
130 – 139 Color change 6
Sequential Color
Chases
140 – 149 Color chase 1
150 – 159 Color chase 2
160 – 169 Color chase 3
170 – 179 Color chase 4
180 – 189 Color chase 5
190 – 199 Color chase 6
200 – 209 Color chase 7
210 – 219 RGB Color Mix mode Red
0-100% Green
0-100% Blue 0-100%
220 – 229 Color Fade Fade speed
0-100%
230 – 255 Auto Run (sound active
only)
Note: CH1 DMX Value is 080-209, 230-255, CH2 000-127 for auto run speed,128-255 for sound
active with music,auto display without music.

‐10‐

MAINTENANCE
The unit should be cleaned periodically to ensure the optimum performance, the smudginess can
decrease the life of light and the output of light is affected by the dust which can make the machine
overheating. In general, make the maintenance at least two times a month. Be sure to power off the
unit before cleaning .
Do not clean until the unit recovers normal temperature since high temperature for using, use the lens
tissue or soft cotton cloth with alcohol to wipe gently.
Cleaning frequency depends on the environment in which the fixture operates, damp, smoky or dirty
surrounding can cause greater accumulation of dirt on the optics. Never rub or press strongly on the
panel.
SPECIFICATION
Voltage...............100-240V AC 50/60Hz
Input current ...................................0.2A
Power..............................................23W
Fuse..........................................1A 250V
Light source........................192pcs LED
.............................................. 64 pcs red
........................................... 64pcs green
.............................................64pcs blue.
Beam Angle.............................65° x 30°
Weight............................................2.1kg
Size.....................L503 x W75 x H85mm

‐11‐

CE & R&TTE DECLARATION OF CONFORMITY
Importer: TRONIOS BV
Bedrijvenpark Twente 415
7602 KM - ALMELO
Tel : [phone]
Fax : [phone]
The Netherlands
Product number: 150.562
Product Description: Beamz,
LCB‐192LEDColorline0,5mDMX4‐Channel
Regulatory Requirement: EN 60598-1/-2-17:2009
EN 62031:2008
EN 61347-2-13:2007
EN 55015:2006/A2:2009
EN 61547:2009
EN 61000-3-2/-3-3
The product meets the requirements stated in the above mentioned Standards. This certificate does not
cover the aspects that may be relevant such as performance and fitness for purpose.
Almelo,
10-03-2012
Signature:


