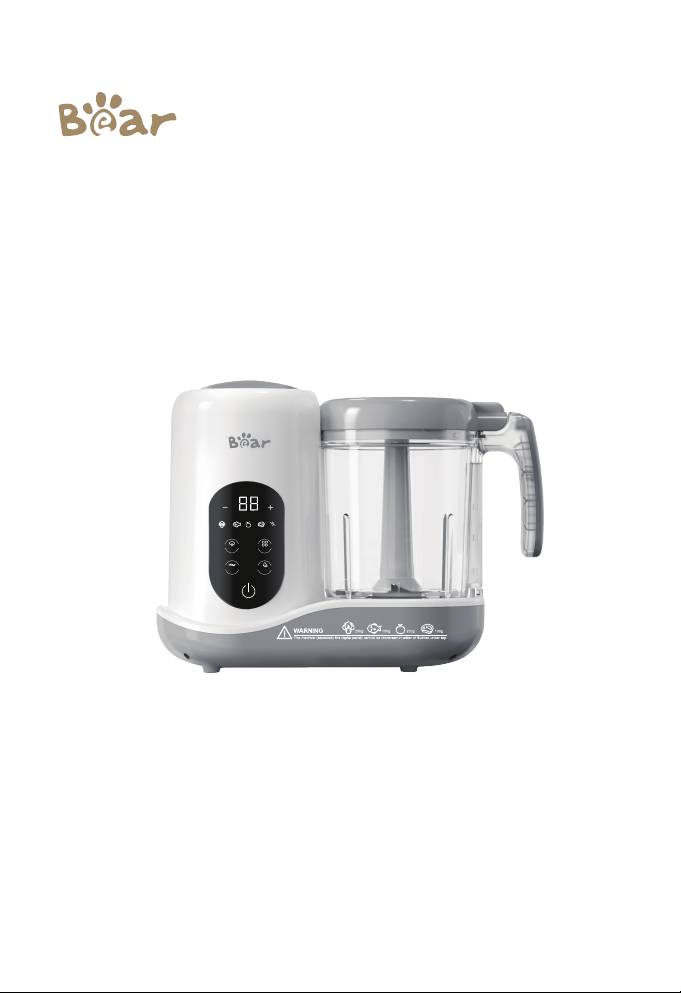

Bear SJJ-R03B5-WHITE User manual

Model: SJJ-R03B5-WHITE
Baby Food Maker
User Manual
Thank you for your purchase. Please read this manual thoroughly before
use and keep in a safe place for future references.
Blend Self-
Clean
Function
Fish Fruit Meat
Veggie Lack
water
Steam

IMPORTANT SAFEGUARDS
PARTS
1. Please read this manual carefully before use to avoid improper use of the
appliance.
2. Make sure that the voltage range is consistent with that marked on the
nameplate before use and the socket is properly earthed.
3. Please use this appliance on a stable platform.
4. If the power cord is damaged, please contact the after-sales customer
service.
5. Do not place this appliance near heat sources such as an induction cooker, a
high-temperature gas stove or an electric stove.
6. Do not drag the handle of the stirring cup when moving the appliance to avoid
falling or damage.
7. Please add water to the water tank at the beginning of cooking. There is no
need to add water to the stirring cup.
8. Do not put the stirring cup in a microwave oven.
9. Do not immerse the machine body in water.
10. This appliance is not a toy. Please keep it away from children.
11. Keep this manual properly for future reading.
01
Display panel
Blender cup lid

CONTROLS/FUNCTIONS
02
Icon Function
Veggie
Fish
Description
1. Press this key once to start the function so that the
corresponding indicator light is on and the time is
displayed for 10 minutes.
2. If there is no other operation within 3 seconds, the product
starts to work.
3. Press “+” and “-” to adjust the time with an adjustable
range of 5-30 minutes.
4. When the display screen shows 02, the product starts to
stir; When 00 is displayed, the product ends stirring.
1. Press this key once to start the function so that the
corresponding indicator light is on and the time is
displayed for 15 minutes.
2. If there is no other operation within 3 seconds, the product
starts to work.
3. Press “+” and “-” to adjust the time with an adjustable
range of 5-30 minutes.
4. When the display screen shows 02, the product starts to
stir; When 00 is displayed, the product ends stirring.
Blend Self-
Clean
Function
Fish Fruit Meat
Veggie Lack
water
Steam

03
1. Press this key once to start the function so that the
corresponding indicator light is on and the time is
displayed for 20 minutes.
2. If there is no other operation within 3 seconds, the product
starts to work.
3. Press “+” and “-” to adjust the time with an adjustable
range of 5-30 minutes.
4. When the display screen shows 02, the product starts to
stir; When 00 is displayed, the product ends stirring.
Fruit
Meat
Lack water
1. Press this key once to start the function so that the
corresponding indicator light is on and the time is
displayed for 30 minutes.
2. If there is no other operation within 3 seconds, the product
starts to work.
3. Press “+” and “-” to adjust the time with an adjustable
range of 5-30 minutes.
4. When the display screen shows 02, the product starts to
stir; When 00 is displayed, the product ends stirring.
Used to indicate that the water in the tank has boiled dry if
this indicator light is on.
On/off Long press this key for 1 second to start the product; Long
press this key for 1 second to turn off the product.
Steam
Used to steam food for 20 minutes. The steaming time can
be adjusted by pressing the “+” and “-” key for different
foods. Press this key once to start the function so that the
corresponding indicator light is on.
Note:
1) For this function, it is recommended to cut the
ingredients into 1cm*1cm pieces. Meat must be
boneless and gluten-free. Fish must be spineless.
2) It is recommended to thaw the ingredients in advance
before steaming for a better cooking effect.
3) Do not open the lid before steaming over to avoid
being splashed by hot water.
Blend
Used to stir the food for 1 minute. The stirring time cannot
be adjusted. If you think 1 minute is not enough, you can
stir it again after this time. Press this key once to start the
function so that the corresponding indicator light is on.
Note:
1) It is prohibited to start the blending function when
there is hot water but no steamed ingredients in the cup.
2) Do not stir hard or frozen food.
Function
selection
Used to select one from 4 menu functions. Press this key in
turn to switch from Vegetables to Fish→Fruit→Meat so that
the corresponding indicator light will be on.

1. When the machine is used for the first time, you should add water to the
maximum water level (MAX) in the water tank, and start the steaming function
with no food in this product. You can follow the default time of the program.
After cooking, please rinse the stirring cup and other accessories with hot
water.
2. Wash your hands before handling food for your baby.
04
Note:
When you steaming food, we advice you to add water into water tank to the
“MAX”. The appliance will be quiet for some time as it is heating the water up
in the stainless steel container. Please don't worry, you can see the vapor enter
the blender cup side around 3 minutes.
It is suggested to flexibly adjust the cooking time because different foods have
different degrees ofsoftness and hardness. The following time is only for reference.
Carrot
Pumpkin
Potato
Corn
Yam
Spinach
Pre-soaked oat
25mins
20mins
20mins
20mins
20mins
10mins
15mins
Apple
Banana
Pear
Kale
Beet
Fish
Beef
20mins
10mins
15mins
10mins
20mins
15mins
30mins
RECOMMENDED COOKING TIME TABLE
FOR THE FIRST TIME USE
Self-Clean
Used to automatically clean the stirring cup and blades for
10 minutes. The cleaning time cannot be adjusted. Press
this key once to start the function so that the corresponding
indicator light is on.
Note:
1) When you select this cleaning function, 100ml water
needs to be added to the stirring cup.
2) After this function is selected, the machine will stir in
the first 30 seconds, heat in the middle 9.5 minutes, and
stir in the last 30 seconds.
Adjust the
time
Used to increase or decrease time. Press this key once to
start the function and additional pressing will increase or
decrease the display time.

1. It is recommended to clean the appliance after each use.
2. After using the self-clean function, the removable parts can be rinsed by
water again, such as the stirring cup, lids and blade components.
3. Please use a soft damp cloth to wipe the outer surface of the machine body.
4. Do not put the stirring cup into the dishwasher for cleaning to avoid deforma-
tion due to high temperature.
1. Mix the vinegar and water and pour them into the water tank, then start the
steam function to run for a while.
2. Unplug the power plug and let the solution stay in the tank for 30 minutes. Be
careful not to exceed 30 minutes.
3. After the scale is completely dissolved, pour out the residual solution and
rinse the tank twice with clean water.
4. Clean the water tank with a soft cloth.
The scale may form in the water tank after the appliance is used for a while.
Therefore, regular descaling is recommended. Prepare 20mL white vinegar,
40mL water and a clean cloth for the following descaling steps:
05
CLEANING & MAINTENANCE
DESCALING OF WATER TANK
DISASSEMBLY AND ASSEMBLY
INSTRUCTIONS FOR CUP LIDS
Note:
① Check the package for obvious damage before use.
② Please contact after-sales customer service if the product is damaged due to
damaged packaging or improper transportation.
③ Keep children away from packaging materials.

Assembly
Disassembly
Insert the spatula into the hole on the top lid, then rotate the spatula to separate
the top lid from the inner lid.
As shown in the figure, there is a triangle mark on the top lid and the inner lid
respectively. First, align these two triangle marks, and then press the top lid and
the inner lid.
Note:
Please be careful not to hurt your hand when you open it with your bare hands.
It is recommended to use the spatula.
06

Disassembly
07
Driving head
Seal ring
Blade holder
1. Lift up four blades and take them out of the stirring cup.
2. Put the stirring cup upside down. Reach into the cup with your left hand to
hold the driving head. Hold the blade holder with your right hand and rotate
the blade holder counterclockwise.
Blade
DISASSEMBLY AND ASSEMBLY
INSTRUCTIONS FOR CUTTER ASSEMBLY

08
Assembly
3. Take the driving head out of the stirring cup and remove the seal ring.

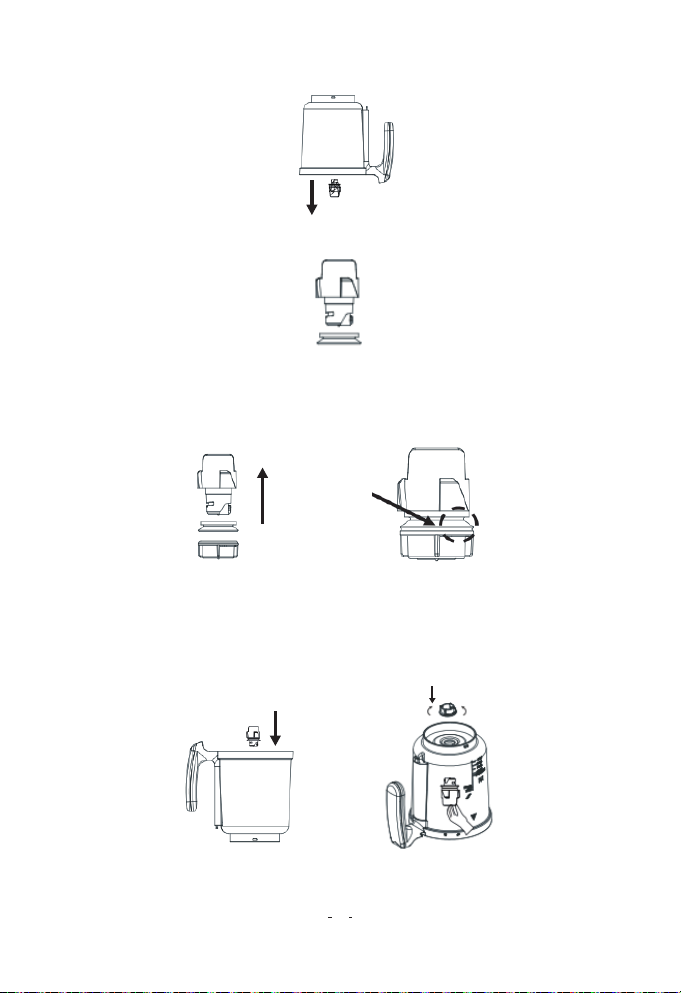

1. Put the seal ring on the cleaned drive assembly. When assembling, be careful
not to reverse the direction (as shown in Figure 1). The seal ring is located in
the circle close to the driving head, as shown in Figure 2.
2. Install the drive assembly into the cup (as shown in Figure 3). Hold the drive
assembly by hand to pass the bottom of the drive assembly through the
bottom hole of the cup. Then hold the stirring blade holder with your right
hand to pass the blade holder through the bottom of the drive assembly.
Finally, twist it clockwise (as shown in Figure 4).
Figure 1 Figure 2
Figure 3 Figure 4

When the machine shows E1, it is water
shortage reminder. The “ ” will light on and
you will hear beep. You can press power button
to turn off the machine and add water into water
tank.
Failure phenomenon Solution
It shows E1
STORAGE
TROUBLESHOOTING
09
3. Finally, put the cutter assembly into the cup (as shown in Figure 5) so that the
drive assembly is aligned with the hole at the bottom of the cutter assembly.
Rotate the cutter handle counterclockwise to ensure that the cutter assembly
is installed in place, and then cover the cup lid until the shaft at the top of the
cutter assembly is aligned with the rotating shaft hole at the bottom of the cup
lid (as shown in Figure 6).
Note:
Please be careful not to hurt your hands during disassembly and assembly.
The appliance after cooling and drying should be stored in a dry place together
with the manual.
Figure 5 Figure 6
It not works when
plugged on
Firstly, check that the blender cup and lid all
installed into place. As our baby food maker is
equipped with security locks, only when blender
cup and lid all installed into place can machine
be power on.

Bear offers 1-year warranty and 24-hours customer service. When you
receive the product, please check it as soon as possible and keep its original
box. If you are in any way dissatisfied with this product, please contact official
customer service or email to [email protected], we will solve your
problem within 24H.
lf you appreciate and love our products, please stay
connected with us. More surprises may be found at ...
WARRANTY & CUSTOMER SERVICE
TECHNICAL SPECIFICATIONS
Product Name
Product Model
Rated Voltage
Rated Frequency
Rated Power
Dimension (L*W*H)in
Capacity
Material
Certification
Baby Food Maker
SJJ-R03B5-WHITE
120V
60Hz
Steam: 330W
Blend: 150W
11.22 x 5.51 x 8.03in
Water tank: 250ML
Blending bowl: 400ML
Water tank: 304 stainless steel
Blade: 304 stainless steel
Blend bowl: Tritan
FCC, FDA, UL Certification
(BPA/lead/phthalates/odor/latex/petroleum free)
10
