BEARICUDA 6X3 Canterbury Shed User manual

Call 877.232.7428 www.bearicuda.com [e-mail]
Thank you for purchasing our 6x3 &DQWHUEXU\
Storage Shed. Please take the time to identify
all the parts prior to assembly.
Please use Safety Eyewear and Gloves while
Assembling. Be sure to read and follow all operating
instructions for any tools used during assembly.
Remember- NO SAW CUTTING IS REQUIRED!
Safety Points and Other Considerations
Our products are built for use based on proper
installation and normal residential use, on level ground.
Please follow the instruction manual when building your
Oscar and retain the manual for future maintenance
purposes.
-Some of the safety and usage measures you may wish
to consider include:
-In high or gusty wind conditions it is
advisable to keep the structure securely grounded.
-Have a regular maintenance plan to ensure screws,
doors, roof and parts are tight.
6X3 Canterbury Shed
Assembly Manual
Page 1
Revision #7
Jan 1st, 2017
In the event of a missing or broken piece, simply call the %HDULFXGD
Customer Support Line @ 1-8 within 30 days of the delivery of your
purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be
provided free of charge after the 30 day grace period.
6x3 &DQWHUEXU\ Dimensions:
Inside - 32” d x 66 3/4” w x 50” (front) 53” (back)
Outside with Lid Overhang -37”d x 72 5/8” w x 55”(front) 58” (back) Important - Inside distance in
front between floor and underside of Front Top Plate = 50”
- Inside depth when Doors are closed to Rear Wall = 32”
Please check your garbage can height and depth to confirm they fit prior to purchasing and assembly.
Although not required, having a
helper to assist during a few
assembly steps will make the
completion of this project more
convenient for you.

Exploded View and Parts List for 6’x3’ Canterbury
Parts Lists:
Floor and Walls
11 - Floor - 35” x 70 3/4” (45 degree angle cut on front edge)
2 1 - Right Side Wall - Arched Top - 35” x 52” (front) 53 1/4”(rear)
2A 1 - Left Side Wall - Arched Top - 35” x 52” (front) 53 1/4”(rear)
3 1 - Rear Wall (Right Side) - 33 3/8” x 52”
3A 1 - Rear Wall (Left Side) - 33 3/8” x 52”
41 - Rear Wall Top Cleat - 1 1/2” x 2” x 66 3/4”
52 - Rear Wall Cleats - 3/4” x 3 1/2” x 66 3/4”
61 - Front Top Plate - 1 1/2” x 3 1/2” x 66 3/4”
7 4 - Triangular Top Cleats - 1 1/2” x 5 1/2” x 5 1/2”
Lid
8 1 - Curved Lid - 37” x 72 5/8”
Trim
92 - Front Door / Corner Trims - 1/2” x 2 1/2” x 52”
10 1 - Front Left Side Corner Trim - Angle Cut Top - 1/2” x 2 1/2” x 53”
10A 1 - Front Right Side Corner Trim - Angle Cut Top - 1/2” x 2 1/2” x 53”
11 1 - Rear Left Side Corner Trim - Angle Cut Top - 1/2” x 2 1/2” x 54 1/4”
11A 1 - Rear Right Side Corner Trim - Angle Cut Top - 1/2” x 2 1/2” x 54 1/4”
12 3 - Rear Trim - 1/2” x 3 1/2” x 55”
Doors
13 2 - Doors - 32 3/4” x 50 1/2”
14 1 Door Flange - 1/2” x 3 1/2” x 50 1/2”
15 1 Door Stop - 1 1/2” x 3 1/2” x 4” (12 degree cut on 1 end)
Hardware Packs (3 Clear Plastic Bags R, R1 & R2)
(See Page 3 for illustrated Hardware Details)
R includes:
A2 1/2” Brown Screws (46)
BSquare Drive Bit (1)
C3” Brown Screws (9)
E2” Black Bolt (Head Only) with Silver Washer and Nut (6)
F 1” Black Screws (10)
G3/4” Black Screws (32)
H2” Black Head Screws (16)
J1 1/4” Brown Screws (28)
K1 1/2” SS Finishing Nails (60)
R1 includes:
DBlack Strap Hinges (2)
LBlack Door Hinges (4)
MBlack Barrel Bolt (1)
NBlack Door Handles (2)
ODoor Magnet with mounting screws (1)
P Lid Magnet with mounting screws (2)
R1 includes:
I Gas Shocks with mounting hardware (2)
1
13
2A
11
10
12
7
C
4
6
9H
8
14
M
N
15
O
D
E
GL
K
F
A
Note: All Trim pieces are graded best face rough.
This means the rough side will be exposed when completing these Sections.
2
3
3A
5
E
P
I
J
Call 877.232.7428 www.bearicuda.com [e-mail]

6x3 Canterbury Storage Shed
2 1/2”

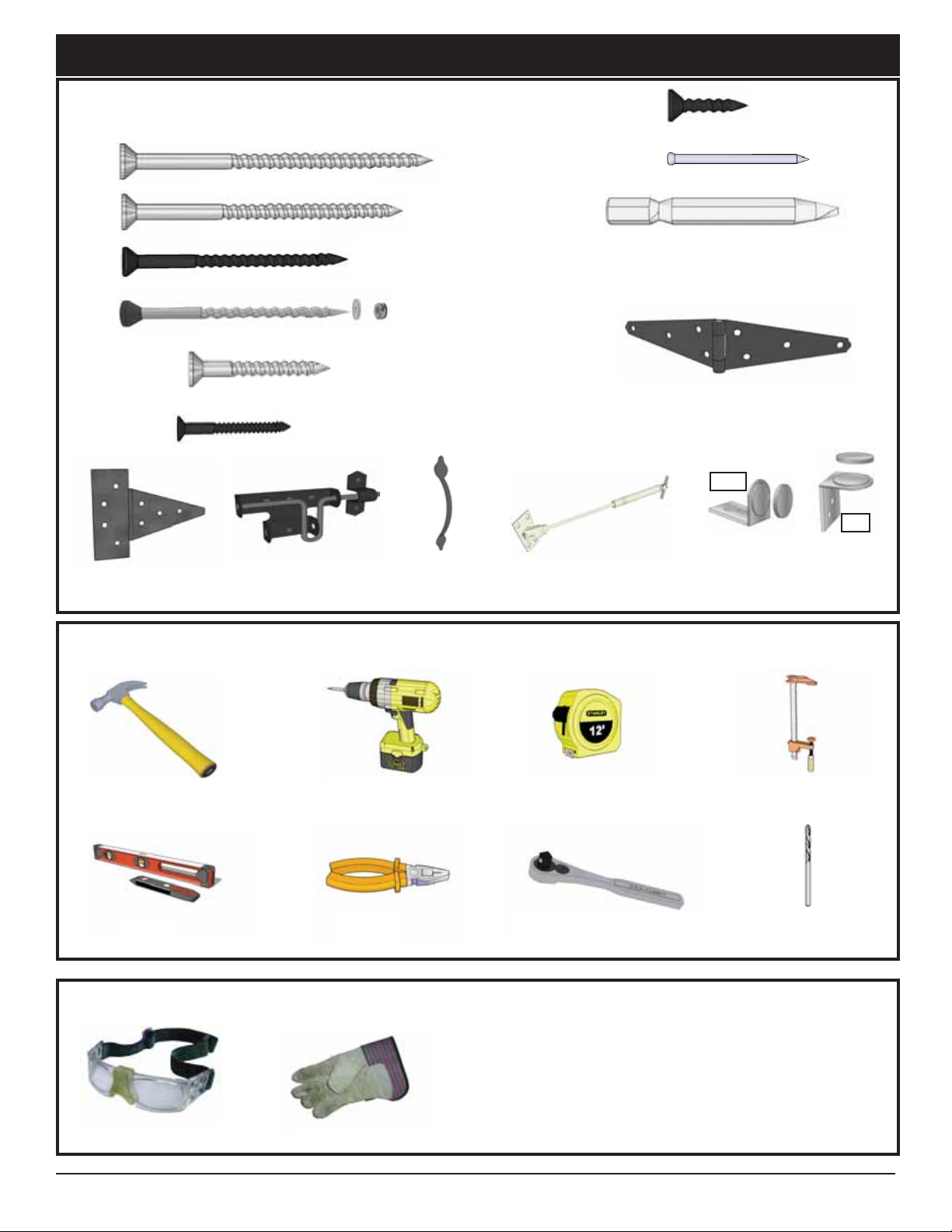

Note: screws and nails shown actual size.
1”
1 1/2”
Part N - Door
Handles x 2 pcs
Part K x 60 pcs
Hardware Kit (Provided)
Safety Glasses Work Gloves
Safety Equipment Required (Not Provided)
Screw Gun/Drill Tape Measure
Hammer Wood Clamp
Level Pliers
Tools Required (Not Provided)
Page 3
1/8” Drill Bit
1 1/4”
3”
Part I - Gas Shocks
x 2 pc
2” Black
2”
Part E x 6 pcs
Part L - Tee Hinge
x 4 pcs
Part M - Barrel Bolt
x 1 pc
3/4” Black
Part B Square Drive Bit x 1 pc
Part C x 9 pcs
Part A x 46 pcs
Part H x 16 pcs
Black
Part J x 28 pcs
Part F x 10 pcs
Part G x 32 pcs
Part O - Door Magnet x 1 pc
(Bent on angle) with Screws
Part P - Lid Magnet x 2 pcs
(90 degree bend) with Screws
Lid
Door
Part D - Black Strap Hinge
x 2 pcs
3/8” Wrench or Socket
Call 877.232.7428 www.bearicuda.com [e-mail]

Before assembling your Canterbury, be
sure to lay down a foundation for your
unit to sit level on.
There are many options such as patio
paving stones, a concrete slab or fine
crushed gravel.
Make sure the area is level and not
elevated with surrounding ground so
garbage cans can move easily in and
out of your Canterbury.
36”
76”
Important -
Make sure foundation is level
before moving on to Floor and Wall
Sections. Use a level to confirm.

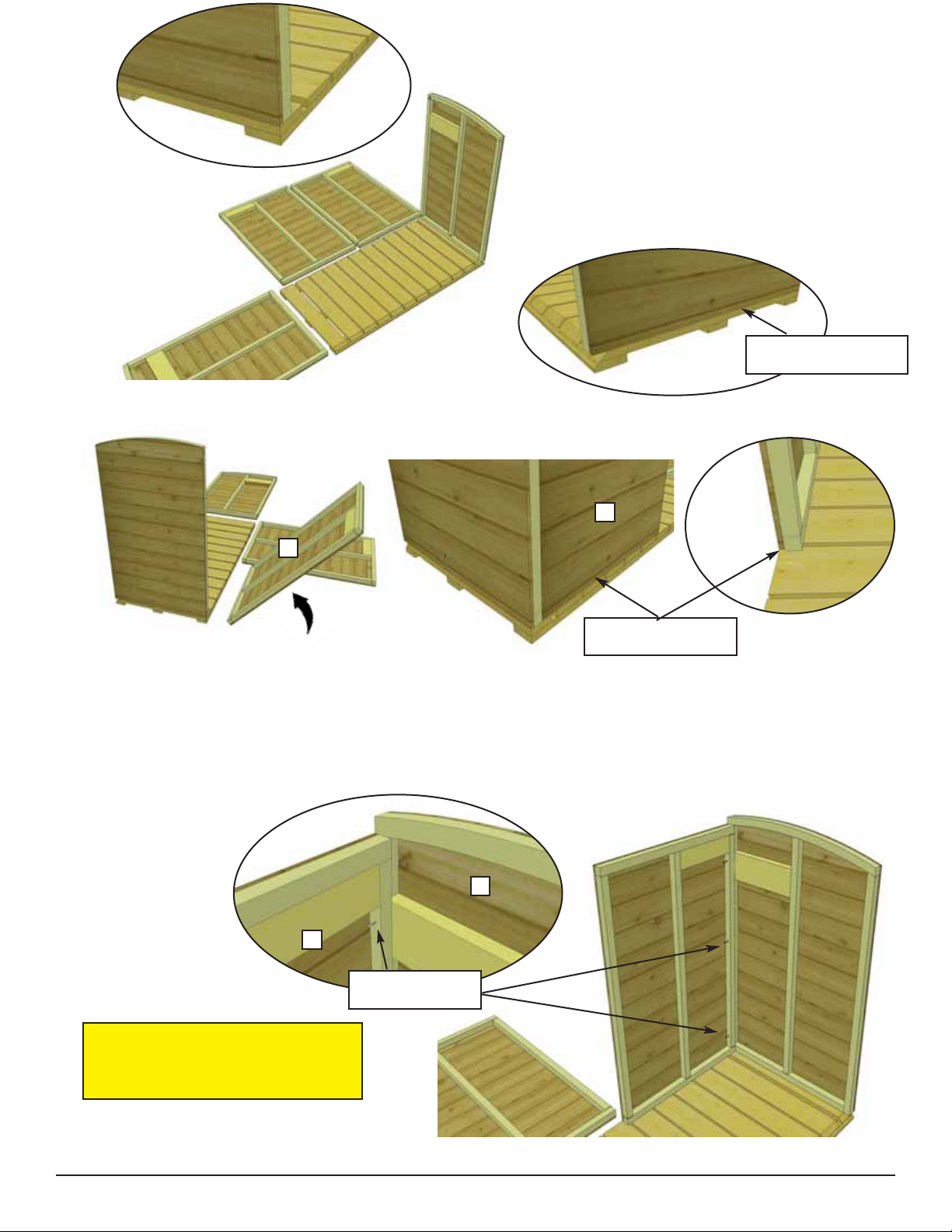

1. Locate Floor (1) and lay down on level
foundation. Place floor with angle cut
edge to the front. Level floor if required.
2. Identify all Wall Panels;
2 - Side Wall Arched Panels
(2 & 2A) Left/Right and
2 - Rear Wall Panels (3 &3A)
Left/Right
If you have space, position
walls around floor leaving
enough room to work. Make
sure walls are correctly
orientated. Avoid positioning
rear walls upside down. Check
orientation with side wall siding
to confirm. The thick butt of
the siding is down.
1
Front
angle cut edge
to front
2
3
3A
2A
Left
Right
Left
Right
Call 877.232.7428 www.bearicuda.com [e-mail]

Page 5
4. Lift up a Rear Wall (3) and orientate the wall as shown above. At the bottom,
align wall siding even with outside of the floor. At the top, align wall siding flush
with framing of side wall. When correctly aligned, attach wall frames together
with 3 - 2 1/2” screws (A). Screw on a slight angle to penetrate the side wall
framing best.
3. Lift Side Wall (2) up and orientate so
wall framing is flush at rear with floor, wall
siding is flush on side with floor. In the front,
wall framing will overhang the floor as
shown below.
You can find the Square Drive
Bit for the screws in with the
Hardware Kit Bag. (Part B)
Front
Front
Rear
Wall Siding flush with
outside for Floor.
3
Wall Siding flush with
outside for Floor
2
3
3
3 - 2 1/2” screws
along wall framing
Call 877.232.7428 www.bearicuda.com [e-mail]

5. Position and attach 2nd
Rear Wall (3A). Align rear
wall frames together
and attach with
3 - 2 1/2” screws (A).
6. Lift 2nd Side Wall (2A) up and
orientate and attach wall to rear wall
framing as per Step 3 and 4.
3A
Wall Siding flush with
outside for Floor
3 - 2 1/2” screws
along wall framing
2A
3A
3 - 2 1/2” screws
along wall framing
Call 877.232.7428 www.bearicuda.com [e-mail]

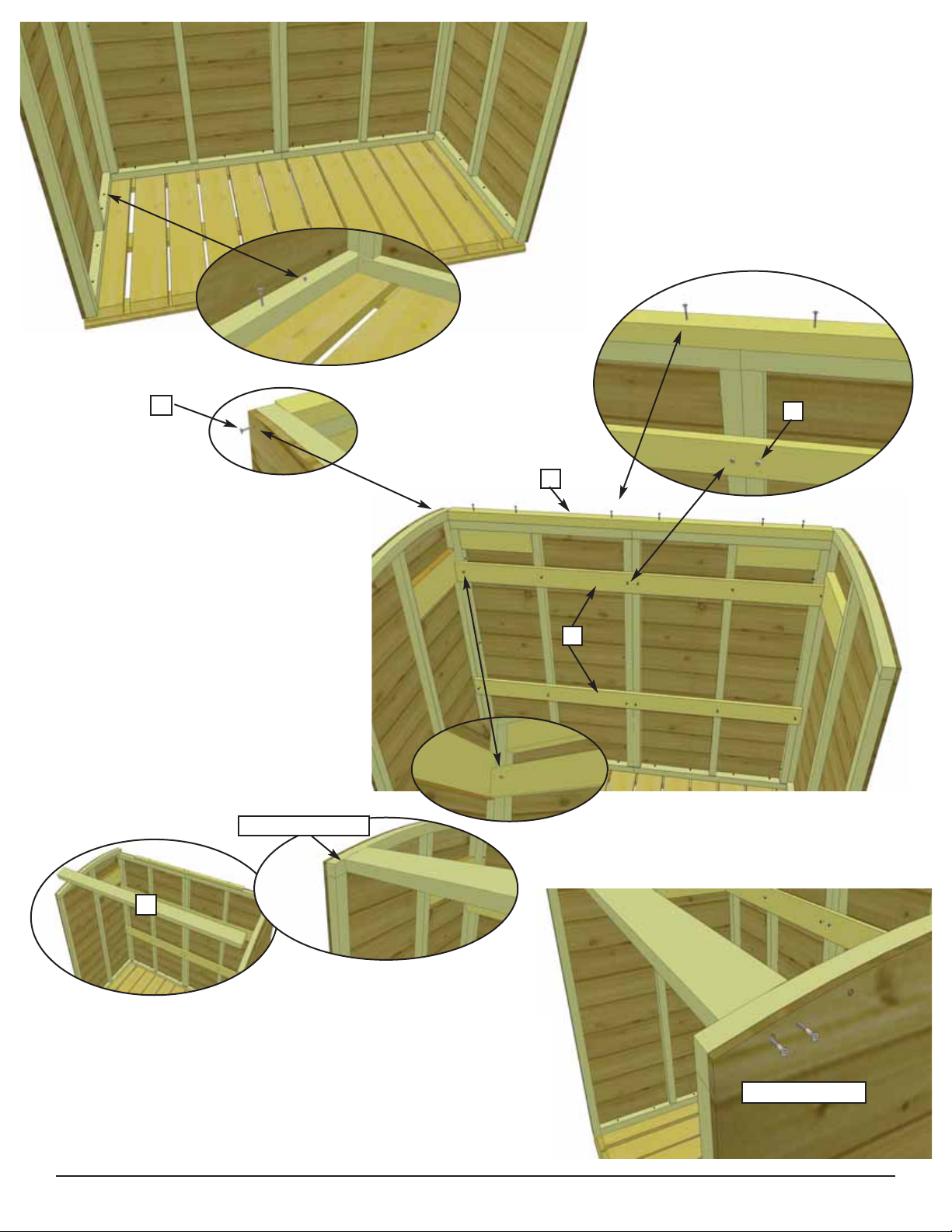

7. Check for wall/floor alignment
(wall siding flush with outside of
floor on sides and rear). When
satisfied, secure wall framing to
floor with 4 - 2 1/2” screws (A)
per wall panel.
8. Locate Rear Wall Top Cleat (4).
Center rear wall top cleat on top wall
framing. Attach with 6 - 2 1/2” screws
(A) down into framing. From side walls,
locate pre-drilled hole at top rear and
attach side wall to top cleat with
1 - 3” screw per side (C).
Place both Rear Wall Cleats (5).
against wall frames and attach each
cleat with 6 - 1 1/4” screws (J) into
wall framing. We recommend locating
one wall cleat 18” from bottom and the
other 18” higher.
9. Place Front Top Plate (6) between side walls at top
front. Side walls will be marked for plate alignment on
the inside framing. With you helpers holding one end,
secure opposite end with 2 - 3” screws (C). Side walls
are pre-drilled. Complete both ends.
Page 7
5
4
2 - 3” screws (C)
6
Side Wall Marked
J
C
Top Wall Framing
Call 877.232.7428 www.bearicuda.com [e-mail]

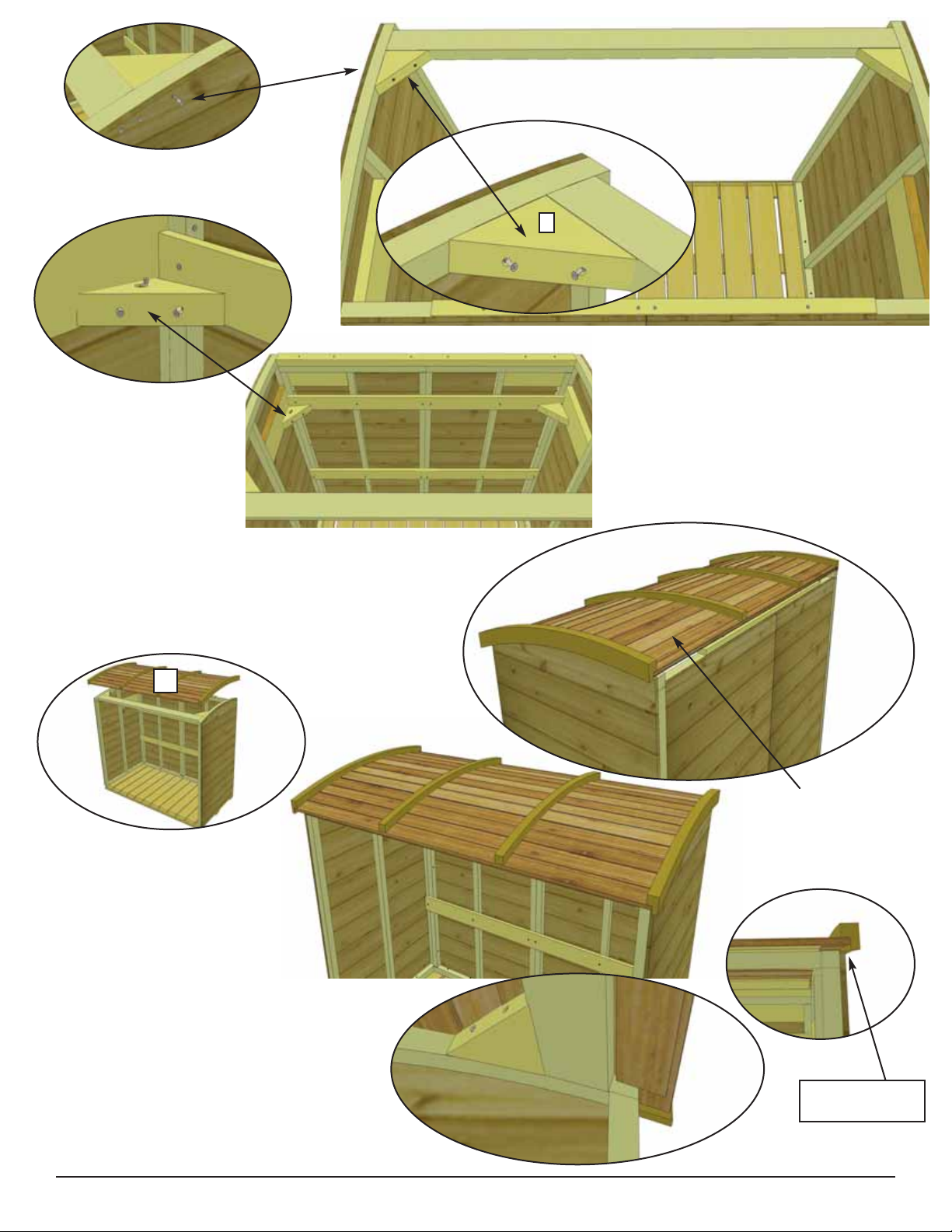

10. Using 2 - 2 1/2” screws (A),
attach 4 Triangular Top Cleats (7)
to front top plate and side wall fram-
ing. Align flush at top.
Note- Top cleats are pre-drilled.
11. With your helper, lift and position the
Curved Lid (8) on top of wall framing. Center
on walls from front to rear and evenly from
side-to-side.
Evenly spaced
from side-to-side
7
8
Front Lid Cleat
Lid has pre-drilled
hole at rear to help
identify orientation.
Call 877.232.7428 www.bearicuda.com [e-mail]

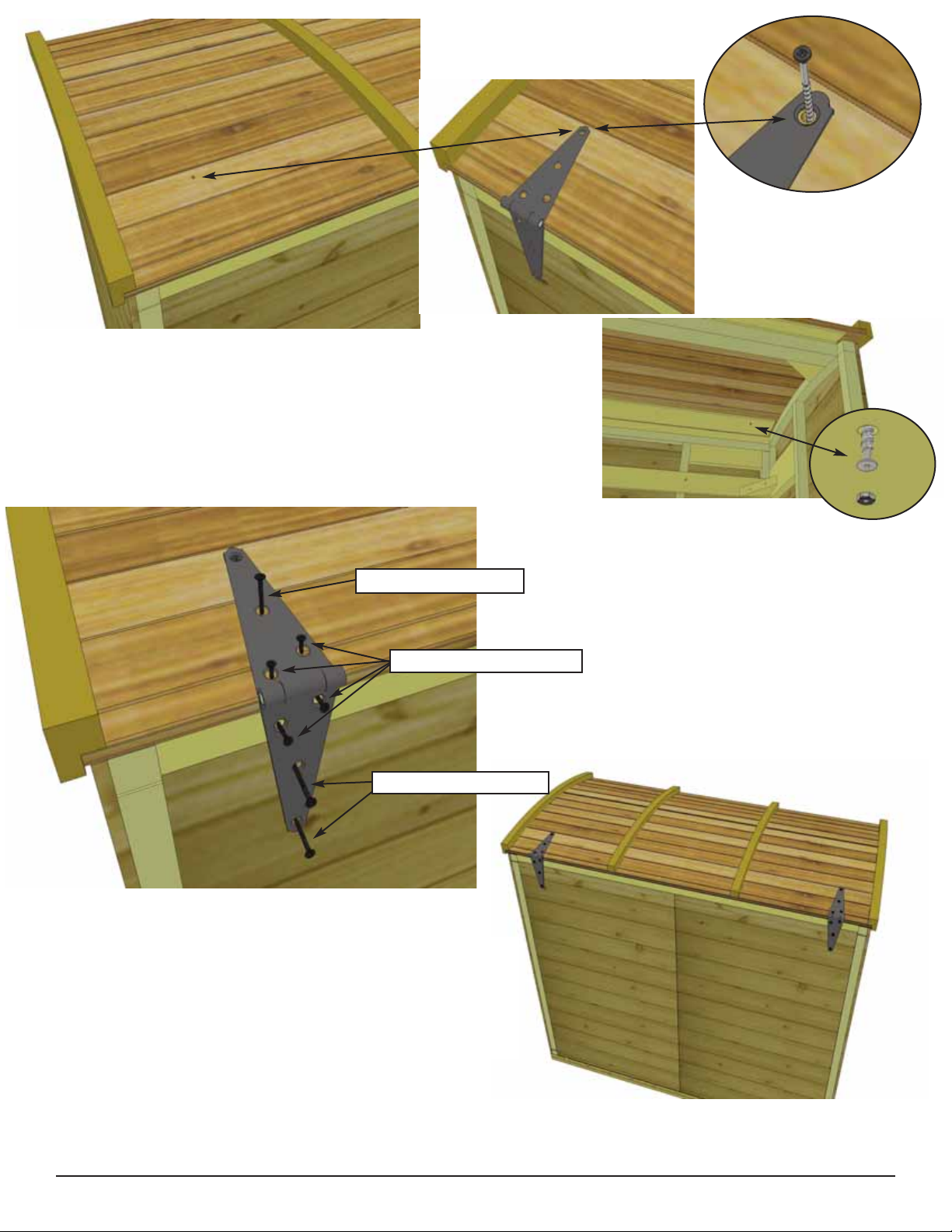

12. Locate both Rear Black Strap Hinges (D). Orientate
hinge as shown to right so pre-drilled hole in lid and top
hinge hole align. Slide in a 2” Black Bolt with Washer and
Nut (E) through hinge hole and lid. From the inside, slide
Washer on and tighten Nut snug with 3/8” socket or wrench.
Complete both sides.
13. Complete Strap Hinge attachment using
1 - 1” Black Screw (F) and 2 - 3/4” Black Screws (G)
on the lid side and 2 - 3/4” Black Screws (F) on the
top wall side and 2 - 2” Black Screws (H) on the
lower wall side. Complete both sides.
1” Black Screw (F)
3/4” Black Screws (G)
2” Black Screws (H)
Call 877.232.7428 www.bearicuda.com [e-mail]

15. Starting at the top, attach the gas shock to the lid
cleat with 2 - 1 1/4” screws (J). Pre-drill lid cleat with 1/8”
drill bit to prevent wood from splitting, Attach bottom of
gas shock to side wall Support with 4 - 1 1/4” screws (J).
I
I
Important: Gas Shocks will be fully
extended when initially installing.
Attach both Gas Shocks before
attempting to close Lid.
Wall Support
Rear Lid Cleat
Important: Have your assistant hold Lid open to desired height while Gas
Shocks are attached. Never close Lid with only 1 Gas Shock attached. This
may cause damage to shock and Lid. Some adjustment to height and depth
of bottom of shock may be necessary to achieve optimum Lid opening height.
Gas Shock is shipped with piston extended. Piston can only be closed when
both Shocks are attached correctly to lid.
14. Have your helper hold lid open high enough
to desired height while both Gas Shocks (I) are
installed. To establish approximate shock
position, center top shock attachment on rear lid
cleat. Bottom shock flange will position against
wall support. The bottom of the shock can be
positioned on the wall support closer to the front
or nearer to the back walls depending on what
your desired lid height is.
Rear Lid Cleat
Wall Support
I
8” from back
Centered
Call 877.232.7428 www.bearicuda.com [e-mail]

Page 11
16. Close lid and mark the highest
point Front Corner Trims (9 & 9A)
1/2” x 2 1/2” x 52” and Front Side
Corner Trim (10 & 10A) with angle
cut top 1/2” x 2 1/2” x 53” can be
located without impeding the lid.
Front trim should be positioned
even with inside of wall framing.
Attach each piece with 6 - 1 1/2”
Finishing Nails (K).
Note: Part 9 will cap Part 10.
17. Position and attach Rear Side
Corner Trims (11 & 11A) 1/2” x 2 1/2”
x 54 1/4” and Rear Trim (12)
1/2” x 3 1/2” x 55”. Align trims at top of
wall panels without impeding the
closing of the lid. Attach each piece
with 6 - 1 1/2” Finishing Nails (K).
Note: Part 12 will cap Part 11.
18. Center Rear Trim (12)
1/2” x 3 1/2” x 53” on rear wall
seam and attach with 6 - 1 1/2”
Finishing Nails (K). Align to
same height and corner rear
trims.
9
10
Angle cut
at top
Trim flush with inside
of wall framing
11
12
12
Note: All Trim pieces are graded best face rough. Parts 10 & 10A & 11 &11A are unique to each side.
The rough side of all the trim will be the exposed face when nailing the pieces to the shed.
Call 877.232.7428 www.bearicuda.com [e-mail]

Page 12
19. Locate both Doors (13)
and 4 Black T - Hinges (L).
Lay Doors on flat ground with
door trim recessed to center.
Doors are pre-drilled in outside
corners to accept 1 - 2”
Black Bolt with Nut and
Washer. (E)
22. Locate Door Flange (14) - 1/2” x 3 1/2” x 50 1/2”. Align tight and flush at top against horizontal
door trim. Clamp flange to door or lay door on ground and have helper hold Flange in place and then
screw together. Attach with 6 - 1” Black Screws (F) evenly spaced on flange.
21. Lift up a door and position so
there is a 1/8” gap between front
door corner trim and outside of
door. Position door vertically so
top of door aligns with top of front
door corner trim. When door is
aligned correctly, screw hinge into
trim with 3 - 2” Black Screws
(H). Use only 1 screw initially per
hinge until both door alignments
are confirmed. Door Flange (14),
attached in Step 22 will cover gap
between doors.
Drill 1/8” pilot holes for 2”
screws to prevent wood from
splitting.
Door Trim
recessed to center
13
13
EG
20. Line up pre-drilled holes in hinge and door and slide bolt through.
Tighten bolt using 3/8” socket or wrench. Finish hinge by securing
with 2 - 3/4” Black Screws (G). Drill shallow depth pilot holes first to
prevent wood from splitting. Complete both doors (4 hinges).
H
1/8” gap
14
Flush
F
Important: Pilot Hole Door with
1/8” drill bit to prevent splitting!
L
Call 877.232.7428 www.bearicuda.com [e-mail]

23. Position and attach Black Barrel
Bolt (M) with 6 - 3/4” Black Screws
(G). Note how female part of barrel
bolt is positioned higher than male. Do
a dry run first to position barrel bolt
correctly. Important - Drill shallow pilot
holes with 1/8” drill bit prior to securing
with screws to prevent wood from
splitting.
Attach 2 Door Handles (N) with
4 - 3/4” Black Screws (G) per handle.
Drill shallow pilot holes to prevent
wood from splitting.
24. Center Door Stop (15) on underside of
front top plate. Orientate door stop with
angle cut end facing to the outside and
flush with edge of top plate. Attach with
2 - 2 1/2” screws (A).
25. Before securing Door Magnet (O), do a
dry run by closing door on door stop and mark
spot for magnets. When satisfied with location,
secure magnets to door stop and door with
hardware found in magnet package.
26. To complete, position and attach both
Lid Magnets (P) to top of front top plate and to the
underside of the lid. Start by attaching magnet bracket to
inside edge of top plate with magnet screws. Close lid
and mark location on the underside of the lid. Try using
duct tape (sticky side up) on bracket magnet to help with
alignment. Attach to lid with magnet screws.
Page 13
M
N
15
A
angle cut
Door Stop Bracket is bent
Magnets are used to keep the Door and Lid
closed. There is 1 Door Magnet and 2 Lid
Magnets. The Door Magnet’s bracket angle is
bent and the package will already be open.
OScrews found in Magnet Package
Close Lid and mark
Magnet
P
Call 877.232.7428 www.bearicuda.com [e-mail]

We hope your experience constructing our 6x3 Canterbury has been both positive and rewarding. We
value your feedback and would like to hear back from you on how well we are doing in the following
areas:
1. Customer Service
2. On Time Shipping
3. Motor Freight Delivery
4. Quality of Materials
5. Assembly Manual
6. Overall Satisfaction.
Please call, write or email us at:
Bearicuda Inc 3 West St., PO Box 56 Litchfield, CT 06759
The materials contained in this Assembly
Manual may be downloaded or copied
provided that ALL copies retain the
copyright and any other proprietary notices
contained on the materials. No material
may be modified, edited or taken out of
context such that its use creates a false or
misleading statement or impression as to
the positions, statements or actions.
Congratulations on assembling
your 6x3 Canterbury Storage Shed!
Note; Our Sheds are shipped as
an unfinished product. If exposed
to the elements, the western red
cedar lumber will weather to a
silvery-gray color. If you prefer to
keep the cedar lumber looking
closer to the original color, we
suggest that you treat the wood
with a good oil base wood stain.
You may also wish to paint your
new shed rather than stain it. In
both cases we recommend that
you consult with a paint and stain
dealer in your area for their
recommendations.
Page 14
Call 877.232.7428 www.bearicuda.com [e-mail]
The materials contained in this Assembly
Manual may be downloaded or copied
provided that ALL copies retain the
copyright and any other proprietary notices
contained on the materials. No material
may be modified, edited or taken out of
context such that its use creates a false or
misleading statement or impression as to
the positions, statements or actions.
6X3 Canterbury Shed
