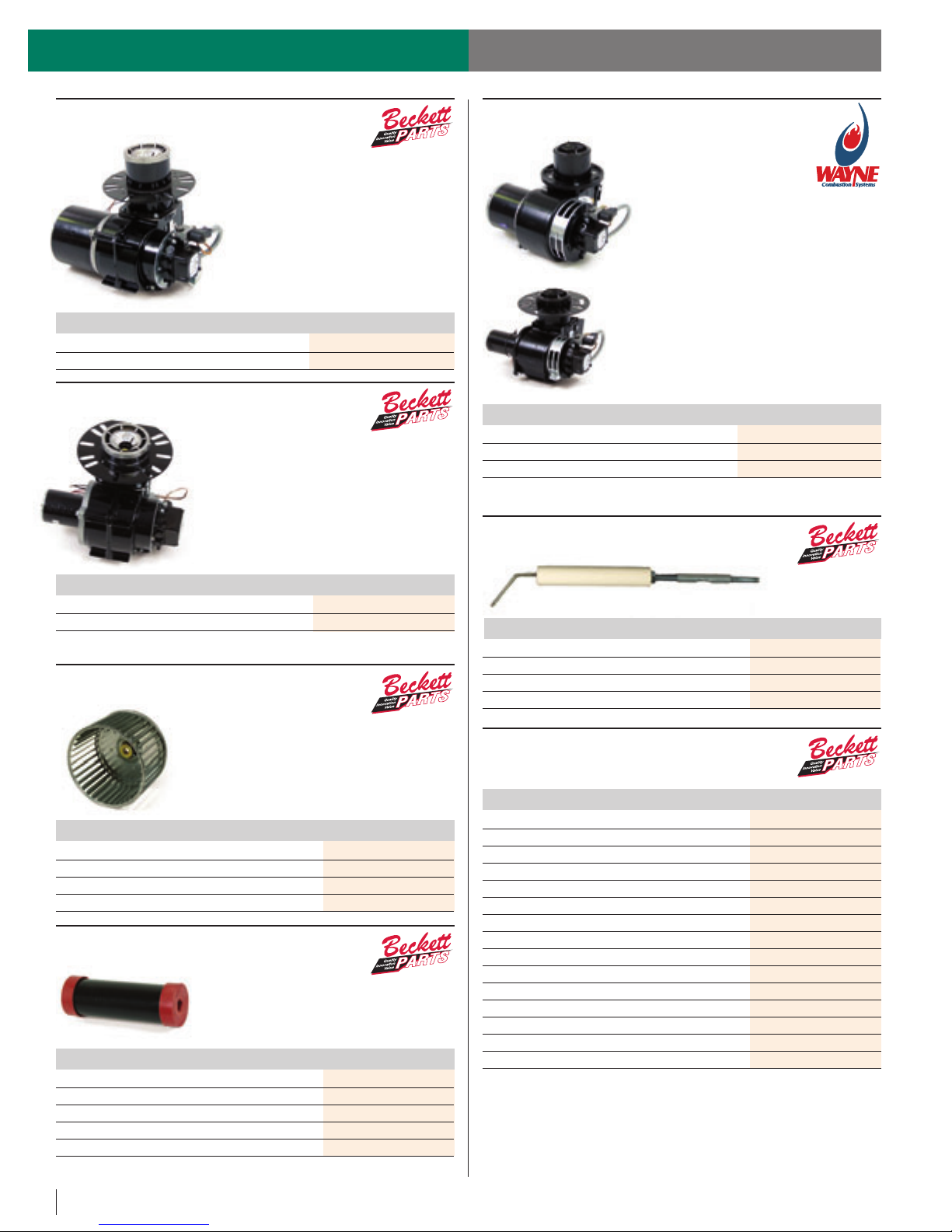

BURNERS
78
Part No. Description
307032 Beckett AFG 115
307036 Beckett AFG 230
115 / 230 Volt Oil Burners
• .4 to 3 GPH firing rate
• 6-1/4" Blower fan
115V and 230V
• 3450 RPM
Pump/blower motor
• Solid state ignition
• Beckett “CleanCut” fuel
pump with oil valve
• Air tube 2-3/4"
• UL recognized
Oil Electric Motor
Part No. Description Valve Eye RPM
307059 Beckett 14V Yes – 3100
307061 Beckett 13.5V Yes Yes 3100
NOTE: Proper operation requires an engine with 16+ Amp alternator and deep cycle battery
on nightly, overnight recharge
12 Volt DC Oil Burner
• 12 Volt
solid state ignition
• 1/6 HP
• 3450 RPM
• 4-1/4" Fan
• Beckett “CleanCut” fuel
pump with oil valve
Blower Wheels
Beckett
Part No. Part No. Description
079513 2288U 5-3/4D x 3-7/16W SF-SM
079515 2383U 6-1/4D x 3-7/16W SR
079517 2999U 4-1/4D x 2-1/2WAFG
079518 21404 4-1/4D x 2-7/16W ADC
Electrode / Insulator Assembly
Beckett
Part No. Part No. Description
079534 5780 Std to 9" AC,A,F,SR, SM
079535 5940 Std to 9" MB/MD
079536 5781 Std to 9" A & S
079548 578728 ADC
Beckett
Part No. Part No. Description
079530 149 Electrode Clamps (ALL)
079542 5432 Flange, w/ Gasket (ALL)
079543 5850 Flange, Split UnI A&S
079560 3616 Gasket, Universal AMF
079562 3416 Gasket, Unit Mtg
079592 5877 Burner Housing AFG/ADC
079595 5717 (51400) Knurled Nut Kit ADC
079677 51304 Transf Mtg Gasket AFG
079674 31404 Transformer Clip
079654 7006U Cadcell Flame det
079684 7350U Primary Control
079675 3245 Transformer Spring
079629 AF90 Air Tube w/o Head
079573 5151501 Air Band (3 x 92 AFG)
079566 51568 Brush Kit 12V ADC
Beckett Misc. Parts
Flex Couplings
Beckett
Part No. Part No. Description
079520 2454 Flex Coupling 5/16 "A" (M/A)
079521 2290 Flex Coupling 7/16 "S" (J/H)
079522 2433 Flex Coupling 5/16 "S" (M/A)
079523 21282 Flex Coupling 7/16 "A" (J/H)
079524 21405 Flex Coupling 12 VDC
Part No. Description
307000 115V AC Burner w/ Oil Valve
307003 230V AC Burner w/ Oil Valve
307007* 12V DC Burner w/ Oil Valve
*Proper operation requires an engine with 16+ Amp alternator and deep cycle battery
on nightly, overnight recharge
Oil Burners
• .75 to 3 GPH firing rates
• Solid state ignition (Low Amp)
• High volume 6-1/4" blower on 220V unit,
5-3/16" blower on 110V unit
• 3450 RPM pump/blower motor
• “A” – type SUNTEC fuel pump
• 3-3/4" air tube with adjustable flange
for maximum versatility
• UL recognized
• 12 Volt solid state ignitor
• 3450 RPM fuel pump
• .5 to 2.75 GPH
Capacity with oil valve
115 / 230 Volt
12 Volt

BURNERS
79
Wayne
Part No. Part No. Description
079056 31156 Burner Tune-up Kit
079052 14733-001 Electrode Assembly (Pair)
14734-002 with Buss Bars – G shape
079024 12945 Buss Bar – G shape
079034 14344 Burner Gasket
078785 12484 Universal Gasket
079014 4725 Burner Housing (E-Series)
079016 2689 Burner Flange “F”
079059 13279 Flex Coupler A Fuel Unit
079060 Coupler End (J Pump 7/16")
079010 13360 Trans Clip Screw
079011 13038 Trans Clip
079004 2668 Outer Air Band (8 Hole)
079007 2669 Inner Air Band (8 Hole)
078979 31702-014 Gun Assy, F/307007
078752 Nozzle Adapter w/legs MSR/DC
Wayne Burner Parts
Part No. Description
079526 Oil Line, 6.5", Copper
079058 Oil Line, 8", Copper
079525 Oil Line, 9.5", Copper
079066 Brass 90° Elbow 1/8" flare, 1/8" MPT
079067 Brass 90° Elbow 3/16 flare, 1/8" MPT
079020 Oil Pressure Gauge 0 - 200 PSI
079051 (28737-1) Nozzle Adapter
Oil Line Brass Elbow
Blower Wheel
Wayne
Part No. Part No. Description
079005 20288/SER 5-3/16" x 3-7/16"
079006 21854/SER 6-1/4" x 4-3/16"
078999 20673 4-1/4" x 3-1/8"
079003 21427/SER3 12V (Fasco)
079003A 21427 (MET)
Burner Motors
See page 93 for Oil-Fired Hot Box
Part No. RPM HP Flange Voltage Wayne / Beckett
079602 3450 1/7 48M 115V 20627 / 2456U
079605 3450 1/4 48N 12V N/A / 21539-SDC
079607 3450 1/6 48M 14VDC N/A / 21416U-ADC
079608 3450 1/7 48M 240V 20892 / 21174
079613 3450 1/6 48M 13.5V 21699U
079615 3450 1/5 48M 115/240V N/A / 21345
079021 4500 1/5 48M 12VDC 21993-005 / N/A
079604 3450 1/4 48N 115V N/A / 2364U
079609 3450 1/4 48N 115/240V N/A / 21344
079611 3450 1/5 48N 240V 21328 / 2899
079612 3450 1/5 48N 115V 20554 / 2900
079021X Kit, 12VDC/MET to Fasco
Universal
079022 3450 1/7 48M 110-60 Hz Capacitor Start
079025 3450 1/5 48N 110/240V
48N
48M
Common Parts - Beckett & Wayne
Part No. Description
112057 Pint (16 oz.)
112059 Quart
• Easy to use – just add to burner fuel
• Keeps burner at top efficiency
Fuel Conditioner & Soot Remover
Red Devil eliminates soot buildup.

BURNERS
80
Part No. Description
079652 Fuel Solenoid Valve
12 VDC KIP Fuel Solenoid Valve
• Brass body
• 12V DC coil
• 1/8" FPT I/O ports
• Conduit connector
• 5/64" orifice = 6 watt
Wayne
Part No. Part No. Mounting Volt
079115 23101/E Side/EH-EHA 120V
079117 23101/M Back/M-MSR 120V
079123 23103/E Side/EH-EH 230V
079124 23103/M 10KVA/Side 120V
Burner Transformers
• 10,000 Volt spark
• 2.2 Amp @ 120V
• 8.5 lbs
• FranceFormer
Part No. Description
079644 A, Trans/Ign
079645 S, Trans/Ign
079646 E, Trans/Ign
079647 M, Trans/Ign
Base Plates for Transformers
& Ignitors
Beckett
Part No. Part No. Mounting Volt
079668 51343U AFG 230V
079662 21376U S-SF-SR-SM 120V
079665 21176U SM 240V
079672 21346 AFG 120/240V
079673 31488BK Adapter Plate; AFG to SM
Burner Transformers
• 10,000 Volt spark
• 2.2 Amp @ 120V
• 8.5 lbs
• Traditional copper wire wound
Wayne
Part No. Part No. Mounting Volt
079111 101122/001 Side/EH-EHA, France 120V
079113 101121/001 Back/M-MSR, France 120V
079107 31813-002 Side/EH-EHA, Allanson 220V
079109 31812-002 Back/M-MSR 220V
079120 31812-003 Rear Mount, Carlon 12V
079152 31813003 Side Mount(E) 12V
Burner Ignitors
• Solid State Technology
• 14,000 Volt spark
• Only .35 Amp @ 120V
• 1.7 lbs
Beckett
Part No. Part No. Mounting Volt
079669 51501U AFG/Lo Amp 115V
079671 51524U ADCw/o CB 12VDC
079670* 51499U ADCw/ CB 12VDC
079707 51506U SDCw/ Con BD 12VDC
079682 51824U SDC 120V
079687 51779U SDCw/o CB
*complete with Timer
Burner Ignitors
• Solid State Technology
• 14,000 Volt spark
• Only .35 Amp @ 110V
• 1.7 lbs

BURNERS
81

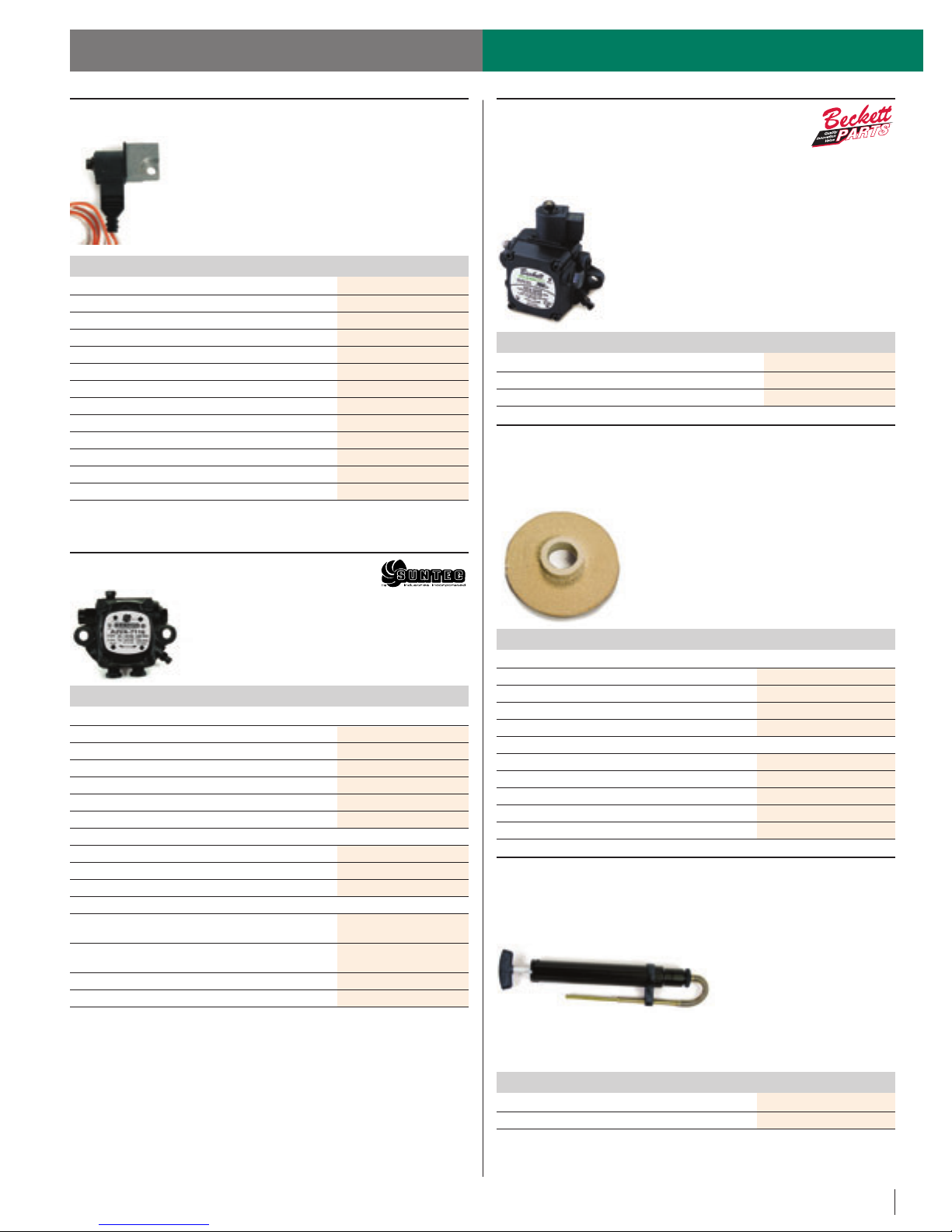

Part No.
Standard Pumps
079030 A2VA7116 3 3450 RH
079031 A1VA7112 3 1725 RH
079033 A2VC7118 3 3450 LH
079036 A1YA7912 7 1725 RH
079037 A2YA7916 7 3450 RH
079028 A2RA7710 RH
Pumps with Solenoid
079038 A2VA2116 w/12V 3450 RH
079038-110 A2VA2116 w/110V 3 3450 RH
079038-220 A2VA2116 w/220V 3 3450 RH
Pump Replacement Parts
079044 3715732 Pump Fuel Screen
(A2VA 7116)
079055 3715744 Pump Fuel Screen
(A2AVA 7916)
079045 3779801 Gasket Cover
079164 Lip Seal
Fuel Pumps
• Use with single or dual line systems
• Pressure adjustment valve
Part No. Description
079641 110 Volt
079642 220 Volt
079643 12 Volt
CleanCut Fuel Pump
Simple design provides faster cleaning, more reliable cut offs, and cut ons.
Cleaner operation-less soot. More reliable-fewer moving parts. Reduced motor
load in start up. Higher capacity - 4 GPM at 100 PSI.
• 100-200 PSI - Factory set 100 PSI
• Inlet pressure 10 PSI
• Rated speed 3600 RPM
• Includes built in solenoid w/ cord set
Part No. Description
079062 110V Oil Valve - R642
079063 220V Oil Valve - R753
079064 12/24V Oil Valve - R261
079125 Flow Thru Connector Bolt
079126 Aluminum Seal Washer
079053X 110V Coil w/ Cord Set
079054X 230V Coil w/ Cord Set
079050X 12/24 Coil w/ Cord Set
079096 115V Coil w/o Cord Set
079097 230V Coil w/o Cord Set
079098 12/24VDC Coil w/o Cord Set
079099 Cord Set Only
079047 8mm Nut for Old Style Coil
Oil Solenoid Valve
• Unitized mounting on Suntec fuel pumps
• 1/8" FPT Inlet
• 300 PSI
• Uses standard SUNTEC coil
Part No. Description Thickness Width Length
“Rigid Formed” Donut & Discs
122253 Donut .88" 18" 6"/4.4"
122258 Donut .88" 16" 6"/4.4"
122254 Disc 1/2" 18"
122257 Disc 1/2" 16"
Insulation Blanket
122204 Coil Wrap 1" 24" 4'
122205 Coil Wrap 1" 24" 5'
122206 Coil Wrap 1" 24" 6'
122222 Full Roll 1/2" 24" 37.5'
122225 Full Roll 1" 24" 25'
Insulation & Rigid Disc / Donuts
Refractory Grade Ceramic Kawool Formed; retains heat inside coil for better fuel
efficiency and paint protection.
Part No. Description
449020 Smoke Tester
449019 Filter Paper Refill*
*40 sheet (10 tests per sheet)
Smoke Tester - Diagnostic Tool
The smoke tester gives you the ability to measure smoke (soot) density
and adjust air flow and fuel pressure to optimize burner performance.
A properly tuned burner:
• Heats water more efficiently
• Doesn’t build up soot in the coil
• Doesn’t pollute the air
• Keeps your customers happy
• A tool that should be used
by every serviceman in the industry.

BURNERS
82
Part No. GPH
079477 2.00 x 60°W
079479 1.65 x 80°W
079480 1.50 x 80°W
079481 1.75 x 80°W
079482 2.00 x 80°W
079483 2.25 x 80°W
079484 2.50 x 80°W
079486 2.75 x 80°W
079487 3.00 x 80°W
079490 4.00 x 80°W
079505 1.65 x 90°W
079492 2.00 x 90°W
Delavan Fuel Nozzles
Select proper size for maximum burner efficiency.
60° A 60° B 70° A 70° B 80° A 80° B 90° A 90° B
GPH Hollow Solid Hollow Solid Hollow Solid Hollow Solid
.50 079225 079250 079275 079325 079400
.60 079326 079351 079376
.65 079227 079327 079352 079377
.75 079253 079303 079328 079353 079378 079403
.85 079229 079254 079329 079354 079404
.90 079230 079255 079330 079355 079380
1.00 079231 079256 079281 079306 079331 079356 079381 079406
1.10 079232 079257 079332 079357 079382 079407
1.20 079233 079258 079283 079333 079358
1.25 079234 079259 079309 079334 079359 079384 079409
1.35 079235 079260 079310 079335 079360 079385 079410
1.50 079236 079261 079286 079336 079361 079386 079411
1.65 079237 079262 079337 079362 079387 079412
1.75 079238 079263 079288 079313 079338 079363 079388 079413
2.00 079239 079314 079339 079364 079389 079414
2.25 079240 079265 079315 079340 079365 079390 079415
2.50 079241 079266 079291 079341 079366 079391 079416
2.75 079242 079267 079342 079367 079392 079417
3.00 079293 079343 079368 079393 079418
3.25 079244 079294 079369 079394 079419
3.50 079270 079345 079370 079395 079420
4.00 079346 079371 079396 079421
5.00 079373A 079398
6.00 079374 079425
6.50 079372
7.00
8.00 079324
NOTE: The above “W”
Nozzles are stocked.
All Sizes Are Available
Part No. Description
079221 Nozzle Tray (Metal)
(Open Top, 55-Compartment, Plastic)
Nozzle Accessories Part No. Description
347425 24V Retrofit Kit (NG) 100,000 BTU
347418 24V Retrofit Kit (NG) 335,000 BTU
347379 24V Retrofit Kit (NG) 720,000 BTU
347416 Cycle Pilot Control (347425) 24V
347440 Cycle Pilot Control 120V
347446 Gas Ignition Electrode (24" Lead)
Cycle Pilot
Gas Auto Relight Kits. Eliminate standing pilot in gas burners with a cycle pilot
relight kit. Retro Fit Kit includes: Gas valve, flame sensor, electrode pilot relight
and harness.
Part No. Description
079210 Snap Fuel Valve, 100 PSI
079211 Snap Fuel Valve, 130 PSI
079215 Snap Check Valve, 130 PSI (5 pack)
079214 Snap Check Valve, 100 PSI (5 pack)
“Snap” Fuel Nozzle Check Valve
Spring loaded “snap” check valve replaces filter element on fuel nozzle. Valve
opens when fuel pump pressure reaches 130 PSI and “snaps” shut when fuel
pressure drops below 130 PSI. Stops “smokey” burners at start up and eliminates
“shut down” after burn.
• Reduces nozzle fouling caused
by residual fuel in orifice
• Easy field installation in standard fuel nozzles
• Reduces soot build up in coil

BURNERS
83
Part No. Description
347430 750 MV Generator
347431 P110T Pilot Burner (Natural gas)
347436 Thermo Couple (w/ 24") Cap Tube
347438 Thermo Couple (w/ 36") Cap Tube
Gas Valve Accessory Components
Use with both 3/4" and 1" models above.
Part No. Description
347421 1" LP Conversion Kit
347380 LP Orifice
LP Conversion Kit for Robert Shaw
Convert NG to LP
Model Jets 1000
Part No. No. Req’d BTUH
Gas Burner Rings Only
347502 Z-21 20 100-200
347504 X-11 32 160-320
347506 X-44 44 220-440
347508 X-66 66 330-660
347510 X-88 88 440-880
Drill Orifice
Part No. Size Size Use
Gas Jets for Burner Rings* (above)
347552 #52 (.0635) NG
347554 #54 (.055) NG
347562 #62 (.038) LP
347565 #65 (.035) LP
347566 #66 (.033) LP
347549 Blank (Must Be Drilled)
*Due to freight damage on assembled rings / jets…Separately order correct number & size of jets
for each burner ring.
Part No. Description Model No.
347400 Gas Valve 24V (1)
347410 Gas Valve 120V (2)
347412 Gas Valve 750 MV (1)
347423 3/4" LP Conversion Kit
(1) Includes two 3/4" x 1/2" all-thread plated bushings and valve instructions.
(2) Includes L.P. Kit, two 3/4" x 1/2" and one 1/2" x 3/8" all-thread plated bushings
and all instructions.
Gas Valves - LP or Natural
Universal type for building new systems or field replacement. 750 MV, 24V
or 120V Controls by White-Rodgers.
Gas Burner Rings - N /G or L /P Gas Jets
The Standard for Gas-Fired Pressure Washers. Impinged Jet Burner Rings offer
the most efficient utilization of gas for heating water.
Gas Burner Ring
347436
Gas Jets
• 335,000 BTU max
• 3/4" inlet/outlet
• All adjustments & wiring
connections on top of valve
• Automatic outlet pressure regulator
• A.G.A. design certified, C.G.A. certified
Part No. Description Model No.
347406 240 Vac/NG, Standing Pilot
347407 24 Vac, NG, Standing Pilot
347403 24 Vac, NG, Electronic Ignition
347409 700 MV, Natural Gas
LP Conversion Kit below
1" Gas Valves by Robert Shaw
Universal type for new equipment or replacement.
• Manual gas cock
• Auto pilot safety valve
• Wiring & hardware included
• Pilot gas filter
• 600,000 BTU LP gas
720,000 BTU Natural Gas
• 1" inlet/outlet
