Riello Gulliver BS3/M TXL Quick start guide

Installation, use and maintenance instructions
20050873 (1) - 05/2012
安装、使用及维护手册
Forced draught gas burner
强制通风燃气燃烧器
CODE - 编码 MODEL - 型号 TYPE - 类型
20050820 BS3/M TXL 917T2
GB
CN
Modulating operation
比例调节运行

GB
Declaration of conformity in accordance with ISO / IEC 17050-1
Manufacturer: RIELLO S.p.A.
Address: Via Pilade Riello, 7
37045 Legnago (VR)
Product: Gas burner
Model: BS3/M TXL
These products are in compliance with the following Technical Standards:
EN 676
EN 12100
and according to the European Directives:
MD 2006/42/EC Machine Directive
LVD 2006/95/EC Low Voltage Directive
EMC 2004/108/EC Electromagnetic Compatibility
Such products are marked as follows:
The quality is guaranteed by a quality and management system certified in accordance with UNI EN ISO 9001.
Legnago, 16.04.2012 Mr. G. Conticini
Burners Division Department
RIELLO S.p.A.

20050873 1GB
CONTENTS
1. BURNER DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1 Burner equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. TECHNICAL DATA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Overall dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.3 Firing rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.1 Working position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2 Boiler fixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.3 Probe-electrode positioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.4 Gas train . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.5 Gas train electricity supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.6 Gas feeding line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.7 Electrical wiring (as set up by the manufacturer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.8 Electrical wiring (as set up by the installer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4. WORKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.1 Combustion adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.2 Combustion head setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.3 Setting of the air damper servomotor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.4 Burner adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.5 Combustion check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.6 Air pressure switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.7 Gas pressure switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.8 Burner start-up cycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6. FAULTS / SOLUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7. GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.1 Burner identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.2 Basic safety rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8. ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

20050873 2GB
1. BURNER DESCRIPTION
One stage gas burner.
1.1 BURNER EQUIPMENT
Flange with insulating gasket. . . . . . . .No. 1 Screws and nuts for flange to be fixed to boiler . . .No. 4
Screw and nut for flange . . . . . . . . . . .No. 1 4 pin plug. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .No. 1
7 pin plug . . . . . . . . . . . . . . . . . . . . . .No. 1
1– Air pressure switch
2– 6 pole socket for gas train
3– Control box
4– Reset button with lock-out lamp
5– Flange with insulating gasket
6– Air damper adjustment assembly
7– Head holder assembly
8– Pressure test point
9– Motor
The burner meets protection level of IP X0D (IP 40), EN 60529.
Gas train according to EN 676.
The burner is approved for intermittent operation as per Directive EN 676.
Note for Switzerland. Swiss provisions, local and cantonal provisions, the provisions of the SVGW author-
ites for the use of gas, as well as those of the Fir Brigade (VKF), must all be complied with.
3
2
4
1
7
8
6
9
5
20051276
Fig. 1

20050873 3GB
2. TECHNICAL DATA
2.1 TECHNICAL DATA
For gas family 3 (LPG) ask for separate kit.
2.2 OVERALL DIMENSIONS
TYPE 917T2
Thermal power (1) kW 25 – 200
Mcal/h 21.5 – 172
Natural gas (Family 2) Net heat value: 8 – 12 kWh/m3= 7000 – 10,340 kcal/m3
Pressure: min. 20 mbar – max. 360 mbar
Electrical supply Single phase, 230V ±10% ~50Hz
Motor Run current 1.8A 2800 rpm
294 rad/s
Capacitor 6.3 F
Ignition transformer Primary 230V / 0.2A – Secondary 8 kV / 12 mA
Absorbed electrical power 0.35 kW
(1) Reference conditions: Temp. 20°C - Barometric pressure 1013 mbar – Altitude 0 m above sea level.
COUNTRY AT - IT - DK - CH GB - IE DE FR NL LU - PL BE
GAS CATEGORY II2H3B/P II2H3P II2ELL3B/P II2Er3P II2L3B/P II2E3B/P I2E(R)B,I3P
GAS
PRESSURE
G20 H 20 –––
–– –
G25 L –25 20 – 25 25 –
G20 E ––20 20/25 –2020/25
TYPEABCDEF G H IL-TMNOPRS
917T2 330 345 391 150 150 550 322 337 282 267 196 129 285 216 76.5 201 160 190
N
T
S
R
PO
11
45
45
I
HG
L
F
BC
A
ED
20051277

20050873 4GB
2.3 FIRING RATE
TEST BOILER
The firing rate has been defined according to EN 676 standard.
COMMERCIAL BOILERS
The burner-boiler matching is assured if the boiler conforms to EN 303 and the combustion chamber
dimensions are similar to those shown in the diagram EN 676.
For applications where the boiler does not conform to EN 303, or where the combustion chamber is much
smaller than the dimensions given in EN 676, please consult the manufacturers.
CORRELATION BETWEEN GAS PRESSURE AND BURNER OUTPUT
To obtain the maximum output, a gas head pressure of 10.5 mbar, is measured (M2, see chapter 3.6, page
7) with the combustion chamber at 0 mbar using gas G20 with a net heat value of 10 kWh/m3(8.570 kcal/m3).
Thermal power
D11418
25 100 150 200
12
10
8
6
4
2
00
050000 100000 150000 kcal/h
kW
20015010050
Thermal power
Gas pressure in the
combustion head – mbar
D11136

20050873 5GB
3. INSTALLATION
3.1 WORKING POSITION
The burner is designed for operation in position 1only.
Installation in positions 2, 3, 5, 6 and 7is not recommended as it is likely to hinder the unit’s proper operation
since air damper closure cannot be guaranteed when the burner is on standby.
Installation in position 5is only possible using the “MULTIBLOC rotation kit”, to be ordered separately.
Installation 4is prohibited as safety is compromised.
The installation of the burner must be carried out by qualified personnel, as indicated in this manual
and in compliance with the standards and regulations of the laws in force.
WARNING
D4450
1 2 3 4
5 6 7

20050873 6GB

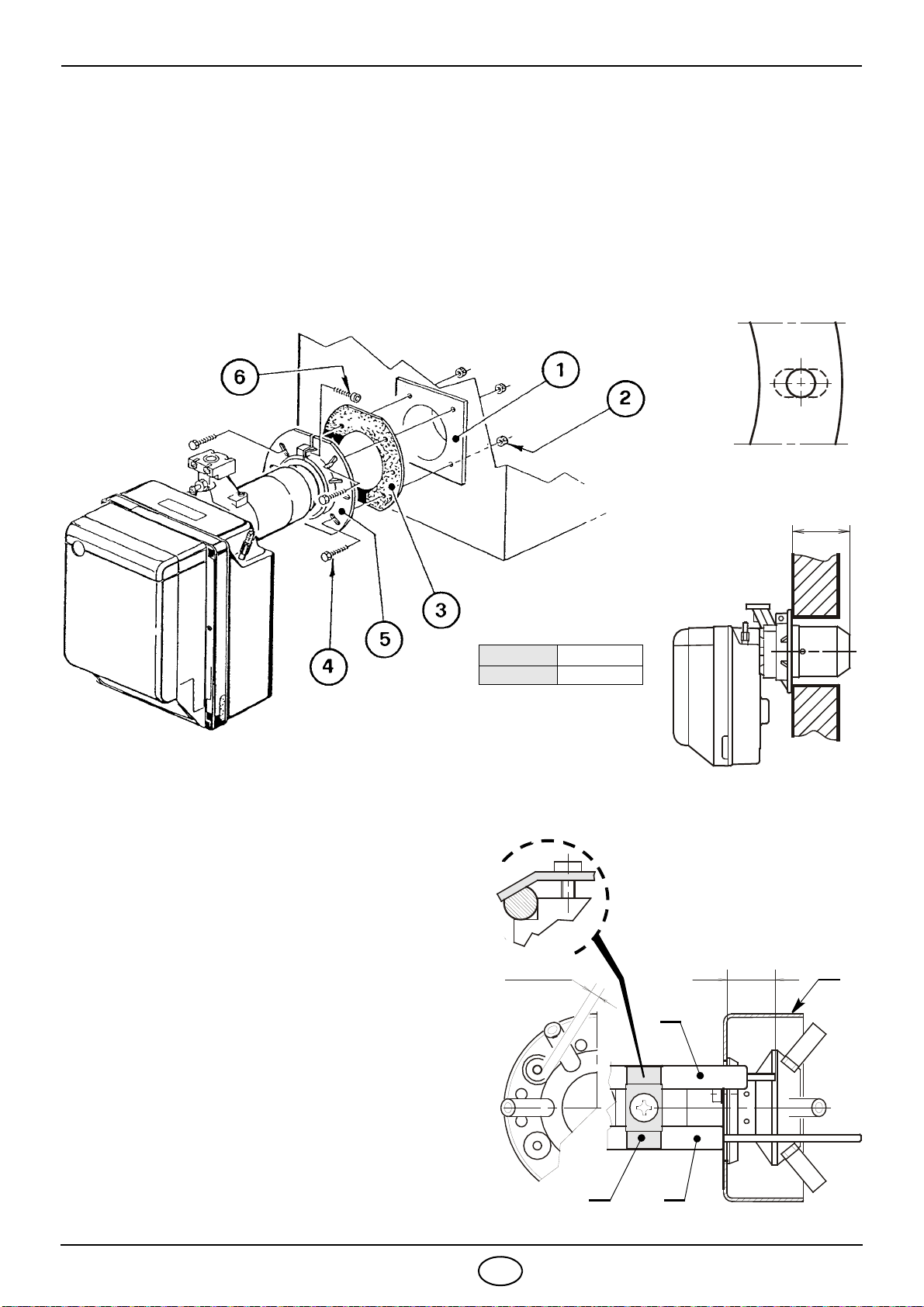

3.2 BOILER FIXING
To fit the burner to the boiler it is necessary to carry out the following:
Widen, if necessary, the insulating gasket holes (3, fig. 3).
Fix the flange (5) to the boiler door (1) using four screws (4) and (if necessary) the nuts (2) interposing
the insulating gasket (3) but keep unloosing one of the two upper screws (4) (see fig. 2).
Put on the flange (5) the burner combustion head, tighten the flange with the screws (6) and lock the
loose screw (4).
N.B.: The burner can be fixed with the variable dimension (A) (see fig. 4). Anyway, make sure that the
combustion head crosses completely the boiler door thickness.
3.3 PROBE-ELECTRODE POSITIONING
Fig. 2 Fig. 3
TYPE A
917T2 267 - 282
D5012
S7002
Fig. 4
A
D5011
ATTENTION
Ensure that the plate (3, fig. 5) is always
inserted in the flattening of the electrode.
Lean the probe insulator (4) against the cup (2).
D6088
± 0.3
3.5 ± 0.3 31
Fig. 5
1
3
2
4

20050873 7GB
3.4 GAS TRAIN, (as EN 676)
The gas train is supplied separately, for its adjustment see the enclosed instructions.
3.5 GAS TRAIN ELECTRICITY SUPPLY
The gas train’s power cables can be fed to the right or
left of the burner, as illustrated in figure 6.
Depending on the entry point, the cable clamp with
pressure test point (1) and simple cable clamp (2) may
need swapping over.
Consequently, you must make sure:
the cable clamp (1) is positioned correctly;
the tube is positioned correctly so that there are no
restrictions likely to impede air flowing to the pres-
sure switch.
WARNING
If necessary, cut the tube to the right size.
3.6 GAS FEEDING LINE
GAS TRAIN MATCHED
BURNER
CONNECTIONS USE
TYPE CODE INLET OUTLET
MBDLE 407 B01 3970548 BS3 - BS4 Rp 3/4 Flange 3 Natural gas 150kW and LPG
MBDLE 410 B01 3970549 BS3/M Rp 1 1/4 Flange 3 Natural gas and LPG
MBDLE 412 B01 3970550 BS3/M Rp 1 1/4 Flange 3 Natural gas
2
12
1
Fig. 6
D7113
1– Gas supply pipe
2– Manual cock (charged to the installer)
3– Gas pressure gauge (charged to the installer)
4–Filter
5– Gas pressure switch
6– Safety valve
7– Pressure governor
8– Adjusting valve
M1 – Gas-supply pressure test point
M2 – Pressure coupling test point
M2
Fig. 7
D5209
123M156748

20050873 8GB

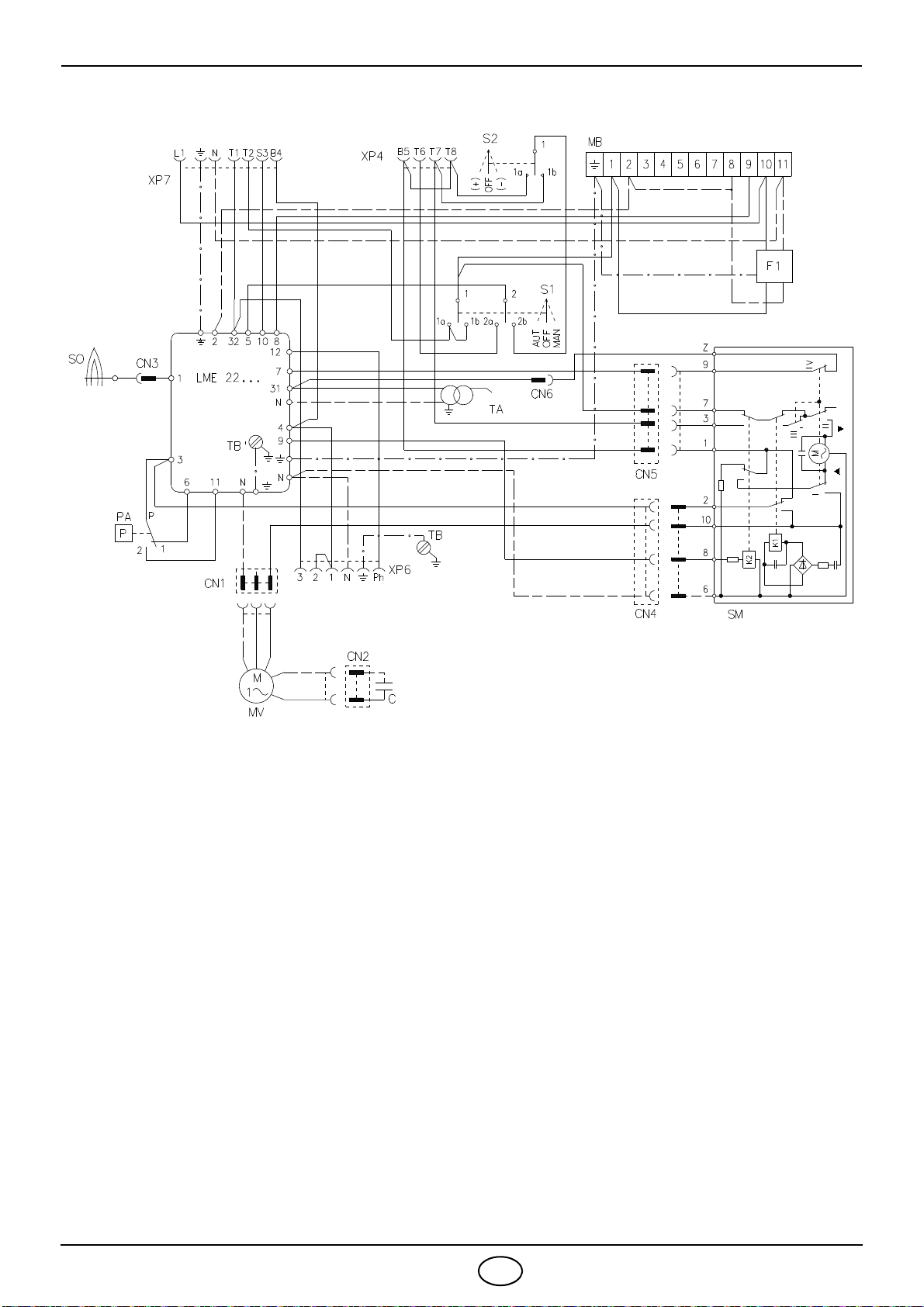

3.7 STANDARD ELECTRICAL SYSTEM, (as set up by the manufacturer)
Key to lay-out
C–Motor capacitor
CN... –Connectors
F1 – Suppressor
MB –Auxiliary terminal block
MV – Motor
PA –Min. air pressure switch
SM –Servomotor
SO –Ionisation probe
S1 – Switch for:
MAN = manual operation
AUT = automatic operation
OFF = stand by
S2 – Button for:
– = power reduction
+ = power increase
TA –Ignition transformer
TB –Burner-earth
XP4 –4 pole socket
XP6 –6 pole socket
XP7 –7 pole socket
ATTENTION:
Do not swap neutral and phase over, follow the diagram
shown carefully and carry out a good earth connection.
The section of the conductors must be at least 1mm².
(Unless requested otherwise by local standards and legisla-
tion).
The electrical wiring carried out by the installer must be in
compliance with the rules in force in the country.
TESTING
Check the shut-down of the burner by opening the thermostats,
and the lock-out by opening the connector (CN3) inserted in the
red cable of the probe placed outside of the control box.
NOTES
The burners have been type-approved for intermittent opera-
tion. This means they must stop at least once every 24 hours in
order to allow the electrical control box to check its efficiency on
start-up. The boiler limit thermostat (TL) normally ensures the
burner halts. If this does not happen a time switch halting the
burner at least once every 24 hours must be applied in series to
limit thermostat (TL).
LINE
LOAD
S8513

20050873 9GB
3.8 ELECTRICAL CONNECTION (As set up by the installer)
D4548
Key to lay-out:
PS –Remote manual reset
MB –Burner terminal block
X7 – 7 pin plug
X4 – 4 pin plug
X6 – 6 pin plug
h2 – 2nd stage hourcounter
TR – High-low mode control device system
h1 – 1st stage hourcounter
S– Remote lock-out signal
IN –Manual burner stop switch
WITHOUT REGULATOR (high-low progressive mode operation)
WITH REGULATOR (fully modulating mode operation)
Key to lay-out:
PS –Remote manual reset
MB –Burner terminal block
X4 – 4 pin plug
X7 – 7 pin plug
BT –Temperature probe
BP –Pressure probe
TL –Limit control device system
T6A –Fuse
TS –Safety control device system
PG –Min. gas pressure svitch
VR –Adjustment valve
VS –Safety valve
Do not connect any contact
between T6 and T8 at the
4 pin plug and between T1
and T2 at the 7 pin plug, in
order to avoid interference
with the regulator.
ATTENTION
If the boiler has a the 7 pin plug, it should be replaced with the one supplied with the burner.
WARNING
D7137

20050873 10 GB
4. WORKING
4.1 COMBUSTION ADJUSTMENT
In conformity with Efficiency Directive 92/42/EEC
the application of the burner on the boiler,
adjustment and testing must be carried out
observing the instruction manual of the
boiler, including verification of the CO and
CO2concentration in the flue gases, their
temperatures and the average temperature
of the water in the boiler.
To suit the required appliance output, choose
the proper setting of the combustion head, and
the air damper opening.
4.2 COMBUSTION HEAD SETTING,
(see fig. 9)
The combustion head leaves the factory
set for the maximum output (set point 8).
Setting depends on the output of the burner.
Rotate the setting screw (6) in a clockwise or
anticlockwise direction until set point marked
on the regulating rod (2) is level with the out-
side plane of the head assembly (1).
Figure 9 shows the head regulating rod set
on set point 3.
REMOVING THE HEAD ASSEMBLY
To remove the head assembly, carry out the
following operations:
Make sure servomotor (7) is in the closing
position (CAM II = 0).
Disconnect the connections (3 and 5).
Loosen the screws (4) and remove the ser-
vomotor (7).
ATTENTION
Rotation shaft (10) managed by the servo-
motor (7) features a safety mechanism (11)
that prevents it turning accidentally whilst
maintenance work is in progress.
Loosen the screw (9), loosen screws (8)
and remove head-holder assembly (1) by
rotating slightly to the right.
Take care not to alter the regulating rod-el-
bow (2) position while disassembling.
REASSEMBLY OF THE HEAD SYSTEM
Refit following the above procedure in the
reverse order, restoring the head assembly (1)
to its original position.
ATTENTION
Tighten the screws (9) (without locking them) completely; then lock them with a torque wrench setting of 3 - 4 Nm.
Control that, during the working, there are not gas losses coming from the screws.
02468
10
30
50
70
90
110
130
150
170
190
210
230
10000
50000
90000
130000
170000
Set point
E9223 10
9
1
6
11
1 2
4
7
3
5
8
D11419
Fig. 9
kcal/h kW

20050873 11 GB
4.3 SETTING OF THE AIR DAMPER SERVOMOTOR, (see fig. 11)
CAM II assures the fully closed position of the air
damper, when the burner is shut down (stand by).
It is adjusted by the factory at 0°. DO NOT ALTER.
CAM III adjusts the air damper for the ignition and
for the minimum output. It can be adjusted whilst it
is being put into service. CAM IV is integral with
CAM III.
CAM I regulates the position of the air damper
when the burner is working at maximum output,
and must be used to limit the burner delivery
(adapting it to the boiler delivery). It is factory-regu-
lated at 90°.
The servomotor only follows adjustment of CAM III when the cam’s angle is reduced.
If the cam’s angle needs increasing, you must first increase the servomotor angle with the “increase output (+)”
key, then increase the angle of CAM III and, lastly, return the servomotor to the MIN output position with the “de-
crease output (-)” key.

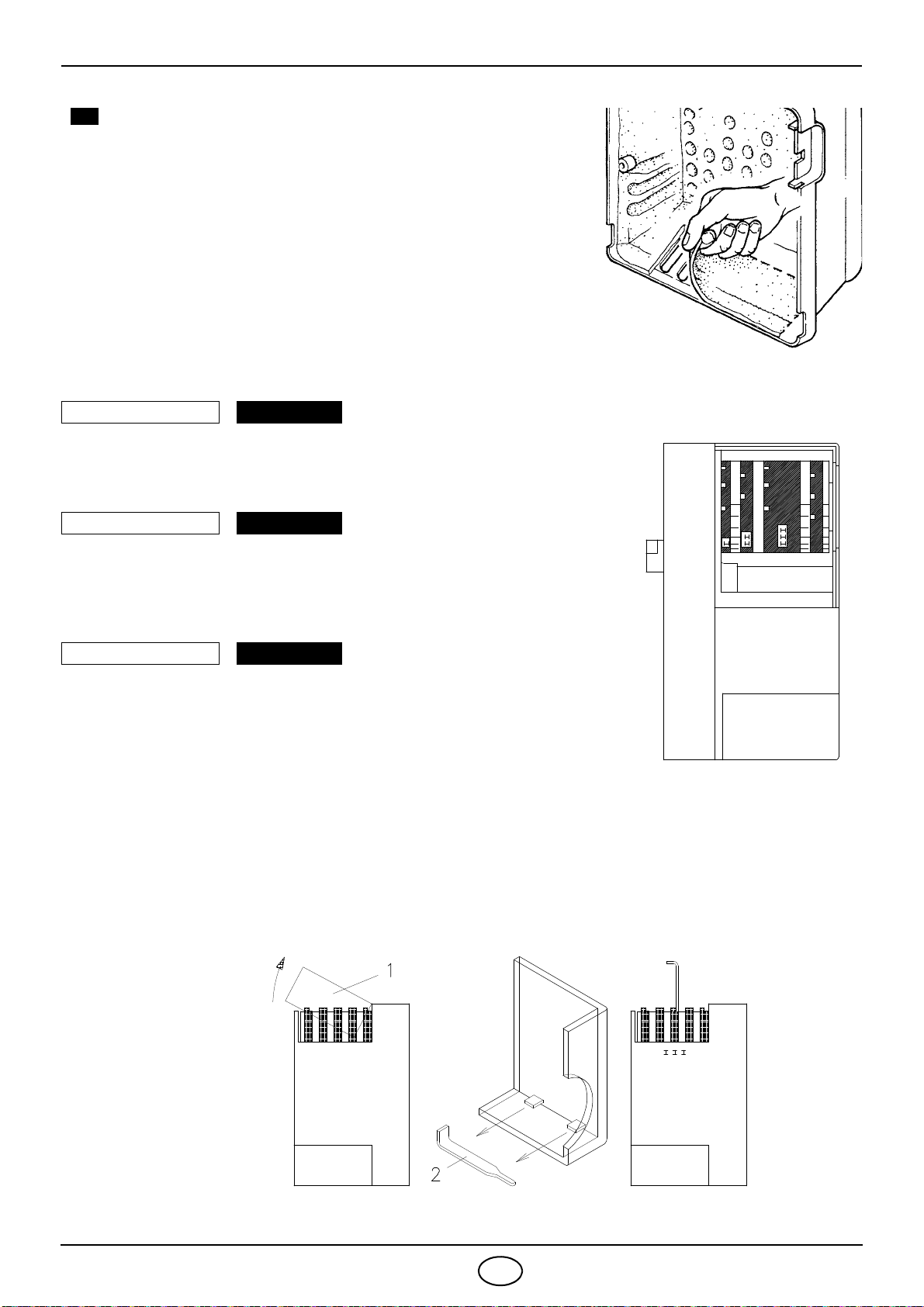

Where necessary, CAM III can be adjusted by removing cover (1), which is snapped on, as illustrated in fig. 12,
removing the relevant key (2) from inside, and inserting it in the slot on CAM III.
S7025
For the burner to operate over 140 kW, you must remove the
blank deadening to free the supplementary slits of the air inlet on
the cover, as illustrated in figure 10.
A
Fig. 10
Fig. 11
D4438
STAND-BY
CAM II
FIRST STAGE
CAM III
SECOND STAGE
CAM I
D4439
Fig. 12

20050873 12 GB
4.4 BURNER ADJUSTMENTS
The tie rod connecting the two air-gas levers, can be fixed on 3 positions according to the modulating
requirements. The factory setting foresees that the tie rod is fixed on both levers in position 1.
The value with back pressure in combustion chamber at a 0 mbar. In case of lower or higher back pressure
values, act on the adjustment of the combustion head.
The value with back pressure in combustion chamber at a 1 mbar. In case of lower or higher back pressure
values, act on the adjustment of the combustion head.
Output (kW) Gas pressure - M2
(mbar) Combustion head setting Servomotor setting
Min. Max.
100 2,2 520% 55%
150 5,5 520% 75%
200 10,5 520% 100%
Factory setting Servomotor setting
Output (kW) Gas pressure - M2
(mbar) Combustion head setting Min. Max.
100 2,3 820% 55%
150 6 8 20% 75%
200 11 820% 100%
You can obtain the adjustment of the intermediate maximum output (100 and 150 kW), than the
maximum absolute of 200 kW, limiting the cam I opening of the servomotor.
By means of this adjustment, the indication of the servomotor position will show the partial load.
Therefore, the PLC software will foresee the possibility “to decrease" this indication according to the
necessity.
115
1 3
2
1
23
20050501
Fig. 13
ATTENTION

20050873 13 GB
CHECK OF THE COMBUSTION PERFORMANCE CARRIED OUT IN LABORATORY
A Pressure in combustion chamber
B CO2= % - CO = ppm
C Output kW
D Combustion head set point
* Burner without cover
AB C D
200 170 150 140 120 110 90 80 60 40 30 25
0 mbar
CO29,7 9,7 10,1 10,1 9,8 7,1 8,8 5
CO 1 1 1 1 1 24 23
0 mbar
CO29,9 10,1 8,8 8,8 5
CO 1 1 1 23
1 mbar
CO29,9 10,1 10,4 10,5 10 7,1 8,5 8
CO 3 3 4 6 4 34 11
1 mbar
CO210,3 10,5 10,2 9,1 8,5 8
CO 3 4 4 3 11

20050873 14 GB
4.5 COMBUSTION CHECK
In conformity with Efficiency Directive 92/42/EEC the application of the burner on the boiler, adjustment and
testing must be carried out observing the instruction manual of the boiler, including verification of the CO and CO2
concentration in the flue gases, their temperatures and the average temperature of the water in the boiler.
It is advisable to set the burner according to the type of gas used and following the indications of the table:
IONIZATION CURRENT
The minimum current necessary for the control box operation is 2 µA.
The burner normally supplies a higher current value, so that no check is needed. Anyway, if you want to
measure the ionization current, you have to open the connector (CN3), (see electrical scheme page 8) fitted
on the wire and insert a microammeter.
4.6 AIR PRESSURE SWITCH
Adjust the air pressure switch once you have performed all the other burner adjustments with the air pressure
switch set to the start of the scale. With the burner operating at minimum output, turn the knob slowly clockwise
until the burner locks out. Next, turn the knob anticlockwise by a value of approx. 20% of the set value and then
make sure the burner starts properly. If the burner locks out again, turn the knob just a bit further anticlockwise.
Attention:
As a rule, the air pressure switch must prevent the air pressure from lowering below 80% of the adjustment
value as well as preventing the CO in the fumes from exceeding 1% (10,000 ppm).
To check this, insert a combustion analyser into the chimney, slowly close the fan suction inlet (for example
with cardboard) and check that the burner locks out, before the CO in the fumes exceeds 1%.
4.7 GAS PRESSURE SWITCH
For the gas pressure switch setting see the gas train instruction manual.
EN 676 AIR EXCESS:
max. output 1.2 – min. output 1.3
GAS Theoretical max. CO2
0 % O2
Setting CO2% CO
mg/kWh NOx
mg/kWh
= 1.2 = 1.3
G 20 11.7 9.7 9.0 100 170
G 30 14.0 11.6 10.7 100 230
G 31 13.7 11.4 10.5 100 230
Probe
Connector
Terminal block
of control-box
D5006
1
Fig. 14

20050873 15 GB
4.8 BURNER START-UP CYCLE
5. MAINTENANCE
The burner requires periodic maintenance carried out by a qualified and authorised technician in conform-
ity with legislation and local standards.
Maintenance is essential for the reliability of the burner, avoiding the excessive consumption of fuel and
consequent pollution.
Before carrying out any cleaning or control always first switch off the electrical supply to the
burner acting on the main switch of the system.
THE BASIC CHECKS ARE:THE FUNDAMENTAL OPERA-
TIONS TO CARRY OUT ARE AS FOLLOWS:
Check at regular intervals that the holes of the gas head are
not obstructed. If they are, clean them with a suitable tool as
shown in the figure 15.
Check there are no occlusions or obstructions in the inlet or
return pipes, in the air suction areas and in the combustion
product waste pipe.
Check that the burner and gas train electrical connections are
correct.
Check that the gas train is suited to the burner capacity, the type
of gas used and the network gas pressure.
Check that the positioning of the combustion head is correct
and that it is properly fixed to the boiler.
Check that the air damper is positioned correctly.
Check that the ionisation probe and the electrode are positioned correctly (see fig. 8, page 7).
Check that the air pressure switch and the gas pressure switch are set correctly.
Leave the burner working without interruptions for 10 min. and checking the right 1st and 2nd stage
settings of all the components stated in this manual.
Then carry out a combustion check verifying:
CO2percentage (%); CO content (ppm); NOx content (ppm); Ionisation current (µA);
Flue gases temperature at the stack.
24s Min. 30s
3s max.
11s15 25s D4435
3s2.5s
11s
Limit thermostat
Motor
Safety thermostat
Ignition transformer
2nd flame
Valve
Servomotor 2
1
0
{
1st flame
Fig. 15
E9252

20050873 16 GB
6. FAULTS / SOLUTIONS
The control box has a self-diagnostic system, by which it is possible to easily check the faults and find the
solutions.
To use this function, wait for a minimum of 10 sec after the lock out, then push the reset button for 3 sec.
After releasing the button, the RED LED will begin to flash, as shown in the following schedule.
The LED provide a blink code each 3sec.
The blink codes give the information of the possible faults, as follows:
BLINK CODE POSSIBLE CAUSE
2

The flame does not stabilize at the end of the safety time:
– faulty or soiled ionization probe;
– faulty or soiled fuel valves;
– neutral/phase exchange;
– poor burner regulation.
3

Minimum air pressure switch does not close:
– make sure VPS trips to produce lockout;
– air pressure switch faulty;
– air pressure switch incorrectly regulated;
– fan motor does not run;
– maximum air pressure switch operating.
4
 Extraneous light during pre-purging, or control box faulty.
5

Minimum air pressure switch does not open:
– air pressure switch faulty;
– air pressure switch incorrectly adjusted.
7

Loss of flame during operation:
– poor burner regulation;
– faulty or soiled fuel valves;
– short circuit between ionization probe and earth.
10
 Control box faulty.
 
Press lockout reset
button for > 3s Approx. 3sBlink code Blink code
Red fault LED
waiting time 10s

20050873 17 GB
7. GENERAL INFORMATION
IDENTIFICATION
The Identification Plate on the product gives the serial number, model and main technical and performance
data. If the Identification Plate is tampered with, removed or missing, the product cannot be clearly identified
thus making any installation or maintenance work potentially dangerous.
GENERAL WARNINGS
The dimension of the boiler’s combustion chamber must respond to specific values, in order to guarantee a
combustion with the lowest polluting emissions rate.
The Technical Service Personnel will be glad to give you all the imformation for a correct matching of this
burner to the boiler.
This burner must only be used for the application it was designed for.
The manufacturer accepts no liability within or without the contract for any damage caused to people, ani-
mals and property due to installation, adjustment and maintenance errors or to improper use.
USER INFORMATION
If faults arise in ignition or operations, the burner performs a "safety stop", which is signalled by the red
burner lock out Led. To rearm start up conditions, press the release button.
When the burner starts up again, the red Led goes out. This operation can be repeated for a maximum of 3
times.
If the "safety stop" recurs, then the Technical Assistance Centre must be called out.
BASIC SAFETY MEASURES
Children or inexpert persons must not use the appliance.
Under no circumstances must the intake grids, dissipation grids and ventilation vents in the installation
room be covered up with cloths, paper or any other material.
Unauthorised persons must not attempt to repair the appliance.
It is dangerous to pull or twist the electric leads.
Cleaning operations must not be performed if the appliance is not disconnected from the main power supply.
Do not clean the burner or its parts with inflammable substances (e.g. petrol, alcohol, etc.). The cover
must be cleaned with soapy water.
Do not place anything on the burner.
Do not block or reduce the size of the ventilation vents in the installation room.
Do not leave containers and inflammable products in the installation room.

20050873 18 GB
8. ACCESSORIES
PC INTERFACE KIT: code 3002719
MULTIBLOC ROTATION KIT
There is a special kit available that can be used to install the burner turned 180°, as illustrated on page 5 in
position 5 in the section entitled "3.1 WORKING POSITION". This kit is designed to ensure the gas train
valve works properly.
The kit must be installed in conformity with laws and local regulations.
KIT POTENTIOMETER FOR INDICATION OF LOAD POSITION: code 3010109
OUTPUT POWER REGULATOR KIT
Under modulating operation, the burner automatically adapts to one of an infinite number of firing rates
between the low and high flame output position, thus ensuring stable operating conditions in terms of tem-
perature or pressure. Two components should be ordered
– power regulator to install to the burner;
– probe to install to the boiler.
PARAMETER TO
BE REGULATED PROBE REGULATOR
Range Type Code Type Code
Temperature –100...+500 °C PT 100 3010110 RWF40 3001078
Pressure 0...2.5 bar Output probe 4...20 mA 3010213
0...16 bar Output probe 4...20 mA 3010214
