Foreword
1 Foreword
1.1 Notes on the documentation
This description is only intended for the use of trained specialists in control and automation engineering who
are familiar with the applicable national standards.
It is essential that the following notes and explanations are followed when installing and commissioning
these components.
The responsible staff must ensure that the application or use of the products described satisfy all the
requirements for safety, including all the relevant laws, regulations, guidelines and standards.
Disclaimer
The documentation has been prepared with care. The products described are, however, constantly under
development.
For that reason the documentation is not in every case checked for consistency with performance data,
standards or other characteristics.
In the event that it contains technical or editorial errors, we retain the right to make alterations at any time
and without warning.
No claims for the modification of products that have already been supplied may be made on the basis of the
data, diagrams and descriptions in this documentation.
Trademarks
Beckhoff®, TwinCAT®, EtherCAT®, Safety over EtherCAT®, TwinSAFE®, XFC®and XTS® are registered
trademarks of and licensed by Beckhoff Automation GmbH.
Other designations used in this publication may be trademarks whose use by third parties for their own
purposes could violate the rights of the owners.
Patent Pending
The EtherCAT Technology is covered, including but not limited to the following patent applications and
patents:
EP1590927, EP1789857, DE102004044764, DE102007017835
with corresponding applications or registrations in various other countries.
The TwinCAT Technology is covered, including but not limited to the following patent applications and
patents:
EP0851348, US6167425 with corresponding applications or registrations in various other countries.
EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH,
Germany
Copyright
© Beckhoff Automation GmbH & Co. KG, Germany.
The reproduction, distribution and utilization of this document as well as the communication of its contents to
others without express authorization are prohibited.
Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a
patent, utility model or design.
CX2500-00204 Version: 1.0

Foreword
1.2 Safety instructions
Safety regulations
Please note the following safety instructions and explanations!
Product-specific safety instructions can be found on following pages or in the areas mounting, wiring,
commissioning etc.
Exclusion of liability
All the components are supplied in particular hardware and software configurations appropriate for the
application. Modifications to hardware or software configurations other than those described in the
documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.
Personnel qualification
This description is only intended for trained specialists in control, automation and drive engineering who are
familiar with the applicable national standards.
Description of symbols
In this documentation the following symbols are used with an accompanying safety instruction or note. The
safety instructions must be read carefully and followed without fail!
DANGER
Serious risk of injury!
Failure to follow the safety instructions associated with this symbol directly endangers the
life and health of persons.
WARNING
Risk of injury!
Failure to follow the safety instructions associated with this symbol endangers the life and
health of persons.
CAUTION
Personal injuries!
Failure to follow the safety instructions associated with this symbol can lead to injuries to
persons.
Attention
Damage to the environment or devices
Failure to follow the instructions associated with this symbol can lead to damage to the en-
vironment or equipment.
Note
Tip or pointer
This symbol indicates information that contributes to better understanding.
1.3 Documentation issue state
Version Changes
1.0 Release version
CX2500-0020 5Version: 1.0

Product overview
2 Product overview
2.1 Intended use
The CX20x0 device series is a modular control system designed for DIN rail installation. The system is
scalable, so that the required modules can be assembled and installed in the control cabinet or terminal box
as required.
Only switch the PC off after closing the software
Before the Embedded PC is switched off, the software currently running on it should be stopped properly in
order to avoid data loss on the hard disk. Please read the section on “Switching off”.
Switch off all system components and uncouple the Industrial PC from the system if the PC is not used for
control purposes, e.g. during a function test. To disconnect first pull the first terminal behind the power
supply unit (optional), then pull the connectors of the fieldbus connections.
System components that have been switched off must be secured against being switched on again.
The Embedded PC’s power supply unit must be supplied with 24VDC.
Attention
Damage to the environment or devices
Do not exchange any parts when under power! The exchange of controller parts when live
can lead to short-circuits or overvoltages. These can damage the controller itself and con-
nected peripherals (terminals, monitors, input devices, etc.).
When components are being fitted or removed, the supply voltage must be switched off.
Software knowledge
Attention
System malfunctions
Mandatory software knowledge! Every user must be familiar with any of the functions of the
software installed on the PC that he can reach.
CX2500-00206 Version: 1.0

Product overview
2.2 System overview
CX2500-00xx System modules
The system modules for the CX2000 family are connected to the CPU on the left-hand side via a multi-pin
connector. Internally they are connected via PCI Express. Up to four modules can be connected in any
order. The CX2500-0020 audio module has jack plug (5 x 3.5 mm) and cinch plug for digital signals (SPDIF).
Up to 7.1 multi-channel audio can be used. Serial interfaces can be added with the modules CX2500-0030
(RS232) and CX2500-0031 (RS422/RS485). The CX2500-0060 module provides two further independent
Gbit Ethernet interfaces. The CX2500-0070 module can be used to add up to four further USB 3.0 interfaces.
The expansion modules for the CX2000 family are connected to the CPU on the right-hand side via a multi-
pin connector. Up to two CX2550-0010 CFast modules can be connected, so that a total of up to three CFast
slots are available.
2.3 CX2500-0020 - Technical data
The system interface CX2500-0020 expands a CX20x0 by audio interfaces
Technical data CX2500-0020
Interfaces Line IN, Line OUT, Mic IN, 7.1, SPDIF
Power supply via system bus (through CX2100-0xxx power supply
modules)
Dielectric strength 500 V (supply / internal electronics)
Dimensions (B x H x T) 24 mm x 99 mm x 54,5 mm
Weight approx. 180g
Operating/storage temperature -25° C ... +60° C / -40° C ... +85° C
Relative humidity 95% no condensation
Vibration/shock resistant conforms to EN 60068-2-6 / EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protection class IP 20
Furhter Information: www.beckhoff.de/CX2000
CX2500-0020 7Version: 1.0

Mounting and wiring
3 Mounting and wiring
3.1 Unpacking, installation and transport
The specified storage conditions must be adhered to (see "Technical data").
Dimensions and weight of the individual modules
Dimensions (W x H x D): 24 mm x 100 mm x 55 mm
Weight: approx. 180 g (system interface)
Unpacking
Proceed as follows to unpack the unit:
1. Remove packaging.
2. Do not discard the original packaging. Keep it for transporting the device in the future.
3. Check the delivery for completeness by comparing it with your order.
4. Please keep the associated paperwork. It contains important information for handling the unit.
5. Check the contents for visible shipping damage.
6. If you notice any shipping damage or inconsistencies between the contents and your order, you
should notify Beckhoff Service.
Attention
Danger of damage to the device!
During transport in cold conditions, or if the device is subjected to extreme temperature dif-
ferences, condensation on and inside the device must be avoided. Prior to operation, the
device must be allowed to slowly adjust to room temperature. Should condensation occur,
a delay time of approximately 12 hours must be allowed before the unit is switched on.
Installation
The devices are designed for installation in control cabinets.
Shipping and relocation
Despite the robust design of the unit, the components are sensitive to strong vibrations and impacts. During
transport, your computer should therefore be protected from excessive mechanical stress. Therefore, please
use the original packaging.
CX2500-00208 Version: 1.0

Mounting and wiring
3.2 Dimensions
The following drawings show the dimensions of the CX2500-0020 interface
Dimensions
CX2500-0020 9Version: 1.0

Mounting and wiring
3.3 Attaching the system interface to the CX20x0 system

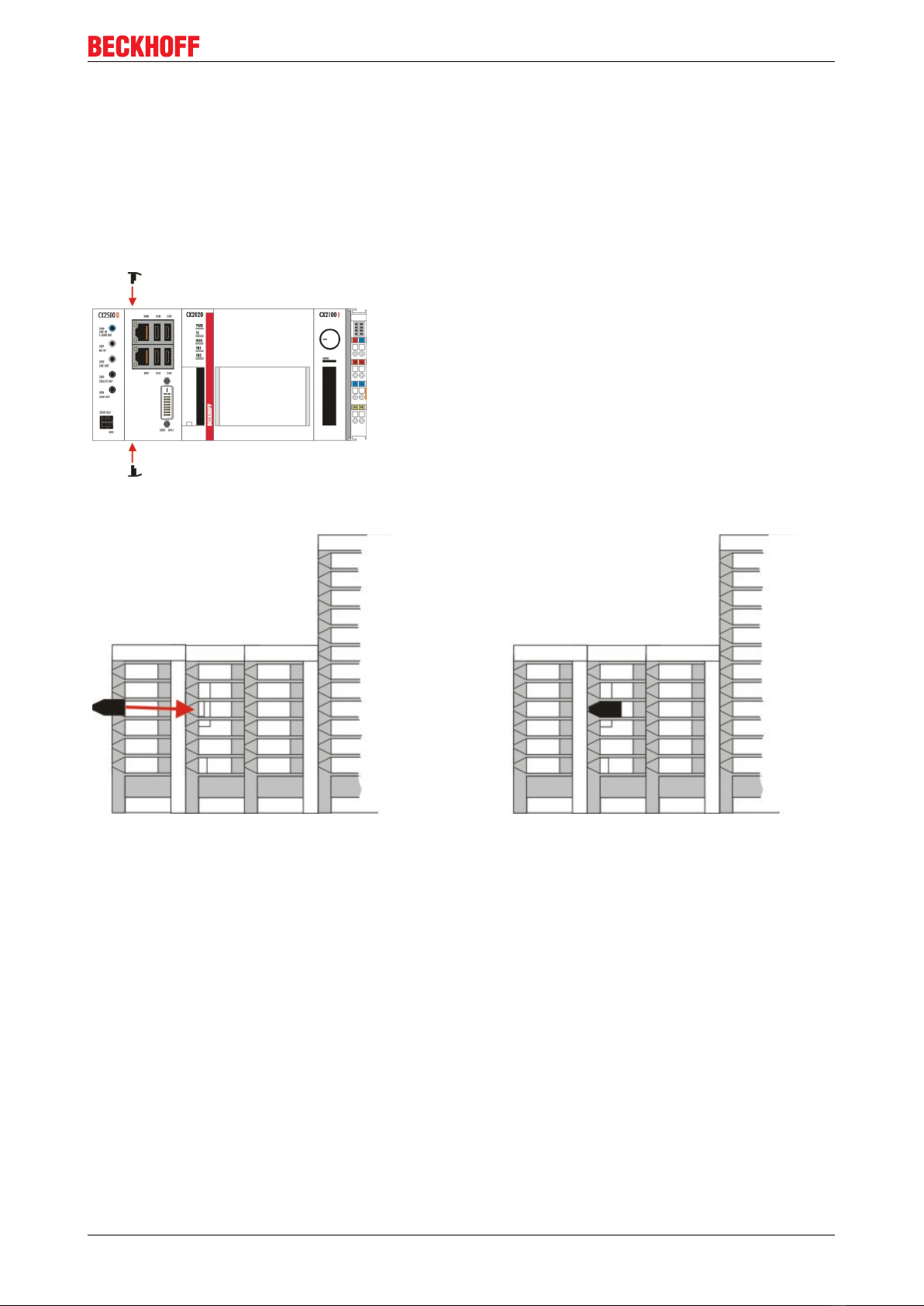

Opening the PCI Express bus cover
The system interfaces for the CX20x0 system are connected via the internal PCI Express bus, which has a
protective cap. The cap can be removed with a screwdriver. To this end insert the screwdriver into the recess
in the short side (see diagram) and lever off the cap. The bus connector is then accessible, as shown in the
diagram.
Once the bus connector is accessible, the module can be attached on the left-hand side.
The module audibly locks into place.
Further modules can be connected to the system in the same way. Once all modules are connected, the
system is placed on the DIN rail as a block. For details please refer to the section on DIN rail mounting.
Note
Maximum number of system interfaces
Up to four system interfaces can be attached on the left-hand side of the system.
CX2500-002010 Version: 1.0

Mounting and wiring
3.4 Installation on the mounting rail
Snapping onto the mounting rail
The CX20x0 can simply be snapped onto the mounting rail. The bar clips are inserted on the top side and
underside Then simply position the block on the mounting rail and push it slightly until it engages on the
right-hand side. This is indicated by a distinct click. The bars are then engaged again. The engagement of
the individual bars is indicated by a distinct click.
Attention
Avoid damage!
Do not force the module or apply excessive pressure!
Installation position
Attention
Comply with the permitted installation position and minimum distances!
The maximum ambient temperature for CPU modules mounted on a DIN rail is 60°C. The
orientation in which the device is fitted must be selected in such a way that cooling air can
flow vertically through the ventilation holes. The images below show the permitted and two
incorrect installation positions. Mounting must provide a clearance of 30 mm both above
and below a CX20x0 device combination to ensure adequate ventilation of the base CPU
module and the power supply unit.

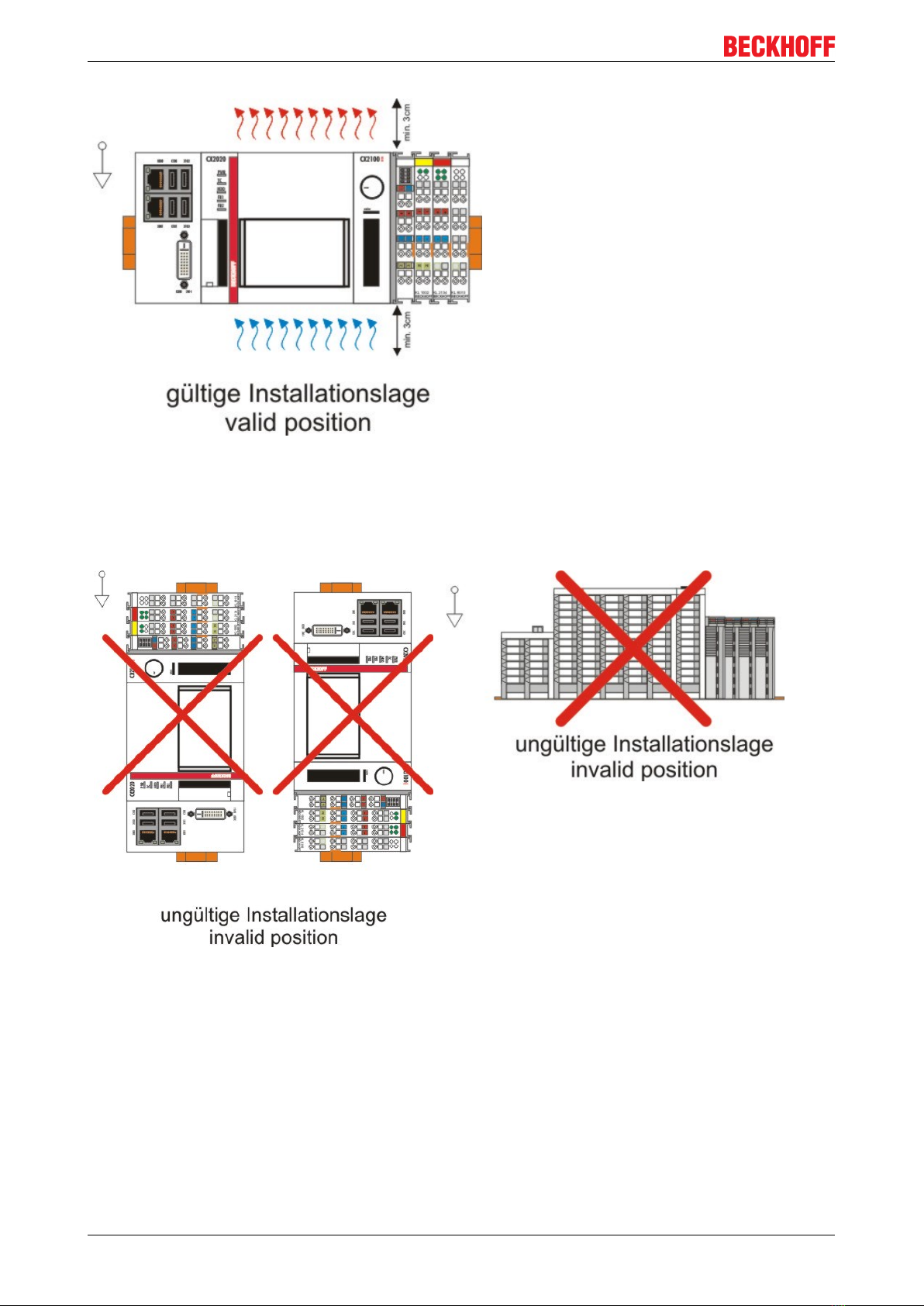

Correct installation position
The high performance and the compact design of the CX20x0 systems may result in increased heat
generation. The heat is dissipated via a passive ventilation system. This system requires the unit to be
mounted correctly. Ventilation openings are located at the top and bottom of the housing. The system
therefore has to be installed horizontally. This ensures optimum air flow.
CX2500-0020 11Version: 1.0

Mounting and wiring
Incorrect installation positions
The CX20x0 system must not be operated vertically on the DIN rail. A vertical position would lead to
insufficient CPU ventilation, since the ventilation openings are located on the top and bottom of the housing.
Installation of the system on its side would also lead to inadequate ventilation.
CX2500-002012 Version: 1.0

Mounting and wiring
3.5 Mounting the module lock
Mounting the lock
The CX20x0 controller system is fully modular, i.e. all system interfaces of the system are field-configurable.
As a rule the latching of the modules to each other is sufficiently strong. However, it is possible for the
controller and its modules to be exposed to vibrations, shocks or impacts. The modules can be securely
connected to one another with the aid of bar clips.
The bar clips are inserted on the top side and underside.
If all system interfaces are locked, then the entire assembly can be snapped onto the support rail.
Dismounting the lock
In order to dismantle the assembly it must first be removed from the support rail. Afterwards the bar clips can
be removed with the aid of a screwdriver:
CX2500-0020 13Version: 1.0

Mounting and wiring
Once the bar clips have been raised they can be pulled out. Subsequently, the system interfaces can be
separated again.
CX2500-002014 Version: 1.0

Mounting and wiring
3.6 Connections
Note
Adjusting the BIOS setting
After connecting the hardware, change the Azalia configuration from DISABLED to EN-
ABLED in the BIOS chipset to make sure the interface is detected. Further information can
be found in the BIOS description of the CX2000 documentation.
Connectors for audio devices
The CX2500-0020 devices extend the CX20x0 system with audio interfaces with 5 jack plugs and a Toslink
connector for digital signals (SPDIF). Up to 7.1 multi-channel audio can be used.
A "LINE IN" input and five outputs (4 x "LINE OUT" and 1 x "SPDIF OUT") are available. LINE OUT (x202)
can also be used for connecting headphones with a maximum output of 200 mW. The audio interfaces are
accessed via the operating system. The 3.5 mm sockets are designed for jack plugs.
LINE IN /LINE OUT stereo jack plug (X200/X202/X203/X204):
The audio module operates in stereo mode as standard.
Table1: Pin assignment Line In /Line Out:
Signal Description
L Left channel
R Right channel
Ground Ground
The left channel is transferred via the tip of the jack plug, the right channel via the first ring. The remainder of
the sleeve is used for earthing.
MIC IN mono jack plug (X201):
The only existing channel is transferred via the tip, the remainder of the sleeve is used for earthing.
Table2: Plug colour code:
Socket Description
LINE IN, S-SURR OUT X200 Line level, stereo input
MIC IN X201 Mono or stereo microphone input
LINE OUT X202 Front speakers, headphones, stereo output
CEN/LFE out black (normally
orange)
X203 Subwoofer and center, stereo output
SURR OUT black X204 Rear speakers stereo output
CX2500-0020 15Version: 1.0

Mounting and wiring
SPDIF OUT (x205):
TOSLINK connector for digital signals.
Configuration with the Realtek HD Audio Manager:
Various audio settings are available for improving the sound quality. The Manager is called up via the
taskbar. Right-click on the speaker symbol and open the sound manager.
The tab show all playback and recording devices connected with the CX. The orange tick defines the
respective device as standard device. This can be changed under "Set default Device" . Further
applications (e.g. multi-streaming playback/record) can be found under "Device extended settings ".
Speakers tab
Realtek Audio supports a wide range of speaker configurations. Speaker settings are available for 7.1.
channel, 5.1 channel, 4-channel and stereo.
The following section describes the configuration for 7.1. channel:
1.) Plug the audio cable into the respective audio jack, according to the color code.
2.) Under "Speaker Configuration" select 7.1 Speaker:
Click on the blue arrow to trigger an audio signal to verify that the sound comes from the right speaker.
Additional options:
Speaker Fill:
Improves the playback of surround speaker systems.
Swap Center / Subwoofer Output:
Swaps the centre and subwoofer outputs for playing low-frequency sound from the subwoofer.
Enable Bass Management:
Can be used to improve the bass signals.
Optional speakers:
If no subwoofer is used it should be disabled here, in order to optimize the configuration.
Full Range Speakers
Use this option to confirm whether a full-range speaker system is used or a small-range system.
The "Sound Effects" tab offers four setting options:
CX2500-002016 Version: 1.0

Mounting and wiring
Environment, Equalizer, Loudness Equalization and Karaoke.
Select a filter under "Environment" :
- none (no filter)
- Sewer Pipe (filter)
- Bathroom (filter)
- Stone Room (filter)
- Arena (filter)
- etc.
"Equalizer" can be used to change the control settings for certain frequency bands. In addition there are
default settings for certain types of music, e.g. Pop, Live, Club, Rock, etc. ...
"Loudness Equalization" can be used to compensate loudness differences perceived by the human ear.
We recommend enabling Loudness Equalization for DVD playback.
The "Karaoke" setting filters out the voice from a song and defines the pitch of the voice.
The "Room Correction" tab can be used to compensate certain features of your room,
such as the distance and the amplification level of the individual speakers.
The "Default Format " tab adjusts the audio playback matches to the current audio type:
CX2500-0020 17Version: 1.0

Mounting and wiring
Select CD format for playback/recording a CD, select DVD for playback/recording a DVD. Other
combinations of bits and sampling rate can be set manually.
Digital Output (Optical) and Digital Output tabs
Various sound effects and the standard format settings can be set (see above).
S/PDIF-In to S/PDIF-Out pass through mode: Use this setting to specify real-time output of the S/PDIF-In
audio signals via S/PDIF-Out.
Microphone tab
This option can be used to enable or disable recording and playback volume, noise suppression and
reverberation suppression for the microphone.
For further information please refer to the manufacturer's user manual ( Realtek HD Audio Manager).
CX2500-002018 Version: 1.0

Commissioning / Configuration
4 Commissioning / Configuration
4.1 Switching on and off
Switching on
The power supply for the basic CPU module comes from the power supply unit. The basic CPU module
starts automatically when the power supply unit is connected to the mains.
Switching on for the first time
When you switch on the PC for the first time, the pre-installed operating system (optional) will be started.
Switching off
The Embedded PC switches off when the power supply unit is switched off. The control software typically
running on Embedded PCs should be shut down or stopped correctly. A user who may not close software
may also not switch the Embedded PC off, since data can be lost from the hard disk by switching off while
software is running.
Once the software has been stopped, the operating system can be shut down. Only then should the power
supply be interrupted.
CX2500-0020 19Version: 1.0

Error handling and diagnostics
5 Error handling and diagnostics
5.1 Faults
Please also refer to the Safety instructions section.
Possible faults and their correction
Fault Cause Measures
no function after the Embedded PC
has been switched on
no power supply for the Embedded
PC
other causes
1.Check the fuse
2. Measure voltage at connection,
check plug wiring, call Beckhoff
support
Embedded PC does not boot fully Hard disk damaged (e.g. due to
switching off while software is
running), incorrect setup, other
causes
Check setup Call Beckhoff Support
Computer boots, software starts,
but control does not operate
correctly
Cause of the fault is either in the
software or in parts of the plant
outside the Embedded PC
Call the manufacturer of the
machine or the software.
CF card access error Faulty CFast card, faulty CFast slot Use a different CFast card to check
the CFast slot Call Beckhoff
Support
Embedded PC only works partially
or temporarily
Defective components in the
Embedded PC
Call Beckhoff support
Please make a note of the following information before contacting Beckhoff service or support:
1. Precise device ID: CXxxxx-xxxx
2. Serial number
3. Hardware version
4. Any interfaces (N030, N031, B110, ...)
5. TwinCAT version used
6. Any components / software used
The quickest response will come from support / service in your country. Therefore please contact your
regional contact. For details please refer to our website at www.beckhoff.de or ask your distribution partner.
5.2 Realtek Audio Manager faults
Please also refer to the Safety instructions section.
CX2500-002020 Version: 1.0
