Behringer V-TONE ACOUSTIC ADI21 User manual

BEHRINGER V-TONE ACOUSTIC ADI21
WELCOME TO BEHRINGER
Thank you for showing your confidence in us by purchasing
the V-TONE ACOUSTIC A I21. This high-quality acoustic guitar
driver is designed for all acoustic guitar players who are looking
for more sounds to reach maximum flexibility and creativity.
Thanks to its high-performance EQ section (including parametric
mids) and the integrated Tube/Microphone Emulation, the A I21
gives your guitar natural sound with smooth saturation, just as if
it were being miked. In addition, the A I21 functions as a standard
ultra-transparent direct injection box when used in bypass mode.
A I ( irect Injection) box allows you to send a signal directly
from an unbalanced, high-impedance output (like an electric guitar)
and connect it directly to the balanced mic input of a mixing
console.
Whether for stage, recording, rehearsal or warm-up,
BEHRINGERs V-TONE ACOUSTIC A I21 is a natural choice for
those who are seeking great tone with a simple set-up.

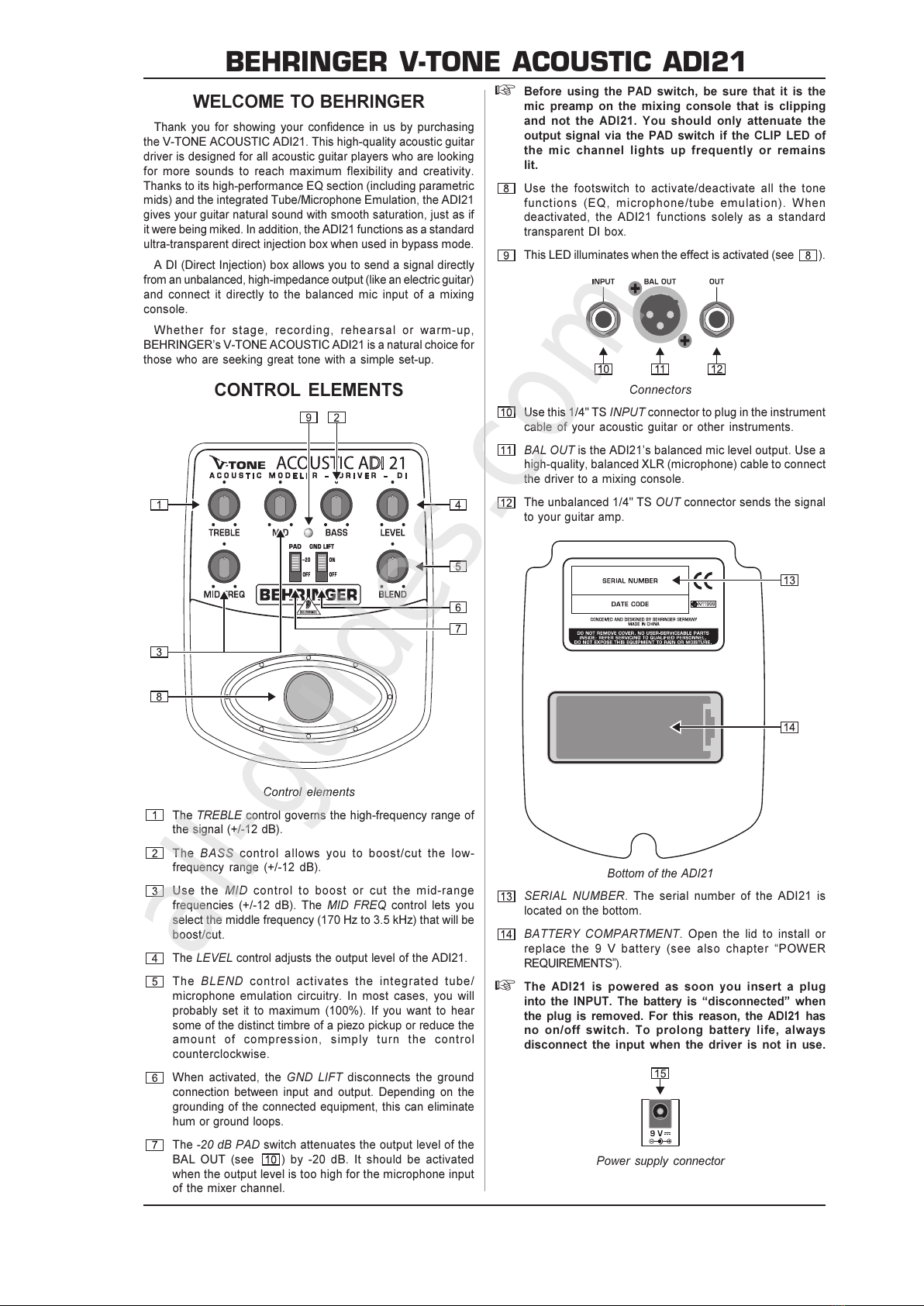

CONTROL ELEMENTS
Control elements
The TREBLE control governs the high-frequency range of
the signal (+/-12 dB).
The BASS control allows you to boost/cut the low-
frequency range (+/-12 dB).
Use the MID control to boost or cut the mid-range
frequencies (+/-12 dB). The MID FREQ control lets you
select the middle frequency (170 Hz to 3.5 kHz) that will be
boost/cut.
The LEVEL control adjusts the output level of the A I21.
The BLEND control activates the integrated tube/
microphone emulation circuitry. In most cases, you will
probably set it to maximum (100%). If you want to hear
some of the distinct timbre of a piezo pickup or reduce the
amount of compression, simply turn the control
counterclockwise.
When activated, the GND LIFT disconnects the ground
connection between input and output. epending on the
grounding of the connected equipment, this can eliminate
hum or ground loops.
The -20 dB PAD switch attenuates the output level of the
BAL OUT (see ) by -20 dB. It should be activated
when the output level is too high for the microphone input
of the mixer channel.
+Before using the PAD switch, be sure that it is the
mic preamp on the mixing console that is clipping
and not the ADI21. You should onl attenuate the
output signal via the PAD switch if the CLIP LED of
the mic channel lights up frequentl or remains
lit.
Use the footswitch to activate/deactivate all the tone
functions (EQ, microphone/tube emulation). When
deactivated, the A I21 functions solely as a standard
transparent I box.
This LE illuminates when the effect is activated (see ).
Connectors
Use this 1/4" TS INP T connector to plug in the instrument
cable of your acoustic guitar or other instruments.
BAL O T is the A I21s balanced mic level output. Use a
high-quality, balanced XLR (microphone) cable to connect
the driver to a mixing console.
The unbalanced 1/4" TS O T connector sends the signal
to your guitar amp.
Bottom of the ADI21
SERIAL N MBER. The serial number of the A I21 is
located on the bottom.
BATTERY COMPARTMENT. Open the lid to install or
replace the 9 V battery (see also chapter POWER
REQUIREMENTS).
+The ADI21 is powered as soon ou insert a plug
into the INPUT. The batter is disconnected when
the plug is removed. For this reason, the ADI21 has
no on/off switch. To prolong batter life, alwa s
disconnect the input when the driver is not in use.
Power supply connector
All manuals and user guides at all-guides.com
all-guides.com

BEHRINGER V-TONE ACOUSTIC ADI21
Use the DC IN connection to plug in a 9 V power supply
(not included). For details please refer to chapter POWER
REQUIREMENTS.
APPLICATIONS
Use with other instruments
The A I21 is not only for acoustic guitars. You can try it with
other instruments (e. g. bass/electric guitars, keyboards etc.) to
create new sounds and enhance your music. Please make sure
that the input level is not too high to avoid overloading the A I21.
Direct to a mixing console
For live and studio applications you can connect the balanced
XLR BAL OUT directly to a mic input of a mixing console. Be sure
not to overload the input by using the gain control of the respective
channel. For further information please refer to the users manual
of your mixing console.
Use without instruments
You can use the A I21 without an instrument as an outboard
processor connected to an insert or an effect path (aux send/
return) of your mixing console to affect the signal of a particular
channel. This way you can enhance existing tracks during
mixdown. For further information please refer to the users manual
of your mixing console.
POWER REQUIREMENTS
Batter :
Utilizes standard 9 V alkaline battery (not included).
Power consumption: approx. 25 mA
Power suppl :
ATTENTION: PLEASE USE DC POWER SUPPLY ONLY!
Failure to do so may damage the unit and void the warranty.
C Power Supply Specifications:
- 9 V C (regulated), 50 mA minimum
- 2 mm female plug, center negative (-)
WARRANTY
For our current warranty terms, please refer to our website at
http://www.behringer.com.
SPECIFICATIONS
Input
Connector ¼" TS
Impedance 4.7 MΩ
Output
Connector ¼" TS
Impedance 1 kΩ
Balanced output
Connector XLR
Impedance 200 Ω
Power supply 9 V, >50 mA C regulated
Power connector 2 mm C jack, negative center
Battery 9 V type 6LR61
Power consumption 25 mA
imensions approx. 5" (127 mm) x 3 9/10" (100 mm)
x 2" (50 mm)
Weight approx. 460 g
BEHRINGER is constantly striving to maintain the highest professional
standards. As a result of these efforts, modifications may be made from
time to time to e isting products without prior notice. Specifications and
appearance may differ from those listed or illustrated.
Technical specifications and appearance subject to change without notice.
The information contained herein is correct at the time of printing. The
names of companies, institutions or publications pictured or mentioned
and their respective logos are registered trademarks of their respective
owners. Their use neither constitutes a claim of the trademarks by
BEHRINGER® nor affiliation of the trademark owners with BEHRINGER®.
BEHRINGER® accepts no liability for any loss which may be suffered by
any person who relies either wholly or in part upon any description,
photograph or statement contained herein. Colours and specification may
vary slightly from product. Products are sold through our authorised
dealers only. Distributors and dealers are not agents of BEHRINGER® and
have absolutely no authority to bind BEHRINGER® by any e press or
implied undertaking or representation. No part of this manual may be
reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording of any kind, for any
purpose, without the e press written permission of BEHRINGER Spezielle
Studiotechnik GmbH. BEHRINGER® is a registered trademark.
ALL RIGHTS RESERVED.
© 2004 BEHRINGER Spezielle Studiotechnik GmbH,
Hanns-Martin-Schleyer-Str. 36-38,
47877 Willich-Münchheide II, Germany.
Tel. [phone], Fa [phone]

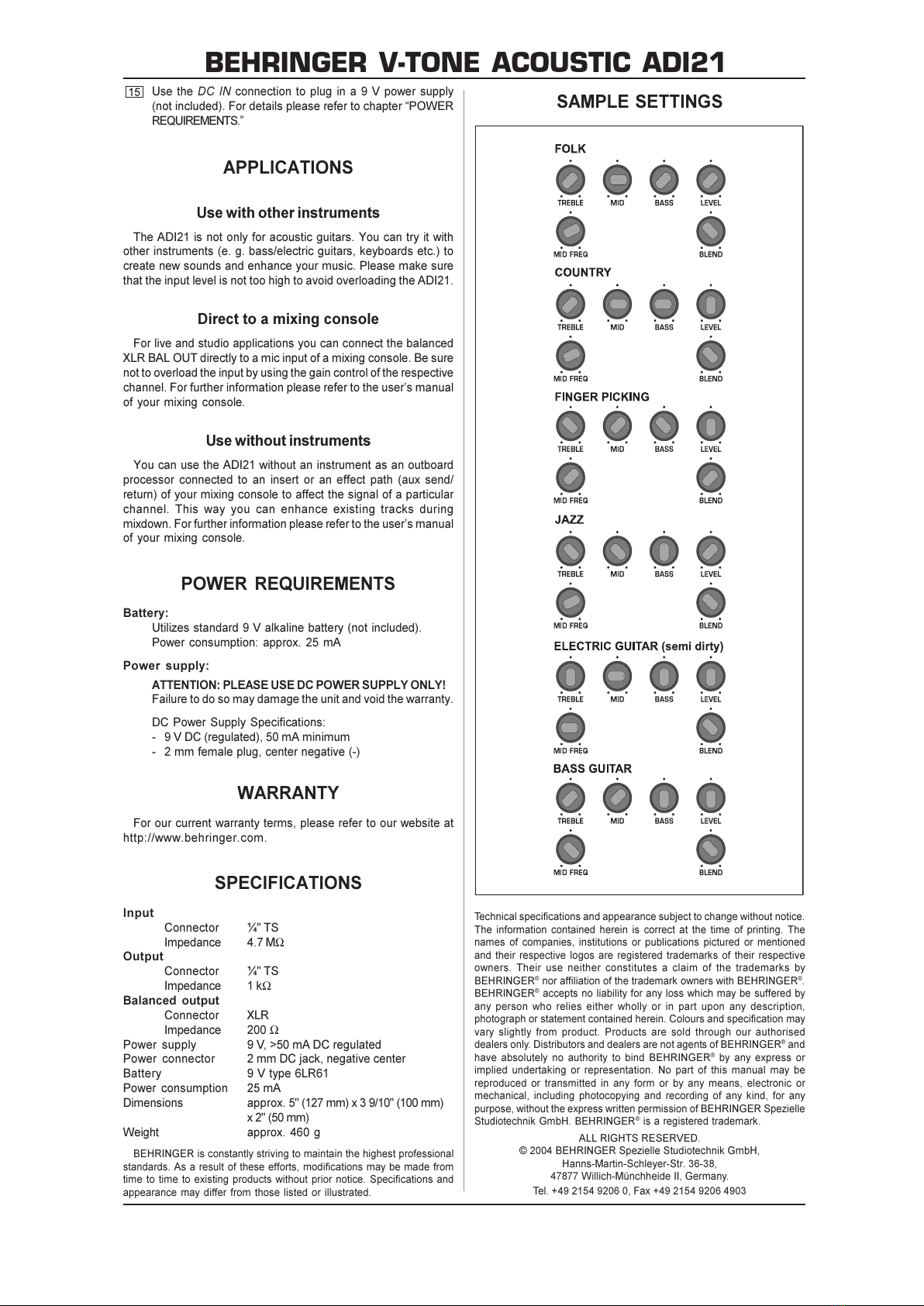

SAMPLE SETTINGS
