Behringer TUBE ULTRAGAIN MIC200 User manual

User Manual
TUBE ULTRAGAIN MIC200
Audiophile Vacuum Tube Preamplier with Preamp
Modeling Technology
INPUT OUTPUT

2TUBE ULTRAGAIN MIC200 User Manual
Thank you
Thank you for the condence you have placed in us by purchasing the MIC200.
Your MIC200 is a professional mic preamp that can be used in a variety of
applications. Due to its incredible functionality and the broad range of connection
options, the MIC200 can even be used as a preamp for electric and bass guitars,
keyboards and percussion instruments. No matter where you use your MIC200,
you always get optimal performance, be it live or on the stage, in a professional
recording studio or at home!
Table of Contents
Thank you ............................................................................................ 2
Important Safety Instructions........................................................... 3
Legal Disclaimer.................................................................................. 5
Limited Warranty ................................................................................ 5
1. Introduction.................................................................................... 6
1.1 The design concept...................................................................................... 6
1.2 Online registration ....................................................................................... 7
2. Control Elements............................................................................ 8
2.1 User interface ................................................................................................. 9
2.2 Rear panel...................................................................................................... 12
3. Wiring Examples .......................................................................... 13
3.1 Enhancing vocals and instruments in
live applications ..................................................................................................13
3.2 “Direct to Disk” application in studio or
homerecording environments......................................................................14
3.3 The MIC200 as DI-box...............................................................................15
4. Audio Connectors ........................................................................ 16
5. Specications ............................................................................... 18

3TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual
Terminals marked with this
symbol carry electrical
current of sucient
magnitude to constitute risk of electric
shock. Use only high-quality
professional speaker cables with ¼" TS
or twist-locking plugs pre-installed.
Allother installation or modication
should be performed only by
qualiedpersonnel.
This symbol, wherever it
appears, alertsyou to the
presence of uninsulated
dangerous voltage inside the
enclosure-voltage that may be
sucient to constitute a risk ofshock.
This symbol, wherever it
appears, alertsyou to
important operating and
maintenance instructions in the
accompanying literature. Please read
the manual.
Caution
To reduce the risk of electric
shock, donot remove the
top cover (or the rear section). No user
serviceable parts inside. Refer servicing to
qualied personnel.
Caution
To reduce the risk of re or
electric shock, do not expose
this appliance to rain and moisture.
The apparatus shall not be exposed to
dripping or splashing liquids and no
objects lled with liquids, suchas vases,
shall be placed on the apparatus.
Caution
These service instructions
are for use by qualied
service personnel only. Toreduce the
risk of electric shock do not perform
any servicing other than that contained
in the operation instructions. Repairs
have to be performed by qualied
servicepersonnel.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
Important Safety
Instructions

4TUBE ULTRAGAIN MIC200 User Manual
7.
Do not block any ventilation
openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources
such as radiators, heat registers, stoves,
or other apparatus (including ampliers)
that produce heat.
9. Do not defeat the safety purpose of
the polarized or grounding-type plug.
A polarized plug has two blades with
one wider than the other. Agrounding-
type plug has two blades and a third
grounding prong. The wide blade or the
third prong are provided for your safety.
Ifthe provided plug does not t into
your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being
walked on or pinched particularly
at plugs, convenience receptacles,
and the point where they exit from
the apparatus.
11. Use only attachments/accessories
specied by themanufacturer.
12.
Use only with the
cart, stand, tripod,
bracket, or table specied
by the manufacturer,
orsold with the apparatus. When a cart
is used, use caution when moving the
cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during
lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualied
service personnel. Servicing is required
when the apparatus has been damaged
in any way, such as power supply cord
or plug is damaged, liquid has been
spilled or objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does not
operate normally, or has beendropped.
15. The apparatus shall be connected to
a MAINS socket outlet with a protective
earthing connection.
16. Where the MAINS plug or an
appliance coupler is used as the
disconnect device, the disconnect device
shall remain readily operable.

5TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual
17.
Correct disposal
of this product: This
symbol indicates that
this product must not
be disposed of with
household waste, according to the
WEEE Directive (2012/19/EU) and your
national law. This product should be
taken to a collection center licensed
for the recycling of waste electrical
and electronic equipment (EEE). The
mishandling of this type of waste could
have a possible negative impact on the
environment and human health due
to potentially hazardous substances
that are generally associated with EEE.
At the same time, your cooperation
in the correct disposal of this product
will contribute to the ecient use of
natural resources. For more information
about where you can take your waste
equipment for recycling, please contact
your local city oce, or your household
waste collection service.
MUSIC Group accepts no liability for
any loss which may be suered by any
person who relies either wholly or in
part upon any description, photograph,
or statement contained herein.
Technical specications, appearances
and other information are subject to
change without notice. All trademarks
are the property of their respective
owners. MIDAS, KLARK TEKNIK,
TURBOSOUND, BEHRINGER, BUGERA
and DDA are trademarks or registered
trademarks of MUSIC Group IP Ltd.
© MUSIC Group IP Ltd. 2015 All
rights reserved.
For the applicable warranty terms and
conditions and additional information
regarding MUSIC Group’s Limited
Warranty, please see complete details
online at music-group.com/warranty.
LIMITED WARRANTY
LEGAL DISCLAIMER

6TUBE ULTRAGAIN MIC200 User Manual
1. Introduction
With the MIC200, you have purchased an extremely musical mic preamp that is
equipped with a 12AX7 vacuum tube. Thanks to BEHRINGER’s preamp modeling,
its main advantages are the number of preamp settings you can select. Additionally,
features like an integrated limiter, phase reverse function, phantom power supply,
highly accurate LED meter, switchable pad function and low cut lter make the
MIC200 a very powerful piece of equipment.
1.1 The design concept
The heart of the TUBEULTRAGAIN is an extremely low-noise microphone preamp
circuitry that uses discrete components and produces a highly trans-parent
sound. In combination with our BEHRINGER tube technology, the operational
ampliers 4580 and a sophisticated circuit topology, the TUBEULTRAGAIN yields
excellent noise and distortion properties. The innovative UTC circuitry that has
been developed by our engineering team oers an abundance of sound-shaping
possibilities. Absolute musicality was our major goal when we designed the
TUBE ULTRAGAIN. The result is a device that, thanks to our tube circuitry, lends an
incredible punch to percussion instruments. On the other hand, instruments that
are rich in upper harmonics will receive more transparency. The sound will be warm,
detailed and brilliant.
Surely you know the recording problem that single instruments or vocals sometimes
don’t cut through. Thanks to the TUBEULTRAGAIN, vocals gain in presence and
volume without masking other instruments. As a result, your voice will be perfectly
integrated in the mix.

7TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual
1.2 Online registration
Please register your new BEHRINGER equipment right after your purchase by visiting
behringer.com and read the terms and conditions of our warranty carefully.
Should your BEHRINGER product malfunction, it is our intention to have it repaired
as quickly as possible. To arrange for warranty service, please contact the BEHRINGER
retailer from whom the equipment was purchased. Should your BEHRINGER dealer
not be located in your vicinity, you may directly contact one of our subsidiaries.
Corresponding contact information is included in the original equipment packaging
(Global Contact Information/European Contact Information). Should your country
not be listed, please contact the distributor nearest you. A list of distributors can be
found in the support area of our website (behringer.com).
Registering your purchase and equipment with us helps us process your repair claims
more quickly and eciently.
Thank you for your cooperation!

8TUBE ULTRAGAIN MIC200 User Manual
2. Control Elements
INPUT OUTPUT
(1) (2)(4) (5) (6) (7)(3) (8) (9)
Fig. 2.1: User interface of the MIC200

9TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual
2.1 User interface
(1) The GAIN control allows you to control the gain from +26 to +60 dB to
the input signal. This control should be set all theway to the left when (dis)
connecting a sound source from the MIC200. When all connections are made,
slowly start raising the gain control.
(2) We recommend using the LED meter to adjust gain. The LED chain displays the
output signal level in dB. Please make sure that the clip LED never lights up
permanently. It should light up only at peak signals, but it should never be on
all the time.
(3) If your MIC200 is connected to the mains via the enclosed power supply unit,
the POWER LED lights up to indicate that your MIC200 is running.
(4) The 20 dB PAD switch reduces the input sensitivity by 20 dB (switchpressed).
The appropriate setting depends on the equipment connected. Generally
speaking, lowering the signal level in mic applications is not recommended.
No matter what your application is, the clip LED warns you to reduce the gain
setting to avoid distortion.
(5) This +48 V switch activates the phantom power supply for the XLR input.
Phantom power supply is required for operating condenser microphones.
Dynamic microphones require no phantom power.
(6) Press the LOW CUT switch to eliminate undesired subsonic noise, such as
oor rumble.
(7) With the PHASE REVERSE switch, the input signal is reversed by 180°.
This function is available for both mic and line signals. Use this function
in a multi-microphone setup if you detect phase cancellations in specic
frequency bands.

10 TUBE ULTRAGAIN MIC200 User Manual
(8) The OUTPUT control governs the output level within a range from
-∞to+10dB. If the control is turned all the way to the left, there is no
output signal at all. The more the control is turned to the right, the higher the
output level.
(9) The PREAMP MODE rotary switch gives you a wide selection of
preamppresets. The options available are: WARM, WARM/LIMITER,
LIMITERandNEUTRAL:
WARM (moving clockwise, starting at 9 o’clock):
These settings make sense if you wish to add that typical warmth associated with
analog signals.
• KEYB: For electronic keyboard instruments of all types
• E-GTR: Electric guitar
• VOCAL: Speech and vocals
• VALVE: Warm, analog tube sound
WARM + LIMITER (moving clockwise, starting at 12o’clock):
Use these settings when working with high volumes or with sounds with frequent
signal peaks, and if directly recording an instrument with a mic (e. g. drums) to insert
additional warmth.
• MULTI: Various applications
• VOCAL: Speech and vocals
• A-GTR: Acoustic guitar
• PIANO: Piano/grand piano

11TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual
LIMITER (moving clockwise, starting at 3 o’clock):
Select these settings if you wish to use the limiter function without adding
tube warmth.
• BASS: Bass guitar
• A-GTR: Acoustic guitar
• PERC: Percussion and drums
• LIMIT: Neutral limiter setting
NEUTRAL (moving clockwise, starting at 6 o’clock):
These settings are ideal for neutral and natural sound reproduction without limiter
and without tube sound.
• NEUTRAL: Neutral sound setting
• VOCAL: Optimized setting for speech and vocals
• GUITAR: Optimized setting for guitars and guitar amps
• BASS: Optimized setting for electric bass guitar
◊ Since presets cannot cover all possible applications, experiment with
different settings until you find those that work best for you. Think of
presets as the starting points for your sound configuration.

12 TUBE ULTRAGAIN MIC200 User Manual

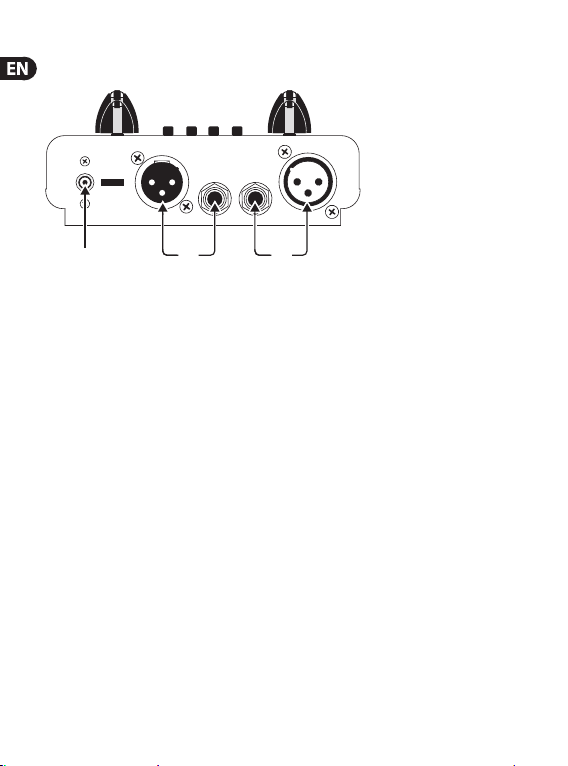

2.2 Rear panel
(12) (11) (10)
Fig. 2.2: The rear panel of your MIC200
(10) The balanced ¼" TRS INPUT of your MIC200 can be used to connect your
electric guitar, for example. This input is wired parallelly to the XLR input.
Ideally, the balanced XLR INPUT should be used to connecta microphone.
◊ In contrast to its outputs, the MIC200’s inputs should never be
used simultaneously!
(11) This is the balanced XLR OUTPUT of your MIC200. Use this connector to feed the
XLR input of your mixing console, multitrack recorder or power amp.
The balanced ¼" TRS OUTPUT of your MIC200 can also be connected to a mixer,
recording system or power amp.
(12) Use the POWER SUPPLY CONNECTOR to hook up the enclosed power supply
unit. Next to this connector you’ll nd the strain relief clamp, which prevents
accidental release of the power supply.
The device’s SERIAL NUMBER is found on the bottom side of the unit.

13TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual
3. Wiring Examples
You’ll be surprised how exibly you can set up your MIC200. The following chapter
describes some typical wiring examples.
3.1 Enhancing vocals and instruments in
live applications
Here, the MIC200 is wired before the mixer’s channel input. Thus, the sound gains
in warmth and transparency. Thanks to the limiter setting for vocals (VOCAL),
distortion is eliminated eectively.
XLR-input XLR-output Microphone input
INPUT OUTPUT
Fig. 3.1: Standard live application

14 TUBE ULTRAGAIN MIC200 User Manual
3.2 “Direct to Disk” application in studio or
homerecording environments
If you are looking for a device that considerably enhances the sound of your digital
workstation, this is where the MIC200 comes in. Many hard disk recorders lack a
certain “liveliness”. In addition, they are often equipped with “lousy” microphone
preamps. Such problems can be solved perfectly with the MIC200.

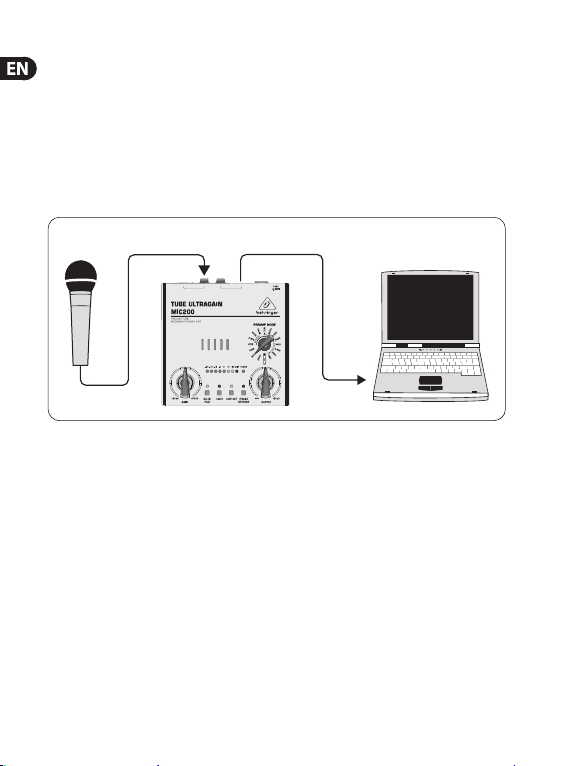

¼" TRS outputXLR input
INPUT OUTPUT
Fig. 3.2: Connection of the MIC200 and the soundcard of your PC

15TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual
3.3 The MIC200 as DI-box
Your MIC200 is excellently suited for this application. For example, you can connect
an unbalanced acoustic guitar signal to the MIC200 to prevent hum or interference
noise. What you get is a balanced, noise-free signal.
¼" TRS
input Insert
¼" TRS output
XLR output
Microphone input
INPUT OUTPUT
Fig. 3.3: The MIC200 as DI-box

16 TUBE ULTRAGAIN MIC200 User Manual

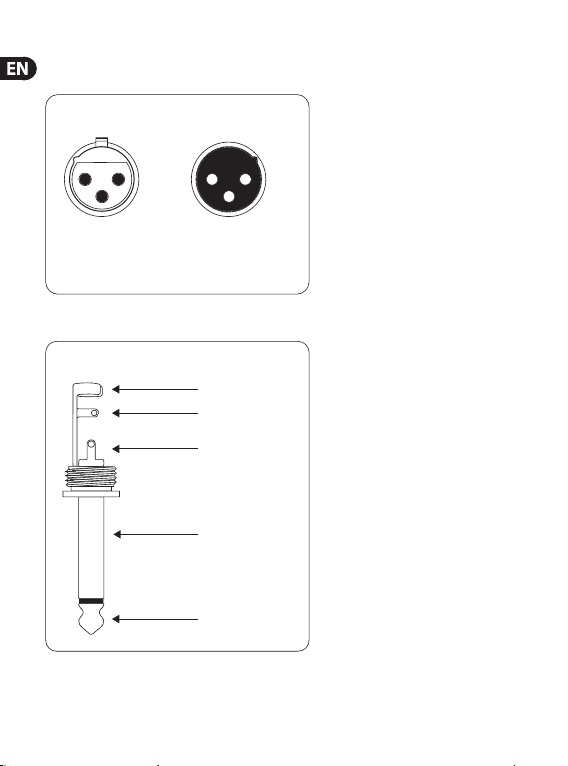

4. Audio Connectors
output
For unbalanced use,
pin 1 and pin 3
have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
input
12
3
12
3
Balanced use with XLR connectors
Fig. 4.1: XLR connectors
strain relief clamp
sleeve
tip
sleeve
(ground/shield)
Unbalanced ¼" TS connector
tip
(signal)
Fig. 4.2: ¼" TS connector

17TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Balanced ¼" TRS connector
ring
cold (-ve)
tip
hot (+ve)
Fig. 4.3: ¼" TRS connector

18 TUBE ULTRAGAIN MIC200 User Manual
5. Specications
Audio Inputs
XLR Input
Connector balanced / unbalanced
Type transformerless, DC-decoupledinput
Impedance approx. 2kΩ
Max. input level +7dBu / -20 dB with pad
¼"TRS Input
Connector balanced / unbalanced
Type transformerless, DC-decoupledinput
Impedance approx. 1MΩ
Max. input level +16dBu / -20 dB with pad
E.I.N.1(20 Hz - 20 kHz)
@ 0Ω source resistance -125.5dBu / -128.5dBu A-weighted
@ 150Ω source resistance -124dBu / -126.8dBu A-weighted
@ 600Ω source resistance -120dBu / -122.7dBu A-weighted
Audio Outputs
Connectors XLR connector + ¼" TRS jack balanced / unbalanced
Type transformerless, DC-decoupledoutput
Impedance approx. 700Ω balanced, approx.350Ω unbalanced
Max. output level approx. +26dBu @ 100kΩ

19TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual
System Data
Signal-to-noise ratio 90dB A-weighted @ -28dBu inputlevel
Frequency Response
Mic input <10Hz to 47kHz (±3dB)
Line input <10Hz to 55kHz (±3dB)
Function Controls
GAIN variable (+26dB to +60dB)
OUTPUT variable (-∞ to +10dB)
Preamp mode control selection of various preamp settings for microphone
andinstruments
Function Switches
20 dB PAD level attenuation (20dB)
+48 V activates the phantom power
LOW CUT High pass lter (cut-ofrequency90Hz)
PHASE REVERSE Phase reverse (180°)
Indicators
Input Level 8-segment LED meter:
-24, -18, -12, -6, 0, +6, +12, Clip
Power LED indicates operation

20 TUBE ULTRAGAIN MIC200 User Manual
Power Supply
Mains Voltage
USA/Canada 120V~, 60Hz
Europe/U.K./Australia 230V~, 50Hz
China 220V~, 50Hz
Korea 220V~, 60Hz
Japan 100V~, 50 / 60Hz
Mains connector external power supply 9V~ / 1300mA
Physical / Weight
Dimensions (H x W x D) approx. 64x 135x 135mm (2.5 x 5.3 x 5.3")
Weight (without power supply) approx. 1.0kg
1Equivalent Input Noise
BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts,
modifications may be made from time to time to existing products without prior notice. Specifications and appearance
may differ from those listed or illustrated.
