L5A TFT- LCD TV
SERVICE MANUAL

CONTENTS PAGES
Safety instructions 1
Technical specifications 2
Panel Specification 3
Chassis block diagram 4
Scaler block diagram 5
Block diagram of power supply 6
Chassis overwiev 7
Service mode items and explanations 12
Data sheet of important IC’s 17
Recommended Part List 29
Frequency list of channels
30

SAFETY PRECAUTIONS
GENERAL GUIDELINES
1. Always use the manufacturer’s replacement safety
components. The critical safety components marked
with on the schematics diagrams should not be
by other substitutes. Other substitute may create the
electrical shock , fire or other hazards. Take
attention to replace the spacers with the originals.
Furthermore where a short circuit has occurred ,
replace those components that indicate evidence of
overheating.
2. After servicing , see that all the protective devices
such as insulation barriers, insulation papers, shields
and isolation R-C combinations are correctly
installed.
3. When the receiver is not being used for a long time
of period of time , unplug the power cord of the
Adaptor from the AC outlet.
Color TFT LCD Module is very sensitive
both electrically and physically.Users,
therefore, are requested to follow the
“Guidance of handling color TFT LCD
Module”on the followings.
1-Be careful not to make scratch on the
polarizer.
Surface of polarizer is soft and can be physically
damaged easily.
Please do not touch, push or rub polarizer surface
with materials over HB hardness.
2 -Keep clean the surface.
Please wear rubber glove when touch the surface of
LCD screen. Please use soft and anti-static material
as cleaner.
3 -Keep out of water.
Water on/in the LCD may cause electrical short or
corrosion. Please wipe out dry or water carefully.
4 -Prevent swift Temperature &
Humidity change.
Instantaneous temperature and/or humiditychange
can make dew or ice which cause nonconformance
such as malfunction.
5 High temperature & high humidity
reduce the life-time.
LCD is not proper to be used at high temperature
and high humidity. Please keep specified
temperature and humidity condition.
6 -Keep out of Corrosive Gas.
Corrosive gas effect the polarizer and the circuit
chemically and cause defects accordingly.
7 -Electrostatic discharge can make
Damage
There are electro-static sensitive components such
as CMOS in LCD Module. Please earth human
body when handle the LCD.In addition, please do
not touch the interface connector pin with bare.
8 -Do not operate for a long time under
the same pattern
Operating LCD for a long time under the same
pattern can cause image persistence and can
damage it. Please follow following guidance.
1. Turn the power off when do not use.
2. Change the pattern periodically.

Receiving System PAL B/G+I+D/K SECAM L/L'
Comb Filter Adaptive 4H\2H
Scaling Upto SXGA at 75Hz
Gamma Correction 8 to 10-bit LUT
Histogram Equalization YES
Stereo Decoding
(German A2, Nicam, BTSC) German A2, Nicam
Stereo L, R In 3
Stereo L, R Out 3
Audio Output Power RMS in Max at 10% THD) 2x3W, 2x5W for 22"W
Level (1.5, 2.5, Teleweb) Teletext 1.5
Type (Fast\Top\Simple) Simple, Fast, Top
Page Memory 250p or 10p
WSS +
VPS\PDC +
4:3 +
16:9 +
Panorama +
Letterbox +
Subtitle +
WSS (Wide Screen Signalling) +
ATS (Automatic Tuning System) Frequency Search
Manual Search Channel Table Search
Number of Program Storage 100
No Ident Timer +
Picture Freeze +
Equalizer +
Zapping +
AVL (Automatic Volume Level) +
Sound Status Memory +
Picture Status Memory +
Swap +
Child Lock +
Program Lock +
Picture Format Switching Thru Pin 8 +
Auto RGB Detect Thru Pin 16 +
PC Plug & Play (DDC\CI) +
Off Timer (Sleep Timer) +
On Timer +
Picture Smart (User, Soft, Natural, Rich) +
Sound Smart (User, Music, Sports,
Cinema, Speech) +
Scart 2
S-video (DIN) 1
AV In (3 RCA) 1
AV Out (3 RCA) 1 (ONLY L, R)
D-Sub 15 1
Headphone 1
CVBS In 3
Y\C In 1
RGB+FB -Video 1
RGB+HS, VS In -Graphics 1
CVBS Out 2
L5A TECHNICAL SPECIFICATION
Picture Formats
(4:3, 16:9, 14:9, Panorama, LetterBox, Subtitle)
Timer
Teletext

14" 15" 17" 17W" 20" 22W" 23W"
Manufacturer AUO
Samsung
Hannstar
CMO
AUO Sanyo
Samsung Samsung CMO
AUO Samsung
Interface Single LVDS Double TTL\Single
LVDS Dual LVDS Single LVDS Single TTL\Single LVDS Single LVDS Single LVDS
Resolution VGA (640x480) XGA (1024x768) SXGA (1280x1024) WXGA (1280x768) SVGA (800x600)
VGA (640x480) WXGA (1280x720) WXGA (1280x768)
Brightness (cd/m2)> 450 250 300 400 500 450 450
Contrast> 500 300 400 400 500 500 400
Response Time
(Tr+Tf) msec < 25 35 25 25 16 25 25
Viewing Angle R\L\H\L > 85/85/85/85 60/60/40/50 70\70\60\60 70/70 50/60 80\80\60\60 85/85 85/85 85/85 85/85
Adaptor Input 12V 12V 12V 12V 15V 15V 24V
Power consumptions 48W 48W 60W 60W 75W 100W
St-By Power Consumption <3W <3W <3W <3W <3W <3W <3W
Input Range 100-240V/50, 60Hz 100-240V/50, 60Hz 100-240V/50, 60Hz 100-240V/50, 60Hz 100-240V/50, 60Hz 100-240V/50, 60Hz 100-240V/50, 60Hz
PANEL SPECIFICATION

YUV
HS/VS
R
L
R

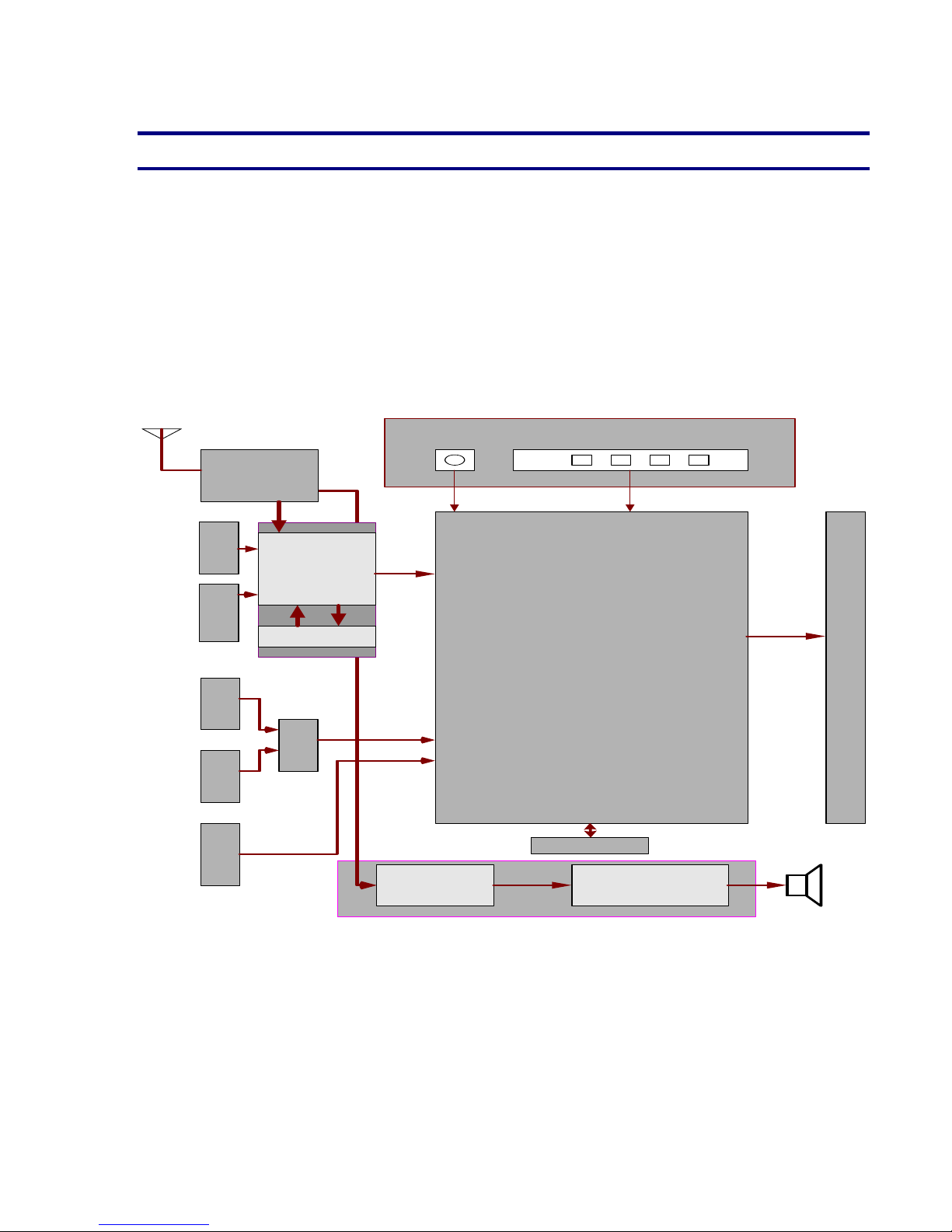

BLOCK DIAGRAM OF MAIN CHASSIS (L5A
)
Tuner IF Video Decoder
VPC 3230D
Teletext Decoder
SDA 5550
K6T1008V2E
SRAM
(Optional)
M29W040
Flash
Memory
MSP3410G
AUDIO DECODER
TDA1571
Stereo
Amplifier
TDA1308
Headphone
Amplifier
Scart 1 SVHS/FAV
Scart 2
Scaler
Stage
VGA-IN EEPROM
24LC02
CVBS-IF
SVHS-Y/C SC1-RGB
PANEL
YU
V
HS/VS
HS/VS RGB FB
CVBS
RGB HS/VS
SIF/AM-mono
L
R
L
R
EEPROM
24LC16

BLOCK DIAGRAM OF SCALER
Panel_En Standby Mute Reset
BR1_ADJ BLK_EN
HS/VS
RGB
VGA_RGB
VGA HS/VS
GM 5221 U500
LCD
CONTROLLER
U501
PARALEL
FLASH
MEMORY
M29W040B
(OPTIONAL)
S505
PROGRAMING
CON
U503
SERIAL FLASH
MEMORY
M25P40
U502
EEPROM
24C16
KEYBOARD
CON. S509
DAUGHTER
BOARD
FOR TTL
INTERFACES
S506
CONN.
LVDS
CONNECTOR
(20 OR 30 PINS)
(S503,S502)
BAC LIGHT UNIT
S508 (LVDS) S500(TTL)
P
A
N
E
L

L5A POWER SUPPLY BLOCK DIAGRAM
3.3V-STBY
V-INV
DC Jack +15V-STBY
F600 15V,12V
1.8V-STBY
Fuse
5A
+8V
2.5V
+5V 3.3V
INPUT: 12V FOR 14,15,17 INCH 5V-STBY
15V FOR 20, 22 INCH + 12V
24V FOR 23 INCH Panel
+12V Power
ONLY FOR 23 "
ONLY FOR 20, 22, 23 "
+8V
V-INV
F601
PNL-EN Power STBY
S602
S600
LM2576
U600
LM2576
U607
78L08
U606
78L12
U608
LM1117
1.8V
U605
LM1117
3.3V
U602
SDI9933ADY
LM117-3.3V
U604
78L08
U606
V-INV
+5V-STBY

L5-A Low-to-Mid End LCD-TV BOARD OVERVIEW
L5-A Low-to-Mid End LCD TV board incorporates the LCD Controller gm2221, to create a
high quality, stand-alone LCD-based TV system for consumer applications. Figure 1
illustrates the Block diagram of the board.
This board supposed to have two versions:
1. Low-End (to drive 14''-15’’ 4:3 panels)
2. Mid-End (to drive 17’’-20’’ 4:3 and 17’’-22’’-23'' 16:9 panels)
Figure 1 System Block Diagram
L5-A board supports 5 types of video and graphics inputs. These inputs are: Analog
terrestrial tuner input for multisystem PAL/SECAM transmission, SCART input (x2), S-VHS
input, RCA input and analog PC video input.
The analog RGB signals coming from the PC input (via D-Sub15 connector P401) are
directly connected to the gm2221 analog input port.
One EDID IC (U400) is provided on board to support VESA standard plug-and play
compatibility.
LOW TO MID END LCD TV WITH GM2221
Multimedia
Tuner
Chroma
Decoder
VPC 3230D
CVBS
EXT. CVBS, S-video
Scart RGB, FB
Teletext
Decoder +MCU
SDA5550
ITU 656
8-bit
GM2221
ADC+PLL
ITU 656
De-interlace
Scaling
MCU X86
OSD(4bit\pixel)
2 LVDS Tx
1p, 2p\clk
LVDS
15",
17",
20''
4:3
17''
22''
16:9
TFT
LCD
24-bit TTL
HS, VS, DE
Upto SXGA at 75Hz
Graphics
Upto SXGA at 75Hz
UXGA at 60Hz
RGB, HS, VS
EDID
VGA
SDA,SCL
FLASH
NVRAM
QSS
Audio
Decoder
MSP 3410G
QSS
Ext L/R
HP
TDA1308T
HP
L/R
AudioAmp
TDA1517P
Main
L/R
L R
Step Down
& Lineer
Regulators
12V
5V 3.3V2.5V
8V
FLASH
SDRAM
Teletext
RGB, FB
Selected
Video
1.8V

On the board, one high quality video decoder (U100) is provided (VPC3230D of Micronas)
to process video inputs coming from the video sources. The video processor can process 3
composite video inputs and 1 S-Cideo input from the NTSC/PAL video sources. The CVBS
output recovered from the tuner module is made available to one of the video inputs of the
video decoder.
The digitized video output (in ITU-656 format) from U100 is fed to the dedicated video Port
of gm2221 for decoding and processing.
Gm2221 makes it possible to perform scaling and de-interlacing for the video input.
A 4Mbit serial flash ROM (U503) is used for storing system firmware. Also the footprint for
a parallel flash ROM, which can be upto 2Mbits, is available on the board. This option can
be used either for development or for production purposes.
The gm2221 provides direct connect via the integrated LVDS transmitters to LCD panels
with integrated LVDS receivers. Both single LVDS (via S503) and double LVDS(via S502)
panels can be supported directly from the L5-A main-board. For single LVDS panels, only
S503 connector is soldered on the main-board, which is a 20 pin connector. For Double
LVDS panels, only S502 connector is soldered on the main-board, which is a 30 pin
connector. For supporting different LVDS panels, different LVDS cables (either single or
double LVDS) can be made used.
For supporting different single or double TTL panels, a daughter board interface is used via
40 pin S506 connector. On this connector, the signals are 3x8bit RGB with TTL control
signals (i.e. HSync, VSync, CLK, O/E etc.) to support a wide variety of LCD panels.
Depending on the panel used, different daughter boards will be used to support that
particular panel. For single TTL panels, the daughter board will just be a routing the RGB
and control signals to the particular connector interface for that particular panel. For double
TTL panels, there will be two LVDS receiver IC’s on the daughter board (double TTL is not
directly from GM2221 but double LVDS is supporter due to IC packaging problems) to
demodulate double LVDS signal into double TTL signal.
The LCD panel resolution supported can be up to SXGA at 75 Hz or UXGA at 60 Hz.
It is important to note that at any point in time gm2221 could drive only one type of Panel.
When LVDS Panel is connected (to connector S503 or S502) ensure that the panel
backlight is connected to S508. The integrated PWM output from gm2221 is used to
control the LCD panel backlight intensity for dimming functions.
The on screen display is implemented using OSD capability of gm2221. Infra Remote (IR)
controller connector (S507) is provided as a primary control interface for connecting IR
detector to the GPIO of gm2221. An IR remote controller unit and detector provide remote
OSD menu access at user convenience.

A keypad connector (S507) is provided which utilizes the integrated low bandwidth ADC in
gm2221 for scanning 5-6 keys (menu,V+,V-,P+,P- keys standard- source key optional) on
the keypad. The keypad allows access to the OSD without using the remote IR controller.
The L5-A board also has In System Programming (ISP) capability for the external flash
ROM using DDC2Bi. This can be done using the D-Sub 15 (PC) connector on the board.
ISP can also be performed using G-probe through the RS232 interface.
One channel of the dual channel FET power switch (U602) is used to control the power
sequencing to the LCD panel. Depending on the type of the panel, the input voltage to this
FET device can be chosen as shown below:
For +3.3V panels J601 is soldered on the main-board
For +5V panels J600 is soldered on the main-board
For +12V panels J603 is soldered on the main-board
An LM2576, a step-down regulator IC (U600), is used to generate the main +5V_STBY
voltage on the board. This IC can deliver up-to 3 Ampers of 5Volts. There is no stand-by
control for this regulator, which means this IC is always on, as soon as power is supplied
to the board.
U603(+3.3V_STBY) and U605 (+1.8V_STBY) linear regulators are used to supply the
voltage necessary for the GM2221 IC and some peripherals. These voltages are also
available in stand-by mode to power the microprocessor inside gm2221, LED, IR receiver
IC and EEPROM. These devices are necessary to wake up the board from stand-by state.
Second channel of the dual channel FET power switch (U602) is used to control cut some
voltages in stand-by mode. These voltages are +5V, +3.3V and +2.5V. These voltages are
used by the video processor (VPC 3230D), audio processor (MSP 34x0G), teletext
processor (SDA5550), tuner and some peripheral IC’s and circuitry. In order to limit the
stand-by power consumption, these voltages are not available in stand-by mode. Also the
audio amplifier (TDA1517) is also in its stand-by mode using its dedicated stand-by pin.
The board employs MSP3410G, a multi-system audio processor solution from Micronas.
The system supports 4 audio input ports, one of which is not used on the L5-A board.
Audio output is provided with speaker and headphone jacks (S409, S401) provided on the
board. The sound IF signal from the tuner is connected to the audio processor directly.

4. GM2221 LCD TV CONTROLLER
The gm2221 IC is a highly integrated single channel scaler that can be used for both LCD
monitors up to SXGA/UXGA resolutions and rear projection systems with DLP and HTPS
LCD engines up to 1280x720 (720P). Some of the key features include:
•Single processing channel.
•RGB and YUV signal processing with RGB to YUV and YUV to RGB color space
converters.
•Video signal processing/de-interlacing using spatial, VT (vertical-temporal) diagonal
interpolation.
•The on-chip turbo x86 micro-controller is used as the system CPU.
•The on-chip OSD controller is available for creating bitmapped OSD menus
•The keypad buttons utilize the input of the on-chip low bandwidth ADC.
•Software IR decoders is used with an external remote controller.
•One of the on-chip PWM outputs is used for controlling back-light intensity
•Integrated LVDS transmitters to LCD panels with integrated LVDS receivers.
The LCD panel resolution supported can be up to SXGA resolutions.
6. LCD PANEL INTERFACE
The L5-A board can drive panels both with LVDS and TTL interfaces. The footprints for
single LVDS and double LVDS connectors are available on the board (S503 and S502,
respectively). Either of these connectors can be used without any changes on the board.
The TTL interface is supported by a daughter board (S506 is the connector for the
daughter board). For the TTL case, connecting the daughter board to the connector will be
sufficient.
A Hirose 30-pin connector (S502) is used for double LVDS link from the board to various
LVDS panels. This connector can also be used for single LVDS, but another connector
footprint (S503) is available for single LVDS purposes. Using only S503 for single LVDS
panels decreases the cost. The LVDS traces are routed differentially from the gm2221 IC
to the connector. These are 100-Ohm differential traces.

L5A SERVICE MENU
Service Menu is entered by pressing 9, 3, 0, 1 keys on the remote controller when the Picture icon is
highlighted in the Main Menu.
Service Menu has 3 sub-menus. These are:
•Options
•Adjustments
•Selections.
Navigation through these menus can be done by pressing OK button. Every adjustment made in this
menu is saved automatically.
OPTIONS
Options are adjustments that the user can select On or Off.
•BG
•DK
•I
•LL’
•SCART 2
•FAV
•SVHS
•HOTEL MODE
•STAND BY
•MSP CARRIER MUTE
•WSS SCART
•FIRST ATS
BG / DK / I / L
Enabling or disabling these options will remove / add these standards to Manual Install menu, SYSTEM
item.
SCART 2 / FAV / SVHS
If a source is disabled in the Service Menu, it will be skipped during source switches. If SCART2 is
enabled, SW assumes that the FAV source share the same path as the SVHS source on the HW. If it is
disabled, it is assumed that FAV and SVHS share separate paths. TUNER and SCART1 are enabled by
default.
HOTEL MODE
Enabling Hotel Mode has two effects. First, SETUP menu is no longer accessible by the user. Second,
maximum adjustable volume value is limited to HOTEL VOLUME value. This value can be adjusted in the
ADJUSTMENTS sub-menu of the Service Menu.

STAND BY
If this Option is OFF, the TV will stay in Stand By mode after a Power On. If this Option is ON, the TV will
recall its last stand by status before the Power Off, and switch on from Stand By automatically, if the last
state was ‘Stand by On’.
MSP CARRIER MUTE
If this option is ON, sound processor’s carrier mute functionality will be enabled. The MSP will mute the
sound automatically if the signal quality is bad. Setting this option Off will disable this functionality.
WSS RF / WSS SCART
Automatic picture format switching for WSS and Pin8 can be enabled or disabled through this option.
If WSS SCART is set to OFF, AUTO picture format mode will be disabled for SCART1 and SCART2
modes. Pin8 source switching will still be operational, but no picture format changes from Pin8 voltage
level will be ignored.
ATS
If this option is set to ON, TV will display Country Selection menu in the next start. After some country is
selected, the user will be prompted for the start of AutoProgramming process.
ADJUSTMENTS
This sub-menu contains numeric adjustments. These items are:
•WHITE R
•WHITE G
•WHITE B
•PRESCALE FM
•PRESCALE NICAM
•PRESCALE SCART
•HOTEL VOLUME
WHITE R / WHITE G / WHITE B
These are used for color bias adjustment. Unlike other items in the service menu, changes will take effect
immediately.
PRESCALE FM / PRESCALE NICAM / PRESCALE SCART
These are prescale values that will be used for the initialization of the sound processor (MSP), at the next
switch on.
HOTEL VOLUME
This value is used as the volume limit, when the Hotel Mode is on.

SELECTIONS
This sub-menu contains selections.
•TUNER TYPE SAMSUNG / PHILIPS
•TELETEXT NO TEXT / FAST / FAST&TOP
•MSP CLIP REDUCE VOL / REDUCE TONE / COMPROMISE / DYNAMIC
TUNER TYPE
One of two supported tuner can be selected from this item. System must be restarted for this change to
take effect.
TELETEXT
NO TEXT: Teletext is totally disabled. TXT/MIX button will not be functional. AUTO picture format mode
will be disabled in RF, F-AV and SHVS modes. Naming and sorting functionality during Autoprogramming
will be disabled.
FAST: TOPtext functionality will be disabled.
FAST&TOP: TOPtext functionality is enabled.
TIMER MODE
If OFF TIMER is selected, the user will be able to enter time of the day info for the TV to switch off. If
SLEEP TIMER is selected, the user can specify some time period, after which the TV will go to stand by
automatically.
MSP CLIP
This selection identifies which method will be used by the sound processor to prevent clipping effects on
volume. Details can be found in data sheet msp34x0g_4pd.pdf, page 30.
AUTOPROGRAMMING
When the user selects the Autoprogram item in Setup menu, Country Selection menu is opened. The user
must select a country before the Autoprogramming starts. Broadcast system will be selected according to
the country selected.
Broadcast systems according to countries:
BELGIUM BG + L
CROATIA BG
CZECH REP. DK
DENMARK BG
FINLAND BG
FRANCE L + BG
GERMANY BG
GREECE BG
HUNGARY DK
IRELAND I
ITALY BG
NETHERLANDS BG

NORWAY BG
POLAND DK
PORTUGAL BG
SPAIN BG
SWEDEN BG
SWITZERLAND BG + L
TURKEY BG
UNITED KINGDOM I
For countries France, Belgium and Switzerland, autoprogramming is done twice. For Belgium and
Switzerland, first BG channels will be searched, after the search in BG is done, searching will restart for L
standard. If the selected country is France, the sequence of standards is reversed, thus, first L then BG.
TELETEXT LANGUAGES
L5A SW decides which teletext language group will be used for teletext decoding, according to the
country selected for autoprogramming.Teletext languages according to countries:
EAST EUROPE:CROATIA ,CZECH_REP, POLAND
WEST EUROPE: BELGIUM ,DENMARK, FINLAND, UK, FRANCE, GERMANY,
IRELAND ,ITALY ,NETHERLANDS, NORWAY, PORTUGAL,SPAIN, SWEDEN, SWITZERLAND,
HUNGARY
TURKISH-GREEK:GREECE TURKEY
PC MODE
PC mode can be entered by pressing PC button on the remote controller. User can return back to TV
mode by pressing the PC or TV buttons.
After the switching to PC mode, VGA input will be displayed on screen, as soon as the mode (input
resolution and frequency) is determined.
If there is no input from the VGA input, NO SIGNAL dialog will be displayed for 15 seconds. At the end of
this period if there is no signal from VGA input, the TV will go to Sleep State. While in the sleep state, the
TV will keep monitoring the VGA input. If VGA signal is detected, the TV will wake from Sleep State, to PC
mode. Alternatively, the user may select to switch the TV on from Sleep State, just like switching on from
Stand-by. In this case, the set will switch on from TV mode.

ITEM NAME OPTIONS/
VALUES
DEFAULT
VALUES OR
SETUP
OPTIONS
BG ON/OFF ON
DK ON/OFF ON
I ON/OFF ON
LL' ON/OFF ON
SCART 2 ON/OFF OFF
FAV ON/OFF ON
SVHS ON/OFF ON
HOTEL MODE ON/OFF OFF
STBY ON/OFF OFF
MSP CARRİER MUTE ON/OFF OFF
WSS SCART ON/OFF ON
FIRST ATS ON/OFF OFF
BACKLIGHT POL ON/OFF OFF
FACTORY MODE ON/OFF OFF
ADJUSTMENTS
WHITE R 0-255 128
WHITE G 0-255 128
WHITE B 0-255 128
PRESCALE FM 0-127 37
PRESCALE NICAM 0-127 63
PRESCALE SCART 0-127 27
HOTEL VOLUME 0-63 16
AGC 0-31 23
SELECTIONS
TUNER TYPE PHILIPS
SAMSUNG PHILIPS
TELETEXT
FAST&TOP
NO TEXT
FAST FAST&TOP
MSP CLIP
REDUCE TONE
COMPROMISE
DYNAMIC DYNAMIC

GENESIS GM5221 LCD TV CONTROLLER
The gm5221 is an LCD TV controller supporting resolutions up to SXGA (1280x1024). The gm5221
leverages Genesis patented advanced image-processing technology as well as a proven integrated
ADC/PLL and an Ultra-Reliable DVI™ compliant digital receiver to provide excellent image quality.
gm5221 also integrates a microcontroller, an OSD controller, advanced color management and dual
LVDS transmitters.
1.1 gm5221 System Design Example
Figure 1 below shows a typical dual interface LCD TV system based on the gm5221. Designs based on
the gm5221 have reduced system cost, simplified hardware and firmware design and increased reliability
because only a minimal number of components are required in the system.
TUNER
PACK
VIDEO
DECODER
AUDIO
PROCESSOR
gm5221
L
C
D
D
I
S
P
L
A
Y
AUDIO
AMPL
V CHIP
V
G
A
D
V
I
Y
Pb
Pr
M
U
X
IR KEY BOARD
EEPROM
S
V
I
D
E
O
C
V
B
S
Figure 1. gm5221 System Design Example

1.2 gm5221 Family Features
• Intelligent Image Processing™
• Fully programmable zoom ratios
• High-quality shrink capability from UXGA resolution
• Programmable coefficients for variable sharpness control
• RealRecovery™ provides full color recovery image for
refresh rates higher than those supported by the LCD panel
• Analog RGB Input Port
• Supports SDTV RGB inputs in interlaced mode
• Supports EDTV (480p) up to 1080i HDTV inputs
• Supports mid level clamp for YPbPr inputs
• Macro vision decoding
• Supports up to 162 MHz (SXGA 75Hz / UXGA 60Hz)
• On-chip high-performance PLLs (single reference crystal
required)
• Composite-sync, Sync-on-Green (SOG) and Sync-on-Y
(SoY) support
• Input format detection
• Phase and image positioning
• Ultra-Reliable DVI-Compliant Input Port
• Operating up to 165 MHz (up to UXGA 60Hz)
• Direct connect to all DVI 1.0-compliant transmitters
• High-bandwidth Digital Content Protection (HDCP)
Note: HDCP function is available H version only.
• CCIR-656 8-bit Video Input Port
• Supporting NTSC / PAL interlaced and progressive
• Direct connect to commercially available video decoders
• Spatial de-interlacing
• Advanced Color Management
• Programmable gamma correction (CLUT)
• TV color controls including hue and saturation controls
• Full color matrix allows end-users to experience the same
colors as viewed on CRTs and other displays (e.g. sRGB
compliance)
• Advanced Active Color Management ™ (ACM-II) provide
flesh-tone compensation and image enhancement for video
preset modes like sport, nature .
• Adaptive Contrast and Color™ (ACC) ensures full dynamic
range is used in video content
• On-chip Versatile OSD Controller
• On-chip RAM for high-quality programmable menus
• 1, 2 and 4-bit per pixel character cells
• Horizontal and vertical stretch of OSD menus
• Blinking, transparency and blending
• Supports two independent OSD menu rectangles
• Proportional fonts
• Embedded X86 On-chip Microcontroller
• High-performance X86 MCU with on-chip RAM and ROM
• External parallel ROM or serial SPI ROM interface
• Unified memory architecture simplifies chip programming
• 23 general-purpose inputs/outputs (GPIOs) available
• 2-wire serial bus master to control NVRAM, video decoder
• Two DDC2Bi ports with DMA buffer to internal RAM
• Four PWM outputs for analog backlight control, audio, etc.
• General-purpose ADC’s for keypad and temperature sensing
• Integrated reset circuit
• Slow clock mode for 50mW sleep mode power consumption
• JTAG debug / ICE support for firmware debugging
• Built-in Test Pattern Generator
• Simplifies manufacturing / test
• Energy Spectrum Management (ESM™)
• Digital clock spectrum management
• Eliminates EMI suppression components and shielding
• Built-in LVDS Transmitters
• Four channel 6/8-bit LVDS transmitter
• Support for 8 or 6-bit panels with high-quality dithering
• Single / double wide up to SXGA 75Hz output
• Pin swap, odd / even swap and red / blue group swap of RGB
outputs for flexibility in board layout
• Highly integrated System-on-a-Chip
• All system clocks synthesized from a single external crystal
• 50mW power saving mode
• 5-Volt tolerant inputs
• Two Layer PCB support
• On-chip reset feature to eliminate external reset component
• Integrated Schmitt trigger for HSYNC and VSYNC
PACKAGE
• 208-pin PQFP
• 3.3V IO and 1.8V core power supplies

2 gm5221 Pinout
The gm5221 devices are packaged in a 208-pin Plastic Quad Flat Pack (PQFP).
N/C N/C
DCLK
JTAG_RESET
RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED
JTAG_TDO
RESERVED
JTAG_TDI
PPWR
PBIAS
GPIO15
RESERVED
HOST_SCL/UART_DI
HOST_SDA/UART_DO
RVDD_3.3
CRVSS
CVDD_1.8
CRVSS
DDC_SCL_VGA
DDC_SDA_VGA
DDC_SCL_DVI
DDC_SDA_DVI
GPIO0 GPIO1 GPIO2 GPIO3 GPIO4
CVDD_1.8
CRVSS
GPIO5 GPIO6
GPIO7/IRQin
GPIO8/IRQout
GPIO9/SCL
GPIO10/SDA
CRVSS
RVDD_3.3 CVDD_1.8
CRVSS
GPIO11/PWM0 GPIO12/PWM1 GPIO13/PWM2 GPIO14/PWM3
GPIO16/VDATA7 GPIO17/VDATA6
N/C
ROM_DATA3
ROM_DATA2
ROM_DATA1
ROM_DATA0
ROM_OEn
ROM_WEn
ROM_CSn
CRVSS
CVDD_1.8
RESERVED
AVDD_LV_E_3.3
AVSS_LV_E
CH3P_LV_E/ER0
CH3N_LV_E/ER1
CLKP_LV_E/ER2
CLKN_LV_E/ER3
CH2P_LV_E/ER4
CH2N_LV_E/ER5
CH1P_LV_E/ER6
CH1N_LV_E/ER7
CH0P_LV_E/EG0
CH0N_LV_E/EG1
AVSS_LV_E
AVDD_LV_E_3..3
AVSS_LV
AVDD_LV_3.3
AVDD_LV_O_3.3
AVSS_LV_O
CH3P_LV_O/EG2
CH3N_LV_O/EG3
CLKP_LV_O/EG4
CLKN_LV_O/EG5
CH2P_LV_O/EG6
CH2N_LV_O/EG7
CH1P_LV_O/EB0
CH1N_LV_O/EB1
CH0P_LV_O/EB2
CH0N_LV_O/EB3
AVSS_LV_O
AVDD_LV_O_3..3
CVDD_1..8
CVSS
EB4
EB5
EB6
EB7
DEN
DHS
DVS
RVDD_3.3
CRVSS
N/C
53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
AGND_ADC
RESERVED
AVDD_ADC_3.3
AGND_RED
RED-
RED+
AVDD_RED_3.3
AGND_GREEN
GREEN-
GREEN+
SOG_MCSS
AVDD_GREEN_3.3
AGND_BLUE
BLUE-
BLUE+
AVDD_BLUE_3.3
CRVSS
CVDD_1.8
RESERVED
VDD_RXPLL_1.8
GND_RXPLL
RESERVED
AVDD_RXC_3.3
RXC-
RXC+
AGND_RXC
AVDD_RX0_3.3
RX0-
RX0+
AGND_RX0
VDD_RX0_1.8
AVDD_RX1_3.3
RX1-
RX1+
AGND_RX1
VDD_RX1_1.8
AVDD_RX2_3.3
RX2-
RX2+
AGND_RX2
VDD_RX2_1.8
AGND_IMB
REXT
AVDD_IMB_3.3
VCLK
GPIO23/VDATA0
GPIO22/VDATA1
GPIO21/VDATA2
GPIO20/VDATA3
GPIO19/VDATA4
GPIO18/VDATA5
N/C
208 207 206 205 204 203 202 201 200 199 198 197 196 195 194 193 192 191 190 189 188 187 186 185 184 183 182 181 180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157
ROM_DATA4 ROM_DATA5 CRVSS RVDD_3.3 ROM_DATA6 ROM_DATA7 ROM_ADDR0 ROM_ADDR1 ROM_ADDR2 ROM_ADDR3 ROM_ADDR4 ROM_ADDR5 ROM_ADDR6 ROM_ADDR7 ROM_ADDR8 ROM_ADDR9 ROM_ADDR10 CRVSS RVDD_3.3 ROM_ADDR11 ROM_ADDR12 ROM_ADDR13 ROM_ADDR14 ROM_ADDR15 ROM_ADDR16 ROM_ADDR17 VSYNC HSYNC/CSYNC CRVSS CVDD_1.8 RESETn LBADC_GND LBADC_RETURN LBADC_IN3 LBADC_IN2 LBADC_IN1 LBADC_VDD_3.3 AVDD_RPLL_3.3 TCLK XTAL AGND_RPLL RESERVED VDD_RPLL_1.8 GND_RPLL VDD_ADC_1.8 GND_ADC N/C N/C N/C N/C N/C N/C
Figure 2. gm5221 Pin Out Diagram
