Beko BT-100 User manual

PMR Private Mobile Radio
User Manual
BT100

Please read this manual first!
Dear Customer,
We hope that your product which has been manufactured in modem facilities
and passed through a strict quality control procedure will give you the best
results.
Therefore, we advise you to read through this manual carefully before using
your product and keep it for future reference.
This user manual will...
... help you use your machine in a fast and safe way.
• Please read the User Manual before installing and starting your machine.
• Particularly follow the instructions related to safety.
• Keep this User Manual within easy reach. You may need it in the future.
• Please read all additional documents supplied with this machine.
Please note that this User Manual may be applicable for several other
models. Differences between models will be identified in the manual.
This product has been produced i environmentally friendly, modern facilities

Contents
1 Key Features
>2-3
2 Installations >3-5
3 Operation
>5-9
4 Auxiiiary Features
>9

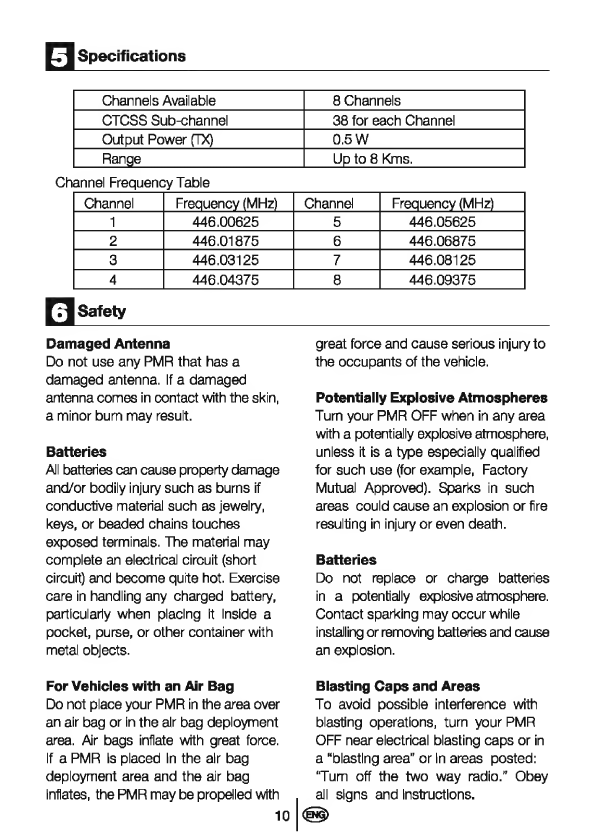

5 Specifications
>10
6 Safety
>10-11

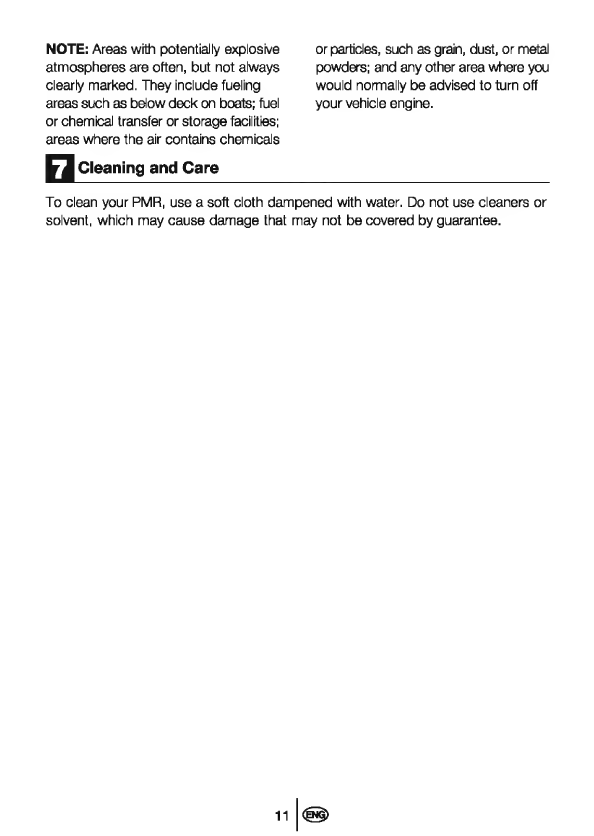

7 Cleaning and Care
>11

Cautions
• Do not subject the device to severe
impact or drop it from high position.
• Do not use the player in extreme hot
or cold, dusty or damp field. Do not
expose it to direct sunshine.
• Back up the data frequently in case of
accident data loss.
• Avoid using the player in strong
magnetic field.
• Keep the device away from water or
other liquids. In the event that water or
other liquids enter the device, power off
the product immediately, take out the
battery and clean the device.
Key Features
• Do not use chemical solution to dean
the device in order to avoid corrosion.
Clean it with a dry cloth.
• We are not responsible for the
damages or lost data caused by
malfunction, misusing, repairing the
device or battery replacement.
• Do not attempt to disassemble, repair
or modify the product, or it will be out
of guarantee.
• The design of the player or actual
display may be different from what is
shown in this manual. It should be
subject to the actual display or design.
Private mobile radio with twin charger
LCD Screen
Displays the current
channel selection and
other radio symbols.
PTT (PUSH to
TALK) button
Press and hold to transmit
PWR(POWER)
Button
Press and hold to turn
the unit ON or OFF.
MENU Button
Press to change To
switch between
Modes.
A" ^
<«3B ■ ■
^ B»x
1
M.iil
1 1
V BCH VOX ;
iWciOobc
Jr-com*
|/| o op • • •
Ear/Mic/Charge jack
Press to send Ringing
tone to CALL
buttonother PMR
units.
UP/DOWN Buttons
Press to change
channels, volume, and to
select settings during
programming.

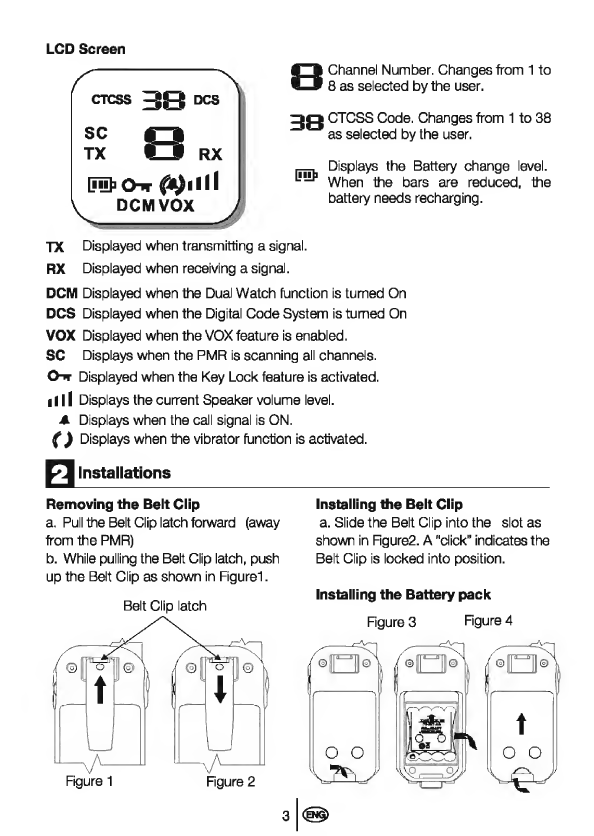

LCD Screen
8 Channel Number. Changes from 1 to
8 as selected by the user.
CTCSS Code. Changes from 1 to 38
as selected by the user.
„ Displays the Battery change level.
When the bars are reduced, the
battery needs recharging.
TX Displayed when transmitting a signal.
RX Displayed when receiving a signal.
DCM Displayed when the Dual Watch function is turned On
DCS Displayed when the Digital Code System is turned On
VOX Displayed when the VOX feature is enabled.
SC Displays when the PMR is scanning all channels.
O-w Displayed when the Key Lock feature is activated,
illl Displays the current Speaker volume level.
A Displays when the call signal is ON.
() Displays when the vibrator function is activated.
Installations _
cross B8 DCS
SC
TX CJ RX
in!t>Oir^illl
DCMvox
Removing the Belt Clip
a. Pull the Belt Clip latch forward (away
from the PMR)
b. While pulling the Belt Clip latch, push
up the Belt Clip as shown in Figurel.
Belt Clip latch
Installing the Belt Clip
a. Slide the Belt Clip into the slot as
shown in Rgure2. A "dick” indicates the
Belt Clip is locked into position.
Installing the Battery pack
ngure 3 Figure 4

Caution: Observe the proper
battery polarity orientation when
installing batteries. Incorrect
positioning can damage both the
batteries and the unit.
a. Slide down the Battery Compartment
Cover.
b. Install the rechargeable battery pack
by following the orientation as shown
In Fgure 3 (the arrow Is showing and
pointing upward.)
c. Replace the Battery Compartment
Cover. See Fgure 4.
Important
Read these Safety Warnings before you
charge the batteries. When placing the
PMR In the charger, use only the
power supplies listed in the user
instructions supplied with the PMR. Don't
try to recharge non-rechargeable
batteries.Make sure the battery
compartment cover is securely locked
in place when you are charging the
batteries. Dispose of used batteries
safely and in a way that will not harm
the environment- never try to bum them
or put them anywhere, they could get
burnt or punctured. Don’t leave dead
batteries in your PMR units. They might
leak if you do.
Charging the battery pack
a. Insert the small plug on the end of
the mains adaptor into the Power-in
Connection Jack at the back of the
desktop charger.
b. Plug the mains adaptor into a 240V
AC, 50Hz main socket with the switch
on the socket set to OFF.
c. Switch ON the main socket.
The PMR must be charged using the
mains adaptor provided. Using any
other adaptor will result in non-
compliance with EN60950-1 and will
invalidate any approvals & warranty.
d. Place the PMR units in the charge
cradle in an upright position and facing
outward. The Charge LED indicators will
light up.
e. It takes about 10 hours to fully
recharge the batteries if they are
completely run down. New batteries
take up to 14 hours to fully charge.
f. Charging the battery pack (using
adaptor) Lift the charge socket cover
located on the right side of the handset.
Important: Always turn off the PMR
units when harging.This will shorten the
charging time.
Q Pi
Insert the round connector of the 9.0V
DC/200nnA adaptor into the charge jack.

Plug the mains adaptor into a 240V
AC, 50Hz main socket with the switch
on the socket set to OFF. Use only
power supplies listed in the user
instruction. Csec AC Adaptor brand
: Model -CSD0900200G power supply
Then switch ON the main socket.
Battery meter The battery meter Is
located in the left comer of the LCD
Screen. It appears like a battery with
three bars inside. These indicate the
amount of power available. When
the battery level reaches it minimum
level In PMR on mode, unit will emit
two beep tones and automatically the
unit will power off.
glljj The PMR can detect the
__ battery charge in 4 levels:
’—^ Battery charge at high level.
13* Battery charge at medium levei.
Battery charge at low level. At
this level, the PMR will emit
CD* a "beep" sound for every 10
seconds in normal
mode.
Operation _
Transmitting range
The talk range depends on the
environmental and terrain. It wll be
reach (up to about 8km) in wide open
spaces, without obstructions such as
hills or buildings. Don’t try to use two
PMR units which are less than 1.5m
(5feet) apart. If you do, you may
experience interference.
Important safety warning
To reduce radio frequency exposure
Important: Charge the unit for 10-14
hours. Battery charge at very low level.
When the battery level reach it minimum
level in PMR on mode, unit will emit two
beep tone and automatically turn off
the power and proceeds to watch mode.
Important: Charge the unit for 10-14
hours.
CAUTION : Risk of explosion if battery
is replaced by an incorrect type.
Disposed of used batteries according
to the instructions.
Use only the batteries listed in user-
instruction - CEL brand;
EPT43AAA60H Ni-MH
4.8V/AAA600mAh rechargeable battery
pack
Battery life The PMR has a built in
power saver to make the batteries
last longer. But when you are not using
the units, turn them OFF to conserve
battery power.
when you are using your PMR, hold
the unit at least 5cm (2 inches) away
from your face. Never use your PMR
outdoors during a thunderstorm. Don't
use the PMR in the rain. If your PMR
ever gets wet, turn it off and remove
he battery. Dry the battery
compartment and leave the cover off
for a few hours. Don't use the unit until
it is completely dry. Keep the PMR out
of the reach of babies and young
children.

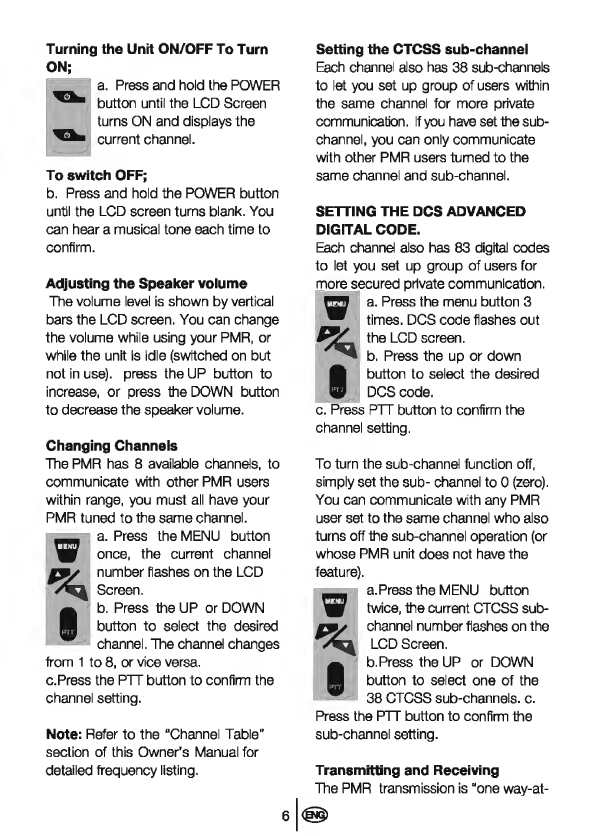

Turning the Unit ON/OFF To Turn
a. P ress and hold the POWER
button until the LCD Screen
turns ON and displays the
current channel.
To switch OFF;
b. P ress and hold the POWER button
until the LCD screen turns blank. You
can hear a musical tone each time to
confirm.
Adjusting the Speaker volume
The volume level is shown by vertical
bars the LCD screen. You can change
the volume while using your PMR, or
while the unit Is Idle (swrtched on but
not in use), press the UP button to
increase, or press the DOWN button
to decrease the speaker volume.
Changing Channels
The PMR has 8 available channels, to
communicate with other PMR users
within range, you must all have your
PMR tuned to the same channel.
__ a. Press the MENU button
once, the current channel
number flashes on the LCD
Screen.
B b . Press the UP or DOWN
button to select the desired
channel. The channel changes
from 1 to 8, or vice versa,
c.Press the PTT button to confirm the
channel setting.
Note: Refer to the "Channel Table”
section of this Owner's Manual for
detailed frequency listing.
6
Setting the CTCSS sub-channel
Each channel also has 38 sub-channels
to let you set up group of users within
the same channel for more private
communication. If you have set the sub¬
channel, you can only communicate
with other PMR users turned to the
same channel and sub-channel.
SETTING THE DCS ADVANCED
DIGITAL CODE.
Each channel also has 83 digital codes
to let you set up group of users for
more secured private communication.
a. Press the menu button 3
• times. DCS code flashes out
the LCD screen.
b. Press the up or down
8 button to select the desired
DCS code.
c. P ress PTT button to confirm the
channel setting.
To turn the sub-channel function off.
simply set the sub- channel to 0 (zero).
You can communicate with any PMR
user set to the same channel who also
turns off the sub-channel operation (or
whose PMR unit does not have the
feature).
a. P ress the MENU button
twice, the current CTCSS sub¬
channel number flashes on the
LCD Screen.
b. Press the UP or DOWN
button to select one of the
38 CTCSS sub-channels, c.
Press the PTT button to confirm the
sub-channel setting.
Transmitting and Receiving
The PMR transmission is "one way-at-

-time." While you arespeaking, you can a number on the LCD Screen. At the
not receive a transmission. The PMR is highest level, the units wll pickup
an open-license band. Always identify softer noise (including background
yourself when transmitting on the same noise); at the lowest level, it will pick
channel. up only quite loud noise.
Transmitting (sending a speech) __ a. Press the MENU button 4
i a . Press and hold the PTT times, "VOX" will be displayed
(push to talk) button to transmit and "OP flashes on the LCD
your voice. "TXwill be displayed Screen,
on the LCD Screen. a b.Press the UP button to set
I b . Hold the unit in a vertical H the VOX sensitvity level (the
position with the MIC maximum level is‘'3 ”.) To
(Microphone) 5 cm away from the deactivate the VOX function, press the
mouth. While holding the PTT button, DOWN button until "OF" appears on
speak Into the MIC (microphone) in a the LCD Screen, c.Press the PTT button
normal tone of voice. to confirm your setting. “VOX" will
c. Release the PTT button when you steadily appear on the LCD Screen as
have finished transmitting. along as the VOX feature is activated.
Monitor
You can use the Monitor feature to
check for weak signals on the current
a.Press and hold the MENU
and DOWN buttons at the
same time. “RX" wili be
dispiayed on the LCD Screen.
Your PMR will pick up
signals on the current channel,
including background noise,
b. Press the PTT button to stop the
channel monitoring.
Setting the VOX (Voice Activated)
Sensitivity
In VOX mode, the PMR will transmit
a signal only when it is activated by
your voice or other sounds around
you. The unit will transmit further for 2
seconds even if you stop talking. The
level of VOX sensitivity is shown by
channel
s
VOX operation is not recommended if
the PMR will be used in a noisy or windy
environment.
Vibrator and Caii aiert
Your FX-117 can alert you to incoming
signal by emitting an audible call tone
and vibration signal.
Caii-Ring tone
You can send a Call-ring tone to other
PMR users to give an alert that you want
to communicate with them.
Press the CALL button Yu will
hear a ring tone for about two
seconds: ‘TXappears on the
LCD Screen. Any other units
within the transmitting range
and turned to the same
and sub-channel (if applicable)
will hear the Call-ring tone.
channel
7

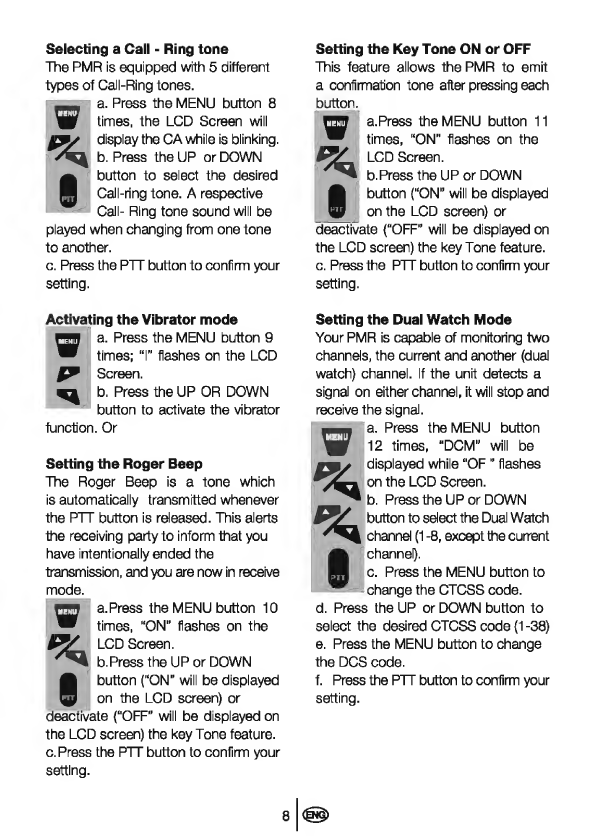

Selecting a Call - Ring tone
The PMR is equipped with 5 different
types of CaJ 1-Ring tones.
a. Press the MENU button 8
button.
times, the LCD Screen will
1
display the CA while is blinking.
b. Press the UP or DOWN
button to select the desired
Call-ring tone. A respective
Call- Ring tone sound will be
played when changing from one tone
to another.
c. Press the PTT button to confirm your
setting.
Setting the Key Tone ON or OFF
This feature allows the PMR to emit
a confirmation tone after pressing each
a. P ress the MENU button 11
times, “ON" flashes on the
LCD Screen.
b. P ress the UP or DOWN
button (“ON" will be displayed
on the LCD screen) or
deactivate (“OFF" will be displayed on
the LCD screen) the key Tone feature,
c. P ress the PTT button to confirm your
setting.
Activating the Vibrator mode
a. P ress the MENU button 9
" times; “I" flashes on the LCD
fW Screen.
^ b. Press the UP OR DOWN
button to activate the vibrator
function. Or
Setting the Roger Beep
The Roger Beep is a tone which
is automatically transmitted whenever
the PTT button is released. This alerts
the receiving party to inform that you
have intentionally ended the
transmission, and you are now in receive
mode.
W a.Press the MENU button 10
times, “ON” flashes on the
LCD Screen.
b.PresstheUPorDOWN
8 button (“ON” will be displayed
on the LCD screen) or
deactivate ("OFF” will be displayed on
the LCD screen) the key Tone feature,
c. P ress the PTT button to confirm your
setting.
Setting the Dual Watch Mode
Your PMR is capable of monitoring two
channels, the current and another (dual
watch) channel. If the unit detects a
signal on either channel, it will stop and
receive the signal.
a. Press the MENU button
12 times, "DCM” will be
displayed while "OF" flashes
on the LCD Screen.
b. Press the UP or DOWN
button to select the Dual Watch
channel (1 -8, except the current
channel).
c. Press the MENU button to
change the CTCSS code.
d. Press the UP or DOWN button to
select the desired CTCSS code (1 -38)
e. Press the MENU button to change
the DCS code.
f. Press the PTT button to confirm your
setting.
S
8

Activating the auto Channel Scan
Channel scan perform searches for
active signals in an endless loop for all
8 channels, 38 CTCSS codes and all
codes.
a. Press the MENU button 5
times
b. Press the UP or DOWN
button to begin scanning
channels when an active
signal is detected,
channelscan pauses on the
active channel.
c. Press the MENU button
again, CTCSS flashes on the
LCD screen press the UP or
Auxiliary Features _
Key Lock
The Key Lock feature allows user to
disable the UP. DOWN and MENU
buttons so that the PMR settings
could not be changed
accidentally.
a. To activate the Key Lock
feature, press and hold the
MENU button until ••
appears on the LCD Screen.
b. To deactivate the key Lock
feature, press and hold the
MENU button until ••OlT
disappears on the LCD
Screen. The PTT, and POWER
buttons will remain functional even if the
Key Lock feature is activated.
DOWN button to begin scanning the
CTCSS from 1-38.
d. Press the MENU button again, DCS
flashes on the LCD screen. Press the
UP or DOWN button to begin scanning
DCS code 1 -83.
e. Press the PTT button to oonfirm your
setting.
Microphone/Earphone/Charge Jack
The PMR is equipped with an auxiliary
microphone, earphone, and charge jack
located at the opposite side of the PTT
button.
LCD Screen Back Light
Every time a button is pressed (except
PTT and CALLbutton), the LCD Screen
back light will illuminate for 4 seconds.

Specifications
Channels Available 8 Channels
CTCSS Sub-channel 38 for each Channel
Output Power (TX) 0.5 W
Range Up to 8 Kms.
Channel Frequency Table
Channel
Frequency (MHz)
Channel
Frequency (MHz)
1
446.00625 5 446.05625
2
446.01875 6 446.06875
3 446.03125 7 446.08125
4
446.04375 8 446.09375
Safety _
Damaged Antenna
Do not use any PMR that has a
damaged antenna. If a damaged
antenna comes in contact with the skin,
a minor bum may result.
Batteries
All batteries can cause property damage
and/or bodily injury such as burns if
conductive material such as jewelry,
keys, or beaded chains touches
exposed terminals. The material may
complete an electrical circuit (short
circuit) and become quite hot. Exercise
care in handling any charged battery,
particularly when placing it Inside a
pocket, purse, or other container with
metal objects.
For Vehicles with an Air Bag
Do not place your PMR in the area over
an air bag or in the air bag deployment
area. Ar bags inflate with great force.
If a PMR Is placed In the air bag
deployment area and the air bag
inflates, the PMR may be propelled with
10
great force and cause serious injury to
the occupants of the vehicle.
Potentially Explosive Atmospheres
Turn your PMR OFF when in any area
with a potentially explosive atmosphere,
unless it is a type especially qualified
for such use (for example, Factory
Mutual Approved). Sparks in such
areas could cause an explosion or fire
resulting in injury or even death.
Batteries
Do not replace or charge batteries
in a potentially explosive atmosphere.
Contact sparking may occur while
installing or removing batteries and cause
an explosion.
Blasting Caps and Areas
To avoid possible interference with
blasting operations, turn your PMR
OFF near electrical blasting caps or in
a “blasting area" or In areas posted:
‘Turn off the two way radio.” Obey
all signs and instructions.

NOTE: Areas with potentially explosive
atmospheres are often, but not always
clearly marked. They include fueling
areas such as below deck on boats; fuel
or chemical transfer or storage facilities:
areas where the air contains chemicals
Cleaning and Care
or particles, such as grain, dust, or metal
powders: and any other area where you
would normally be advised to turn off
your vehicle engine.
To clean your PMR, use a soft cloth dampened with water. Do not use cleaners or
solvent, which may cause damage that may not be covered by guarantee.
