Belden HIRSCHMANN EAGLE40-03 User manual

Installation EAGLE40
Release 02 08/2020
Technical support
https://hirschmann-support.belden.com
User Manual
Installation
Industrial Security Router
EAGLE40-03
EAGLE40-07

2020-08-12 Installation EAGLE40
Release 02 08/2020
The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2020 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.
The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany

Installation EAGLE40
Release 02 08/2020 3
Contents
Important Information 5
Safety instructions 6
About this manual 12
Key 13
1 Description 14
1.1 General device description 14
1.2 Device name and product code 14
1.3 Device views EAGLE40-03 17
1.3.1 Front view 17
1.4 Device views EAGLE40-07 18
1.4.1 Front view 18
1.4.2 Right side view 19
1.4.3 Left side view 20
1.5 Power supply 20
1.6 Ethernet ports 20
1.6.1 10/100/1000 Mbit/s twisted pair port 21
1.6.2 1000 Mbit/s F/O port 21
1.6.3 Pin assignments 21
1.7 Display elements 22
1.7.1 Device state EAGLE40-03 22
1.7.2 Port state EAGLE40-03 23
1.7.3 Device and port state EAGLE40-07 23
1.8 Management interfaces 24
1.8.1 V.24 interface (external management) 24
1.8.2 DB9 port 25
1.8.3 USB interface 25
1.9 Input/output interfaces 26
1.9.1 Signal contact 26
1.9.2 Digital input (optional) 26
2 Installation 28

4Installation EAGLE40
Release 02 08/2020
2.1 Checking the package contents 28
2.2 Installing and grounding the device 28
2.2.1 Installing the device onto the DIN rail 28
2.2.2 Grounding the device 29
2.3 Installing an SFP transceiver (optional) 30
2.4 Connecting the terminal blocks 30
2.4.1 Connecting the power supply and signal lines 31
2.4.2 Wiring the digital input (optional) 32
2.5 Operating the device 32
2.6 Connecting data cables 33
2.6.1 Twisted Pair ports 33
2.6.2 1000 Mbit/s F/O port (optional) 33
2.7 Filling out the inscription label 33
2.8 Making basic settings 34
2.8.1 First Login (Password) 34
3 Monitoring the ambient air temperature 36
4 Maintenance and service 37
5Disassembly 38
5.1 Removing the device 38
5.2 Removing an SFP transceiver (optional) 39
6 Technical data 40
A Further Support 51

Installation EAGLE40
Release 02 08/2020 5
Important Information
Notice: Read these instructions carefully, and look at the equipment to
become familiar with the device before trying to install, operate, or maintain
it. The following special messages may appear throughout this
documentation or on the equipment. The message warns of potential
hazards or calls attention to information that clarifies or simplifies a
procedure.
Symbol explanation
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
The additional of this symbol to a “Danger” or “Warning” safety
label indicates that an electrical hazard exists, which will result
in personal injury if the instructions are not followed.
This symbol points out the dangers posed by hot device
surfaces. In connection with safety notes, the disregard of these
instructions will result in injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
can result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
can result in minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to physical injury.

6Installation EAGLE40
Release 02 08/2020
Safety instructions
General safety instructions
You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
Before connecting any cable, read this document, and the safety
instructions and warnings.
Operate the device with undamaged components exclusively.
The device is free of any service components. In case of a damaged
or malfunctioning the device, turn off the supply voltage and return the
device to Hirschmann for inspection.
Certified usage
Use the product only for the application cases described in the
Hirschmann product information, including this manual.
Operate the product only according to the technical specifications.
See “Technical data” on page 40.
Connect to the product only components suitable for the requirements
of the specific application case.
Installation site requirements
Install the device in a fire enclosure according to EN 62368-1.
Install this device only in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.
WARNING
UNCONTROLLED MACHINE ACTIONS
To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.
Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation EAGLE40
Release 02 08/2020 7
Device casing
Only technicians authorized by the manufacturer are permitted to open
the casing.
Never insert pointed objects (narrow screwdrivers, wires, etc.) into the
device or into the connection terminals for electric conductors. Do not
touch the connection terminals.
Keep the ventilation slits free to ensure good air circulation.
Install the device in the vertical position.
At ambient temperatures > +140 °F (+60 °C):
The surfaces of the device housing may become hot. Avoid touching
the device while it is operating.
Qualification requirements for personnel
Only allow qualified personnel to work on the device.
Qualified personnel have the following characteristics:
Qualified personnel are properly trained. Training as well as practical
knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.
Qualified personnel are aware of the dangers that exist in their work.
Qualified personnel are familiar with appropriate measures against
these hazards in order to reduce the risk for themselves and others.
Qualified personnel receive training on a regular basis.
National and international safety regulations
Verify that the electrical installation meets local or nationally applicable
safety regulations.
Grounding the device
Grounding the device is by means of a separate ground connection on the
device.
Ground the device before connecting any other cables.
Disconnect the grounding only after disconnecting all other cables.
Shielding ground
The overall shield of a connected shielded twisted pair cable is connected
to the ground connector on the front panel as a conductor.
Beware of possible short circuits when connecting a cable section with
conductive shielding braiding.
Requirements for connecting electrical wires
Before connecting the electrical wires, always verify that the
requirements listed are complied with.

8Installation EAGLE40
Release 02 08/2020
Supply voltage
The supply voltage is connected to the device casing through protective
elements exclusively.
Relevant for use in explosion hazard areas (Hazardous
Locations, Class I, Division 2)
When using the EAGLE40-03 devices as industrial control equipment the
following restrictions apply:
This equipment is suitable for use in Class I, Division 2, Groups A, B, C,
D – OR non-hazardous locations, if labeled “FOR USE IN HAZARDOUS
LOCATIONS”.
This device is an open-type device that is to be installed in an enclosure
suitable for the environment such that the device is only accessible with
the use of a tool.
All of the following requirements are complied with:
The electrical wires are voltage-free.
The cables used are permitted for the temperature range of the application case.
The voltage connected complies with the requirements for a safety extra-low voltage
(SELV) as per IEC/EN 60950-1 or IEC/EN 62368-1.
Table 1: General requirements for connecting electrical wires
All of the following requirements are complied with:
The voltage connected complies with the requirements for a safety extra-low voltage
(SELV) as per IEC/EN 60950-1 or IEC/EN 62368-1.
The connected voltage is limited by a current limitation device or a fuse.
Observe the electrical threshold values for the signal contact.
See “Technical data” on page 40.
The cross-section of the ground conductor is the same size as or bigger than the cross-
section of the power supply cables.
Table 2: Requirements for connecting the signal contact
Device variant Requirements
All variants All of the following requirements are complied with:
The supply voltage corresponds to the voltage specified on the type
plate of the device.
The power supply complies with the requirements as per NEC Class 2.
The power supply conforms to overvoltage category I or II.
The power supply has an easily accessible disconnecting device (for
example, a switch or a plug). This disconnecting device is clearly
identified. So in the case of an emergency, it is clear which
disconnecting device belongs to which power supply cable.
The cross-section of the ground conductor is the same size as or
bigger than the cross-section of the power supply cables.
Relevant for North America:
The power cords are suitable for ambient air temperatures of at least
+167 °F (+75 °C). The power cord wires are made of copper.
Table 3: Requirements for connecting the supply voltage

Installation EAGLE40
Release 02 08/2020 9
Cet équipement est un dispositif de type ouvert qui doit être installé dans
une enveloppe adaptée à l’environnement afin que le dispositif soit
accessible uniquement avec l’utilisation d’un outil.
Ta: -40 °F ... +158 °F (-40 °C ... +70 °C), temperature code: T4
WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT
EQUIPMENT UNLESS POWER HAS BEEN REMOVED OR THE AREA
IS KNOWN TO BE NON-HAZARDOUS.
WARNING – EXPLOSION HAZARD – SUBSTITUTION OF ANY
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2.
Avertissement - Risque d'explosion - Ne pas débrancher tant que le
circuit est sous tension à moins que l'emplacement soit connu pour ne
contenir aucune concentration de gaz inflammable.
Avertissement - Risque d'explosion - La substitution de tout composant
peut rendre ce matériel incompatible pour une utilisation en classe I,
division 2.
ATEX directive 2014/34/EU – specific regulations for safe
operation
In Ex zone 2, only EAGLE40-03 devices with a corresponding label may
be operated. When operating the EAGLE40-03 devices and modules in
Ex zone 2, the following applies:
II 3 G
Ex ec nC IIC T4 Gc
Ta: -40 °F ... +158 °F (-40 °C ... +70 °C)
DEMKO 20 ATEX 2374X
Temperature code: T4
DO NOT OPEN THE DEVICE WHEN IT IS ELECTRICALLY
CHARGED.
THE USB CONNECTOR MUST NOT BE USED WHEN THE
DEVICE IS OPERATED IN EXPLOSIVE HAZARDOUS
LOCATIONS.

10 Installation EAGLE40
Release 02 08/2020
Special conditions for safe use
Install the device according to EN 60664-1 in an environment not
exceeding degree of pollution 2.
Install the basic devices and media modules in a suitable enclosure
providing a degree of protection of at least IP54 according to
EN 60079-0, taking into account the ambient conditions under which
the equipment will be used.
When end users provide optical SFP transceivers, these must be
limited to Laser Class I.
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
The product can be used in the industrial sector.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55032
Reliability: EN 62368-1
You find more information on technical standards here:
“Technical data” on page 40
The assembly guidelines provided in these instructions must be strictly
adhered to in order to observe the EMC threshold values.
Device variant Directive
All variants 2011/65/EU and 2015/863/EU (RoHS)
Directive of the European Parliament and of the Council on the
restriction of the use of certain hazardous substances in
electrical and electronic equipment.
All variants 2014/30/EU (EMC)
Directive of the European Parliament and the council for
standardizing the regulations of member states with regard to
electromagnetic compatibility.

Installation EAGLE40
Release 02 08/2020 11
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.
LED or laser components
LED or LASER components according to IEC 60825-1 (2014):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT
FCC note:
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
EAGLE40
U.S. Contact Information
Belden – St. Louis
1 N. Brentwood Blvd. 15th Floor
St. Louis, Missouri 63105, United States
Phone: [phone]
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Recycling note
After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

12 Installation EAGLE40
Release 02 08/2020
About this manual
The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
The manual is available for download on the Internet: https://
www.doc.hirschmann.com

Installation EAGLE40
Release 02 08/2020 13
Key
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading

14 Installation EAGLE40
Release 02 08/2020
1 Description
1.1 General device description
The EAGLE40 devices are designed for the special requirements of
industrial automation. They meet the relevant industry standards, provide
very high operational reliability, even under extreme conditions, and also
long-term reliability and flexibility.
Key Features of EAGLE40-03:
A fanless industrial grade security appliance
Intel® Atom E3825 1.33 GHz CPU
Flexible LAN: 2 × GE with 1 pair bypass Gen 3 +1 × GE or 1 × SFP
Supports wall mount kit and DIN rail kit
Key Features of EAGLE40-07:
A fanless industrial grade security appliance
Intel® Atom x7-E3950 1.6 GHz CPU or x5-E3930 1.3 GHz CPU
Flexible LAN: 5 × GE with 1 pair bypass Gen 3 and 2 × SFP
Supports wall mount kit and DIN rail kit
The devices allow you to set up switched and routed industrial Ethernet
networks that conform to the IEEE 802.3 standard.
The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You will find these manuals in
the form of PDF files for downloading on the Internet on the Hirschmann
product pages (https://www.doc.hirschmann.com).
The Hirschmann network components help you ensure continuous
communication across all levels of the company.
1.2 Device name and product code
The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.
You have numerous options of combining the device characteristics. You can
determine the possible combinations using the configurator which is
available in the Belden Online Catalog (https://catalog.belden.com) on the
web page of the device.

Installation EAGLE40
Release 02 08/2020 15
Item Product
characteristic
Character
istic value
Description
1 ... 7 Device EAGLE40 Security Router and Firewall
8 (hyphen) –
9 ... 10 Number:
Gigabit Ethernet ports
03 3 × 1000 Mbit/s
07 7 × 1000 Mbit/s
11 ... 13 Configuration of the
uplink ports
3T1 3 × Twisted pair RJ45
106 1 × SFP, 2 × Twisted pair RJ45
206 2 × SFP, 5 × Twisted pair RJ45
14 Temperature range S Standard +32 °F ... +140 °F
(0 °C ... +60 °C)
T Extended -40 °F ... +158 °F
(-40 °C ... +70 °C)
E Extended with
conformal coating
-40 °F ... +158 °F
(-40 °C ... +70 °C)
15 ... 16 Supply voltage CC 2 × Voltage input
Rated voltage range DC
24VDC...48VDC
17 Approval Part 1 A CE, FCC, (EN 62368)
B A + UL 62368
C A + IEC 61850-3, IEEE 1613
T Z + EN 50121-4
V Z + IEC 61850-3, IEEE 1613
X Z + UL 62368 + ANSI/UL 121201 + ATEX
Y Z + UL 62368
Z CE, FCC, EN 61131, (EN 62368)
18 Approval Part 2 9 No additional Approval
Note: You will find detailed information on the
certificates and declarations applying to your
device in a separate overview. See table 5 on
page 16.
19... 20 Type HS Hirschmann Standard
21 Software Configuration R Router Mode
22 Intrusion Detection
System (IDS)
A Sensor
B Server
23... 24 Security Modules NF No additional modules, firewall only
25... 29 Software Version XX.X. Latest Software Version
Table 4: Device name and product code

16 Installation EAGLE40
Release 02 08/2020
Application case Certificates
and
declarations
Characteristic valuea
a. X = Certificate or declaration present
A9 B9 C9 T9 V9 X9 Y9 Z9
Standard
applications
ATEX X
CE XXXX X X X X
EN 50121-4 X
EN 61131-2 X X X X X
EN 62368-1 X X X X X X X X
FCC X X X X X X X X
IEC 61850-3 X X
IEEE 1613 X X
ANSI/UL
121201
X
UL 62368 X X X
Table 5: Assignment: application cases, certificates and declarations,
characteristic values

Installation EAGLE40
Release 02 08/2020 17
1.3 Device views EAGLE40-03

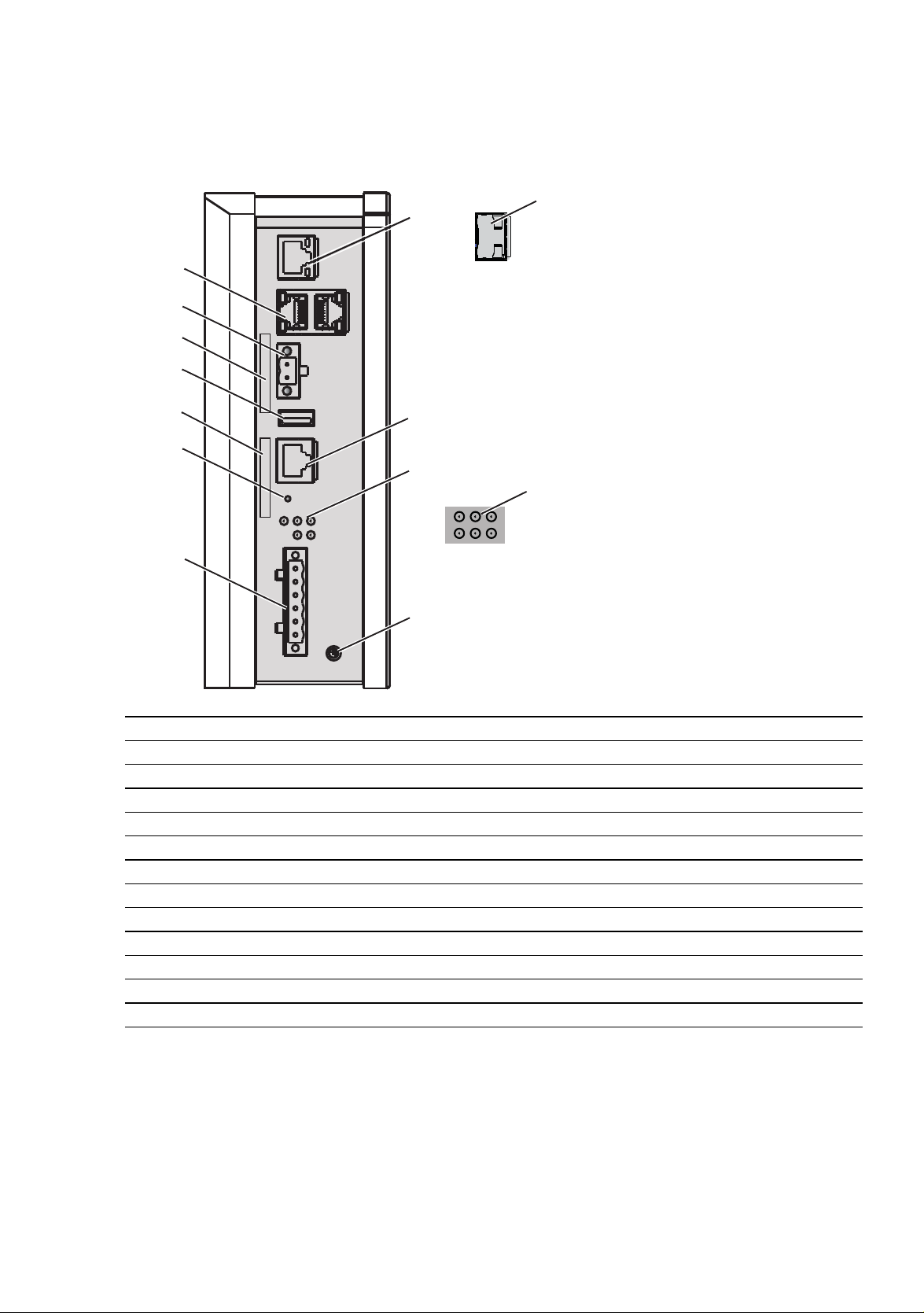

1.3.1 Front view
1a Ethernet port (RJ45) for 10/100/1000 Mbit/s Twisted pair connections
1b 1 × SFP slot for 1000 Mbit/s fiber optic connections
2 V.24 interface
3a LED display element (EAGLE40-033T1...)
3b LED display element (EAGLE40-03106...)
4 Grounding screw
5 6-pin terminal block connection
6 Save/Load/Reset button
7 Label area for MAC address
8 USB Interface
9 Label area for IP address
10 Connection for digital input
11 2 × Gigabit Ethernet ports (RJ45) for 10/100/1000 Mbit/s Twisted pair connections
1a
2
3a
4
5
6
11
10
1b
8
3b
9
7

18 Installation EAGLE40
Release 02 08/2020
1.4 Device views EAGLE40-07

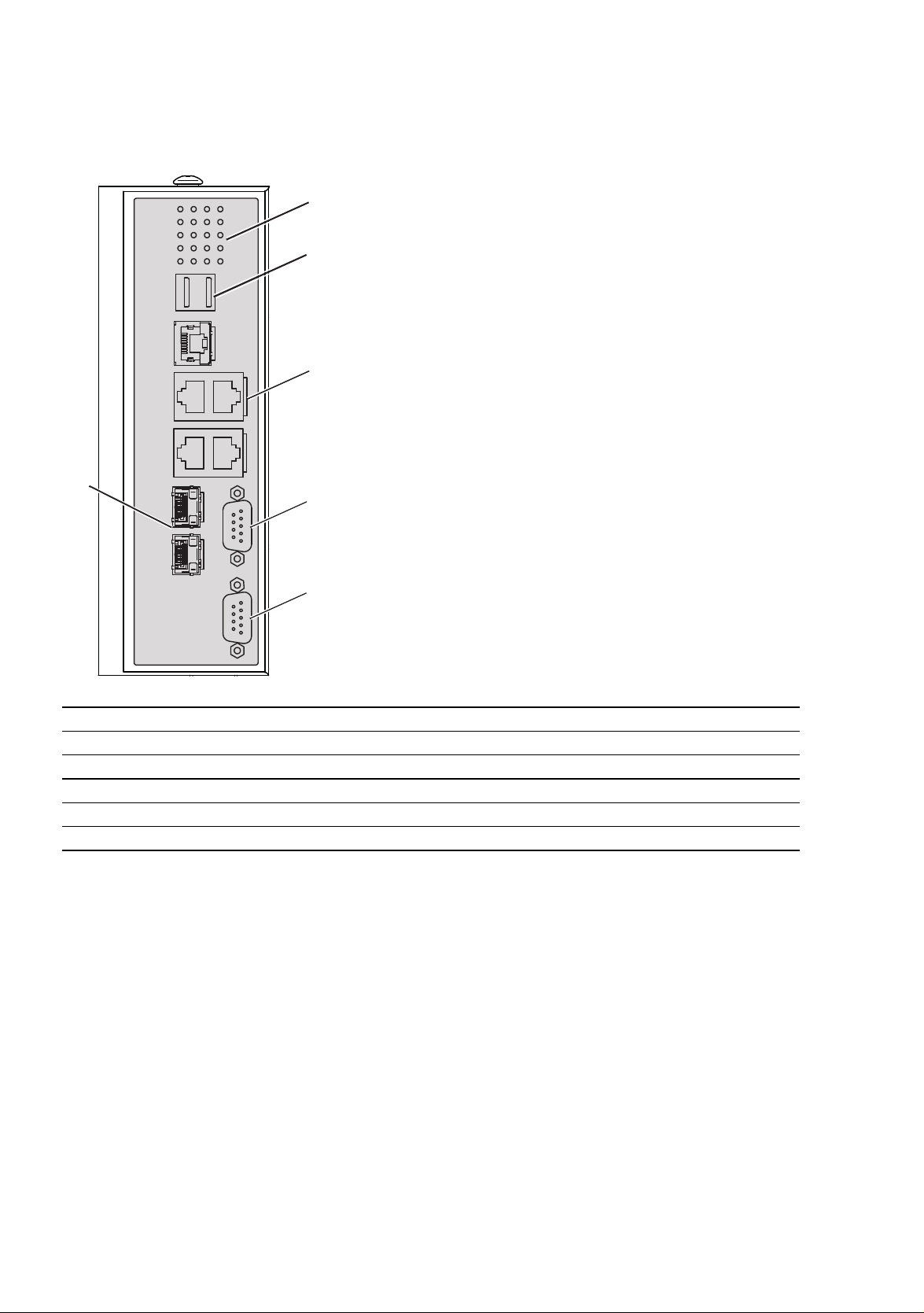

1.4.1 Front view
1 LED display element
2 2 × USB interface
3 5 × Gigabit Ethernet ports (RJ45) for 10/100/1000 Mbit/s Twisted pair connections
4 COM port (DB9 port)
5 CONSOLE port (DB9 port)
6 2 × SFP ports for 1000 Mbit/s fiber optic connections
1
2
3
4
6
5

Installation EAGLE40
Release 02 08/2020 19

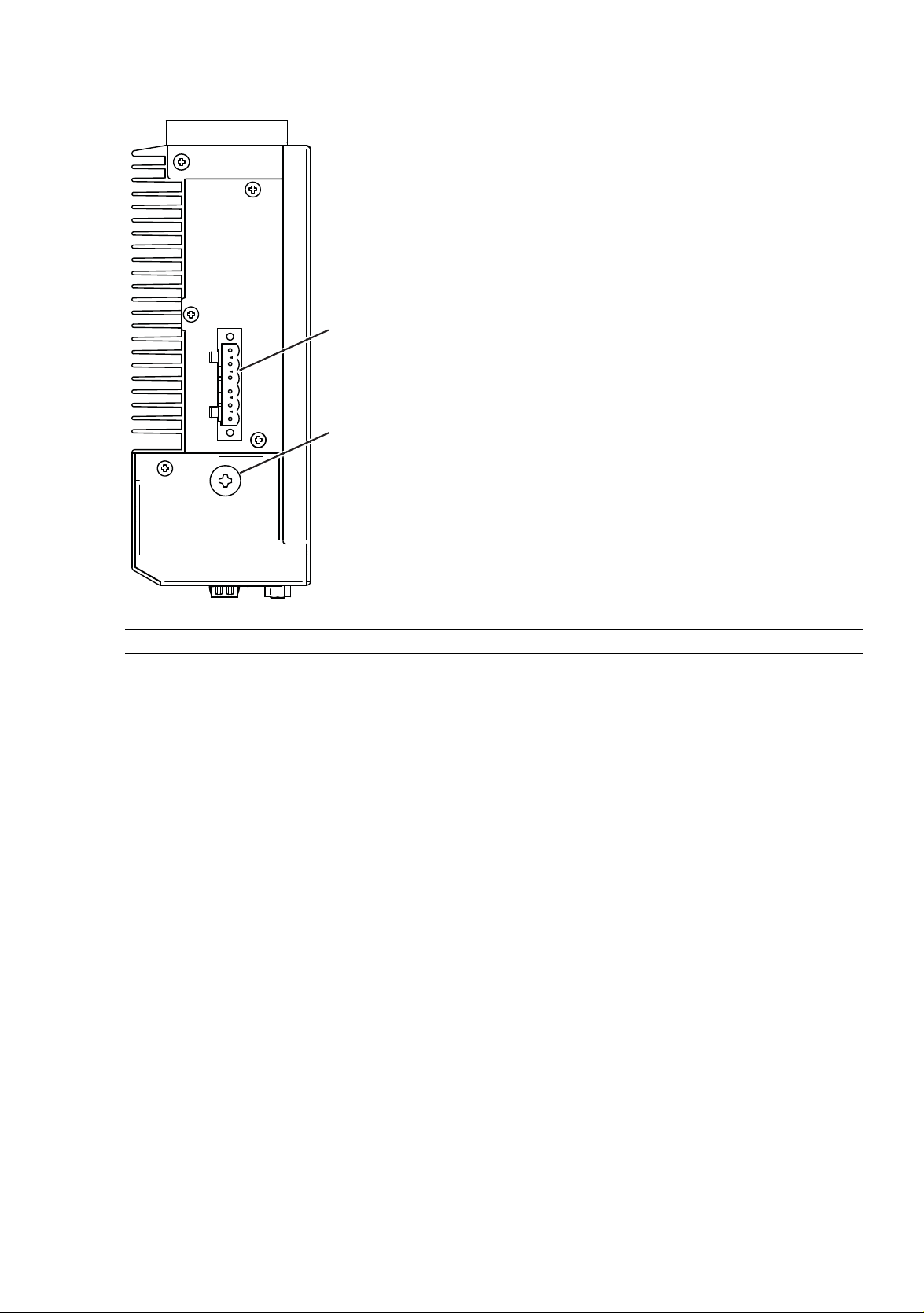

1.4.2 Right side view
1 6-pin terminal block connection
2 Grounding screw
1
2

20 Installation EAGLE40
Release 02 08/2020
1.4.3 Left side view
1.5 Power supply
A 6-pin, screwable terminal block is available for the redundant supply to the
device.
For further information: See “Connecting the power supply and signal lines”
on page 31.
1.6 Ethernet ports
You can connect end devices and other segments to the device ports using
twisted pair cables or optical fibers (F/O).
You find information on pin assignments for making patch cables here:
See “Pin assignments” on page 21.
1 Save/Load/Reset button
1
