T2 4K Series
Digital Recorder/Players
T2 4K I/O Card Kit (SDI x8) Installation Manual
F3771908011
August 2019
Version 3.1.0

2T2 4K I/O Card Kit (SDI x8) Installation Manual August 1, 2019
Copyright Copyright 2012 - 2019 Grass Valley. All rights reserved. Portions of software © 2000 - 2019,
Microsoft Corporation. All rights reserved. This document may not be copied in whole or in part,
or otherwise reproduced except as specifically permitted under U.S. copyright law, without the
prior written consent of Grass Valley, Inc., 125 Crown Point Court Grass Valley, CA, 95945.
This product may be covered by one or more U.S. and foreign patents.
Grass Valley is a trademark of GVBB Holdings S.a.r.l.
Disclaimer Product options and specifications subject to change without notice. The information in this
manual is furnished for informational use only, is subject to change without notice, and should
not be construed as a commitment by Grass Valley, Inc. Grass Valley, Inc. assumes no
responsibility or liability for any errors or inaccuracies that may appear in this publication.
U.S. Government
Restricted Rights
Legend
Use, duplication, or disclosure by the United States Government is subject to restrictions as set
forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at DFARS 252.277-7013 or in subparagraph c(1) and (2) of the Commercial Computer
Software Restricted Rights clause at FAR 52.227-19, as applicable. Manufacturer is Grass
Valley, Inc., 125 Crown Point Court Grass Valley, CA, 95945 U.S.A.
Trademarks and
Logos
Belden, Belden Sending All The Right Signals and the Belden logo are trademarks or registered
trademarks of Belden Inc. or its affiliated companies in the United States and other jurisdictions.
Other trademarks and logos used in this document are either registered trademarks or
trademarks of the manufacturers or vendors of the associated products, such as Microsoft®
Windows®operating system, Windows Media®player, Internet Explorer®internet browser, and
SQL Server™. Intel, Core i7 are the trademarks or registered trademarks of Intel Corporation
or its subsidiaries in the United States of America and other countries.
Grass Valley Web Site This public Web site contains all the latest manuals and documentation, and additional support
information. Use the following URL.
http://www.grassvalley.com.
Manual Explanation • If there are any variations between the explanation in this manual and the actual application
method, priority is given to the actual application method.
• This manual is a common manual for T2 4K Series. Screenshots and illustrations in this
manual may vary from those of the actual product.
• The screenshots used as examples in this manual are those of the development stage, so
they may vary from those in the final product.
• This manual is written for users who have a basic knowledge of how to use a computer.
• If there are no special instructions, perform the same operation as a normal computer
operation.
• The contents of this product may modify without prior notice.
T2 4K I/O Card Kit (SDI x8) Installation Manual
Version 3.1.0
Copyright © 2018-2019 Grass Valley. All rights reserved.

August 1, 2019 T2 4K I/O Card Kit (SDI x8) Installation Manual 3
Safety Summaries
General Safety Summary
Review the following safety precautions to avoid injury and prevent damage to this
product or any products connected to it.
While using this product, you may need to access other parts of the system. Read the
General Safety Summary in other system manuals for warnings and cautions related to
operating the system.
Injury Precautions
Use Proper Power Cord
To avoid fire hazard, use only the power cord specified for this product.
Ground the Product
This product is grounded through the grounding conductor of the power cord. To avoid
electric shock, the grounding conductor must be connected to earth ground. Before
making connections to the input or output terminals of the product, ensure that the product
is properly grounded.
Do Not Operate Without Covers
To avoid electric shock or fire hazard, do not operate this product with covers or panels
removed.
Do Not Operate in Wet/Damp Conditions
To avoid electric shock, do not operate this product in wet or damp conditions.
Do Not Operate in an Explosive Atmosphere
To avoid injury or fire hazard, do not operate this product in an explosive atmosphere.
Avoid Exposed Circuitry
To avoid injury, remove jewelry such as rings, watches, and other metallic objects. Do
not touch exposed connections and components when power is present.
Product Damage Precautions
Use Proper Power Source
Do not operate this product from a power source that applies more than the voltage
specified.
Provide Proper Ventilation
To prevent product overheating, provide proper ventilation.
Do Not Operate With Suspected Failures
If you suspect there is damage to this product, have it inspected by qualified service
personnel.

4T2 4K I/O Card Kit (SDI x8) Installation Manual August 1, 2019
Safety Summaries
Battery Replacement
To avoid damage, a battery must be replaced once every five years. Please contact Grass
Valley Product Support to replace the battery.
Safety Terms and Symbols
Terms in This Manual
These terms may appear in this manual:
WARNING: Warning statements identify conditions or practices that can result in
personal injury or loss of life.
CAUTION: Caution statements identify conditions or practices that may result in
damage to equipment or other property, or which may cause equipment crucial to
your business environment to become temporarily non-operational.
Terms on the Product
These terms may appear on the product:
DANGER indicates a personal injury hazard immediately accessible as one reads the
marking.
WARNING indicates a personal injury hazard not immediately accessible as you read the
marking.
CAUTION indicates a hazard to property including the product.
Symbols on the Product
The following symbols may appear on the product:
DANGER high voltage
Protective ground (earth) terminal
ATTENTION – refer to manual
!
!
!

August 1, 2019 T2 4K I/O Card Kit (SDI x8) Installation Manual 5
Service Safety Summary
WARNING: The service instructions in this manual are intended for use by
qualified service personnel only. To avoid personal injury, do not perform any
servicing unless you are qualified to do so. Refer to all safety summaries before
performing service.
Do Not Service Alone
Do not perform internal service or adjustment of this product unless another person
capable of rendering first aid and resuscitation is present.
Disconnect Power
To avoid electric shock, disconnect the main power by means of the power cord or, if
provided, the power switch.
Use Care When Servicing With Power On
Dangerous voltages or currents may exist in this product. Disconnect power and
remove battery (if applicable) before removing protective panels, soldering, or
replacing components.
To avoid electric shock, do not touch exposed connections.
Certifications and Compliances
Canadian Certified Power Cords
Products that are relocated to other countries should use nationally certified power
cords and plugs to ensure safe operation of the product.
FCC Emission Control
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense. Changes or modifications not
expressly approved by Grass Valley can affect emission compliance and could void the
user’s authority to operate this equipment.
Canadian EMC Notice of Compliance
This digital apparatus does not exceed the Class A limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This product must not be used in residential areas.
!

6T2 4K I/O Card Kit (SDI x8) Installation Manual August 1, 2019
Safety Summaries
EMC Directive
Class A Warning
This product must not be used in residential areas.
FCC Emission Limits
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesirable
operation.

August 1, 2019 T2 4K I/O Card Kit (SDI x8) Installation Manual 7
Installation procedure of the video I/O card
Precautions before operations
This chapter mainly describes installation procedure of the video I/O card. Unless
otherwise documented, installation procedures will be in reverse order of removals. If
any installation instructions are documented, be sure to follow them.
NOTE: Do not discard any of the removed parts such as screws or stays.
WARNING: Be sure to turn off the system and disconnect the power cord from the
product body prior to install the video I/O card. Otherwise, electric shock or product
failure may result.
WARNING: When you attach parts of T2, be sure to use exactly the same screws as
were originally used on the parts.
WARNING: Part of T2 may be damaged by electrostatic discharge or physical
impacts. When you work on your system, be sure to wear a wrist strap for preventing
electrostatic discharge (ESD) and provide grounding.
Required tools
Phillips screwdriver #1, nippers
Turning off the T2 and disconnecting the power cord
You must always turn off your T2 and disconnect the power cord from the product
body prior to install the video I/O card.
CAUTION: Be sure to shut down T2 with a proper procedure prior to turning off
the system. For instructions on how to shut down the system from the maintenance
mode, refer to Service Manual. For instructions on how to shut down the system
from the CommandCenter mode, refer to User Manual.
1. Turn off the main power switch.
2. Push the power cable clamp (a) to unlock the power cord.
3. Unplug the power cord from the AC inlet.
4. Perform steps 1 to 3 on the other power supply. (T2 4K Elite only)
!
!
!
!

8T2 4K I/O Card Kit (SDI x8) Installation Manual August 1, 2019
Installation procedure of the video I/O card
Disassembling the T2 4K
1. Remove the top cover (rear).
(1) Remove 2 screws (with springs and large washers) on the rear side.
(2) Hold the top cover (rear) with both hands to slide it out.
(3) Remove the top cover (rear).
NOTE: To install the top cover (rear), place it at the position in the following figure,
and then slide it with both hands.
(3)
(1)
(2)
(2)

August 1, 2019 T2 4K I/O Card Kit (SDI x8) Installation Manual 9
Disassembling the T2 4K
2. Remove the shield gasket.
3. Disconnect following cables from the LTC/Monitor audio interface board.
(1) The LTC In cable
(2) The power cable of the LTC/Monitor audio interface board
(3) The LTC Out/Monitor audio Out cable
(3)
(1)
(2)
J3
J2

10 T2 4K I/O Card Kit (SDI x8) Installation Manual August 1, 2019
Installation procedure of the video I/O card

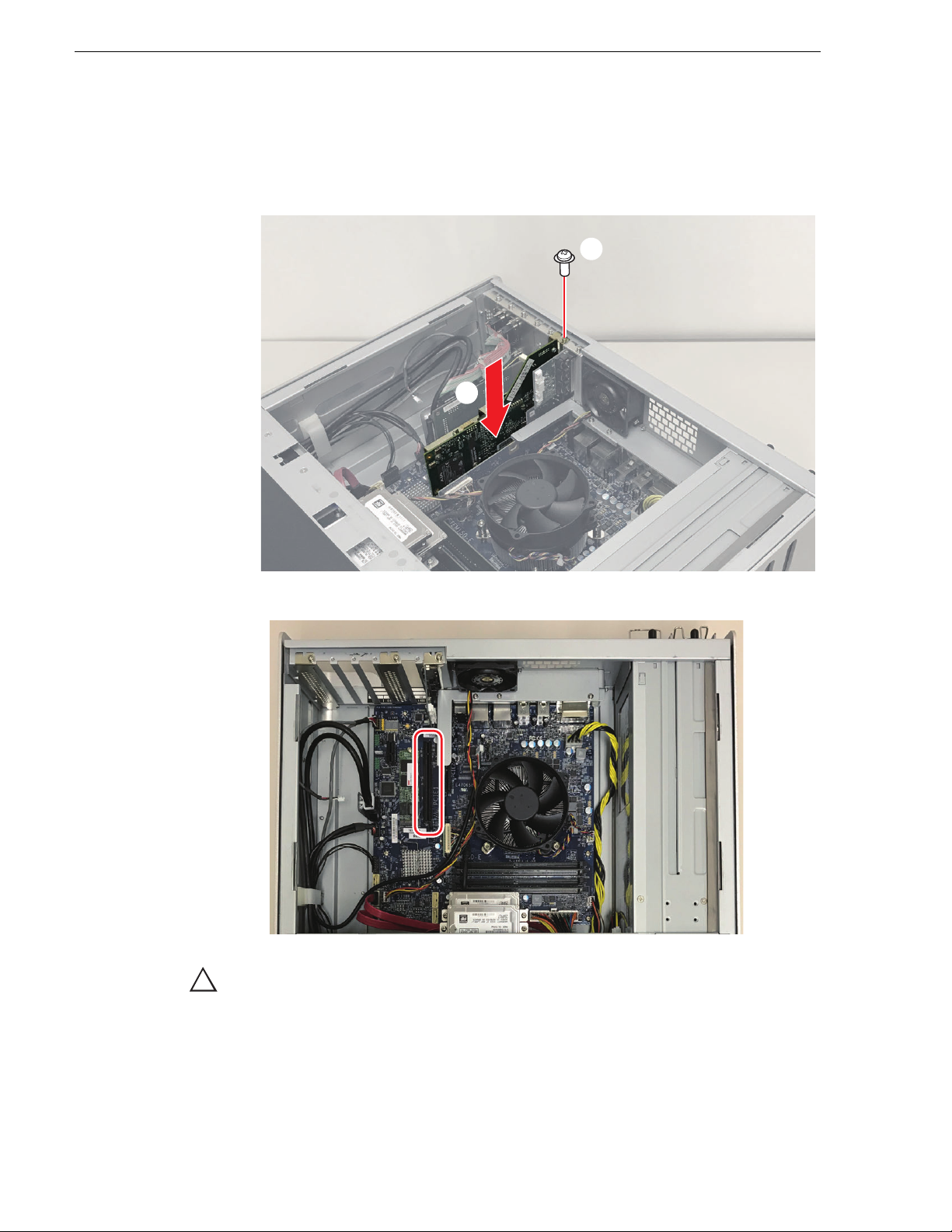

Installing the video I/O card
1. Remove the PCI-e slot cover.
2. Install the video I/O card.
NOTE: To install the video I/O card, insert it into the PCI Express x16 slot.
CAUTION: When installing the video I/O card, take care not to damage the
motherboard.
(1)
(2)
!

August 1, 2019 T2 4K I/O Card Kit (SDI x8) Installation Manual 11
Installing the video I/O card
3. Reconnect three cables to the LTC/Monitor audio interface board.

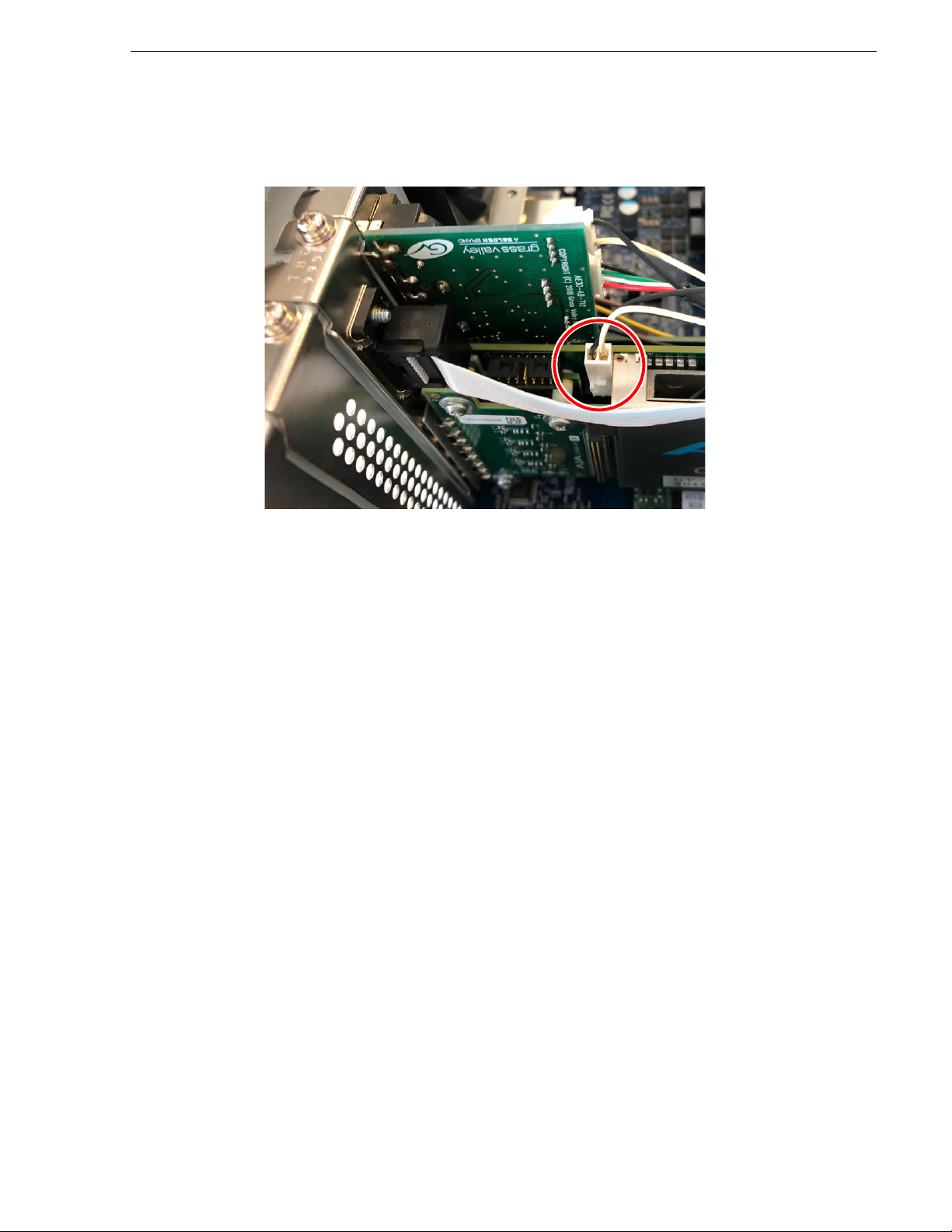

4. Connect the LTC In cable to the connector of video I/O card.
5. Install a new shield gasket as before.

12 T2 4K I/O Card Kit (SDI x8) Installation Manual August 1, 2019
Commissioning
Confirm hardware detection
Confirm if the installed video I/O card is correctly detected by both Windows Device
Manager and T2 Command Center software.
Confirm on Windows Device Manager
1. Start the T2 in maintenance mode.
2. Open Windows Device Manager.
3. Open Sound, video and game controllers pane then confirm if "AJA Corvid88 SDI
I/O" appears without "!" or "X" mark.
4. Close Windows Device Manager.
Confirm in T2 Command Center software
1. Start the T2 in Command Center mode.
2. Tap Bin > Menu > Tools > About T2.
3. Version info will appear. Choose System info.
4. At "I/O card", confirm if "AJA Corvid 88" appears.
5. Tap OK button.

August 1, 2019 T2 4K I/O Card Kit (SDI x8) Installation Manual 13
Connect equipment for commissioning
Connect equipment for commissioning
Connect required equipment for commissioning the T2 4K Series.
NOTE: Required specification of source, monitor will be vary depending record or
playback format in the workflow.
NOTE: If the system works on internal sync, connecting REF signal generator is
not required.
NOTE: If multiple playout works, connect multiple monitor or repeat to disconnect
and connect single monitor for the test.

14 T2 4K I/O Card Kit (SDI x8) Installation Manual August 1, 2019
Commissioning
Configure I/O mode
1. Tap Config > General > Hardware.
2. Tap Settings button.
3. I/O mode settings will appear. Choose I/O mode and format from the drop-down
list then tap OK button.
4. Tap Yes button.
Configure sync mode
1. Tap Config > General > Hardware.
2. At "Reference", choose sync mode due to the workflow.
3. If you switch to another mode, below message will appear. Tap OK button.
4. If you choose External, confirm if "SIGNAL OK" status appears.
5. Close the configuration screen.

August 1, 2019 T2 4K I/O Card Kit (SDI x8) Installation Manual 15
Configure recording format
Configure recording format

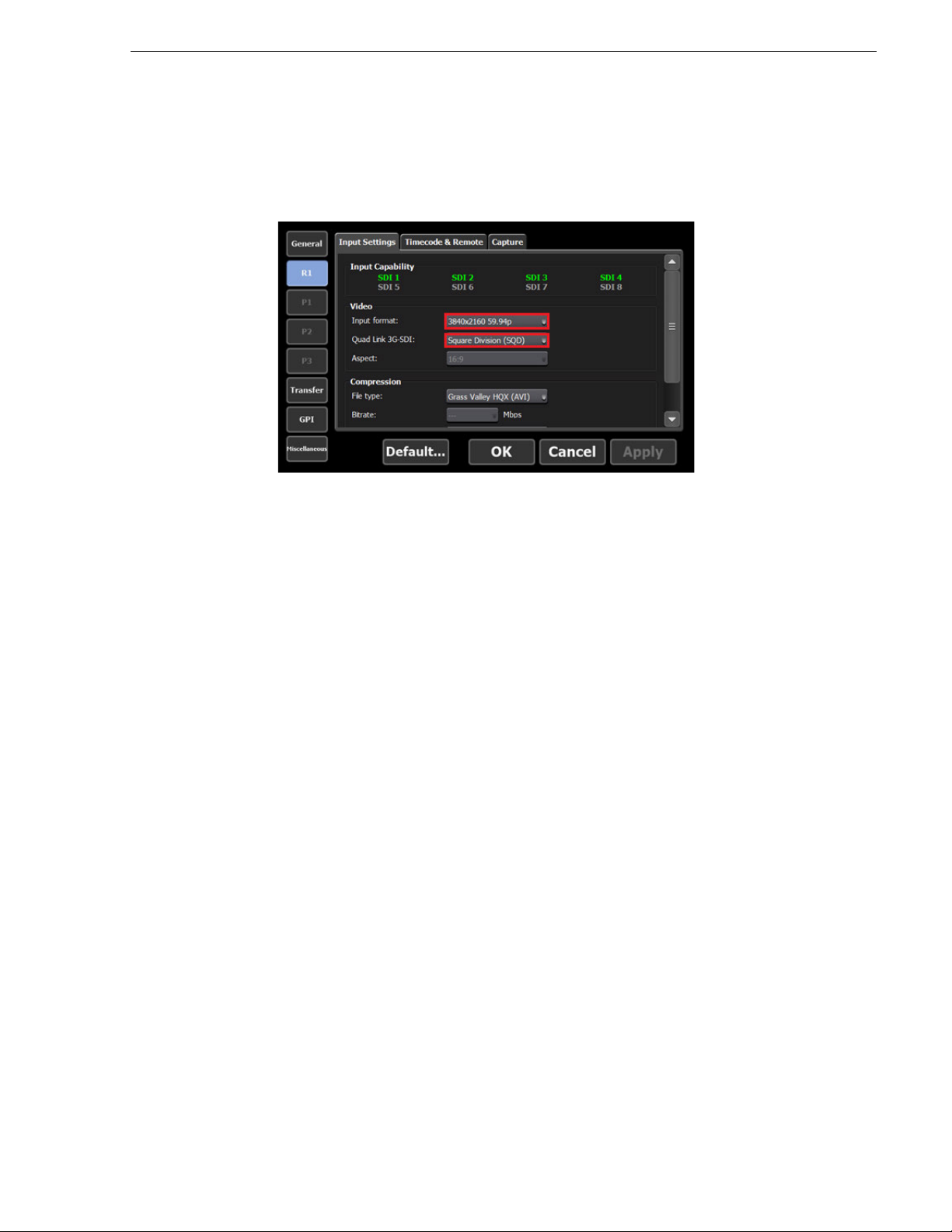

1. Tap Config > R1 > Input Settings.
2. Choose input format and SDI cabling mode from the drop-down list.
3. Tap OK button.
Test video recording
1. Switch to 1ch view mode.
2. Press R1 button.
3. Input source video and audio to the T2. Confirm if video correctly appears on the
preview window and audio can be heard via headphone.
4. Press Rec button to start video recording. Record a video for several minutes.
5. Press Stop button.

16 T2 4K I/O Card Kit (SDI x8) Installation Manual August 1, 2019
Commissioning
Test clip playback
4K video
1. Tap Config > General > Hardware.
2. Tap Settings button.
3. I/O mode settings will appear. Choose [4K] 0 in 1 out mode and format* from the
drop-down list then tap OK button.
* Same format as step 3 in "Configure I/O mode" on page 14 needs to be selected.

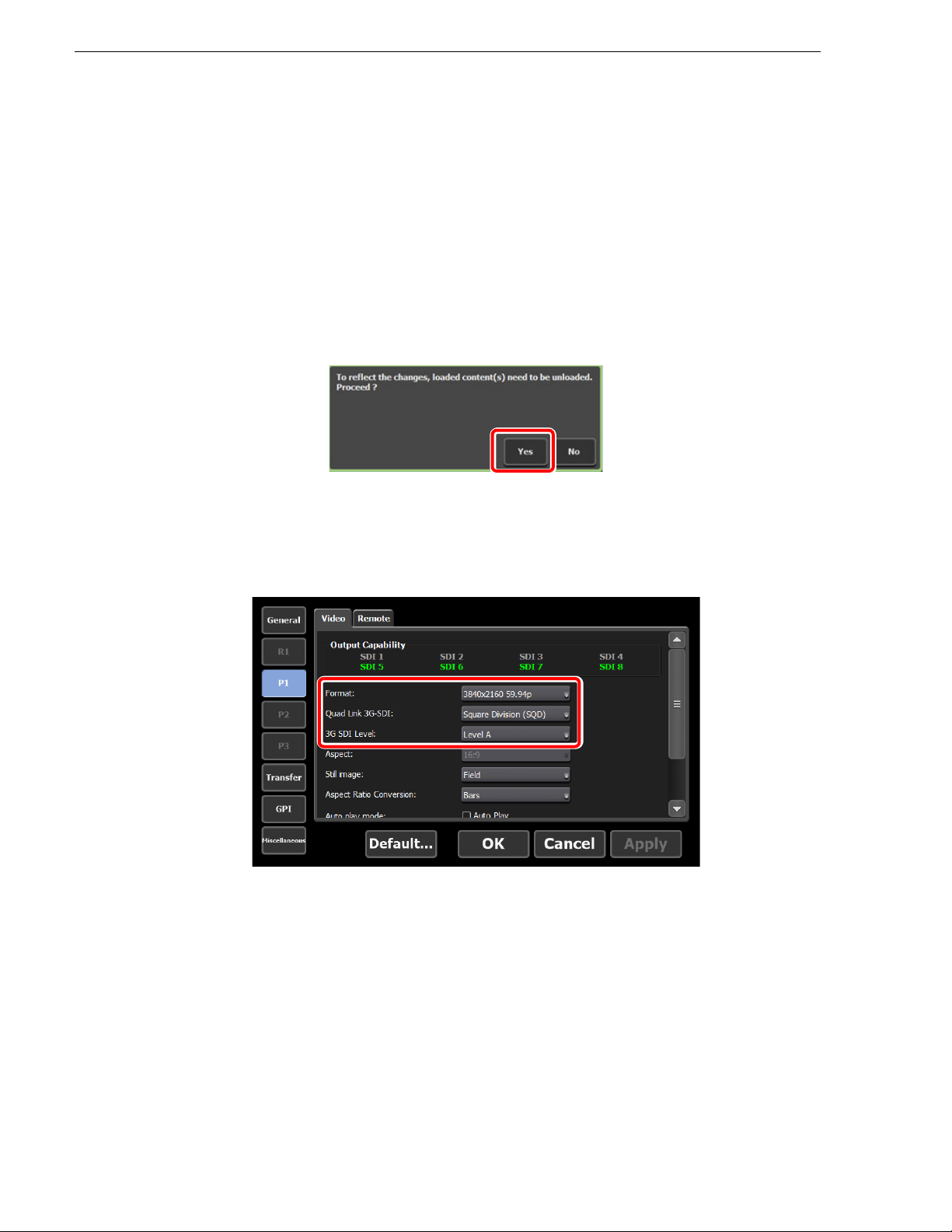

4. Tap Yes button.
5. Tap Config > P1 > Video.
6. Configure below settings:
Format: Choose same format as recorded clip.
Quad-link 3G-SDI, 3G SDI Level: Choose proper mode depends on cabling.
7. Load recorded clip to P1 channel.
8. Playback the clip. Confirm if correct video appears on both front panel preview
screen and connected monitor. Also confirm if T2 plays correct audio via
headphone.

August 1, 2019 T2 4K I/O Card Kit (SDI x8) Installation Manual 17
Test clip playback
HD/SD video
1. Tap Config > General > Hardware.
2. Tap Settings button.
3. I/O mode settings will appear. Choose I/O mode depends on the workflow and
format* from the drop-down list then tap OK button.
* Same format as step 3 in "Configure I/O mode" on page 14 needs to be selected.

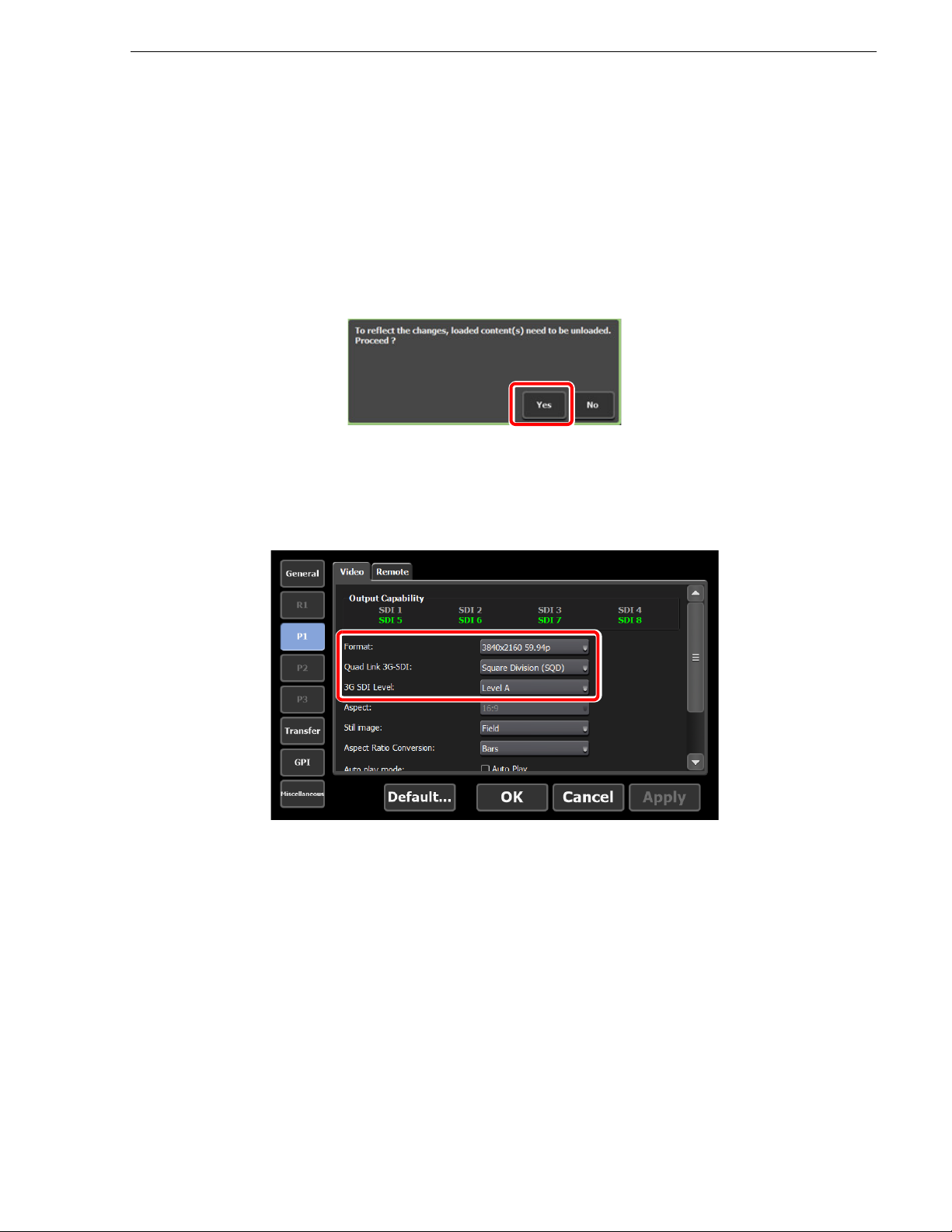

4. Tap Yes button.
5. Tap Config > P1 > Video.
6. Configure below settings:
Format: Choose same format as recorded clip.
Quad-link 3G-SDI, 3G SDI Level: Choose proper mode depends on cabling.
7. Load recorded clip to P1 channel.
8. Playback the clip. Confirm if correct video appears on both front panel preview
screen and connected monitor. Also confirm if T2 plays correct audio via
headphone.
NOTE: If you use multiple output channel, repeat step 5 to 8 for each playout
channel.

18 T2 4K I/O Card Kit (SDI x8) Installation Manual August 1, 2019
Initializing the data
You can initialize the database, the media drive (V: drive), and configuration.
CAUTION: Current data will be lost. Backup the data beforehand.
1. In the Maintenance Tools main screen, select the Data tab.
2. Click Initialize.
3. Check the items you want to initialize.
• Database - Delete the database contents.
!

August 1, 2019 T2 4K I/O Card Kit (SDI x8) Installation Manual 19
Test clip playback
•Media drive - Format the media drive and initialize the folder structure.
•Configuration - Initialize the configuration.
•Customize Keyboard Shortcuts and Mouse - Initialize the settings of the
keyboard shortcuts and mouse customization.
•Schedule - Initialize the settings of Schedule Recording.
Schedule Recording function automatically starts capturing operation at a
specified time, and ends it at a specified time in the R1-live mode. For more
information, refer to the User Manual.
4. Click Initialize.
5. Click Yes.
• Initialization will be performed for the selected item.
6. When you see the completion message, click OK.
7. Click Close.
