Belkin F5D8000 User manual

Wireless Pre-N
Desktop Network Card
Connect your desktop computer
to a wider wireless network
F5D8000
User Manual

 





1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Advantages of a Wireless Network. . . . . . . . . . . . . . . . . . . . . . . . . .1
Placement of your Wireless Networking Hardware
for Optimal Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Applications and Advantages. . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Installing and Setting Up the Card . . . . . . . . . . . . . . . . . . . . . . . . 8

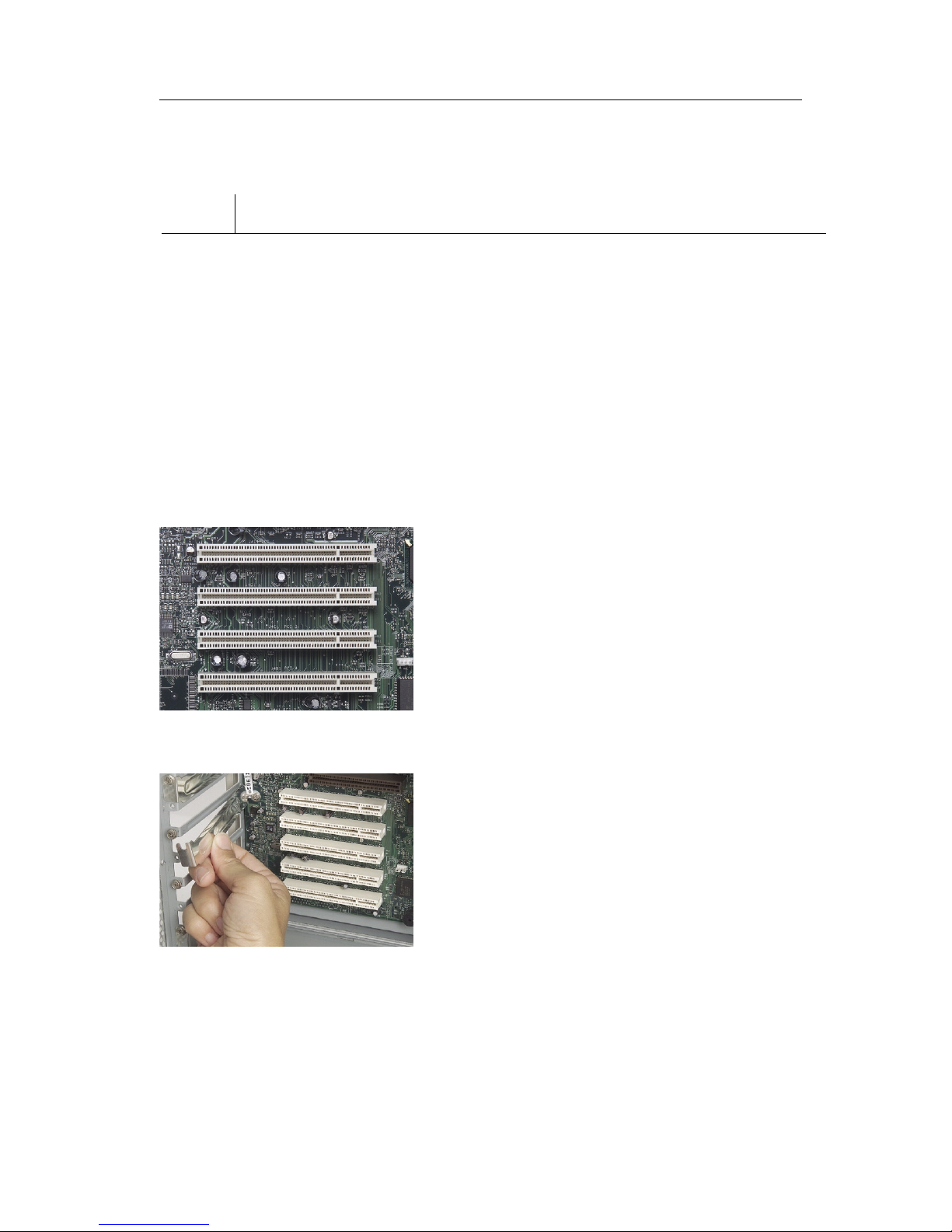

Step 1: Install the PCI Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Step 2: Install the Software Drivers. . . . . . . . . . . . . . . . . . . . . . . . 10
Step 3: Plug the Card into an Available
CardBus Slot of your Laptop . . . . . . . . . . . . . . . . . . . . . . 11
Step 4: Install the Wireless Client Utility . . . . . . . . . . . . . . . . . . . . 12
4 Using the Belkin Wireless Client Utility . . . . . . . . . . . . . . . . . . . . . 14
How to Access the Belkin Wireless Client Utility . . . . . . . . . . . . . 14
Navigating the User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting Wireless Network Preferences . . . . . . . . . . . . . . . . . . . . . 16
Securing your Wi-Fi Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Monitoring the Status of your Network Connection. . . . . . . . . . . 30
5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Table of Contents

1
Introduction
section
1
2
3
4
5
6
1
Congratulations and thank you for purchasing the Belkin Wireless
Pre-N Desktop Network Card (the Card). This product features
new MIMO (Multiple Input Multiple Output) technology that solves
interference and range challenges of wireless networking in larger
homes and offices. MIMO delivers the best wireless network
performance over expanded coverage area, and will be the heart
of the upcoming 802.11n standard. Belkin’s new “Pre-N” products
with MIMO achieve twice the coverage of 802.11g networks with
exceptional data transfer results.
Using MIMO’s revolutionary, smart-antenna technology, Belkin
Pre-N products can boost network speeds by up to six times previous
capacities. Its enhanced data rates and range make MIMO
a perfect technology for streaming multimedia content more reliably.
The easy installation and setup will have you networking in minutes.
Please be sure to read through this User Manual completely, and pay
special attention to the section entitled “Placement of your Wireless
Network Hardware for Optimal Performance”.
Advantages of a Wireless Network
• Mobility – you no longer need a dedicated “computer
room”—you can work on a networked laptop or desktop
computer anywhere within your wireless range
• Easy installation – Belkin Easy Installation Wizards make
setup simple
• Flexibility – set up and access printers, computers, and other
networking devices from anywhere in your home
• Easy expansion – the wide range of Belkin networking
products let you expand your network to include devices such
as printers and gaming consoles
• No cabling required – Belkin spares you the expense and
hassle of retrofitting Ethernet cabling throughout your home
or office
• Widespread industry acceptance – choose from a wide range
of interoperable networking products

32
Introduction
32
Placement of your Wireless Networking Hardware for
Optimal Performance
Your wireless connection will be stronger the closer your computer is
to your wireless router (or access point). Typical indoor operating range
for your wireless devices is between 100 and 200 feet. Conversely, your
wireless connection and performance will degrade somewhat as the
distance between your wireless router (or access point) and connected
devices increases. This may or may not be noticeable to you. As you
move further from your wireless router (or access point), connection
speed may decrease. Additionally, metal appliances, obstructions, and
walls can weaken signals simply by getting in the way of your network’s
radio waves.
If you have concerns about your network’s performance related to range
or obstruction factors, try moving the computer to a position between
five and 10 feet from the wireless router (or access point), in order to
see if distance is the problem. If difficulties persist even at close range,
please contact Belkin Technical Support.
Note: While some of the items listed below can affect network
performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating
at its maximum effectiveness, this checklist may help.
1. Placement of your Wireless Router or Access Point
Place your wireless router (or access point), the central connection point
of your network, as close as possible to the center of your wireless
network devices.
To achieve the best wireless network coverage for your “wireless
clients,” (i.e. computers enabled by Belkin Wireless Notebook Network
Cards, Wireless Desktop Network Cards, and Wireless USB Adapters):
• Ensure that your wireless router (or access point) antennas are
parallel to each other, and are positioned vertically (toward
the ceiling). If your wireless router (or access point) itself is
positioned vertically, point the antennas as much as possible
in an upward direction.
• In multistory homes, place the wireless router (or access point)
on a floor that is as close to the center of the home as possible.
This may mean placing the wireless router (or access point) on an
upper floor.
• Try not to place the wireless router (or access point) near a
cordless 2.4GHz phone.
Introduction

3
3
Introduction
section
1
2
3
4
5
6
2. Avoid Obstacles and Interference
Avoid placing your wireless router (or access point) near devices that
may emit radio “noise”, such as microwave ovens. Other objects that
can inhibit wireless communication can include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based UV tinted windows
If your wireless signal seems weak in some spots, make sure that
objects such as these are not blocking the signal’s path between your
computers and wireless router (or access point).
3. Cordless Phone Placement
If the performance of your wireless network is impaired after attending
to the above issues, AND you have a cordless phone:
• Try moving the cordless phone away from your wireless router
(or access point) and your wireless-enabled computers.
• Unplug and remove the battery from any cordless phone
that operates on the 2.4GHz band (check manufacturer’s
information). If this fixes the problem, your phone may
be interfering.
• If your phone supports channel selection, change the
channel on the phone to the furthest channel from your
wireless network, as possible. For example, change the
phone to channel 1 and move your wireless router (or access
point) to channel 11. (See your phone’s user manual for
detailed instructions.)
• If necessary, consider switching to a 900MHz or 5GHz
cordless phone.
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as
apartment buildings or office complexes, there may be wireless
networks nearby that can conflict with yours. Use the Site Survey
capabilities of your Wireless Client Utility to locate any other wireless
networks, and move your wireless router (or access point) and
computers to a channel as far away from other networks as possible.

4
4
Experiment with more than one of the available channels in order to find
the clearest connection and avoid interference from neighboring cordless
phones or other wireless devices.
Use the detailed Site Survey and wireless channel information
included in your wireless router’s (or access point’s) user guide for
more information.
5. Secure Connections, VPNs, and AOL®
Secure connections typically require a user name and password, and are
used where security is important. Secure connections include:
• Virtual Private Network (VPN) connections, often used to connect
remotely to an office network
• The “Bring Your Own Access” program from America Online®
(AOL), which lets you use AOL through broadband provided by
another cable or DSL service
• Most online banking websites
• Many commercial websites that require a user name and
password to access your account
Secure connections can be interrupted by a computer’s power
management setting, which causes it to “go to sleep.” The simplest
solution to avoid this is to simply reconnect by rerunning the VPN or
AOL software, or by re-logging into the secure website.
A second alternative is to change your computer’s power management
settings so it does not go to sleep; however, this may not be appropriate
for portable computers. To change your power management setting
under Windows, see the “Power Options” item in the Control Panel.
If you continue to have difficulty with Secure Connection, VPNs, and
AOL, please review steps 1–4 on pages 2–3 to be sure you have
addressed these issues.
These guidelines should allow you to cover the maximum possible area
with your wireless router. For more information regarding our networking
products, visit our website at www.belkin.com/networking or call Belkin
Technical Support.
Introduction

5
Overview
5
section
1
2
3
4
5
6
Product Features
The Pre-N Card complies with the 802.11g standard in order to
communicate with other 802.11g-compliant wireless devices at
54Mbps. The Card is compatible with all 802.11g devices as well as
other 802.11b products. Pre-N products operate on the same 2.4GHz
frequency band as 802.11g and 802.11b Wi-Fi® products.
• 2.4GHz ISM (Industrial, Science, and Medical) band operation
• Integrated easy-to-use Wireless Client Utility
• PCI interface, for operation in virtually any desktop computer
• WPA, 64-bit WEP (Wired Equivalent Privacy),
or 128-bit encryption
• Wireless access to networked resources
• Supports for both Infrastructure and Ad-Hoc (peer-to-peer)
networking modes
• Easy installation and use
• Internal antenna
• Network link activity and wireless connection indicators

6
Overview
6
Applications and Advantages
• Wireless roaming with a desktop around the home or office
Offers the freedom of networking without cables.
• Compatibility with 802.11b products
802.11g wireless LAN solutions are backward-compatible with
existing Wi-Fi (IEEE 802.11b) products and with other products that
display the Wi-Fi mark.
• Difficult-to-wire environments
Enables networking in buildings with solid or finished walls, or open
areas where wiring is difficult to install.
• Frequently changing environments
Adapts easily in offices or environments that frequently rearrange or
change locations.
• Temporary LANs for special projects or peak time
Sets up temporary networks (such as at trade shows, exhibitions,
and construction sites), on a short-term basis; also provides an ideal
solution for companies that need additional workstations for a peak
activity period.
• SOHO (Small Office/Home Office) networking needs
Provides the easy and quick, small network installation SOHO
users need.
Product Specifications
Host Interface 32-bit PCI
Operating Temperature 32–185 degrees F (0–85 degrees C)
Storage Temperature -40–194 degrees F (-40–90 degrees C)
Humidity Max. 95% (non-condensing)

7
Overview
7
section
1
2
3
4
5
6
PCI Adapter
(a) PCI Connector
Part of the Adapter that fits into your computer’s PCI slot
(b) CardBus Slot
Slot to attach the Notebook Network Card’s CardBus connector
(c) Activity LED
Lights up and flashes when the Card is active
(d) Link LED
Lights up when the Card links to a wireless network
(e) CardBus Connector
Part of the Card that fits into your computer’s PCI slot
System Requirements
• PC-compatible desktop with one available PCI slot
• Windows® 2000 or XP
Package Contents
• PCI Adapter
• Wireless Pre-N Notebook Network Card
• Quick Installation Guide
• Installation Software CD
• User Manual
(a)
(b)
(c)
(d)
(e)

8
Installing and Setting Up the Card
8
Step 1 Install the PCI Adapter
1.1 Shut down your computer and disconnect your computer’s
power cord.
1.2 Remove the screws behind your computer case that secure the
computer cover and remove the cover.
1.3 Touch any metal part of the case to discharge static electricity, to
avoid damage to your product or the computer.
1.4 Locate an empty PCI expansion slot
(usually white in color). Confirm that
the Card will fit into the slot you
have chosen.
1.5 Remove the metal PCI bracket
from the back of the computer that
corresponds to the PCI slot you
selected. If there is a screw, place it
in a safe place, as you will be using it
to attach the Card to the
computer later.

9
Installing and Setting Up the Card
9
section
1
2
3
4
5
6
1.6 Push the Card firmly into the PCI
slot that you have chosen.
1.7 Now secure the Card with the
screw that you previously placed in
a safe place.
1.8 Replace the computer’s cover.
Now that the Card is installed, you
can reconnect the power cord, and
turn the computer back on.

10
Installing and Setting Up the Card
10
Step 2 Install the Software Drivers
IMPORTANT NOTE: Install the software before inserting the Card.
2.1 Insert the Installation Software CD into your CD-ROM drive.
2.2 The Belkin Wireless Client Utility Setup screen will automatically
appear (may take 15–20 seconds to appear).
Note: If the Wireless Client Utility Setup screen does not appear
within 20 seconds, access your CD-ROM by double-clicking on the
“My Computer” icon and double-click on the CD-ROM drive that the
installation CD has been placed in. Double-click on the folder named
“Files”, then double-click on the icon named “setup.exe”.
2.3 Click “Install Software” from the menu.
2.4 The installer will now start.
Click “Next” and follow the
on-screen instructions.

11
Installing and Setting Up the Card
11
section
1
2
3
4
5
6
2.5 You might see a screen similar
to this one. This DOES NOT
mean there is a problem. Our
software has been fully tested
and is compatible with this
operating system. Select
“Continue Anyway” and follow
the on-screen instructions.
Step 3 Plug the Notebook Card into an Available PCI Slot on
your Desktop
3.1 During the install process, you will
be prompted to insert your Card.
Insert the Card, label side UP, your
PCI Adapter’s CardBus slot firmly
until it stops. The power light
on the top will turn on when it is
inserted properly.
Note: If your system did not
prompt you to insert your Card
after the installation is completed,
please do so now.
3.2 You might see a screen similar
to this one. This DOES NOT
mean there is a problem. Our
drivers have been fully tested
and are compatible with this
operating system. Select
“Continue Anyway” and follow
the on-screen instructions.

12
Installing and Setting Up the Card
12
Step 4 Install the Wireless Client Utility
4.1 After the network card driver
installation is complete, click “Next”
to install the Wireless Client Utility.
4.2 The wizard will prompt you to choose
an installation location. Click “Next”
to accept the default location, or click
“Browse” to select a different location
before clicking “Next”.
4.3 Click “Finish” to start the Belkin
Wireless Client Utility.
4.4 A small Signal Indicator icon should
appear in your system tray (bottom
right corner of most screens).
Double-click on this to bring up the
Wireless Client Utility.
4.5 The compact Wireless Client Utility
screen will appear. Click on “More”
to open up the expanded view.

13
Installing and Setting Up the Card
13
section
1
2
3
4
5
6
4.6 Select a network to connect to by
double-clicking on a network from
the Network List.
Note: In order to see your available
networks, you must be near a
working wireless router or access
point. If using with the Belkin
Wireless Pre-N Router, connect to
the “Belkin_Pre-N_” SSID network
name. The network name may be
followed by six numbers, which are
specific to your router.
4.7 The Profile screen will appear to
save the settings to the network
selected. Click “Save & Activate”
to save the Profile and activate it.
4.8 The Signal Indicator icon should
appear green in your system
tray (bottom right corner of most
screens). The color of the icon
reflects the connection link: green
for good, yellow for weak, red if
it is not active, and a red X if the
radio is turned off.
Installation is now complete!

14
Using the Belkin Wireless Client Utility
14
How to Access the Belkin Wireless Client Utility
Double-click the Signal Indicator icon to bring up the Wireless Client
Utility. If the icon is not present, click on “Start > Programs > Belkin >
Belkin Wireless Client Utility”.
The following screen will appear.
Navigating the User Interface
Using the Compact View
(a) Signal icon
The signal icon on the left changes color according to current received
signal strength: green indicates an excellent signal, yellow indicates it is
acceptable, and red means there is no active signal.
(b) Display Mode
The Display Mode button alternates between the current Connection
Information Screen and the received Signal Strength Chart. The Signal
Strength Chart displays the signal strength of the Card for the last
60 seconds.
(c) More
The More button opens the expanded view that allows you to view and
configure more options of your Card.
(b)
(a)
(c)

15
Using the Belkin Wireless Client Utility
15
section
1
2
3
4
5
6
Using the Expanded View
(a) Network List
List all available networks; double-click on a network to connect.
(b) Show BSSID
Select this check box if you wish to see the MAC address of the
access point or router.
(c) Allow Roaming
Select this check box to move from one network to another without
changing the active network selection.
(d) Scan
Click this button to scan the available networks in your area.
(e) Create
You may create a new profile using this button.
(f, g) Save, Delete
You may save and delete networks from the Network List by using
these buttons.
(h) Edit
To edit a saved profile, use this button.
(i) Help
Click this button to link to the help files for assistance using this
Utility or any of the features.
(b)
(a)
(c)
(f, g)
(d)
(e) (h)
(i)

16
Using the Belkin Wireless Client Utility
16

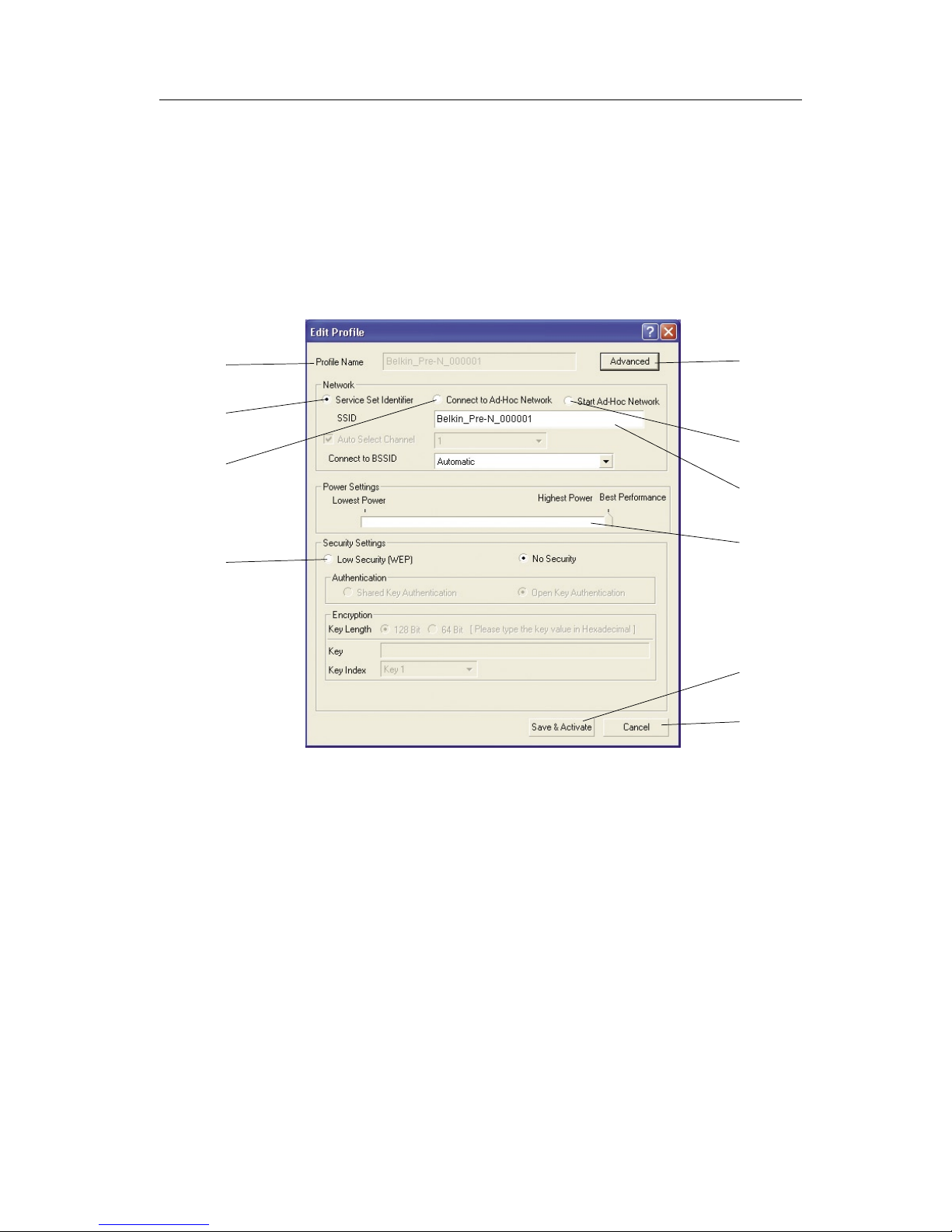

Setting Wireless Network Preferences
To create a new Wireless Network Profile, click on the “Create” button,
which will open up the “Profile” window.
(a) Profile Name
Enter a profile name of your choice for the new profile.
(b) Service Set Identifier
When this option is selected, then the Card will attempt to connect
to any available wireless router or access point in the area. Ad-hoc
networks will be excluded from the list of available networks when this
option is selected.
(c) Connect to Ad-Hoc Network
When this option is selected, the Card will attempt to connect to any
available computer in the area that is configured to be used in ad-hoc
mode. Wireless router(s) or access point(s) will be excluded from the list
of available networks when this option is selected.
(a)
(b)
(c)
(d)
(e)
(f)
(g)
(h)
(i)
(j)

17
Using the Belkin Wireless Client Utility
17
section
1
2
3
4
5
6
(d) Start Ad-Hoc Network
When this option is selected, the Card will create a new ad-hoc
network for any available computer in the area that is configured to
be used in ad-hoc mode to connect to this computer.
(e) SSID
Enter the SSID of the network you want to connect to or create.
(f) Power Settings
Drag the sliding bar to select a power level. Higher settings enable
the highest performance, lower settings draw less power from your
PC when you want to conserve battery power or when you are within
close range.
(g) Security Settings Box
The Security Settings box includes choices for configuring a secure
connection. Please see the “Securing your Wi-Fi Network” section of
this User Manual for information on setting up security for this Card.
(h) Save & Activate
Click “Save & Activate” to save the settings on this window.
(i) Cancel
Click “Cancel” to choose not to save any settings and exit
this window.
(j) Advanced
The Advanced button opens
the “Advanced Profile Settings”
window. These settings enable
you to take advantage of the
enhanced performance features
of the Belkin Router. We
recommended that you keep the
default “Auto” settings, because
they provide compatibility
with basic and enhanced data
rates and network density.
This window also allows you
to choose the transmit rate
between the Card and Router.

18
Using the Belkin Wireless Client Utility
18
Securing your Wi-Fi Network
Here are a few different ways to maximize the security of your wireless
network and protect your data from unwanted intrusion. This section is
intended for the home, home office, and small office user. At the time of
publication, three encryption methods are available.
Encryption Methods:
Name 64-bit Wired
Equivalent
Privacy
128-bit
Encryption
Wi-Fi Protected
Access
Wi-Fi Protected
Access
Acronym 64-bit WEP 128-bit WEP WPA-TKIP WPA-AES
Security Good Better Best Best
Features Static keys Static keys Dynamic key
encryption
and mutual
authentication
Dynamic key
encryption
and mutual
authentication
Encryption
keys based on
RC4 algorithm
(typically
40-bit keys)
Added security
over 64-bit
WEP using a
key length of
104 bits, plus
24 additional
bits of system-
generated data
TKIP (temporal
key integrity
protocol) added
so that keys
are rotated and
encryption is
strengthened
AES (Advanced
Encryption
Standard) does
not cause any
throughput loss.
WEP (Wired Equivalent Privacy)
WEP is a common protocol that adds security to all Wi-Fi-compliant
wireless products. WEP gives wireless networks the equivalent level of
privacy protection as a comparable wired network.
64-Bit WEP
64-Bit WEP was first introduced with 64-bit encryption, which
includes a key length of 40 bits plus 24 additional bits of
system-generated data (64 bits total). Some hardware manufacturers
refer to 64-bit as 40-bit encryption. Shortly after the technology was
introduced, researchers found that 64-bit encryption was too easy
to decode.
