Introduction
section
1
1
2
3
4
5
6
Thank you for purchasing the Belkin Wireless G Plus MIMO Desktop
Card (the Card). Now you can take advantage of this great new
technology and gain the freedom to network your home and office
computers wirelessly. This Card allows you to connect a desktop
computer to your network. The easy installation and setup will have
you networking wirelessly in minutes. Please be sure to read through
this User Manual completely, and pay special attention to the section
entitled “Placement of your Wireless Networking Hardware for Optimal
Performance” on page 2.
Benefits of a Home Network
Your Belkin Home Network will allow you to:
• Share one high-speed Internet connection with all the computers in
your home
• Share resources, such as files, and hard drives among all the
connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet email, and chat
Advantages of a Wireless Network
Here are some of the advantages of setting up a Belkin wireless network:
• Mobility – you’ll no longer need a dedicated “computer
room”— now you can work on a networked laptop or desktop
computer anywhere within your wireless range
• Easy installation – Belkin Easy Installation Wizards make
setup simple
• Flexibility – set up and access printers, computers, and
other networking devices from anywhere in your home
• Easy expansion – the wide range of Belkin networking products
lets you expand your network to include devices such as printers
and gaming consoles
• No cabling required – you can spare the expense and hassle
of retrofitting Ethernet cabling throughout the home or office
• Widespread industry acceptance – choose from a wide range
of interoperable networking products

Introduction
2
2
Placement of your Wireless Networking Hardware for
Optimal Performance
Your wireless connection will be stronger the closer your computer is to your
wireless router (or access point). Typical indoor operating range for your
wireless devices is between 100 and 200 feet. In the same way, your wireless
connection and performance will degrade somewhat as the distance between
your wireless router (or access point) and connected devices increases. This
may or may not be noticeable to you. As you move farther from your wireless
router (or access point), connection speed may decrease. Factors that can
weaken signals simply by getting in the way of your network’s radio waves are
metal appliances or obstructions, and walls.
If you have concerns about your network’s performance that might be related
to range or obstruction factors, try moving the computer to a position between
five and 10 feet from the wireless router (or access point) in order to see if
distance is the problem. If difficulties persist even at close range, please
contact Belkin Technical Support.
Note: While some of the items listed below can affect network performance,
they will not prohibit your wireless network from functioning; if you are
concerned that your network is not operating at its maximum effectiveness,
this checklist may help.
1. Placement of your Wireless Router (or Access Point)
Place your wireless router (or access point), the central connection point of
your network, as close as possible to the center of your wireless network
devices.
To achieve the best wireless network coverage for your “wireless clients,”
(i.e. computers enabled by Belkin Wireless Notebook Cards, Wireless Desktop
Cards, and Wireless USB Adapters):
• Ensure that your wireless router’s (or access point’s) antennas
are parallel to each other, and are positioned vertically (toward
the ceiling). If your wireless router (or access point) itself is positioned
vertically, point the antennas as much as possible in
an upward direction.
• In multistory homes, place the wireless router (or access point) on a floor
that is as close to the center of the home as possible. This may mean
placing the wireless router (or access point) on an upper floor.
• Try not to place the wireless router (or access point) near a cordless
2.4GHz phone.

3
Introduction
section
3
1
2
3
4
5
6
2. Avoid Obstacles and Interference
Avoid placing your wireless router (or access point) near devices that
may emit radio “noise”, such as microwave ovens. Other objects that
can inhibit wireless communication can include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that
objects such as these are not blocking the signal’s path between
your computers and wireless router (or access point).
3. Cordless Phone Placement
If the performance of your wireless network is impaired after attending
to the above issues, and you have a cordless phone:
• Try moving cordless phones away from the wireless router
(or access point) and your wireless-enabled computers.
• Unplug and remove the battery from any cordless phone
that operates on the 2.4GHz band (check manufacturer’s
information). If this fixes the problem, your phone may
be interfering.
• If your phone supports channel selection, change the
channel on the phone to the farthest channel from your
wireless network as possible. For example, change the
phone to channel 1 and move your wireless router (or
access point) to channel 11. (Your channel selection will
vary depending on your region.) See your phone’s user
manual for detailed instructions.
• If necessary, consider switching to a 900MHz or
5GHz cordless phone.

Introduction
44
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as
apartment buildings or office complexes, there may be wireless
networks nearby that can conflict with yours. Use the Site Survey
capabilities of your Wireless Networking Utility to locate any other
wireless networks, and move your wireless router (or access point) and
computers to a channel as far away from other networks as possible.
Experiment with more than one of the available channels, in order to
find the clearest connection and avoid interference from neighboring
cordless phones or other wireless devices.
For more Belkin wireless networking products, use the detailed Site
Survey and wireless channel information included in your User Manual.
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and password, and
are used where security is important. Secure connections include:
• Virtual Private Network (VPN) connections, often used to connect
remotely to an office network
• The “Bring Your Own Access” program from America Online (AOL),
which lets you use AOL through broadband provided by another
cable or DSL service
• Most online banking websites
• Many commercial websites that require a user name and password
to access your account
Secure connections can be interrupted by a computer’s power
management setting, which causes it to “go to sleep.” The simplest
solution to avoid this is to simply reconnect by re-running the VPN or
AOL software, or by re-logging into the secure website.
A second alternative is to change your computer’s power management
settings so it does not go to sleep; however, this may not be
appropriate for portable computers. To change your power management
setting in Windows, see the “Power Options” item in the Control Panel.
If you continue to have difficulty with Secure Connections, VPNs, and
AOL, please review steps 1–4 above to be sure you have addressed
these issues.
These guidelines should allow you to cover the maximum possible area
with your wireless router. Should you need to cover an even wider area,
we suggest the Belkin Wireless Range Extender/Access Point.
For more information regarding our networking products, visit our
website at www.belkin.com/networking or call Belkin Technical Support.

5
Overview
section
5
2
3
4
5
6
Product Features
The Card complies with the IEEE 802.11g standard in order to
communicate with other 802.11g-compliant wireless devices at
54Mbps. The Card is compatible with all 802.11g devices as well as
other 802.11b products at 11Mbps. 802.11g products operate on the
same 2.4GHz frequency band as 802.11b Wi-Fi® products.
• 2.4GHz ISM (Industrial, Science, and Medical) band operation
• Integrated easy-to-use Wireless Networking Utility
• PCI interface, for operation in virtually any desktop computer
• WPA, WPA2, 64-bit WEP (Wired Equivalent Privacy), or
128-bit encryption
• Wireless access to networked resources
• Support for both Infrastructure and Ad-Hoc (peer-to-peer)
networking modes
• Data rate of up to 54Mbps (802.11g), or 11Mbps (802.11b)
• Easy installation and use
• External antenna
• LED power and network link indicators
1

Overview
6
6
Applications and Advantages
• Wireless roaming with a laptop around the home or office
Offers the freedom of networking—without cables
• Connection rates of up to 54Mbps
Provides immediate wireless connectivity at home, work, and hotspot
locations without compromising the use of existing 802.11b and
802.11g products
• Compatibility with 802.11b products
802.11g wireless LAN solutions are backward-compatible with existing
Wi-Fi (IEEE 802.11b) products and with other products that display the
54g logo
• Difficult-to-wire environments
Enables networking in buildings with solid or finished walls, or open areas
where wiring is difficult to install
• Frequently changing environments
Adapts easily in offices or environments that frequently rearrange or
change locations
• Temporary LANs for special projects or peak time
Sets up temporary networks such as at trade shows, exhibitions, and
construction sites, which need networks on a short-term basis; also
companies who need additional workstations for a peak activity period
• SOHO (Small Office/Home Office) networking needs
Provides the easy and quick, small network installation SOHO
users need
Product Specifications
Host Interface: 32-bit PCI interface
Power Consumption: Continuous Tx: 350±10mA @ 802.11b
Continuous Tx: 320±10mA @ 802.11g
Continuous Rx: 360±10mA @ 802.11b/g
Standby: 200±10mA
@ 3.3VDC (max.)
Operating Temperature: 0 ~ 65°C
Storage Temperature: -20~85°C
Humidity: Operating Humidity: 10% to 85% Non-Condensing
Storage Humidity: 5% to 90% Non-Condensing
Typical Operating Range: Up to 1,000 ft. (304.8m)*
*Wireless performance may vary depending on the networking environment.

7
Overview
section
7
1
2
3
4
5
6
Overview
(a) Link/Activity LED
Lights up when the Card links to a wireless network and flashes when
the Card is active
(b) Card Connector
Fits securely into your computer’s PCI slot
(c) Two Antennas
System Requirements
• PC-compatible desktop computer with one available PCI slot and
CD-ROM drive
• Windows® 2000, XP, or VistaTM
• Mac OS® X v10.4.x
Package Contents
• Wireless G Plus MIMO Desktop Card
• Two Dipole 2 dBi Antennas
• Quick Installation Guide
• Installation Software CD containing User Manual
(c)
(d)

Installing and Setting up the Card
8
8
For users of Windows Vista, refer to the following installation steps:

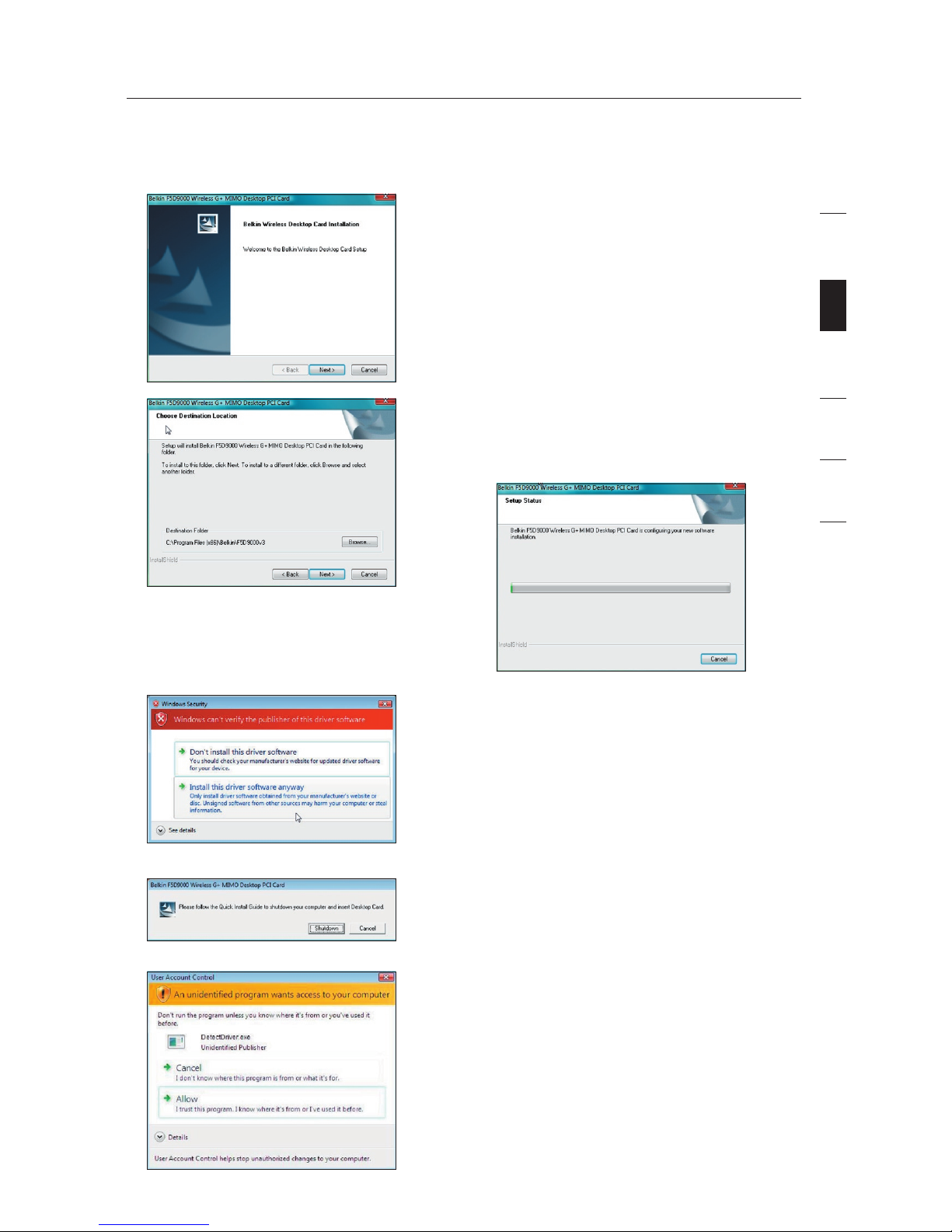

Step 1A Install
IMPORTANT: INSTALL THE SOFTWARE BEFORE INSERTING THE CARD.
1A.1 Insert the Installation Software CD into your CD-ROM drive.
1A.2 Select the “Run Installer.exe” option.
1A.3 You may see a window titled, “A program needs your
permission to continue”. Click “Continue”.
1A.4 Click “Next” to begin the installation process.

9
Installing and Setting up the Card
section
9
1
2
3
4
5
6
1A.5 Click “Next”.
1A.6 Select the location of the
installation. Click “Next”
to continue.
1A.7 A window may appear with the
message, “Windows can’t verify the
publisher of this driver software”
across the top. This is normal and
does not indicate a problem. Our
software has been fully tested and is
compatible with this operating system.
1A.8 When prompted, turn off
your computer and plug in
your Card.
1A.9 Depending on your computer’s
operating system version, a window
may appear with the message, “An
unidentified program wants access to
your computer” across the top. This
is normal and does not indicate a
problem. Our software has been fully
tested and is compatible with this
operating system. Please click “Allow”.

Installing and Setting up the Card
10
10

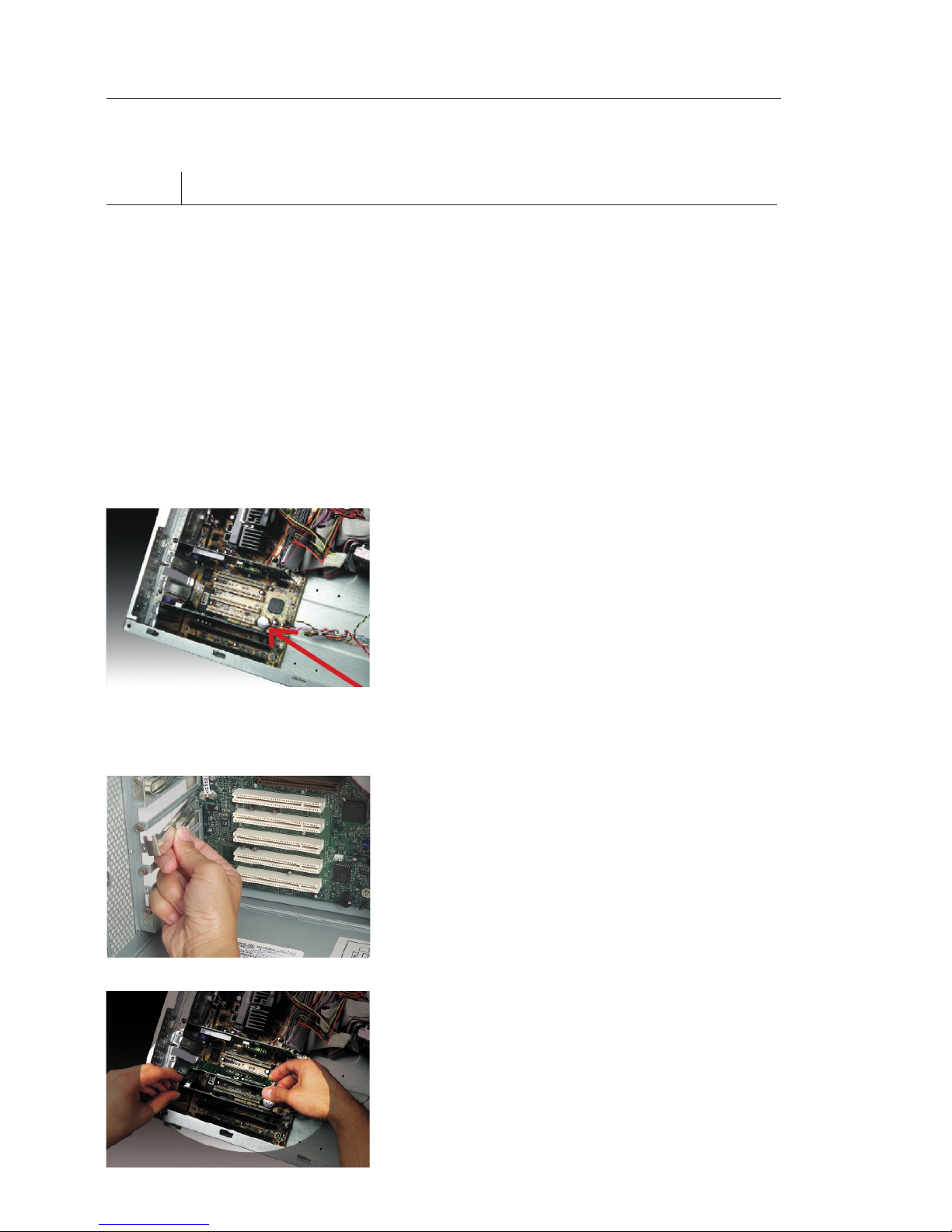

Step 1B Insert
Insert the Card into an Available PCI Slot on your Desktop Computer
1B.1 Shut down your computer and disconnect the power cord.
1B.2 Remove the screws that secure your computer case cover, and remove
the cover.
Note: Touch any metal part of the case to discharge static electricity to
avoid damage to the product or your computer.
1B.3 Locate an empty PCI expansion slot, usually white in color.
Confirm that the Card will fit into it. Keep in mind that the
included antenna needs to be oriented with the top pointing up. If
there are cables and other connectors in the way, choose the PCI
slot that has the fewest obstructions to the
correct positioning of the antenna.
1B.4 Remove the metal port cover from the
back of the computer that corresponds
to the PCI slot you selected. If there is
a screw, put it in a safe place, as you
will be using it to attach the Card to the
computer later.
1B.5 Push the Card firmly into the PCI slot
that you have chosen. Apply pressure
as needed until the connector is
fully seated.

11
Installing and Setting up the Card
section
11
1
2
3
4
5
6
1B.6 Now secure the Card with the screw that you previously put aside.
1B.7 Carefully screw the antenna onto the threaded connector on the
Card. Turn the antenna until it is vertical, pointing up.
1B.8 Replace the computer’s cover. Now that the Card is installed, you
can reconnect the power cord and turn the computer back on.
1B.9 Depending on your computer’s
operating system version, the “Found
New Hardware Wizard” might appear
within 3–15 seconds. If it does,
continue to follow the prompts.
Select “Locate and install the driver
software” to continue.
1B.10 You might see a screen similar to
the one pictured below. This DOES
NOT mean there is a problem. Our
software has been fully tested and
is compatible with this operating
system. Select “Install this driver
software anyway” and follow the
on-screen instructions.
1B.11 Next, a screen appears indicating
that hardware installation is taking
place; then, another indicates that
the process is complete.
1B.12 Click “Finish” to complete the
installation.

Installing and Setting up the Card
12
12
Step 1C Configure
Connect to a Network

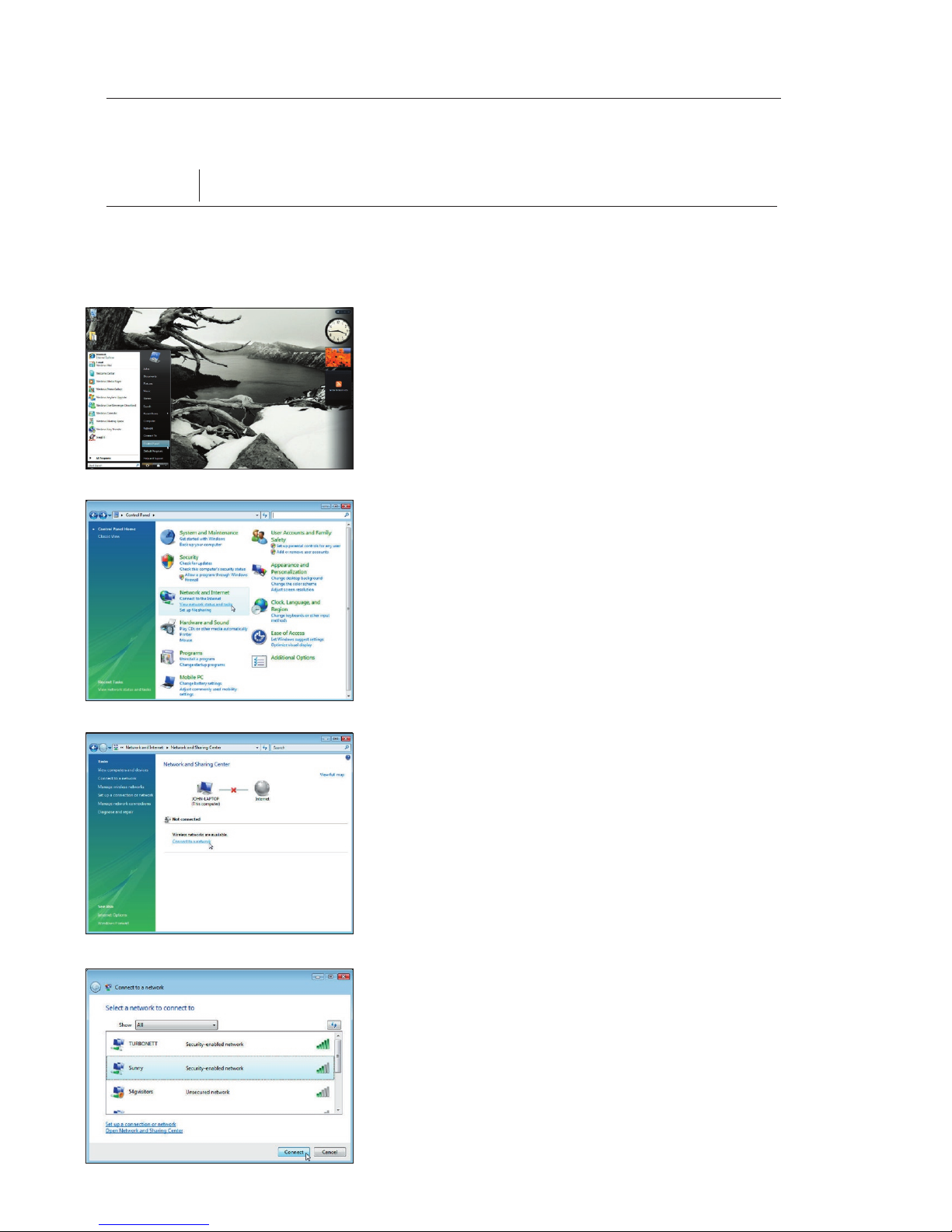

1C.1 To connect to the Internet, open the
Network and Sharing Center by first
opening the Control Panel from the
“Start” menu.
1C.2 In the Control Panel, click on
“View network status and tasks”.
1C.3 In the Network and Sharing
Center, click on “Connect to a
network”.
1C.4 Select an available wireless
network and click “Connect”.

13
Installing and Setting up the Card
section
13
1
2
3
4
5
6

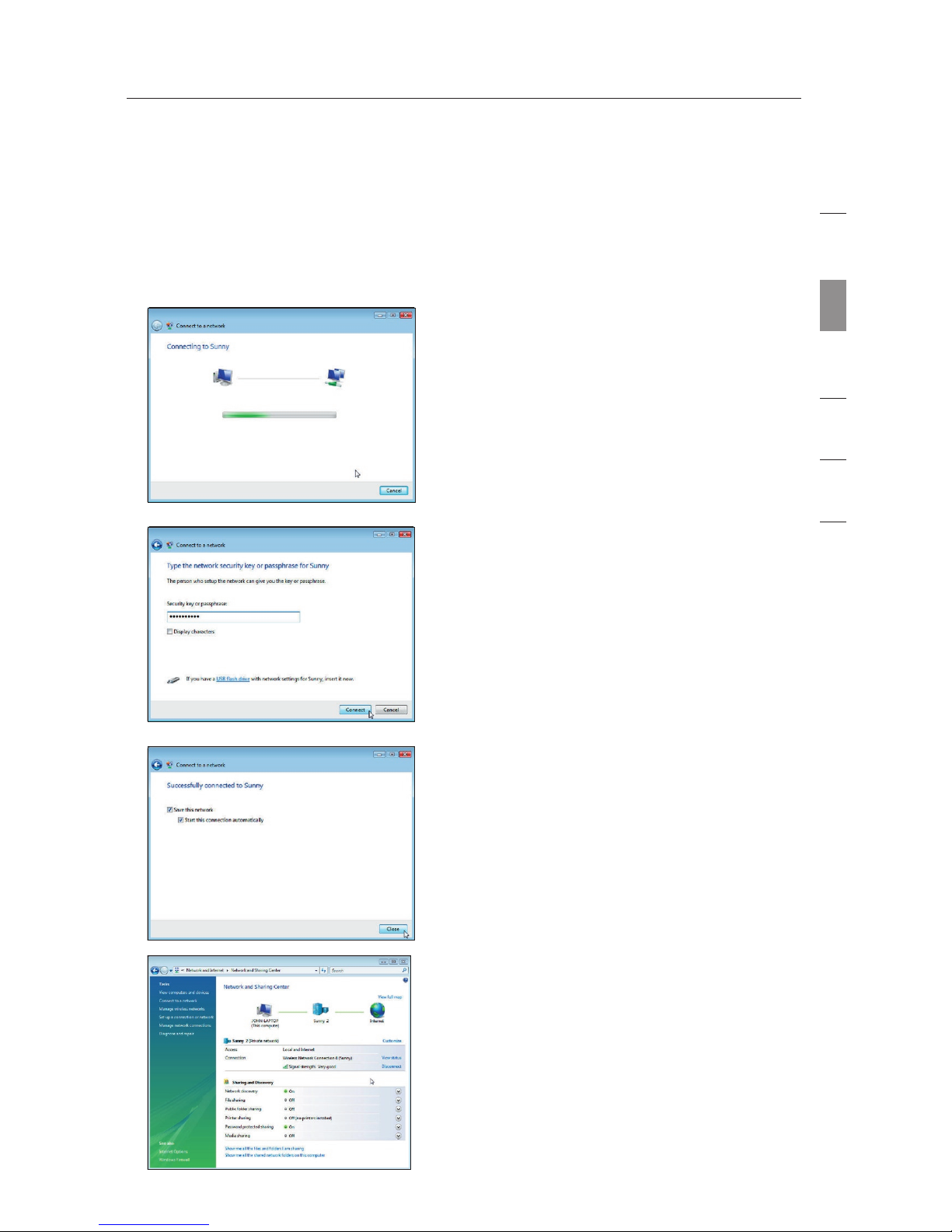

1C.5 Your Card will attempt to connect
to the selected network.
1C.6 Depending on the security settings
of your wireless network, you may
be prompted to enter in a network
security key or a passphrase. Click
“Connect” after you have done so.
1C.7 After connecting to the network,
you may choose to save this
network and connect automatically
once your Card is in range.
1C.8 The Network and Sharing Center
should now show the network
connection that you have just made.
The links on the left of the window
allow you to configure your network
connections.

Installing and Setting up the Card
14
14
For users of other Windows operating systems, refer to the installation
instructions below.
Step 2A Install
IMPORTANT: INSTALL THE SOFTWARE BEFORE INSERTING THE CARD.
2A.1 Insert the Installation Software CD into your CD-ROM drive.
2A.2 The Belkin Wireless Card Installer
screen will automatically appear.
(This may take 15–20 seconds.) Click
“install” to start the installation.**
Note: If the Belkin Wireless
Networking Utility screen does not
appear within 20 seconds, access
your CD-ROM by double-clicking
on the “My Computer” icon; then,
double-click on the CD-ROM drive
into which the installation CD has
been placed. Double-click on the
folder named “Files”, then double-
click on the icon named “setup.exe”.
2A.3 The InstallShield Wizard will now
start. Click “Next” to continue.

15
Installing and Setting up the Card
section
15
1
2
3
4
5
6
2A.4 The first in a series of progress-
monitoring screens will let you
know where you are in the setup
process. Click “Next” to install in the
recommended destination folder.
2A.5 You might see a screen similar
to this one. This DOES NOT
mean there is a problem. Our
software has been fully tested
and is compatible with this
operating system. Select “Continue
Anyway” and follow the on-screen
instructions.
2A.6 The dialogue box will ask to shut
down the computer and insert
the Desktop Card. Click the
“Shutdown” button to shut down
your computer.

Installing and Setting up the Card
16
16

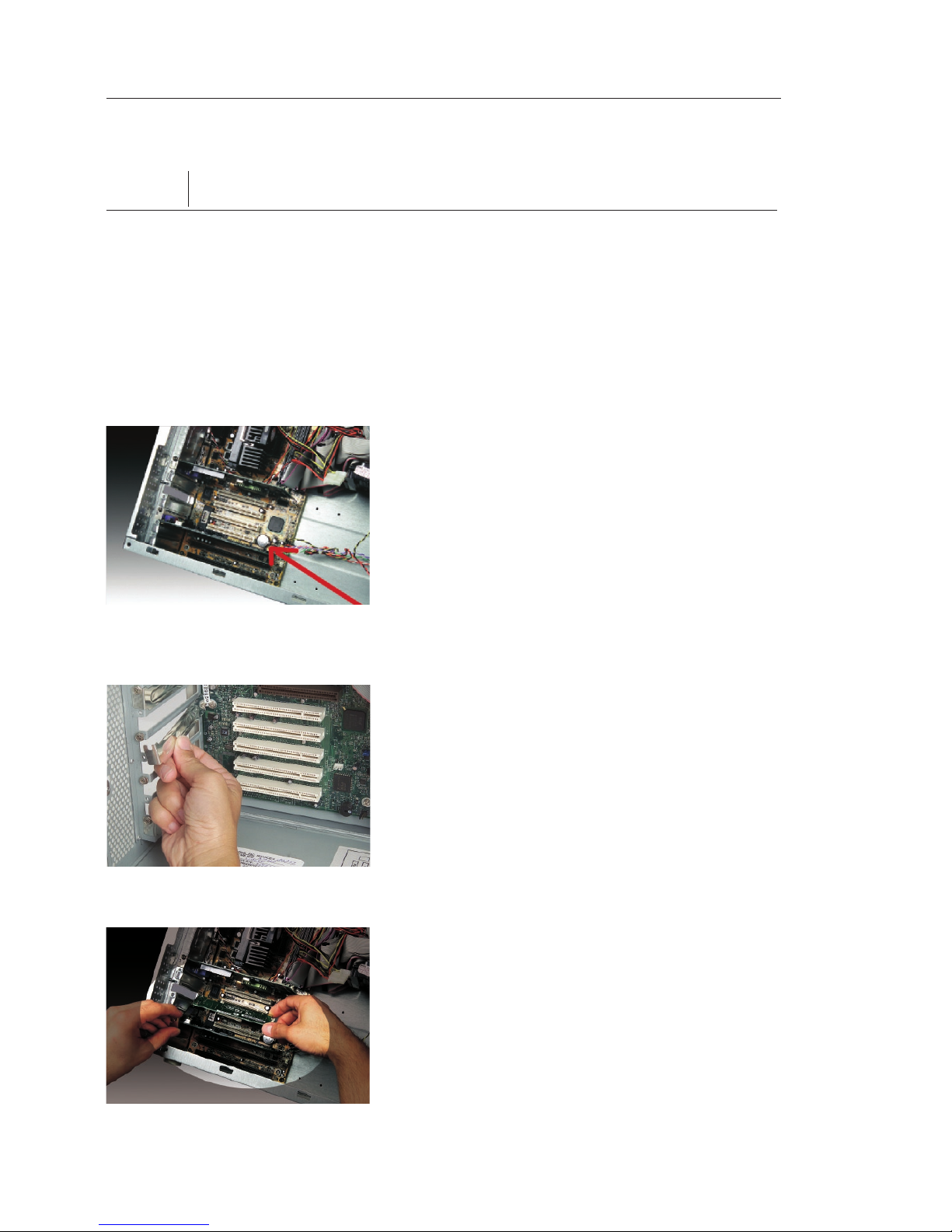

Step 2B Insert
Insert the Card into an Available PCI Slot on your Desktop Computer
2B.1 Shut down your computer and disconnect your power cord.
2B.2 Remove the screws behind your computer case that secure the
computer cover and remove the cover.
Note: Touch any metal part of the case to discharge static
electricity to avoid damage to the product or your computer.
2B.3 Locate an empty PCI expansion
slot. It is usually white in color.
Confirm that the Card will fit into
the slot you have chosen. Keep
in mind that the included antenna
needs to be oriented with the top
pointing up. If there are cables and
other connectors in the way, try
to pick the PCI slot that has the
fewest obstructions to the correct
positioning of the antenna.
2B.4 Remove the metal port cover from
the back of the computer that
corresponds to the PCI slot you
selected. If there is a screw, put it
aside in a safe place, as you will be
using it to attach the Card to the
computer later.
2B.5 Push the Card firmly into the PCI slot
that you have chosen. Apply pressure
as needed until the connector is fully
seated.
2B.6 Now, secure the Card with the screw
that you put aside.

17
Installing and Setting up the Card
section
17
1
2
3
4
5
6
2B.7 Carefully screw the antenna onto the threaded connector on
the Card. Turn the antenna until it is vertical, pointing up.
2B.8 Replace the computer’s cover. Now that the Card is installed,
you can reconnect the power cord and turn the computer back
on.
2B.9 After reboot, the system will detect
the new hardware. Click “No, not
this time” and “Next” to continue.
2B.10 Depending on your operating system
software, you might see a screen similar
to this one. This DOES NOT mean there
is a problem. Our software has been fully
tested and is compatible with this operating
system. Select “Continue Anyway” and
follow the on-screen instructions.

Installing and Setting up the Card
18
18
2B.11 Click “Finish” to complete the
software installation.
2B.12 Click “Finish” to end the
installation process.
